SPECIFICATIONS
Brand Name: ZJCGO
Frames Per Second: 30
Origin: Mainland China
Chipset Manufacturer: Novatek
Assembly Mode: Hidden Type
Cable Length: 1.5~5M
APP Compatibility: TimaCam
View angle: 170
Number Of Lenses: 2
Accessories: Adapter cable
Screen Ratio: NONE
Interface: AV-Out
Interface: WI-FI
Interface: Micro SD/TF
NightShot Function: YES
Power Source: Corded Electric
Video Code: H.265
Weight: 0.6KG
Battery Life: 24 hours
Original Package: YES
Loop-Cycle Recording Feature: YES
Audio Recorded: YES
Camera Resolution: 3840x2160
Warranty: one year
Special Features: G-Sensor
Special Features: digital zoom
Special Features: sd/mmc card
Special Features: Anti Surge Voltage Impact
Special Features: waterproof
Special Features: Anti Fog
Special Features: Anti Vibration
Special Features: Real Time Surveillance
Special Features: Automatic White Balance
Special Features: Wide Dynamic Range
Special Features: wifi function
Special Features: Parking Monitor
Special Features: 3D DNR
Built-in Screen: No
Battery Type: No
Video Format: AVI
Video Format: MOV
Video Format: MPEG-4
Video Format: TS
Video Format: MP4
Touch Screen: No
Data Storage Capacity: 256GB
Aperture: F1.6
Item Type: Car DVR
GPS logger: Internal
Battery: None
Maximum Video Frame Rate: 30Hz
Display Size: NO
Input/Output: RCA
Battery Capacity: NO
Certification: CE
Memory Card Required Reding Speed: Class 10
Working Temperature: 20
Imaging Sensor: Sony IMX335
OSD Language: Belarusian
OSD Language: Chinese (Simplified)
OSD Language: English
OSD Language: RUSSIA
OSD Language: Russian
Pixels: 1800Mega
Rear Camera: YES
Max External Memory: 256G
Please contact customer service to confirm the model when purchasing
We have to provide buyers with the right products, because the same car brand in different countries may have some difference. If you don't know which model is for you，so please contact our customer service or send some pictures about you car and year in the order,Please send us your rearview mirror photos, left, right, and rear side photos, and we will answer you.
Suitable vehicle type:
for Ford Escape 2013–2019
for Ford Kuga 2013–2019

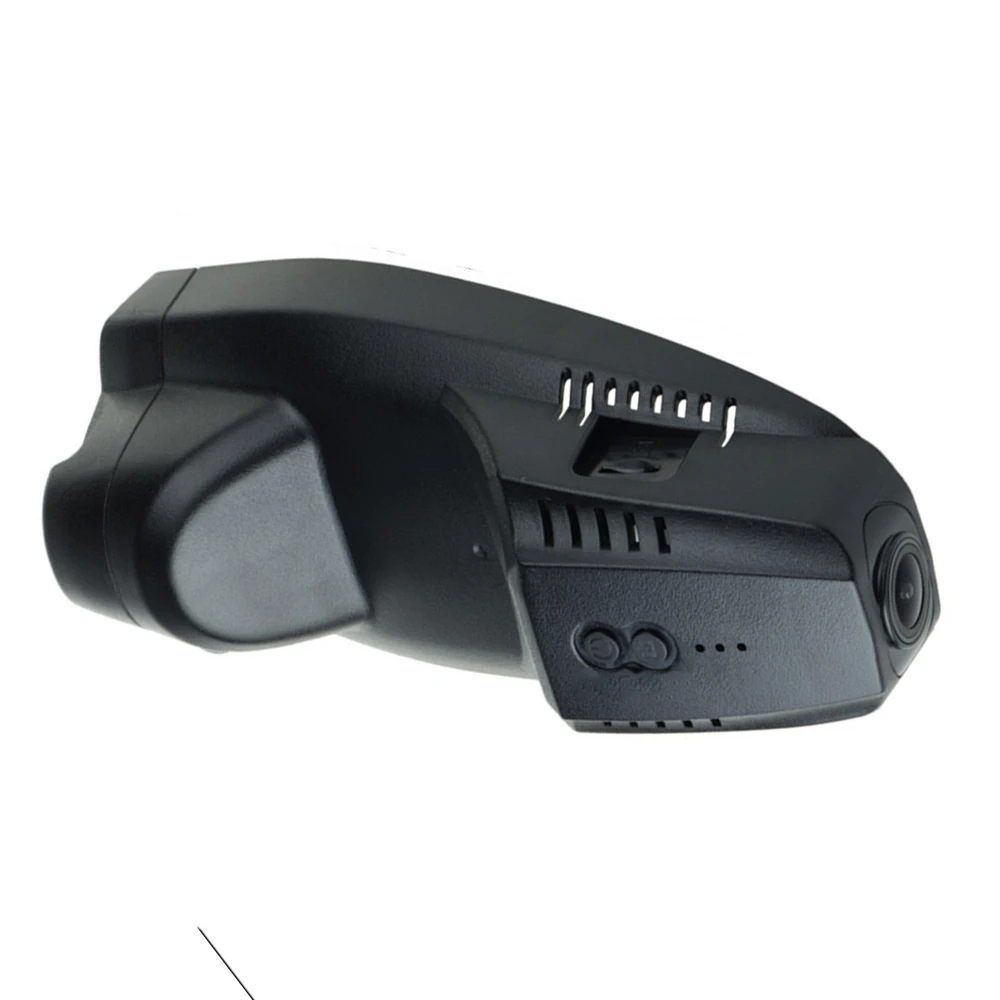

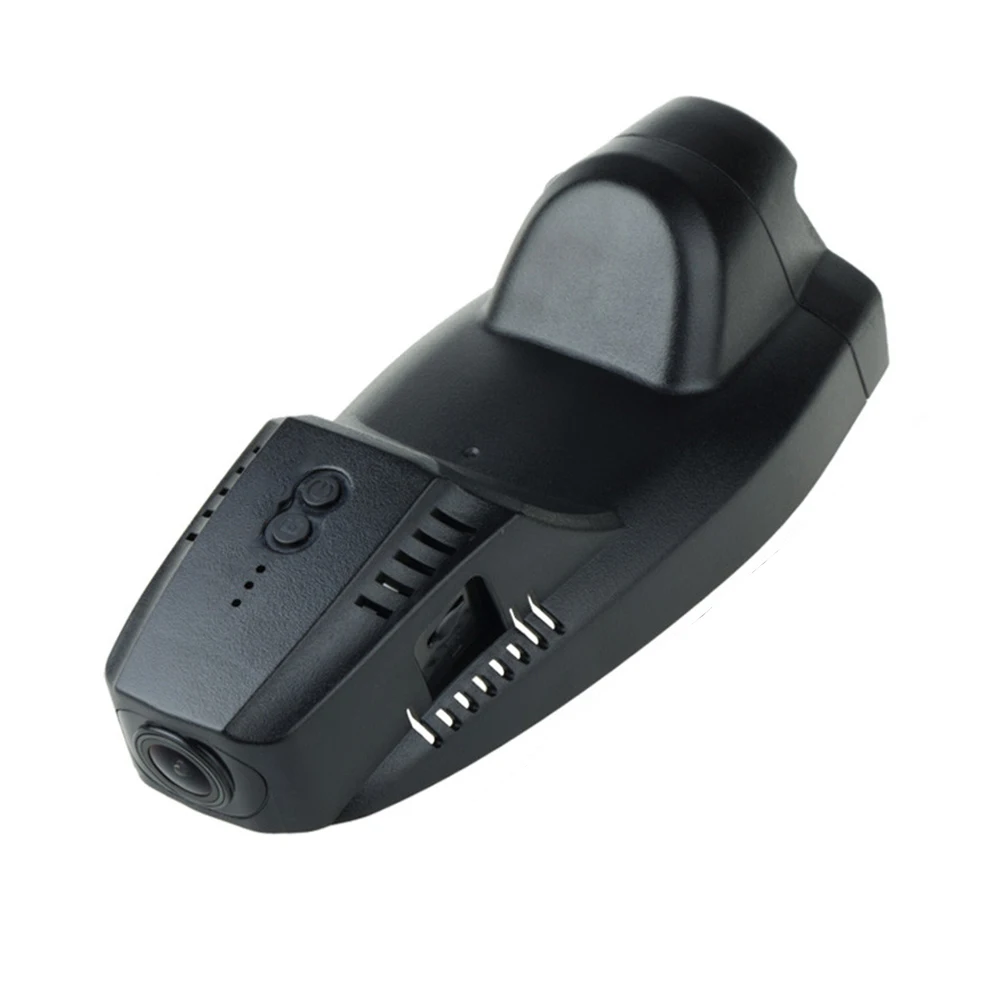

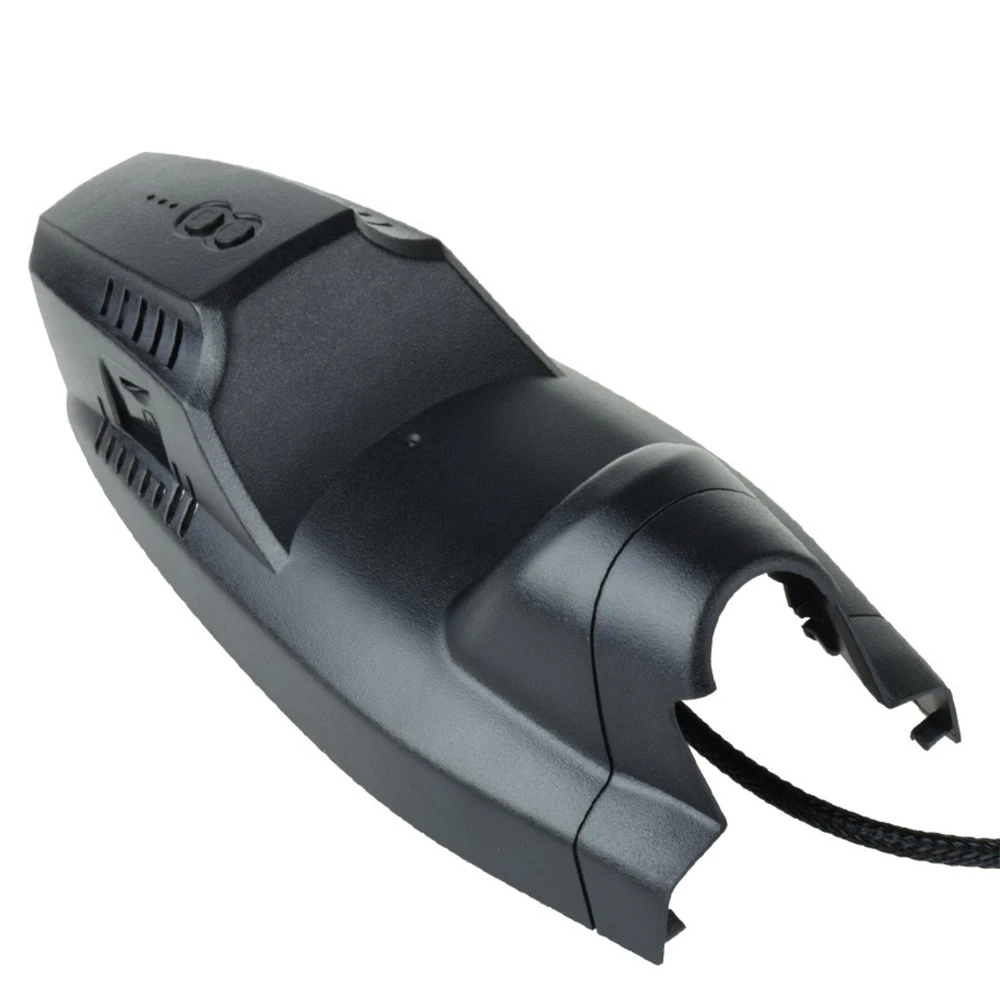

New Plug and Play Car Dvr Dash Cam Easy to install
Note:(Default sending standard ACC power cord)
If you need a rain sensor or reading light power cord, please send a picture of the rain sensor or reading light plug after placing the order to avoid sending the wrong rain sensor or reading light power cord
The New Plug and Paly Car Dvr Dash Cam can be pluged to the rain sensor or reading light of the original car to take electricity.It is easy to install. Inserted without damage, no wiring is required, and it maintains the original car style after installation.
The traditional installation is complicated and the wiring method is troublesome. So you may need to find a professional person from an automobile repair shop to install it. Now the car DVR with rain sensor or reading light power cable is plug and play ,and easy to install.
The rain sensor cable only be used for 50% of specific car modelsif.you need the Rain Cable , please send us your rain sensor interface photo , then we can check it.
Specifications:
Recording Function: Continuous Loop Record Open or Close
Sensor: SONY IMX335 (18 Mega Pixels) / Novatek 96675
Camera Angle: 170 Degree Wide-Angle
White Balance: Automatic
Night-Vision: Low Illumination Working
WDR: Support
Wifi: Support
Video Coding Format: H.265 Video Coding/HD MOV Format
Front Camera Video Resolution: UHD 2160P, (3840*2160)
Rear Camera Video Resolution: UHD 1080P (Optional)
Frames Per Second: 30(one lens)/30(dual lenses)
Language: English/Chinese
Loop Video Clip: 3/5/10 Minutes Optional
Tape Function: Open/Close
Gravity Sensing: 3-axis Solid Collision Acceleration Transducer
Memory: TF Card 8-256GB(C10)
Seamless Video: Support
Loop Video Playback: Support
OSD Language: English, Japanses, Franch, Spanish, German, Portuguese, Italian, Traditional Chinese, Simplified Chinese
APP Language: English, Simplified Chines
Smart chip performance
New upgrade NOVATEK flagship dual-core chip 96670
Powerful performance, built-in IPS, no crash, no second leakage
Quick boot in 0.5 seconds
H.265 video coding
Revolutionary clarity coding breakthrough
HEVC /H.265 video coding 50% better than H.264 video encoding performance
Make the image details richer,and the color details are more realistic
About Memory Card
1. The dash cam supports standard Micro SD cards.
2. When you insert a new card into the machine, please format the card on the Dash Cam before you use it.
You can find the Format option on the menu of Dash Cam.
3. The memory card may become damaged or deteriorated after repeated cycles of overwriting,
When DVR is working, it is reading and writting data on memory card all the time, so it needs high quality original memory card. In order to have a happy shopping, we highly recommend you to buy memory card from us.
Support 24 hours parking video
Two wiring methods
1: Use the standard ACC power cable to connect to the car fuse box, support 24-hour parking video, and protect your car 24 hours a day.
2: If you use the easy cable connection, when the car is turned off, the reading light or the rain sensor box will be powered off, so it cannot support 24-hour parking video
Installation:
1.Follow the manual of your car or search the information from internet to find your car
fuse box ,open the box with the plastic pry tool (if you have to use it ).
2.Use the electro probe ,find the ACC power fuse and Constant power fuse ,we
recommend you use reading lamps , headlights, tail lamps , turn signals, power windows
fuse to supply for the Constant power (if they are constant power fuse ).
ACC power: When you plug your car key then turn it to ACC ,the power will work .if you
turn your car Key to Lock or unplug your car ,the power will be off .Connect the red wire
(ACC) with the ACC power fuse .
Constant power : plug or unplug your car key ,the power is uninterrupted .Connect the
yellow wire ( B+ ) with the Constant Power fuse .
3.For some cars ,you have to cut the wires , refit them then connect them with the car
fuses .Then plug the fuse to where it is .The GND wire (black ) to connect it with steel
plate or screw .
4.Connect the car DVR with the wires ,then turn your car key to ACC ,test the car DVR
can work or not .Connect your smart phone with the car DVR via WiFi ,open the app as
FinalCam to manipulate the car DVR and find the best installation position .
5.Tthen fix the wires ,finish the installation , feel at ease to use .
21 reasons to choose a hidden WIFI recorder:
1. The original appearance of the original car (created in the original car style, dedicated car, more concise and more beautiful)
2. Reduce hidden danger (no battery, avoid explosion, do not block the original car anti-glare rearview mirror)
3. Upgrade of the original car (non-destructive installation, does not damage any lines of the original car, does not affect the vehicle warranty)
4. Hidden wiring (avoid cluttered wires, affecting the neatness and beauty, and not occupying the USB port of the car charger)
5. Car temperature resistance (using low power consumption components, excellent heat dissipation, temperature resistance -20℃-+80℃)
6. Environmental protection shell (using environmental protection material ABS+PC fireproof material, meeting EU standards)
7. APP screen display (no screen wins with screen)
8. Ultra-high configuration (high-end 2160p full hd Hidden Wifi Dash Camera professional-grade photosensitive camera, excellent recording effect)
9.6 glass lens (the first layer shrinks light, the second layer corrects light, the third layer blocks clutter, the fourth layer improves penetration, the fifth layer corrects color, and the sixth layer improves sharpness)
10. Super high-definition (recording resolution 2160p full hd Hidden Wifi Dash Camera 30fps, high-definition night vision enhancement, you can also shoot large movies)
11. Loop recording (H.265 lossless pressure loss, seamless loop coverage of video, no missing detection, no exposed seconds)
12. Super wide-angle (170° super wide-angle, bring us a comprehensive and safe visual experience, so that the view is unobstructed)
13. Super stable (10 years + imaging solution and high configuration hardware)
14. Super long life (dual-core processing chip + peripheral original brand components)
15. Intelligent interconnection (built-in 2.4G ultra-high-speed image transmission WIFI module, wireless connection to mobile phones)
16. Custom APP (customized intelligent control system, suitable for IOS and Android dual system operation)
17. Network sharing (mobile phone APP operation, 0 traffic download, playback, network sharing pictures, videos)
18. Simple installation (The installation is connected with wiper, or reading lamp, or OBD. If you have special needs, please leave us a message, the installation is safer and simpler)
19. Dynamic adjustment (super software algorithm, automatically adjust the image effect under strong light or extremely dark state)
20. Rear-view rear view (optional after-recording camera, to achieve front and rear high-definition dual recording and reversing image function, rear-view is optional, you can place an order according to personal needs)
21. The market just needs (for your safety and theirs, please choose a high-quality driving recorder installed on the car, if a special situation occurs, it will help you record it as your evidence and protect your safety)
About Taxes:
The item price is not including any taxes or charges locally, if the parcel get stuck at local customs, buyer need to contact the customs and do the customs clearance. We won't bear the customs taxes or any fees caused by custom or buyer reject package.
About Feedback
1. If any questions, please contact us in advance, we will help you solve it at the first time.
2. If you are satisfied with our items, please leave a 5 star feedback on website to help others to know the items more.
Appreciate your kind feedback and support.
About After-sales:
1.Our store provides a one-year product warranty. If the product has quality problems within one year, we will provide you with free replacement parts. If it is confirmed that it cannot be repaired, we can replace you with a new product for free.
2.For damage caused by accident, misuse or modification, if replacement parts are required, the buyer is responsible for part cost and shipping.
3.For non-quality returns, if you prefer to get a full refund, you can apply for a return within 15 days of receiving the goods, and the buyer is responsible for the return shipping.
