SPECIFICATIONS
Brand Name: YATOUR
Origin: Mainland China
Resolution: 800* 480
OSD Language: English
Out Power: 45w
Material Type: alloy
Install Size: 1 Din
Special Features: MP3 players
Item Size: 8*6*5cm
Model Name: YTM06-TOY27
Radio Response Bandwidth: na
Computer Memory Size: 256
Voltage: 12V
Item Weight: 0.2
Color: Black
Display Size: 2.5"
For: for 2005-2012 Toyota/Lexus/Scion models
Compatible: sd/usb/aux
digital media format: mp3
Introduction:
This is an Audio car kit.It is a replacement of CD changer. It can be easily installed and used. The installation and usage are the same as CD changer's installation and usage, Simply plug in USB disk/SD card, you can play audio through car audio system and enjoy music in your car.After conneted with optional Bluetooth module kit,it integratesbluetooth hands free phone call and stream mobile phone’s A2DP music playback into car stereo system

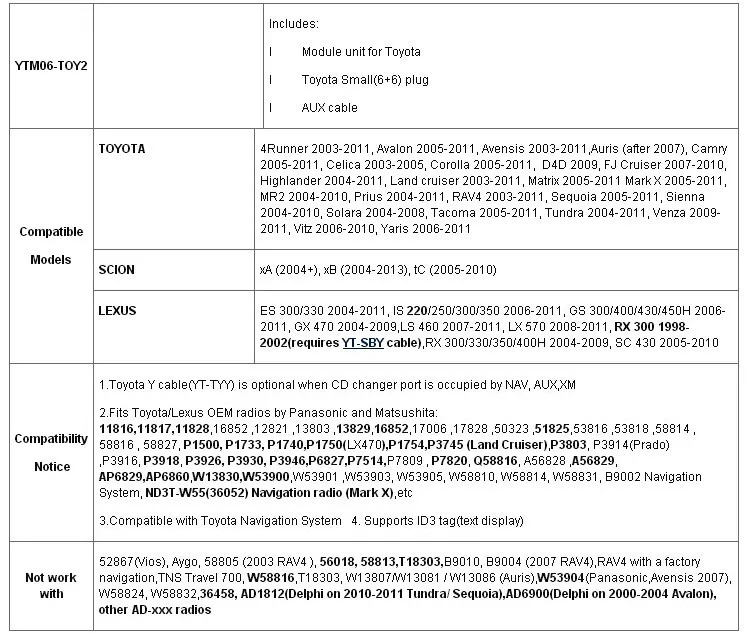

Works with the following vehicles:
Note:If the CD changer port of your radio is occupied, you need to buy a Y cable (YT-TYY) to bridge,you can buy in the following optional.
Installation video:youtube.com/watch?v=CTTTH5uUaVU
Soud quality show: youtube.com/watch?v=NGa1pdts3Fs
Installation video for RX300/Harrier 1998-2002:youtube.com/watch?v=V39lCmyTQDE
Key Features:
• Plug&play, modular design,CDC alternative
• Connected with wire harness, not FM signal controlled ,Hi-Fi guanranteed
• Controlled by vehicle Head Unit,support Steering wheel operation
• With Hi-Fi Decoding Chip,perfectly support MP3 and WMA tracks
• Supports SD/SDHC/MMC card/U Disk/Card Reader/Hard Disk
• Supports external audio source(MP4 PSP Mobile Phone) via AUX in port
• Playlist function same as multi CDs
• Supports Last Position Memory(LPM)
• Vibration and interference proof
• Easy to install,no damage to original car decoration
• Different module firmware versions for different types of protocol of car stereos
• With BT slot for additional Bluetooth hands-free kit(Opitional).
Specification:
• Voltage input:12v DC
• Signal-to-noise:95DB
• Max.Current:600MA
• Max. voltage output:12v
• D/A Device :24BIT 192KHZ
• Total Harmonic Distortion:0.01%
• Frequency Response:20HZ-20KHZ
• Working Temperature:-10C-80C
• Module case in made of aluminium alloy
• Module unit: 94 x 66 x 16mm
• Packing box: 132 x 50 x 215mm
• Net weight: 80g;
• Gross weight:300g;
• 50units/big carton
Operation is simple
• Transfer your MP3 / WMA to USB stick / disk / SD/MMC card / drive
• Connect this Car Digital Music Changer to your car stereo via CD changer port
• Plug-in USB disk / stick / SD/MMC card / drive into your Car Digital Music Changer
Compatible with Storage Devices
• Most USB disk / flash drive / stick / mass storage devices / external harddrive
• SD/SDHC/ MMC Card /Card reader
• Any MP3/MP4/PSP/GPS/Mobile Phone/DVD player via AUX Port

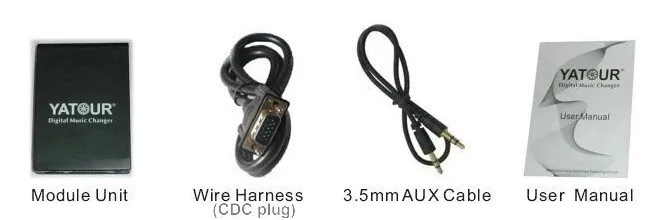

Includes:

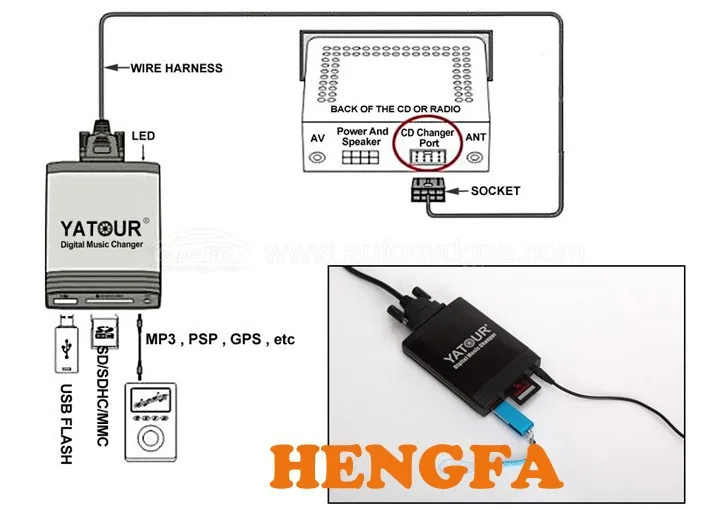

How does it work?

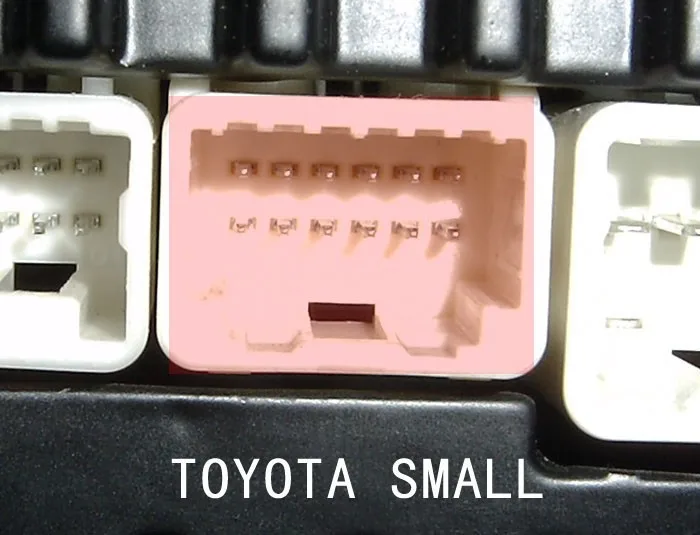

The Radio Panel:
Important Installation Information:
Your car head unit should be CD changer capable. This device is applied to orignal car audio equiptment or upgraded car audio equiptment with supporting digital music changer ports only , furthermore , same brand car with different model should use individual digital music changer . Each car use specific device . More options coming soon available for your choice .The in-dash CD changer will remain working, but external CD changer are switchable by a switch on the wire harness.
If your car isn't listed here, we also have a large stock of iPod adapters for many other vehicles. Please send us a message stating your requirement and we'll do our best to assist.
If you are unsure as to whether this adapter is suitable for your vehicle, please feel free to ask before purchasing.
Installation Guidance for Digital Music Changer(YT-M06):
1. Turn off car engine and remove key from ignition, If your radio uses a Security Code, make sure that you have the code before unplugging the radio.
2. Unmount the radio from the dash ,disconnect car battery power , find CD Changer port at the back of the radio and disconnect CD changer plug.
3. Attach the wire harness connector to the back of the stereo to the CD changer port. Be sure to make a firm connection but do not force it.
4. Disconnect the battery for minutes or remove the fuse to reset the car audio system.
5.Once the Yatour is connected to the radio, you will need to test the operation of the interface before re-assembling the dash. Insert SD card or USB flash stick, and power on the Head Unit, then press CD (or Disc / Mode / CDC / SOURCE / AUX) button for once or twice to switch to playback mode of Digital Music Changer, with the symbol of LED light being on. Meanwhile, CDC, EX, or CD01 will display on the radio screen(depending on the car stereo type). Now the Digital Music Changer will run normally.

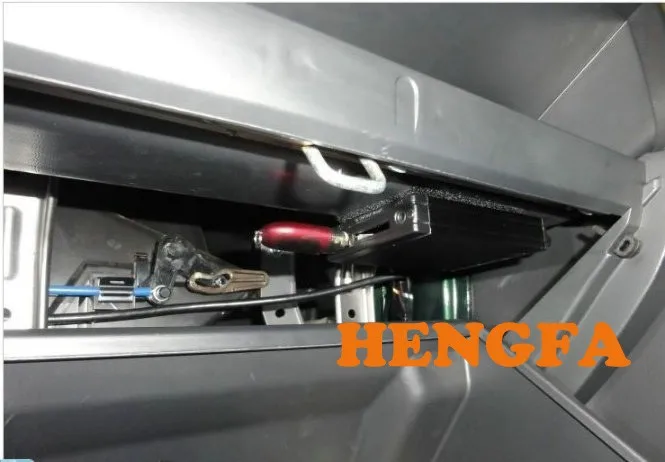

6. After successful test, re-assemble the radio, and put wire harness and module unit box in proper place. Then installation is completed.
Supported memory cards and USB sticks:
1.Max 8GB (2GB is most recommended);SD card is more recommended than USB stick.
2.Please format USB stick or SD card with FAT16 or FAT32 format before you save files and folders in USB/SD.
3. Imposed folder naming system: CD01, CD02, CD03 ....
Doesn't read sub-folder and gets confused with other names in root of the drive.
4.Supports up to 15 folders (depending on the radio type) on your USB/SD.
5.Any number of songs can be stored in each folder, but the display of most radio models can only screen 99 track titles; Saving too big file(over 50MB) in any folder may also cause intermittent performance
6.Using music files formats other than WMA and MP3 may also cause intermittent performance.
7. The playback order of songs is in line with their created date.
8.Sometimes,to remove defect on software of car audio system, you may need to disconnect the battery or remove the fuse to reset the car audio system.
9.To use the Aux-In port, it's necessary to remove the USB or SD card.
10.YT-M06 may does not work with some of new Kingston brand USB stick.
