SPECIFICATIONS
Brand Name: YATOUR
Origin: Mainland China
Resolution: 800x480
OSD Language: English
Out Power: 20HZ-20KHZ
Material Type: aluminum alloy
Install Size: 1 Din
Special Features: MP3 players
Item Size: 92x65x16.5
Model Name: YTM06-TOY2
Radio Response Bandwidth: NA
Computer Memory Size: 8G
Voltage: 12V
Item Weight: 400
Color: Black
Display Size: 2.5"
Certification: CE FCC
Special Features: MP3/WMA Players
Place of Origin: Guangdong, China (Mainland)
slot: SD USB AUX IN BT
YTM06-TOY2 |

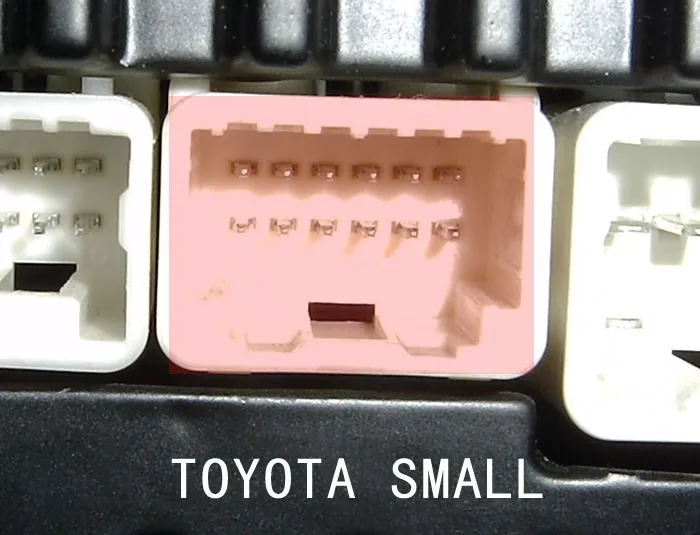

Includes: l Module unit for Toyota l To yota Small(6+6) plug with MP3/CDC switch l AUX cable |
||
|
Compatible Models |
TO YOTA |
4Runner 2003-2011, Avalon 2005-2011, Avensis 2003-2011,Auris (after 2007), Camry 2005-2011, Celica 2003-2005, Corolla 2005-2011, FJ Cruiser 2007-2010, Highlander 2004-2011, Land cruiser 2003-2011, Matrix 2005-2011, MR2 2004-2010, Prius 2004-2011, RAV4 2003-2011, Sequoia 2005-2011, Sienna 2004-2010, Solara 2004-2008, Tacoma 2005-2011, Tundra 2004-2011, Venza 2009-2011, Vitz 2006-2010, Yaris 2006-2011 |
|
SCION |
xA (2004+), xB (2004-2013), tC (2005-2010) |
||
LEXUS |
ES 300/330 2004-2011, IS 220/250/300/350 2006-2011, GS 300/400/430/450H 2006-2011, GX 470 2004-2009,LS 460 2007-2011, LX 570 2008-2011, RX 300 1998-2002(requires YT-SBY cable),RX 300/330/350/400H 2004-2009, SC 430 2005-2010 |
||
|
Compatibility Notice |
1.To yota Y cable(YT-TYY) is optional when CD changer port is occupied by NAV, AUX,XM 2.Fits Toyota/Lexus OEM radios by Panasonic and Matsushita: 11816,11817,11828,16852 ,12821 ,13803 ,13829,16852,17006 ,17828 ,50323 ,51825,53816 ,53818 ,58814 , 58816 , 58827, P1500, P1733, P1740,P1750(LX470),P1754,P3745 (Land Cruiser),P3803, P3914(Prado) ,P3916, P3918,P3926, P3930, P3946,P6827,P7514,P7809 , P7820, Q58816, A56828 ,A56829,AP6829,AP6860,W13830,W53900,W53901 ,W53903, W53905, W58810, W58814, W58831, B9002 Navigation System, etc 3.Compatible with Toyota Navigation System 4. Supports ID3 tag(text display) |
||
Not work with |
52867(Vios), Aygo, 58805 (2003 RAV4 ), 56018, 58813,T18303,B9010, B9004 (2007 RAV4),RAV4 with a factory navigation,TNS Travel 700, W58816,T18303, W13807/W13081 / W13086 (Auris),W53904(Panasonic,Avensis 2007), W58824, W58832,36458, AD1812(Delphi on 2010-2011 Tundra/ Sequoia),AD6900(Delphi on 2000-2004 Avalon), other AD-xxx radios |
||

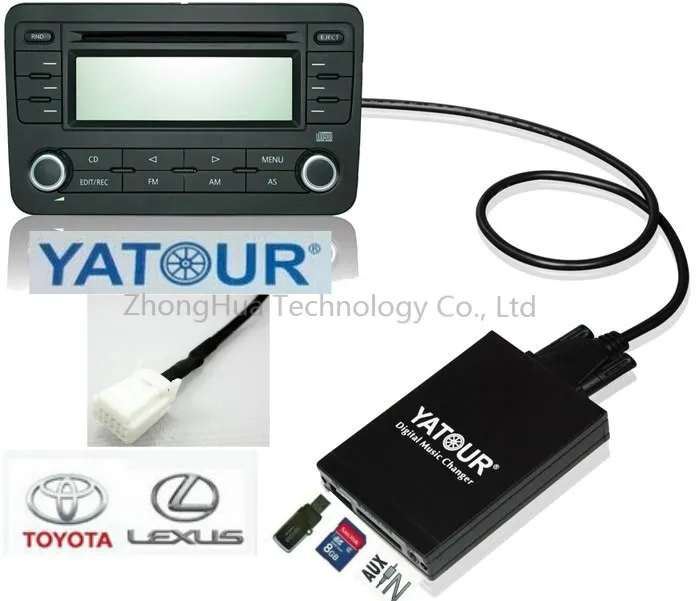

Digital Music Changer(YT-M06)
Customs code(HS code):8522909100

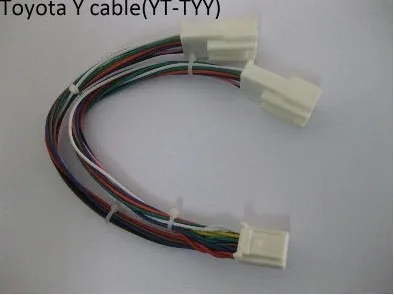

If the CD changer port of your radio is occupied, you need to buy a Y cable (YT-TYY) to bridge.
(Y cable $8.00)
Installation guidance:
1, Plugs in to the back of the Car Stereo. It uses CD changer port of your stereo.
2, Plug-and-play operation.
3, Works as an AUX Input converter for any MP3 player.
To remove your existing car radio, You may be able to find more information via websites or by contacting a dealer/qualified installer.
Size:
AUXcable length: 50cm
Module size: 92 x65 x 16.5mm CDC plug
length:95cm;
Standard Packing box: 210 x150 x60mm
Half-size packing box: 150 x 105 x 60mm
Module weight: 90g;
Gross weight: 220g-400g;
50 standard boxes/big carton.
Introduction:
This is an Audio car kit. It is a replacement of CD changer. It can be easily installed and used. The installation and usage are the same as CD changer's installation and usage, Simply plug in USB disk/SD card, you can play audio through car audio system and enjoy music in your car.After conneted with optional Bluetooth module kit ,it integratesbluetooth hands free phone call and stream mobile phone’s A2DP music playback into car stereo system.
Features:
1. Plug&play, modular design,CDC alternative
2. Connected with wire harness, not FM signal controlled ,Hi-Fi guanranteed
3. Controlled by vehicle Head Unit,support Steering wheel operation
4. With Hi-Fi Decoding Chip,perfectly support MP3 and WMA tracks
5. Supports SD/SDHC/MMC card/U Disk/Card Reader/Hard Disk
6. Supports external audio source(MP4 PSP Mobile Phone) via AUX in port
7. Playlist function same as multi CDs
8. Supports Last Position Memory(LPM)
9. Vibration and interference proof
10. Easy to install,no damage to original car decoration
11. Different module firmware versions for different types of protocol of car stereos
12. With BT slot for additional Bluetooth hands-free kit(YT-BTM).
Specification:
Voltage Input : 11V~14.6V DC
Operational Current : 200mA
Standby Current : 3mA
Operating Temperature: -35C~+85C
DAC Resolution : 20bit
Total Harmonic Distortion : 0.05%
SN Ratio : 90dB
Frequency Response : 20HZ-20KHZ
Module case is made of aluminum alloy
Supported memory cards and USB sticks:
1.Max 8GB (2GB is most recommended);SD card is more recommended than USB stick.
2.Please format USB stick or SD card with FAT16 or FAT32 format before you save files and folders in USB/SD.
3. Imposed folder naming system: CD01, CD02, CD03 ....
Doesn't read sub-folder and gets confused with other names in root of the drive.
4.Supports up to 15 folders (depending on the radio type) on your USB/SD.
5.Any number of songs can be stored in each folder, but the display of most radio models can only screen 99 track titles; Saving too big file(over 50MB) in any folder may also cause intermittent performance
6.Using music files formats other than WMA and MP3 may also cause intermittent performance.
7. The playback order of songs is in line with their created date.
8.Sometimes,to remove defect on software of car audio system, you may need to disconnect the battery or remove the fuse to reset the car audio system.
9.To use the Aux-In port, it's necessary to remove the USB or SD card.
10.YT-M06 may does not work with some of new Kingston brand USB stick.
The step to install:
1.Pull out the head unit from the car and touch the back of the head unit for CDC port when the ignition is switched of.
2.Insert the CDC plug into the original car port correspondingly.then insert the storge card.
3.Then check if the device works normally or not after power supply given from the car itself .
4.Put the wire harness into the proper and good place after the test successfully .
Yatour Bluetooth hand-free Kit(Optional)
Warranty&Return:
We offer ONE YEAR warranty from the date of product received, each item is double tested before shipping, please do remember to check the parcel before you sign it, or refuse it if broken and contact us immediately for the solution. We will supply lifetime technical support, what you need to do is to avoid the misuse & misunderstand on using the product, reading the user manual carefully and ask an expertised technician to help install it.
We will not be responsible for the damage from improper installation, accident, misuse, abuse, improper wiring and incorrect voltage while operating the unit against the instructions in the owner's manual.
30 days money back, buyer pays return shipping; No refund accepted after 30 days of receipt.Returns made for non-defective merchandise will be charged 10% restocking fee.Buyers pay shipping costs for the FREE repair in one year, warranty seal and serial numbers on the unit cannot be removed or damaged.
When you do the payment, please let us know the following for shipping:
1.Telephone number
2.Contact person
3.Shipping address
4.Zip Code
We do care about our valued customers and understand the concerns and frustrations you might have and will try our best to resolve all the issues.we appreciate your business, if you are satisfied with our service, please leave us a positive feedback .
We strive to answer all emails as quickly as possible, but due to high email volume it may take time for us to reply. Thanks in advance for your patience!Our goal is to make sure you are a happy buyer and pleasant shopping with us.Please email us before leaving negative feedback or open any dispute.We understand the concerns and frustrations you might have, and will do our endeavor to resolve the issues. If you do not receive your item on time, please contact us immediately for further assistance.
Please give us the opportunity to resolve any problem. thank you !
