SPECIFICATIONS
Brand Name: YATOUR
Origin: Mainland China
Resolution: N/A
OSD Language: English
Out Power: 20HZ-20KHZ
Material Type: aluminum alloy
Special Features: MP3 players
Item Size: 74 x 62 x 20mm
Model Name: YTBTK-TOY2+YY
Computer Memory Size: N/A
Voltage: 12V
Item Weight: 250
Certification: CE
Color: Black
Display Size: 2.5"
Certification: CE FCC
Place of Origin: Guangdong, China (Mainland)
Car Maker: Lexus, Toyota, SCION
Special Features: Bluetooth funcation,AUX
------YTBTK Bluetooth Kit
Nowadays, using mobile phone during driving is widely considered dangerous
,and hands free car kit ensures driving safety. As the using of smart phone is
widespread, it is urgent need for most of drivers to enjoy huge music sources and
other Apps of their smart phone via car stereo.
For above demands, Yatour Bluetooth Car Kit (BTK) is released. Developed
according to original protocol of OEM car stereo, BTK is a high-tech product
innovatively integrated with latest standard Bluetooth technology.
YTBTK-TOY2+Y |
Includes: l Module unit for Toyota l Toyota Small(6+6) plug l AUX cable | Microphone | 6+6 pin cable |
||
|
Compatible Models |
TO YOTA |
4Runner 2003-2011, Avalon 2005-2011, Avensis 2003-2011,Auris (after 2007), Camry 2005-2011, Celica 2003-2005, Corolla 2005-2011, D4D 2009, FJ Cruiser 2007-2010, Highlander 2004-2011, Land cruiser 2003-2011, Matrix 2005-2011 Mark X 2005-2011, MR2 2004-2010, Prius 2004-2011, RAV4 2003-2011, Sequoia 2005-2011, Sienna 2004-2010, Solara 2004-2008, Tacoma 2005-2011, Tundra 2004-2011, Venza 2009-2011, Vitz 2006-2010, Yaris 2006-2011 |
|
SCION |
xA (2004+), xB (2004-2013), tC (2005-2010) |
||
L EXUS |
|
||
|
Compatibility Notice |
1.Toyota Y cable(YT-TYY) is optional when CD changer port is occupied by NAV, AUX,XM
3.Compatible with Toyota Navigation System 4. Supports ID3 tag(text display) |
||
Not work with |
52867(Vios), Aygo, 58805 (2003 RAV4 ), 56018, 58813,T18303,B9010, B9004 (2007 RAV4),RAV4 with a factory navigation,TNS Travel 700, W58816,T18303, W13807/W13081 / W13086 (Auris),W53904(Panasonic,Avensis 2007), W58824, W58832,36458, AD1812(De lphi on 2010-2011 Tundra/ Sequoia),AD6900(Del phi on 2000-2004 Avalon), other AD-xxx radios |
||
Notice: Some newer To yota/Le xus models may have older 5+7 pin CD changer port ,which requires YTBTK-TOY1

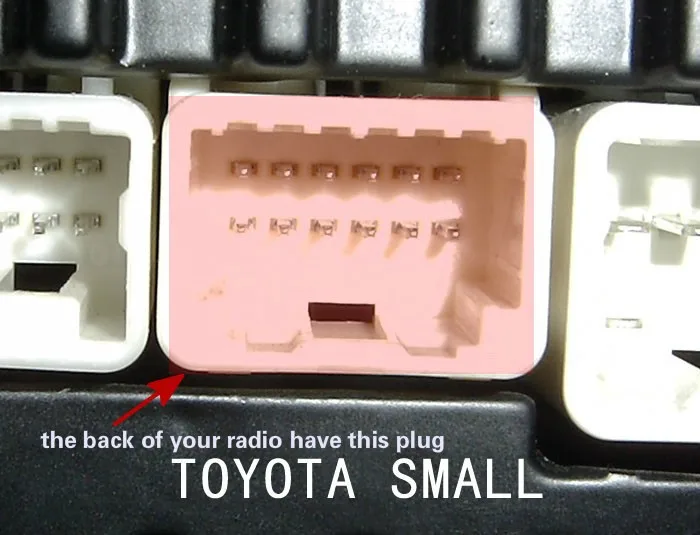

could you please kindly check the back of your radio come with 5+7 pin or 6+6 pin.thanks!
Installation guidance:
1, Plugs in to the back of the Car Stereo. It uses CD changer port of your stereo.
2, Plug-and-play operation.
3, Works as an AUX Input converter for any MP3 player.
To remove your existing car radio, You may be able to find more information via websites or by contacting a dealer/qualified installer.
for Toyota Lexus 6+6PIN radios with Navigation(include Y cable)
Note:Before bidding ,Please confirm your car can use this CD changer,if possible
please sent us the picture of your car's headunit(front and back).we will confirm it for you,thanks!
Specification:
Module size: 74 x 62 x 20mm
Voltage Input : 11V~14.6V DC Operational Current : 600mA
Standby Current : 20mA Operating Temperature: -35℃~+75℃
DAC Resolution : 20bit Total Harmonic Distortion : 0.05%
SN Ratio : 90dB Frequency Response : 20HZ-20KHZ
Features:
1. Plug & Play: installed via original CD changer port, easy and fast, perfectly
integrated with the car.
2. Hands-free Phone Call (HFP): supports Answer/Hang up etc., via car radio
buttons and steering wheel buttons.
3. Wireless A2DP Playback: easily streaming music of Bluetooth devices into
factory car stereo system.
4. Bluetooth AVRCP Control: controls Prev/Next Track, Pause/Play, Fast
forward/backward via car radio buttons or steering wheel easily and safely.
5. AUX Input: Supports 3.5mm auxiliary input, able to connect any external
audio sources.
6. Hi-Fi Sound Quality: Connected to car stereo via wire harness, no
interference and no loss of sound quality, rivaling original CD sound.
BTK allows you to easily have popular configuration of advanced car stereo, is
the best choice for safe driving and enjoying digital music.
Customs code(HS code):8522909100
Installation Preparation
1. The product only operates on a vehicle with 12 Volt DC negative ground
system. Do not use it on other voltage system.
2. This product only fits OEM or aftermarket car stereo with CD changer port,
and different solutions of Bluetooth adapter would be adopted according to
different brands of vehicles or different car radios.
3. Make sure car stereo is powered off before installation, otherwise the car
stereo may be damaged. It is suggested to install it at car dealer shop or
professional car stereo store.
4. Usually, the car stereo needs to be removed so as to plug BTK’s main
connector into CD changer port on radio back. For some car models, BTK can be
installed in glove box or trunk where external CD changer port is located
(Requires special splitter cable).
Working Modes Instruction
After finishing installation of BTK, press once or twice the CD (or Disc /
Mode / CDC / SOURCE / AUX etc.) button to switch to CD changer working
mode (BTK mode).
Yatour BTK offers 2 types of working modes: HFP/A2DP mode, AUX IN
mode.
Under BTK Bluetooth HFP/A2DP working modes, the car stereo should
be under CD1 mode, and you should see CD 1-1 on you car stereo.
When you disconnect current bluetooth connection from your mobile
phone and BTK will switch to AUX IN mode, BTK’s AUX input will be valid.
1. BTK doesn't work after installation.
Please check whether the wire harness is correctly connected. And if there
is GND wire (for some car models), please check whether it connects well
with metal parts of car radio.
2.Frequently switching or other unknown reasons cause playback
stuck.
Music playback is from function of mobile phone, you just need to start the
playback from mobile phone menu.
3.External audio input(AUX IN) sounds too low or too much noise.
Adjust volume of earphone output of your external audio device;It is not
proper for external audio devices to use car power, because common
ground noise will occur in this case. External audio device should use its
own battery to play.
4. Why I can still hear the former mobile phone Bluetooth A2DP music
when I plug in AUX device?
When you need AUX IN function, you have to disconnect current
bluetooth connection from your mobile phone and BTK will switch to AUX input mode status .
