Application：

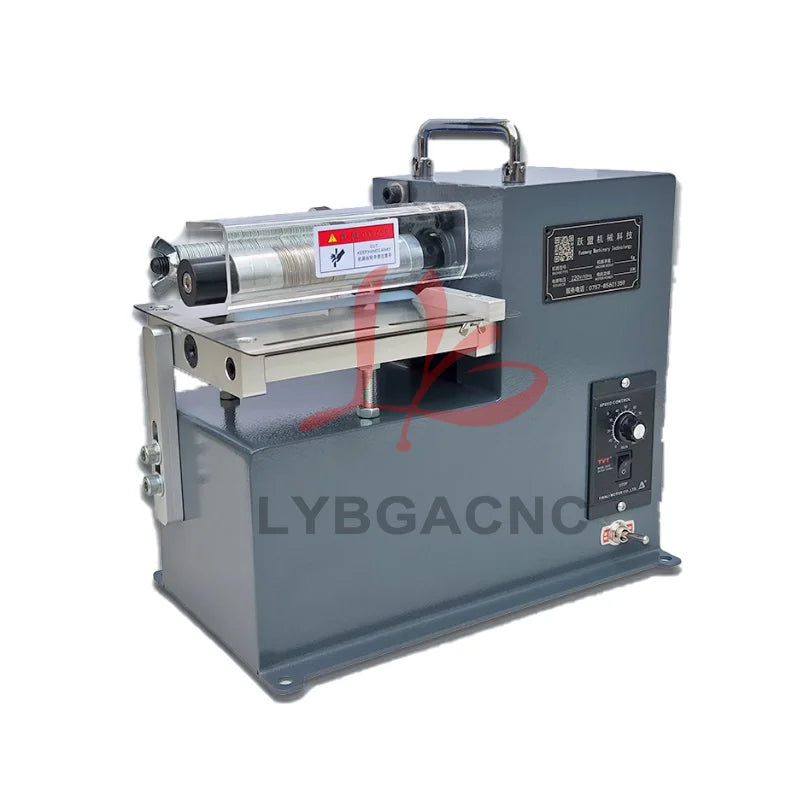

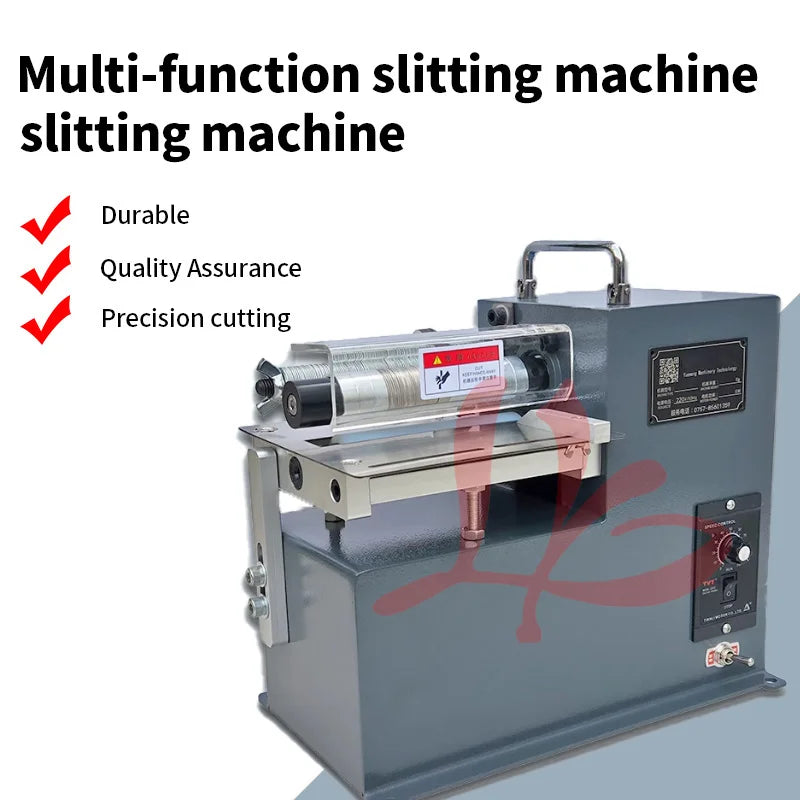

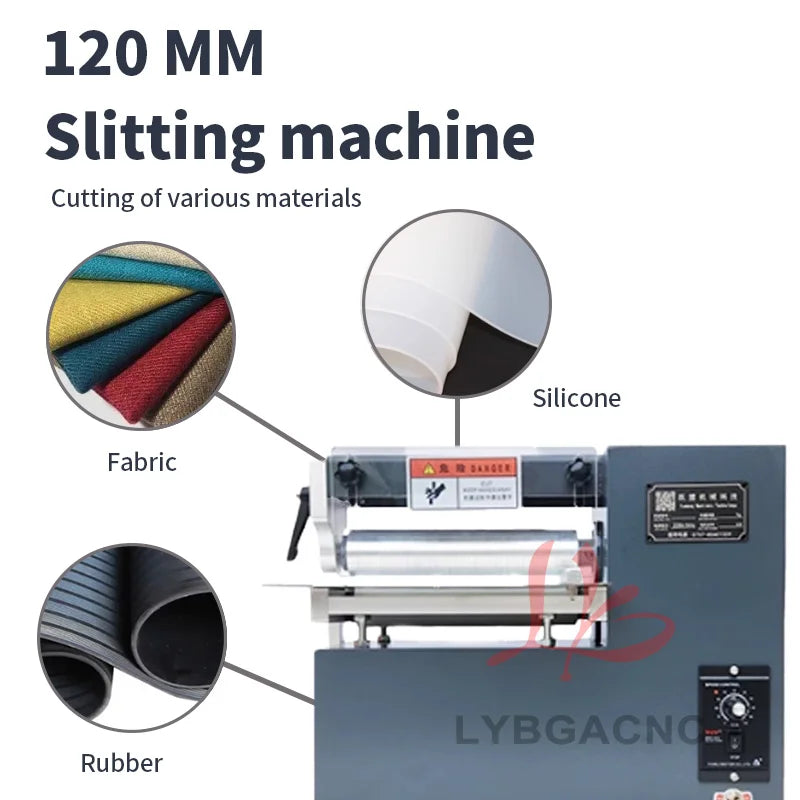

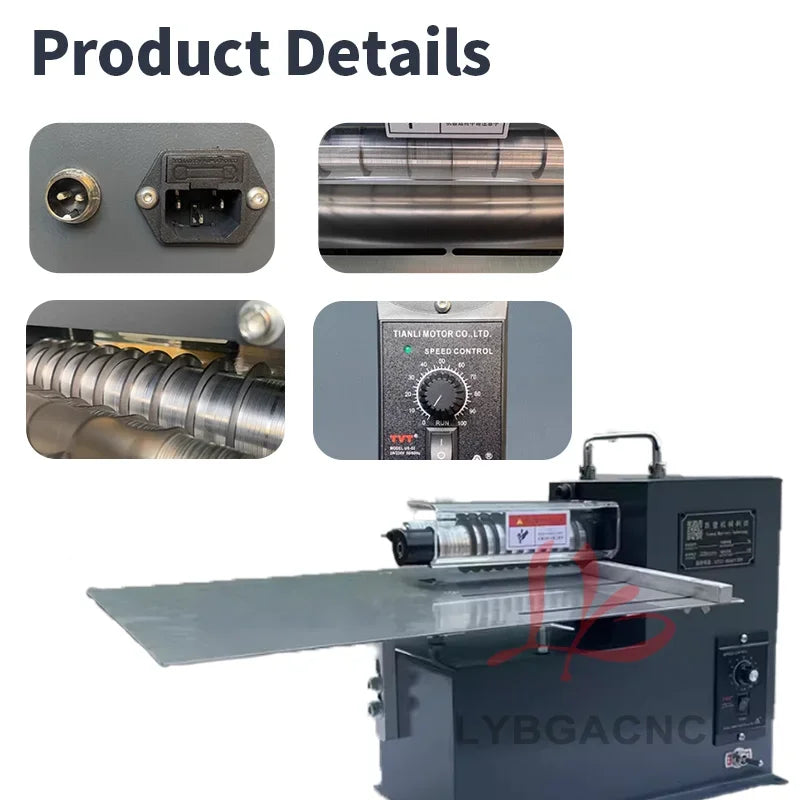

This product is suitable for leather shoes, bags, handicrafts and other leather goods cut straight, It can also be cut paper products.

Cutting thickness: For soft leather, it can cut 6mm thick. For hard leather, it can cut 3mm thick.

Suitable for soft leather thickness less than 3mm, width between 0-120mm

Packing list:

1. Leather Machine X 1 unit

2. Cutting blade X 5 units

3. 1mm pad X 10 units

4. 2mm pad X 10 units

5. 5mm pad X 6 units

6. 10mm pad X 6 units

7. Allen key X 3 units

8. Wrench X 1 units

9. Pull cylinder X 1 units

10. Plastic roll holder X 1 units

Maintenance

1, the lubrication hole filling oil regularly, prevent the rotation axis of normal lubrication and wear or killed.

2, should pay attention to safety when using, do not reach out her hand to the blade when the machine is turning.

3, use for a long time that the condition of the rod nylon washer, serious breakage of workpiece in cutting burr should beoff work at this time, open beside cover board, use special wrench to loosen the nut, loose screws, unload swinging rod. Pull the nylon washer, with the
changing location method, nylon ring again.

4, if users need special cutting width of the workpiece, can be made to our various types of special gasket.

5, power supply should be safety grounding, ensure no leakage phenomenon.

6, with the pull cylinder and Edge Folding Finish Function. mean edge 20mm folding to 10mm.
