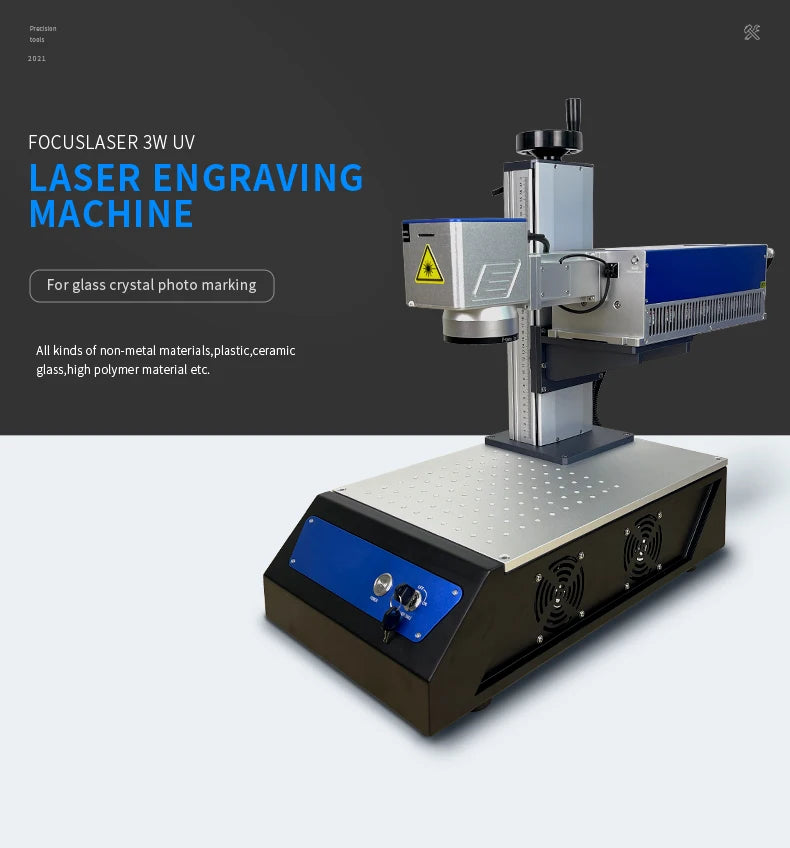

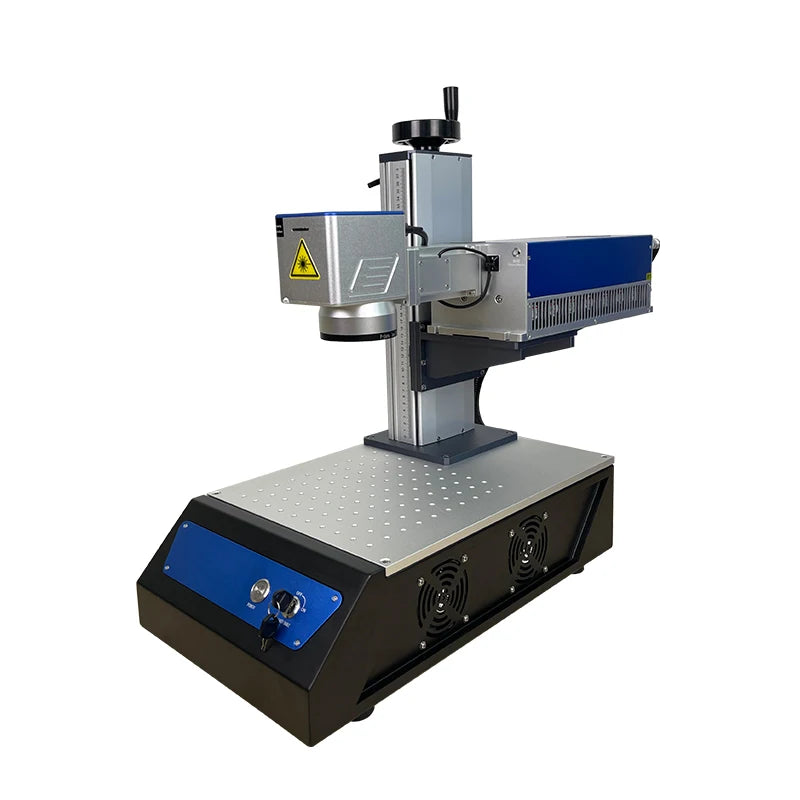

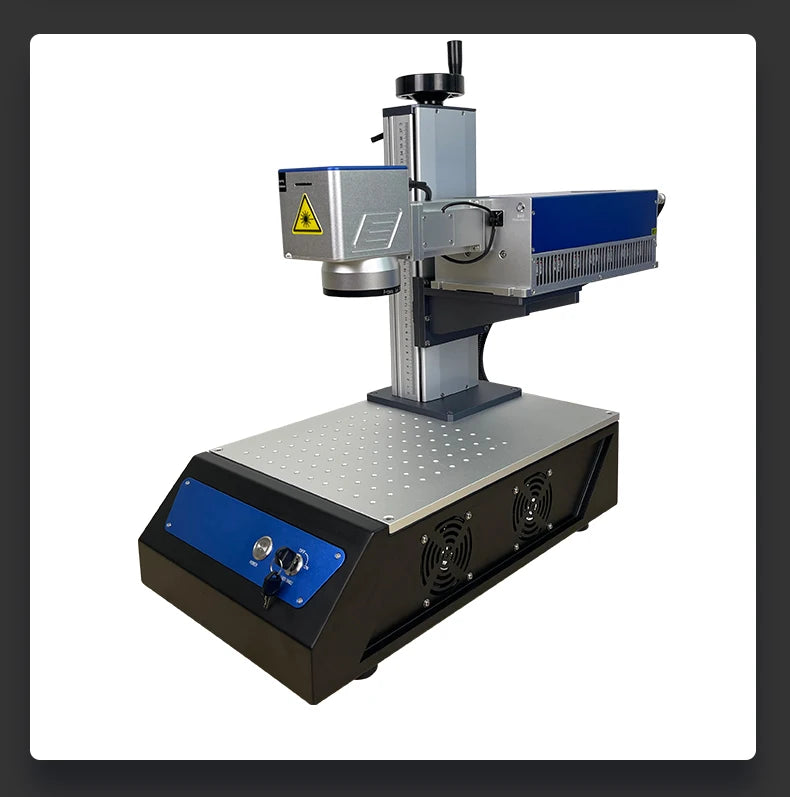

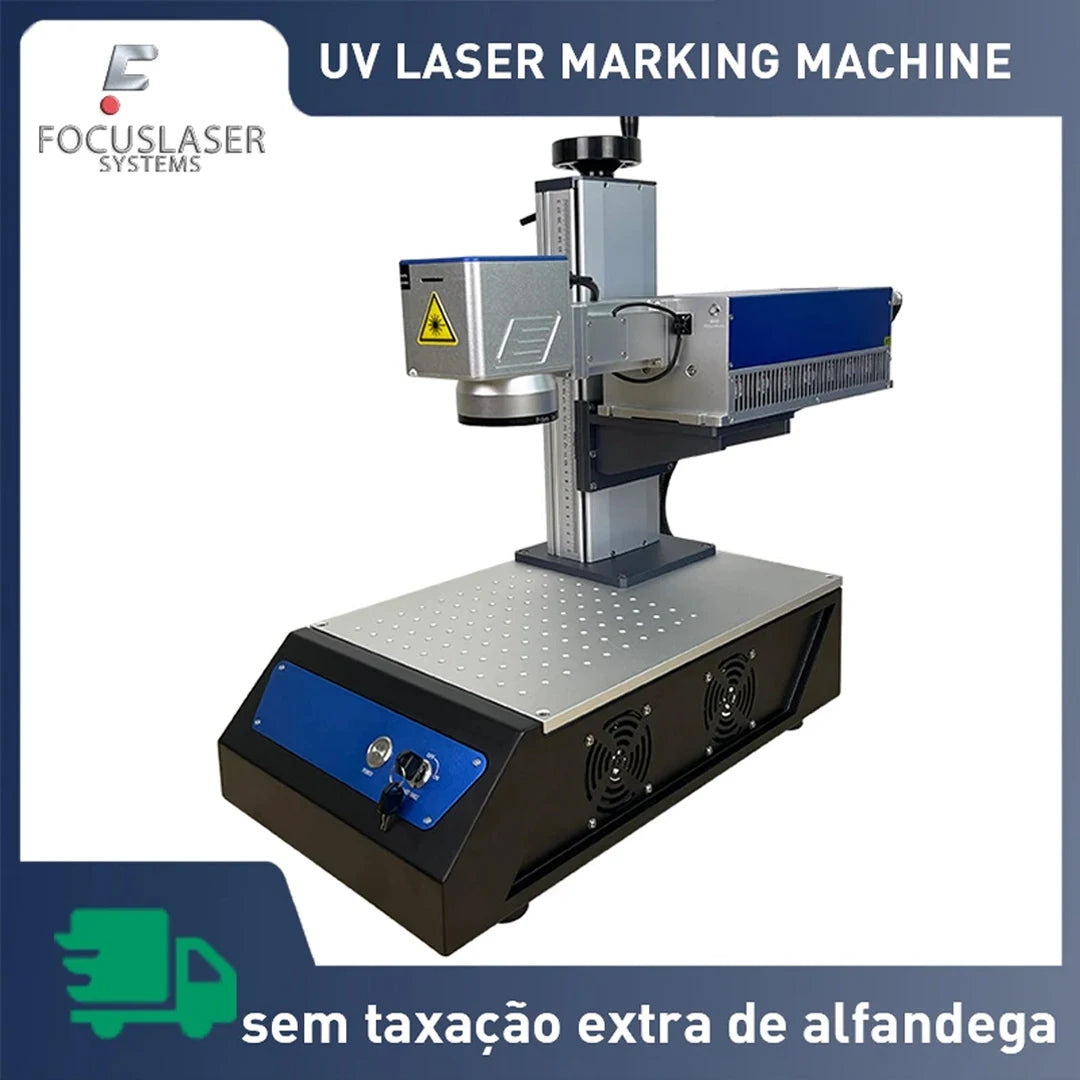

UV Laser Marking Machine 3W Ultraviolet Rays Laser Source For Glass Crystal Photo Marble Stone Marking Engraver Tools

$3,970.00

Shipping calculated at checkout.

Free worldwide shipping

Tested & Inspected

30 Day Money Back Guarantee

In stock, ready to ship
Inventory on the way

{"id":46696077459714,"title":"5W \/ CHINA \/ 110mmX110mm|EU","option1":"5W","option2":"CHINA","option3":"110mmX110mm|EU","sku":"14:175#5W;19261:4#110mmX110mm;200007763:201336100;200009209:200660850","requires_shipping":true,"taxable":false,"featured_image":{"id":44004014588162,"product_id":9088736362754,"position":1,"created_at":"2025-08-24T07:21:12-04:00","updated_at":"2025-08-24T07:21:15-04:00","alt":null,"width":1080,"height":1080,"src":"\/\/par-masters.com\/cdn\/shop\/files\/S5c24d0c7739b49f4bf0f3be3548a3652s.webp?v=1756034475","variant_ids":[46696077361410,46696077394178,46696077426946,46696077459714,46696077492482,46696077525250,46696077558018,46696077590786,46696077623554,46696077656322,46696077689090,46696077721858,46696077754626,46696077787394,46696077820162,46696077852930]},"available":true,"name":"UV Laser Marking Machine 3W Ultraviolet Rays Laser Source For Glass Crystal Photo Marble Stone Marking Engraver Tools - 5W \/ CHINA \/ 110mmX110mm|EU","public_title":"5W \/ CHINA \/ 110mmX110mm|EU","options":["5W","CHINA","110mmX110mm|EU"],"price":397000,"weight":20000,"compare_at_price":0,"inventory_management":"dsers-fulfillment-service","barcode":null,"featured_media":{"alt":null,"id":35939062710530,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/par-masters.com\/cdn\/shop\/files\/S5c24d0c7739b49f4bf0f3be3548a3652s.webp?v=1756034475"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

SPECIFICATIONS

Name: UV Laser Marking Machine 3W Ultraviolet Rays Laser Source For Glass Crystal Photo Marble Stone Marking Engraver Tools
Brand: Par Masters
Price: 3970.0 USD
Availability: OutOfStock

Brand Name: FOCUSLASER

Certification: CE,ce

Engraving Area: 100x100mm

FOCUSLASER Model: FLUV

Hign-concerned Chemical: None

Laser Power: Other

Model Number: FLUV03

Origin: Mainland China

Applicable Industries:

UV laser only with very a little heating, perfect laser beam quality create super marking effect.Energy saving, low power consumption,no consumable materials required.Compact design and air cooling, require less working space. The software support formats such as PLT, AI, DXF, BMP, JPG,etc. Widely used in industries of High polymer packing bottles for food, cosmetic,medicine,consuming electronics
,mobile phone accessories,and etc.

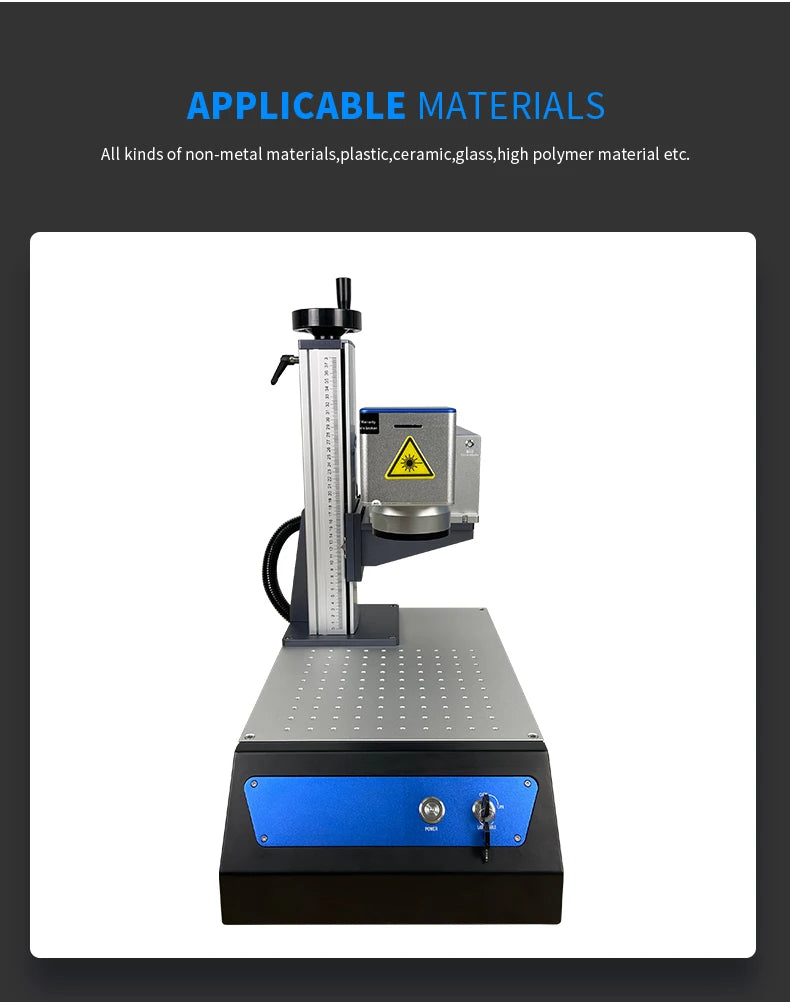

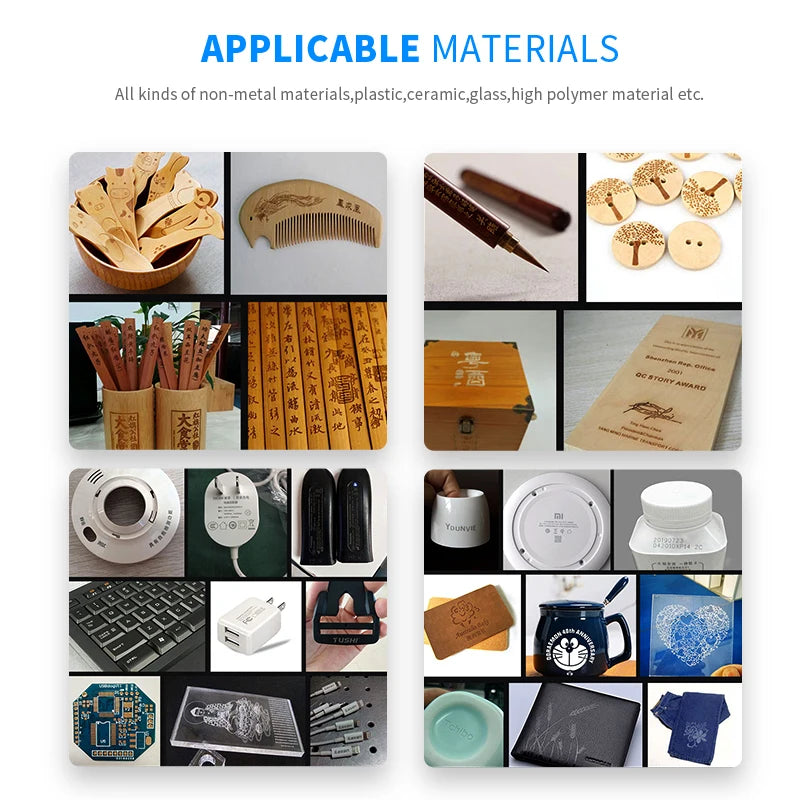

Applicable materials:

All kinds of non-metal materials,plastic,ceramic,glass,high polymer material etc.

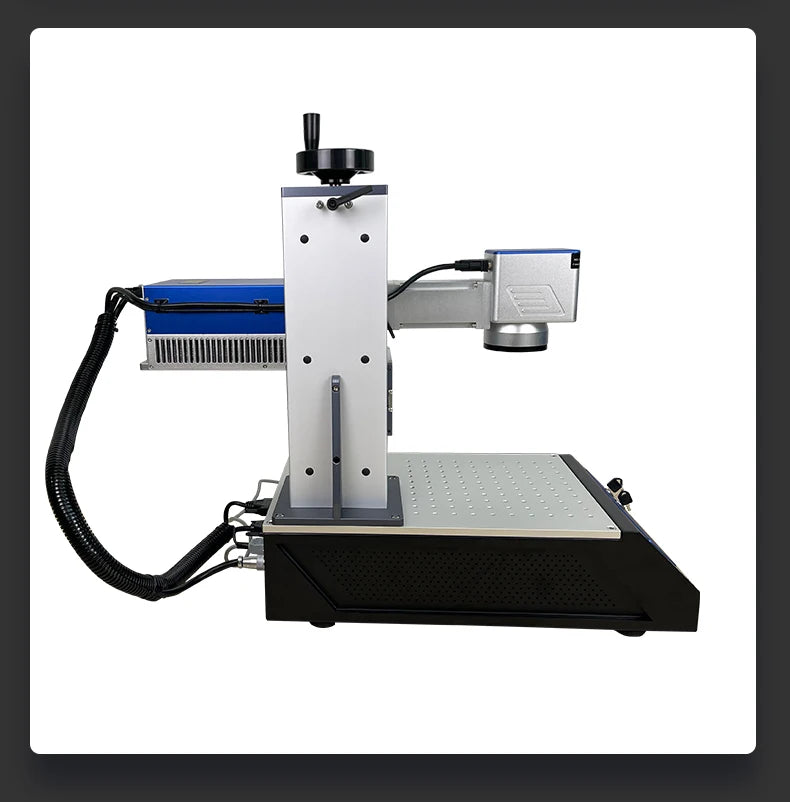

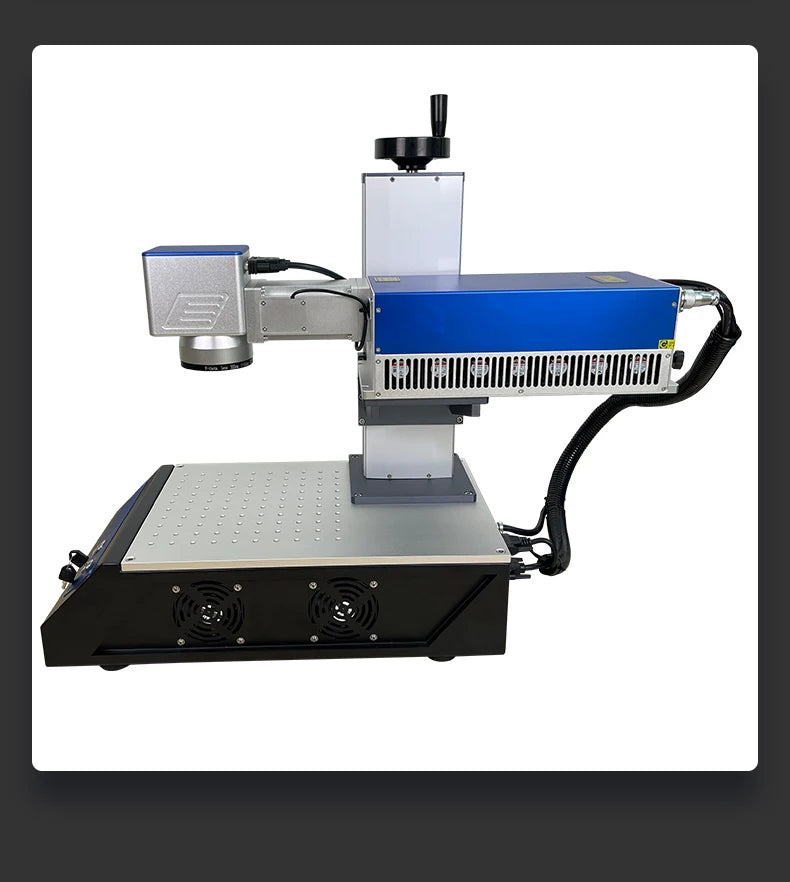

Product Name UV Laser Marking Machine
Model FLUV03
Output Power 3W
Pulse Repetition Rate 20-100KHZ
Pulse width 1-50ns
Beam Quality <1.2
Depth of Engraving based on material <0.3mm
Gross Power 600W
Operating Voltage AC 110V/220V 50/60HZ 5A
Laser Wavelength 355nm
Engraving Range 100×100mm
Repetition Precision ±0.003mm
Engraving Speed ≤8000mm/s
Minimum Line Width 0.01mm
Character Size 0.5-110mm
Cooling System Air Cooling
Working Temperature Range 10°～30°
Working Humidity 20%～80%
Net Weight of machine 40kg

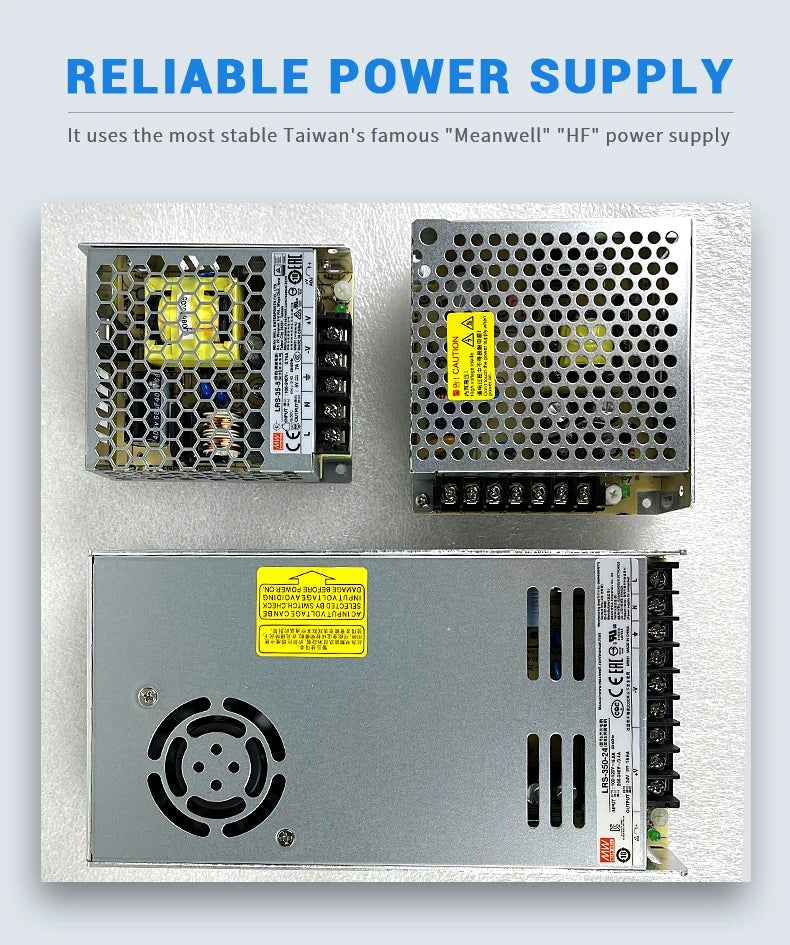

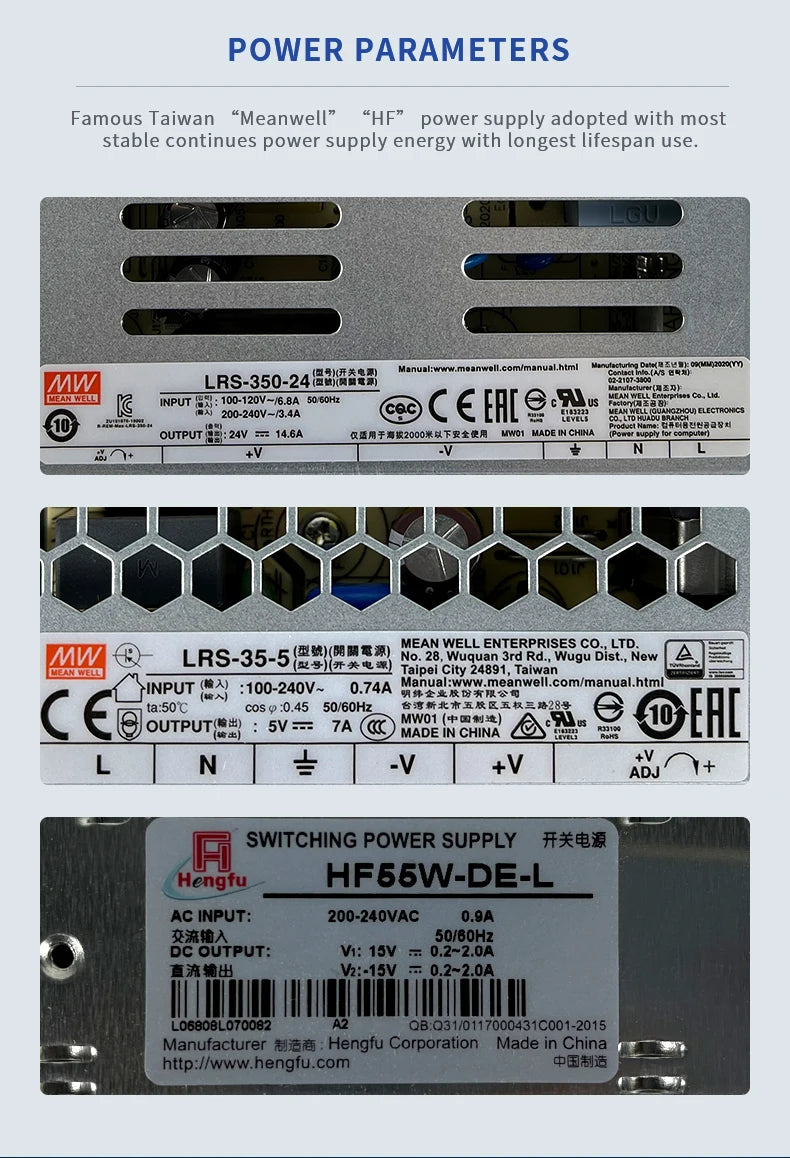

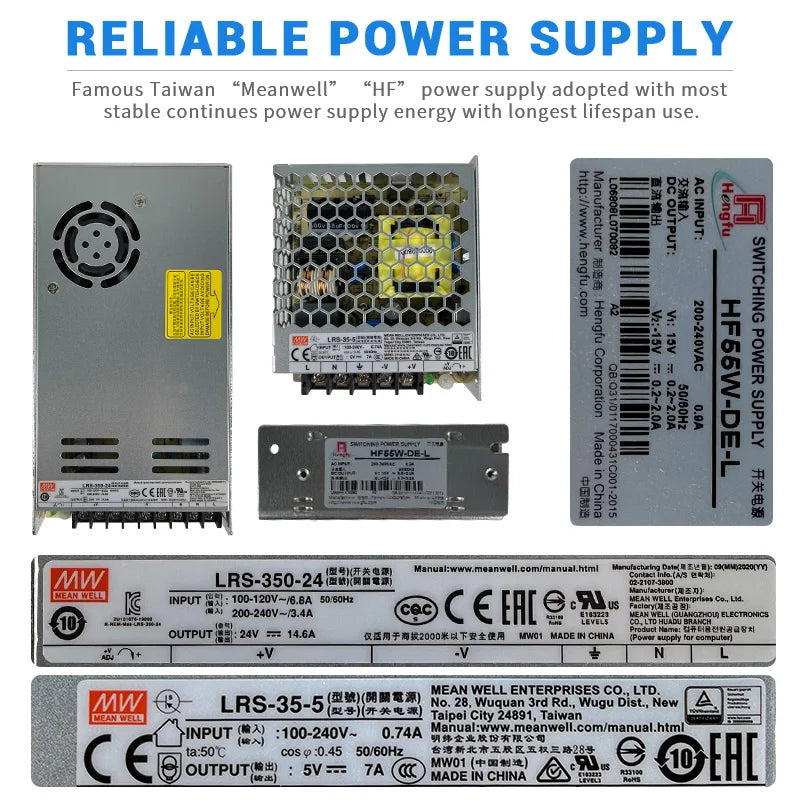

Famous Taiwan “Meanwell”“HF”power supply adopted with most stable continues power supply energy with longest lifespan use.

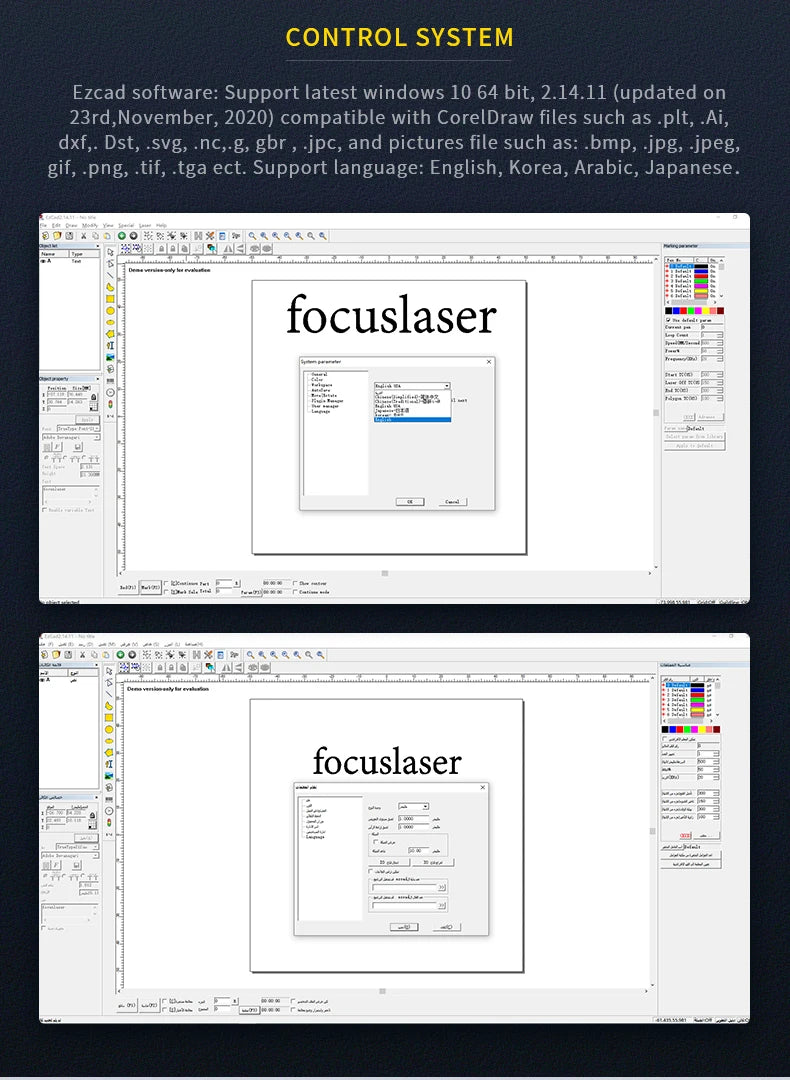

Ezcad software: Support latest windows 10 64 bit, 2.14.11 （updated on 23rd,November, 2020）compatible with CorelDraw files such as .plt, .Ai, .dxf, . dst, .svg, .nc,.g, gbr, .jpc, and pictures file such as: .bmp, .jpg, .jpeg, .gif, .png, .tif, .tga ect. Support language: English, Korea, Arabic, Japanese

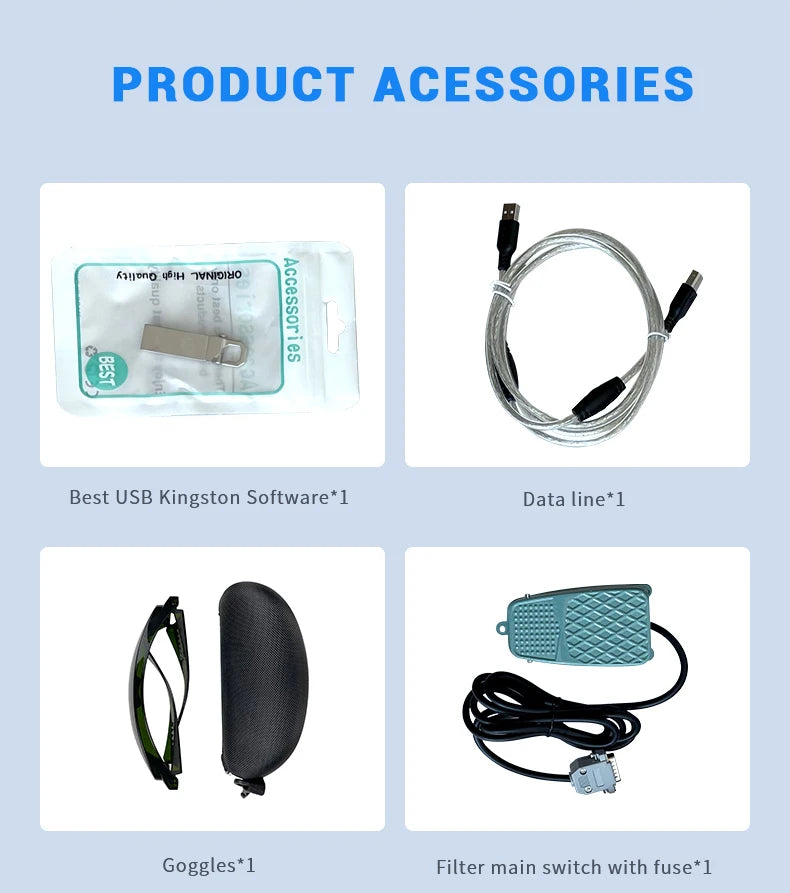

We supply software with best USB Kingston for your data safe.

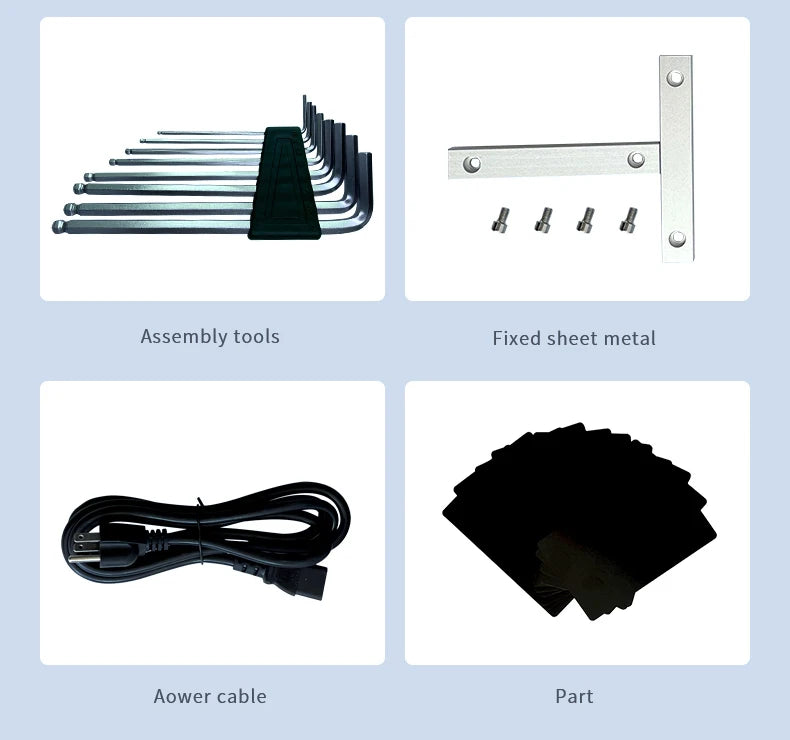

Spare parts backup such as a backup button for emergency use.
Positioning bars for easy make correct position for your engraving items.
