SPECIFICATIONS
Brand Name: TWO TREES
Certification: CE,ce
Engraving Area: 300x300mm
For 1: Laser Engraving Machine
For 2: 80W Laser
For 3: Laser Engraver
For 4: DIY Logo Printer
For 5: Laser Cutting Acrylic MDF
Hign-concerned Chemical: None
Is Smart Device: Yes
Laser Power: 10w
Model Number: TTS-10 Pro
Origin: Mainland China

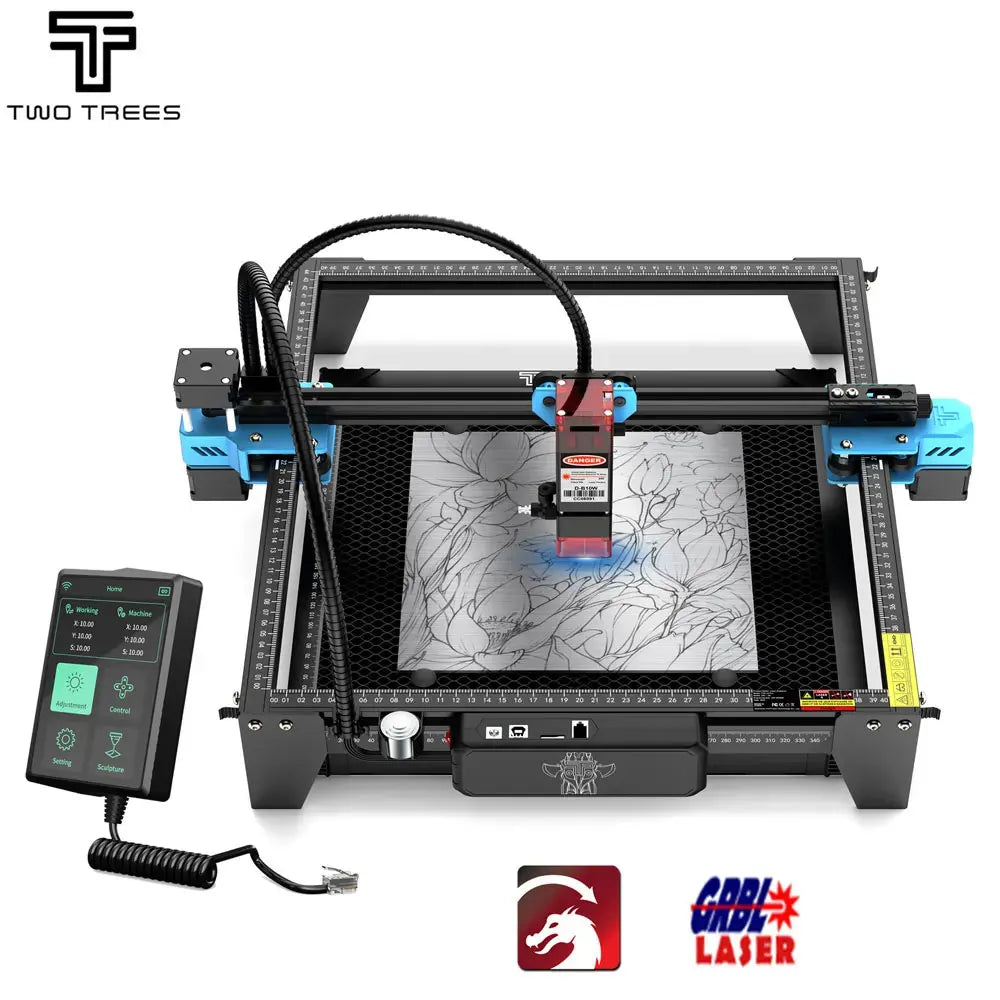

Twotrees TTS-10 Pro 80W Laser Engraver Add Touch screen Metal Laser Engraving Machine DIY Logo Printer Laser Cutting Acrylic MDF

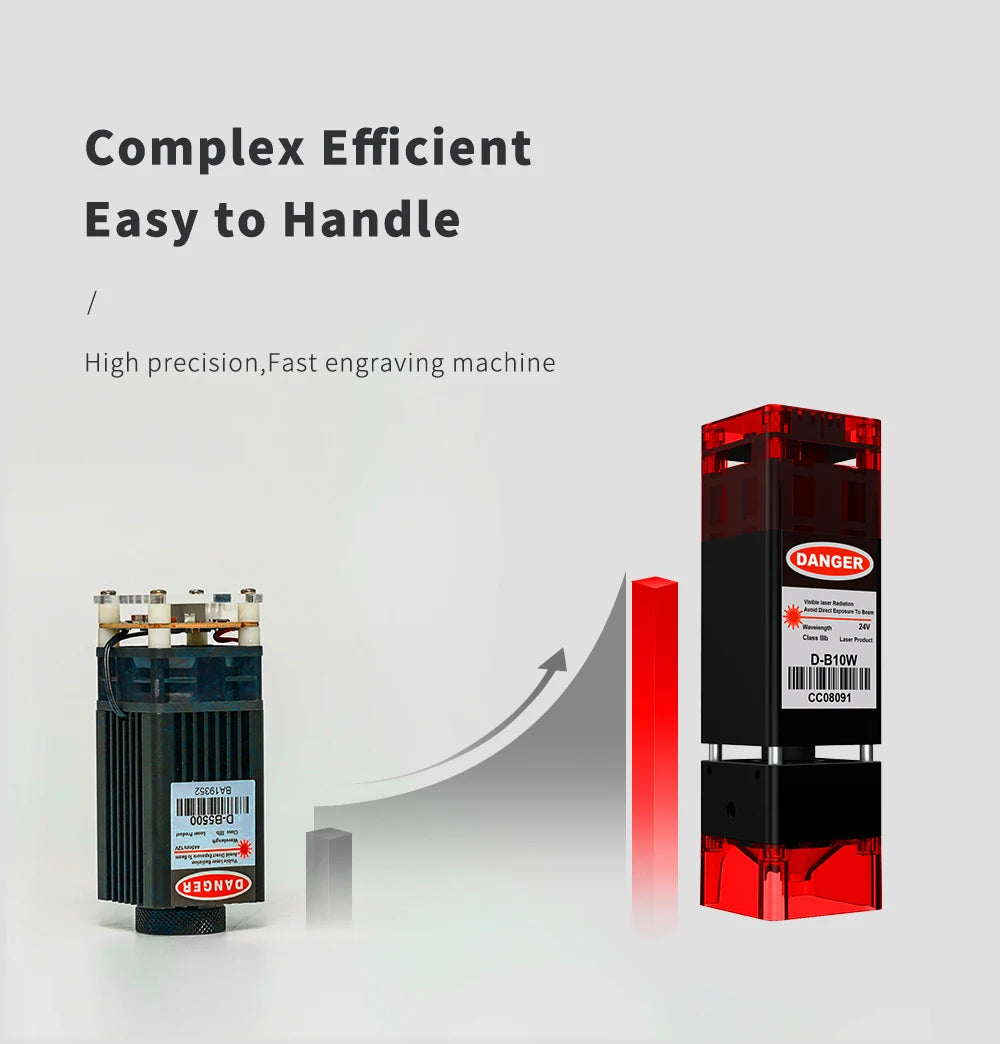

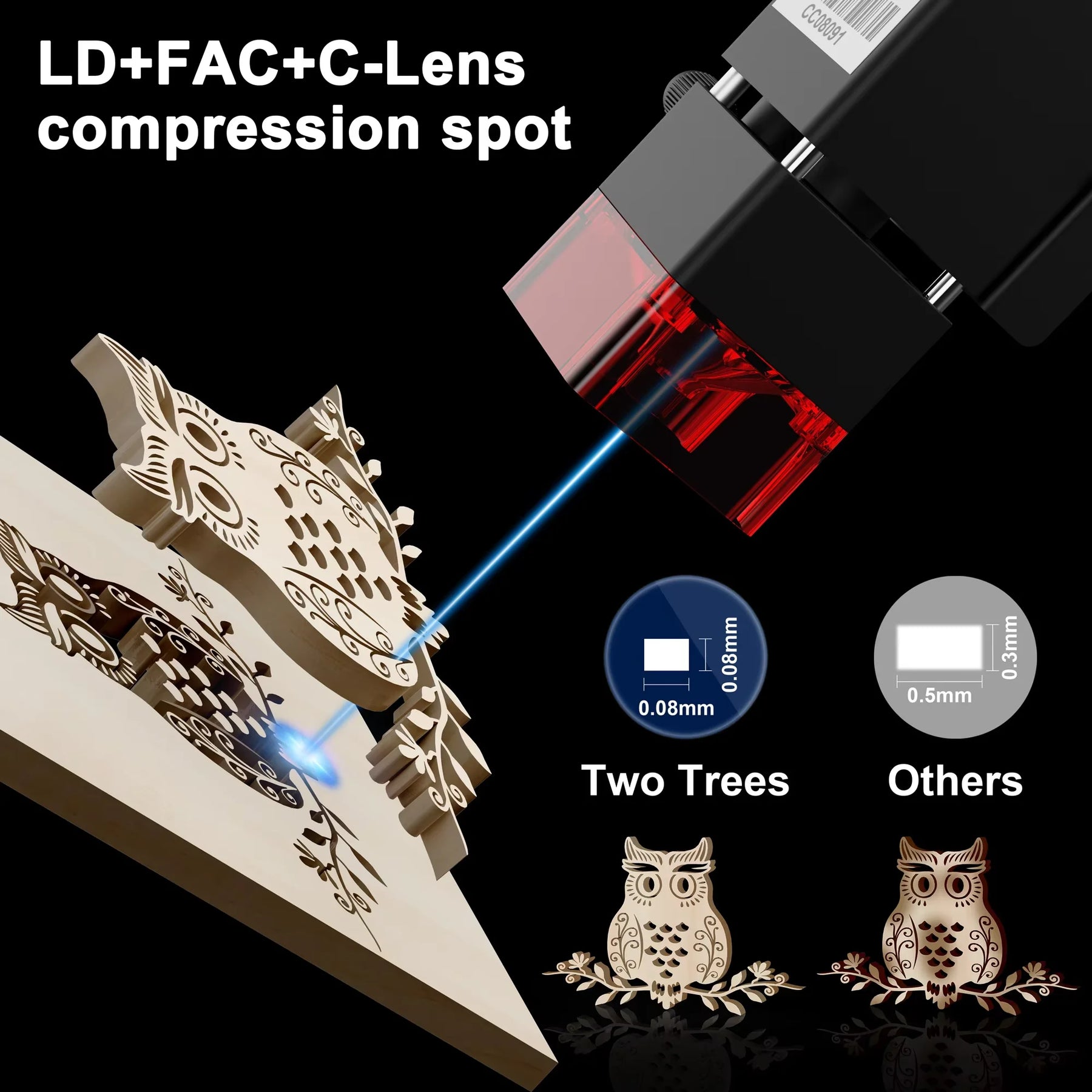

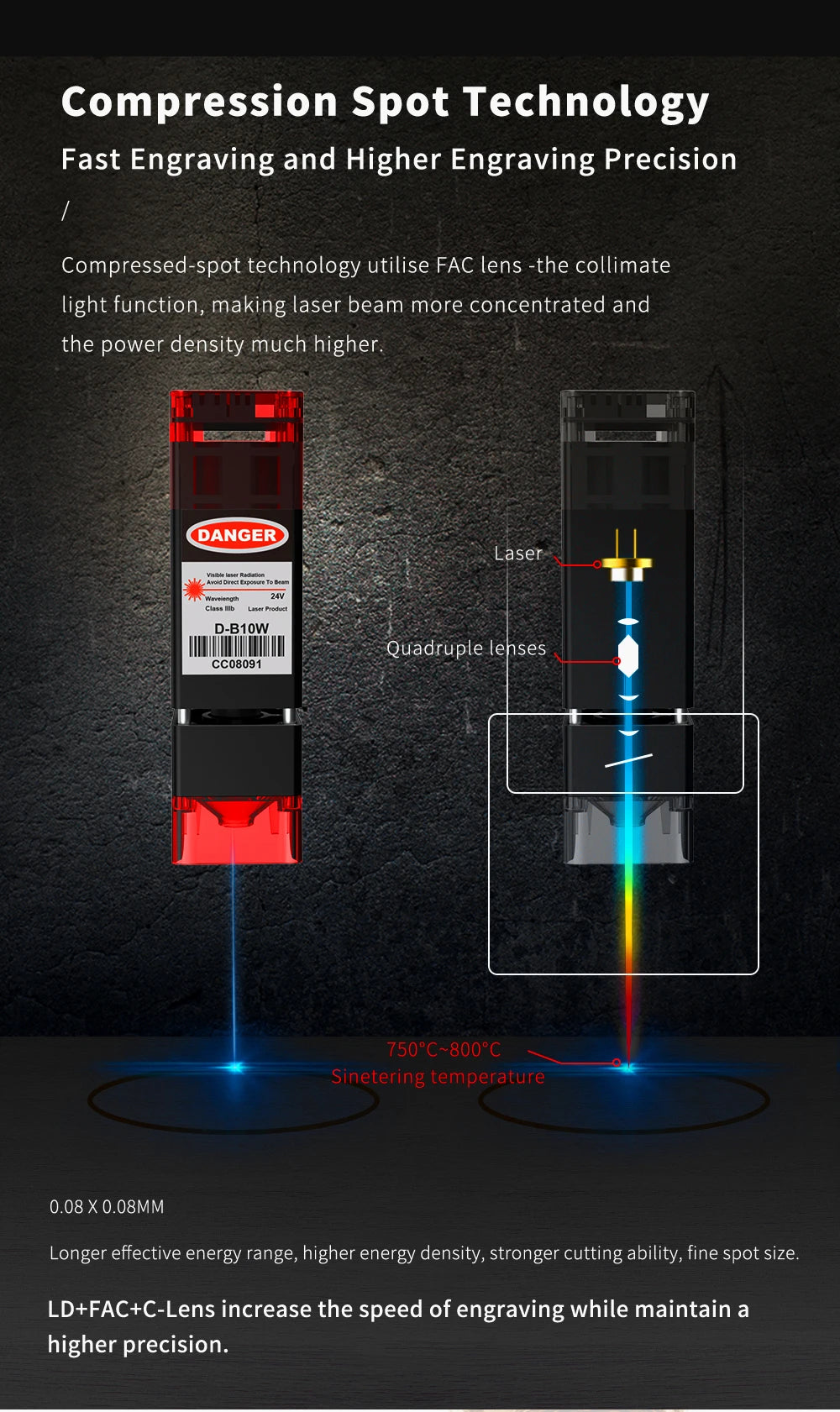

Latest Laser Beam Shaping Technology:

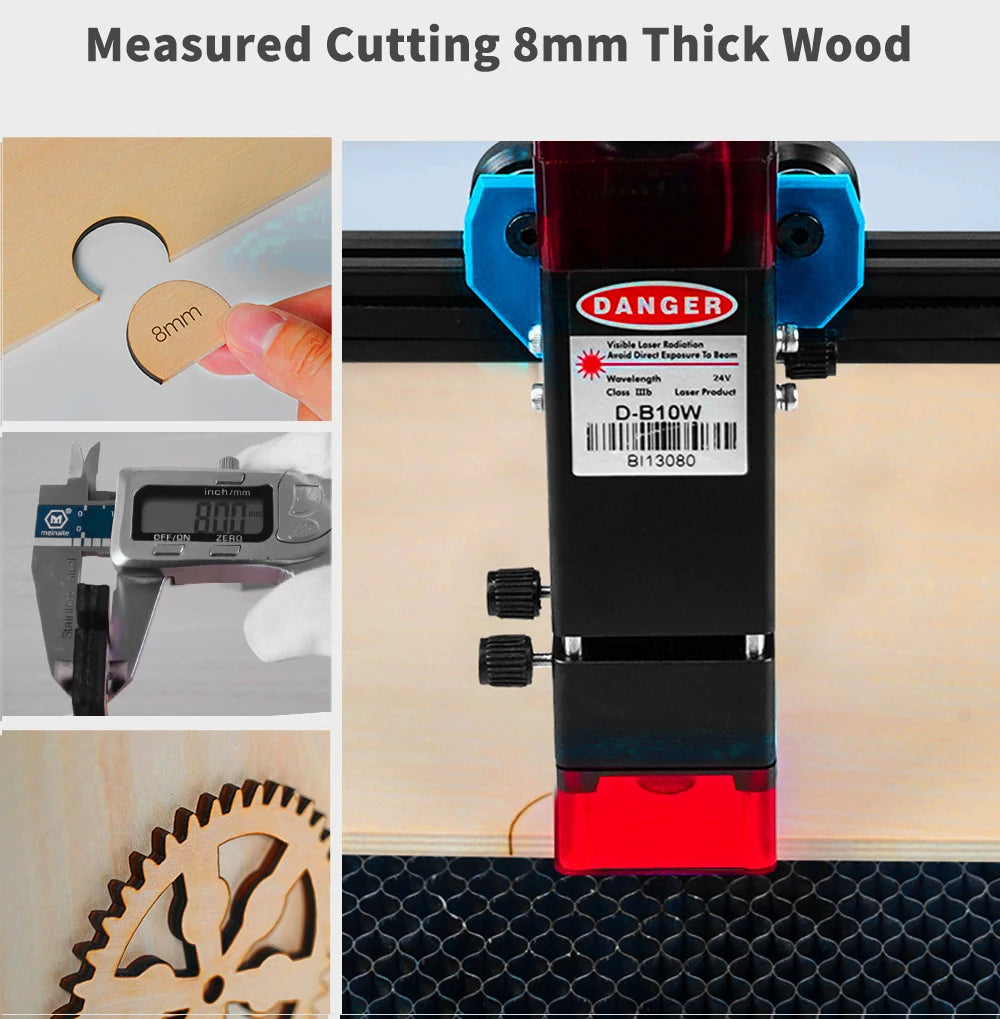

TTS-10 uses the latest 10W laser beam shaping technology diode laser, it has an ultra-fine 0.08mm sharp laser focus, with super cutting penetration and precision, can cut up to 8mm thick wood, 5mm acrylic, carve ceramics and stainless steel.
Fast focus design:
Combines a fixed focus lens and a knob to adjust the height. You just need to turn the knob to focus. Equipped with a fixed focus column, which makes it very easy to use.

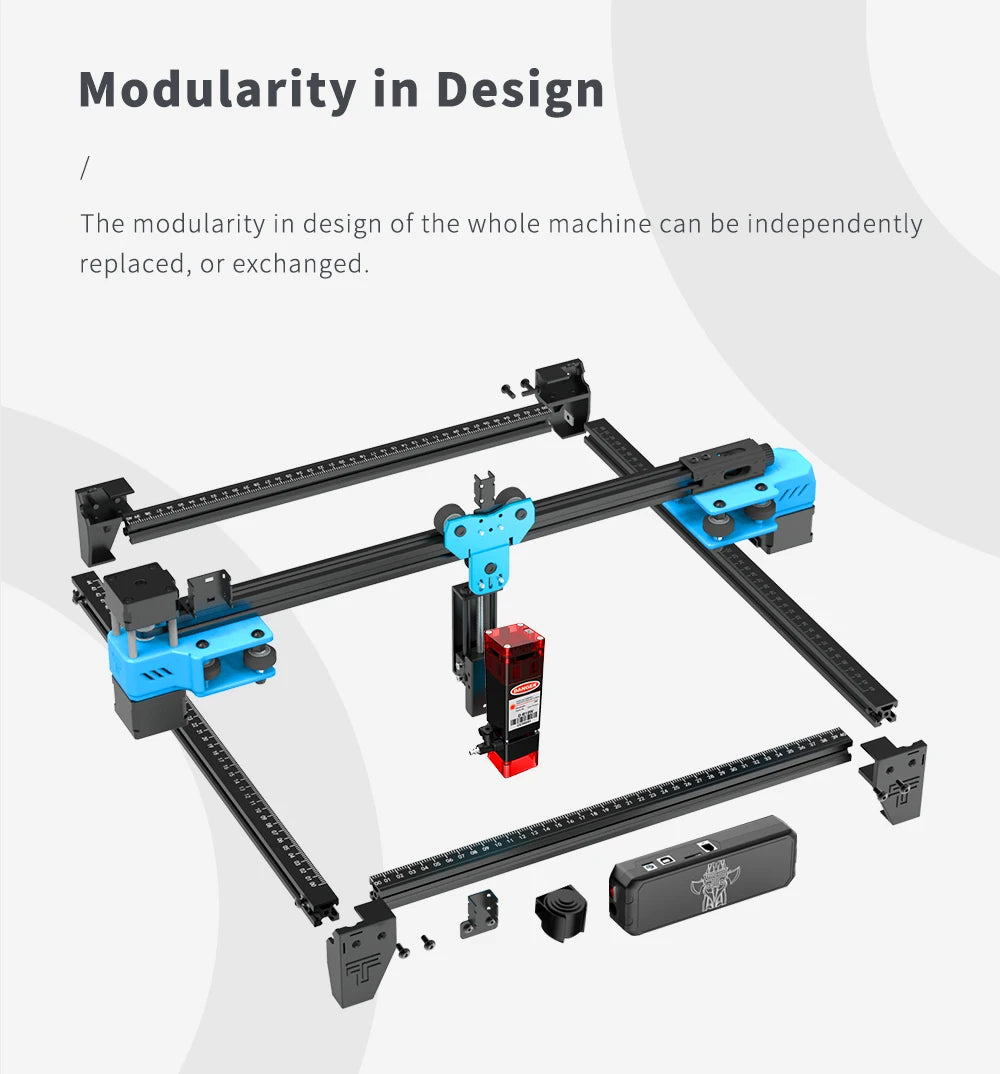

Easy assembly structure:

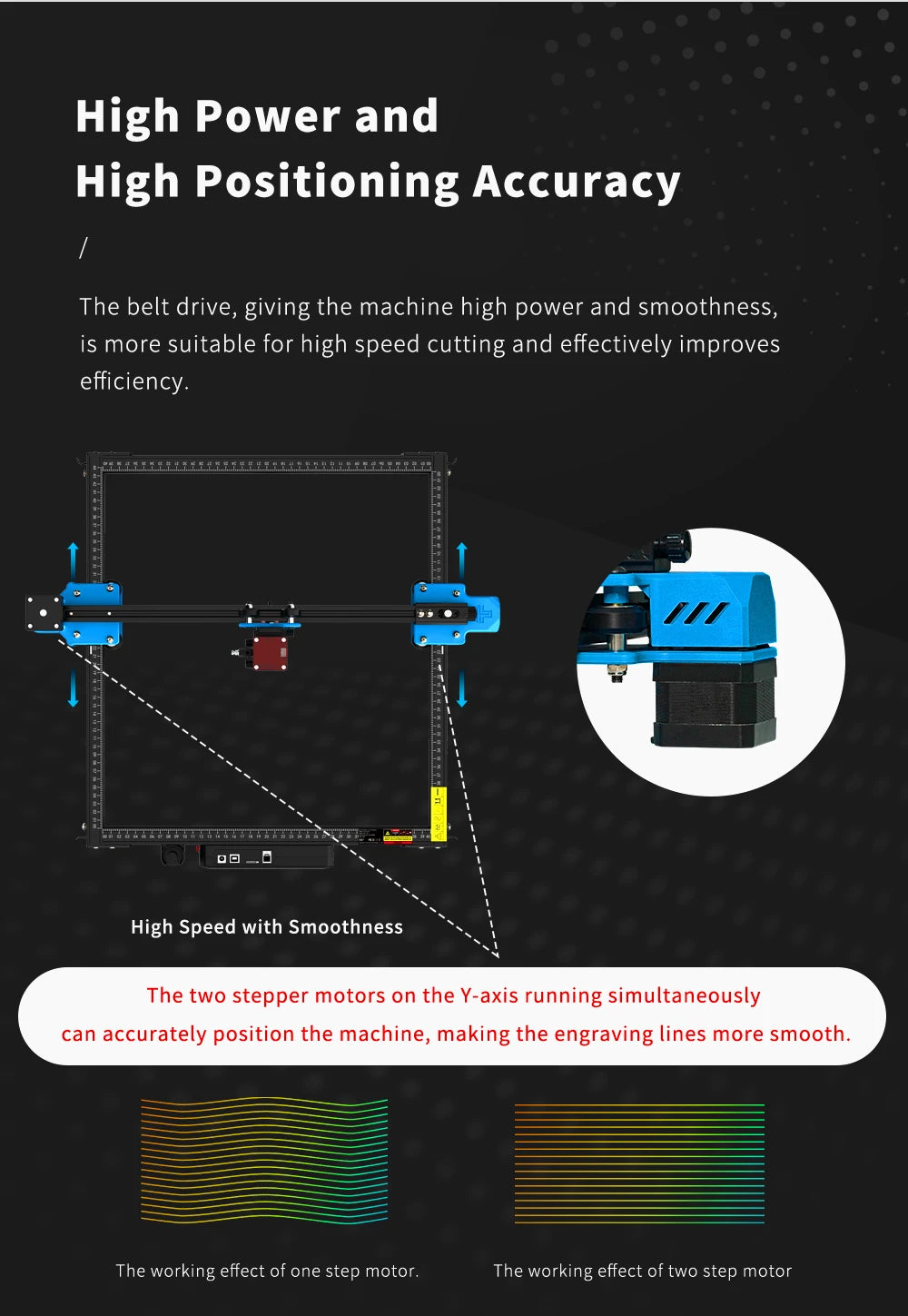

aluminum profile structure design, double Y-axis motors make the machine work more stably and improve the engraving accuracy. 60% pre-assembled, assembly can be completed in 30 minutes.
Square measuring ruler:
X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly.

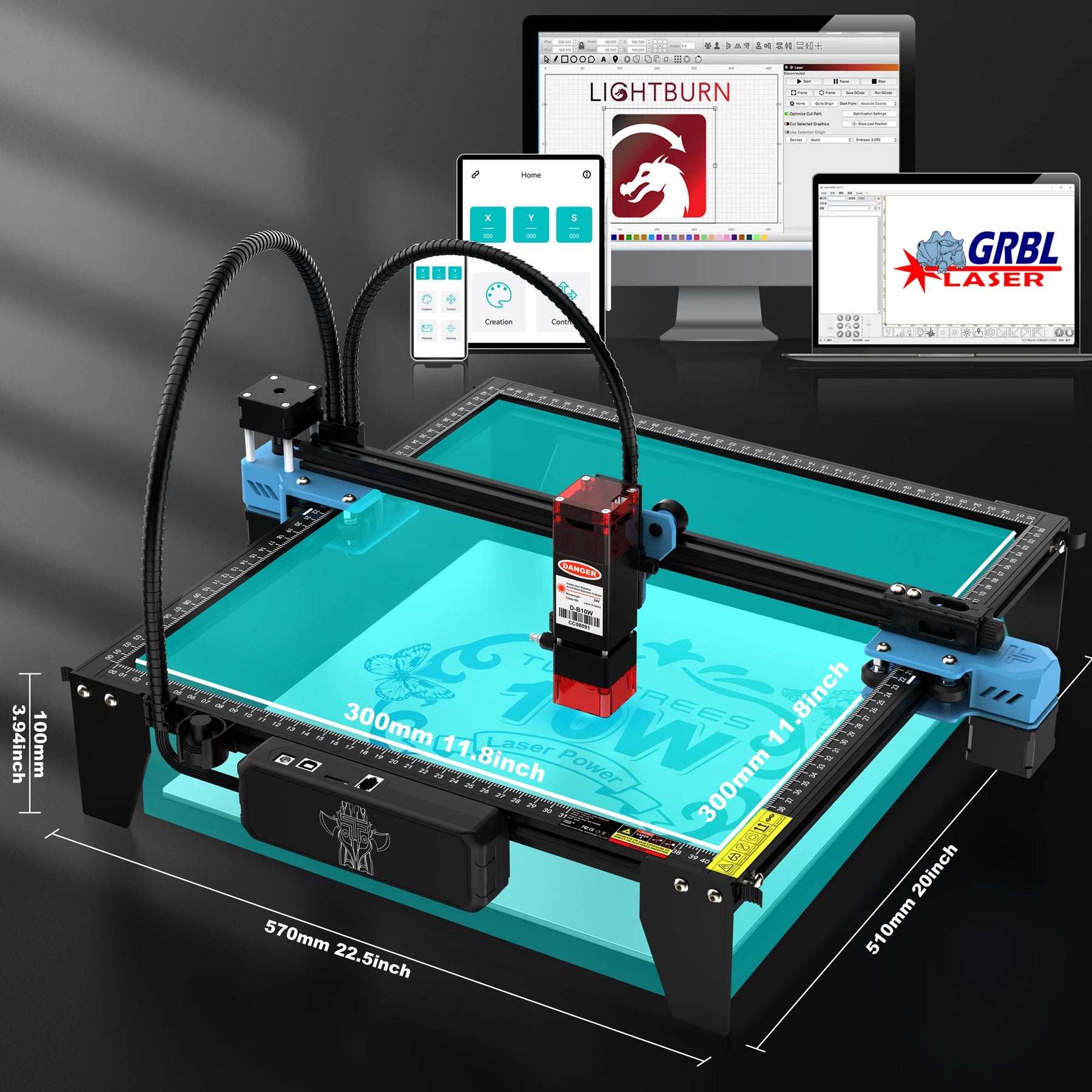

Wide Compatibility:

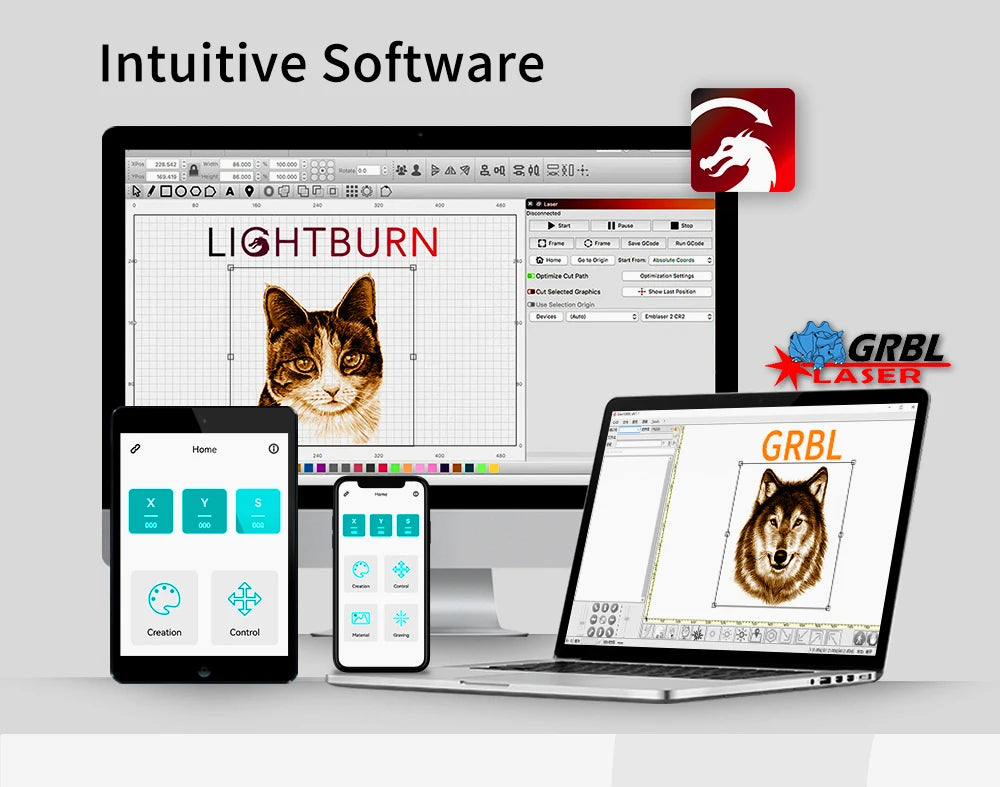

Support mobile APP control, wifi connection, USB connection, offline USE，The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.
Safe Design:
The laser filter cover filters 98% of the ultraviolet light to the eyes. The motherboard has a separate control switch.

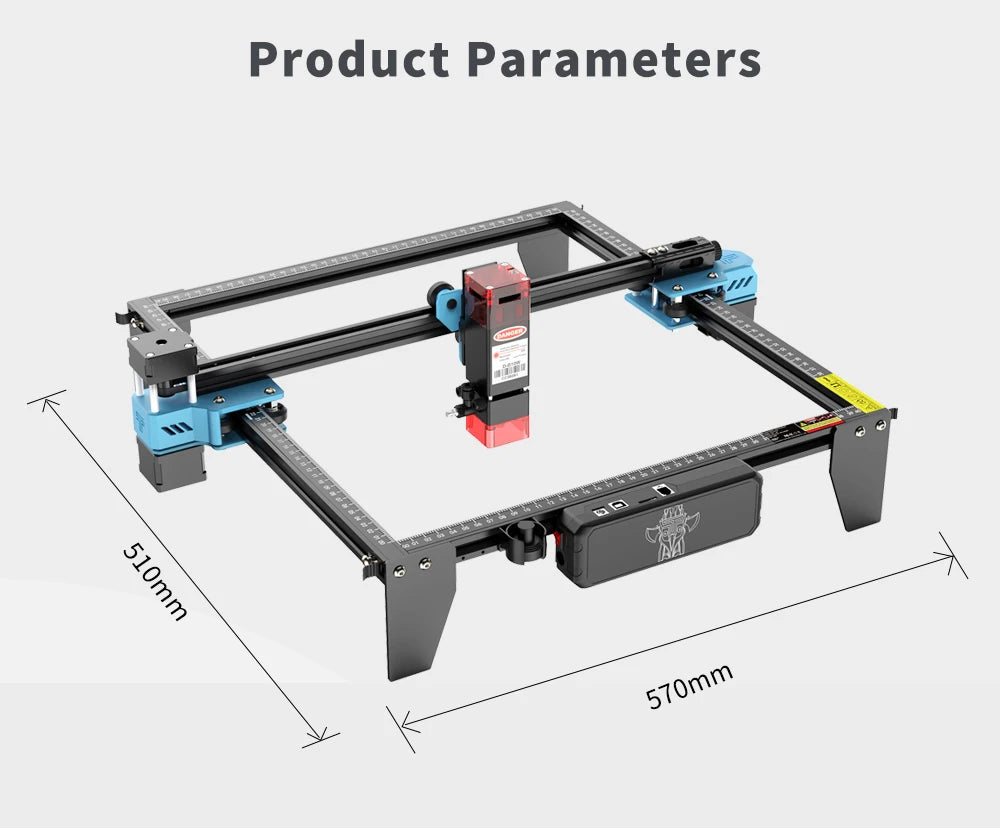

Machine parameters:
Model: TTS-10 Pro
Machine Weight: 3kg
Engraving Range: 300 * 300mm
Laser Wavelength: 445 ± 5nm
Engraving Accuracy: 0.1mm
Engraving Speed: 30000mm / min
Software Support System: MAC, Windows
Machine Material: Aluminum Profile + Plastic Parts
Power Supply: 24V 5A DC
Control Board: LTS esp32 Motherboard (32bit)
Laser Power: 10w
Input Power: 80w
Software Identification File Format: NC, BMP, JPG, PNG, Gcode, Etc
Supporting software: Lasergrbl (Windows system), Lightburn (General)
Power type: European standard / American Standard (Optional)
Languages Supported By The Software: Chinese, English, Italian, French and German
Working Environment: Temperature 5-40 ℃, Humidity 20-60%
Engraving Mode: USB Online, TF Card (Application Program, Web Page Control)
Carving Materials: Wood, Plastic, Paper, Leather, Sponge Paper, Alumina, Etc
Engraving Mode: Graphic Engraving, File Engraving, Scanning Engraving, Contour Engraving And Pixel Engraving
Note:
- Please read the Users Manual before use.
- Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
- Do not engrave the mirror objects or metals with strong mirror reflectivity, which may cause injury to the operator or burn the laser.
The shelf life is 12 months from the date of purchase
1. Missing/damaged/defective parts
a. Within 7 days after the delivery date, we will replace any parts for free, including shipping
b. After 7 days from the delivery date, we will replace any parts free of charge. But customers need to pay for shipping
2. Customer damaged parts: The customer should pay for the cost of the parts and transportation costs
3. Lost, missing, damaged and defective parts by the courier company
1.Claims for lost or damaged goods must be reported to the carrier within the carrier’s claim window,
and the customer needs to notify us within 7 days after the delivery date
2. For any parts lost or damaged during transportation, the customer should take photos or videos and send the information to us
3. Once the carrier's dispute is resolved, please provide us with all communications with the carrier.
The customer is responsible for keeping us informed of all communications with the carrier in time
4. For missing parts, customers should contact customer service.
5. For damaged parts, customers should contact customer service and send photos or videos to us
