SPECIFICATIONS
Brand Name: APWIKOGER
Origin: Mainland China
Certification: none
Frequency Range: 50kHz-4.4GHz
Output Power: 5V
Frequency range: 50KHz-4.4GHz
RF output power: -42dBm to -12dBm (1dB step)
RF interface form: N-type female connector (with N to SMA adapter)
RF input power: maximum 0dBm (DC <5V)
Frequency Accuracy: <±1ppm (<140MHz) <±5KHz (>140MHz)
S21 dynamic range: 75dB (<3GHz); 60dB (>3GHz)
S11 dynamic range: 50dB (<3GHz); 40dB (>3GHz)
Scan point: 1001 (can be set to 101-1001)
Scanning speed: 400 points/sec (f>140MHz)
IF bandwidth: 12.5KHz by default (optional 6.25k/3.12k/1k/300Hz/100Hz/30Hz)
Feature1: inspection tools
Feature2: Tools
Feature3: spectrum anaylzer
Feature4: Vector
Feature5: lan tester
Feature6: Analyzers
Feature7: Detector
Feature8: cable tester
Feature9: network cable tester
Feature10: antennas analyzer
Feature11: logic analyzer
Choice: yes
semi_Choice: yes
U.S. buyer attention:
The areas where the US warehouse does not deliver goods are: Hawaii, Alaska, Puerto Rico, Guam and other US overseas territories. And the military address. But you can choose ship from China.
Spanish buyers attention:
If your address includes following postal code please do not choose the Spanish warehouse.
The zip code starts with 35/38.
Overseas warehouse cannot be delivered. But you can choose ship from China

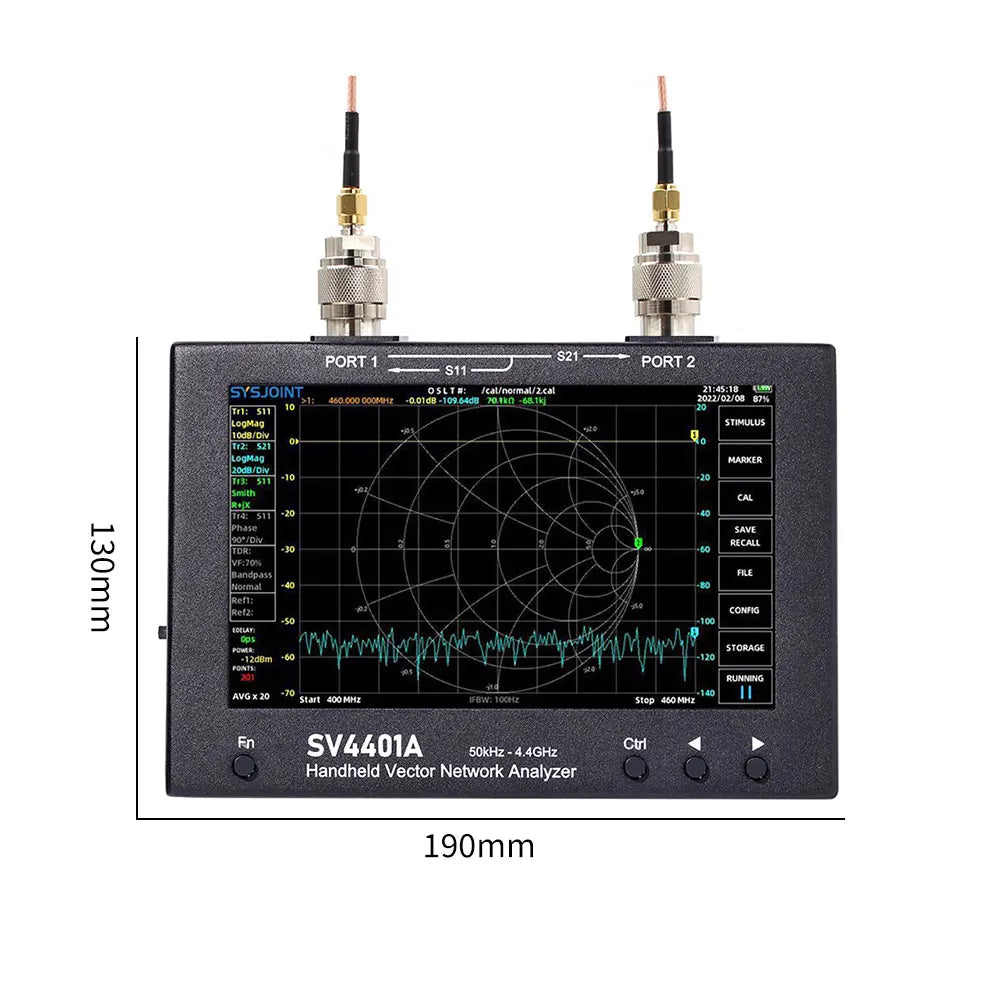

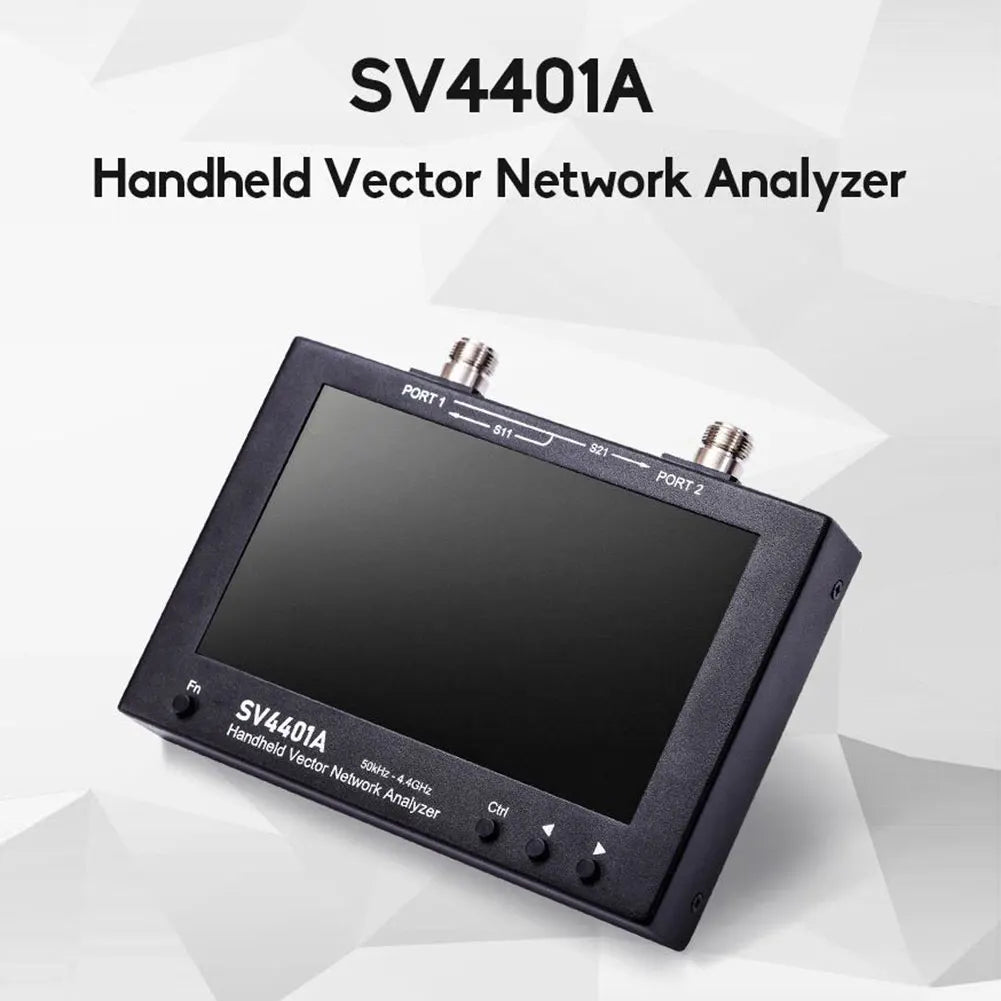

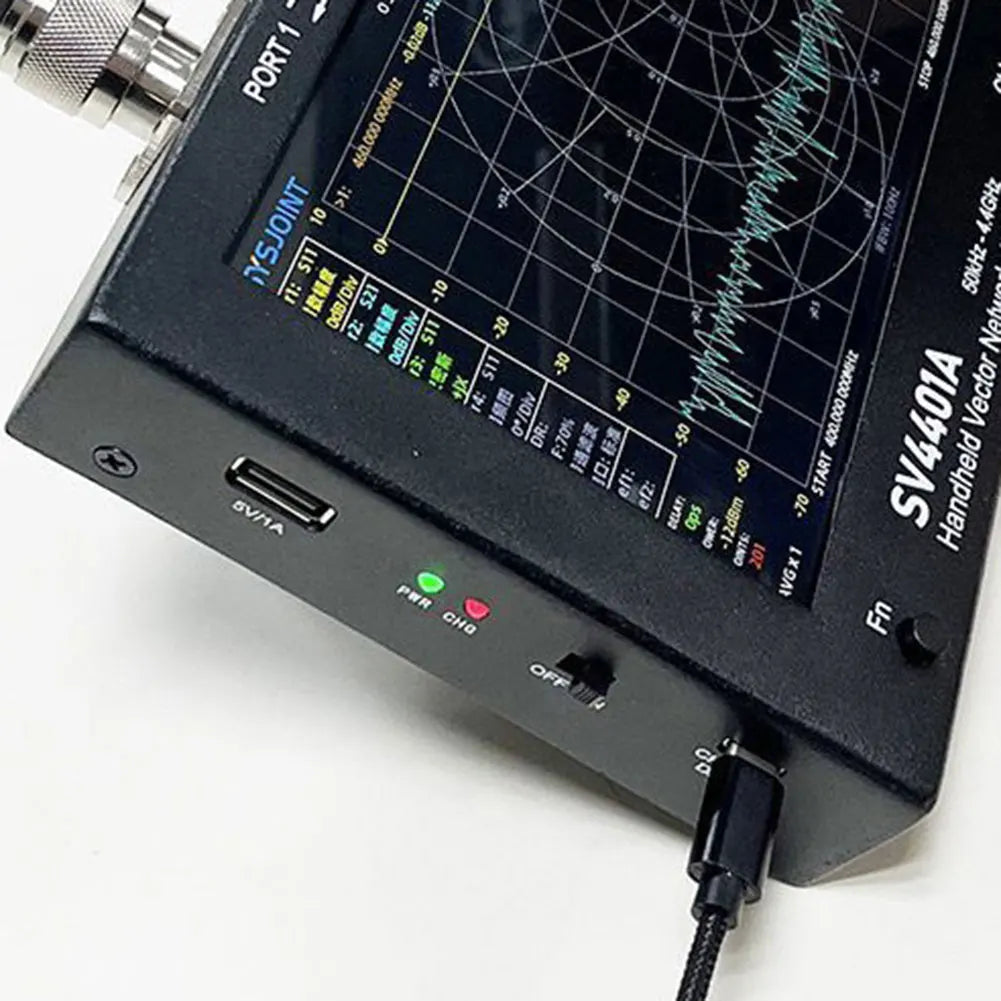

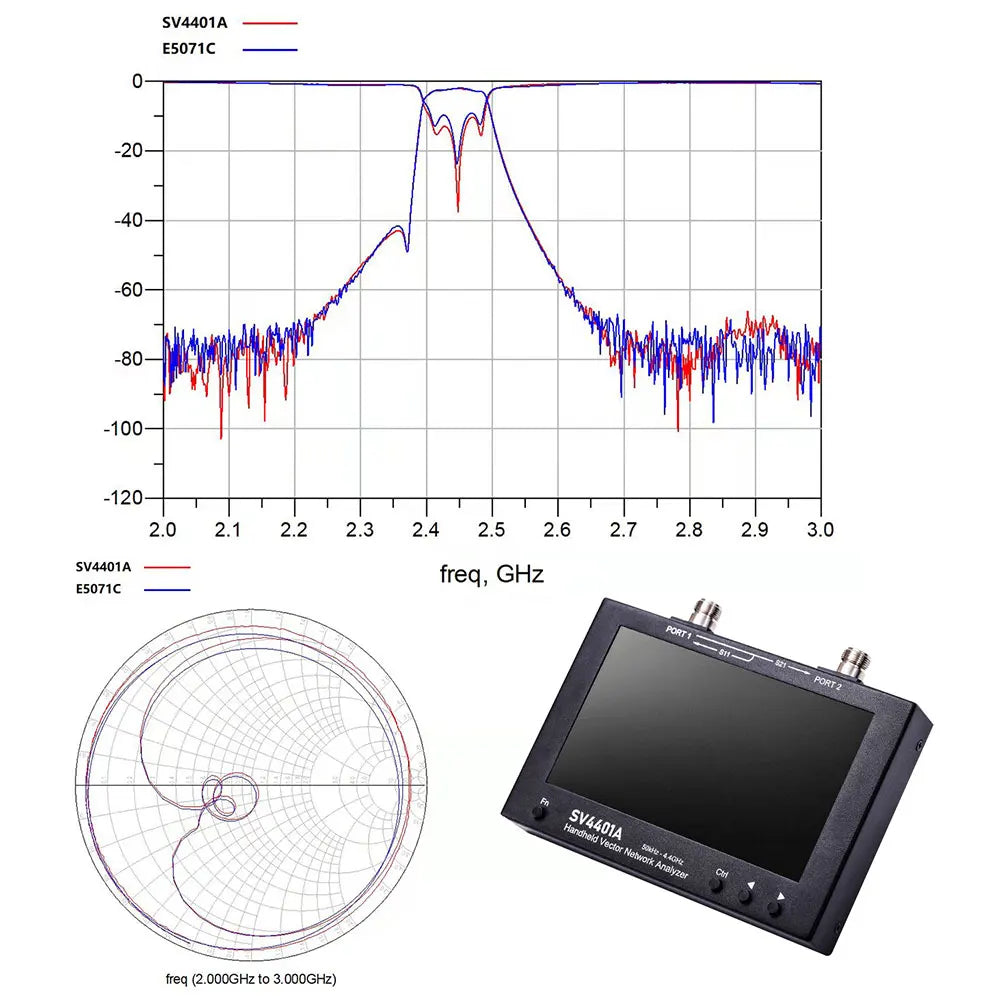

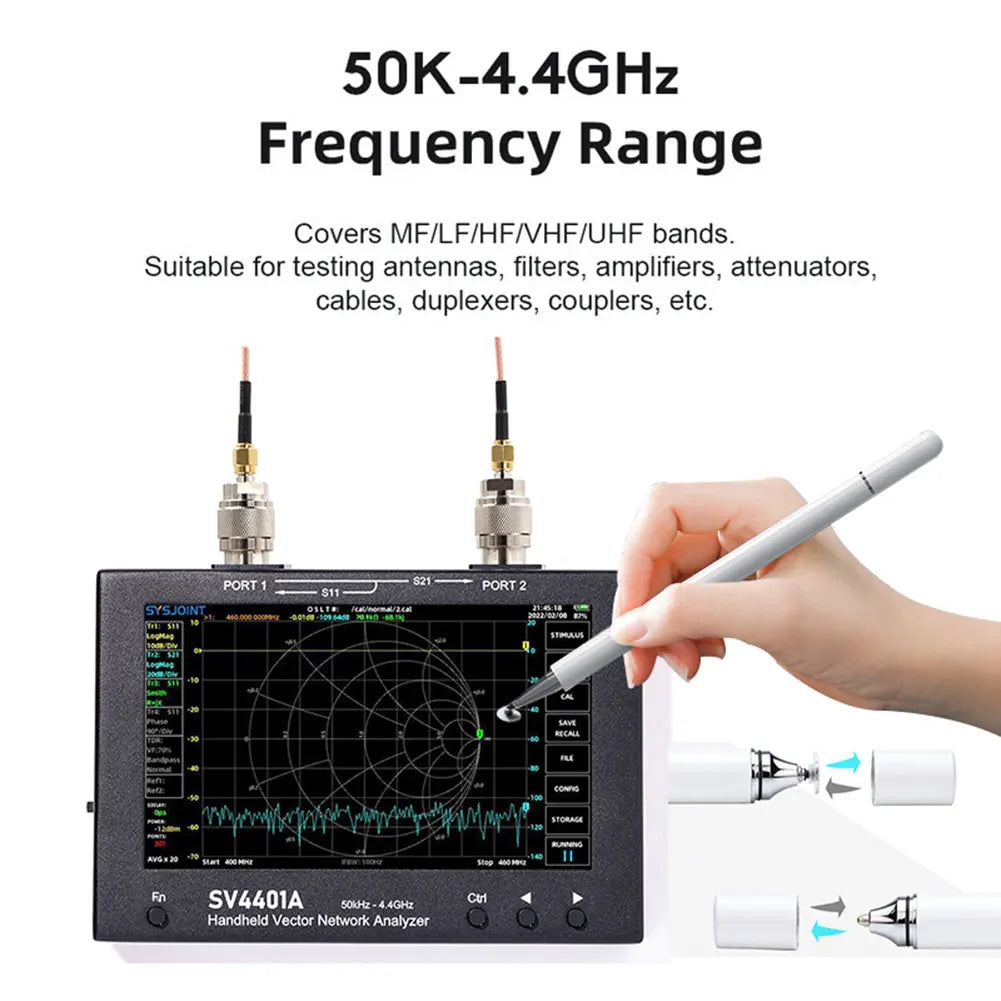

SV4401A Handheld Vector Network Analyzer 100DB Dynamische 50KHz-4.4GHz Network Antenna Analyzer MF/LF/HF/VHF/UHF 7inch LCD Screen Feature: 1.Cutting-Edge Technology: Our handheld vector network analyzer, with an operational range of 50KHz to 4.4GHz, meets international certification standards and is proudly FCC and CE certified. It offers quick and accurate operations and is easily portable due to its compact size. 2.Advanced Display & Battery: With its 7-inch IPS high-brightness LCD screen and capacitive touch control, this network antenna analyzer offers optimal visibility. It's powered by a 18650 lithium battery that provides up to 4 hours of runtime and can be conveniently charged through a USB Type-C interface. 3.Exceptional Measurement Capability: This VNA analyzer excels with a 100dB dynamic range and an optimized RF front-end circuit that ensures accurate and reliable measurements. It offers a frequency range of 50KHz to 4.4GHz, making it suitable for measuring a variety of antennas, filters, amplifiers, attenuators, cables, duplexers, couplers, and more. 4.Storage & Versatility: This vector netwerk analyzer comes with a built-in 8GB storage card for saving calibration states, screen captures, and SNP files. Its human-friendly interface supports multiple display formats like logarithmic amplitude, phase plot, group delay, Smith, polar, and more. It also provides 12 save/call slots for quick storage and retrieval of calibration states. 5.Durable Design: Housed in an all-metal shell for effective electromagnetic interference shielding, the antenna analyzer is designed for lasting durability. It enables one-handed operation, thanks to its ergonomically designed back support. The device also comes with a TDR function for measuring cable length and identifying cable breaks, catering to an array of your technical needs. Specification: Frequency range: 50KHz-4.4GHz

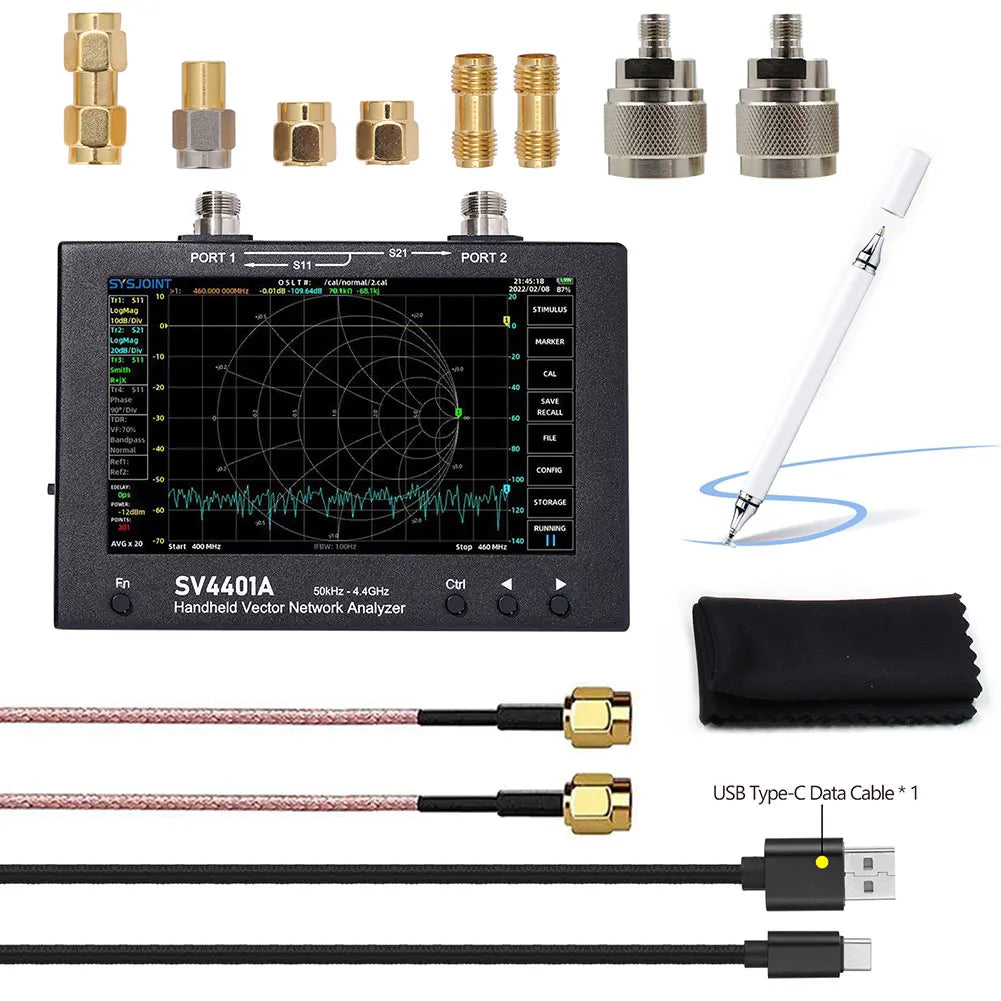

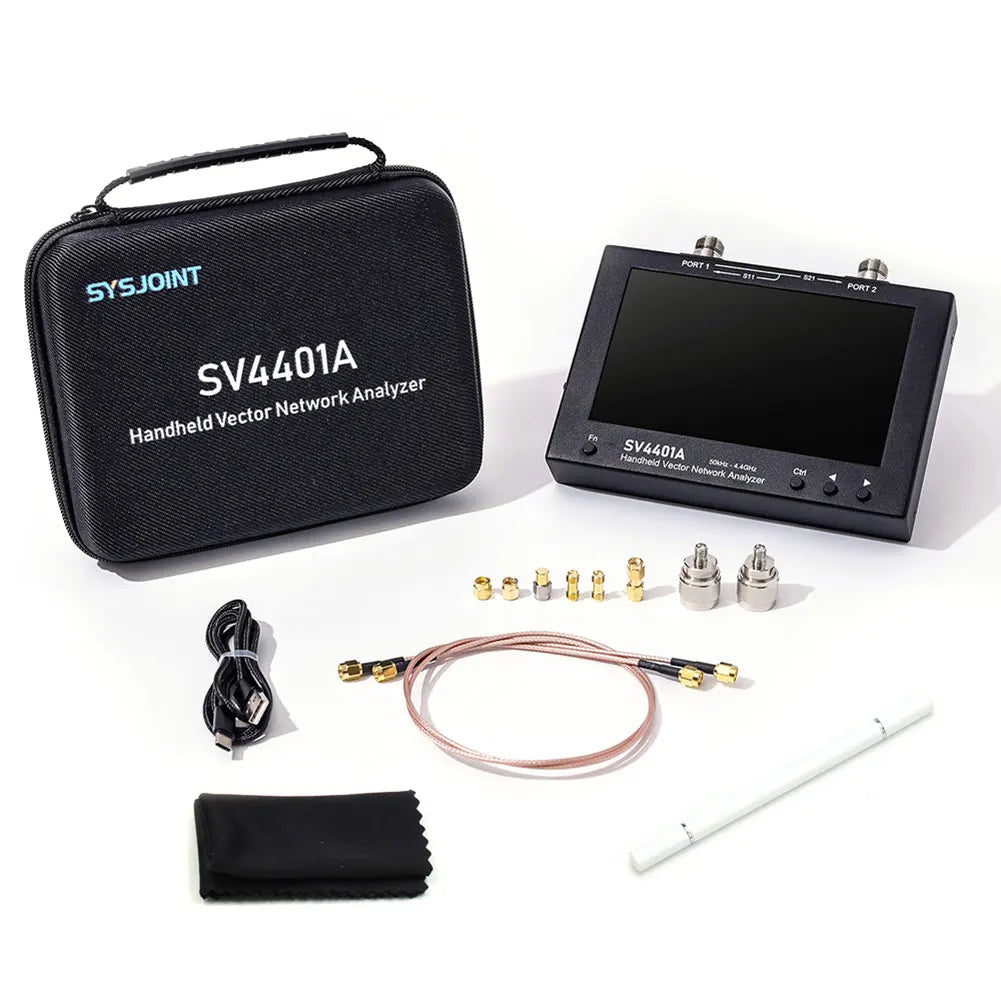

1 X SV4401A VNA Analyzer 2 X N To Sma Adapters 1 X SMA Open/Short/Load Calibration Kit 2 X SMA Double Female Direct Headers 1 X SMA Double Male Straight Connector 2 X 50cm/19.7" Rg316 Cables 1 X USB Type-C Cable 1 X Storage Bag
|
