SPECIFICATIONS
Brand Name: SINOSMART
Frames Per Second: 30
Origin: Mainland China
Chipset Manufacturer: Novatek
Assembly Mode: Hidden Type
View angle: 170°
Number Of Lenses: 2
Screen Ratio: 16:9
Interface: WI-FI
Interface: Micro SD/TF
Video Code: H.264
Battery Life: No Limited
Original Package: No
Camera Resolution: 1920x1080
Special Features: G-Sensor
Special Features: digital zoom
Special Features: sd/mmc card
Special Features: Real Time Surveillance
Special Features: Wide Dynamic Range
Special Features: wifi function
Video Format: MOV
Touch Screen: No
Item Type: Car DVR
GPS logger: NONE
Battery: None
Certification: CE
Memory Card Required Reding Speed: Class 10
Imaging Sensor: Sony IMX307
OSD Language: English
OSD Language: French
OSD Language: German
OSD Language: Italian
OSD Language: japanese
OSD Language: Portuguese
OSD Language: RUSSIA
OSD Language: Russian
OSD Language: Spanish
Pixels: 1200Mega
Rear Camera: NONE
Max External Memory: 128G
Product Name: Dash Digital Video Recorder Camera with Wi-Fi Function
Interface: Micro SD/TF up to 128GB
Power Supply: DC 12V/400mA
App Name: TIMACAM (English Only), Support iOS/Android
Welcome to SINOSMART
A professional supplier of car in-dash car GPS navigation player, rear view parking camera and DVR. We have after-sales service center in UK and Russia. We can offer mixture orders and big discount for retailers and wholesalers. We work with many regular customers from Europe, South America, Asia and Australia. Welcome to contact us for e-catalog and long-term of cooperation.
Our product warranty is one year and service life time. If you give us 5 star feedback and share photos on aliexpress, we will give you extra surprises, please contact us.
Please be noted that warranty of the data card is 3 months only.
The listed car model name/year just for reference, because the same car models made in different factories/years may have some difference.This model is for car with this kind of mirror(tested by customers), here are photos shared by customers from different countries for your reference. If you are still not sure, please contact us to check before ordering.
About Rain Sensor Power Harness - Easy Connection
We will send you rain sensor harness directly as default.
We will send you the suitable Harness based on our experience.
If you have any personal request, please feel free to contact us.

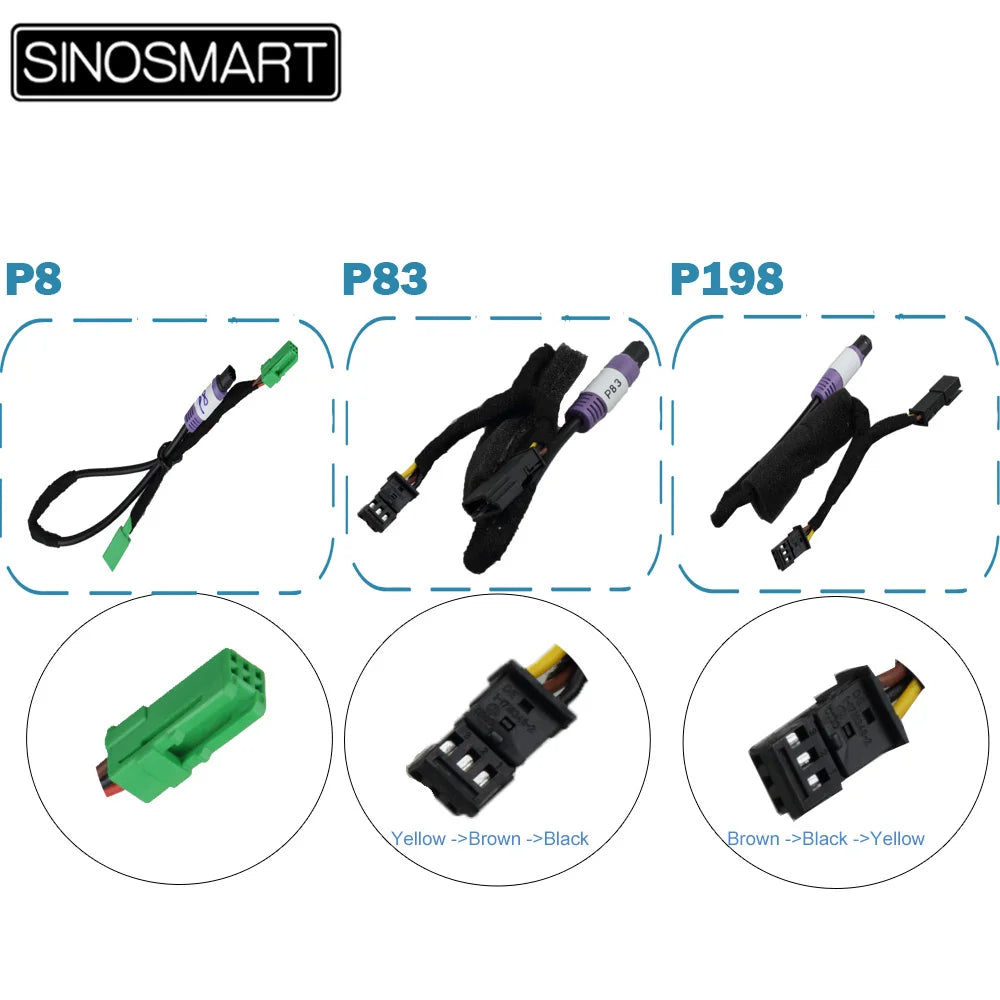

For Volvo, we provide 3 kinds of harness.
P8 Green, it is for most of models. (99%)
P83 Black, it is for CX40 only.
P198 Black, it is for some of WEW02 or WEW03 for XC60 2019 or before
P83 and P198 have same size but with different PIN position. If you use a wrong cable, it will lead a damage to the DVR.
WEW01 is used in the following models ↓
Part of the XC70 2012 - 2015
Please note that it is different from WEW02
V60 2015 - 2018
S80 2012
S60 2013

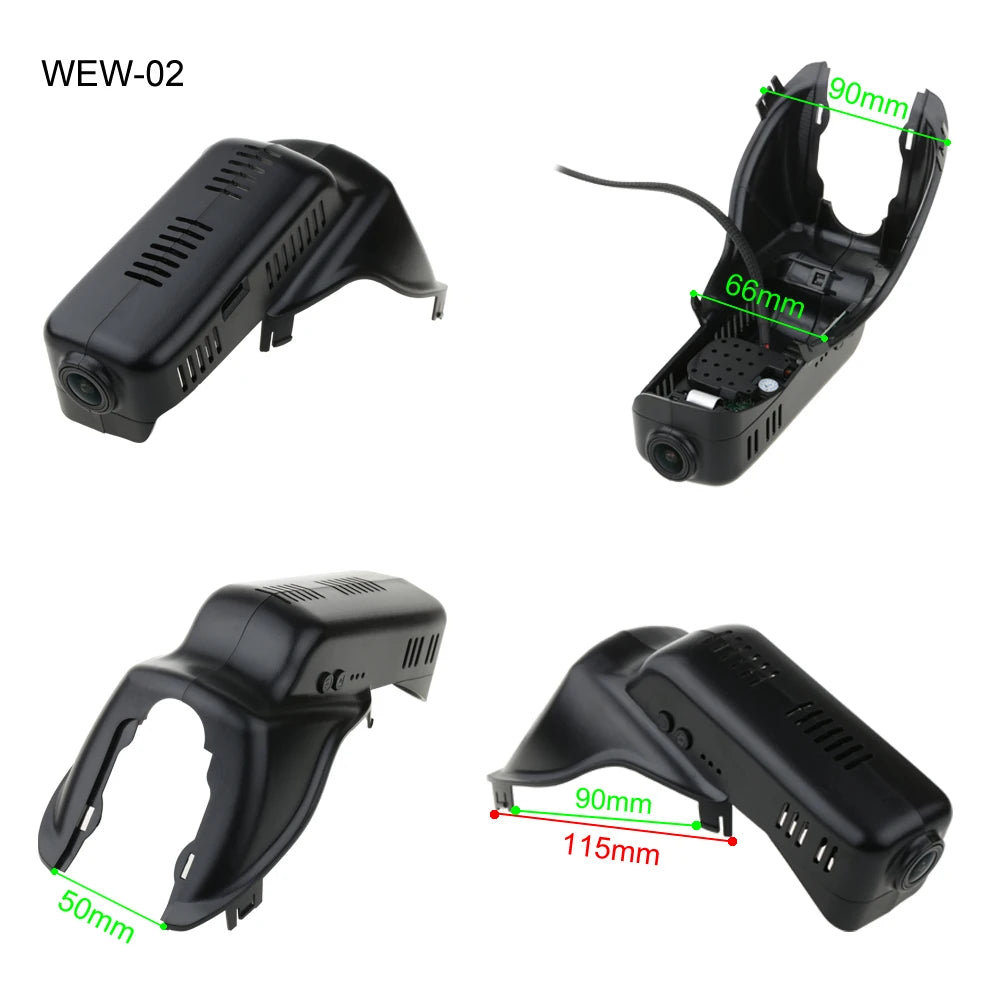

WEW02 is used in the following models ↓, If it is in 2021 or 2022, please refer to WEW10
XC60 2011 to 2015 ( low configuration)
Part of the XC70 2014
Please note that it is different from WEW01
WEW03 is used in the following models ↓
XC60 2012 - 2015 (Deluxe)
It also fits v60 cross country 2017 2018
WEW02 is the same size as WEW03, the only difference is the head

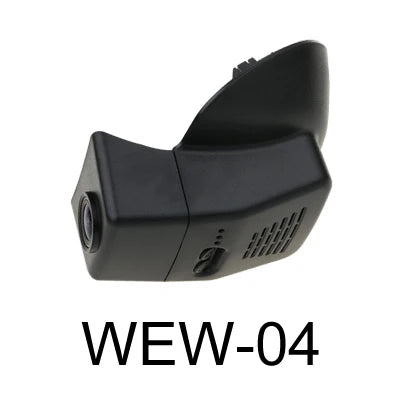

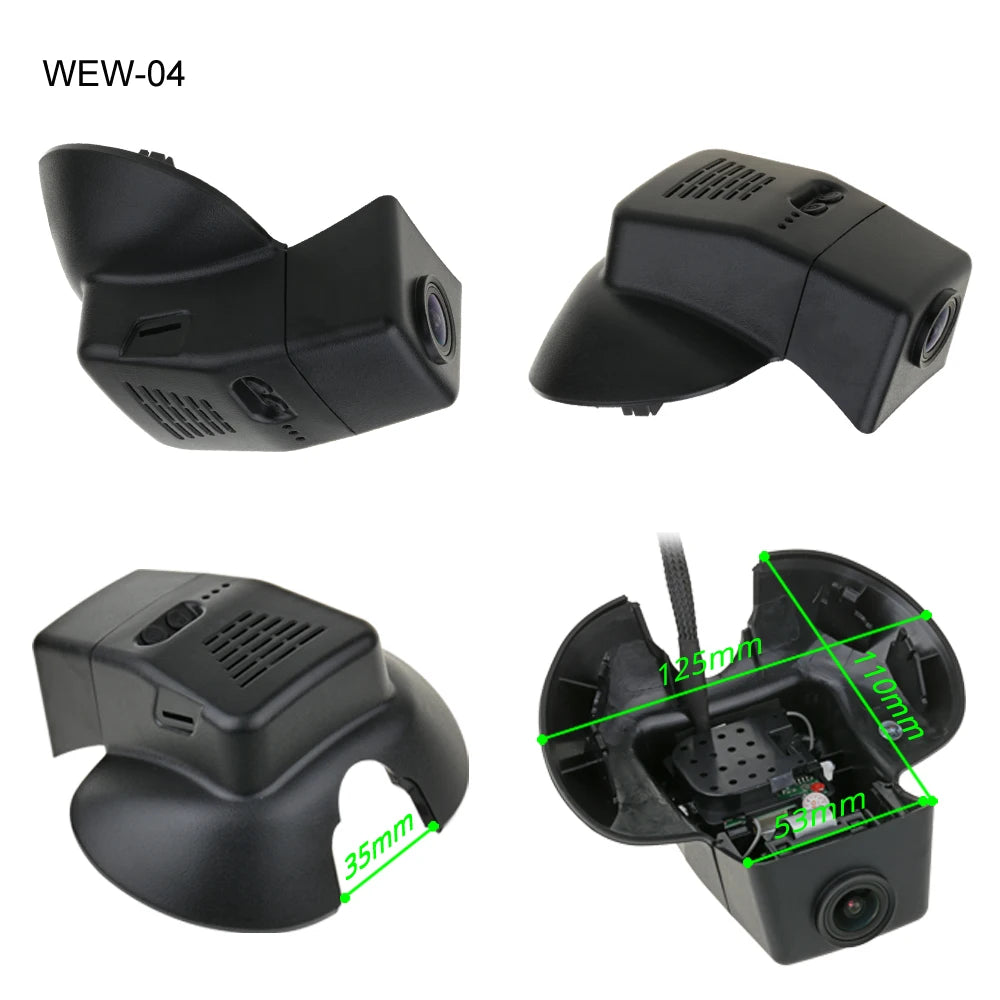

WEW04 is for V40 2015 or later, as below ↓
WEW05 is for XC90 2015 2016 2017 2018 2019, as below ↓

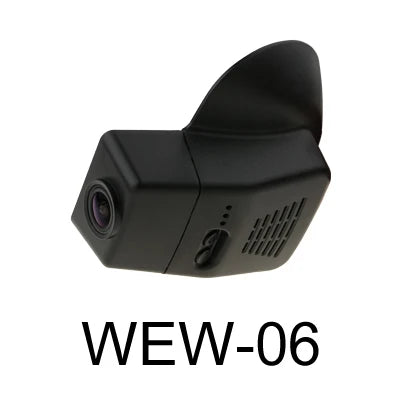

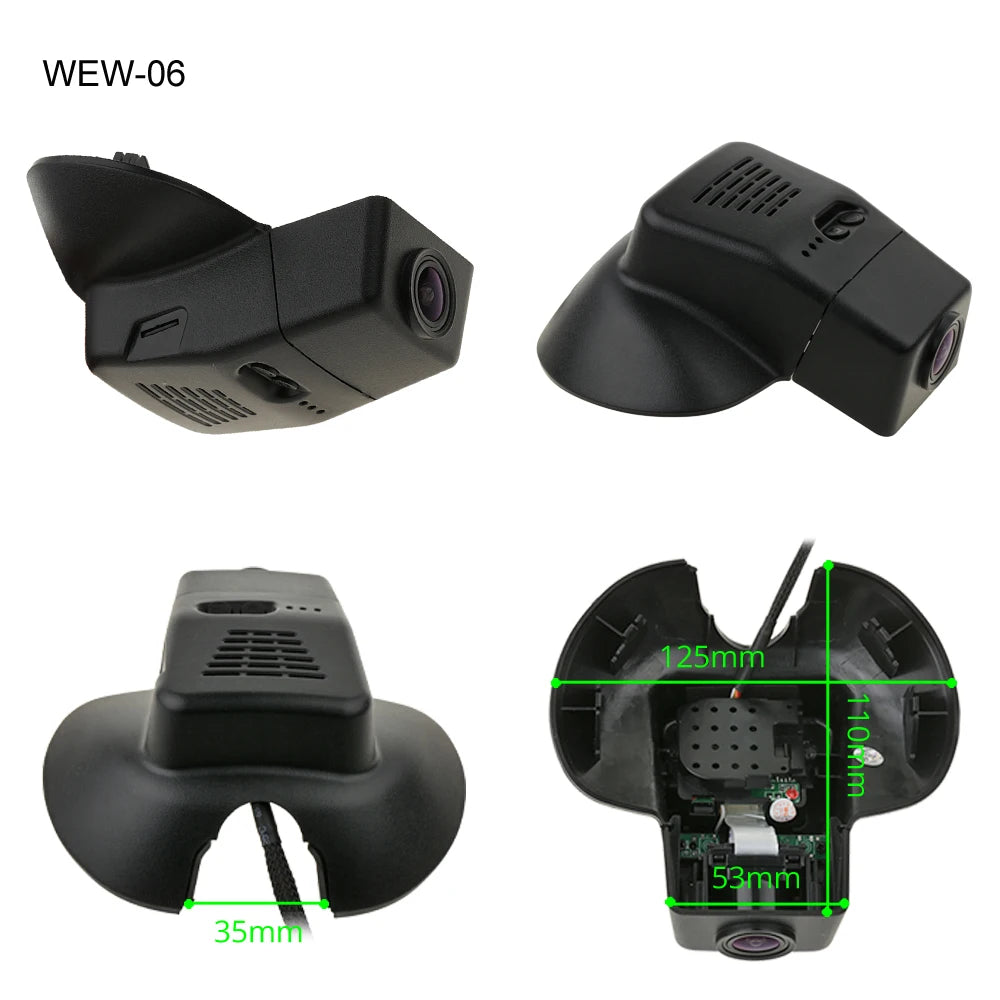

WEW06 is for V40 Deluxe 2015 2016, as below ↓

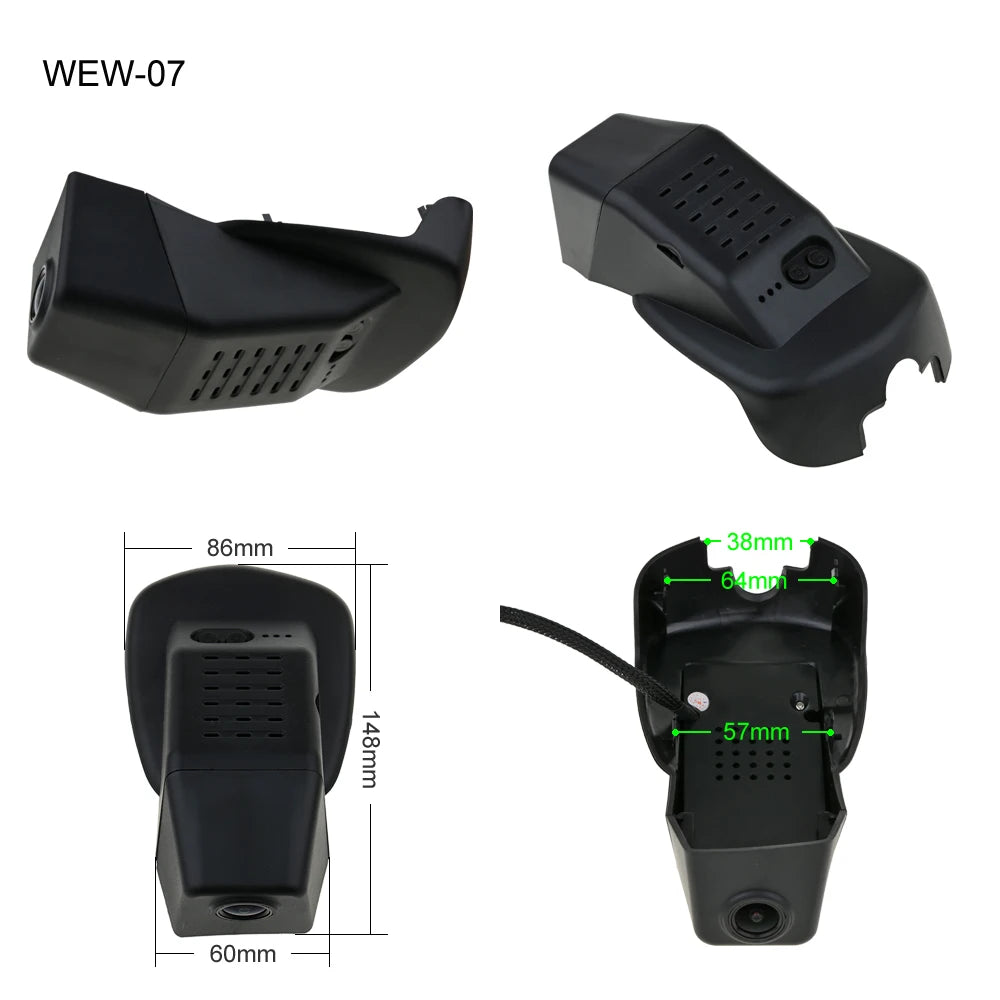

WEW07 is for XC60 2018, S90/V90/S90 2017, T4 2.0T T5 2.0T / V90 CROSS COUNTRY T5 AWD 2017, V60 2019 etc. , as below ↓
WEW08 is for XC40 2018 or later, as below ↓

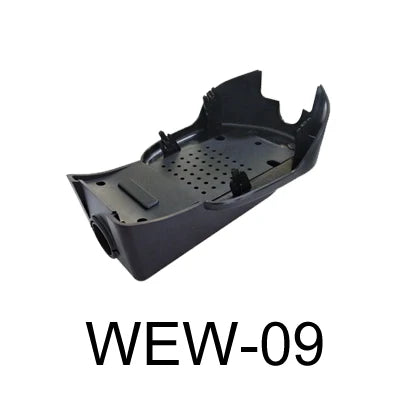

WEW09 is for Volvo V60 2020/S60 2020, as below ↓
2022 New Update for WEW10, WEW11, WEW12, WEW13, WEW14, WEW15, WEW16

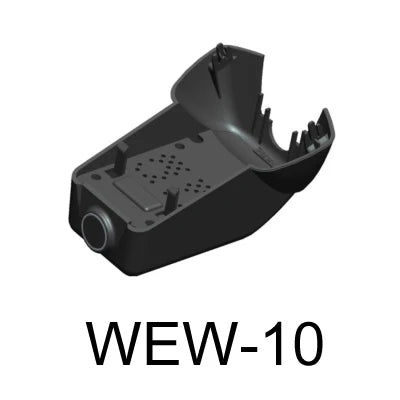

WEW-10 is for XC60/S90/V90/B4/B5 2022

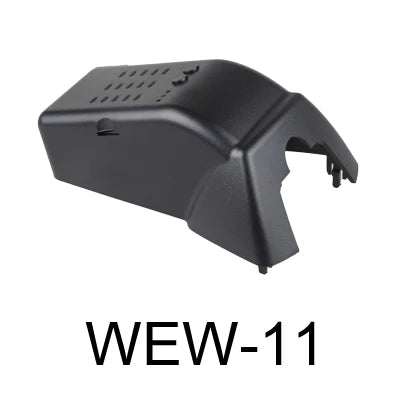

WEW-11 is for Volvo XC40 electric version 2022

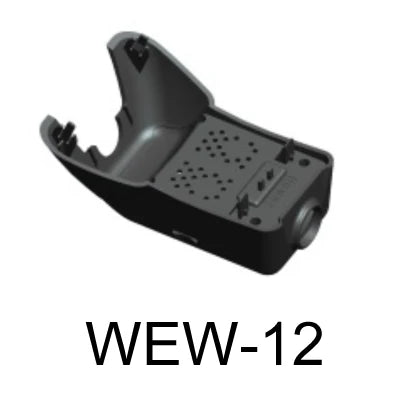

WEW-12 is for Polestar 2 pure electric

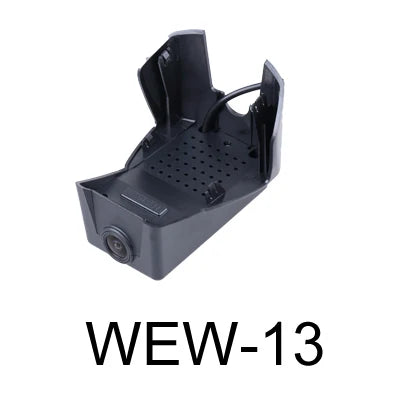

WEW-13 is for Volvo XC90 2021, It is for 2019-2020 models too in some certain countries, such as Switzerland
WEW-14 is for S60 2023
WEW-15 is for C40 2022
WEW-16 is for XC90 2022
Please check it with your car
WEW10
https://www.aliexpress.com/item/1005004623036038.html
WEW11
https://www.aliexpress.com/item/1005005167228266.html
WEW12
https://www.aliexpress.com/item/1005004622999869.html
WEW13
https://www.aliexpress.com/item/1005004622999869.html
WEW14
https://www.aliexpress.com/item/1005006922825896.html
WEW15
https://www.aliexpress.com/item/1005006923098258.html
WEW16
https://www.aliexpress.com/item/1005005372736036.html
AD: If you want to add wireless carplay/android auto to your OEM radio screen, please click buy to check the details
Key Features & Specifications
Key Features & Specifications

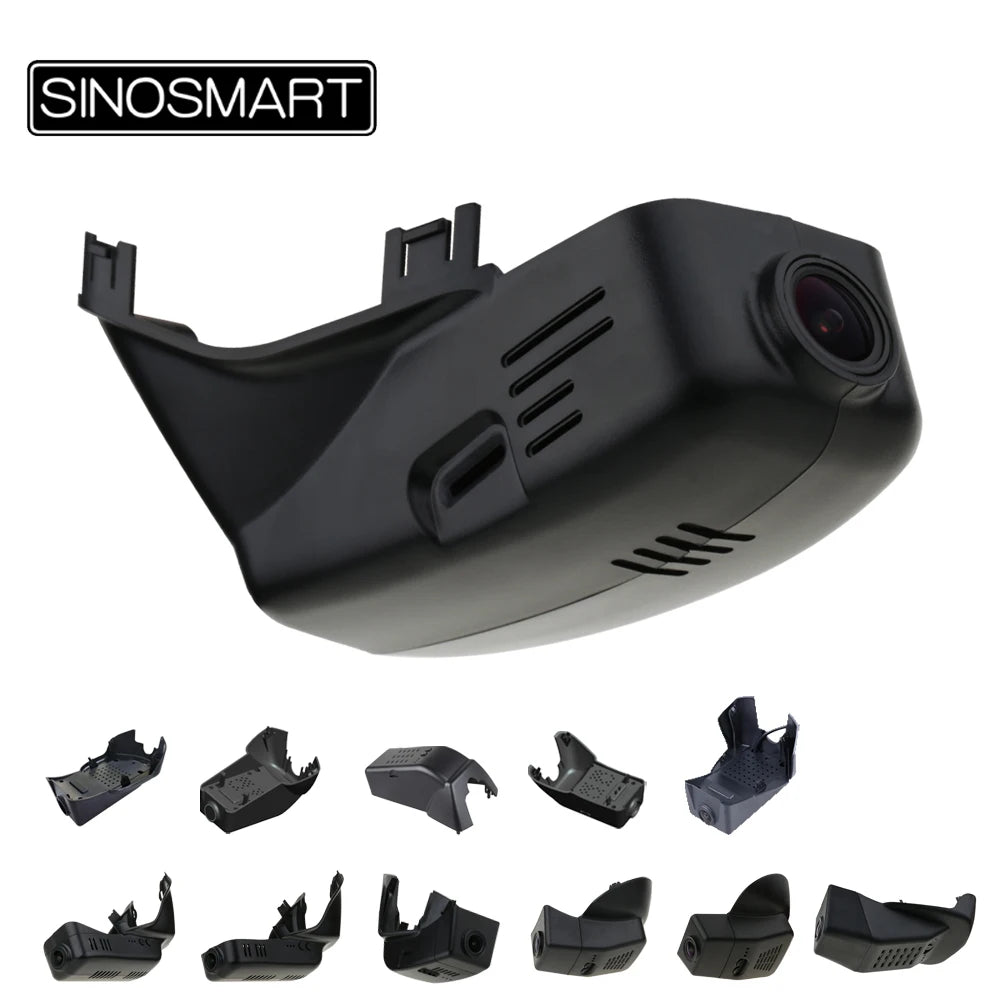

100% Car Original Style (Special DVR), hidden behind the rearview mirror.
F2.0 Large Aperture, 170 Degree Wide Angle
1080P HD Continuous Loop Video Recording, Resolution 1920*1080 Pixels (It is optional)
Sony 12 Mega Pixel Sensor, Six Layers Advanced Coating Lens
Built-in WiFi, Support APP Control by iPhone, Android Phone, Android Car DVD Navigation. Share Video on SNS at Any Time Any Where.
With G-sensor, Continuous Loop Record, Turn on/off by Car automatically. Synchronous Recording. Automatic Focus etc.
24-Hours full time guard
When your car off, it can work in low frame rate recording mode, it needs low power consumption from battery. Make your car safety!
Standard Model: SONY IMX307 (IMX307335 is optional) / Novatek 96562 (96565/96670/96675 is optional)
Camera Angle: 170 Degree Wide-Angle
White Balance: Automatic
Night-Vision: Low Illumination Working
WDR: Support
Video Coding Format: H.264 Video Coding/HD MOV Format
Front Camera Resolution: 1K (2K or 4K is Optional)
Rear Camera Resolution: Optional (720P or 1K)
Frames Per Second: 30
Loop Video Clip: Yes.
Gravity Sensing: 3-axis Solid Collision Acceleration Transducer
Motion Detection: Support (It is weak)
Memory: TF Card Max 128GB(Class10+)
Loop Video Playback: Support
OSD Language: English, Japanese, French, Spanish, German, Portuguese, Italian, Traditional Chinese, Simplified Chinese
APP Language: English
This is a really HD DVR, it needs a really high speed class 10 or higher speed memory card. We highly recommend you to buy memory card from us.
Overview of iOS and Android APP
(It will be online upgrade without notice)
You can download APP from Apple iOS APP Store or others Android Market.
Installation, Feedback, Warranty and Brand Story
Easy installation. we will send you middle size fuse box that fits most of cars, if not, you can connect the power manually.
For some of car models, such as Volvo, BMW, Benz, VW etc, there will be special rain sensor wire or mirror power wire for you. Please contact with our online sales. It will make your installation much easier.
Fuse box is under the steering wheel or passenger side, you can reference your manual. Our fuse is 10A.
Black wire (GND):
Connect it to any metal parts.
Red wire(ACC):
12V (+), When you insert key into ignition switch. The ACC wire offers power/electricity only when insert car key into ignition switch and turn it to the left. Such as cigarette lighter, radio etc.
Yellow Wire(B+):
12V (+), This wire will always offer power/electricity even the vehicle is turned off. Such as ports for small lights/dome light/brake light/emergency flashing lights etc.
Note:
If Yellow wire lost power when your car off, DVR will lost all setting, including date/time etc.
Special Benefit for 5 star Feedback-Warranty
After you get the product and everything is OK, please confirm the order and give us all 5 rating. If you can share the photos on aliexpress order comment page, write down the information, which can help to others customer, such as your car model, car year and installation photo etc, we will extend your warranty to 2 years.
Please contact us before leaving any negative and neutral feedback or open any dispute, only communication can solve your problems.We are always standby to improve.
Brand Story
Sino-Smart Digital Technology Co., Ltd. founded in 2009 is a professional manufacturer of Auto AV products, especially Car DVD Navi, car reverse camera and tracking system. We always offer smart and perfect products to our customers with one-stop service. Good quality and reliable service are our solutions to survive from hot competition. "Honesty and Credit" is our way to do business. Contact Smart people today. Just tell us what you need and we will do the rest for you!
