SPECIFICATIONS

Brand Name: LONGER3D

Certification: CE,ce

Engraving Area: 400x400mm

Hign-concerned Chemical: None

Is Smart Device: Yes

Laser Power: 10w

Model Number: RAY5-10W

Origin: Mainland China

gift: Protective Goggles

item: Laser Engraving Cutting Machine

model: RAY5 10W

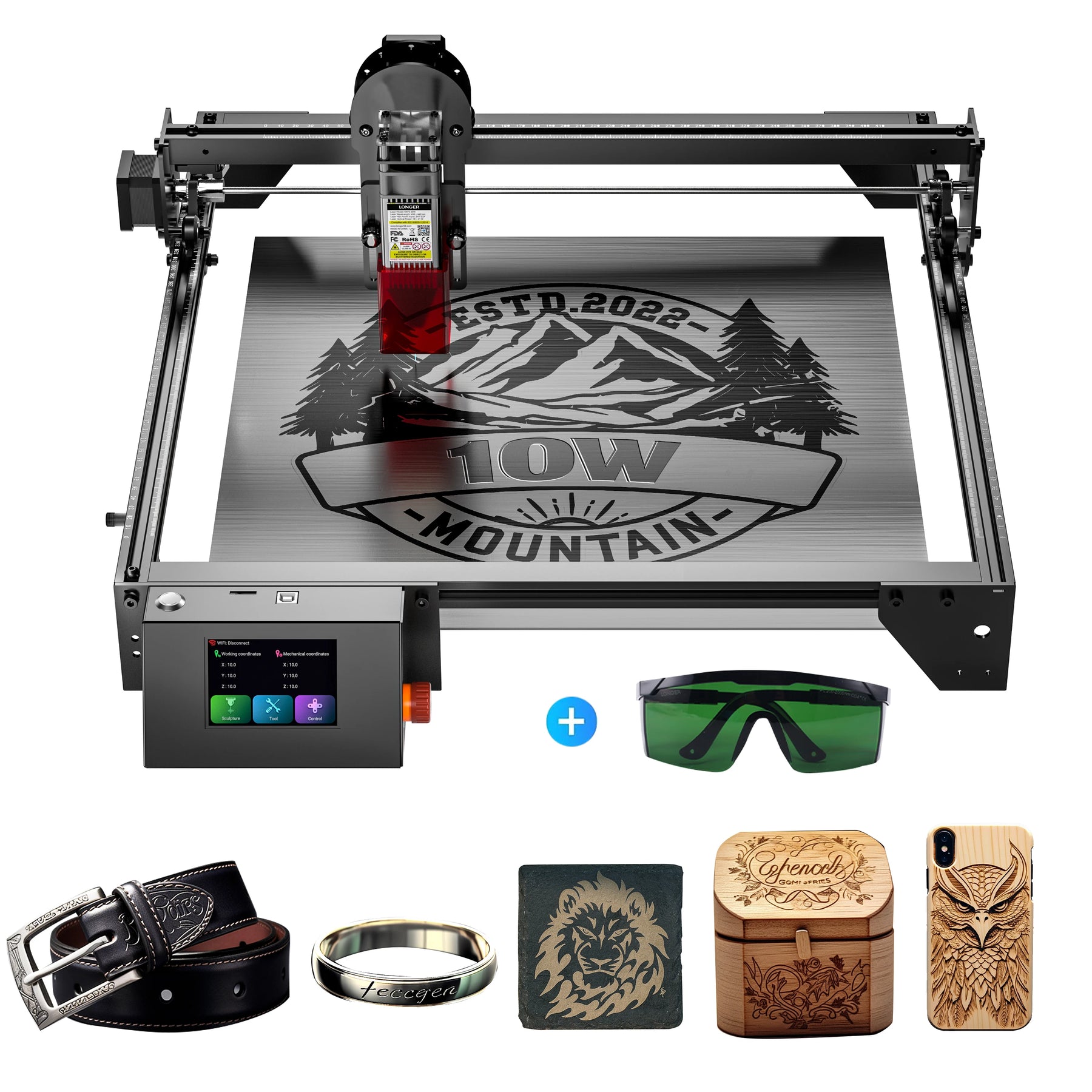

LONGER RAY5 10W Laser Engraver Cutting Engraving Machine

About Longer Laser Engraver RAY5 10W

Features:

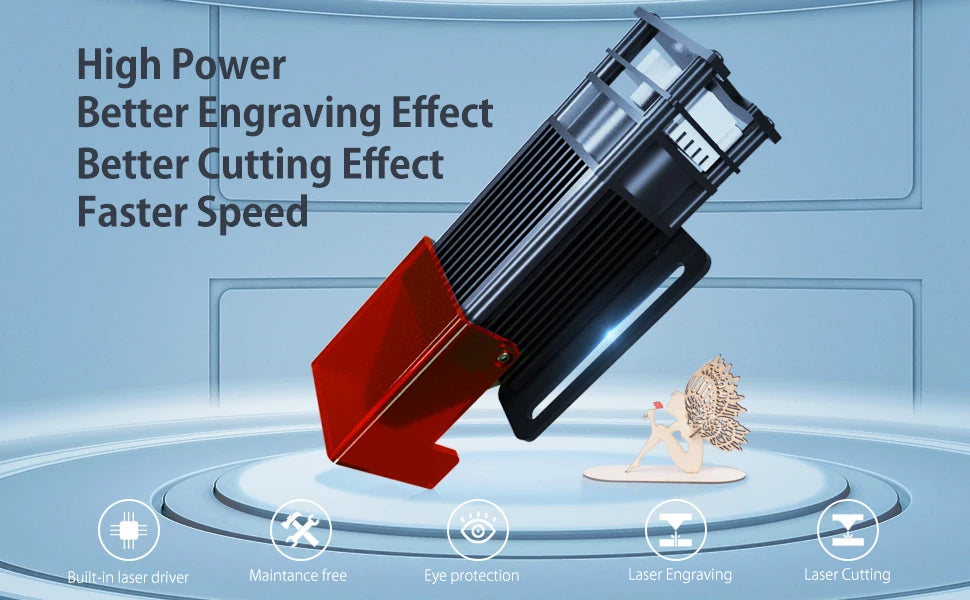

【1】10W Laser Module - Remarkable improvements realized by the poly-lens spot com pression laser technology, 10000mm/min Max.engraving speed.

【2】Quick Focus & Precisely Spot on - The focusing system is comprised of a fixed-focus lens and a focusing facilitator. Slide down the facilitator for fast focusing and uplift it once the focusing is finished. Preview function for quick and accurate engraving area location and continuous blue light emissions from the laser head will indicate the engraving area.

【3】Stable Structure & Engraving - Anodized aluminum alloys, L-shape silicone footpads and an 8 mm steel rail ensure precision and smooth movement. And a built-in leveler prevents from losing, and it is set for measuring whether the machine is properly placed.

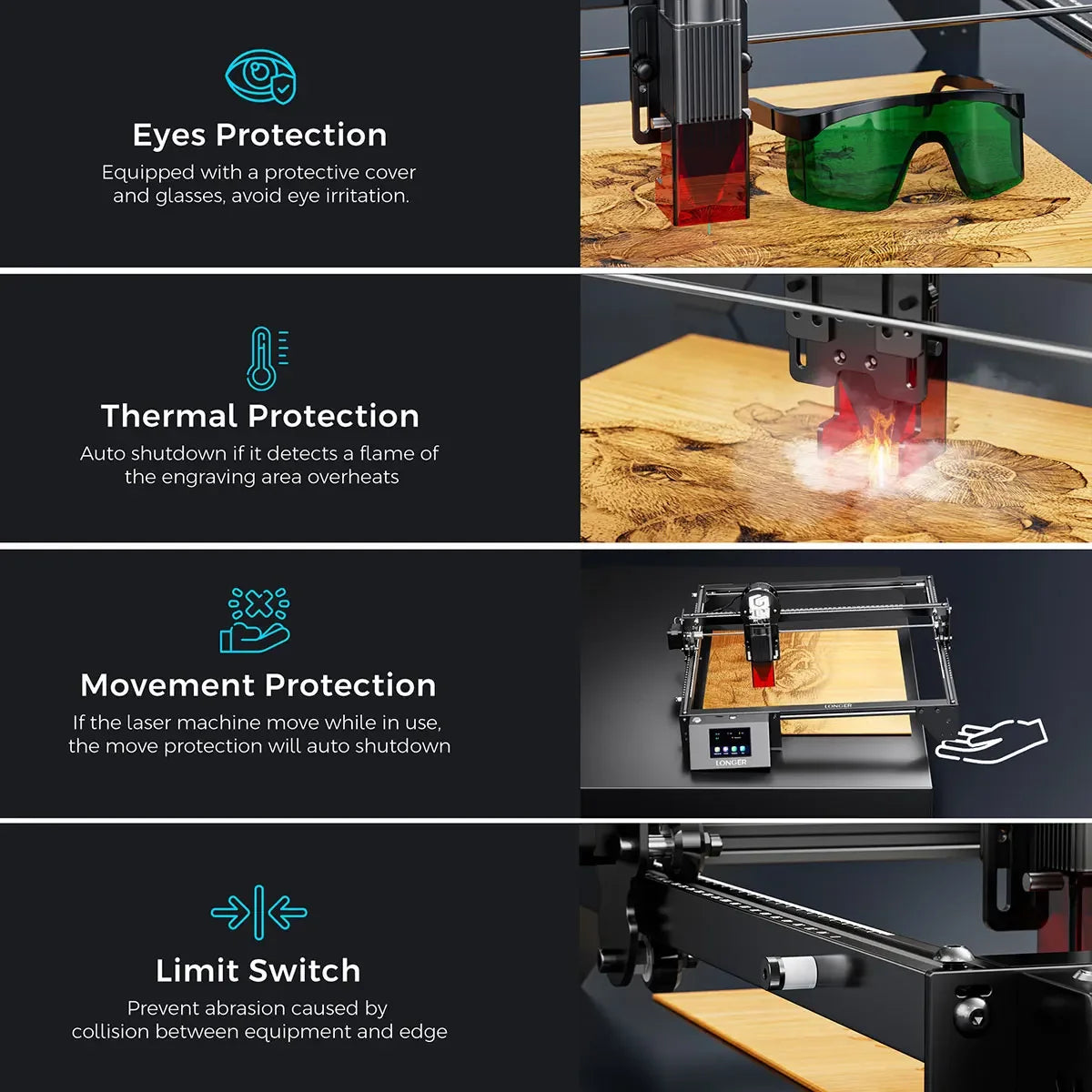

【4】Safe & Healthier - The laser safety protective cover meets

Product parameters

Model Number: Ray5 10W

Laser Technology: Dioser Technology

Working Area: 400x400mm (15.75x15.75 inch)

Laser Wavelength: 450nm

Focal Length: Fixed Focus-50mm

Laser Spot Size: 0.06x0.06mm

Laser Optical Output Power: 10W

Z Axis-Height Range: Up to 47mm

Fastest Working Speed: 10000mm/min

Engraver Output: DC12V / 5A

Engraver Input: AC 110-240V

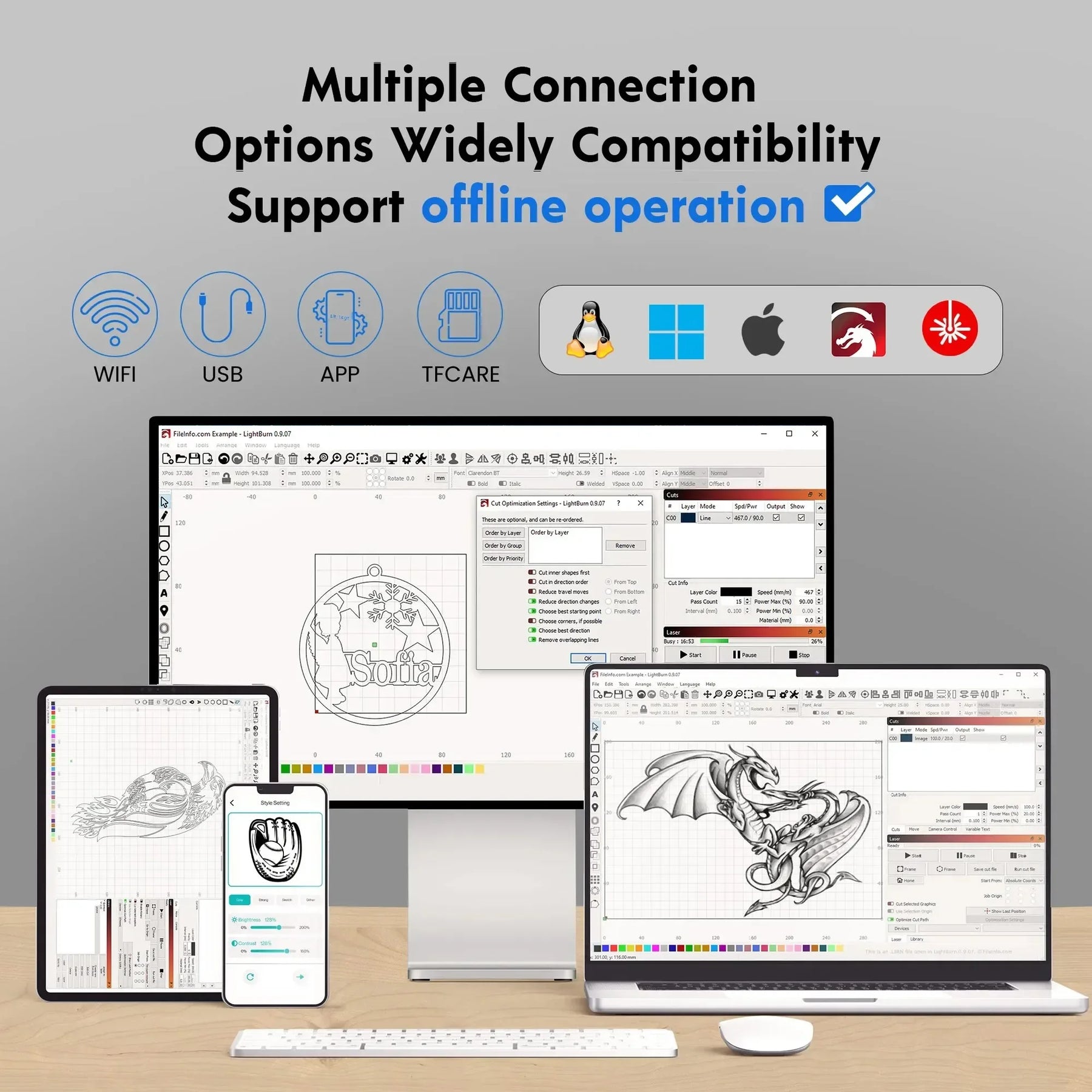

Software: LaserGRBL & LightBurn

Connection: USB / TF Card / Wifi

Laser Engraver Size: 586 x 583 x 176.5mm (23.07x22.95x6.95 inch)

Package Size: 621x299 x 127mm

Carving and cutting materials: 20mm wood, 30mm acrylic, metal, glass, leather, etc.

Optimized Focus for Cutting：

Cut 20mm wood and 20mm acrylic with optimized focal design, the stronger the light focus, the stronger the cutting ability

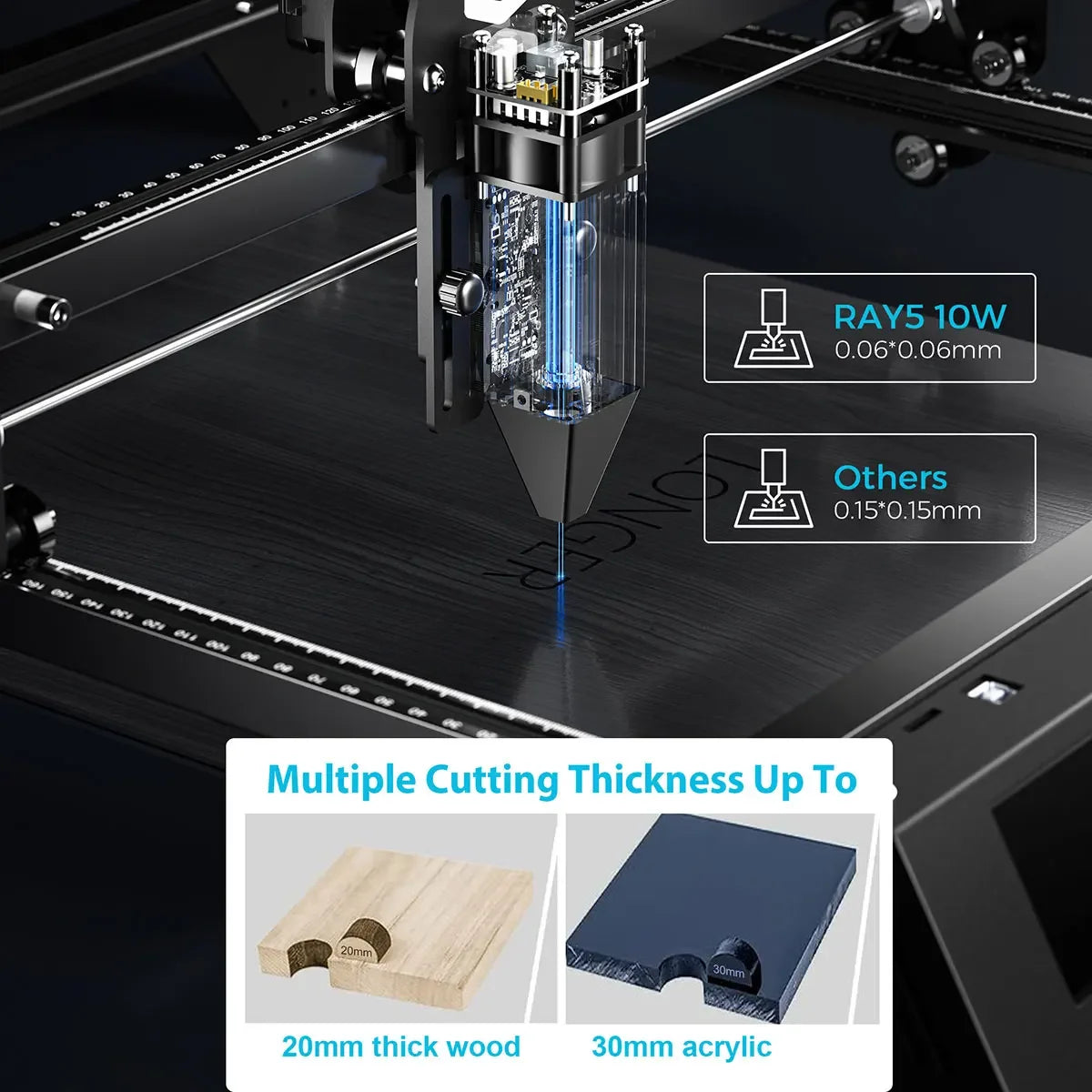

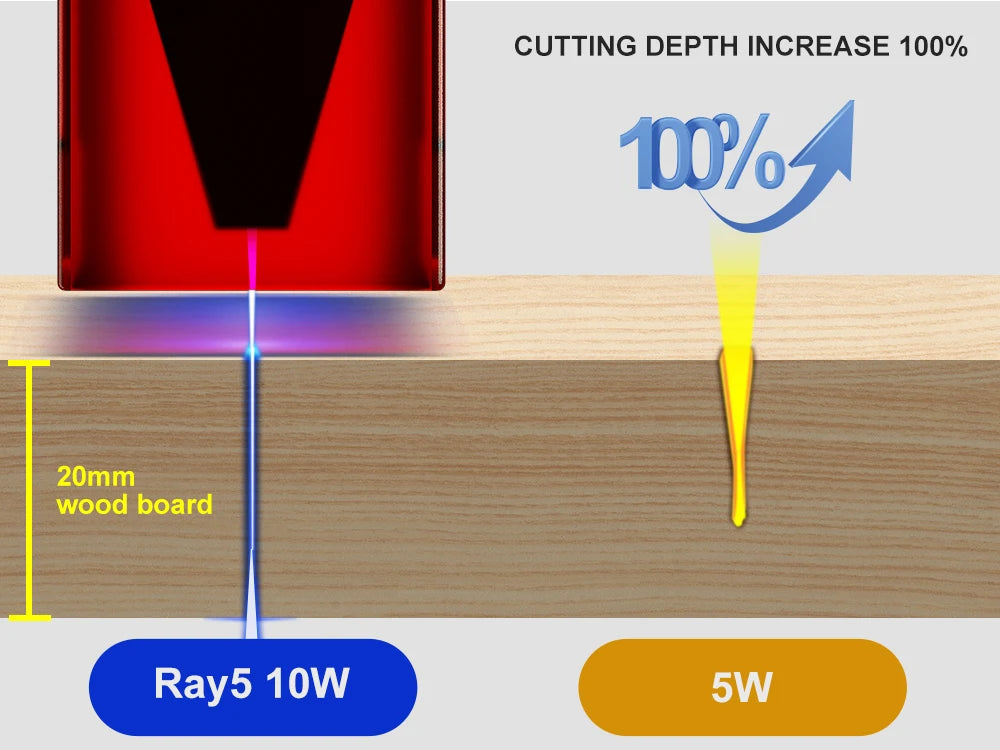

10w & 5w Comparison:

10W's cutting ablity is stronger than 5w, which can cut wood up to 20mm, acrylic 30mm.

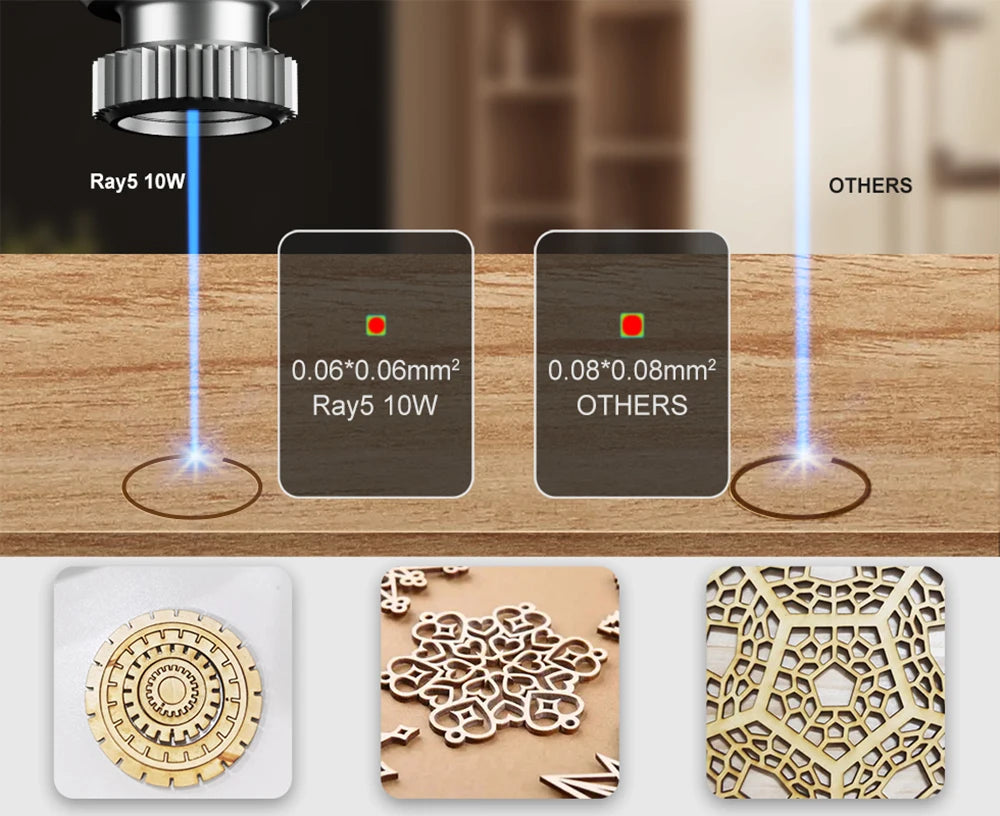

Ultra-fine Laser Spot :

1.Compressed laser technology;

2.0.06*0.06mm2 Laser Spot.

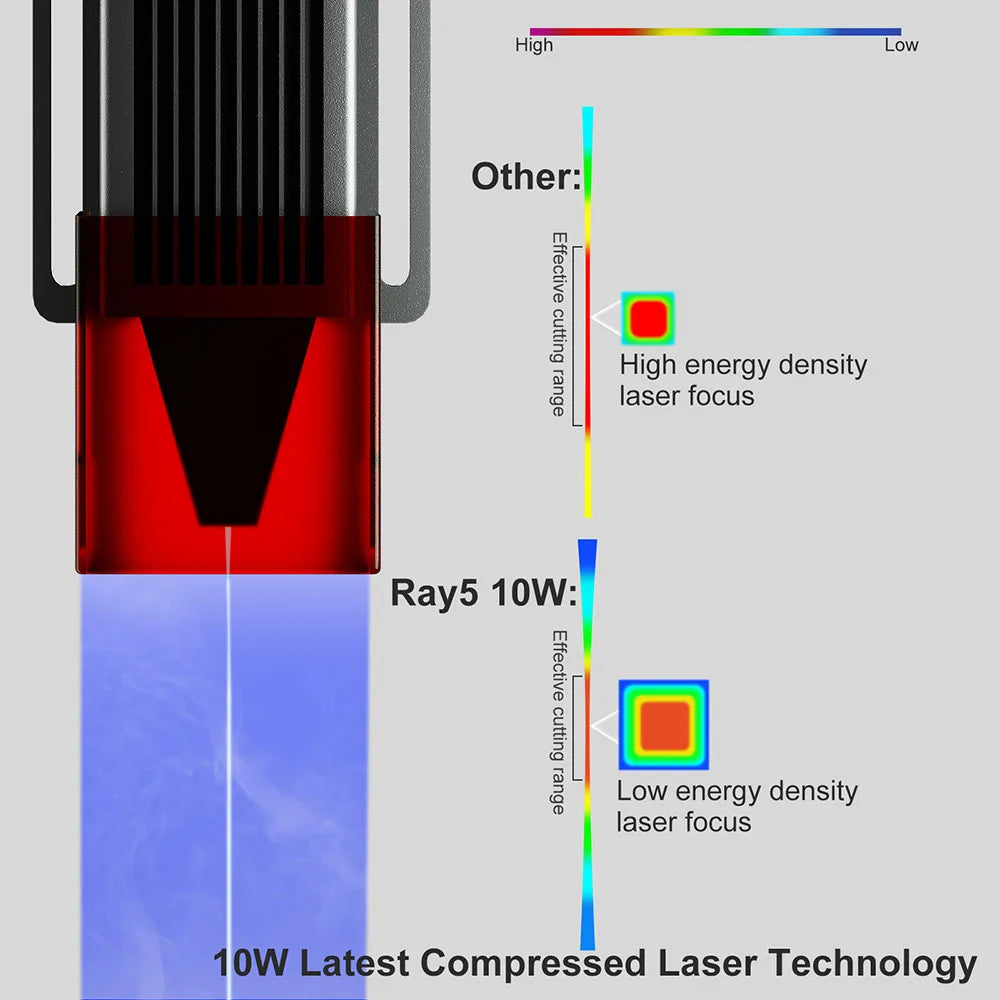

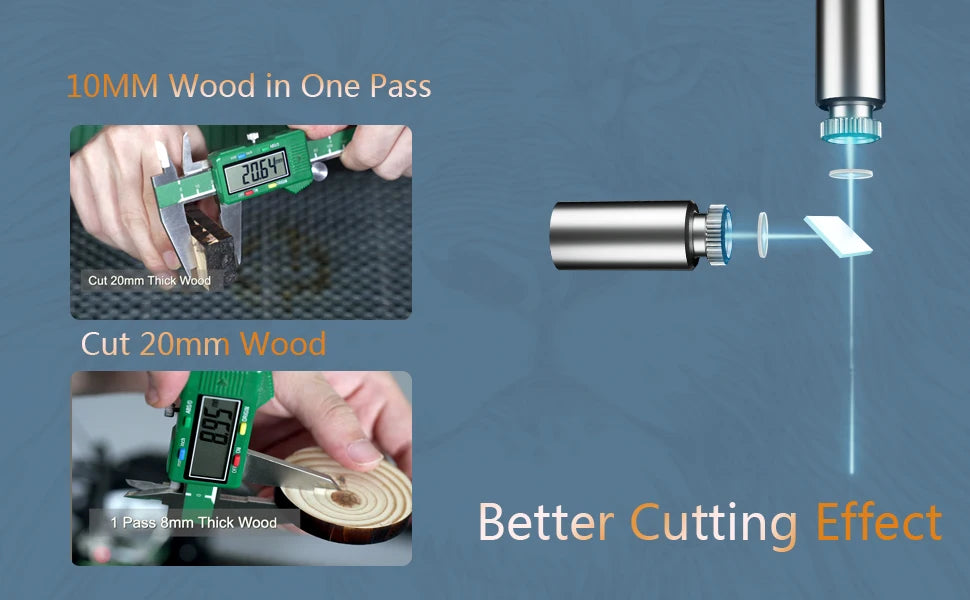

Powerful Cutting:

The 10W laser head adopts compressed double beam technology: the new technology makes the laser power larger, the spot (0.06mm) and the laser beam are finer, the laser focal length is longer (50mm), and the energy Higher density, stronger cutting ability, can easily cut 20mm pine board.

Customer Feedback:

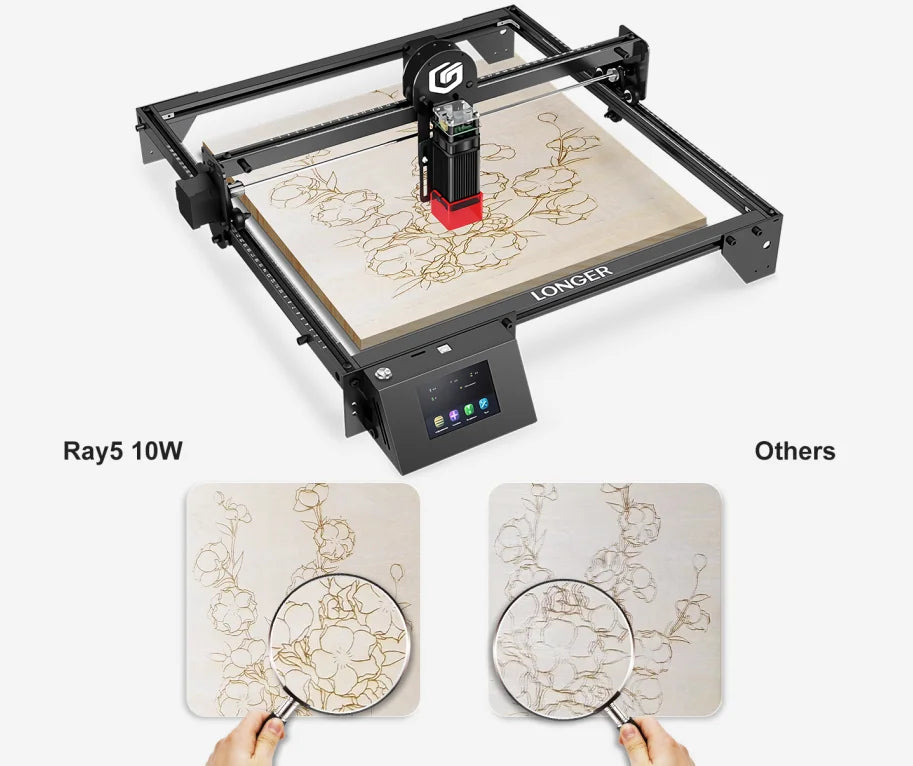

Stable EngravingStable structure design could engrave well when run in max speed.The lines are smooth and clear, and produces less sawtooth.

Wide Applicable Materials :

Support engraving materials： All wood, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating, and lacquered metal. Support cutting materials： Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board. (Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.)
