SPECIFICATIONS

Brand Name: jabriel

Frames Per Second: 30

Origin: Mainland China

Chipset Manufacturer: Novatek

Assembly Mode: Hidden Type

APP Compatibility: TimaCam or RoadCam

View angle: 170

Number Of Lenses: 2

Screen Ratio: NONE

Interface: WI-FI

Interface: Micro SD/TF

Interface: New Plug and Play

NightShot Function: YES

Power Source: Corded Electric

Video Code: H.264

Battery Life: Connect to Rain Sensor or Fuse Box

Original Package: YES

Loop-Cycle Recording Feature: YES

Audio Recorded: YES

Camera Resolution: 3840x2160

Special Features: G-Sensor

Special Features: Display Rotate

Special Features: sd/mmc card

Special Features: Anti Surge Voltage Impact

Special Features: waterproof

Special Features: Anti Vibration

Special Features: Real Time Surveillance

Special Features: Automatic White Balance

Special Features: Wide Dynamic Range

Special Features: wifi function

Special Features: Parking Monitor

Built-in Screen: No

Video Format: MOV

Video Format: TS

Video Format: MP4

Touch Screen: No

Item Type: Car DVR

Battery: None

Maximum Video Frame Rate: 30

Certification: NONE

Memory Card Required Reding Speed: Class 10

Imaging Sensor: Sony IMX335

OSD Language: Chinese (Simplified)

OSD Language: English

OSD Language: French

OSD Language: German

OSD Language: japanese

OSD Language: Russian

OSD Language: Spanish

Pixels: 1600Mega

Rear Camera: YES

Max External Memory: 256G

CPU: Novatek 96670

One Lens Camera Resolution: 4K / UHD 2160P

Two Lens Camera Resolution: 4K / UHD 2160P + HD 1080P

Cycle Recording: YES

Auto Power: YES

Work Voltage: 12V

special features 1:: New Plug And Play (Option)

special features 2:: 24-Hour Parking monitoring(Option)

Suitable for models 1: Geely Xingyue L 2021 2022 2023

Suitable for models 2: Geely Xingyue KX11 L 2021 2022 2023

Suitable for models 3: Geely KX11 L 2021 2022 2023

Suitable for models 4: Geely Xingyue KX11 L 2.0T 2021 2022 2023

Suitable for models 5: Geely Xingyue KX11 L 2.0TD 2021 2022 2023

Suitable for models 6: Geely Xingyue KX11 L DCT 2021 2022 2023

Suitable for models 7: Geely Xingyue KX11 L EVO 2021 2022 2023

Suitable for models 8: Geely Xingyue KX11 L 2.0T 2.0TD DCT EVO 2021 2022 2023

Suitable for models 9: Geely Monjaro Xingyue L KX11 2021 2022 2023



Jabriel New Plug And Play Auto Wifi 4K UHD 2160P Car DVR Dash Cam Front and Rear Camera Driving Recorder 24-Hour Parking Monitoring Dashcam Dual Lens Car Cameras Video Recorder With Novatek 96670 CPU With Sony IMX 335 Lens For Geely Xingyue KX11 L 2.0T 2.0TD DCT EVO 2020 2021 2022 2023  for Geely Monjaro Xingyue L KX11 2020 2021 2022 2023

Package Include:

1 x Car DVR

1 x Manual

1 x Power Cord

1 x Rear Wire(option)

1 x Rear Camera(option)



Please Contact customer service to send photos when you buy it!

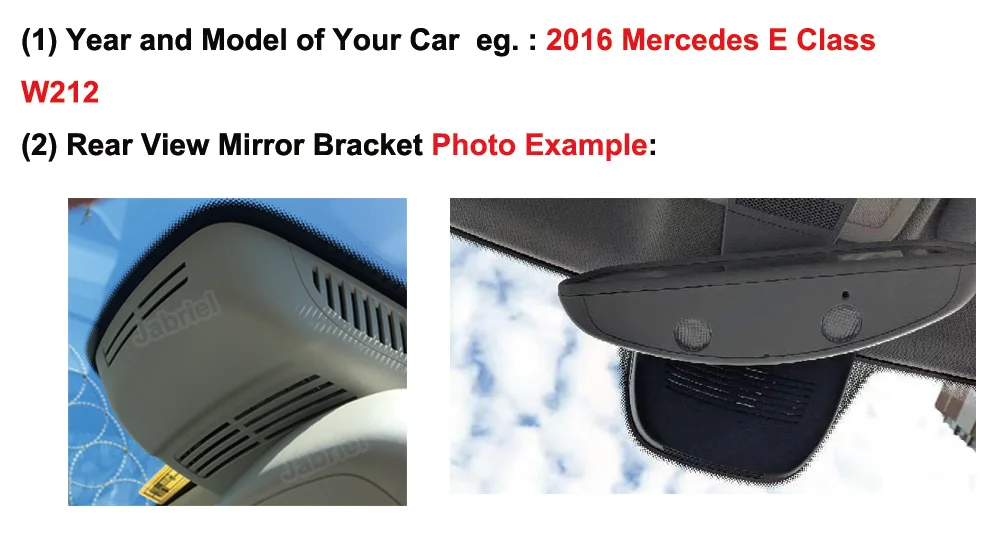

1: Because this product is dedicated, to avoid installation or other problems, please tell us which year and which model of your car, and take photos for the rear view mirror bracket of your car .


2:The Rain Sensor Cable can only be used for 70% of specific car models , if you need the Rain Sensor Cable , please send us photos for the rain sensor interface of your car , then we can check it.

For Example:

4K UHD 2160P New Plug And Play Hidden WIFI 24-Hour Parking Monitoring Dash Cam Car DVR For Geely

New Plug and Play Car Dvr Dash Cam   Easy to install

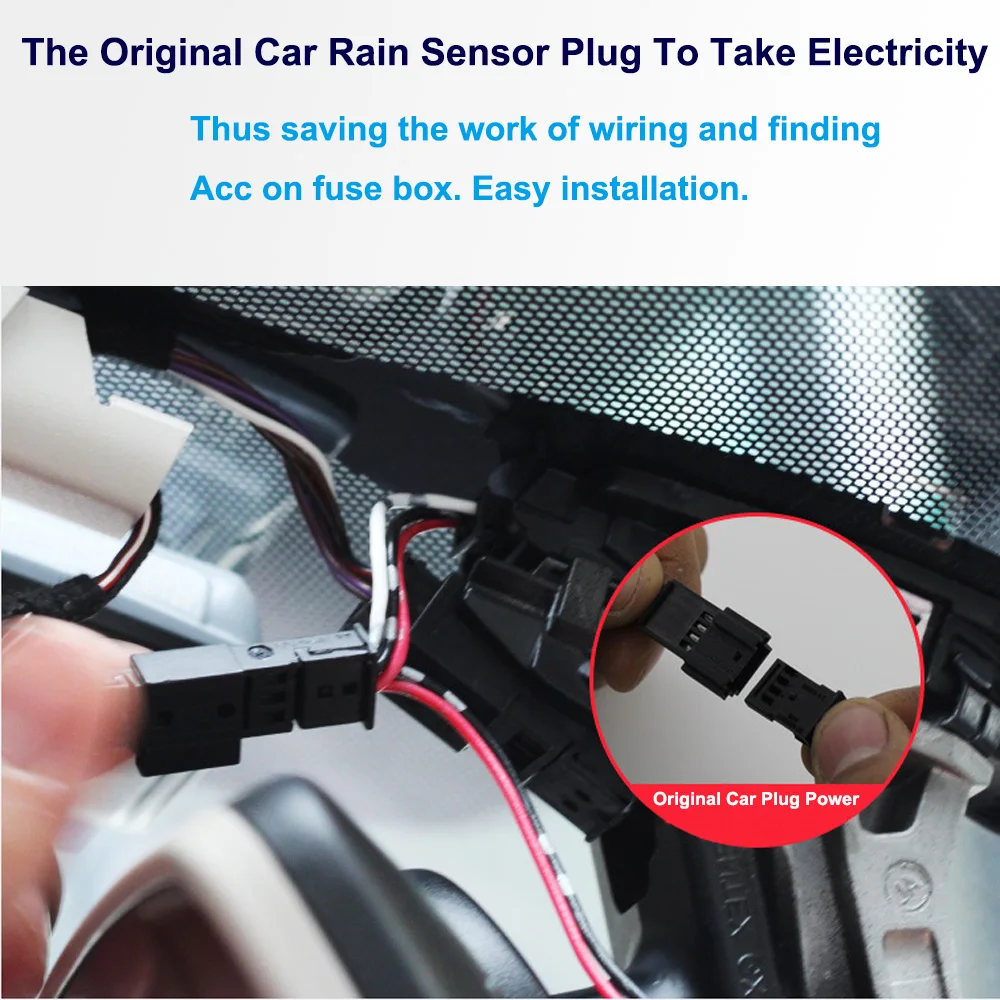

Connect to the rain sensor or reading light of the Original car



The New Plug and Paly Car Dvr Dash Cam can be pluged to the rain sensor or reading light of the original car to take electricity.It is easy to install. Inserted without damage, no wiring is required, and it maintains the original car style after installation.



256G·Smart Storage

Big, Regarding the overall improvement of storage,

Support 8-256 GB Keep driving records longer.

Safety explosion protection

High and low temperature resistance,no built-in battery design, more

safer Automotive fuse power, built-in low voltage monitoring,

automatic shutdown, non-destructive battery.







Novatek Monitoring Chip, Ultimate Experience

Novatek chip is equipped with realtek WIFI solution, H.265 video

coding technology makes the recorder image clear and smooth,

image details and color rich and supports

256 G large memory card operation.

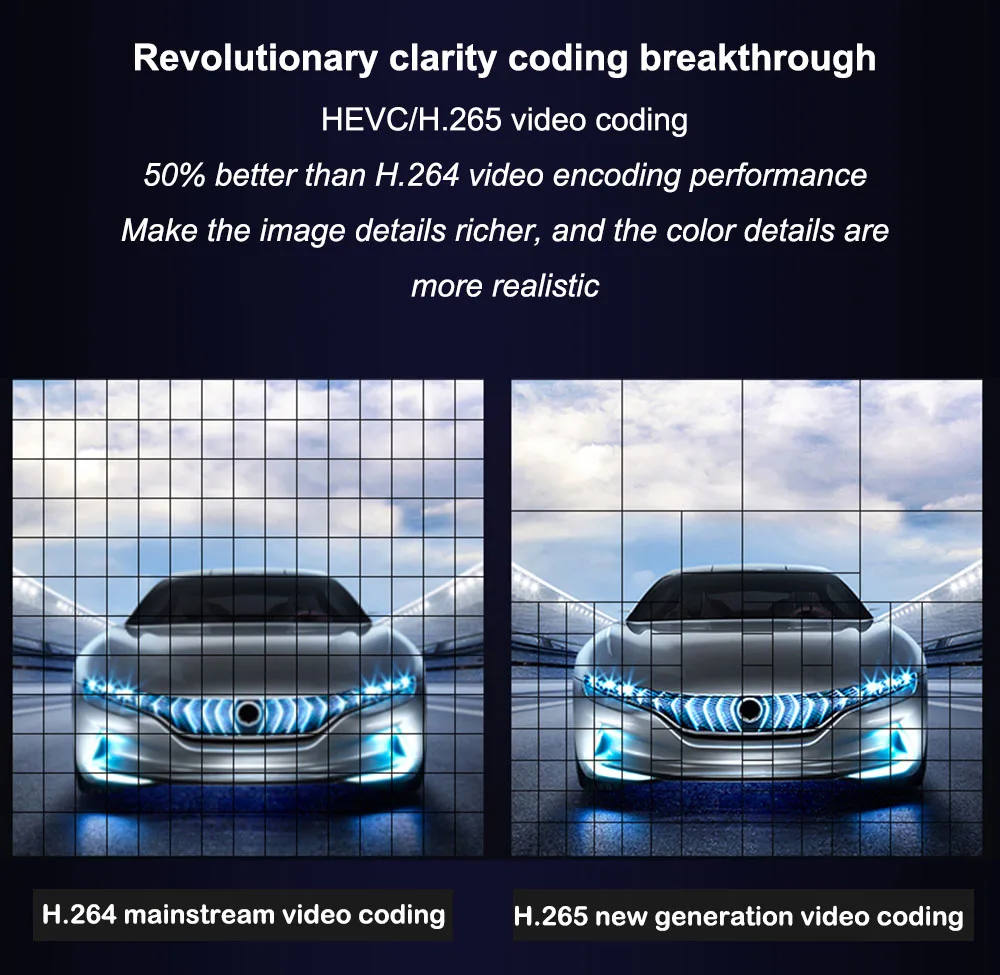

Revolutionary clarity coding breakthrough

HEVC/H.265 video coding

50% better than H.264 video encoding performance

Make the image details richer, and the color

details are more realistic.

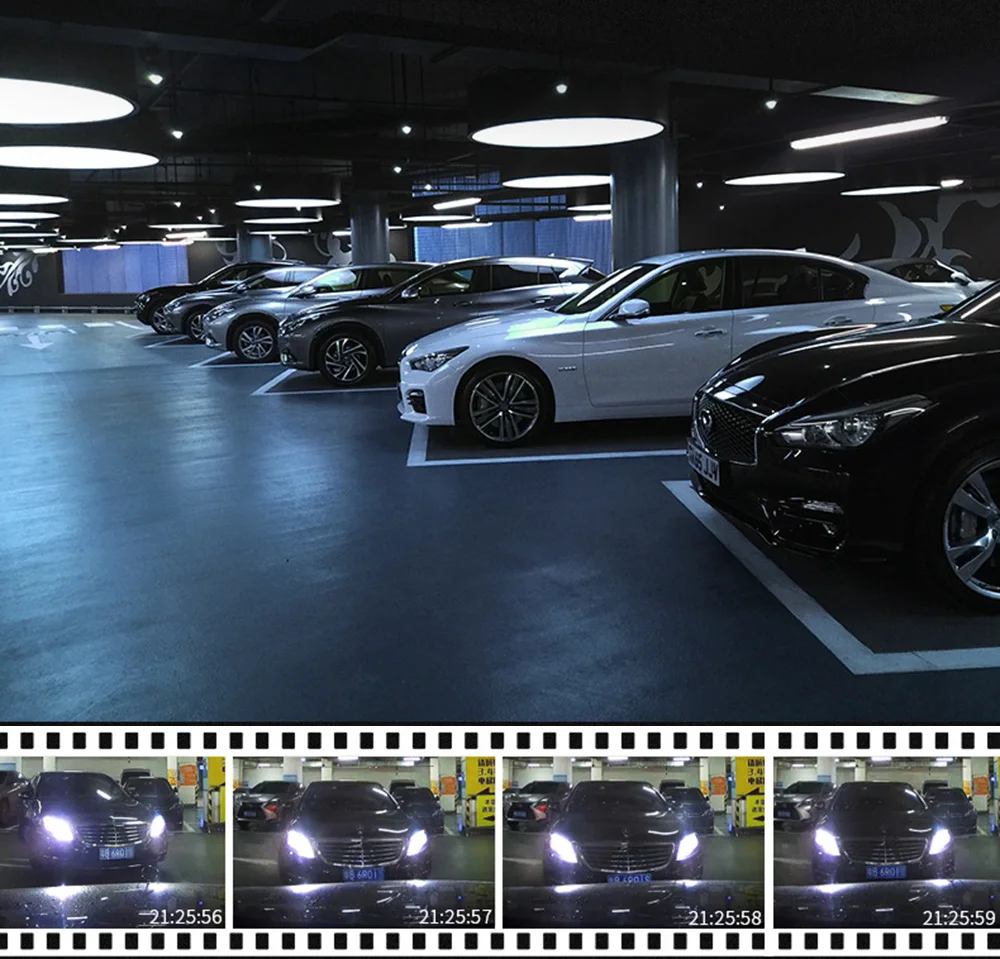

Sony high sensitivity + F1.8 aperture

Fearless darkness  Direct view Blind zone

Sony MIX335 high-sensitivity chip with F1.8 large aperture lens,

Proud staris technology and upgraded sensible parts to 2.9μm,

The large amount of light makes the lens night the same as the daytime



Built-in WDR wide dynamic technology

WDR technology uses DSP circuit to expose the bright and dark parts with

the appropriate shutter speed, and the two images are processed by DSP,

so that the over-bright and over-dark parts can be seen clearly.

Gravity Sensing



When a violent collision occurs, the emergency backup recording function is

automatically recognized and activated, and the important evidence locking protection

is stored in the memory card to prevent loss of coverage.

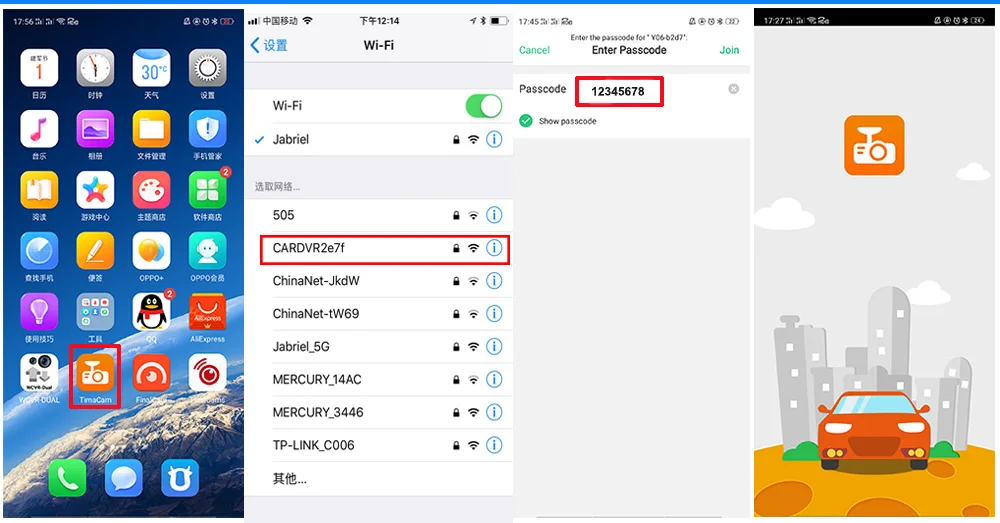

Link WIFI Control

Please download TimaCam or RoadCam APP from Apple Store or Google Play Store.

The WIFI Name is: CARDV**** or Y06-****

The password is : "12345678" or "88888888"

Real Video Display

The image is compressed and actually very clear



Cycle Recording without leaking seconds Video segmentation

recording, when the video is full, the recorder will automatically

delete the previously recorded video clips and record them in

a loop, so that you don't have to worry about frequent card changes.

 24-hour parking monitoring

Intelligent Anti-Shake

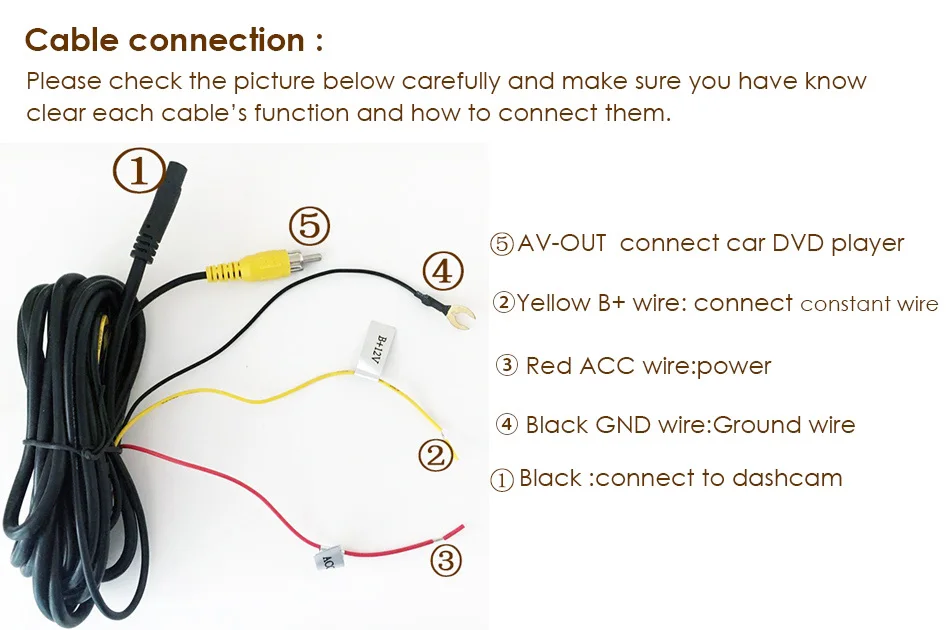

Cable Connection

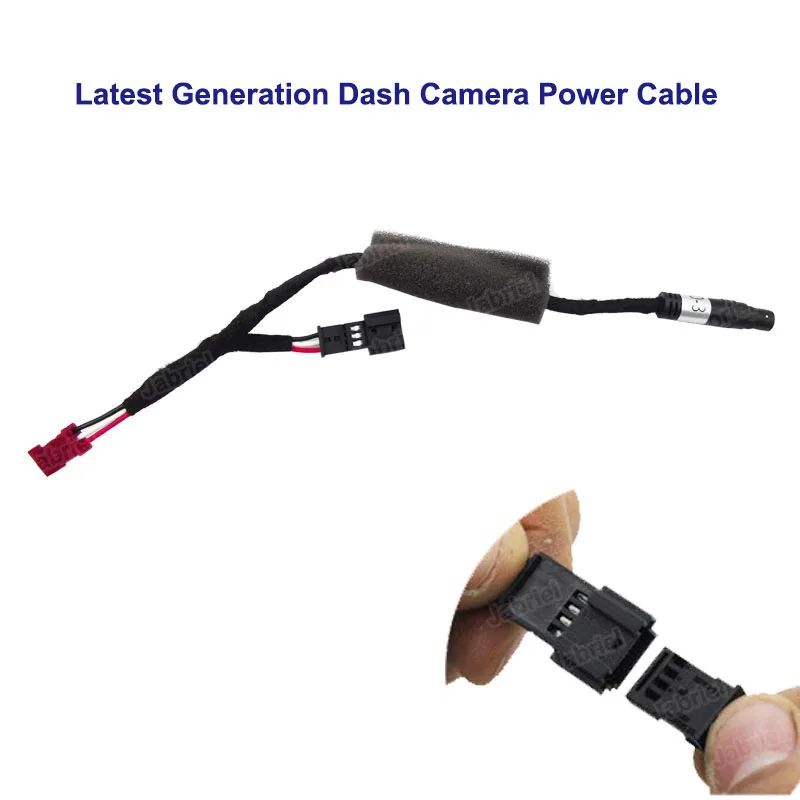

New Plug and Play Power Cable: Wiring-Free  Easy Installation ; Connect to the Rain Sensor or Reading Light or Sunroof of the original car.

Standard ACC Power Cable: Connect to the Fuse Box of the original car.

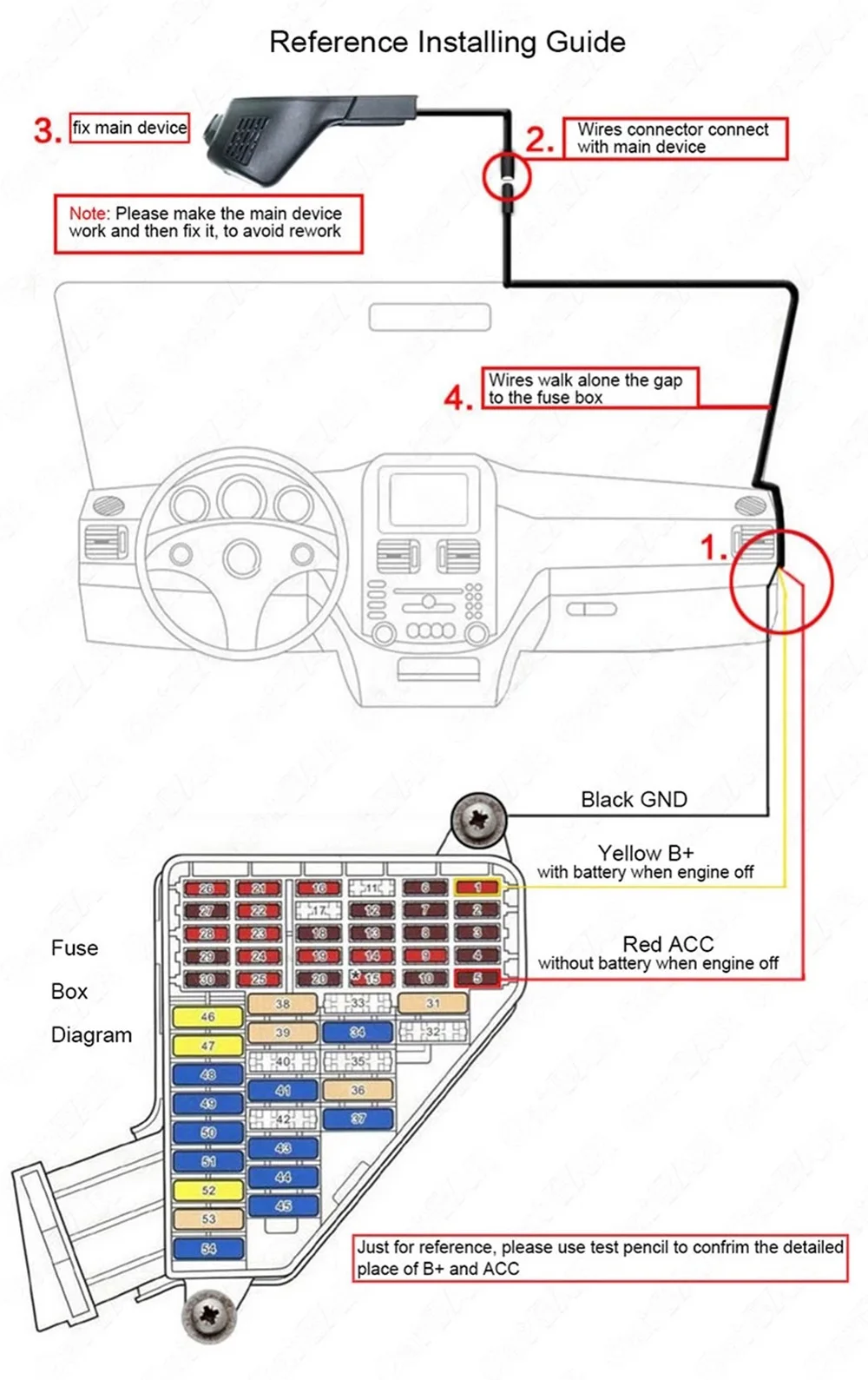

Reference Installation Guide

1. Before installation

First test: the red and yellow wire harnesses of the recorder are connected to the positive electrode of the battery, the black wire is connected to the negative electrode of the battery, the indicator light of the recorder lights up, and the test is completed!



2. Installation



The red wire is connected to ACC, the yellow wire is connected to constant electricity, the black ground is connected, You need an electric pen to measure ACC and constant electricity.



(1)Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is off.  it is ACC.



(2) Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is on. it is constant electricity.



3. After installation



The memory card needs to be formatted before use, and it must be turned off before removing the card each time (the indicator is off when the indicator is off).









Note: Any questions or problems, please contact us , we will try our best to serve you until you are satisfied.Communication can solve any problem!
