SPECIFICATIONS

Brand Name: jabriel

Frames Per Second: 30

Origin: Mainland China

Chipset Manufacturer: Novatek

Assembly Mode: Hidden Type

View angle: 170

Number Of Lenses: 2

Screen Ratio: NONE

Interface: Micro SD/TF

Video Code: H.264

Battery Life: Connect With Rain Sensor Or Fuse Box

Original Package: YES

Loop-Cycle Recording Feature: YES

Audio Recorded: YES

Camera Resolution: 1920x1080

Special Features: G-Sensor

Special Features: sd/mmc card

Special Features: Anti Surge Voltage Impact

Special Features: waterproof

Special Features: Anti Fog

Special Features: Anti Vibration

Special Features: Real Time Surveillance

Special Features: Automatic White Balance

Special Features: Wide Dynamic Range

Special Features: wifi function

Built-in Screen: No

Video Format: MOV

Video Format: MP4

Touch Screen: No

Item Type: Car DVR

GPS logger: NONE

Battery: None

Maximum Video Frame Rate: 30

Certification: NONE

Memory Card Required Reding Speed: Class 10

Imaging Sensor: Sony IMX323

OSD Language: Chinese (Simplified)

OSD Language: Chinese (Traditional)

OSD Language: Czech

OSD Language: Dutch

OSD Language: English

OSD Language: French

OSD Language: German

OSD Language: hungarian

OSD Language: japanese

OSD Language: KOREAN

OSD Language: Latvian

OSD Language: Lithuanian

OSD Language: POLISH

OSD Language: Portuguese

OSD Language: RUSSIA

OSD Language: Russian

OSD Language: Spanish

OSD Language: THAI

Pixels: 800Mega

Rear Camera: YES

Max External Memory: 128G

Item Type: Car DVR

Interface1: Micro SD/TF

Interface2: Wi-Fi

Special Features1: Dual Lens / With Rearview Camera

Special Features2: New Plug and Play Power Cable

Display: No Screen

G-Sensor: YES

Auto Power: YES

Cycle Recording: YES

Time synchronization: Yes

Current frequency: 50Hz/60Hz

Work Voltage: 12V

Suitable for models1: Mercedes C Class

Suitable for models2: Mercedes w204

Suitable for models3: Mercedes w203

Suitable for models4: Mercedes C Class w203 w204

Suitable for models5: Mercedes E Class

Suitable for models6: Mercedes w212

Suitable for models7: Mercedes E Class w211 w212

Suitable for models8: Mercedes GLK

Suitable for models9: Mercedes GLK X204

Suitable for models10: Mercedes Benz Class

Suitable for models11: Mercedes Benz w204

Suitable for models12: Mercedes Benz w203

Suitable for models13: Mercedes Benz C Class w203 w204

Suitable for models14: Mercedes Benz E Class

Suitable for models15: Mercedes Benz w212

Suitable for models16: Mercedes Benz E Class w212

Suitable for models17: Mercedes Benz GLK

Suitable for models18: Mercedes Benz GLK X204

Jabriel New Plug and Play Auto Hidden Car camera Wifi car recorder HD 1080P dvr Registrator Driving dash cam Rear View camera dual lens video recorder camera for Mercedes C Class, for Mercedes w203, for Mercedes w204, for Mercedes C Class w203 w204, for Mercedes E Class, for Mercedes w211 w212, for Mercedes E Class w211 w212, for Mercedes GLK, for Mercedes GLK X204.

Package Include:

1 x Manual

1 x Car DVR

1 x Power Cord



Please Contact customer service to send photos when you buy it!

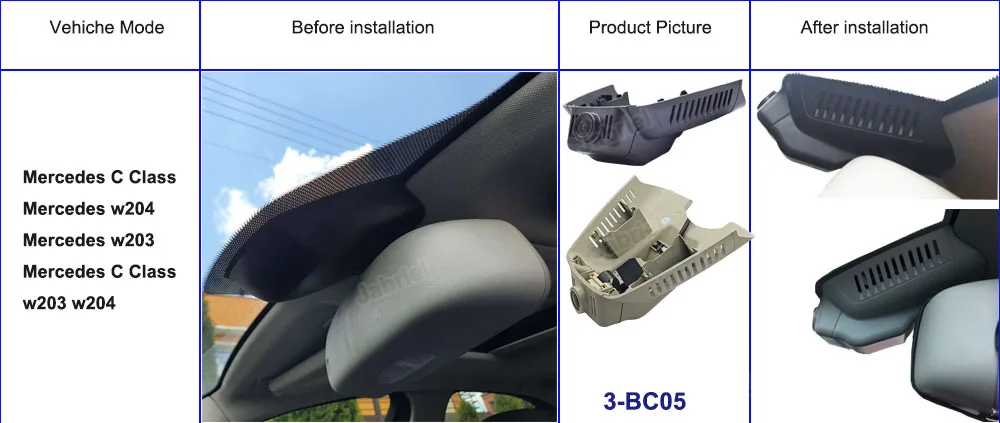

1: Because this product is dedicated, In order to avoid installation or other problems, please tell us which year and which model of your car, and be sure to take photos for the rear view mirror base and send it to me.

2:The Rain Cable can only be used for 70% of specific car models , if you need the Rain Cable , please send us your rain sensor interface photo , then we can check it.

Ⅲ Gen BC05 New Plug And Play HD 1080P Hidden WIFI Car DVR Dash Camera for Mercedes Benz

128G·Smart Storage

Big, Regarding the overall improvement of storage,

Support 8-128GBKeep driving records longer.

Safety explosion protection

High and low temperature resistance,no built-in battery design, more

safer Automotive fuse power, built-in low voltage monitoring,

automatic shutdown, non-destructive battery.

Six Glasss HD 1080P Lens --- Sony IMX323

6-layer full glass lens, F2.0 large aperture

Adopt 6-layer full-glass 1080P high-definition camera,

F2.0 large aperture is larger than F2.4, and better quality

in low light environment

Built-in WDR wide dynamic technology

WDR technology uses DSP circuit to expose the bright and dark parts with

the appropriate shutter speed, and the two images are processed by DSP,

so that the over-bright and over-dark parts can be seen clearly.

Gravity Sensing

When a violent collision occurs, the emergency backup recording function is

automatically recognized and activated, and the important evidence locking protection

is stored in the memory card to prevent loss of coverage.

Link WIFI Control

Please download "TimaCam" APP from Apple Store or Google Play Store.

The Wifi name is : " CARDV**** " Or " Y06-**** "

The password is : 88888888 or 12345678

Real Video Display

The image is compressed and actually very clear

Cycle Recording without leaking secondsVideo segmentation

recording, when the video is full, the recorderwill automatically

deletethe previously recorded video clips and record them in

a loop, so that youdon't have to worry about frequent card changes.

Cable Connection

New Plug and PlayPowerCable:

Connect to the rain sensor or reading light of the original car.

Standard ACC Power Cable:

Reference Installation Guide

1. Before installation

First test: the red and yellow wire harnesses of the recorder are connected to the positive electrode of the battery, the black wire is connected to the negative electrode of the battery, the indicator light of the recorder lights up, and the test is completed!



2. Installation



The red wire is connected to ACC, the yellow wire is connected to constant electricity, the black ground is connected, You need an electric pen to measure ACC and constant electricity.



(1)Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is off.  it is ACC.



(2) Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is on. it is constant electricity.



3. After installation



The memory card needs to be formatted before use, and it must be turned off before removing the card each time (the indicator is off when the indicator is off).
