SPECIFICATIONS

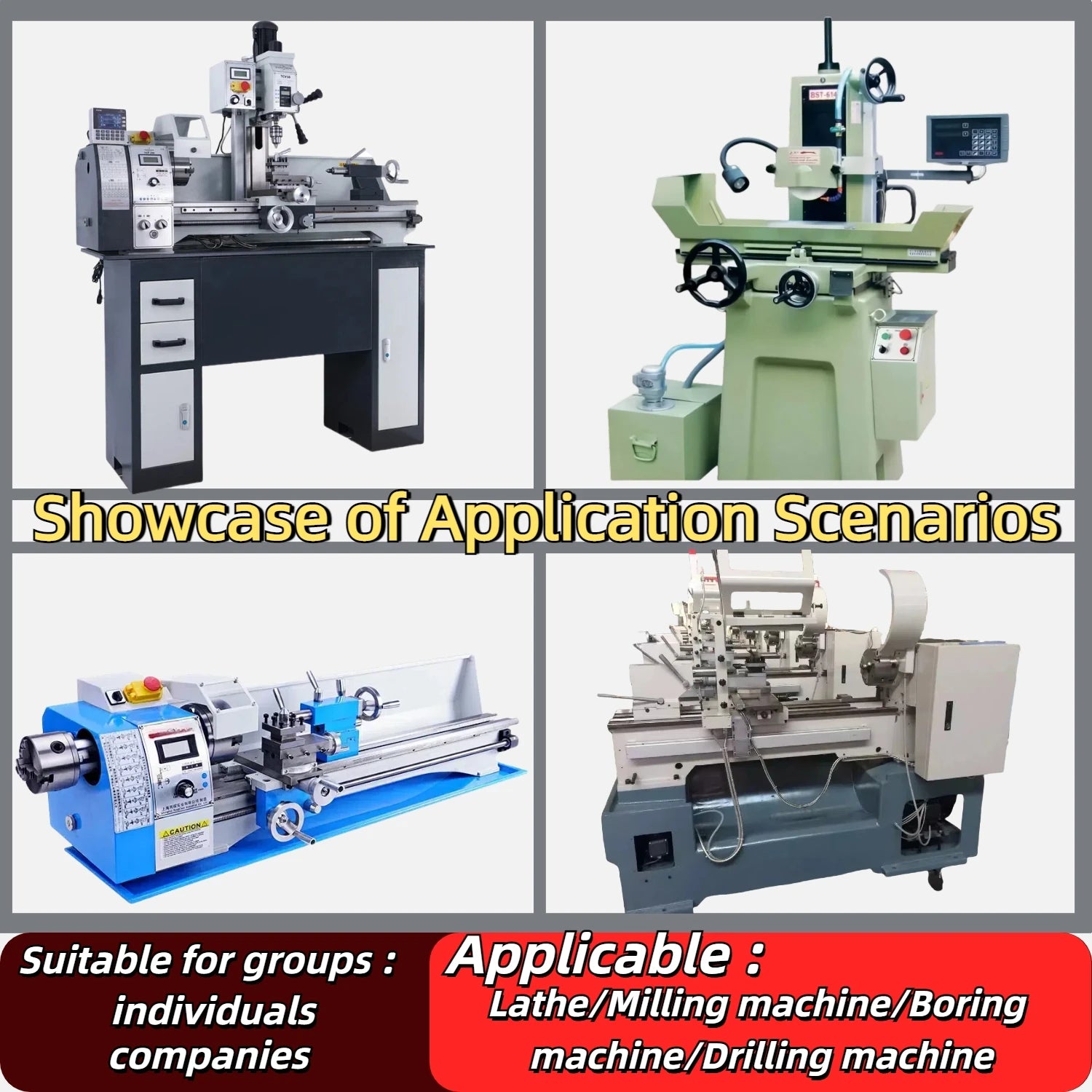

Application: Mill, Lathe, Boring, Grinder, Wire cutting etc.

Battery Included: No

Brand Name: aoedro

Certification: CE

DRO Input Voltage: AC100V-240V 50/60HZ

Hign-concerned Chemical: None

Origin: Mainland China

Product name: Milling Lathe 2 Axis DRO kit

Resolution: 5um

Scale Cable: 3 Meters

Scale Input: 5VDC

Scale Travel Length: 100-1000mm Available

Signal: TTL

Warranty: 2 Years

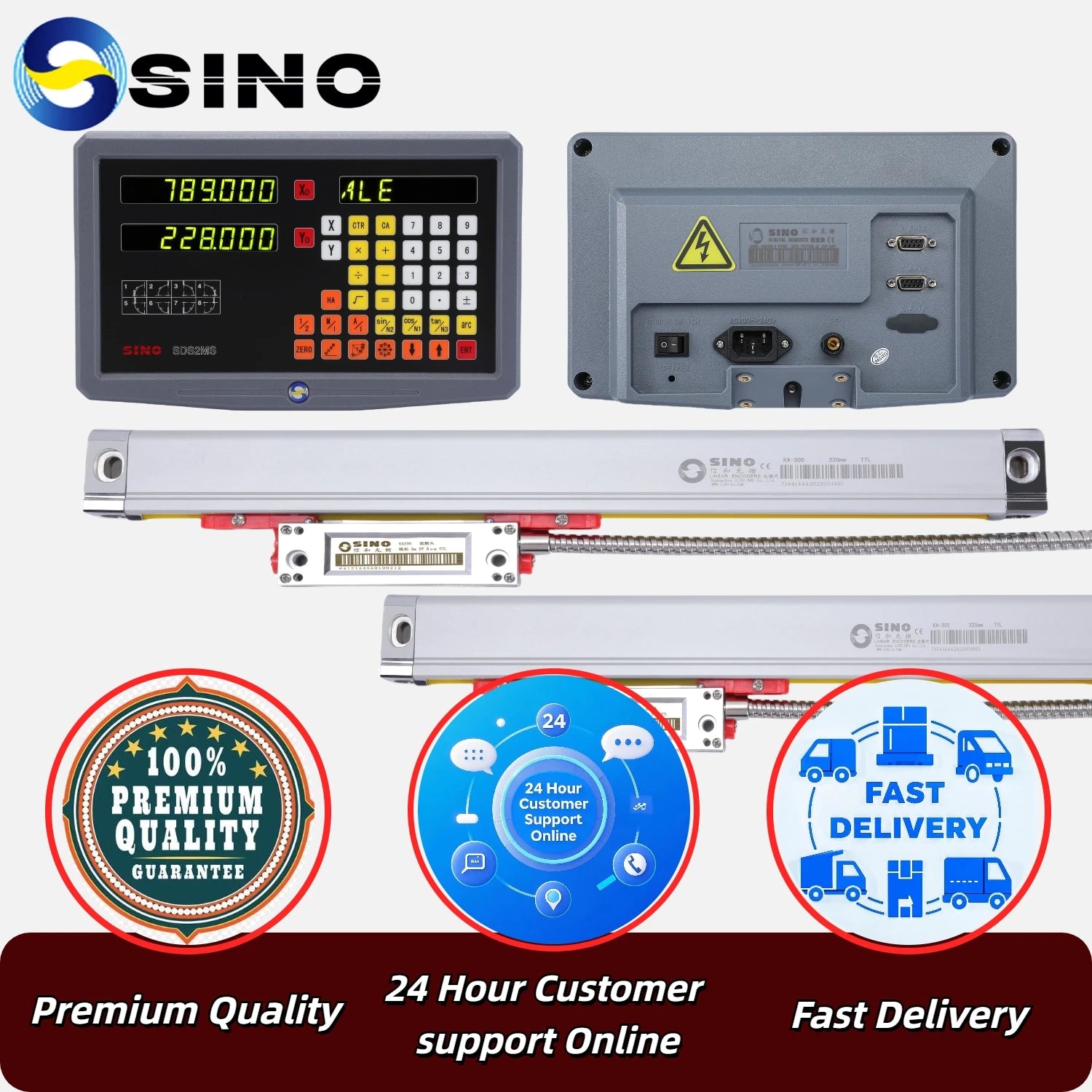

New SDS2MS 2 Axis DRO Digital Readout AC110V/220V Display and 2 Pieces 100-1000mm Linear Scale Encoder For Milling Lathe Machine

Package includes:

0.005mm complete kit

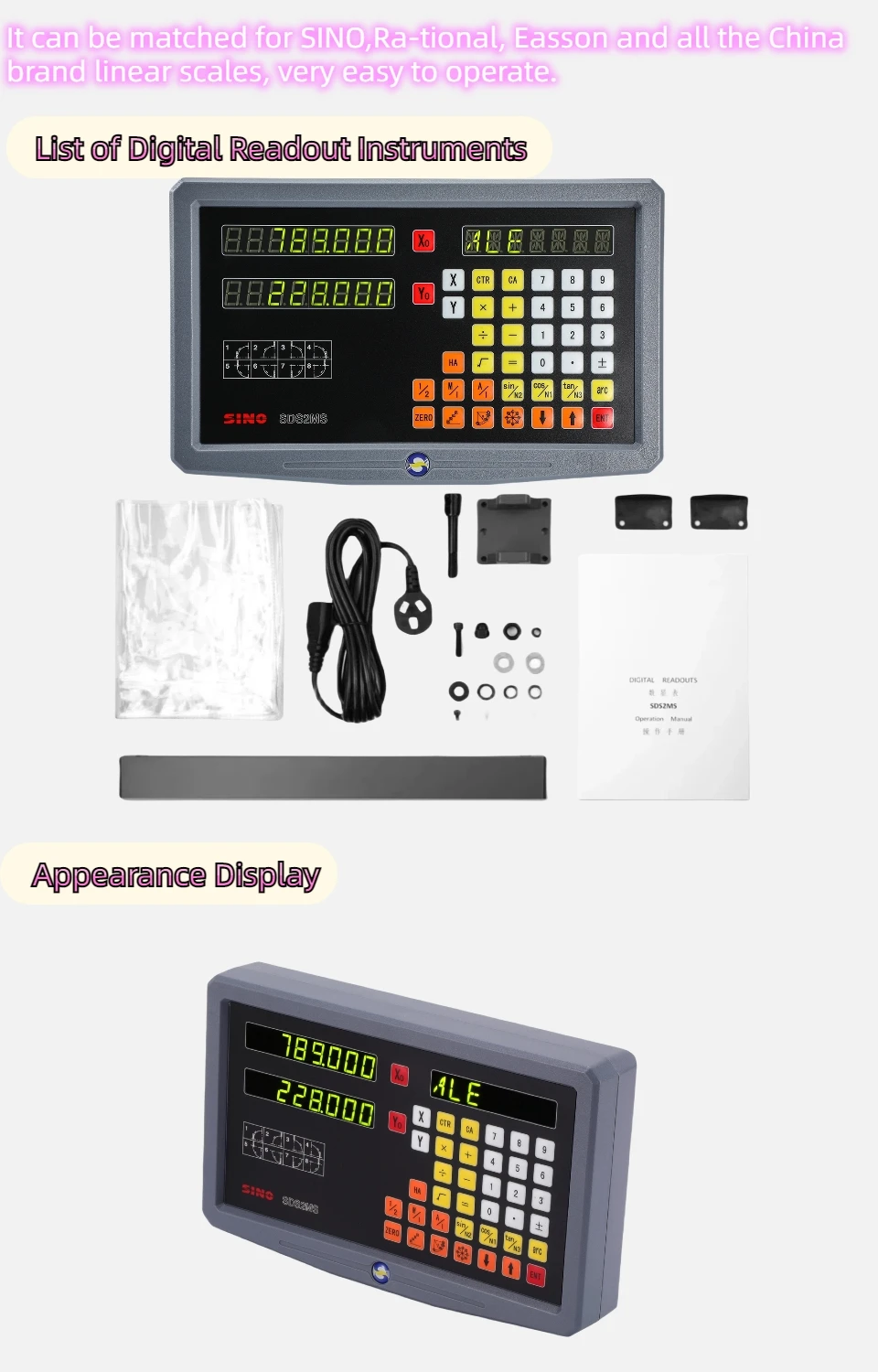

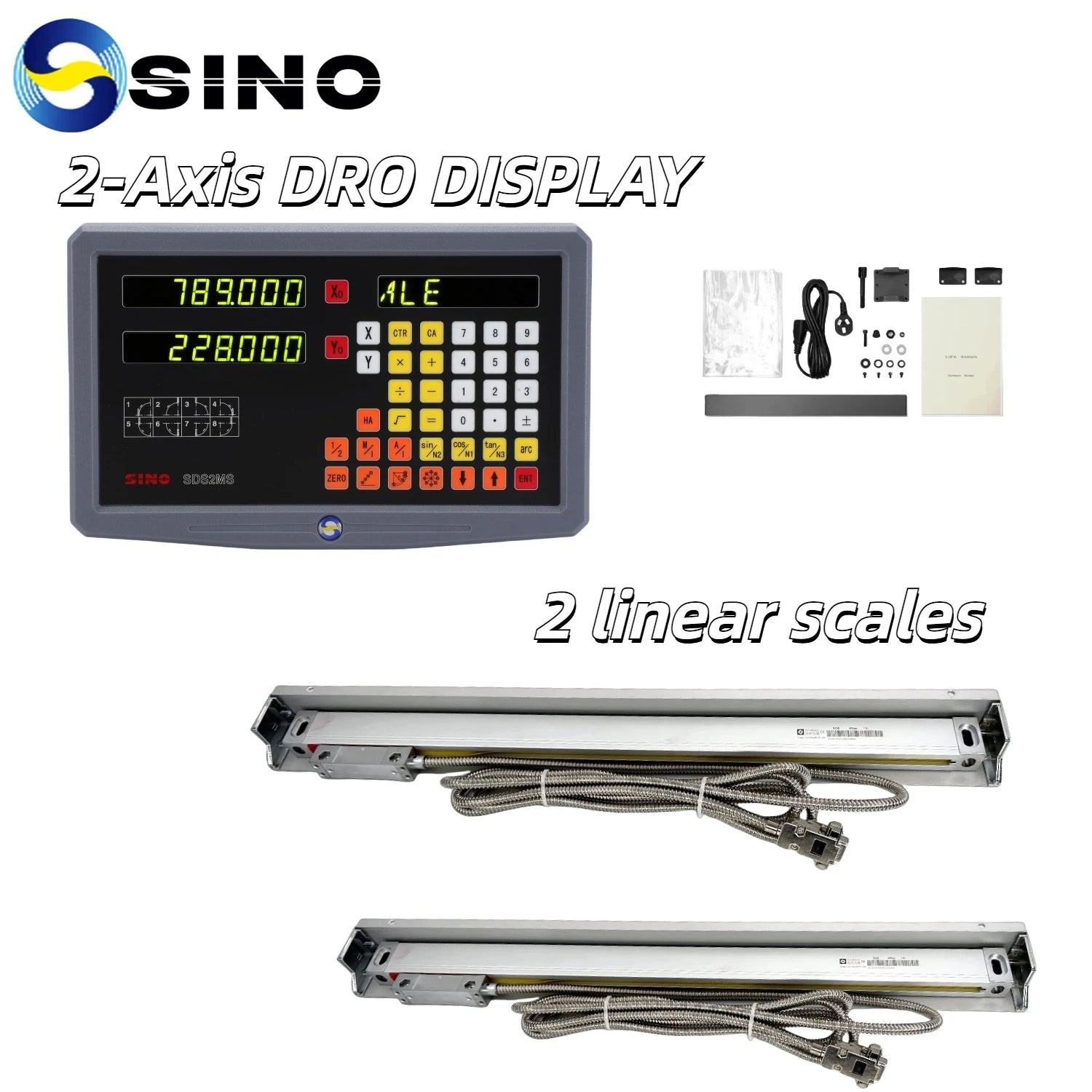

1 piece SDS2MS 2 axis display(with user manual, mounting arm, screw bag)

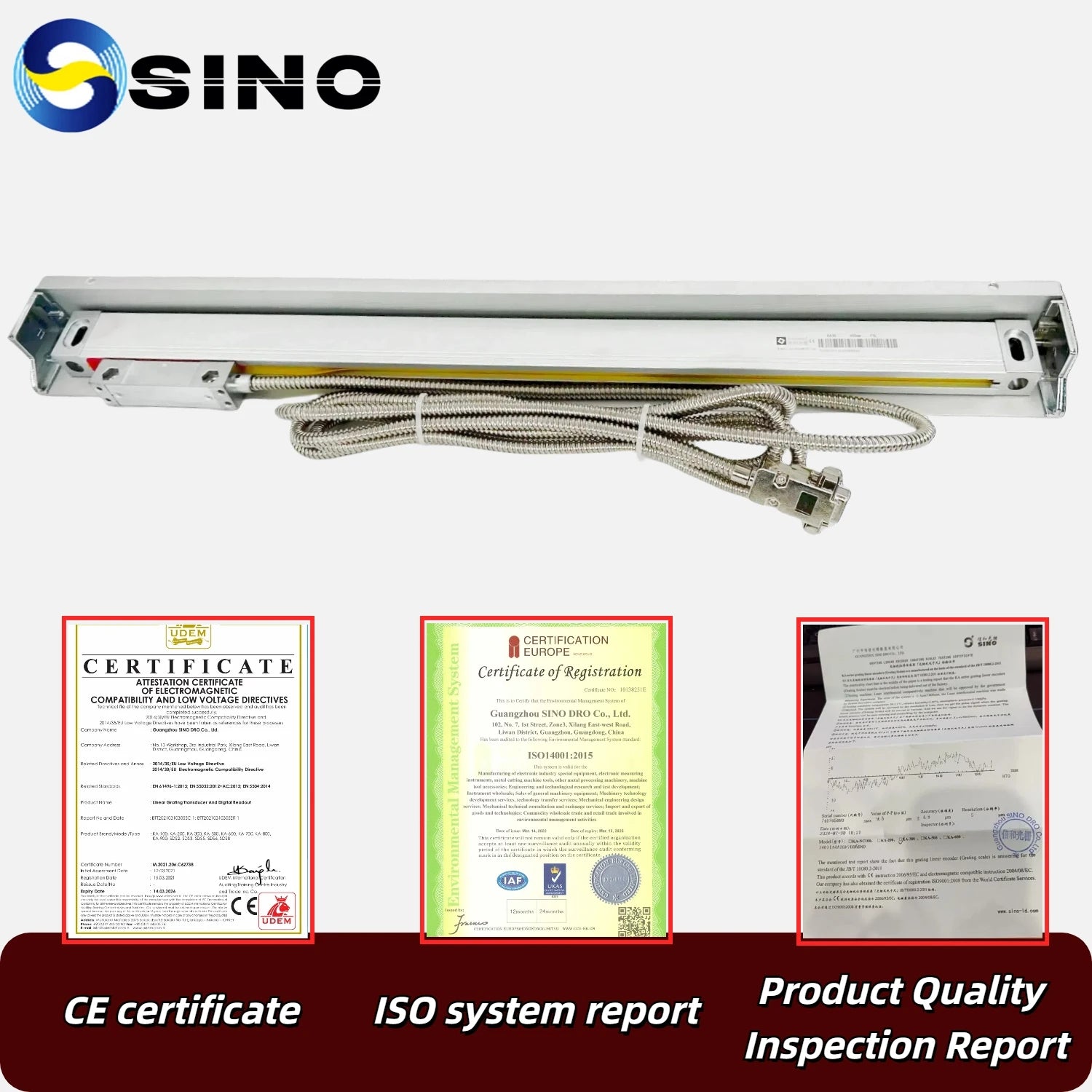

2 pieces 0.005mm（KA35+KA35） linear scales (with covers, mounting bracket, screw bag)

0.001mm complete kit

1 piece SDS2MS 2 axis display(with user manual, mounting arm, screw bag)

2 pieces 0.001mm（KA300+KA300） linear scales (with covers, mounting bracket, screw bag)

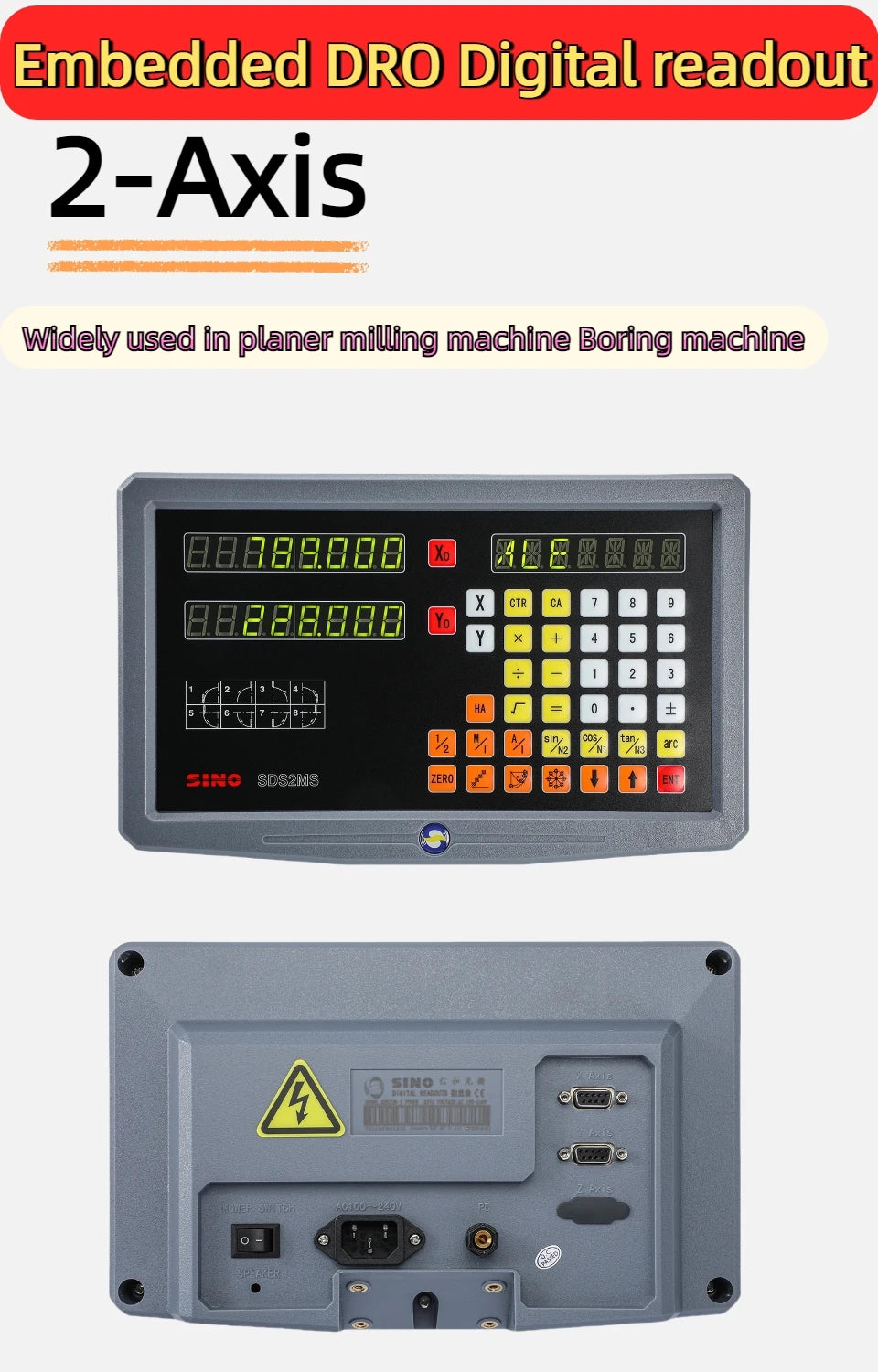

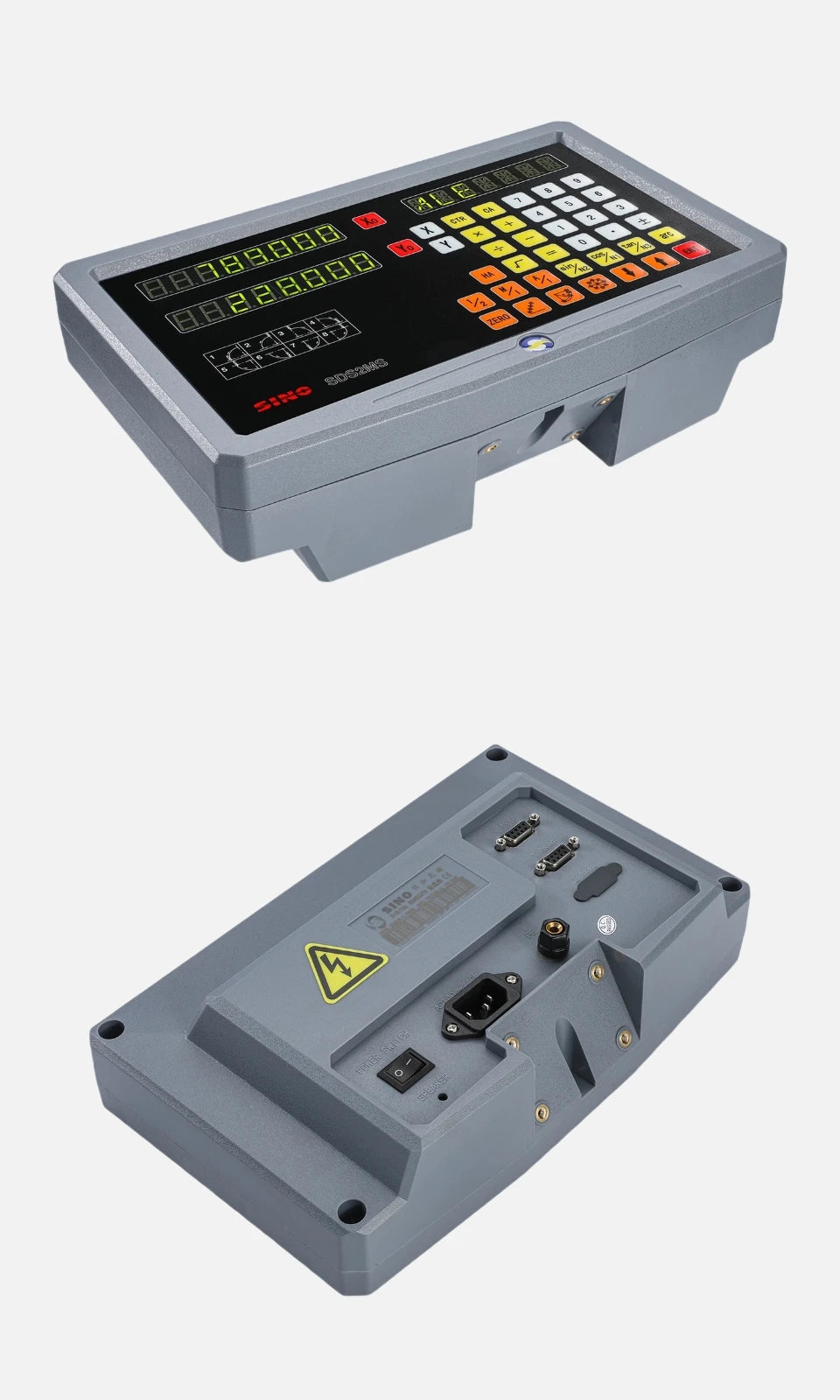

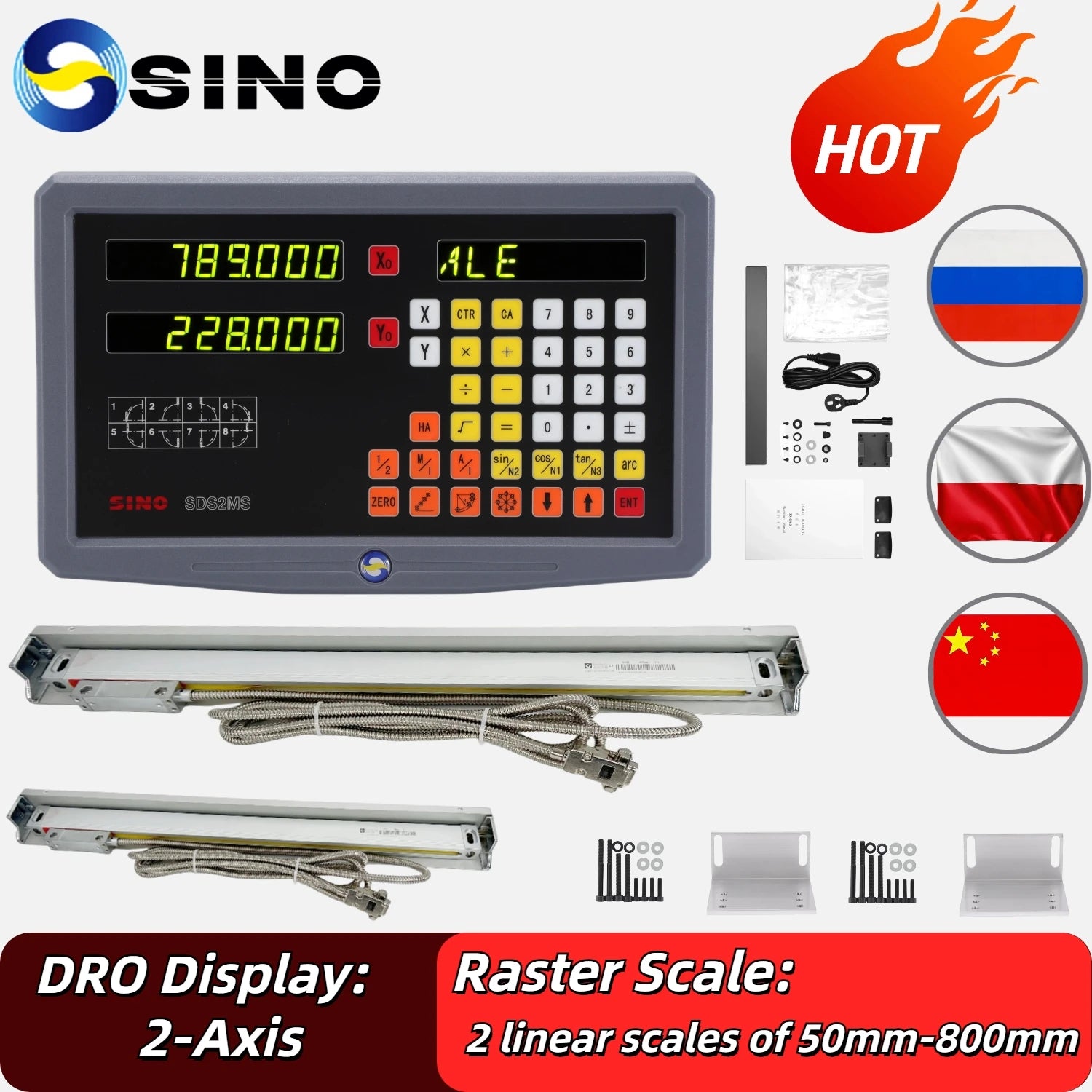

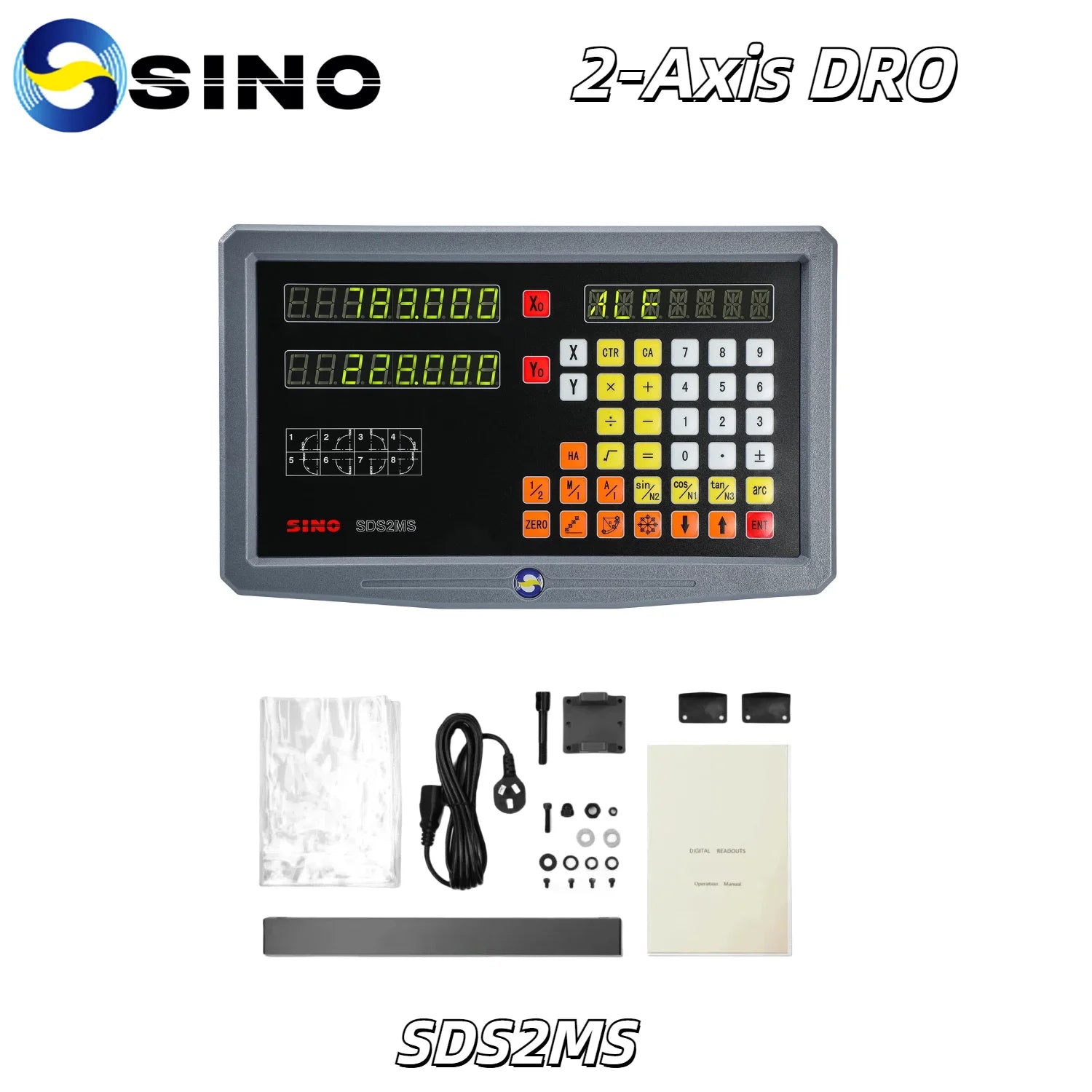

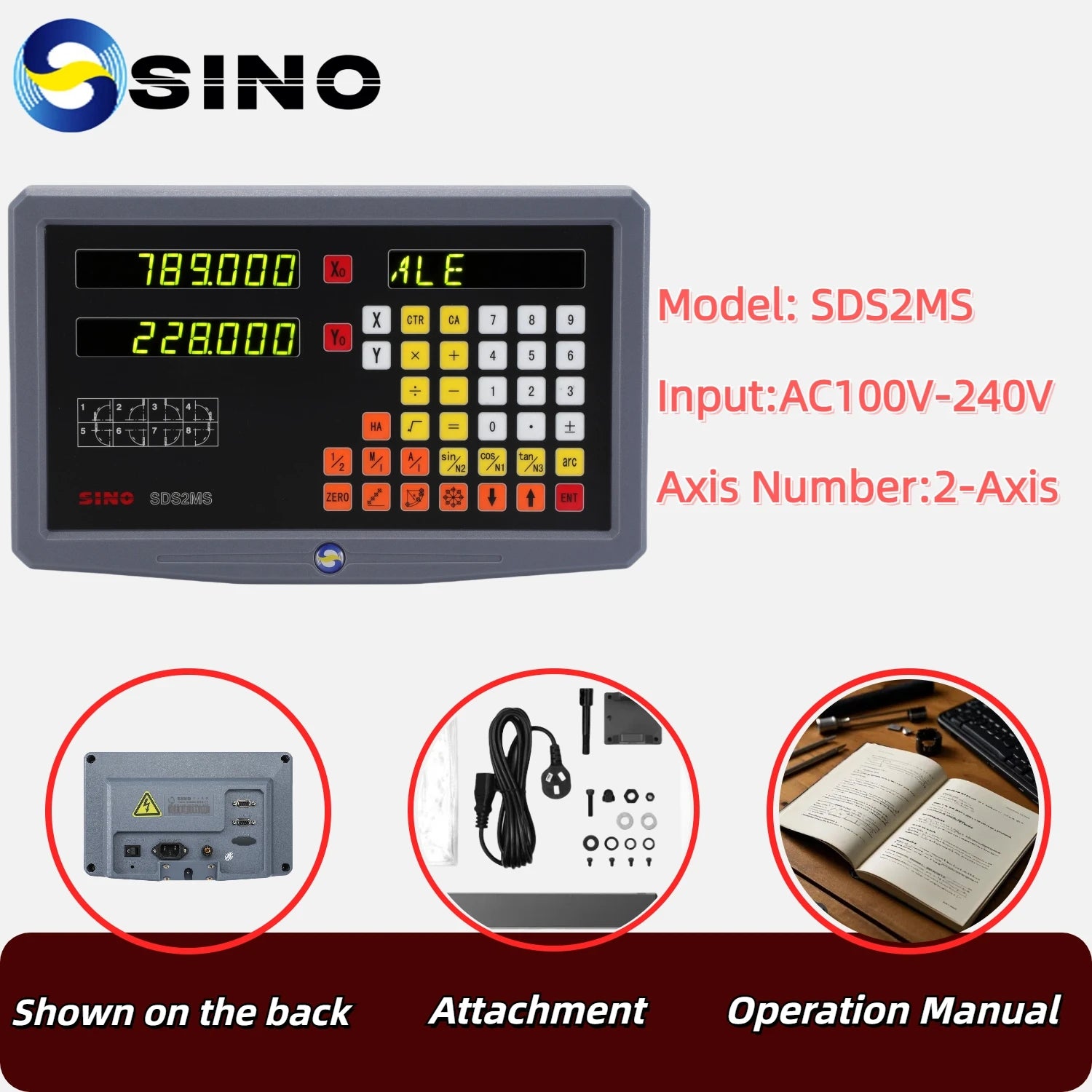

DRO-SDS2MS display

1 piece SDS2MS 2 axis display(with user manual, mounting arm, screw bag)

1.How to select scales length?

For model: KA35, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm for choose.

For model: KA300, 70mm, 120mm, 170mm, 220mm, 270mm, 320mm, 370mm, 420mm, 470mm, 520mm, 570mm, 620mm, 670mm, 720mm, 770mm, 820mm, 870mm, 920mm, 970mm, 1020mm for choose.

Scale length means scales working travel length.

After making order, please leave a message to seller with you needed scales travel length.

0.005mm complete kit  :  If there is no message left, we will deliver the goods according to the travel lengths of 250mm and 700mm.

0.001mm complete kit  :  If there is no message left, we will deliver the goods according to the travel lengths of 270mm and 820mm.

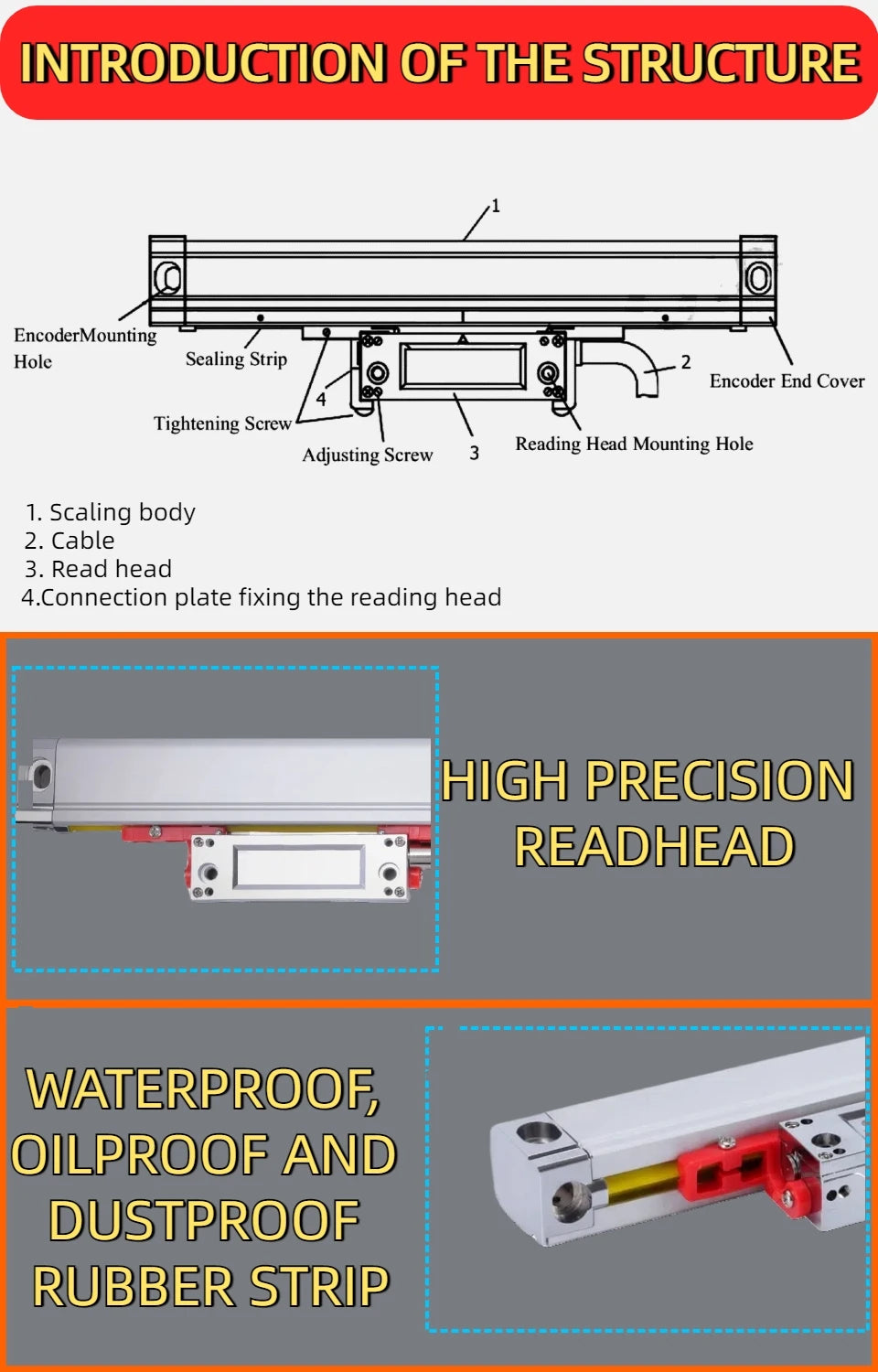

Linear scale parameter

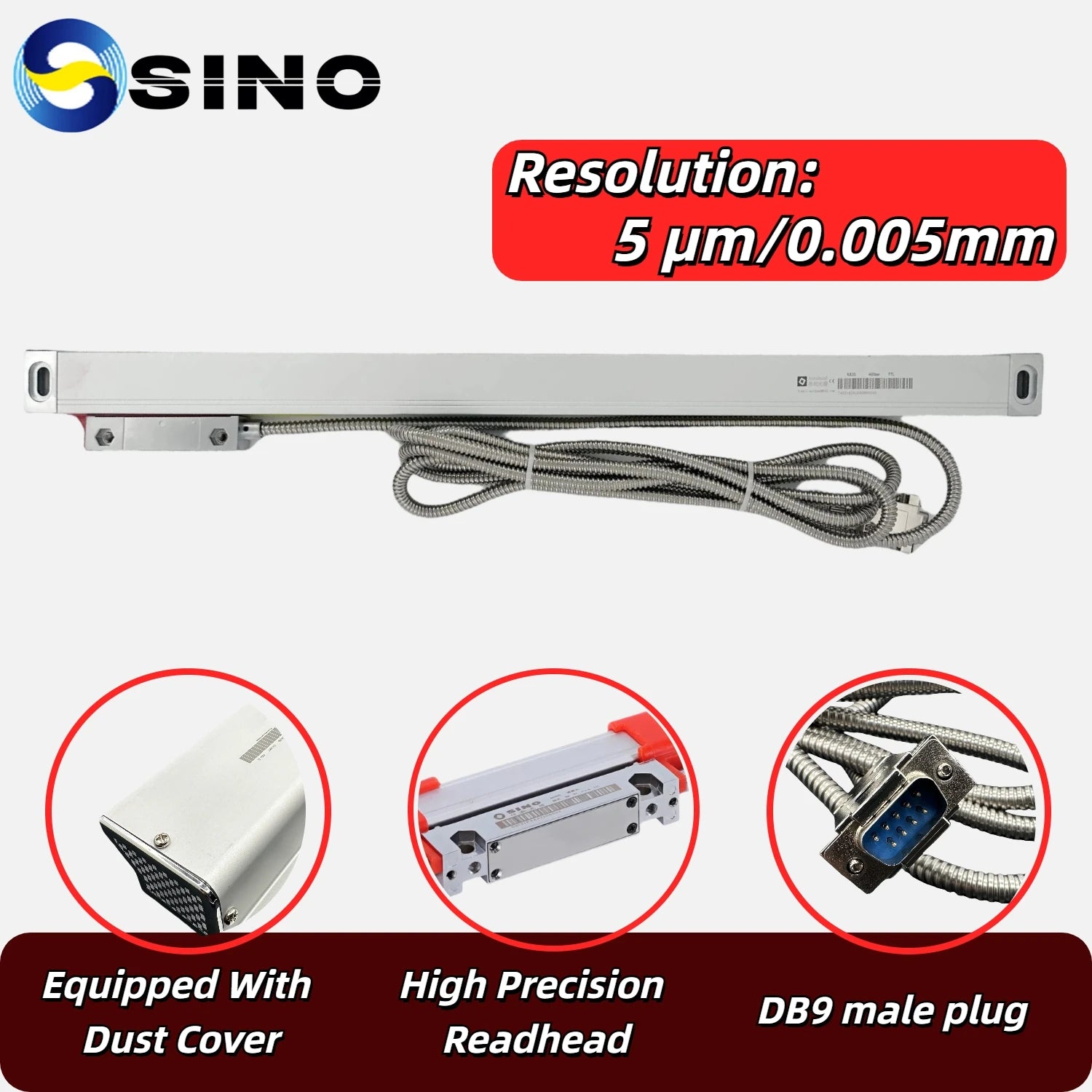

Model: KA35

Available measurement: 100mm to 1000mm

Total length: measurement +140mm

Dimensions Cross section dimensions: 21.5mmx33.5mm

Input voltage: 5VDC

Output signal: TTL

Resolution: 5um/0.005mm

Cable length: 3 meters

Model: KA300

Available measurement: 70mm to 1020mm

Installation holes distance:measurement +90mm

Total length: measurement +106mm

Dimensions Cross section dimensions: 25mmx34.5mm

Input voltage: 5VDC

Output signal: TTL

Resolution: 1um/0.001mm

Cable length: 3 meters

DRO features

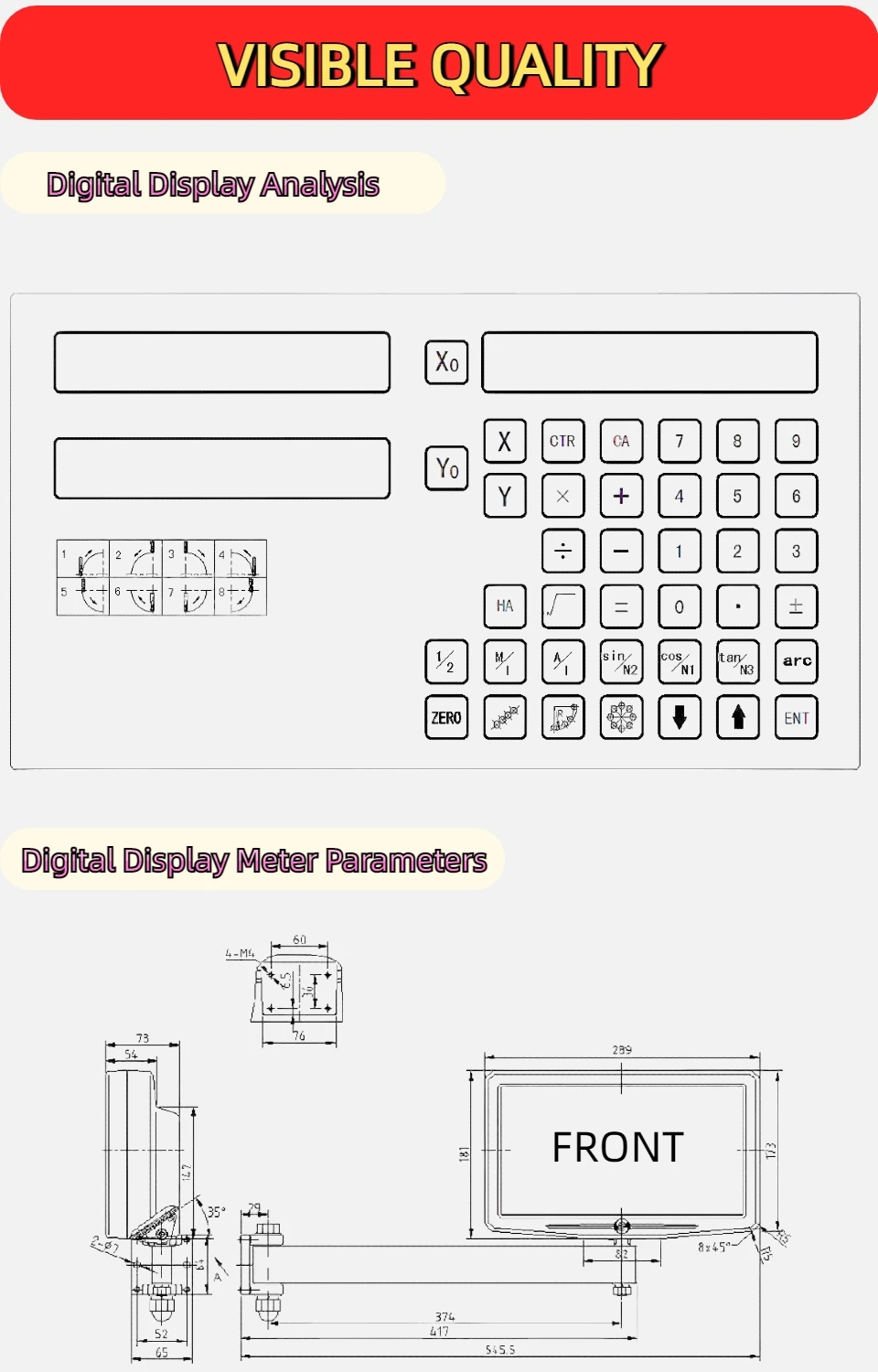

DRO digital readout parameter

Voltage Range: AC 100V~240V/50HZ~60HZ

Acceptable Signal: TTL square wave

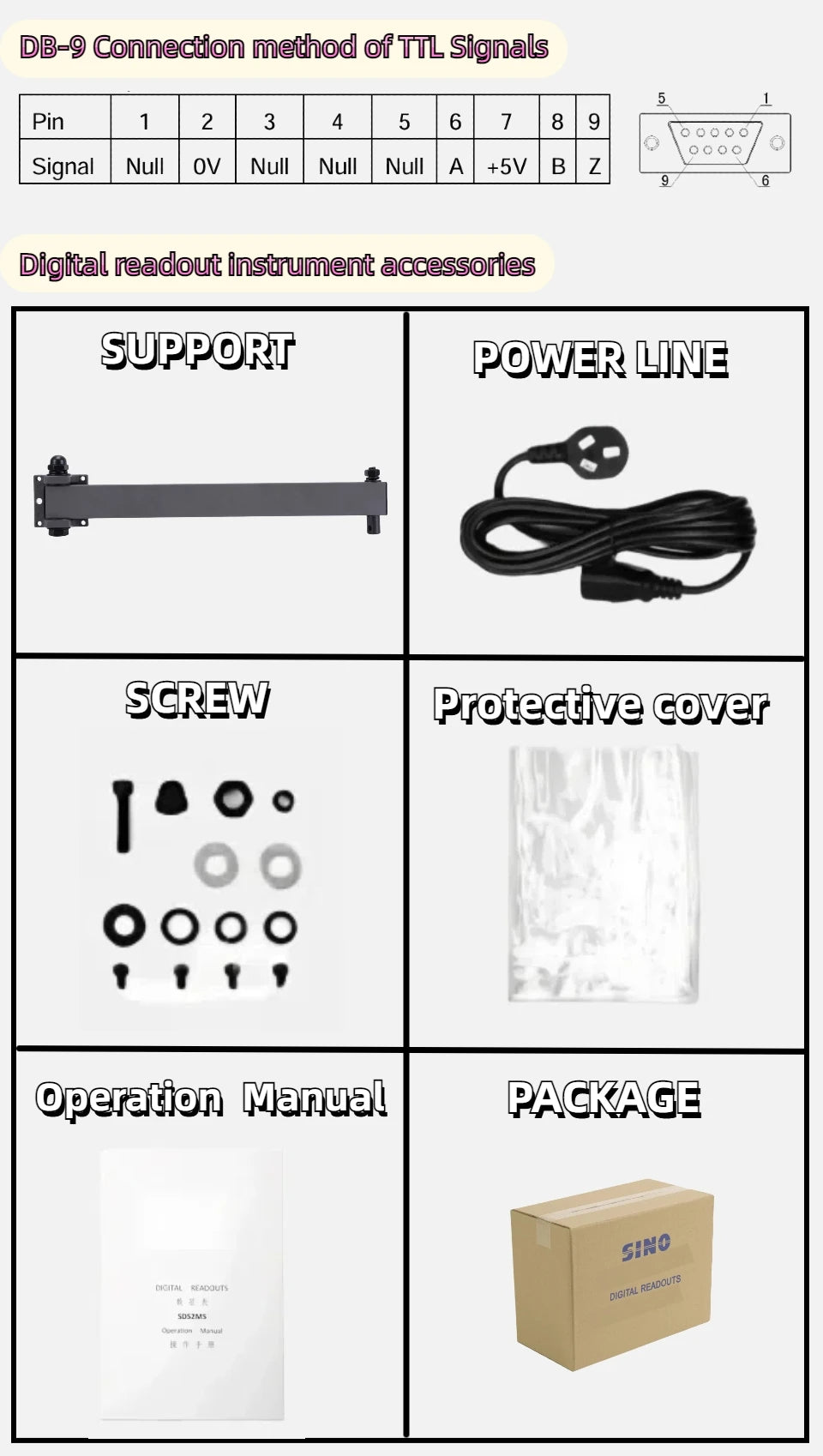

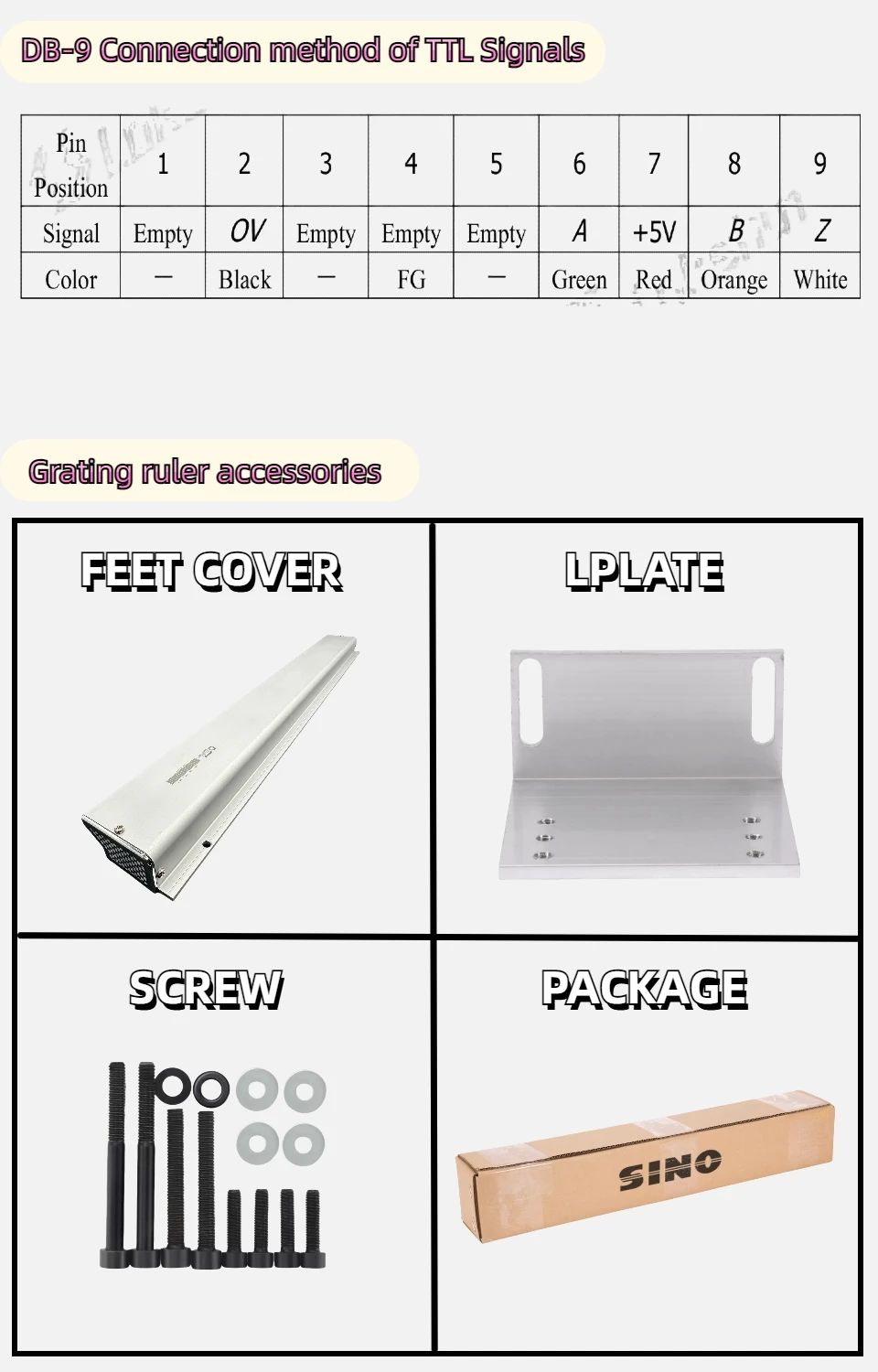

Plug: DB9

Acceptable resolution: 50um , 10um ,5um ,2um ,1um , 0.5um , 0.1um

Function
1.zero clearing
2.reset
3.mm/inch mode
4.ABS/INC coordinate conversion
5.200sets sub datum
6.power off Memory;
7.center of 1/2
8.liner error compensation
9.sleepping mode
10.Clear 200 sets Sdm datum;
11.ABS/INC mode
12.calculator
13.drilling of circumference
14.drilling of oblique line
15.machining of inclined plane
16.machining of circular arc
17.lathe function(match)
18.Rectangular lumen gradual processing
19.digital filtering
20.vibration filtering
21.R/D fucntion

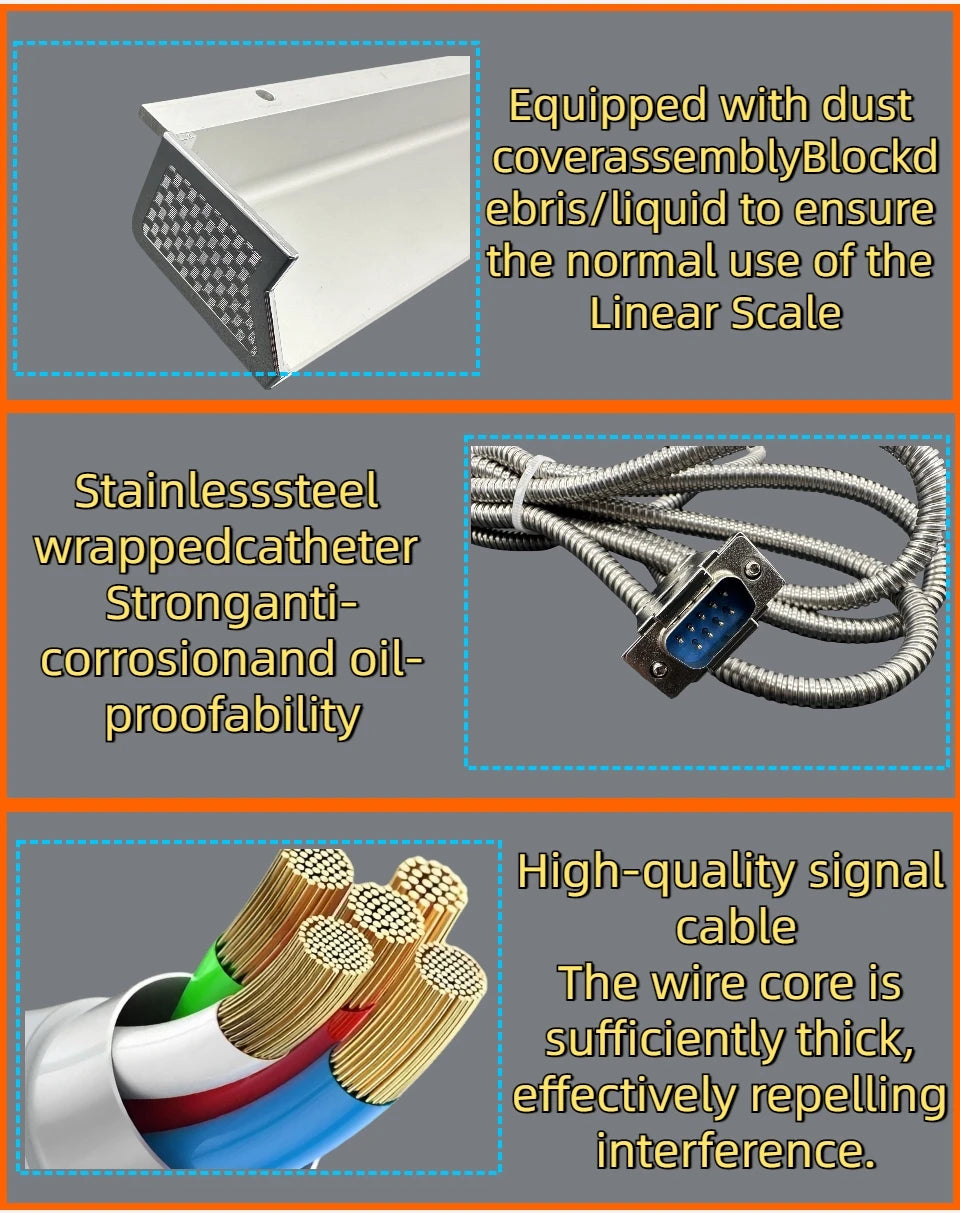

Scale fufures

Model: KA35

Available measurement: 100mm to 1000mm

Total length: measurement +140mm

Dimensions Cross section dimensions: 21.5mmx33.5mm

Input voltage: 5VDC

Output signal: TTL

Resolution: 5um/0.005mm

Cable length: 3 meters

Model: KA300

Available measurement: 70mm to 1020mm

Installation holes distance:measurement +90mm

Total length: measurement +106mm

Dimensions Cross section dimensions: 25mmx34.5mm

Input voltage: 5VDC

Output signal: TTL

Resolution: 1um/0.001mm

Cable length: 3 meters
