Navceker 8K 60Hz HDMI Audio Extractor 4K 120Hz RGB 4:4:4 HDMI 2.1 Audio Splitter Converter 7.1 Dolby Atmos De-embed for PS5 XBox
Navceker 8K 60Hz HDMI Audio Extractor 4K 120Hz RGB 4:4:4 HDMI 2.1 Audio Splitter Converter 7.1 Dolby Atmos De-embed for PS5 XBox
Navceker 8K 60Hz HDMI Audio Extractor 4K 120Hz RGB 4:4:4 HDMI 2.1 Audio Splitter Converter 7.1 Dolby Atmos De-embed for PS5 XBox
Navceker 8K 60Hz HDMI Audio Extractor 4K 120Hz RGB 4:4:4 HDMI 2.1 Audio Splitter Converter 7.1 Dolby Atmos De-embed for PS5 XBox
Navceker 8K 60Hz HDMI Audio Extractor 4K 120Hz RGB 4:4:4 HDMI 2.1 Audio Splitter Converter 7.1 Dolby Atmos De-embed for PS5 XBox

Navceker 8K 60Hz HDMI Audio Extractor 4K 120Hz RGB 4:4:4 HDMI 2.1 Audio Splitter Converter 7.1 Dolby Atmos De-embed for PS5 XBox

Regular price$145.15
/
Shipping calculated at checkout.

  • Free worldwide shipping
  • Tested & Inspected
  • 30 Day Money Back Guarantee
  • In stock, ready to ship
  • Inventory on the way

SPECIFICATIONS

Brand Name: Navceker

Connector B: jack

Connector B: OPTICAL INTERFACE

Connector B: COAXIAL

Connector B: HDMI-compatible

Gender: Male-Male

Model Number: ZY-8V1

Origin: Mainland China

Type: HDMI-Compatible Cables

Connector A: TYPE-C

Connector A: HDMI-compatible

Package: Yes

Feature: HDMI-Compatible2.1

Outer Diameter: 1mm

Bundle: Bundle 1

Packing: Carton Box

Certification: CE

Certification: FCC

Certification: RoHS

Shielding: Non-Shielded

Application: Projector

Application: Camera

Application: For iPod

Application: Computer

Application: Multimedia

Application: Television

Application: DVD Player

Application: TV box

Application: Monitor

Application: MP3 / MP4 Player

Application: LCD,XBox,apple TV

Resolution: 48Gbps HDMI audio extractor 4K 120Hz

Video standard: HDMI 2.1 audio extractor

VRR: HDMI audio extractor 4K 144Hz

Dolby Atmos: HDMI 2.1 Audio splitter

4K 144Hz: HDMI 2.1 audio converter

Audio Extractor: hdmi switch audio extractor 8K 60Hz

Model number: ZY-8V1 HDMI 2.1 To HDMI With Optical Toslink SPDIF audio extractor

Product name: 4K 120Hz HDMI Audio Extractor Splitter 5.1 CH

4K 144Hz: HDMI audio extractor 4K 144Hz

Warranty: one year free warranty hdmi to hdmi audio extractor

Choice: yes

semi_Choice: yes





If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

Navceker 4K 120Hz RGB 4:4:4 HDMI 2.1 Audio Extractor With 7.1CH Atmos & Optical Toslink 48Gbps HDMI Audio Splitter RTX 3090 RTX 4090 XBox PlayStation 5 Sound System Solution Adapter

Description:

ZY-8V1,Navceker 4K 120Hz HDMI 2.1 Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out .HDMI AUDIO ONLY /Toslink/Coaxial/3.5mm jack audio output support audio extract function ,The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz,4Kx2K@120Hz RGB 4 :4 :4 .


Features:

4K@120Hz HDMI 2.1 Audio Extractor Audio Converter,HDMI to HDMI,SPDIF Optical 7.1/5.1CH,Stereo 3.5mm,Supports VRR,Dolby Digital Audio De-embed,HDCP 2.2/2.3 Bypass,for PS5,Xbox

Excellent Quality

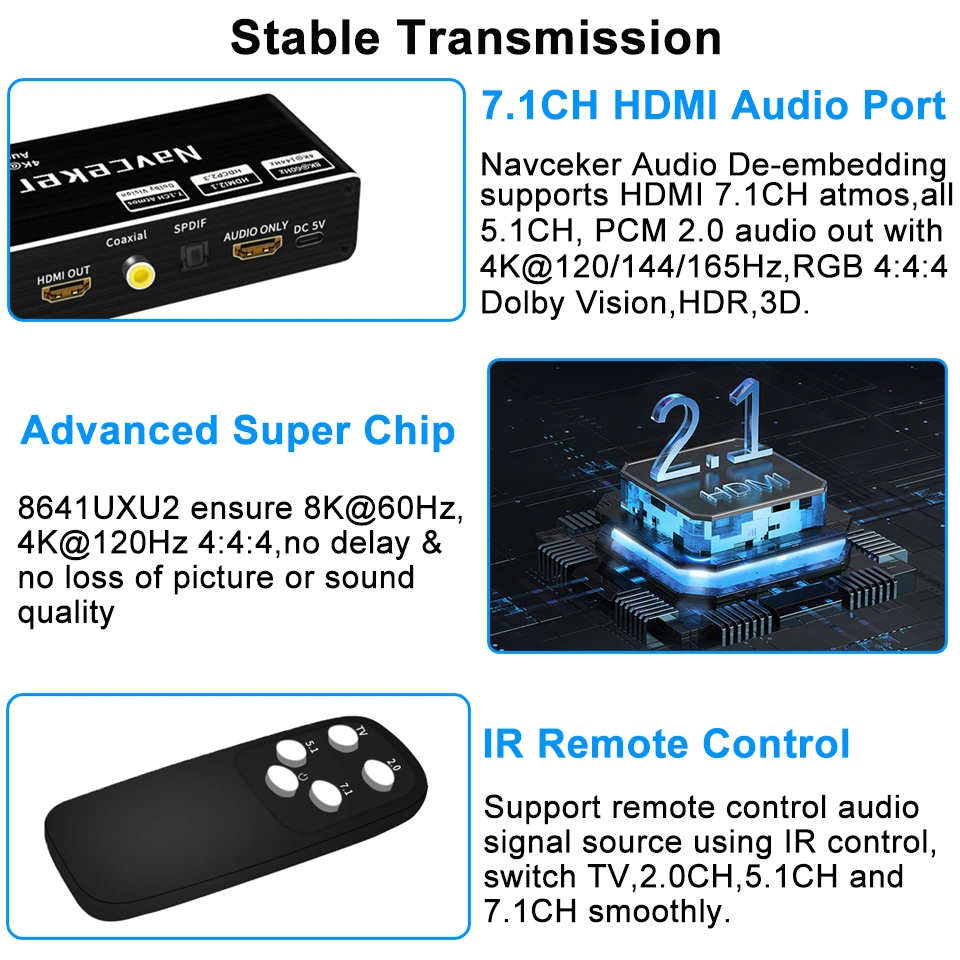

  • There are 1 HDMI input ,1 port HDMI output ,1 port Toslink audio output ,1 port coaxial audio output,1 port 3 .5mm audio jack ,1 port HDMI audio output .

  • Support 8K@30/60Hz, 5120x1440@120/60Hz, 4K@120Hz RGB 4:4:4, 4K@165Hz, 4K@144Hz ,2K@60/120/144Hz,1080P@60/120/240Hz, and back forward,with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2

  • Max transmission speed :48Gbps

  • Compatible with Dolby Vision,HDMI 2.1,HDCP2.3/2.2/1.4/1.3/1.2/1.1.

  • Supports Dynamic HDR, HDR10+, VRR,ALLM,Chroma 4:2:0 /4:2:2 / 4:4:4.
  • Support variable refresh rate VRR AMD Free-Sync G-Sync.
  • Navceker HDMI Audio De-embedding support LPCM 7.1CH ,Dolby True -HD,DTS -HD,AC 3,DTS ,DSD, Dolby Digital Plus and Dolby Atmos audio format ,But can 't decode these audio formats .If your Amplifier or soundbar not support these audio formats ,there will be no audio out from your soundbar or amplifier .At this situation ,please set the audio format to PCM /LPCM on your HDMI source .

  • HDMI 2.1 Audio Extractor -with Optical TOSLINK SPDIF+Coaxial+3.5mm+HDMI audio out allow you to extract the sound from the HDMI input source (like PS5/4,Xbox one etc .)to your soundbar or amplifier ,no need connecting TV or Monitor .

  • HDMI Input compatible with any HDMI device :such as PS 5/XBox/Roku/Fire TV /Blu -ray players /Apple TV /Nintendo Switch /PS4 Pro /Xbox 3 60/Xbox One X / PS 3/Beamer/Laptop and other HDMI signal source .HDMI video /audio Output :Monitor ,TV ,Projector .HDMI audio /SPDIF/Coaxial/3.5mm audio output :Receiver ,Amplifier ,Speaker ,headphone and other audio device .

  • Support 24bit deep color per channel ( Kindly Note :It does not compatible with DVI ,we do not recommend you use HDMI to DVI cable connect to your projector /monitor)

  • Highly recommend use AWG 30(19+1) standard HDMI 2.1 cable .the distance could reach up to 2 meters before and after when the resolution is 8K@60Hz,can reach up to 2 meters before and after if the resolution is below 4K@120Hz.

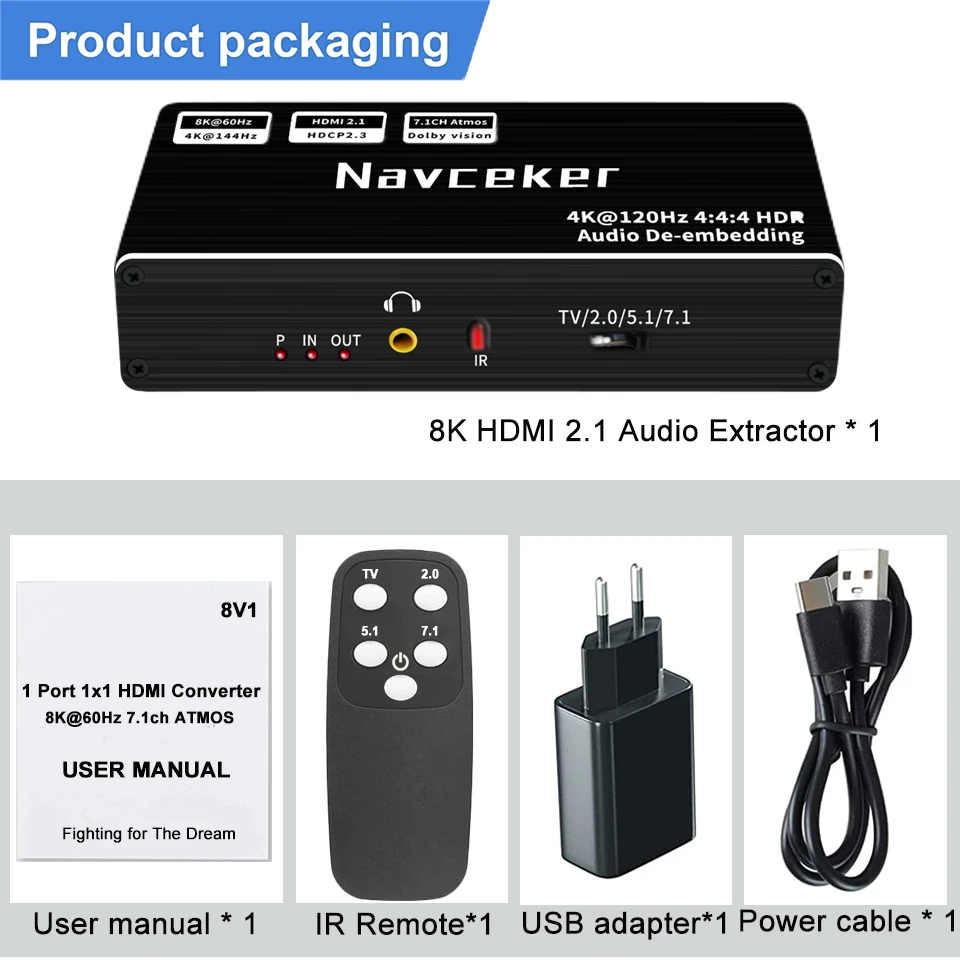

PACKAGE:

  • 5V/1A DC Power Adapter...............................1 pcs

  • User Manual........................................................1 pcs

  • IR Remote control..............................................1 pcs(without battery)

  • 48Gbps HDMI 2.1 Audio Extractor.......................1 pcs


SPECIFICATIONS

Input ports..............................................................................1XHDMI

Output port........................................................... 1 XHDMI(Female type )

1 XHDMI Audio output...........................support 7.1CH audio extract function

1 XToslink Audio output........................support 5.1CH audio extract function

1 XCoaxial Audio output........................support 5.1CH audio extract function

1 x3.5mmJack output .............................support 2.0CH audio extract function

Audio support.....................LPCM 7 .1CH,Dolby TrueHD ,DTS-X and DTS -HD Master Audio

Video Resolution........................................up to 8k@60Hz/4K@120Hz RGB 4 :4:4

Operating Temperature...................................0 C to 40 C/ 32Fto 104F

Storage Temperature.......................................- 20 C to 6 C/ -4F to 104F

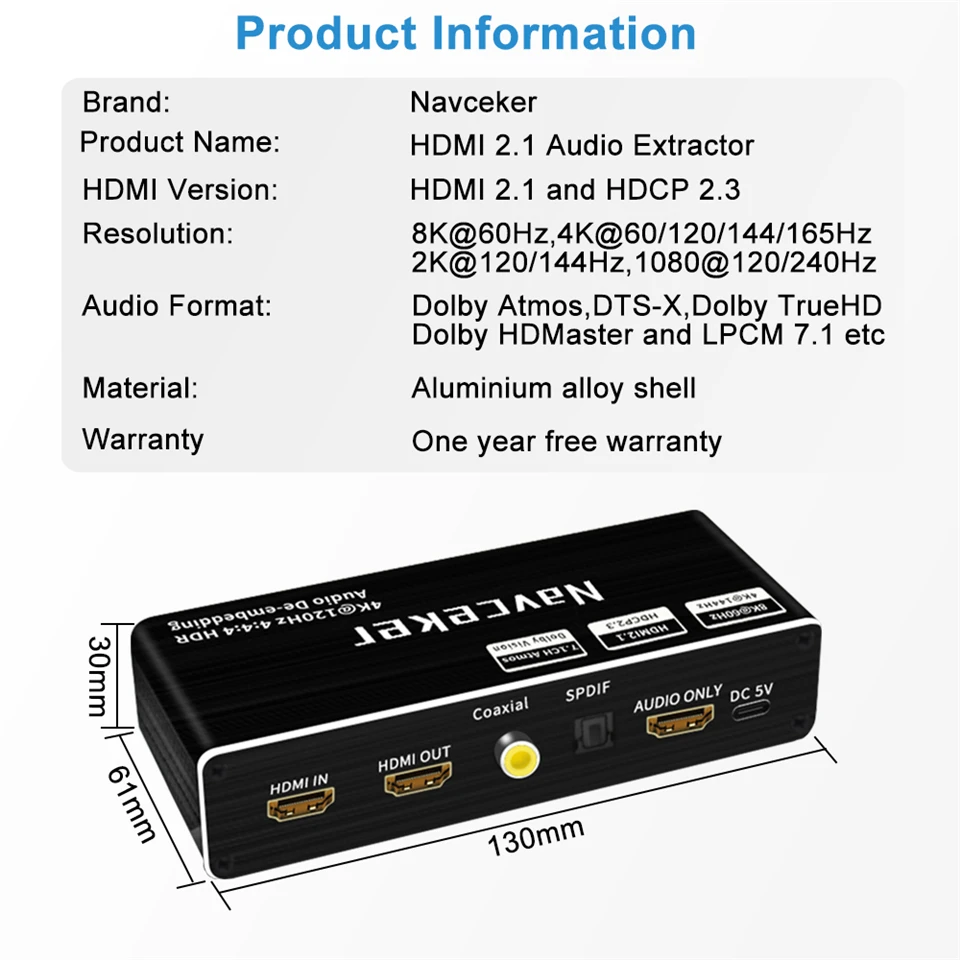

Dimensions...........................................................130X61X30MM

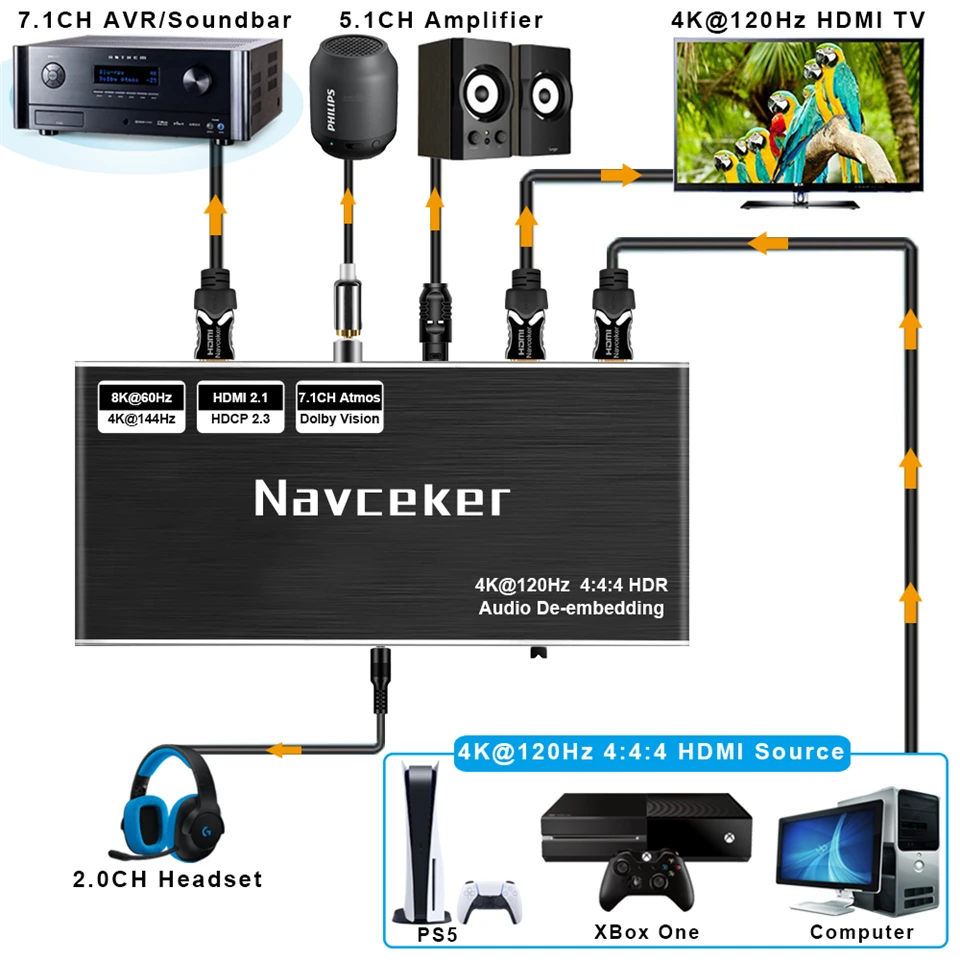

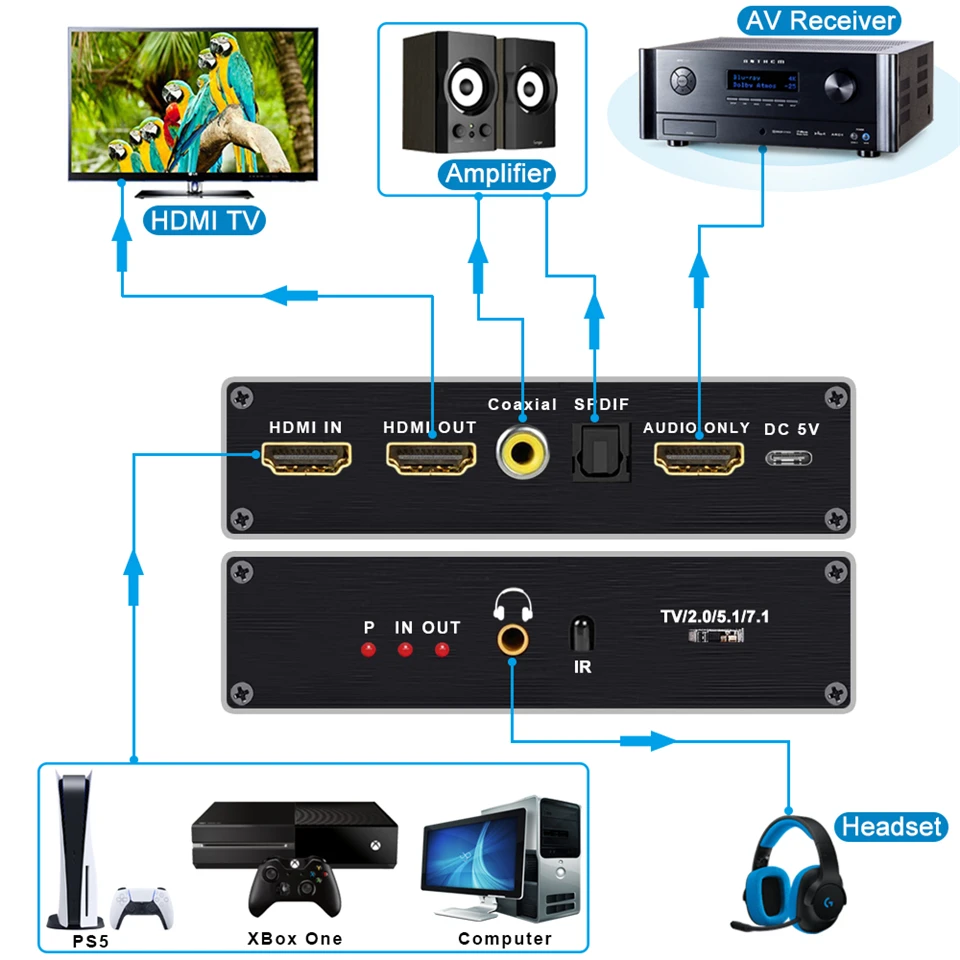

CONNECTION DIAGRAM

Notes :

1 .Navceker HDMI 2.1 audio extractor not support ARC or eARC function

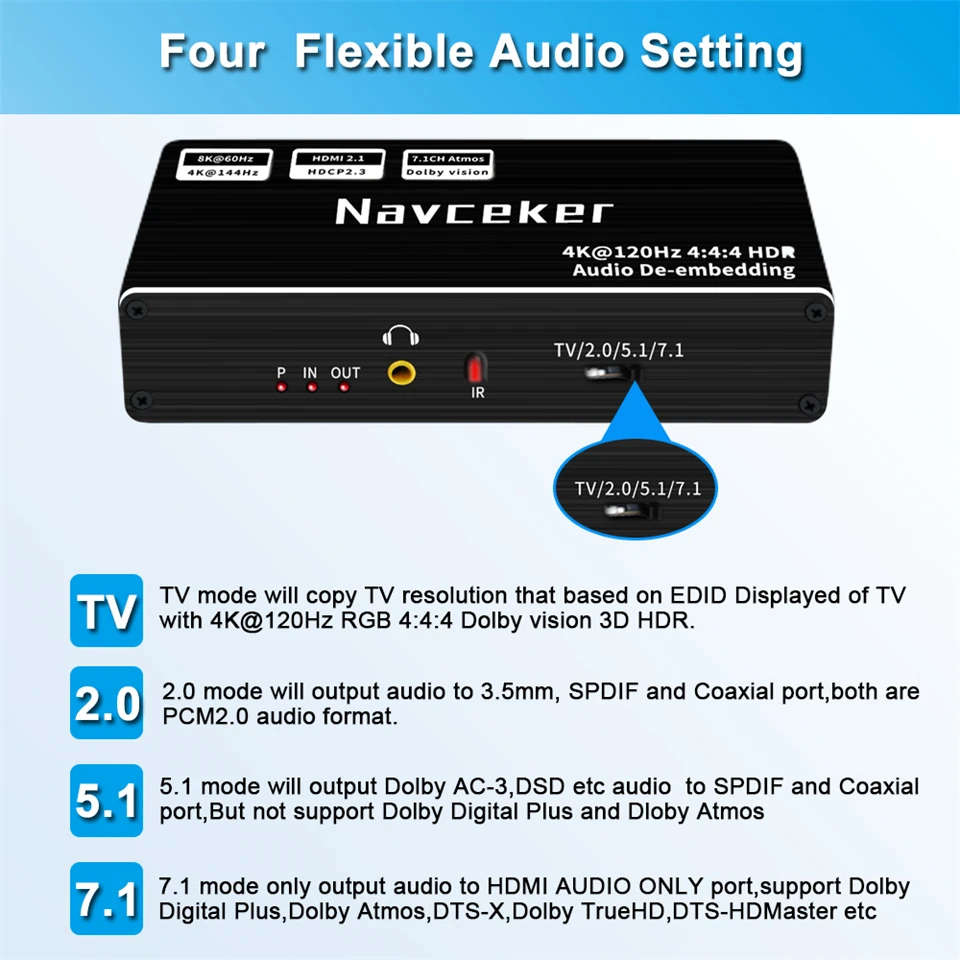

2 .When you use 7.1CH mode,if your TV/monitor not support 7.1CH audio,there are be no audio signal.

3.when you want to get 7.1CH audio,please you set audio out of your HDMI 2.1 source(PS5/XBox etc) with auto mode or source mode or 7.1CH mode.

4.When you use eARC or ARC soundbar,such as ARC, e-ARC/Sonos ARC soundbar,please you use HDMI INPUT of soundbar connect with HDMI AUDIO ONLY port of our audio extractor,please DO NOT use HDMI eARC/ARC Input of soundbar that can not get any audio.because eARC port of Soundbar ONLY could connect HDMI eARC INPUT of HDMI TV directly,it can not add another device between eARC soundbar and HDMI eARC TV
