SPECIFICATIONS
Brand Name: Navceker
Connector B: USB
Connector B: TYPE-C
Connector B: HDMI-compatible
Gender: Male-Male
Model Number: ZY-AD15
Origin: Mainland China
Type: HDMI-Compatible Cables
Connector A: USB
Connector A: TYPE-C
Connector A: HDMI-compatible
Package: Yes
Feature: None
Outer Diameter: 1mm
Bundle: Bundle 1
Packing: Carton Box
Shielding: Braid
Application: Projector
Application: For iPod
Application: Camera
Application: Computer
Application: Multimedia
Application: Television
Application: DVD Player
Application: Monitor
Application: TV box
Application: MP3 / MP4 Player
Resolution: 1080P 120Hz HDMI fiber optic extender with usb
Transmission distance: 20 km HDMI KVM extender fiber
HDMI port: 4K 60Hz HDMI fiber optic converter cable
HDMI Loop out: fiber optic converter to hdmi
Fiber Type: HDMI fiber optic TX RX transmitter receiver
KVM control: HDMI fiber optic transceiver
Model number: ZY-AD15 hdmi fiber converter
Product name: fiber optic extender to hdmi with USB 2.0
Video standard: HDMI 2.0B and HDCP 2.3 fiber optic video transmission
Warranty: one year free warranty Fiber HDMI extender video audio transmitter
|
|
If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.
2024 Best 4K 60Hz HDMI to Fiber Optic Converter 1080P 120Hz HDMI Fiber Optic Video Extender KVM USB Loop to HDMI Fiber Transmitter Receiver
Description:

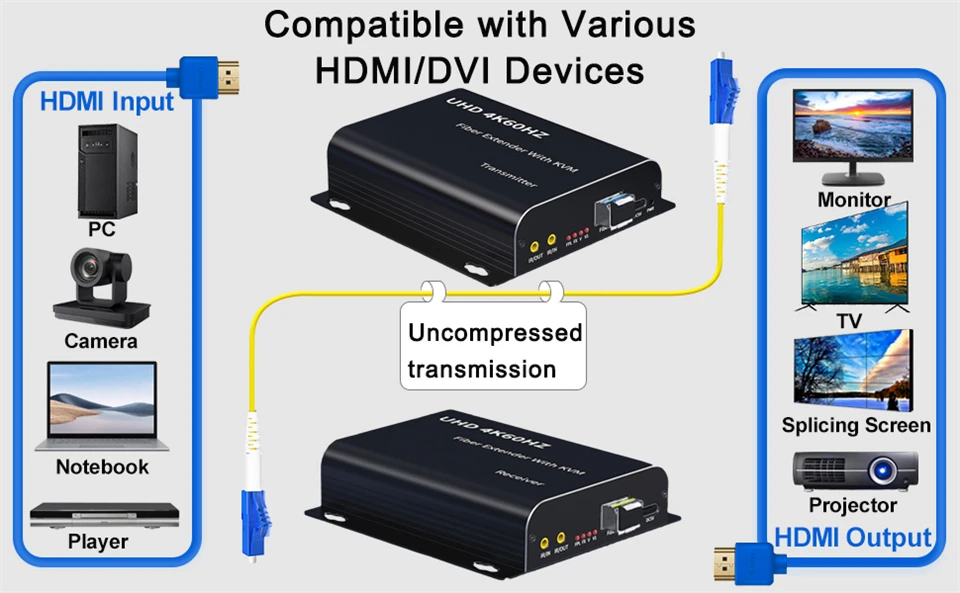

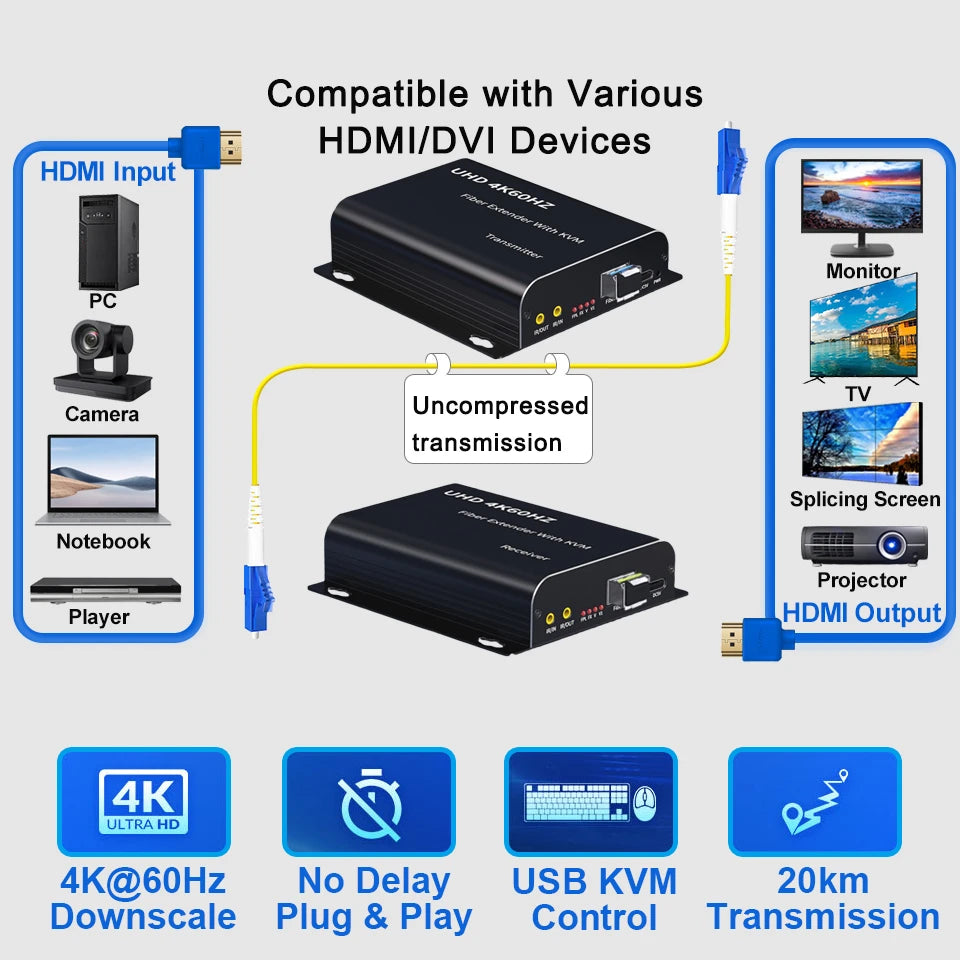

ZY-AD15, Navceker HDMI Fiber optic extender provides extension of HDMI video audio signal long distances over one LC fiber optic cable, it support high resolution up to 3840x2160@60Hz,1080P@120Hz . It also supports Remote KVM Control,Bi-directional IR control and HDMI loop out function.The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
20Km 4K@60Hz HDMI Fiber Optic USB KVM Extender Video Transmitter Receiver HDMI Loop Over LC Fiber Cable for PS4 PS5 DVD PC To TV Monitor
Long range transmission:up to 20 km over a single-mode/Multi-mode LC fiber optic cable;
Video resolution: 480P,720P,720i,1080i,1920*1080P@60/120Hz,4K@30/60Hz;
Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;
Uncompressed,No loss,No delay;
Infrared control:Bi-directional 20~60 KHz IR romote control;
KVM Control:supports remote USB KVM control by keyboard & mouse;
HDMI Loop Out:The transmitter with one HDMI loop output;
Video standard:compliance with HDMI 2.0b and HDCP 2.2 standard;
Built-in automatic adjustment system: make the image smooth, clear and stable;
Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;

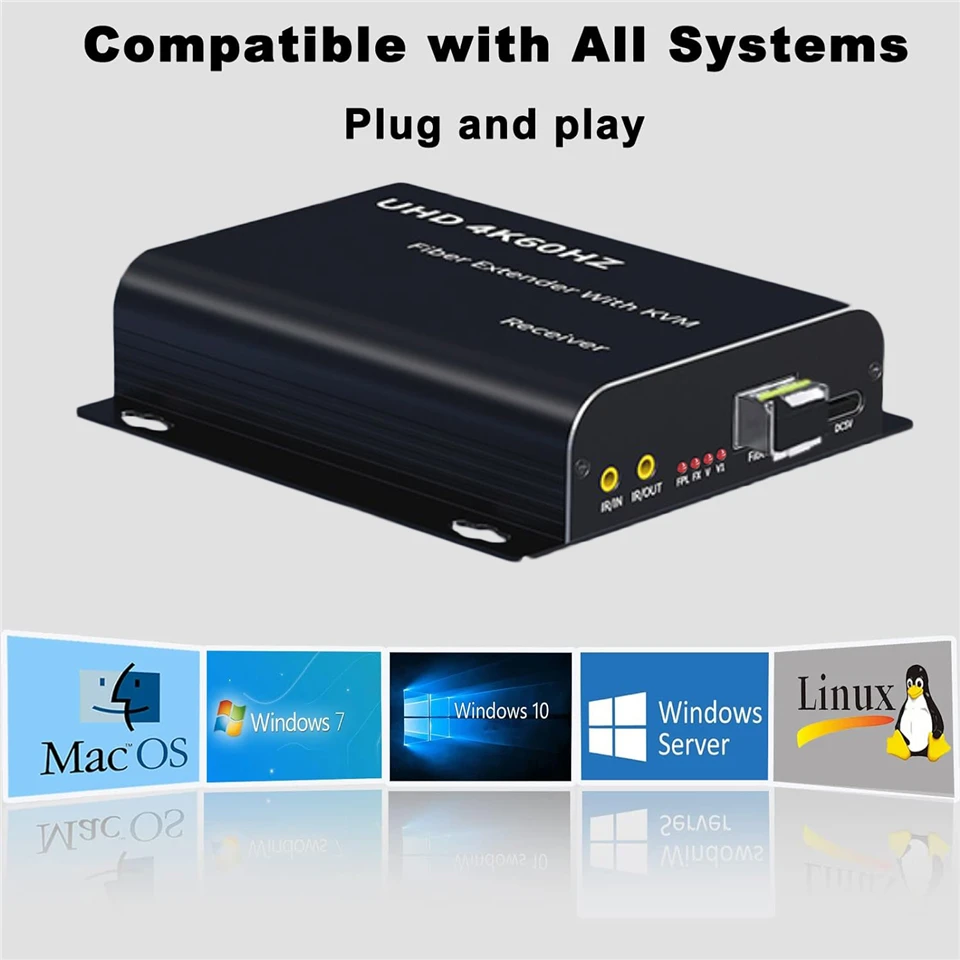

Plug and Play:Simple to install.
Specifications:
1080P 120Hz HDMI Extender HDMI Over Fiber Converter 4K@60HZ Video Optical Transceiver LC Single Mode 20km Multimode10G SFP
Video
Standards----------HDMI 2.0b; HDCP 2.2
Maximum pixel clock------600MHz
Maximum data rate-------18Gbps
Resolution ------3840X2160P@60Hz
Connector-----HDMI-A
Fiber type
Fiber interface--------------- LC Connector
Transmission distance--------0~20 km over single/multi-mode fiber
Fiber Type---------- ------------------ Single Mode
Wavelength--------------------1310nm 1510nm
Interface Bandwidth--------------18Gbps
Other
Power supply-----The power adapter: DC 5V/2A
Power dissipation------MAX 3W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%

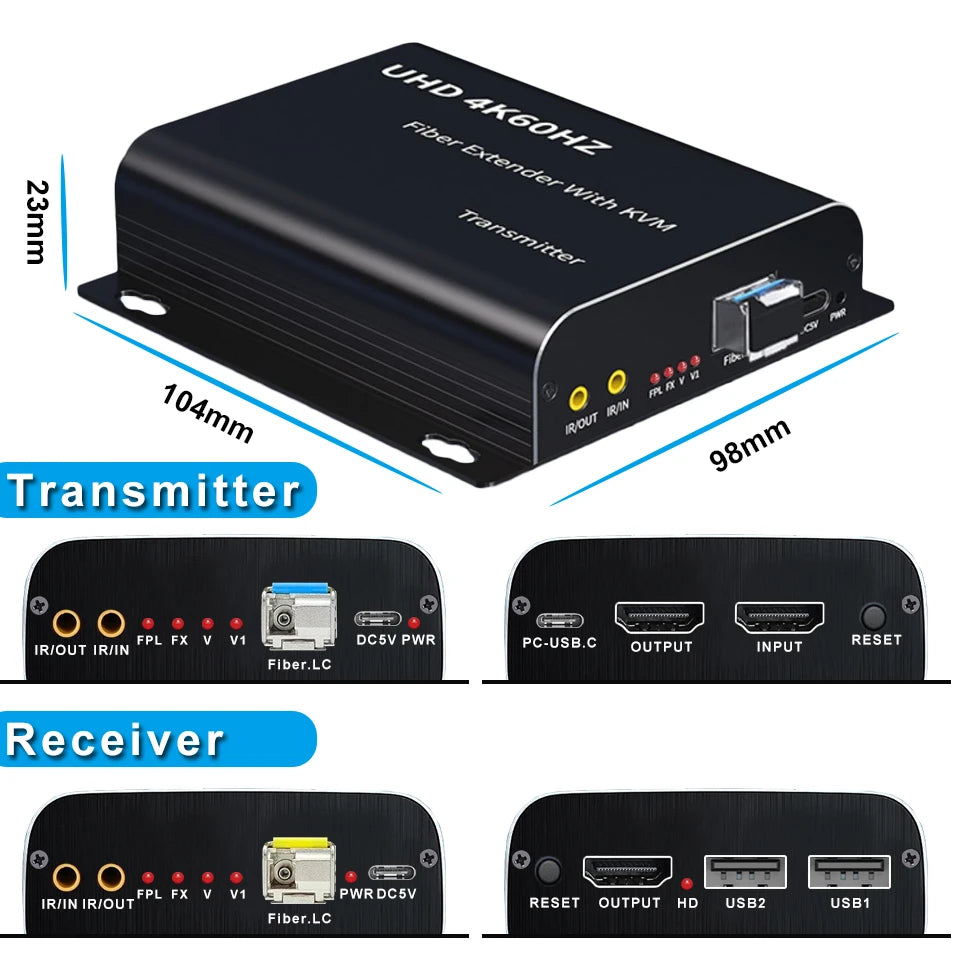

Dimension-------104*98*23mm
The warranty--------1 year free warranty
Package:
HDMI extender Fiber transmitter ……………………1 pcs
HDMI extender Fiber receiver ……………………… 1 pcs
LC SFP Module………………………………........... 2 pcs
USB data cable .......……………………………….... 1 pcs
Power adapter ……………………………….... 2 pcs
User manual …………………………………..1 pcs

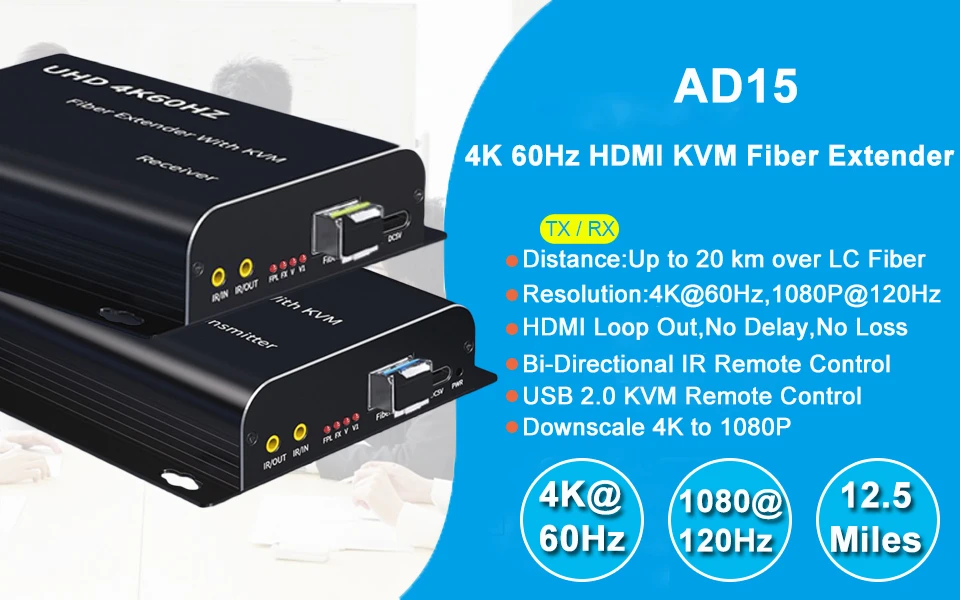

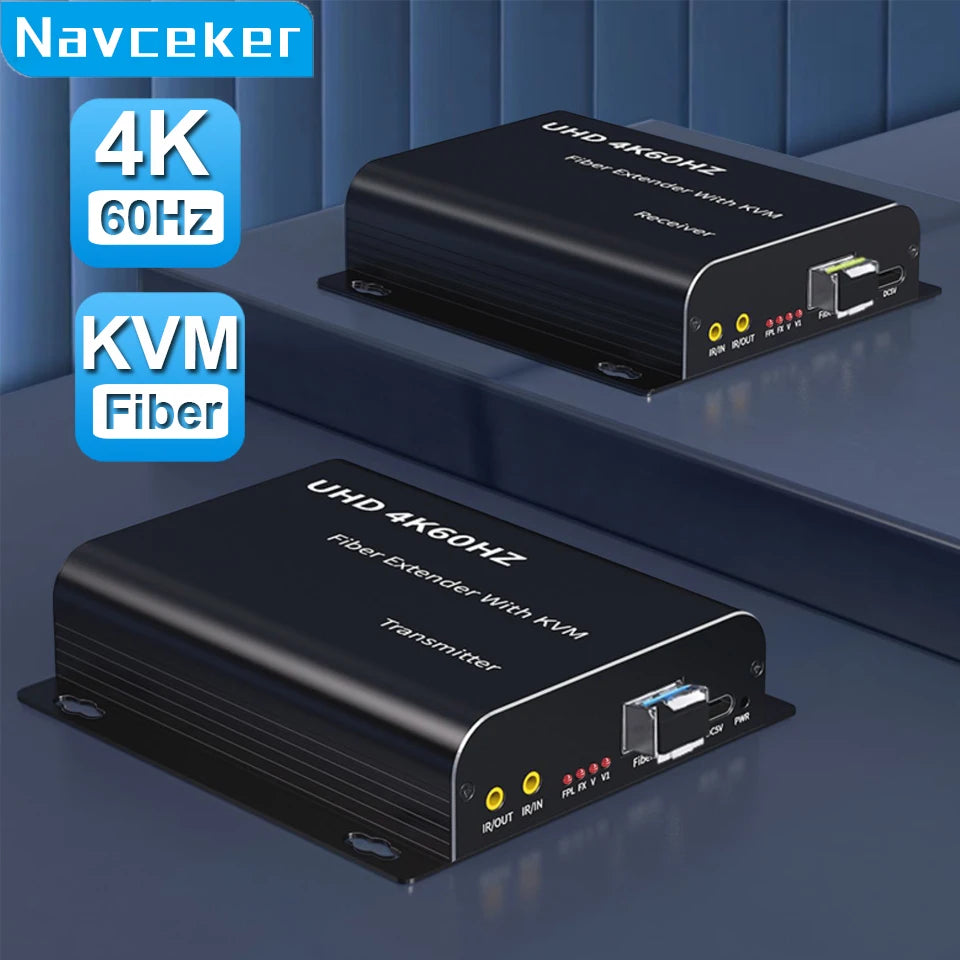

Navceker 4K@60Hz HDMI KVM Fiber Optic Extender
20km long distance transmission
Resolution:4K@30/60Hz,1080P@60/120Hz
HDMI Loop out
USB KVM Remote Control
IR Bi-Directional Remote Control
Newest Uncompressed Technology
For 0 km to 20km,There are no loss and Zero delay between HDMI fiber transmitter and HDMI fiber receiver through Newest Uncompressed Technology.

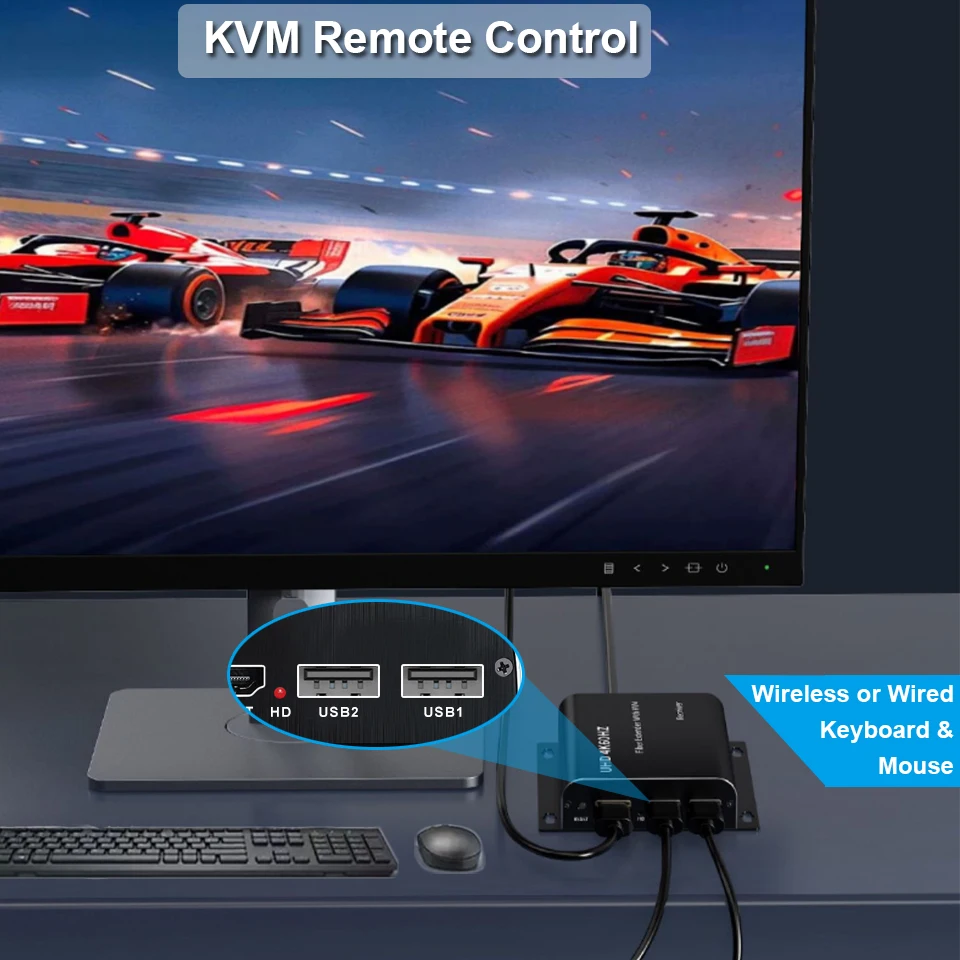

USB KVM Remote Control
Navceker HDMI fiber optical extender with 2 x USB 2.0 port,it could supports wireless or wired Keyboard and mouse to remote control HDMI input source,Note:the USB port not support USB camera,USB flash driver,printer etc.

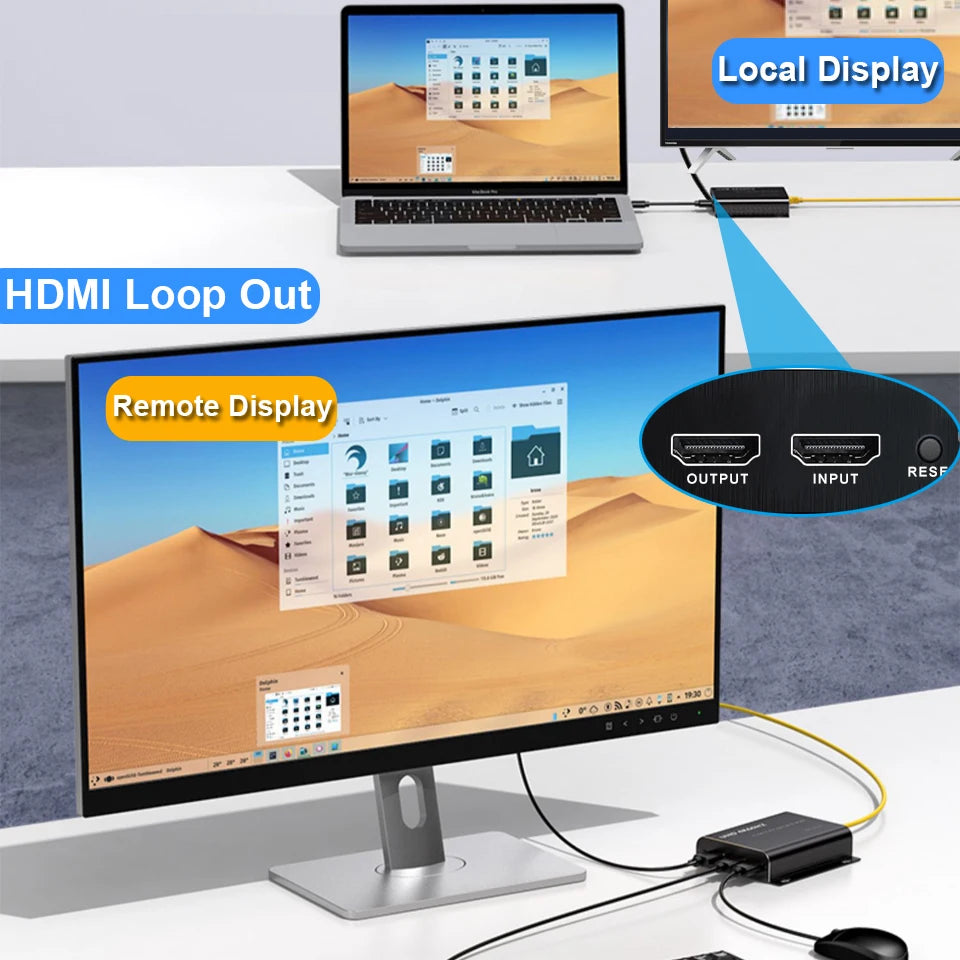

HDMI Loop out
the transmitter have a HDMI local output,it is easy to know what is situation in far end when it is used to Security Monitoring System.

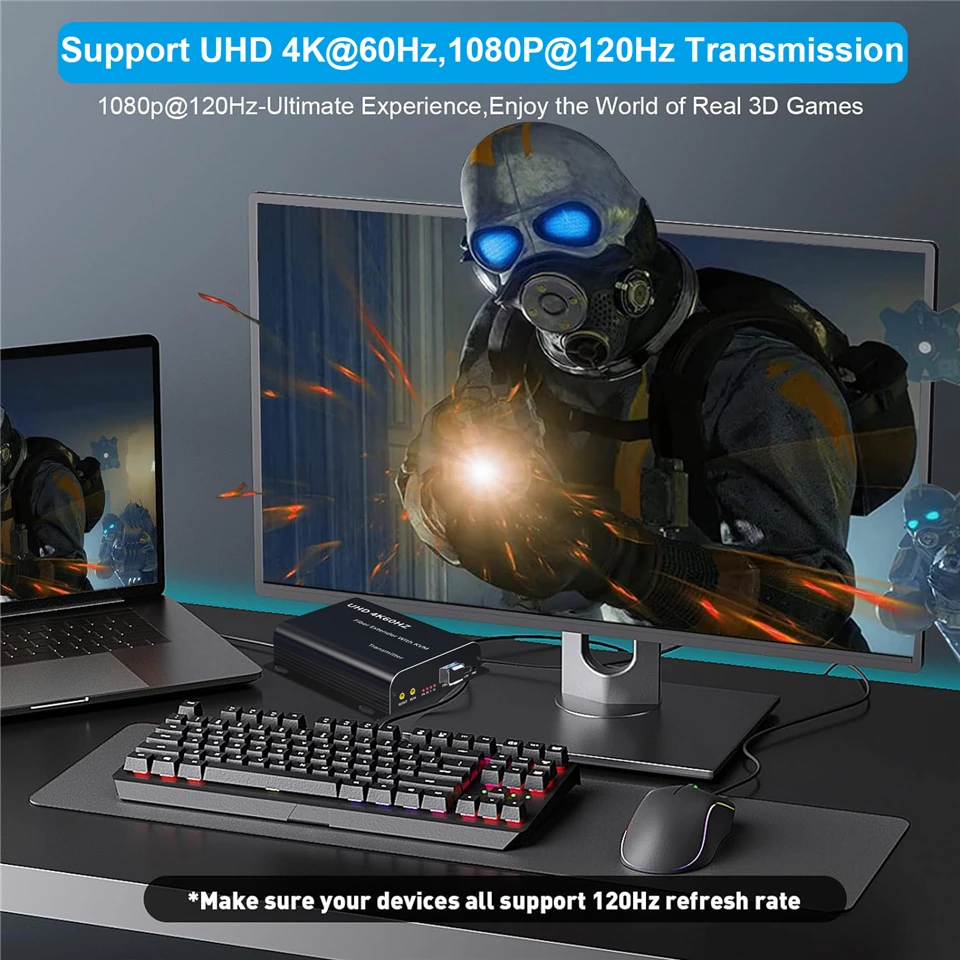

High resolution and High refresh rate
The resolution is up to 480P,576P,720P,1080i,1920x1080@60Hz,1920x1080@120Hz,
3840x2160@30Hz,3840x2160@60Hz etc.

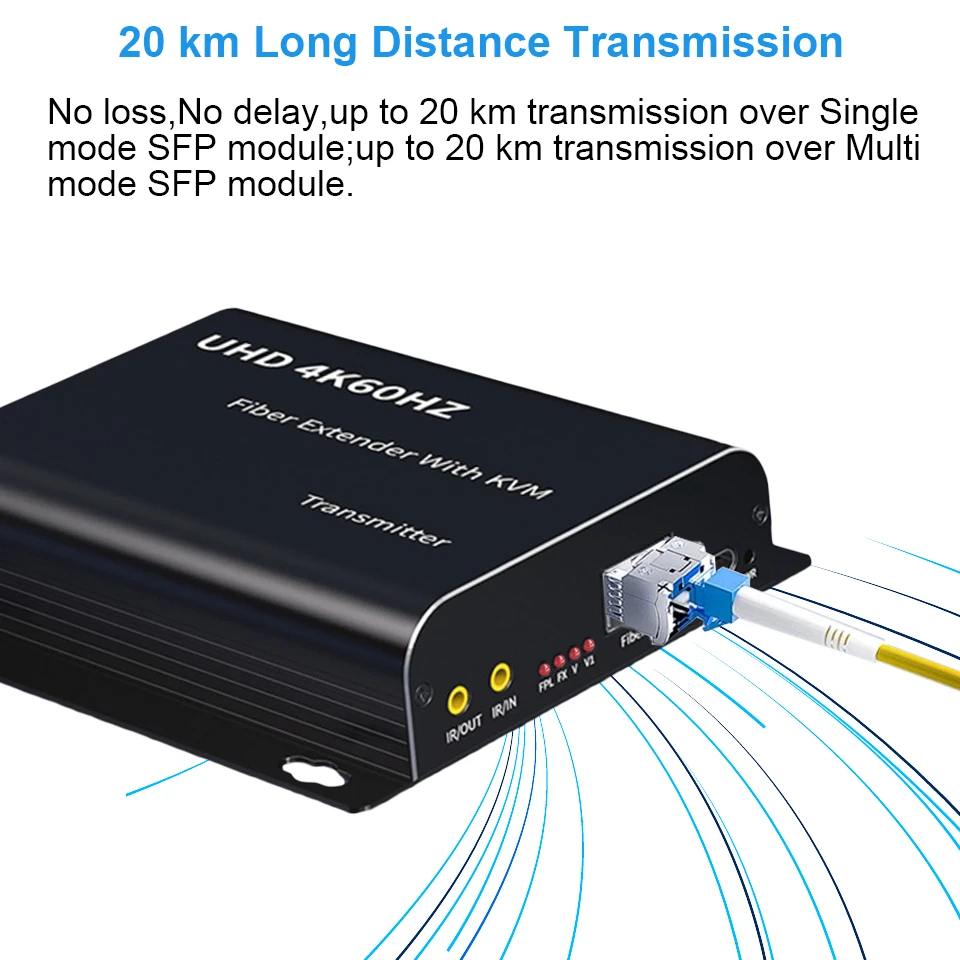

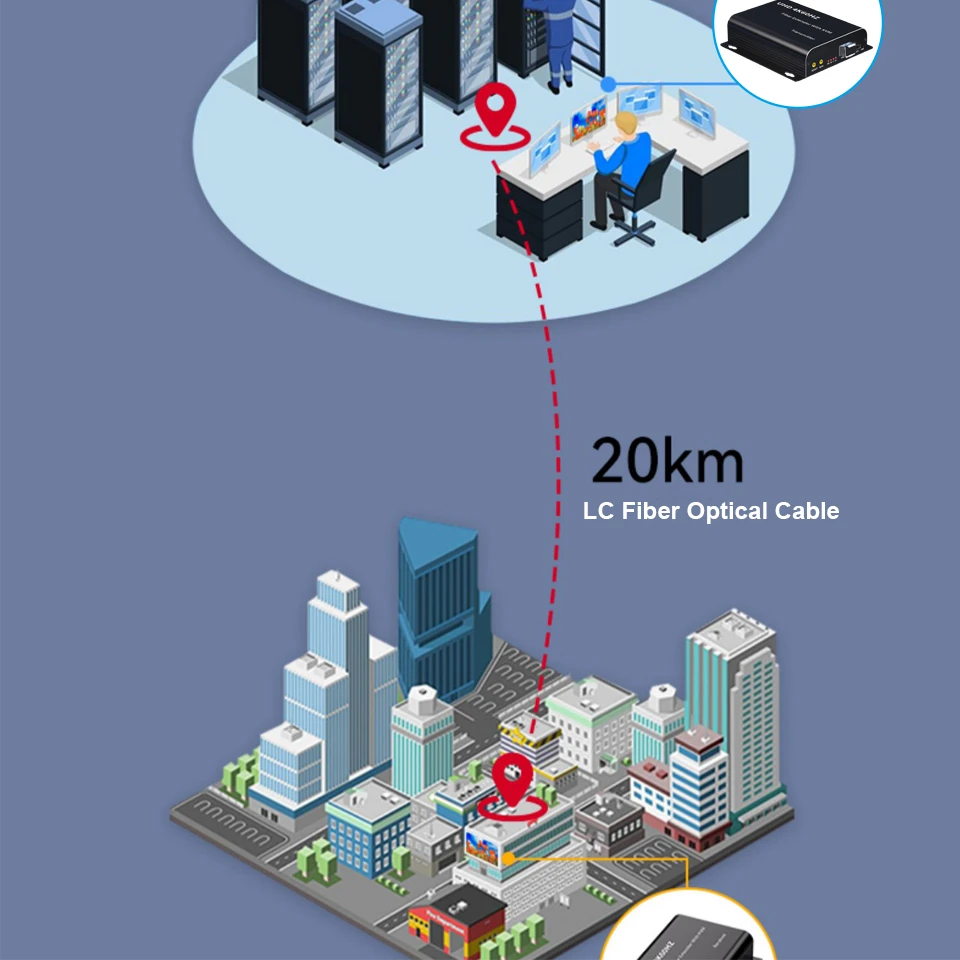

20km long distance transmission
Navceker HDMI fiber kvm extender could transmit HDMI video audio signal up to 20km/12.5 miles over single-mode or Multi-mode fiber cable.
Note:The standard package is with single-mode LC SFP module.

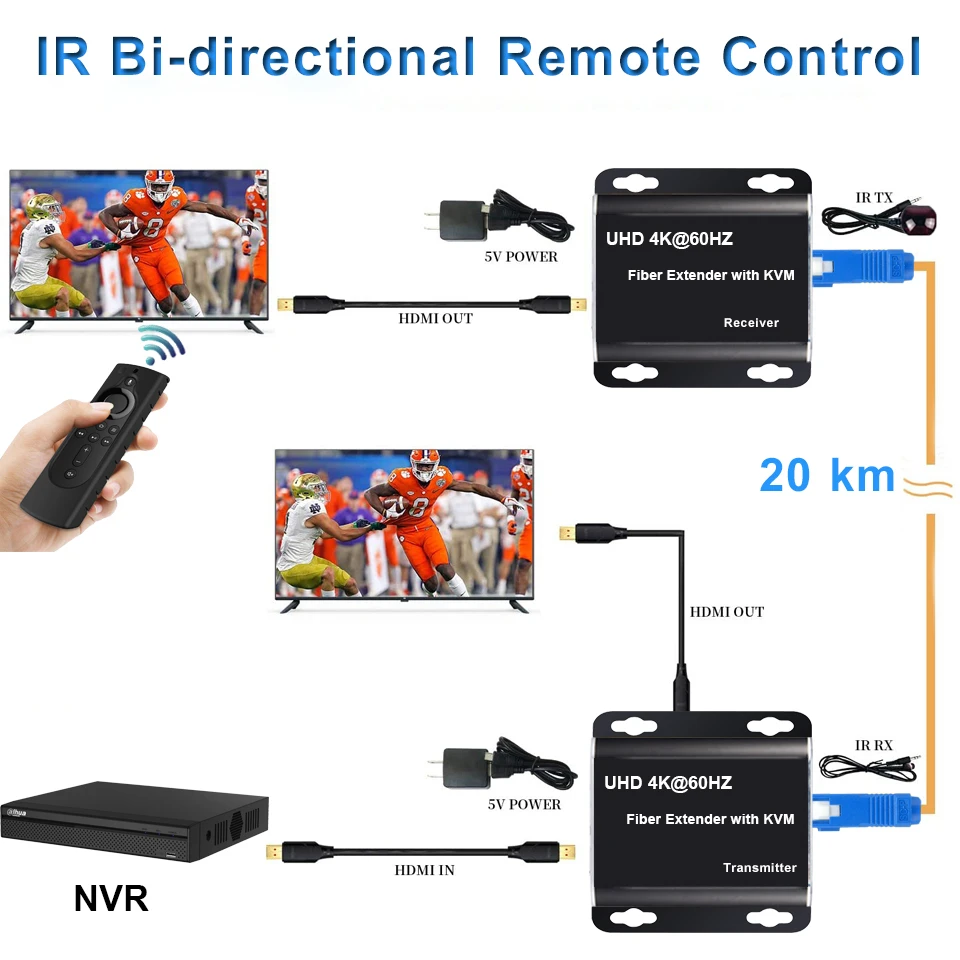

IR Bi-Directional Remote Control
two ways Infrared control,it is easy to control HDMI signal by yourself.
