SPECIFICATIONS
Brand Name: Navceker
Connector B: HDMI-compatible
Gender: Male-Male
Model Number: ZY-AC02
Origin: Mainland China
Type: HDMI-Compatible Cables
Connector A: TYPE-C
Connector A: HDMI-compatible
Package: Yes
Feature: HDMI-Compatible2.1
Outer Diameter: 1mm
Bundle: Bundle 1
Packing: Carton Box
Certification: CE
Certification: FCC
Certification: RoHS
Shielding: Non-Shielded
Application: Projector
Application: Camera
Application: For iPod
Application: Computer
Application: Multimedia
Application: Television
Application: DVD Player
Application: TV box
Application: Monitor
Application: MP3 / MP4 Player
Application: LCD,XBox,apple TV
Resolution: 4K 120Hz HDMI audio extractor eARC
Video standard: HDMI 2.1 audio extractor splitter
Connector A: HDMI 2.1 audio eARC Splitter
Connector B: HDMI 2.1 Audio eARC Converter
EARC: hdmi audio extractor 120hz
Audio Extractor: hdmi to hdmi audio extractor
Model number: ZY-AC02 eARC extractor audio hdmi 2.1
Product name: 8K hdmi audio adapter Extractor Splitter 7.1 CH
HDR 10+: hdmi audio extract dolby atmos
Warranty: one year free warranty hdmi to audio converter
If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.
Ugreen

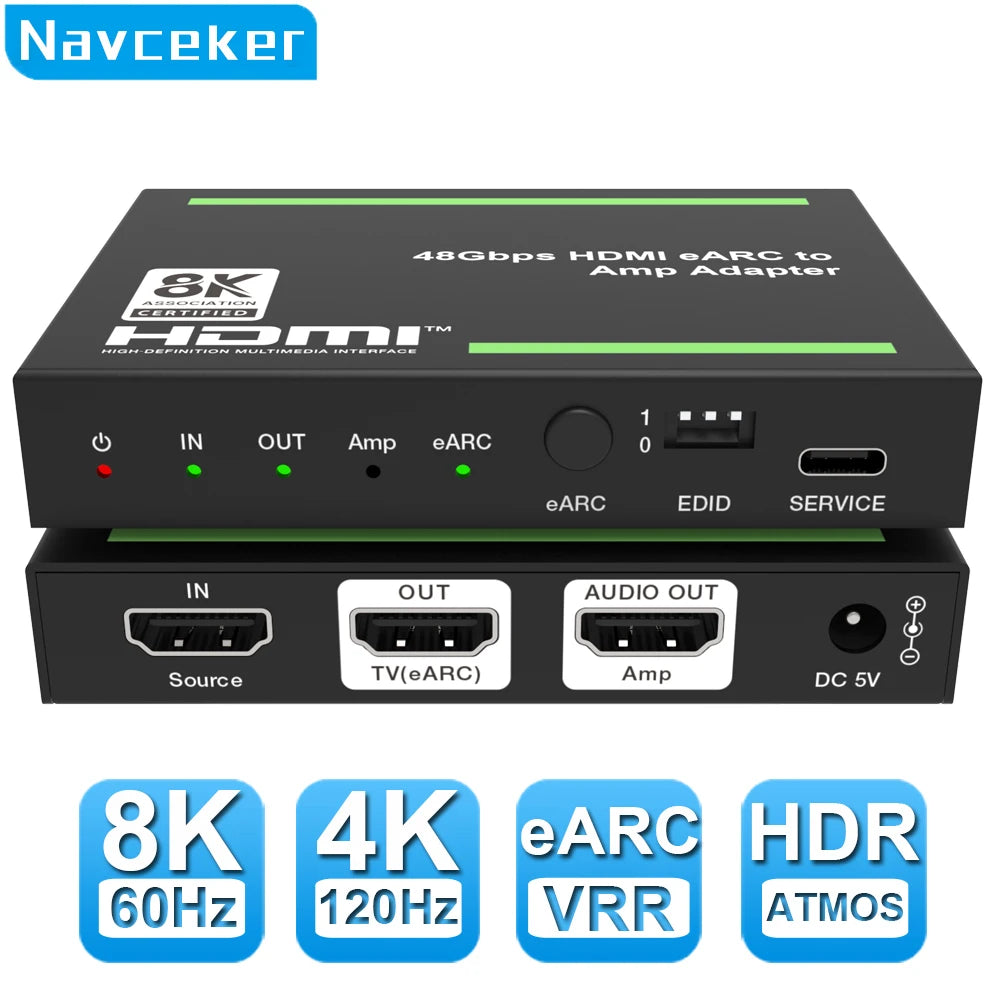

Navceker 4K 120Hz HDMI eARC Audio Extractor With eARC OUT & Optical Toslink HDMI 2.1 Audio converter splitter 8K 60Hz 48Gbps for PS5 XBox X/S Sonos Soundbar beam
Description:

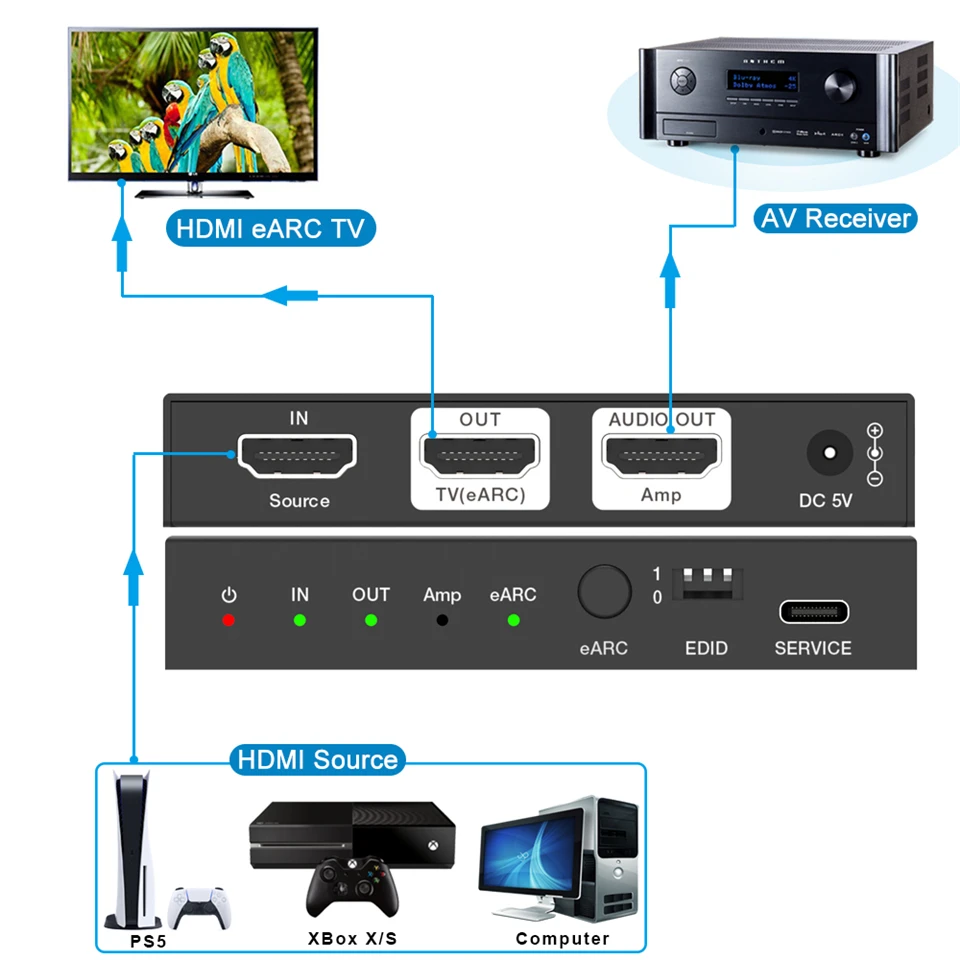

ZY-AC02,Navceker 4K 120Hz 48 Gbps HDMI 2.1 eARC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with AUDIO OUT .support audio extract function. AUDIO OUT HDMI support eARC (Enhanced Audio Return Channel).The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K@120Hz RGB 4 :4 :4 ,8/10/12 bit deep color.
Features:
HDMI eARC adapter 4K 120Hz HDMI ARC/eARC Audio Extractor Splitter HDMI Dolby Atmos Vision Audio Video Converter for sound bar
Excellent Quality
HDMI 2.1 Audio Extractor: Extract full HDMI audio from any HDMI source signal and pass-through 8K or HDR the video to a compatible display/TV and output HDMI Audio to AV Receiver/Soundbar/Amplifier with HDMI input and get full eARC capabilities on your AV receiver. Will not extract eARC to your Soundbar
8K Ultra HD Support - HDMI 2.1 (48Gbps), HDCP 2.3 compliant, supports resolutions up to 8K @ 60hz, 4K @ 120hz, 4K @ 50/60Hz (YUV 4:4:4) HDR, DVI Compliant. Convert TV eARC/ARC audio to any HDMI input audio system - Extract full audio from your 4K HDMI source such as cable box or gaming system and send the 4K HDR video to the TV and enjoy the full home theater audio with your older HDMI audio receiver
Dedicated HDMI Audio only output to connect to an AV Receiver supports Dolby Atmos, Dolby True HD, Dolby Digital, DTS Digital, DTS HD Master, Dolby/DTS 7.1&5.1CH, PCM7.1&5.1&2.0 stereo audio) Support VRR, ALLM, QMS, QFT, SBTM, as specified in HDMI 2.1.

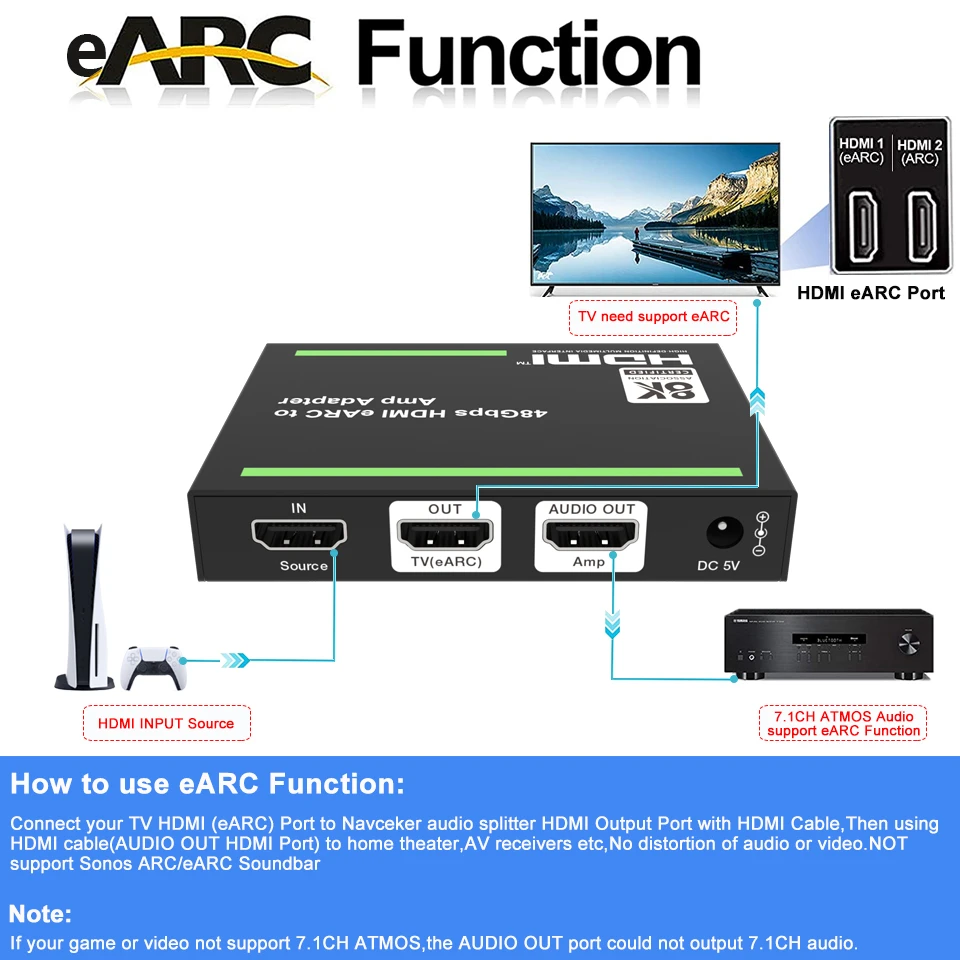

eARC Mode Support - extract the audio return from ARC or eARC port on TV/Display and send HDMI audio only to a non-ARC AV Receiver or eARC Soundbar for full audio experience. ARC Audio Extracton from an ARC/eARC TV.
PACKAGE:
5V/2A DC Power Adapter...............................1 pcs
User Manual........................................................1 pcs
HDMI 2.1 eARC Audio Extractor.......................1 pcs
SPECIFICATIONS
Input ports..............................................................................1XHDMI
Output port........................................................... 1 XHDMI(Female type )
1 X HDMI AUDIO OUT...........................support ARC/eARC function
Audio support.....................LPCM 7 .1CH,Dolby TrueHD ,and DTS -HD Master Audio
Video Resolution........................................up to 4k@120Hz RGB 4 :4:4
HDMI Input/Output.......................8K/4K@120Hz:Less than 3 meter;4K@60Hz:Less than 5 meter
Operating Temperature...................................0 C to 40 C/ 32Fto 104F
Storage Temperature.......................................- 20 C to 6 C/ -4F to 104F
Dimensions...........................................................95X68X18MM
Navceker HDMI 2.1 eARC Audio Extractor
Resolution:8K@60Hz,4K@60/120Hz,2K@120/144Hz,1080P@120/240Hz
48Gbps transmission Speed,CEC Control
eARC,HDR 10+,VRR, ALLM, QMS, QFT, SBTM,Dolby Vision
7.1CH AUDIO OUT for HDMI INPUT(Not support HDMI eARC Port) of AV receiver or Amplifier
48Gbps tranmission HDMI 2.1 and HDCP 2.3
📂Enjoy 8K@60Hz YUV 4:2:0 12 Bit or 4K@120Hz RGB 4:4:4 10/12 Bit VRR,HDR 10+ and Dolby Vision with CEC Control.
eARC :Enhanced Audio Return Channel
📂When turn on eARC of HDMI TV,you could enjoy dolby atmos on AUDIO OUT
7.1CH AUDIO OUT for HDMI INPUT(Not support HDMI eARC Port) of non-earc AV receiver or Amplifier
NOT support HDMI eARC/ARC port of soundbar,such as Sonos soundbar beam

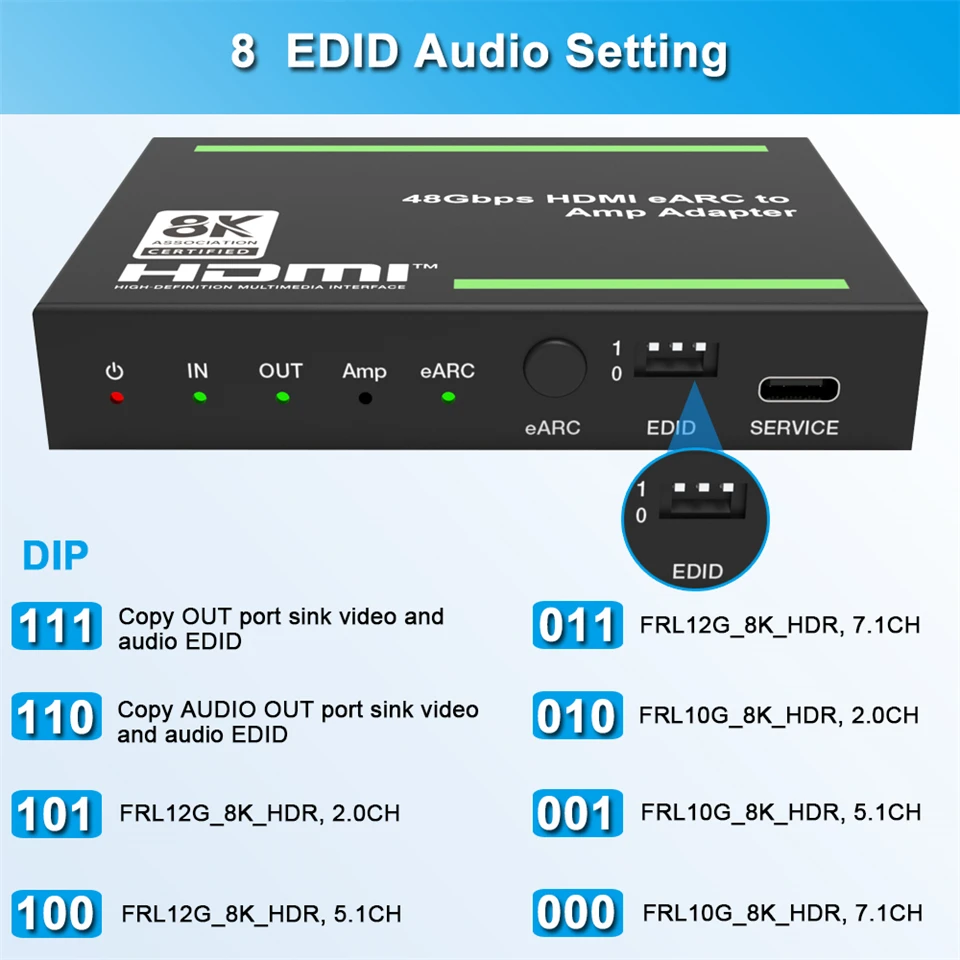

Smart EDID Management
📂There are 8 kinds of EDID mode that could help you get better video and audio.
High Resolution and High Refresh Rate
📂Navceker HDMI 2.1 audio extractor supports 8K@60Hz 12 bit,4K@120Hz 12bit,4K@60Hz,
2K@120/144Hz,1080P@60/120/240Hz
VRR :variable refresh rate
📂It could enjoy HDR 10+,VRR, ALLM, QMS, QFT, SBTM of standard HDMI 2.1 version.
Enjoy 7.1CH Audio
📂Surround Channel supported,it supports Dolby Atmos,DTS-X,Dolby TrueHD,DTS-HDMaster,LPCM 7.1 etc with AUDIO OUT HDMI port and eARC OUT HDMI port .
