NanoVNA VNA NANOVNA-F HF VHF UHF Vector Network Analyzer

$168.00

Shipping calculated at checkout.

Free worldwide shipping

Tested & Inspected

30 Day Money Back Guarantee

In stock, ready to ship
Inventory on the way

[{"id":45381344657666,"title":"NANOVNA","option1":"NANOVNA","option2":null,"option3":null,"sku":"14:175#NANOVNA","requires_shipping":true,"taxable":false,"featured_image":{"id":41421016826114,"product_id":8759975280898,"position":7,"created_at":"2024-08-03T16:07:31-04:00","updated_at":"2024-08-03T16:07:34-04:00","alt":"45381344657666","width":800,"height":800,"src":"\/\/par-masters.com\/cdn\/shop\/files\/H5ac951af131942a0abebefafa6c1381eP.webp?v=1722715654","variant_ids":[45381344657666]},"available":true,"name":"NanoVNA VNA NANOVNA-F HF VHF UHF Vector Network Analyzer - NANOVNA","public_title":"NANOVNA","options":["NANOVNA"],"price":16800,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"45381344657666","id":34034407276802,"position":7,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/par-masters.com\/cdn\/shop\/files\/H5ac951af131942a0abebefafa6c1381eP.webp?v=1722715654"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45381344690434,"title":"NANOVNA and DEMO KIT","option1":"NANOVNA and DEMO KIT","option2":null,"option3":null,"sku":"14:366#NANOVNA and DEMO KIT","requires_shipping":true,"taxable":false,"featured_image":{"id":41421016924418,"product_id":8759975280898,"position":8,"created_at":"2024-08-03T16:07:32-04:00","updated_at":"2024-08-03T16:07:34-04:00","alt":"45381344690434","width":1200,"height":857,"src":"\/\/par-masters.com\/cdn\/shop\/files\/H9aae63c38e0740caa336f9e11e01e021Y.webp?v=1722715654","variant_ids":[45381344690434]},"available":true,"name":"NanoVNA VNA NANOVNA-F HF VHF UHF Vector Network Analyzer - NANOVNA and DEMO KIT","public_title":"NANOVNA and DEMO KIT","options":["NANOVNA and DEMO KIT"],"price":17800,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"45381344690434","id":34034407309570,"position":8,"preview_image":{"aspect_ratio":1.4,"height":857,"width":1200,"src":"\/\/par-masters.com\/cdn\/shop\/files\/H9aae63c38e0740caa336f9e11e01e021Y.webp?v=1722715654"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

SPECIFICATIONS

Name: NanoVNA VNA NANOVNA-F HF VHF UHF Vector Network Analyzer
Brand: Par Masters
Price: 168.0 USD
Availability: InStock

Brand Name: HLFEC

Certification: RoHS

Origin: Mainland China

Frequency Range: 50K-1GHz

Description:

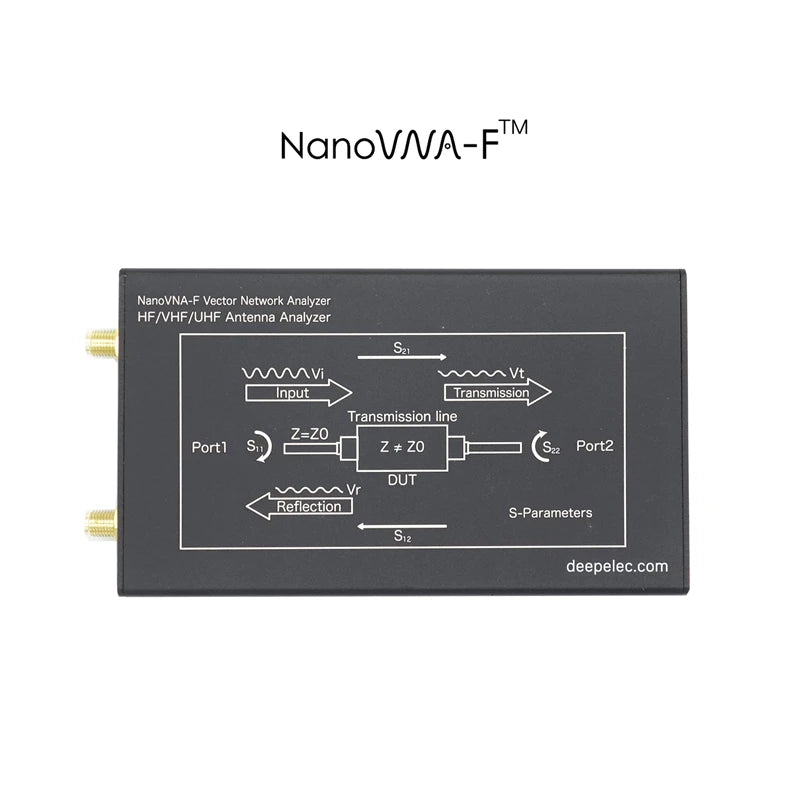

NANOVNA-F

NanoVNA-F Mini Vector Network Analyser is a product based on the Open Source Project of NanoVNA (https://ttrf.tk/kit/nanovna/). The RF part is consistent

With the original version (NanoVNA-F uses harmonic spread measurement frequency to 1 GHz).

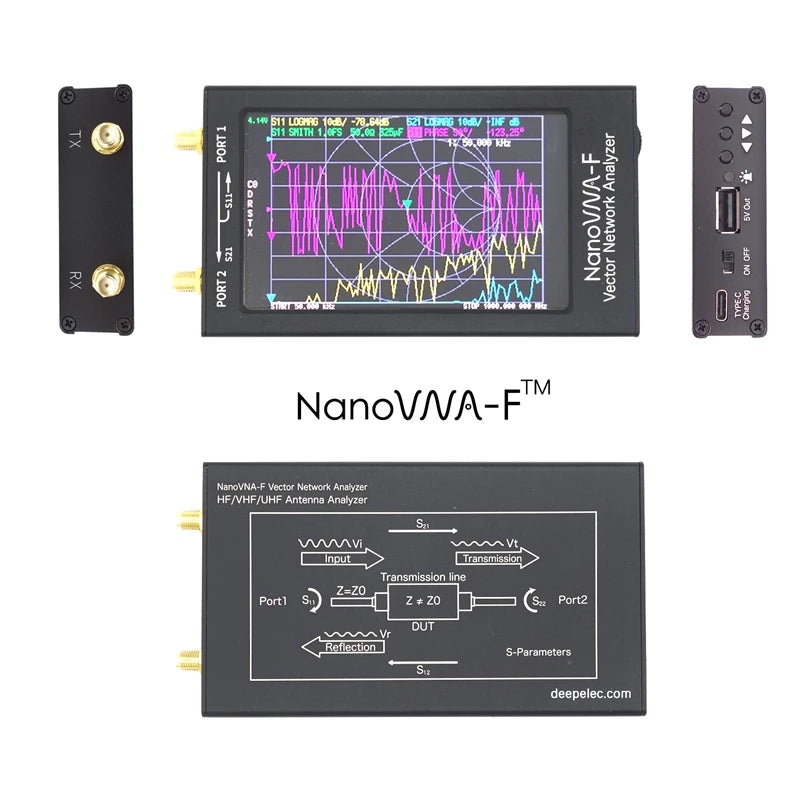

NanoVNA-F hardware functions:

1. Use 4.3-inch IPS TFT LCD screen, with a larger view angle and can be seen clearly in strong outdoor light.
2. Switch to large capacity 5000mAh lithium battery, standby time is longer, and expand a USB interface. Usually, it can be used as a rechargeable treasure when the instrument is not used.
3. The IC is charged by high current 2A, and the charging time is shorter.
4. Change to larger and better operating wave wheel.
5. Switch to a power switch with a greater sense of operation and a better sense of operation.
6. Support Chinese and English menu switching;
7. Upgrade the user program by virtual U disk.

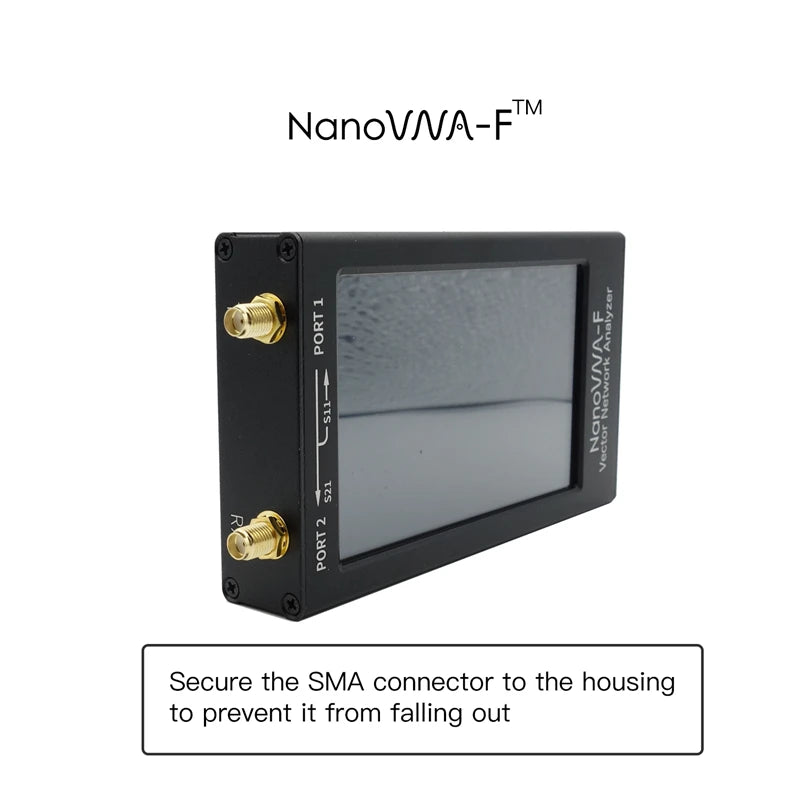

8. Standard aluminium shell to protect SMA head and reduce the interference of external electromagnetic wave to instrument.
8. Software open source github.com/flyoob/NanoVNA-F

NanoVNA-F measurement range is 50k-1GHz.

The harmonic spread measurement frequency of the output signal of the clock chip SI5351 is 1000MHz. At 600M-1GHz, the dynamic range of S11 is 40dB (standing wave ratio is less than 1.02).
At the same time, a metal shield is designed for the RF front-end, so that the dynamic range of S21 is better than 60dB in the whole frequency band.

Feature:

Size: 14CM * 7.5CM * 2CM

Measuring Frequency: 50kHz ~ 1000MHz

RF output: - 13 DBM (maximum - 9 dbm)

Frequency accuracy: < 0.5 ppm

Port SWR: < 1.1

Display: 4.3 inch IPS TFT (800x480)

USB Interface: USB Type-C Communication Mode: CDC (Serial)

Power consumption: USB 5V 200mA, built-in 5000mAh battery, theoretical life of 18 hours, maximum charging current 2A

Output capability: 5V/1A, supporting Android and Apple phones

Number of calibration points: 101

Number of scanning points: 101

Display Tracking: 4, Mark: 4, Settings Save: 5

Scanning time: about 1.9s/time (50kHz-1000MHz full frequency band)

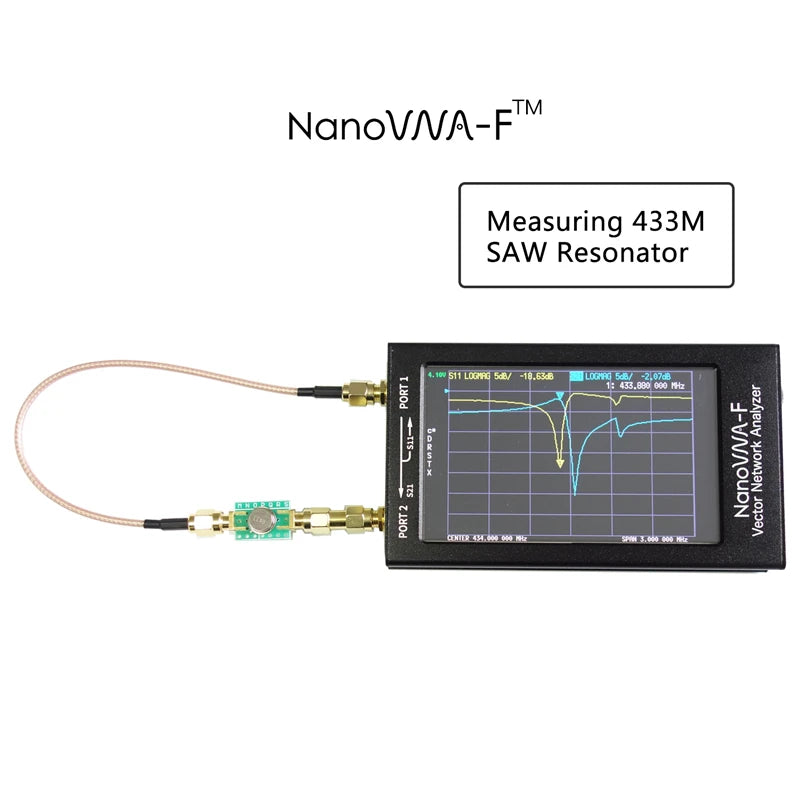

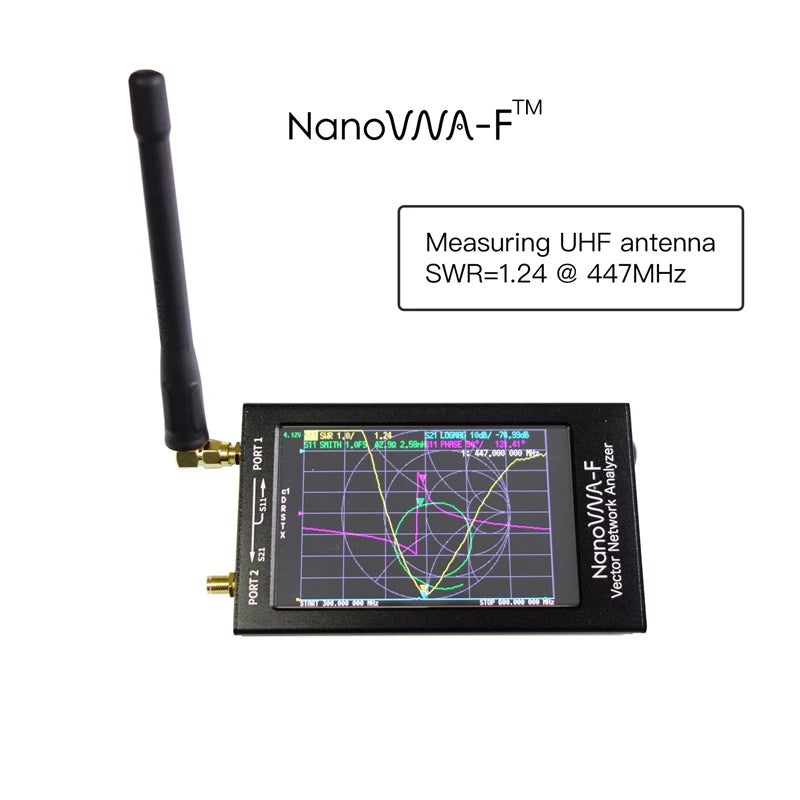

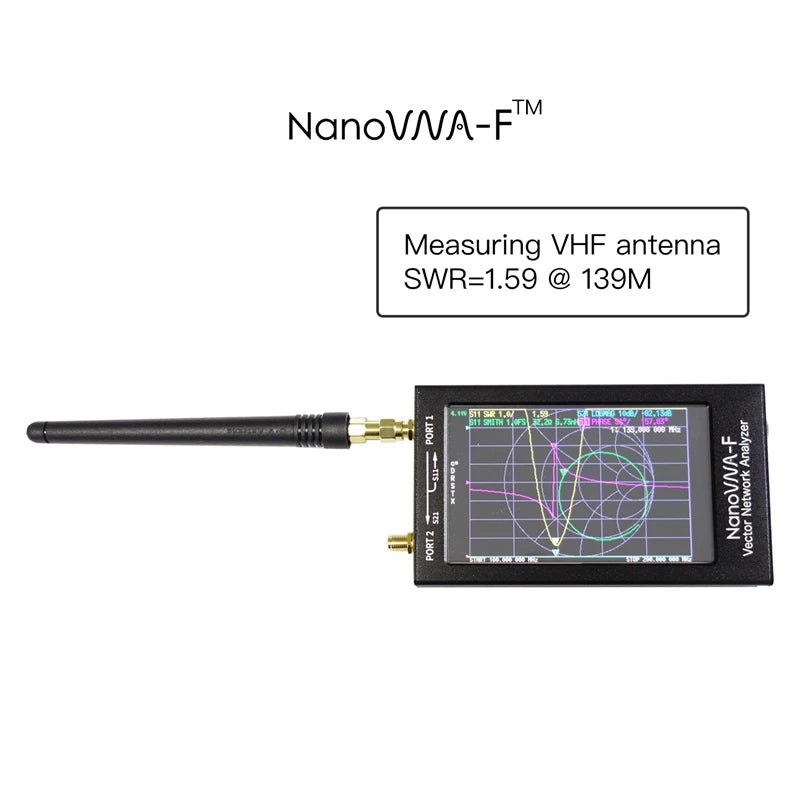

Measurable S parameters, voltage standing wave ratio SWR, phase diagram, group delay, Smith circle diagram... ;

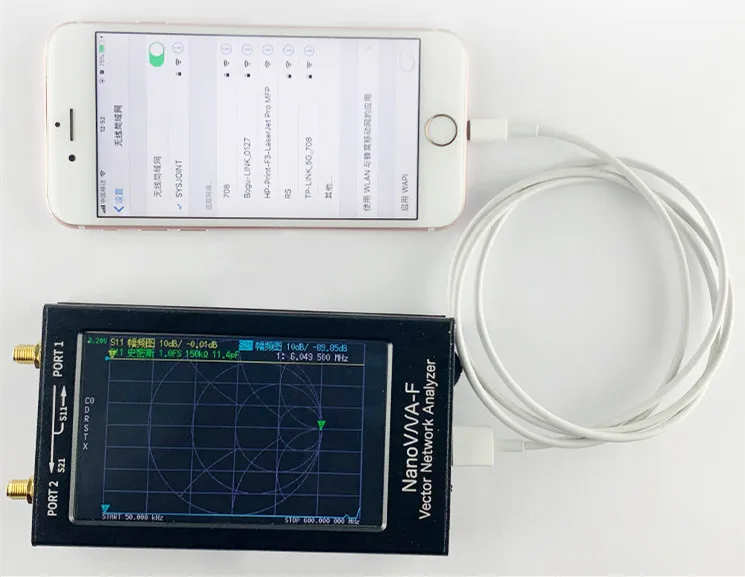

19.0Wh (about 5000mAh after conversion) large capacity lithium battery

Power bank 5V/1A

Support Android and Apple Mobile

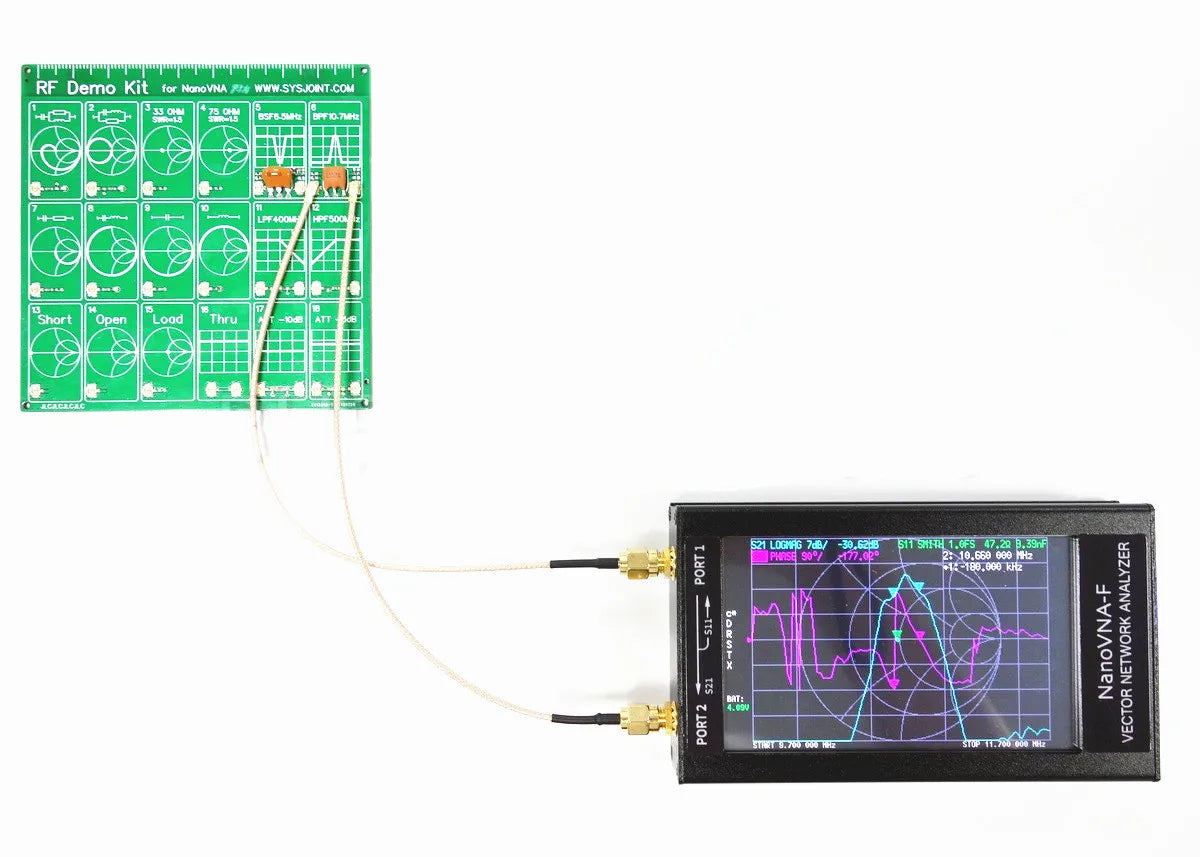

RF Demo Kit

Features:

Made of fine quality material, practical, has a long service life.
Compact and lightweight, easy to operate and use.
This is a vector network analyzer learner tool.
Can be used with NanoVNA-F to measure 6.5M ceramic notch filter.
Can be used with NanoVNA-F to measure homemade low-pass-filter, 3dB bandwidth about 400MHz.

Specifications:
Material: PCB
Color: green
RLC series and parallel circuit 1
RLC series and parallel circuit 2
33 ohm resistance, SWR=1.5
75 ohm resistance, SWR=1.5
BSF ceramic notch filter, center frequency 6.5MHz
BPF ceramic filter, centre frequency 10.7MHz
RC series circuit
LC series circuit
Capacitor
Inductance
Homemade low-pass filter, 3dB bandwidth 400MHz
Homemade high-pass filter, 3dB bandwidth 500MHz
Short-circuit calibration circuit
Open-circuit calibration circuit
50 ohm load calibration circuit
Straight-through
10dB attenuation circuit
3dB attenuation circuit
Each set of functional circuits
Item size: 100 * 100mm / 3.9 * 3.9in
Item weight: 38g / 1.3ounce
Package size: 159 * 152 * 52mm / 6.3 * 6.0 * 2.0in
Package weight: 106g / 3.7ounce
