NanoVNA V2 Plus4 50KHz-4GHz Vector Network Analyzer

$242.33

Shipping calculated at checkout.

Free worldwide shipping

Tested & Inspected

30 Day Money Back Guarantee

In stock, ready to ship
Inventory on the way

[{"id":45381374345474,"title":"Option 1 \/ CHINA","option1":"Option 1","option2":"CHINA","option3":null,"sku":"14:175#Option 1;200007763:201336100","requires_shipping":true,"taxable":false,"featured_image":{"id":41421081182466,"product_id":8759984783618,"position":7,"created_at":"2024-08-03T16:39:03-04:00","updated_at":"2024-08-03T16:39:06-04:00","alt":"45381374345474","width":1600,"height":1600,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Sead5dedf72e24595a27e9b853583bcc05.webp?v=1722717546","variant_ids":[45381374345474]},"available":true,"name":"NanoVNA V2 Plus4 50KHz-4GHz Vector Network Analyzer - Option 1 \/ CHINA","public_title":"Option 1 \/ CHINA","options":["Option 1","CHINA"],"price":24233,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"45381374345474","id":34034446762242,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Sead5dedf72e24595a27e9b853583bcc05.webp?v=1722717546"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45381374378242,"title":"Option 2 \/ CHINA","option1":"Option 2","option2":"CHINA","option3":null,"sku":"14:366#Option 2;200007763:201336100","requires_shipping":true,"taxable":false,"featured_image":{"id":41421081215234,"product_id":8759984783618,"position":8,"created_at":"2024-08-03T16:39:03-04:00","updated_at":"2024-08-03T16:39:06-04:00","alt":"45381374378242","width":1600,"height":1600,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Sb47f0b06532b4a1282b6afa11837f71cI.webp?v=1722717546","variant_ids":[45381374378242]},"available":true,"name":"NanoVNA V2 Plus4 50KHz-4GHz Vector Network Analyzer - Option 2 \/ CHINA","public_title":"Option 2 \/ CHINA","options":["Option 2","CHINA"],"price":25030,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"45381374378242","id":34034446795010,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Sb47f0b06532b4a1282b6afa11837f71cI.webp?v=1722717546"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":45381374345474,"title":"Option 1 \/ CHINA","option1":"Option 1","option2":"CHINA","option3":null,"sku":"14:175#Option 1;200007763:201336100","requires_shipping":true,"taxable":false,"featured_image":{"id":41421081182466,"product_id":8759984783618,"position":7,"created_at":"2024-08-03T16:39:03-04:00","updated_at":"2024-08-03T16:39:06-04:00","alt":"45381374345474","width":1600,"height":1600,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Sead5dedf72e24595a27e9b853583bcc05.webp?v=1722717546","variant_ids":[45381374345474]},"available":true,"name":"NanoVNA V2 Plus4 50KHz-4GHz Vector Network Analyzer - Option 1 \/ CHINA","public_title":"Option 1 \/ CHINA","options":["Option 1","CHINA"],"price":24233,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"45381374345474","id":34034446762242,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Sead5dedf72e24595a27e9b853583bcc05.webp?v=1722717546"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

SPECIFICATIONS

Name: NanoVNA V2 Plus4 50KHz-4GHz Vector Network Analyzer
Brand: Par Masters
Price: 242.33 USD
Availability: InStock

Brand Name: SeeSii

Origin: Mainland China

Certification: CE

Measurement Bandwidth: /

Frequency Range: 50kHz-4GHz

Output Power: 3200mAh lithium battery

Feature 1: spectrum analyzer

Feature 2: antenna hf

Feature 3: analizadores

Feature 4: analyzers

Feature 5: analyzer antena

Feature 6: spectrum analyzer

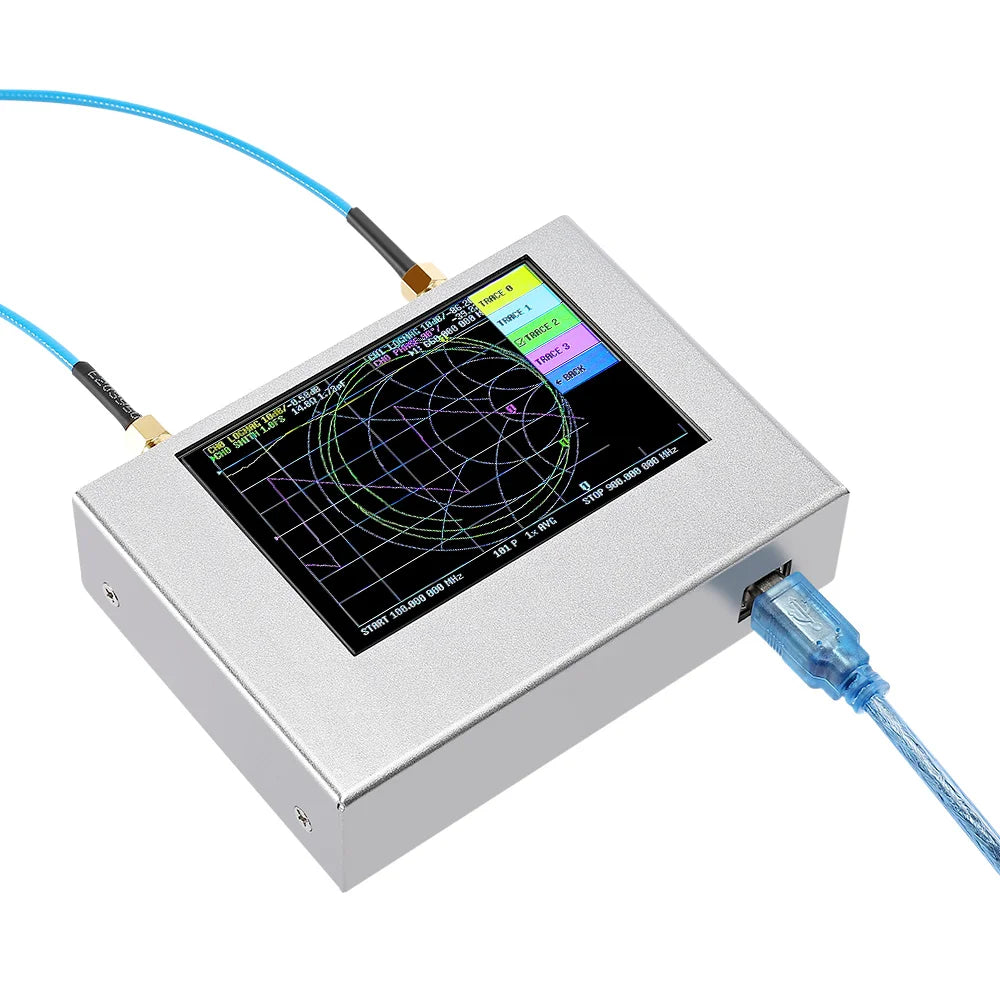

NanoVNA V2 Plus4 50KHz-4GHz Vector Network Analyzer 4 Inch TFT Shortwave HF VHF UHF 70-90dB With 3200mAh Battery

Description:

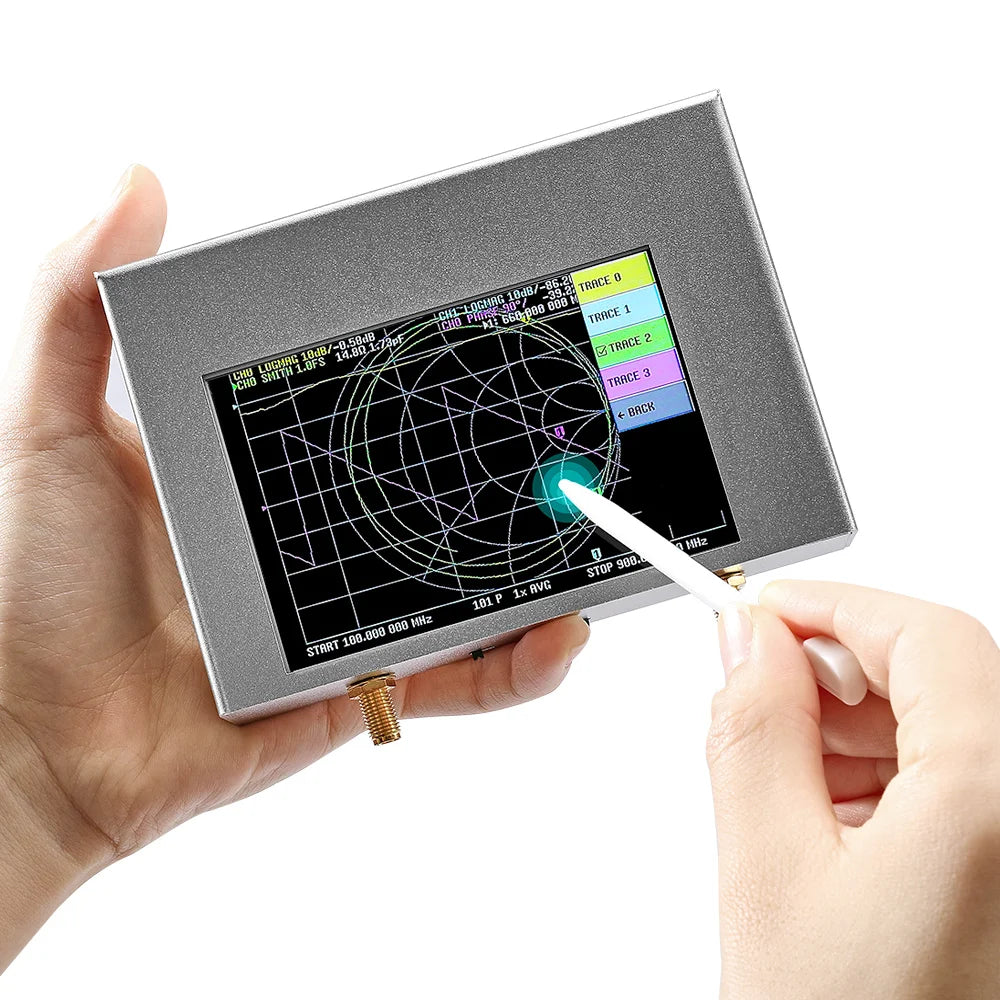

480 x 320 4-inch display
4GHz frequency range
Scanning speed increased by 4 times (400 points/sec)

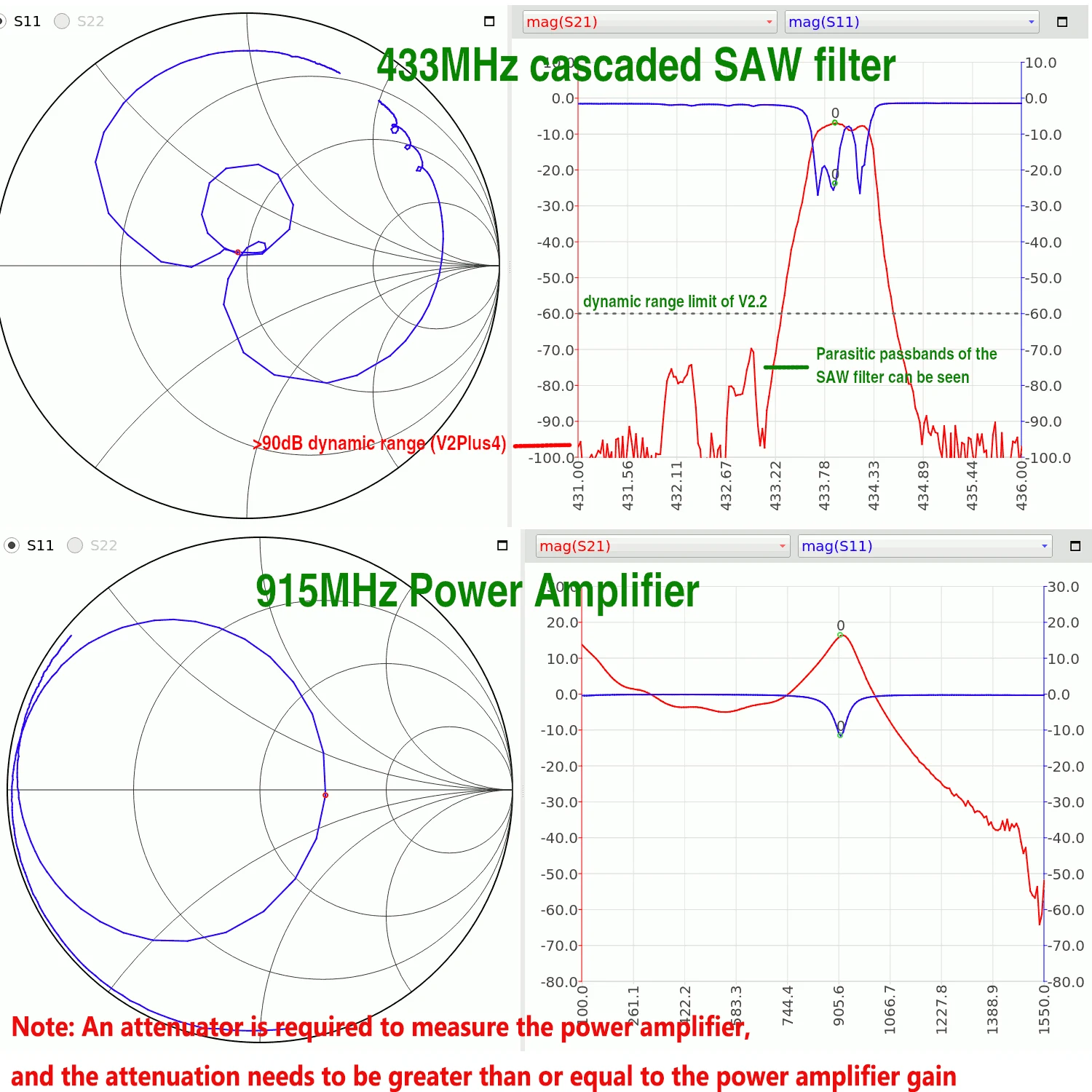

Up to 90dB dynamic range (1GHz)
Up to 80dB dynamic range (3GHz)

Information:https://nanorfe.com/nanovna-v2.html
Software download:https://nanorfe.com/nanovna-v2-software.html
User Manual:https://nanorfe.com/nanovna-v2-user-manual.html

Operation Introduction:

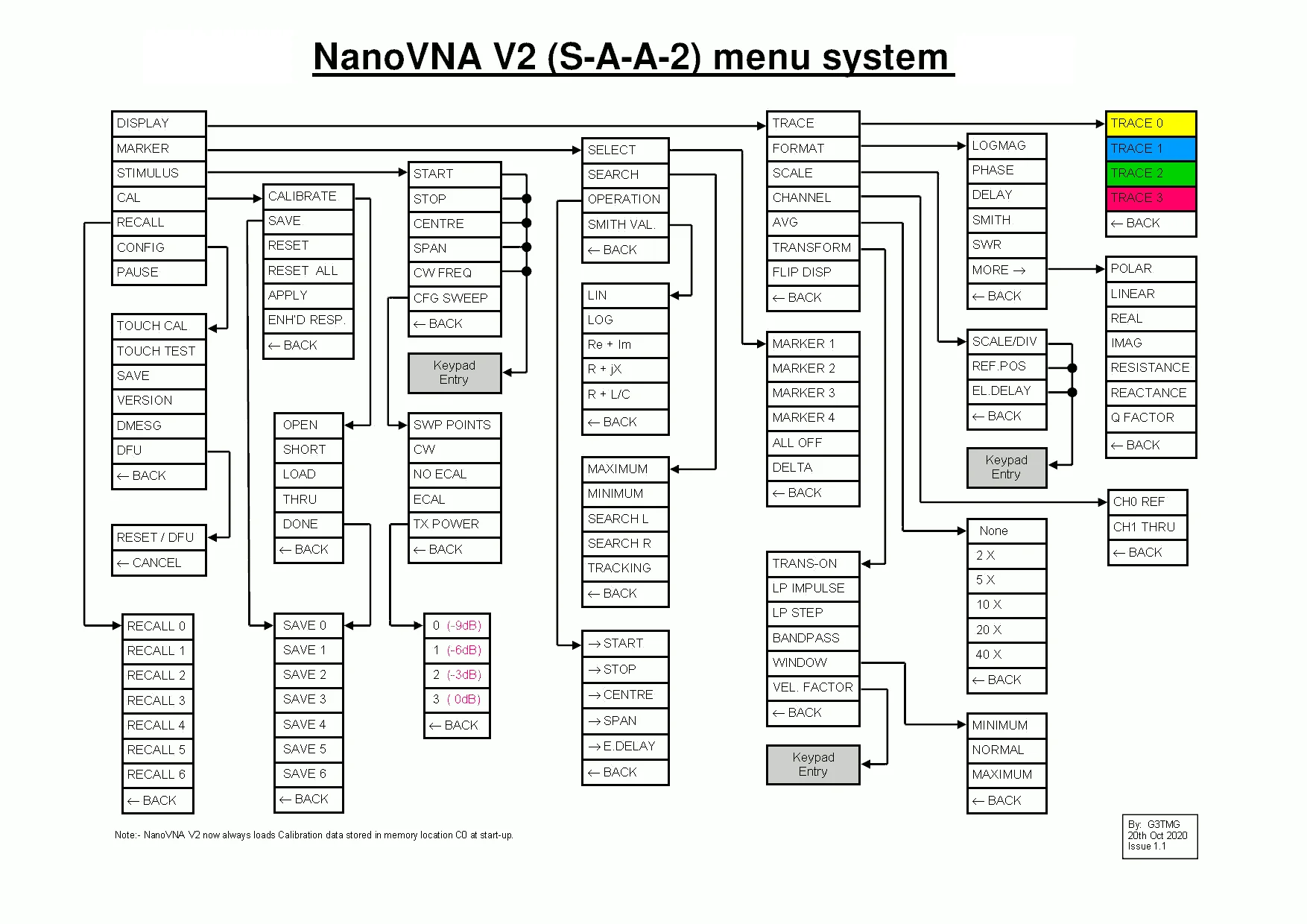

Tap anywhere on the screen to open the menu
Use the STIMULUS menu to set the frequency range
Use CAL> CALIBRATE menu to calibrate
For detailed instructions, see the user manual

Specification:
Measuring frequency range:50kHz-4GHz
System dynamic range: 70dB (to 3GHz, after calibration, no averaging)
System dynamic range: 80dB (to 3GHz, after calibration, 5x average)
System dynamic range: 90dB (to 1GHz, after calibration, 20x average)
S11 noise floor (after calibration): -50dB (to 1.5GHz); -40dB (to 3GHz)
Scanning rate: 400 points/sec (f >= 140 MHz), 200 points/sec (f <140 MHz)
Number of scanning points (on the device screen): adjustable, up to 201 points
Number of calibration points (the maximum number of scan points for USB): 1024 points
Power supply: USB
RF port: SMA (not RP-SMA!)
USB interface: USB Type-B

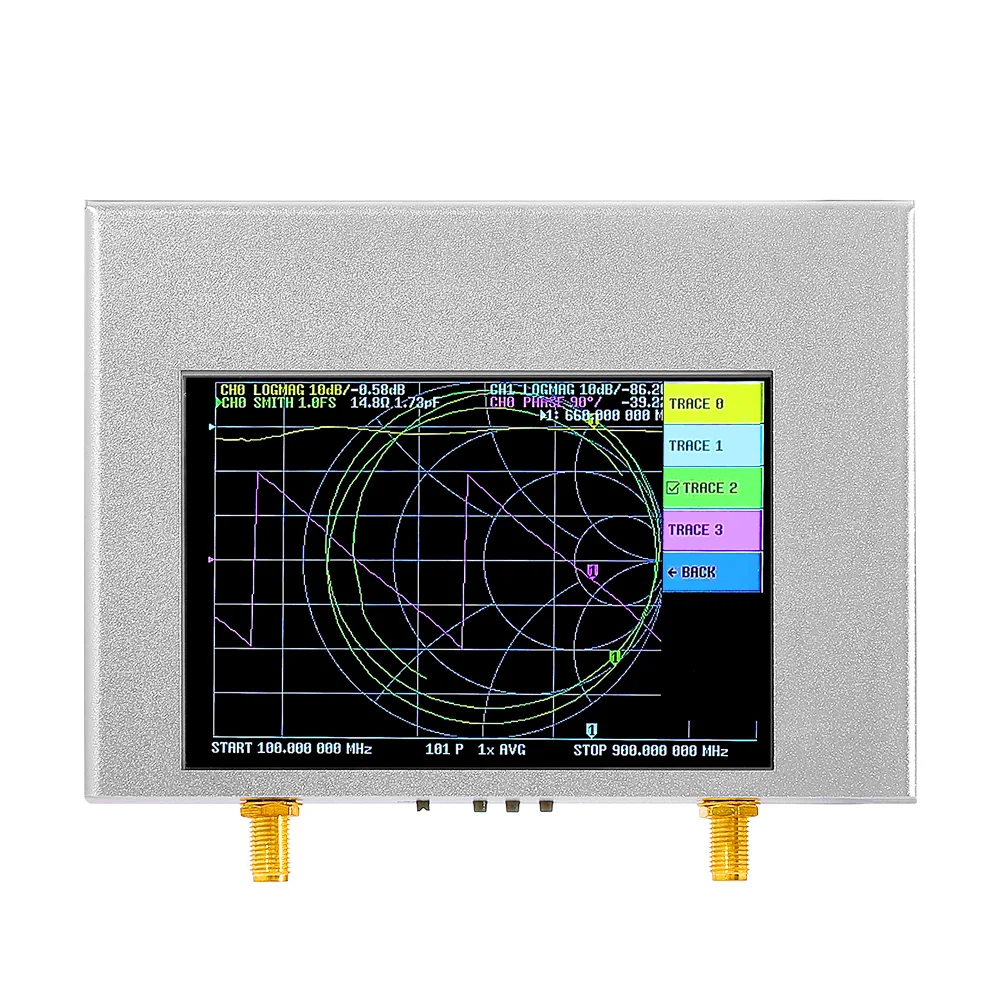

Display screen: 4 inch TFT (480 x 320)
Battery: with 3200mAh lithium battery
Port 2 return loss: >= 15dB (to 3GHz), 20dB (to 1.5GHz)
Display tracking: 4, marking: 4, setting save: 7

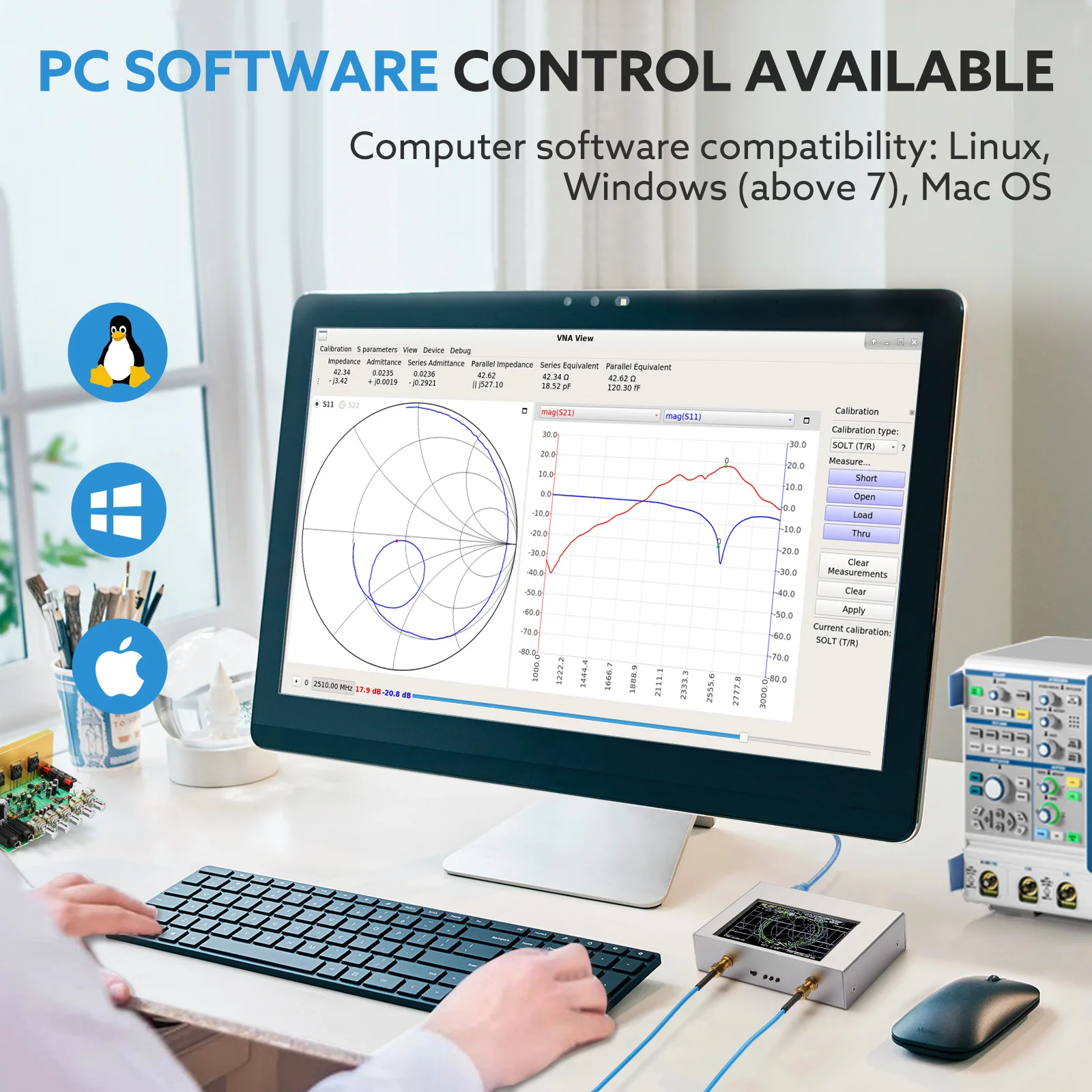

Computer software compatibility: Linux, Windows (above 7), Mac OS
·

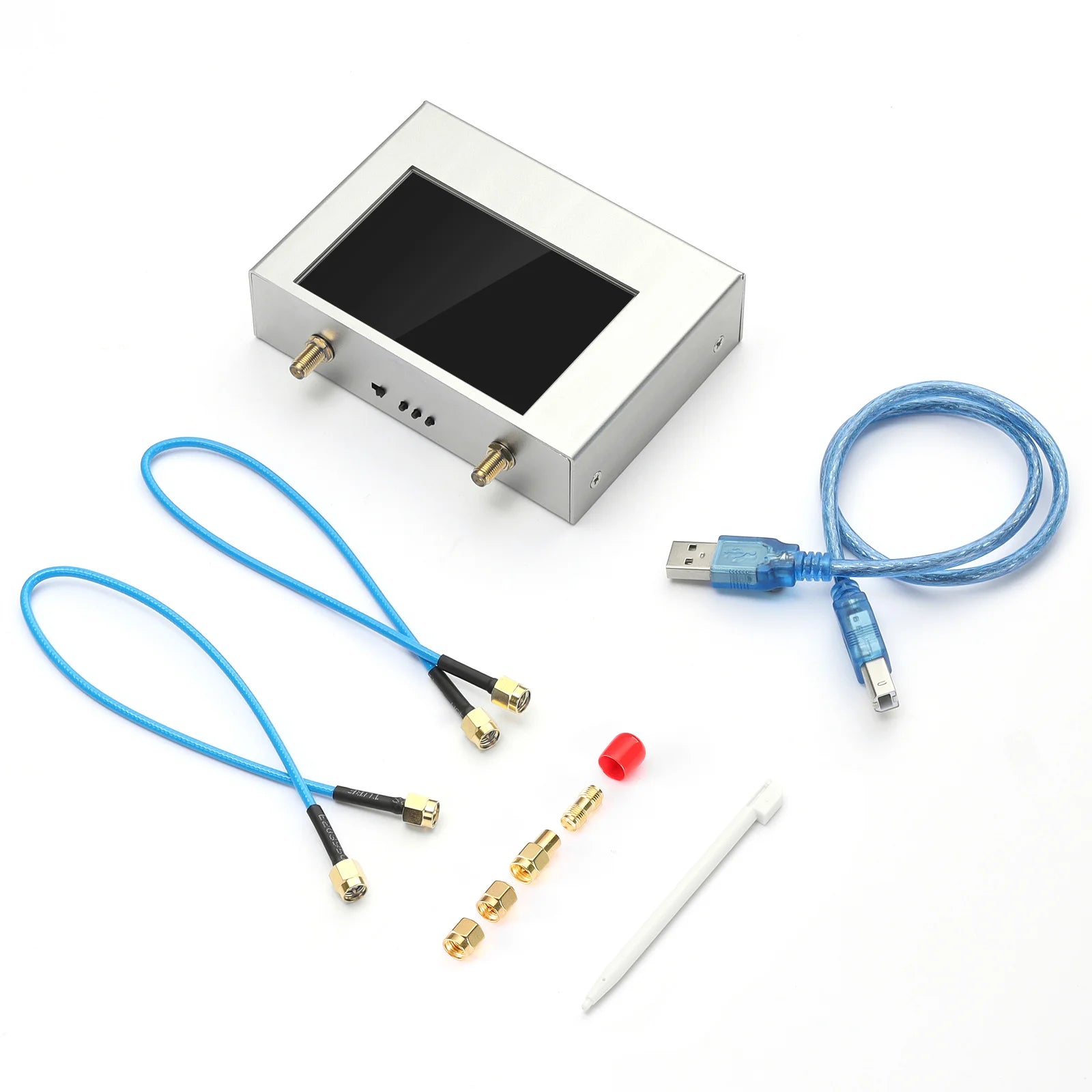

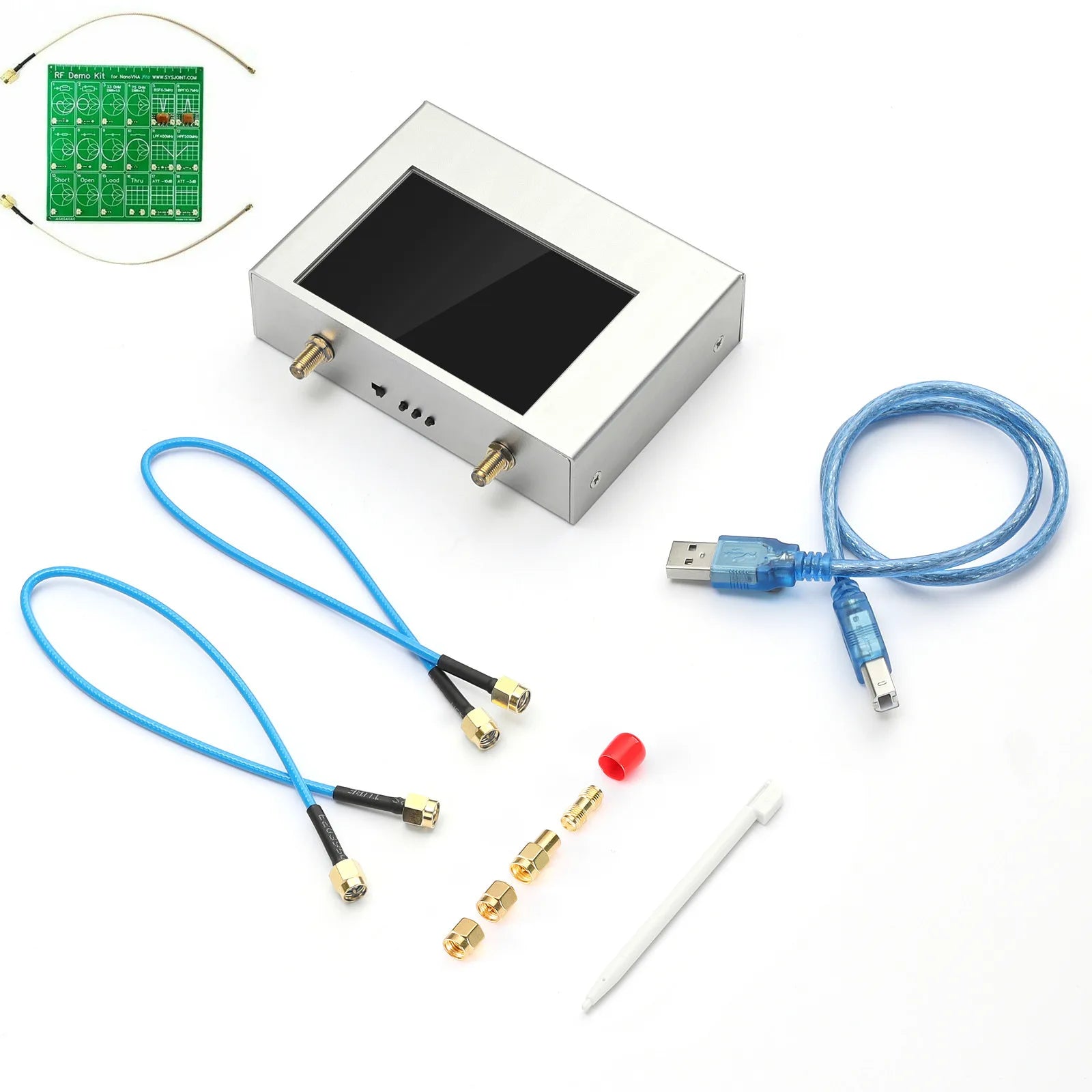

Package included:
1 x 4 inch NANOVNA V2
1 x Micro USB Data Cable
2 x 50cm N male to male RG142-PUR RF cable
1 x SMA Simple Calibration Kit OPEN
1 x SMA Simple Calibration Kit SHORT
1 x SMA Simple Calibration Kit LOAD
1 x SMA Female to Female Connector
1 x Touch screen pen
