SPECIFICATIONS

Brand Name: cuiisw

Origin: Mainland China

Certification: none

The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring
Using PC software NanoVNASaver, it can connect to a NanoVNA and extracts the data for display on a computer, and for saving to Touchstone files. We can export Touchstone (snp) files for various radio design and simulation software through PC software
The metal shield is designed to reduce the external interference and improve the measurement accuracy

Sprcifiaction:

ABS case: 75mm x 133mm x 18mm (excluding protrusions)
Measurement frequency: 10KHz -1.5GHz
RF output: 0dbm (±2dbm)
Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz));
There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement.
Port SWR: < 1.1

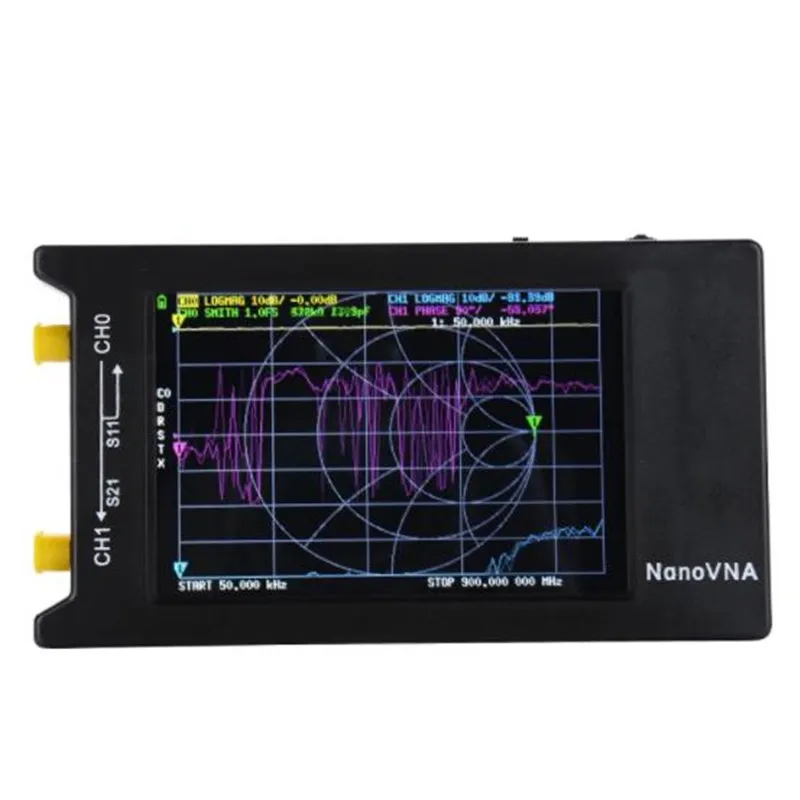

Display: 3.95 inch TFT (320 x 480)
USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A
Number of scanning points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Frequency Tolerance:<2.5ppm
Frequency Stability:<0.5ppm

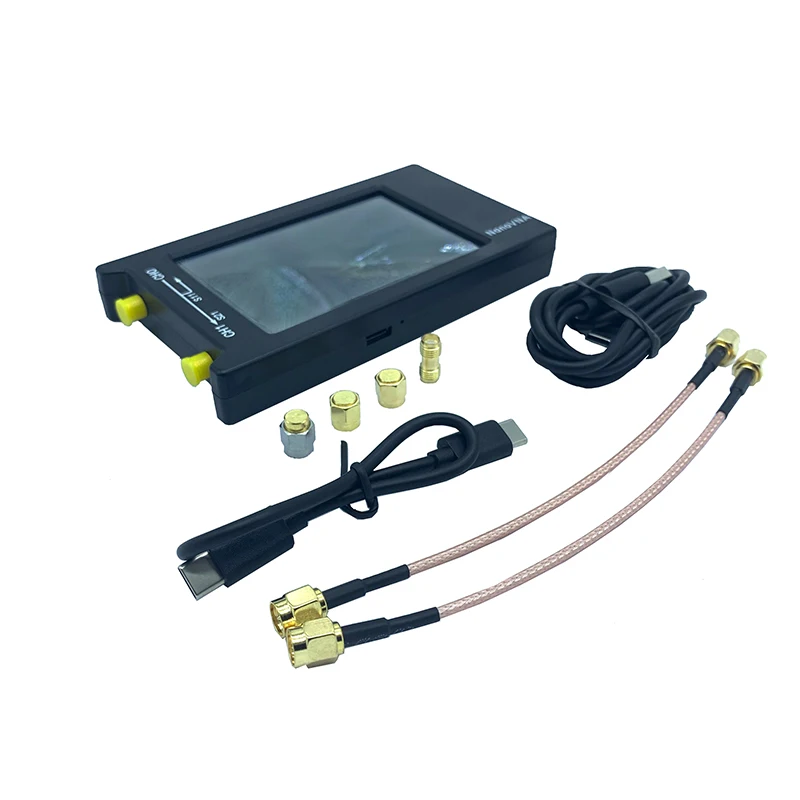

Package List
1X NanoVNA-H4 (with 1950mAh battery)
1X USB Type-C data cable
1X Type-C To Type-C cable
2X 15cm SMA male to male RG316 RF cable
1X SMA male calibration kit - OPEN
1X SMA male calibration kit - SHORT
1X SMA male calibration kit - LOAD
