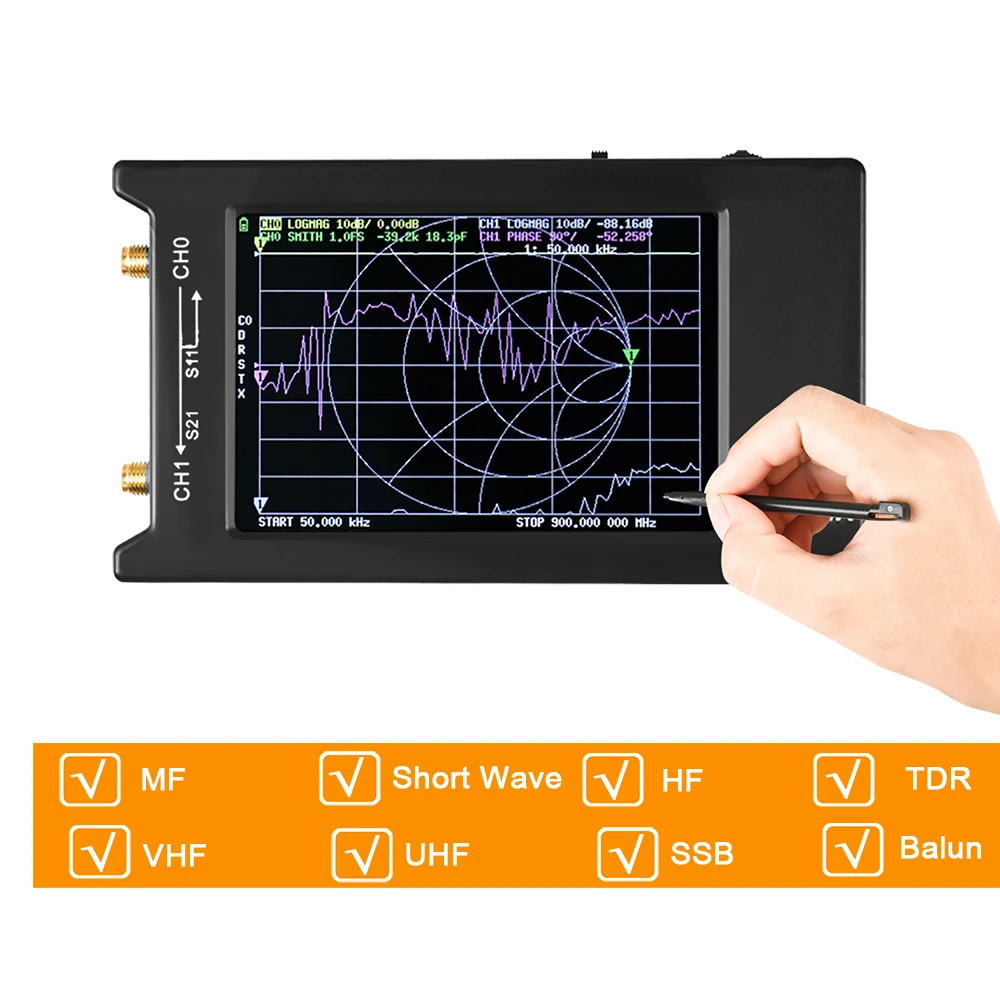

NanoVNA-H4 4inch Vector Network Analyzer

$160.16

Shipping calculated at checkout.

Free worldwide shipping

Tested & Inspected

30 Day Money Back Guarantee

In stock, ready to ship
Inventory on the way

[{"id":45356401688834,"title":"NanoVNA-H4 Kit-2","option1":"NanoVNA-H4 Kit-2","option2":null,"option3":null,"sku":"14:193#NanoVNA-H4 Kit-2","requires_shipping":true,"taxable":false,"featured_image":{"id":41373071540482,"product_id":8749362872578,"position":7,"created_at":"2024-07-25T16:58:35-04:00","updated_at":"2024-07-25T16:58:38-04:00","alt":"45356401688834","width":1000,"height":1000,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Se2586768ed9844389fa8912b8f4b41a6n.webp?v=1721941118","variant_ids":[45356401688834]},"available":true,"name":"NanoVNA-H4 4inch Vector Network Analyzer - NanoVNA-H4 Kit-2","public_title":"NanoVNA-H4 Kit-2","options":["NanoVNA-H4 Kit-2"],"price":16016,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"45356401688834","id":33996143657218,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Se2586768ed9844389fa8912b8f4b41a6n.webp?v=1721941118"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45356401721602,"title":"NanoVNA-H4 Kit-1","option1":"NanoVNA-H4 Kit-1","option2":null,"option3":null,"sku":"14:366#NanoVNA-H4 Kit-1","requires_shipping":true,"taxable":false,"featured_image":{"id":41373071409410,"product_id":8749362872578,"position":8,"created_at":"2024-07-25T16:58:35-04:00","updated_at":"2024-07-25T16:58:37-04:00","alt":"45356401721602","width":1000,"height":1000,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Sa1e24ac6e09e4f65a8089dbe0ce576bcW.webp?v=1721941117","variant_ids":[45356401721602]},"available":true,"name":"NanoVNA-H4 4inch Vector Network Analyzer - NanoVNA-H4 Kit-1","public_title":"NanoVNA-H4 Kit-1","options":["NanoVNA-H4 Kit-1"],"price":15322,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"45356401721602","id":33996143689986,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Sa1e24ac6e09e4f65a8089dbe0ce576bcW.webp?v=1721941117"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45356401754370,"title":"NanoVNA-H4","option1":"NanoVNA-H4","option2":null,"option3":null,"sku":"14:175#NanoVNA-H4","requires_shipping":true,"taxable":false,"featured_image":{"id":41373071507714,"product_id":8749362872578,"position":9,"created_at":"2024-07-25T16:58:35-04:00","updated_at":"2024-07-25T16:58:37-04:00","alt":"45356401754370","width":1600,"height":1600,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Se823a30e99d34f428be421bd77f51f27W.webp?v=1721941117","variant_ids":[45356401754370]},"available":true,"name":"NanoVNA-H4 4inch Vector Network Analyzer - NanoVNA-H4","public_title":"NanoVNA-H4","options":["NanoVNA-H4"],"price":14497,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"45356401754370","id":33996143722754,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Se823a30e99d34f428be421bd77f51f27W.webp?v=1721941117"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

SPECIFICATIONS

Name: NanoVNA-H4 4inch Vector Network Analyzer
Brand: Par Masters
Price: 160.16 USD
Availability: InStock

Brand Name: XBDTC

Origin: Mainland China

Certification: CE

Certification: FCC

Frequency Range: 10Khz-1.5Ghz

NanoVNA-H4 Vector Network Analyzer Kit 10KHz-1.5GHz HF VHF UHF Antenna Analyzer Measuring S Parameters, Voltage Standing Wave Ratio, Phase, Delay, Smith Chart with 4" LCD Touch Screen Nano VNA

Features:
This Nano VNA is a DIY product that provides perfect vector network measurement capabilities, tiny and handheld, stand-alone with 4-inch LCD display, portable with 1950mAh battery powered or USB powered
The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic, The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics
The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring

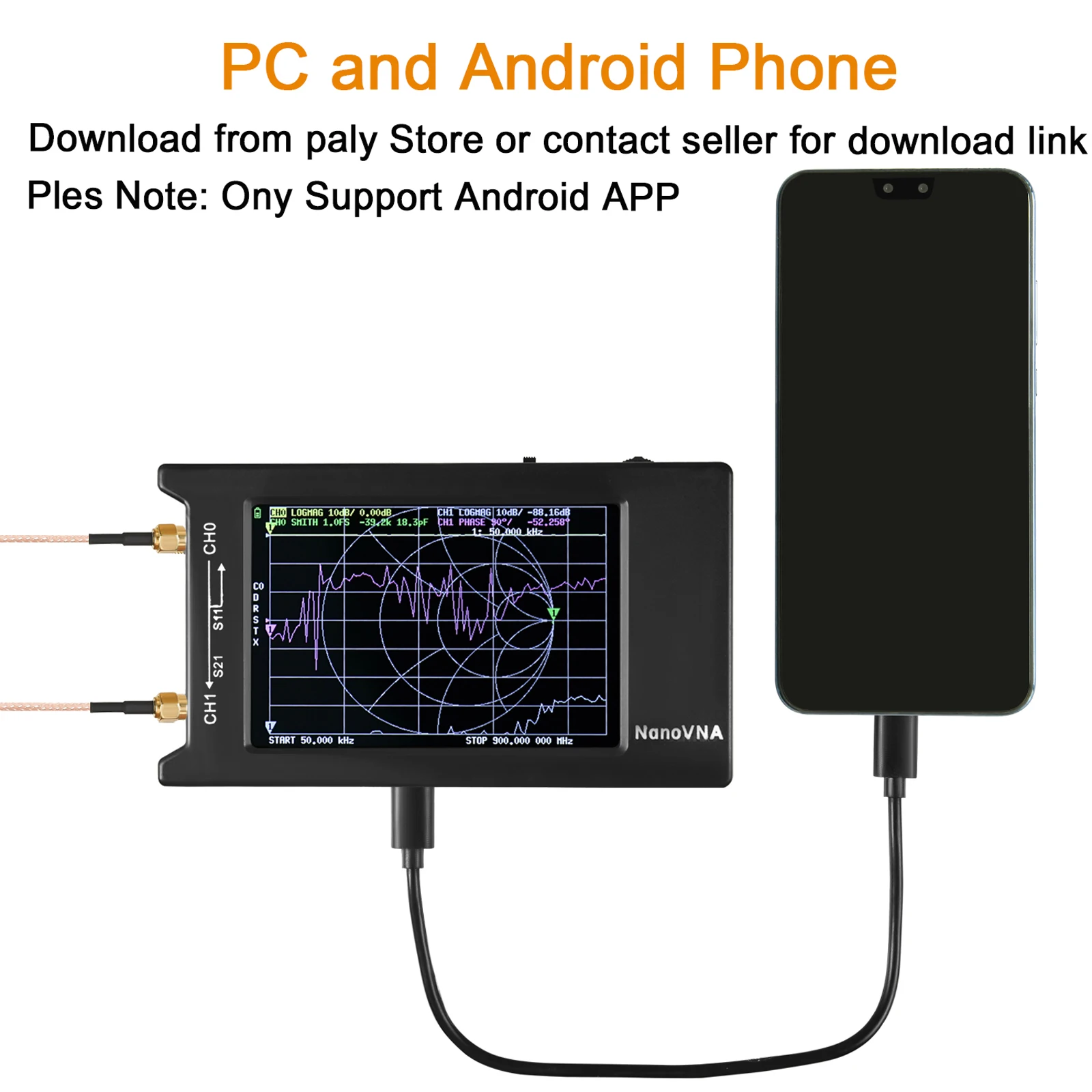

Using PC software NanoVNASaver, it can connect to a NanoVNA and extracts the data for display on a computer, and for saving to Touchstone files. We can export Touchstone (snp) files for various radio design and simulation software through PC software
The metal shield is designed to reduce the external interference and improve the measurement accuracy

Sprcifiaction:

ABS case: 75mm x 133mm x 18mm (excluding protrusions)
Measurement frequency: 10KHz -1.5GHz
RF output: 0dbm (±2dbm)
Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz));
There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement.
Port SWR: < 1.1
Display: 3.95 inch TFT (320 x 480)
USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A
Number of scanning points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Frequency Tolerance:<2.5ppm
Frequency Stability:<0.5ppm

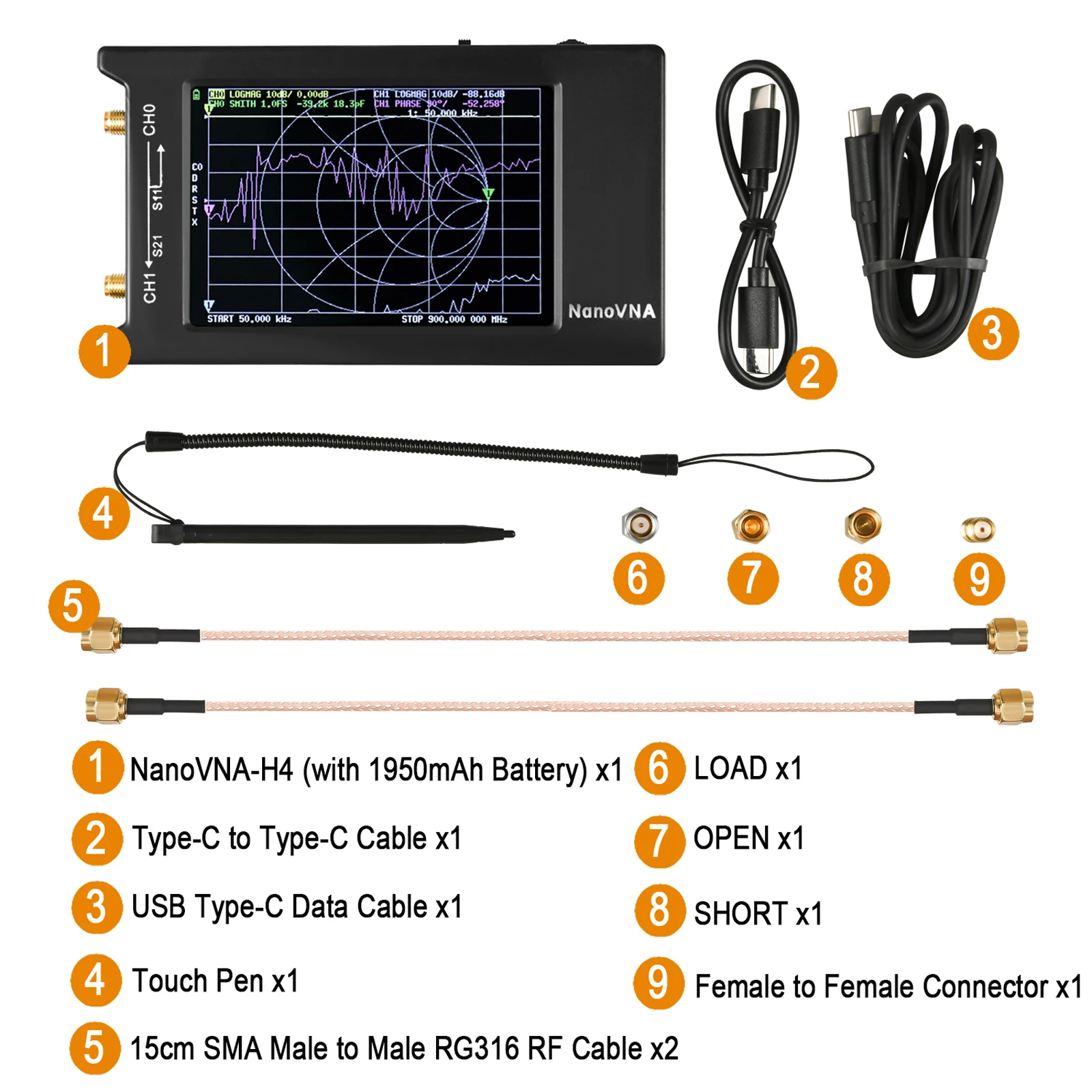

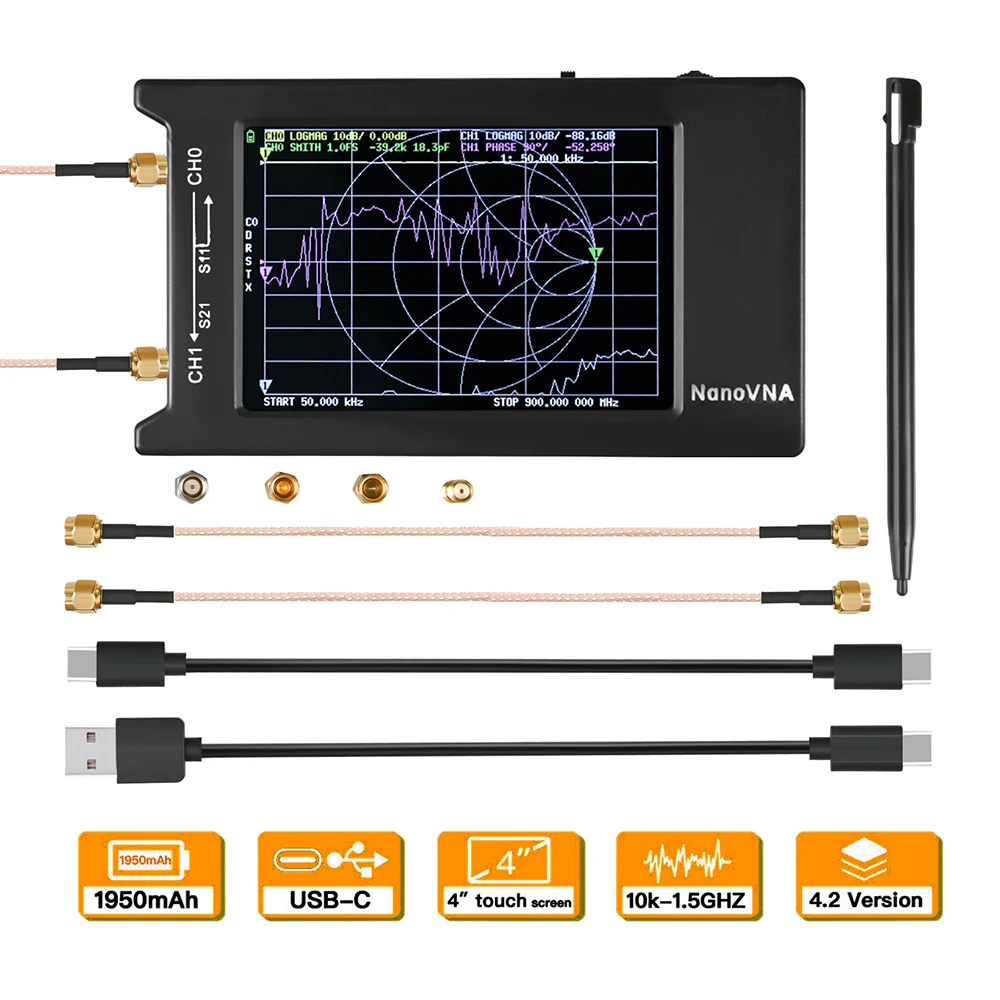

Package List
1X NanoVNA-H4 (with 1950mAh battery)
1X USB Type-C data cable
1X Type-C To Type-C cable
2X 15cm SMA male to male RG316 RF cable
1X SMA male calibration kit - OPEN
1X SMA male calibration kit - SHORT
1X SMA male calibration kit - LOAD
