NanoVNA-F_V3

Main Characteristics
Frequency range: 1M~6GHz
S11 dynamic range: 50dB
S21 dynamic range: 65dB
Display: 4.3-inch IPS + resistive touch 800*480
Endurance: 5 hours

Products

NanoVNA-F V3 is a portable Vector Network Analyzer (VNA) with a measurement frequency range of 1MHz ~ 6GHz, and can measure S11 and S21 parameters, of which the dynamic range of S11 is 50dB and S21 is 65dB.

NanoVNA-F V3 can be used to test all kinds of antennas in MF/HF/VHF/UHF/SHF bands, such as shortwave antennas, ISM band antennas, WiFi antennas, Bluetooth antennas, GPS antennas, etc. It can also be used to measure RF components such as filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers, etc., and supports amplitude-frequency curves, phase-frequency curves, and standing wave ratio, Smith's Circle, polar coordinates, group delay and other display formats. In addition, the NanoVNA-F V3 has a TDR function for cable length measurement.

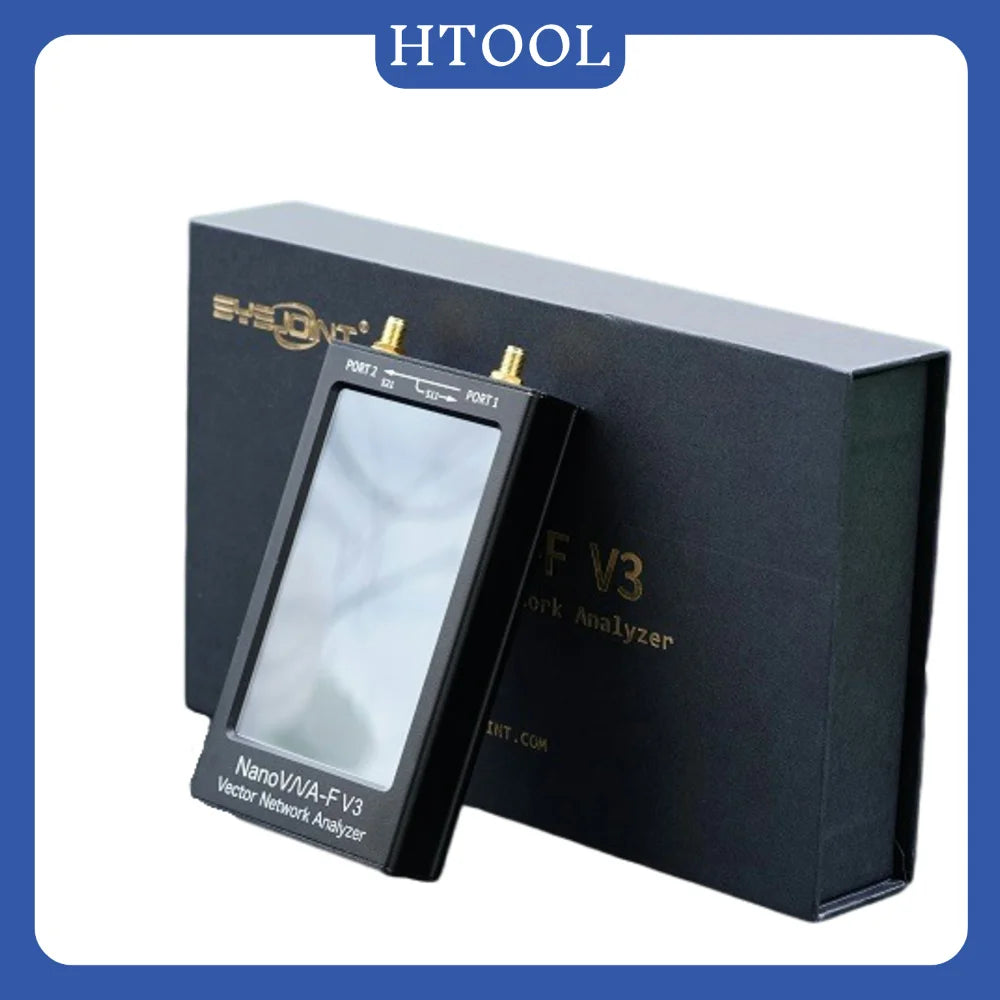

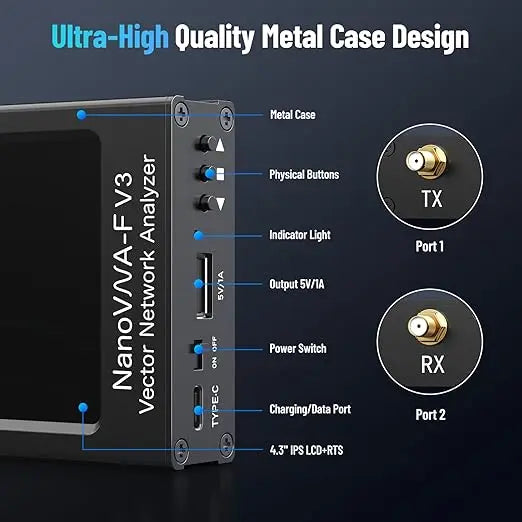

The NanoVNA-F V3 is designed with an all-metal chassis for durability and shielding against electromagnetic interference. With dimensions of 125mm x 75mm x 20mm, the NanoVNA-F V3 is compact and portable. It is equipped with an SMA type RF connector and a high quality SMA extension cable for easy connection to various DUTs. Thanks to the optimized high-speed processing system, the NanoVNA-F V3 has a measurement speed of 200 points per second, and the maximum number of scanning points can be set to 801 points. The display is a 4.3" bright IPS resistive touch screen that is clearly visible in outdoor environments.

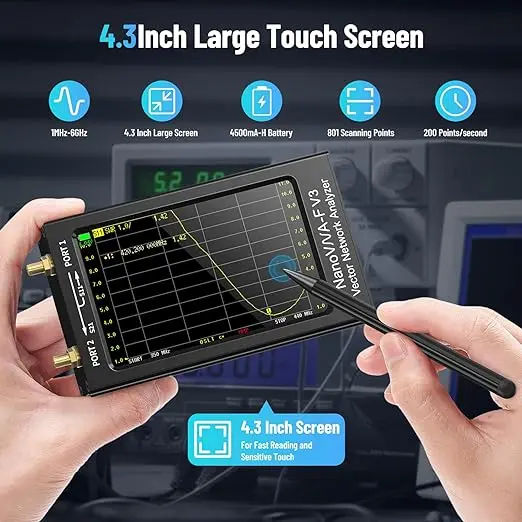

The NanoVNA-F V3 adopts a full touch screen design, which allows users to quickly set the frequency, scale, on/off trace, add/delete markers, take screenshots, etc., which makes the operation convenient and smooth.

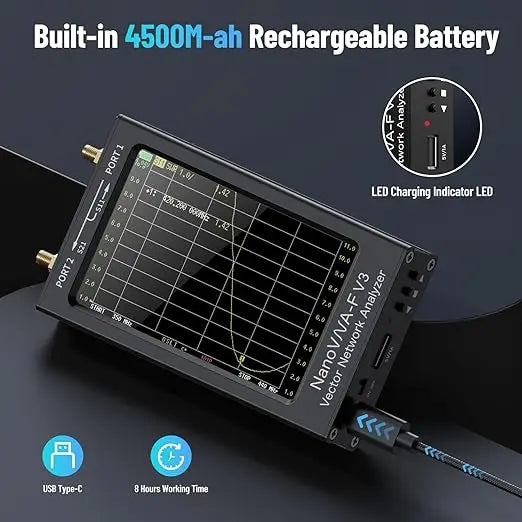

The NanoVNA-F V3 has a built-in 4500mAh Li-Ion battery that lasts for more than 5 hours. The charging port is USBType-C, which can be used for charging the device with the included Type-C cable, as well as for data transfer and firmware upgrade.

Product Features

● Frequency range: 1MHz - 6GHz;

● S21 dynamic range: 65dB, S11 dynamic range: 50dB;

● Using 4.3 inch high brightness IPS capacitive touch screen, the screen content is clearly visible in outdoor scenes;

● Full metal chassis, effectively shielding electromagnetic interference, to ensure measurement accuracy;

● The body adopts SMA type RF connector, which is convenient to connect with all kinds of measured parts;

● Full touch screen design, convenient and smooth operation;

● Body size 125mmx75mmx20mm, compact and portable;

● Built-in 4500mAh lithium battery, battery life of more than 5 hours;

● Support TDR function, which can be used to measure cable length;

● 4 reference traces can be set;

● Up to 4 marker points can be set, and the marker bar can be dragged anywhere on the screen;

● 12 slots for saving calibration status (quick callback);

● Charging with USB Type-C interface, charging voltage 5V;

● Upgrade firmware by virtual USB flash disk, no need for programmer, use Type-C data cable to upgrade firmware;

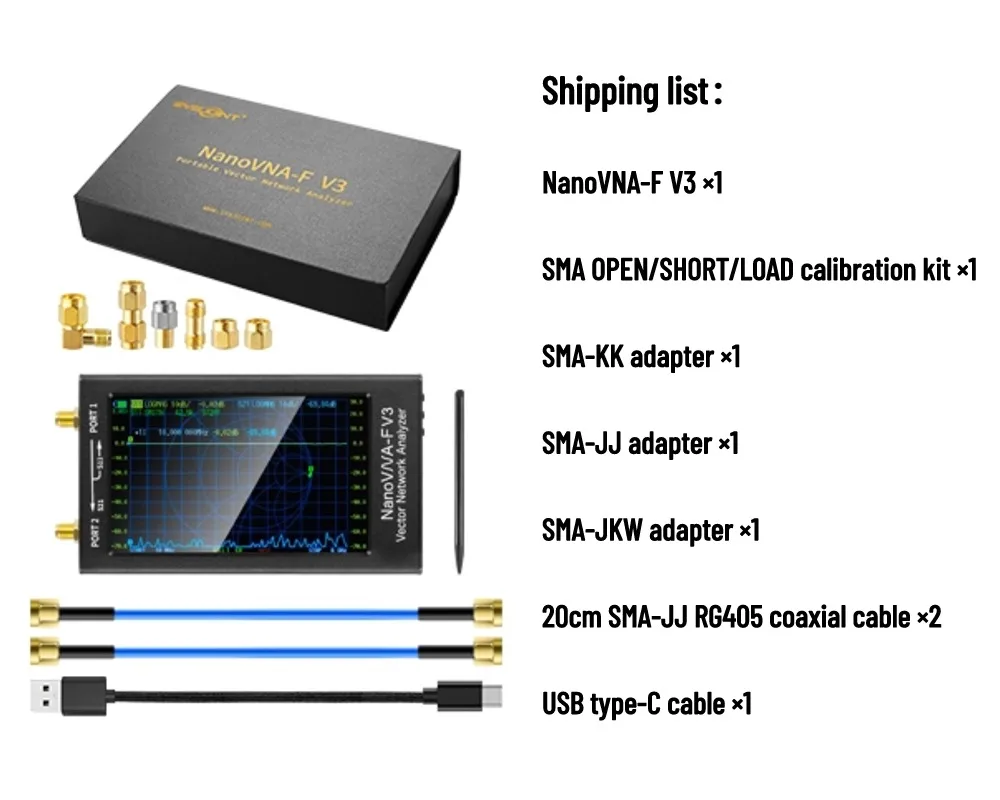

● Equipped with high quality SMA calibration parts and 20cm RG405 SMA extension cable;

● Support English language operation interface;

● Adjustable screen brightness;

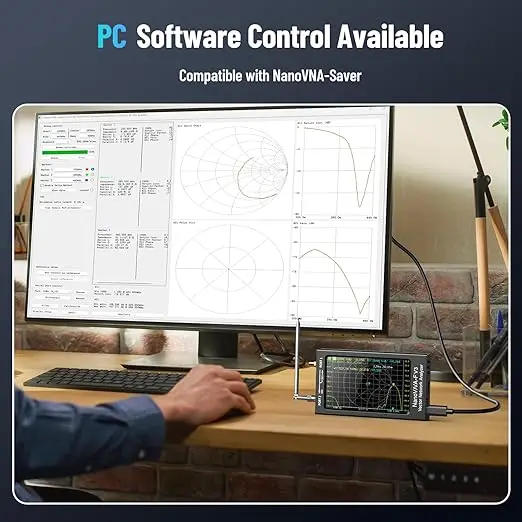

● Supports PC software and serial commands;

● Designed with a USB 5V power output port for external power supply

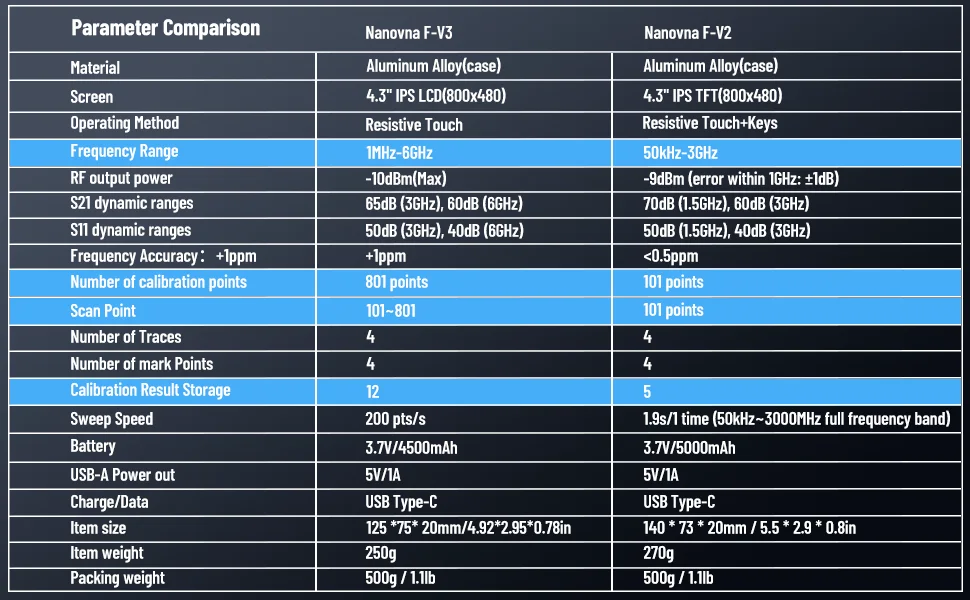

Product Parameters

Frequency range: 1MHz~6GHz
Display: 4.3-inch IPS TFT (800x480)
Output Capacity: 5V/1A
Charging/Data Interface: USB Type-C
RF Output: -10dBm (Max)
Power consumption: 4500mAh/3.7V battery
Number of traces: 4
Number of scanning points: 801
Number of calibration points: 801
Number of Marker Points: 4
Calibration result storage: 12 groups
Scanning speed: 200 points/second
S21 dynamic range: 65dB(1.5GHz),60dB(3GHz)
S11 dynamic range: 50dB(1.5GHz),40dB(3GHz)
