NanoVNA-F V2

The NanoVNA-F V2 portable vector network analyzer is a new-generation product developed based on the NanoVNA-F. It comes with a 4.3-inch IPS LCD display and an aluminum alloy casing, along with a standard 5000mAh high-capacity lithium battery for up to 7 hours of battery life. It supports both touchscreen and side-button operation and offers interfaces in both Chinese and English. The user interface is compatible with NanoVNA-F, and the measurement range has been extended to 3GHz, offering a larger dynamic range for more precise measurements and more convenient operation.

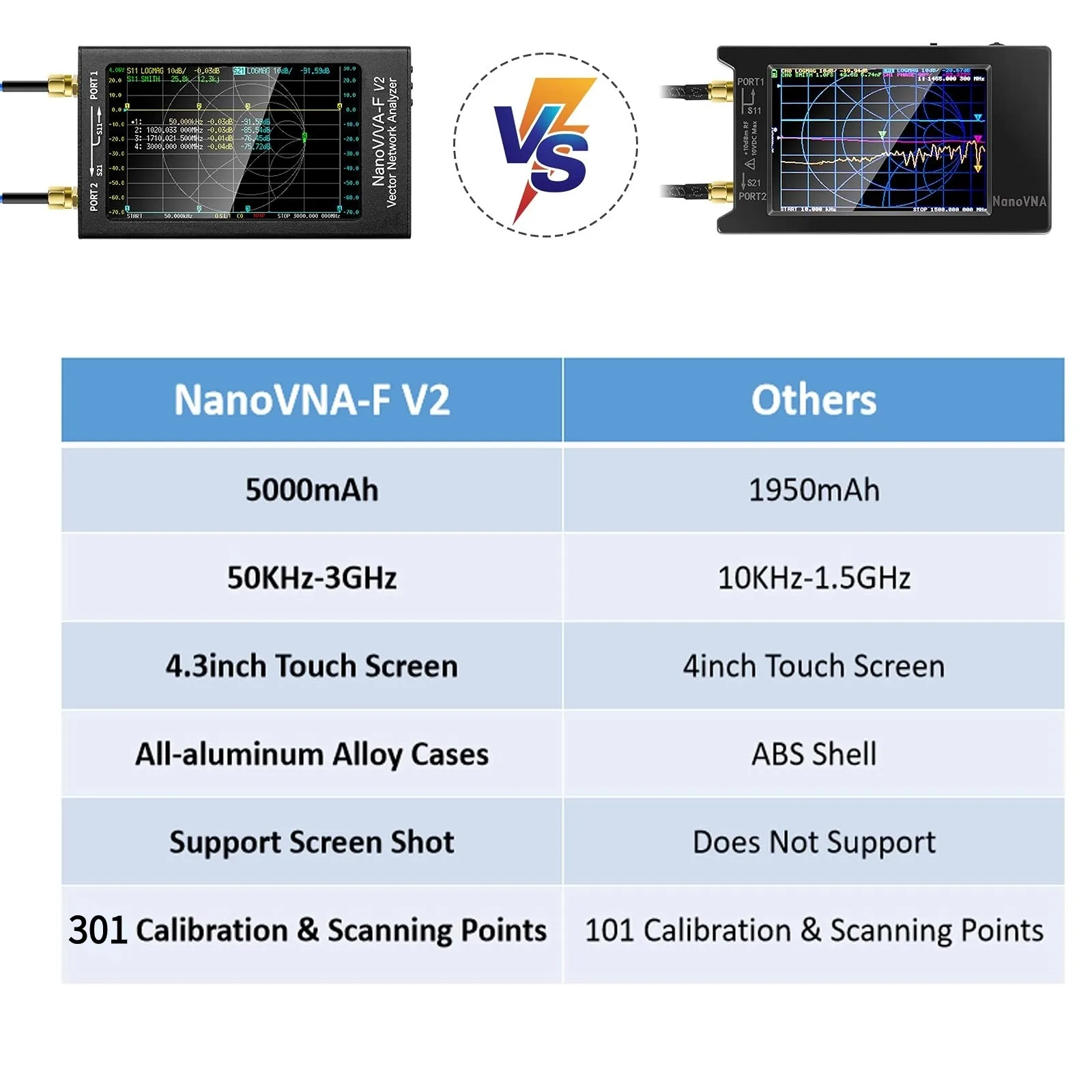

Main Features

Frequency Range：50k~3GHz
S11 Dynamic Range：50dB
S21 Dynamic Range：70dB
Screen：4.3-inch IPS 800*480
Battery Life：7 hours

About this product

1.4.3-inch IPS LCD display with a resolution of 800x480, featuring an ultra-wide viewing angle and eye-friendly for extended use;
2. Full aluminum alloy casing, sturdy and durable, effectively shielding electromagnetic interference to ensure measurement accuracy;
3. Compact dimensions: 125mm x 75mm x 20mm, making it highly portable;

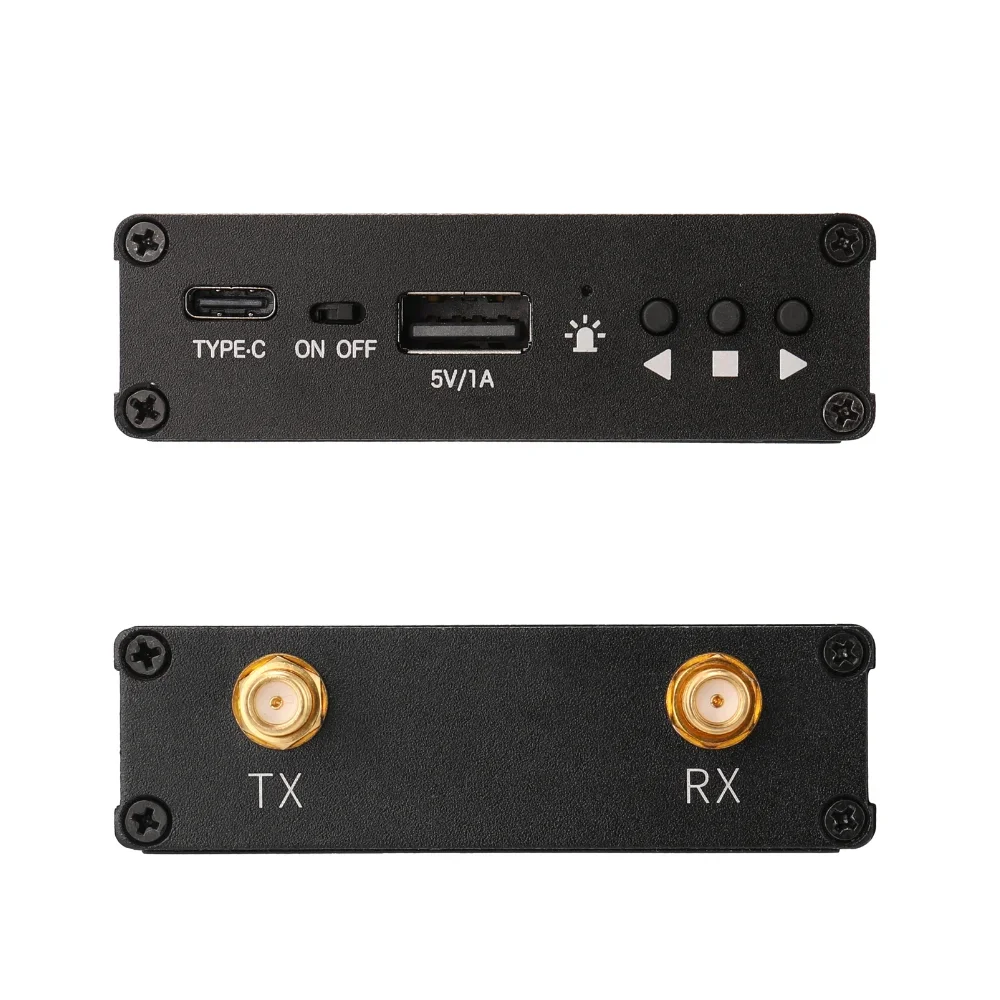

4. SMA RF interface for convenient connection to various test devices;

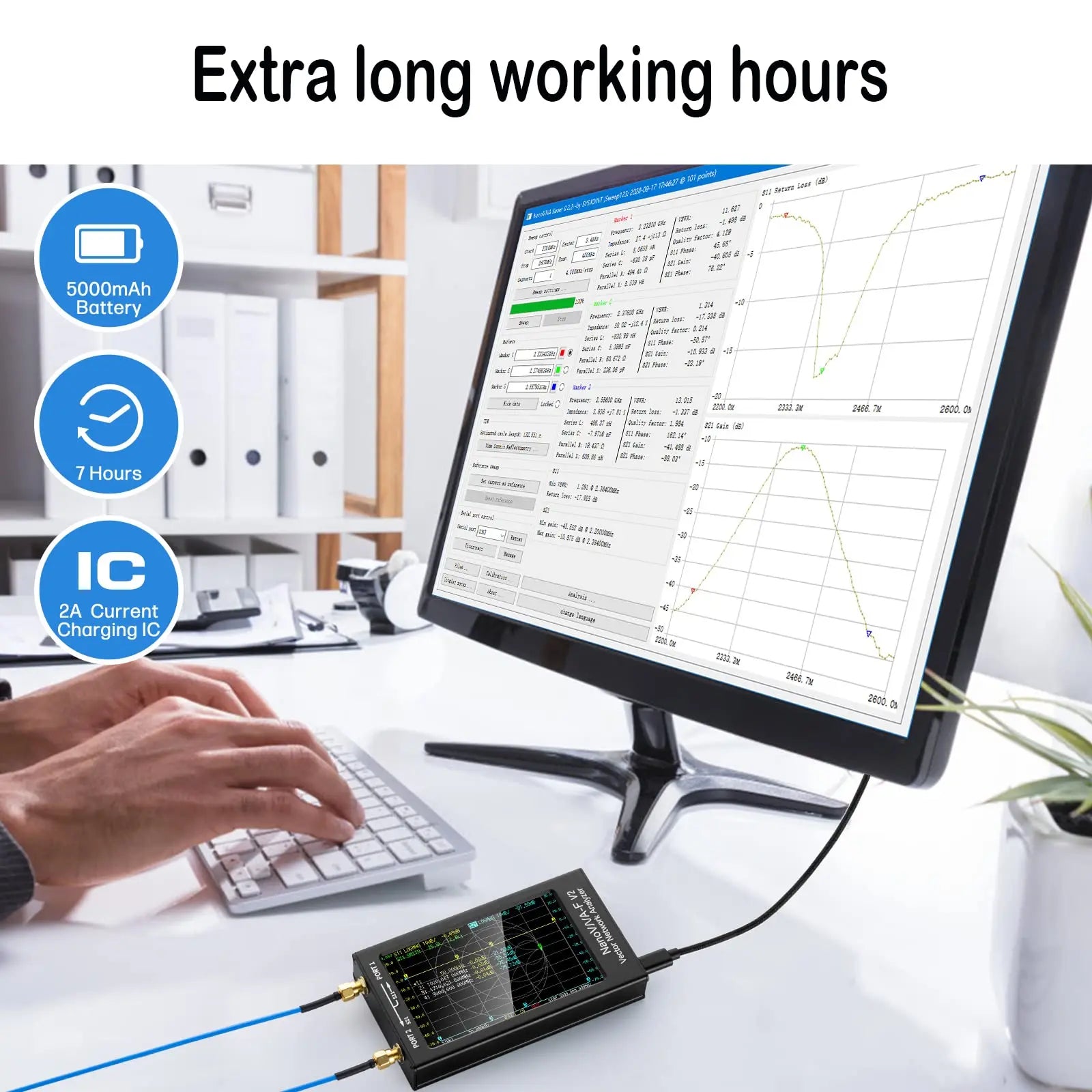

5. 5000mAh high-capacity lithium battery providing up to 7 hours of usage time;

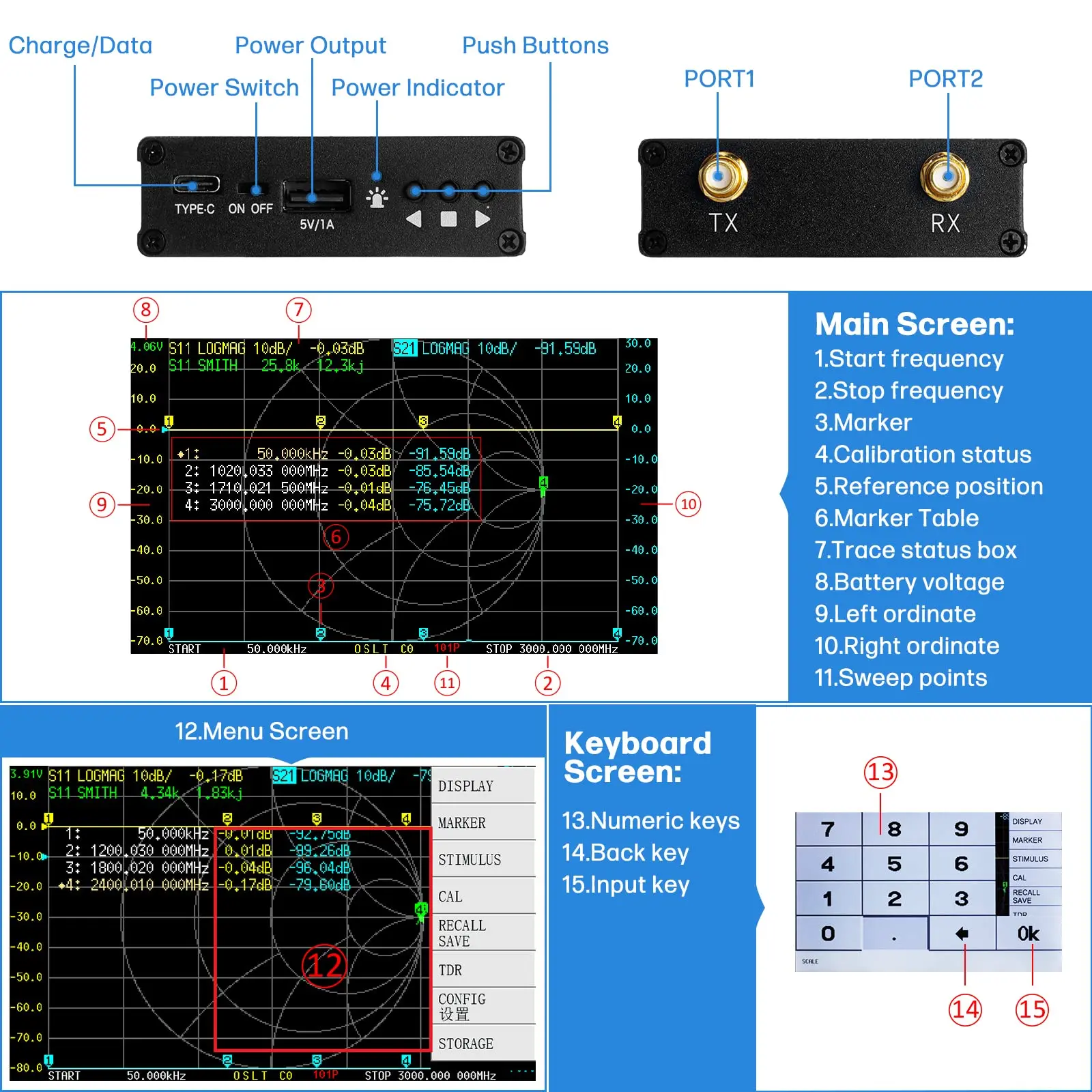

6. Full touchscreen design with three additional side buttons for flexible and convenient operation;
7. Supports both Chinese and English interfaces;
8. Optimized UI design for easy measurement operations;
9. Supports screen brightness adjustment;
10. Firmware can be upgraded via a virtual USB drive without the need for a programmer. Firmware upgrades can be done using the provided USB Type-C data cable;

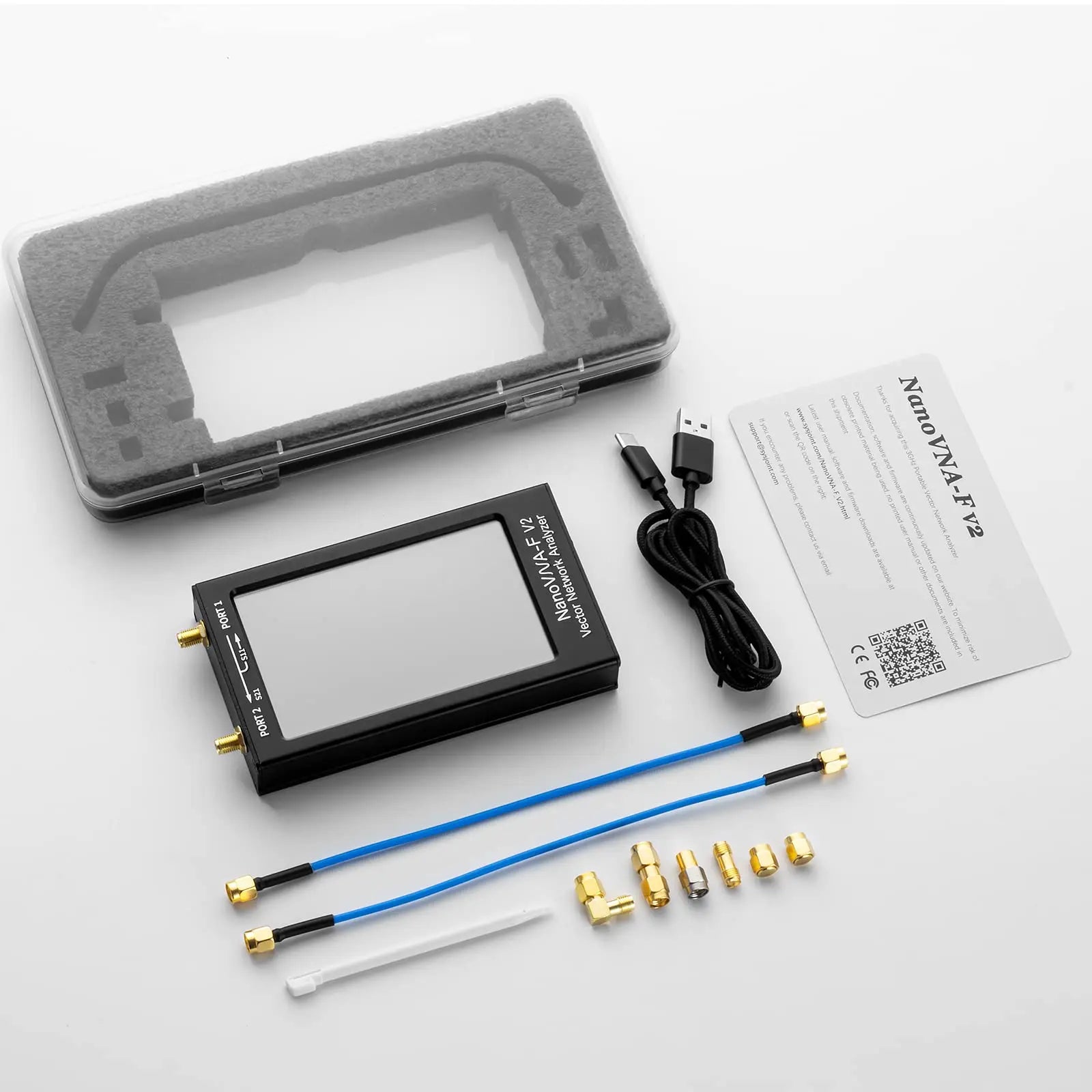

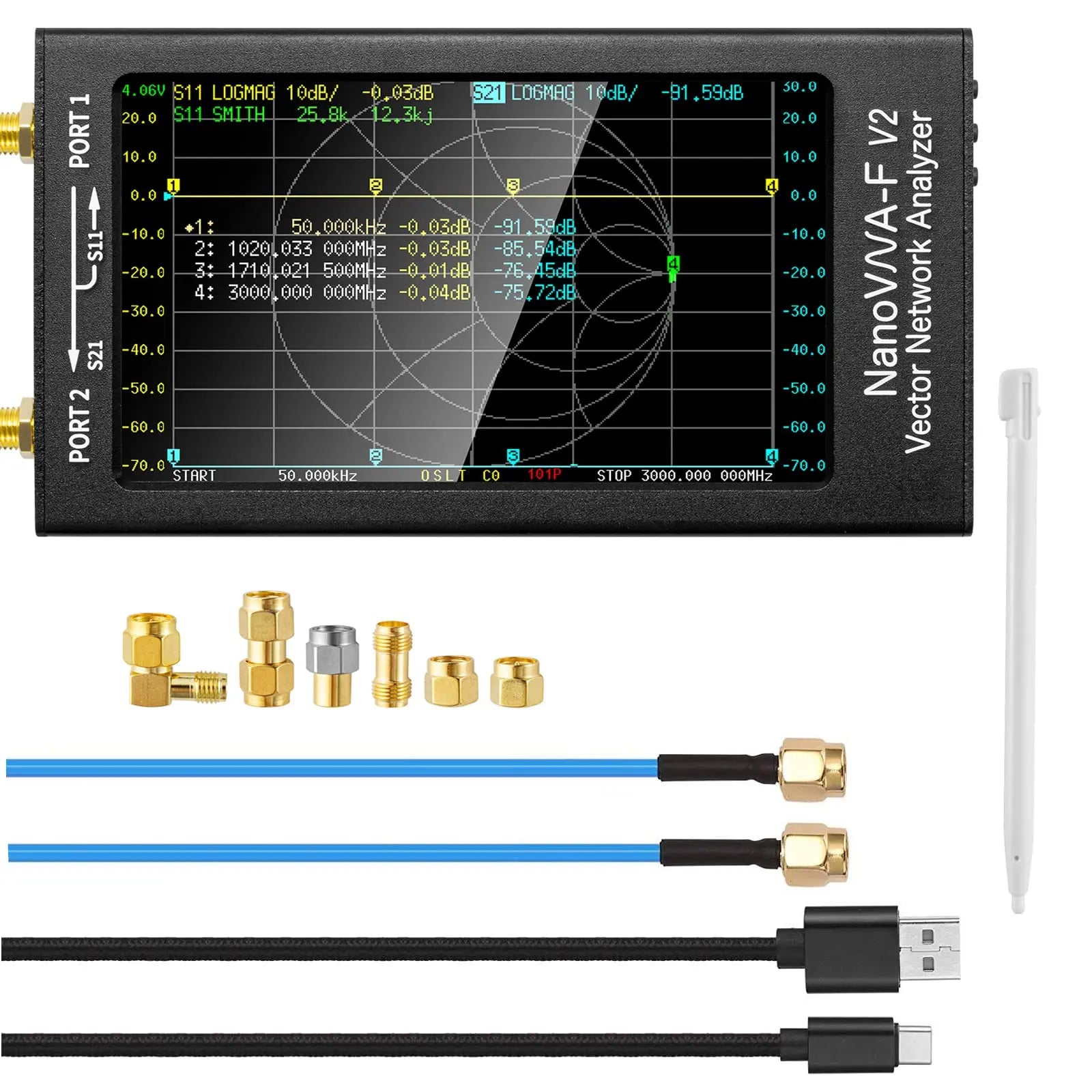

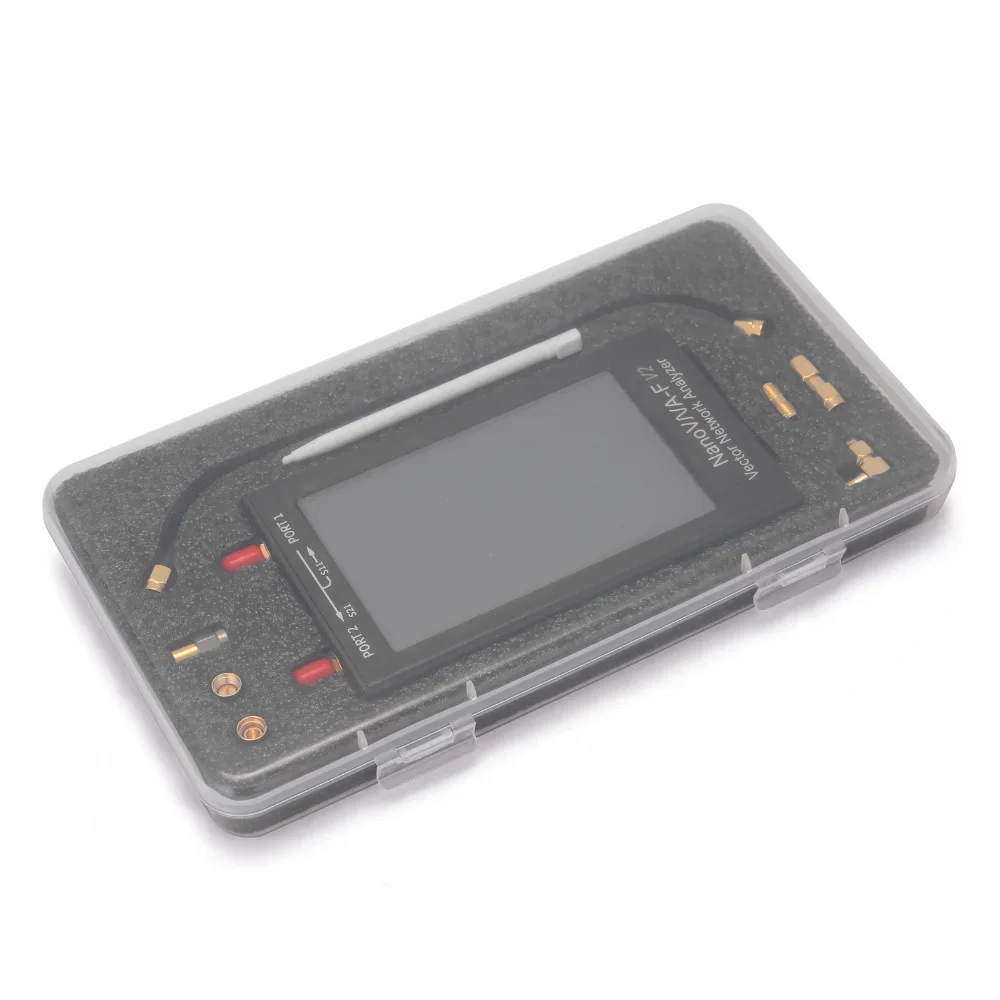

11. Comes with high-quality calibration components and RG405 phase-stable cables to ensure calibration accuracy;
12. Features a USB power output interface to support 5V/1A power output;
13. Uses a 2A high current charging IC for shorter charging time;

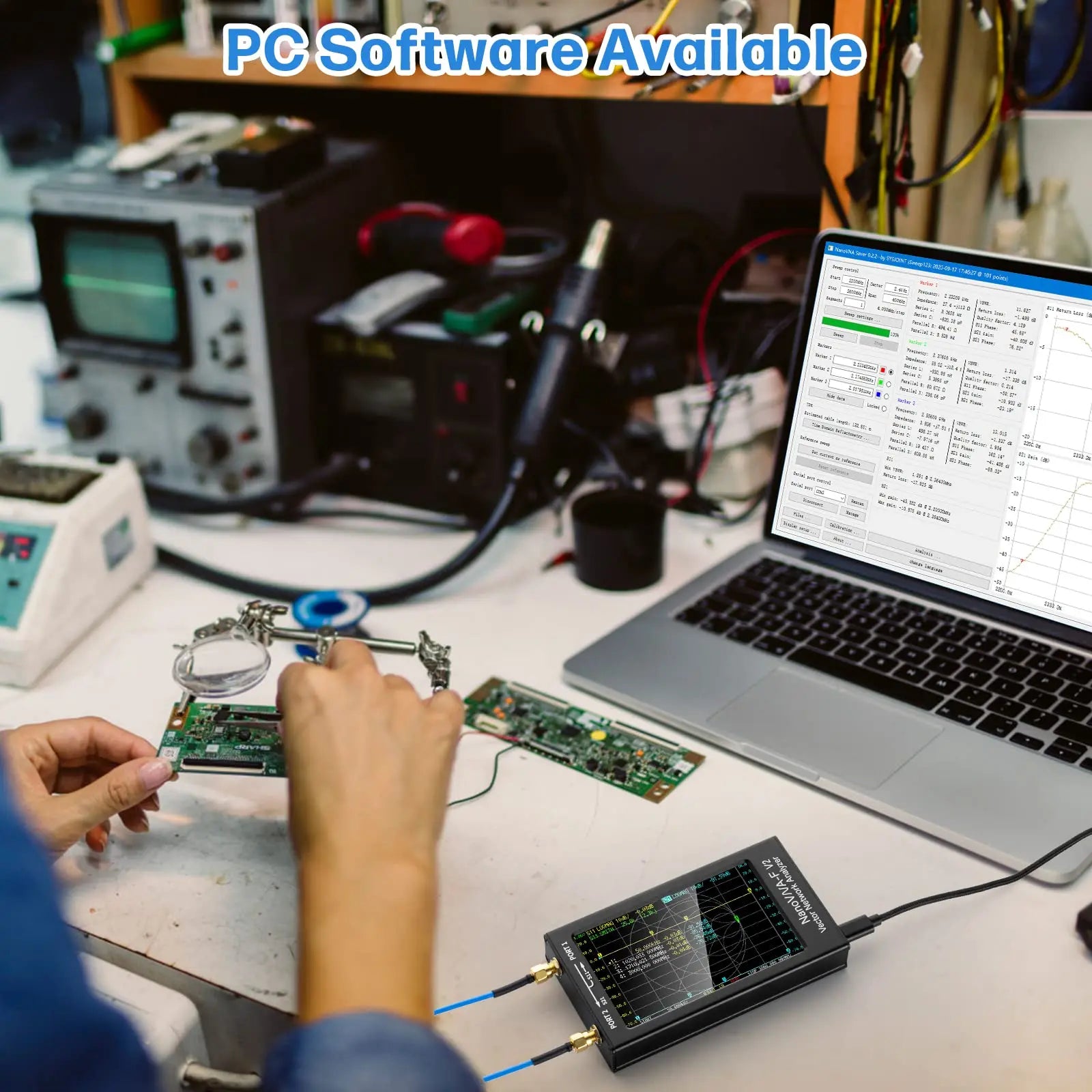

14. Includes compatible PC software with Chinese and English interfaces;
15. Allows for screen capture via the PC software to capture screen images from the device;

Product Parameters

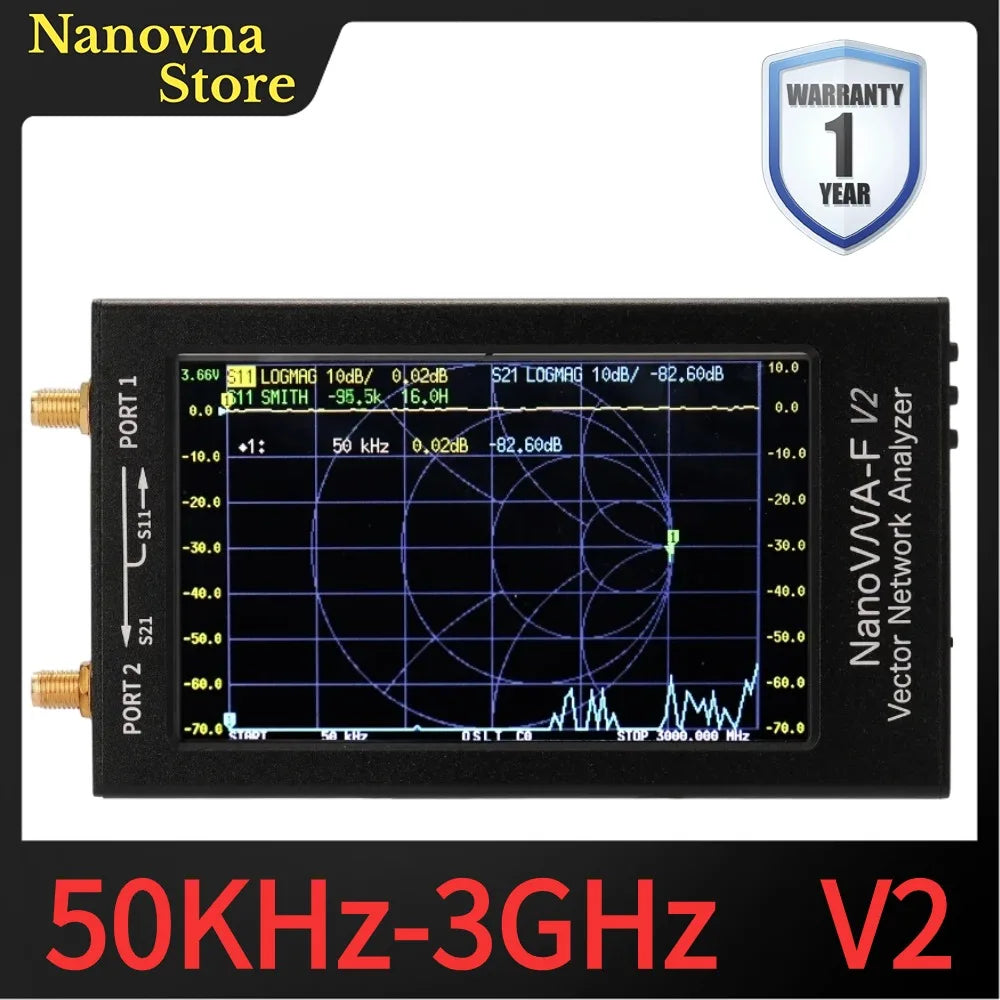

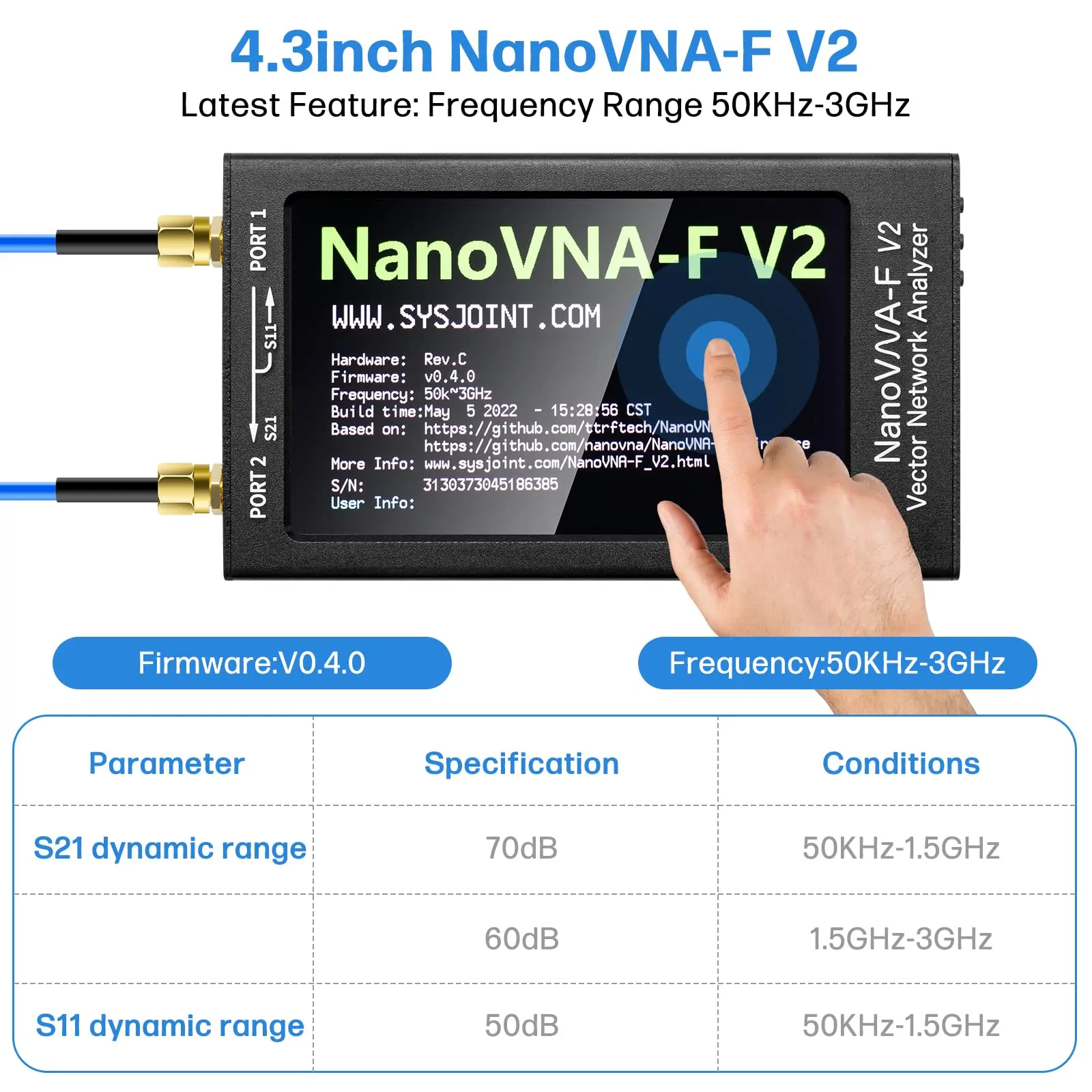

Measuring frequency: 50kHz~3GHz
RF output power: - 9dbm（Max）
S11 dynamic range: 50dB(<1.5GHz), 40dB(<3GHz)
S21 dynamic range: 70dB(<1.5GHz), 60dB(<3GHz)
Frequency tolerance: <0.5ppm
Port SWR: <1.1
Display: 4.3" IPS TFT(800x480)
Output capability: 5V/1A
USB interface: USB Type-C
Power consumption: 3.7V Li-Po, 5000mAh
Number of scan points: 301
Display trace: Up to 4
Marker points: Up to 4
Calibration result: Up to 5 groups
Scanning time: 2.7s/every time

VNA basics

Vector Network Analyzer (VNA） is the most commonly used instrument in the field of RF and
microwave，VNA measures the reflection and transmission behavior of a device under test

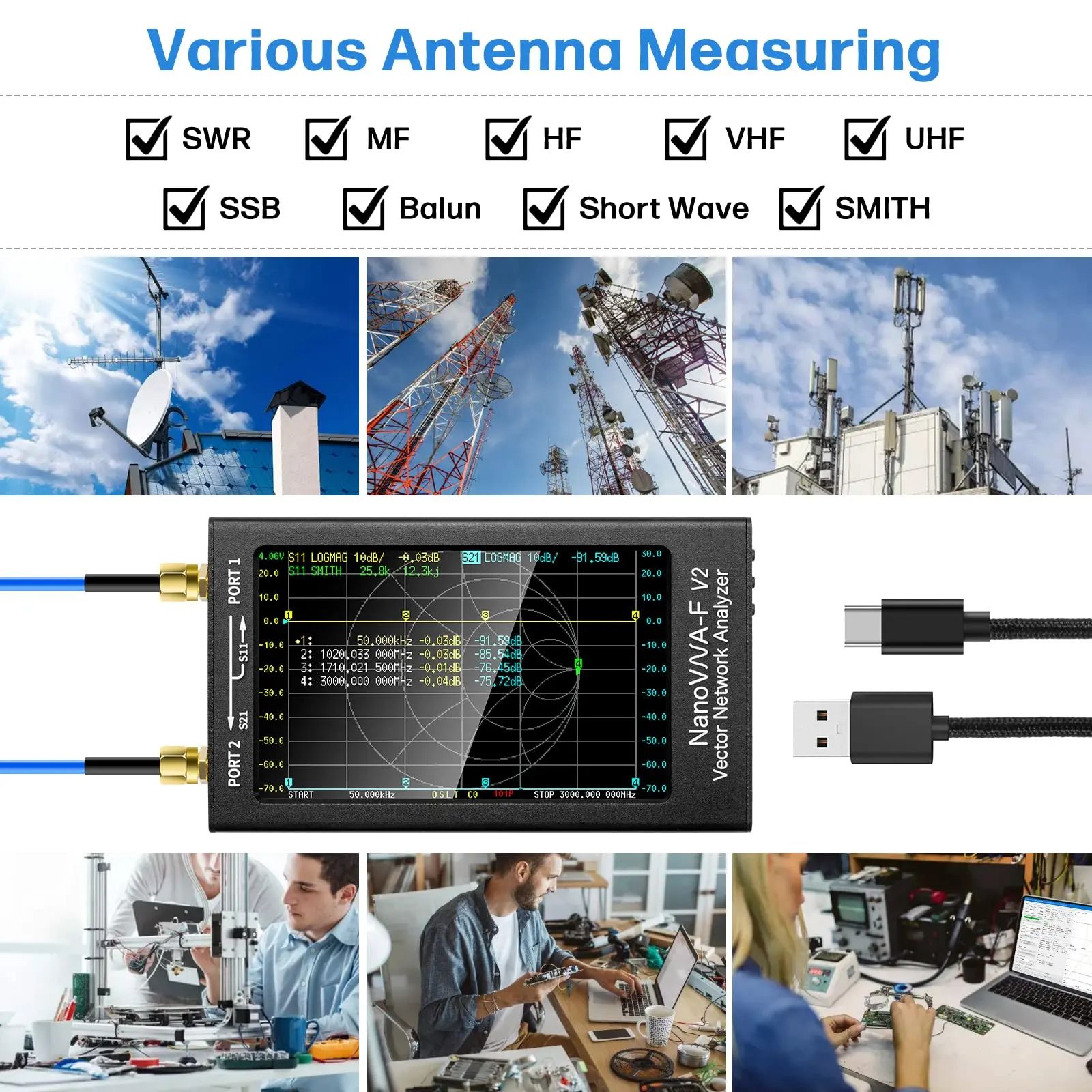

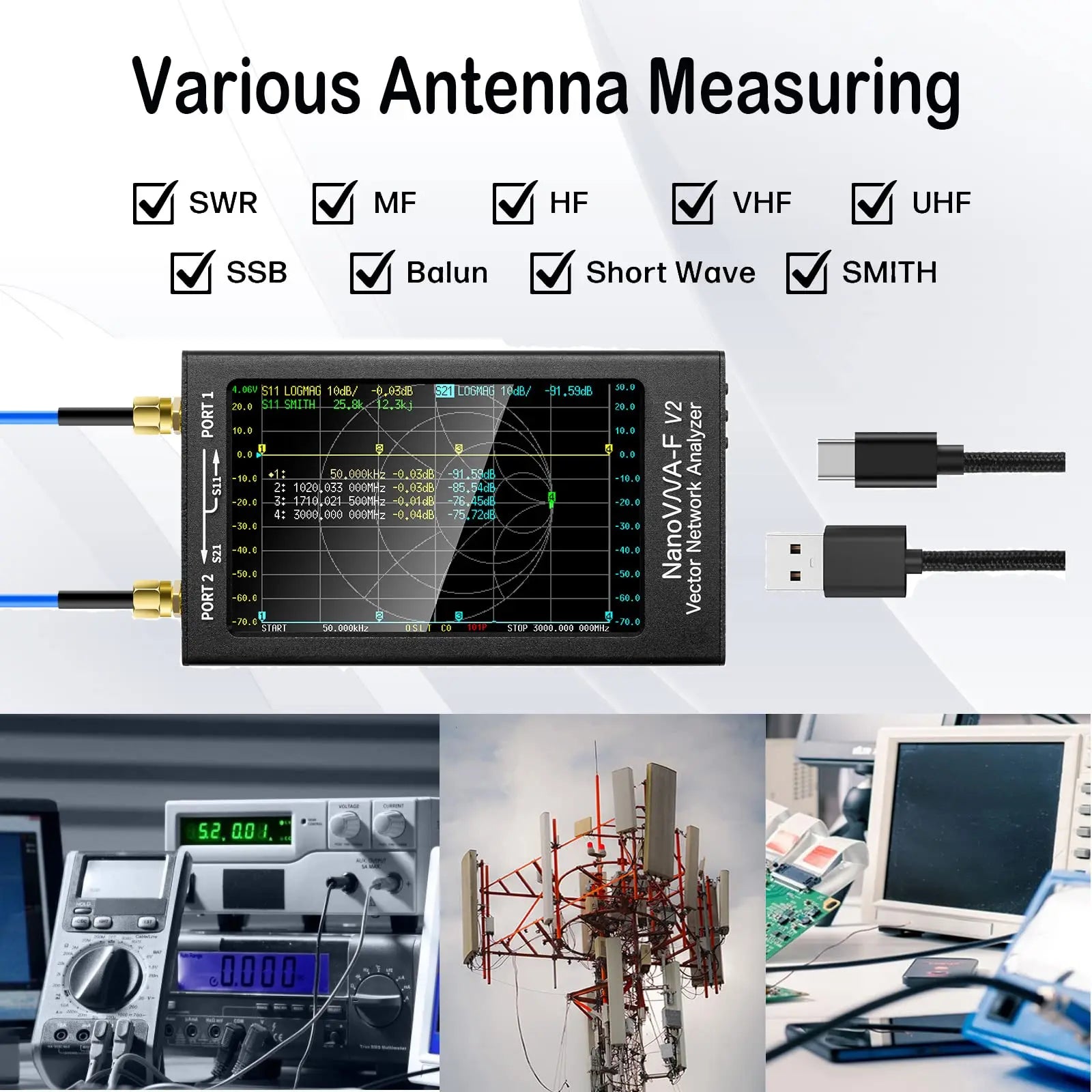

(DUT）across a configured frequency range. VNA is usually used to measure antenna impedance,
cable loss, filters, power splitters, couplers, duplexers, amplifiers, etc.
Note that the "network" mentioned here does not refer to a computer networks. When the
name "network analyzer" was coined many years ago, there ware no such things as computer
networks. Back then, networks always referred to electrical networks. Today, when we refer to
the things that network analyzers measure, we speak mostly about devices and components.

NanoVNA-F V2 is a dual-port portable vector network analyzer that can be used to measure
the S11 parameters of a single-port network, or to measure the S11 and S21 parameters of a
dual-port network. If you need to measure the S22 and S12 parameters of the dual-port
network, you can achieve it by exchanging the measurement ports.

VNA must be calibrated before any measurements are performed

The NanoVNA-F V2 is a portable vector network analyzer for measuring and analyzing RF circuits. Calibration is an important step to ensure accuracy. The following are the calibration steps for the NanoVNA-F V2

1. First, make sure you have installed the NanoVNA-F V2 driver and corresponding software before using it.

2. Connect the NanoVNA-F V2 to your computer and open the corresponding software.

3. Select the "Calibration" option in the software, usually found in the menu bar or toolbar.

4. Select either Full Calibration or Partial Calibration as required. Full calibration includes calibration of parameters such as frequency, response, and delay, while partial calibration can be performed as needed.

5. Follow the instructions in the software to connect calibration devices (e.g., open circuit, short circuit, load, etc.) to the NanoVNA-F V2.

6. Click on the "Start Calibration" or similar button in the software, and the calibration process will be carried out automatically.

7. When calibration is complete, the software will display the calibration results and apply the relevant parameters to the measurement process.

Please note that the above steps are for reference only and may vary depending on the software version. It is recommended that you consult the NanoVNA-F V2 user manual or related documentation for detailed calibration instructions.
