Feature:

1. 90W Effect Laser Beam Shaping Technology: S9 uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.06mm sharp laser focus, with super cutting penetration and precision, can cut up to 15mm thick wood, 10mm acrylic, carve ceramics and stainless steel, almost beyond the effect of 90W CO2 laser.
2. Fast Focusing Design: Combines a fixed focus lens and a sliding design. You just need to slide the laser and tighten the screws to complete the focusing. This makes it very easy to use.

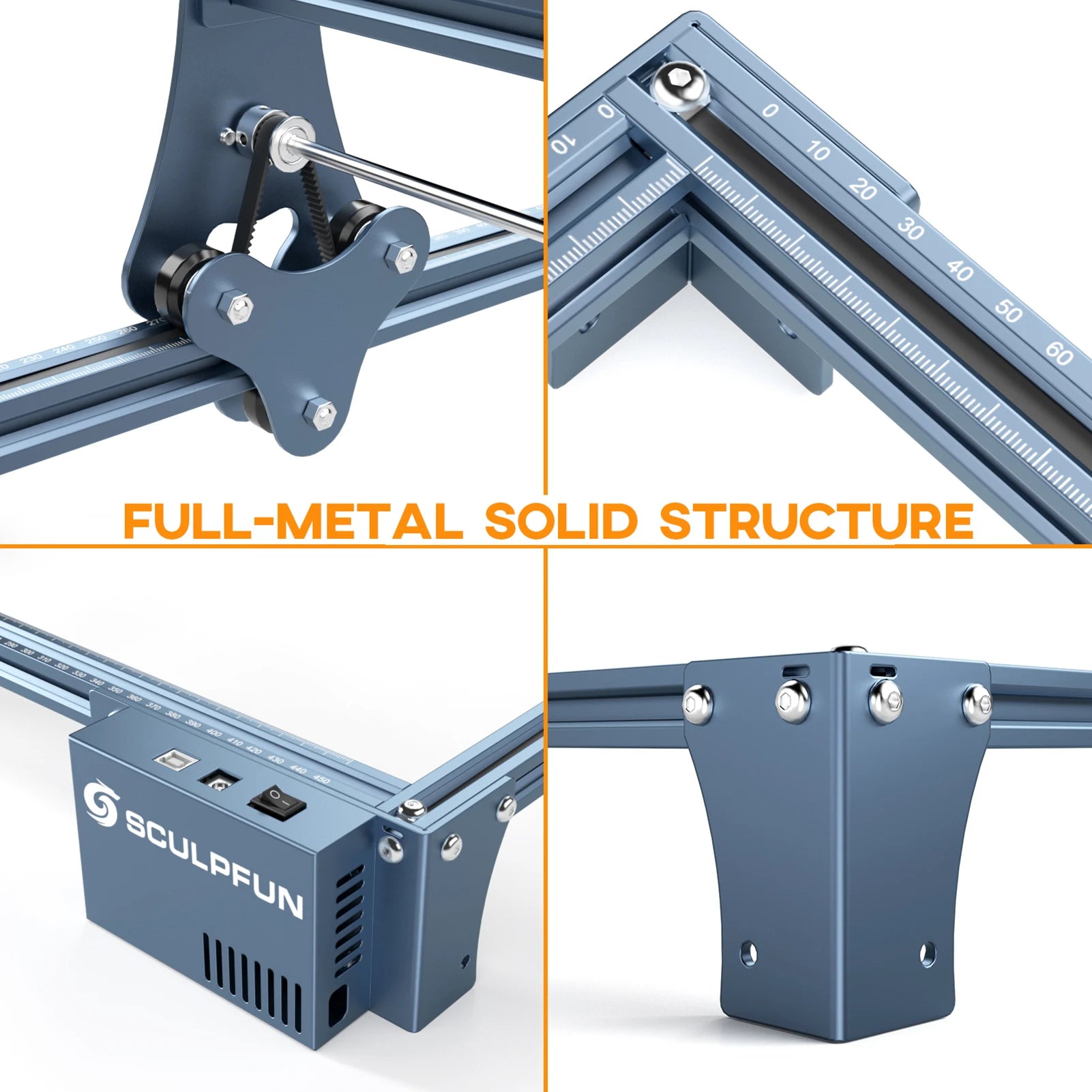

3. Solid \u0026 Easy Assembly Structure: The full-metal structure design makes the machine work stably, and improves the engraving accuracy. The assembly can be completed in 10-20 minutes. The structural frame is very durable and available to upgrade. During use,
4. Wide Compatibility: The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, compatible with Win system, switch system (LightBurn), and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.

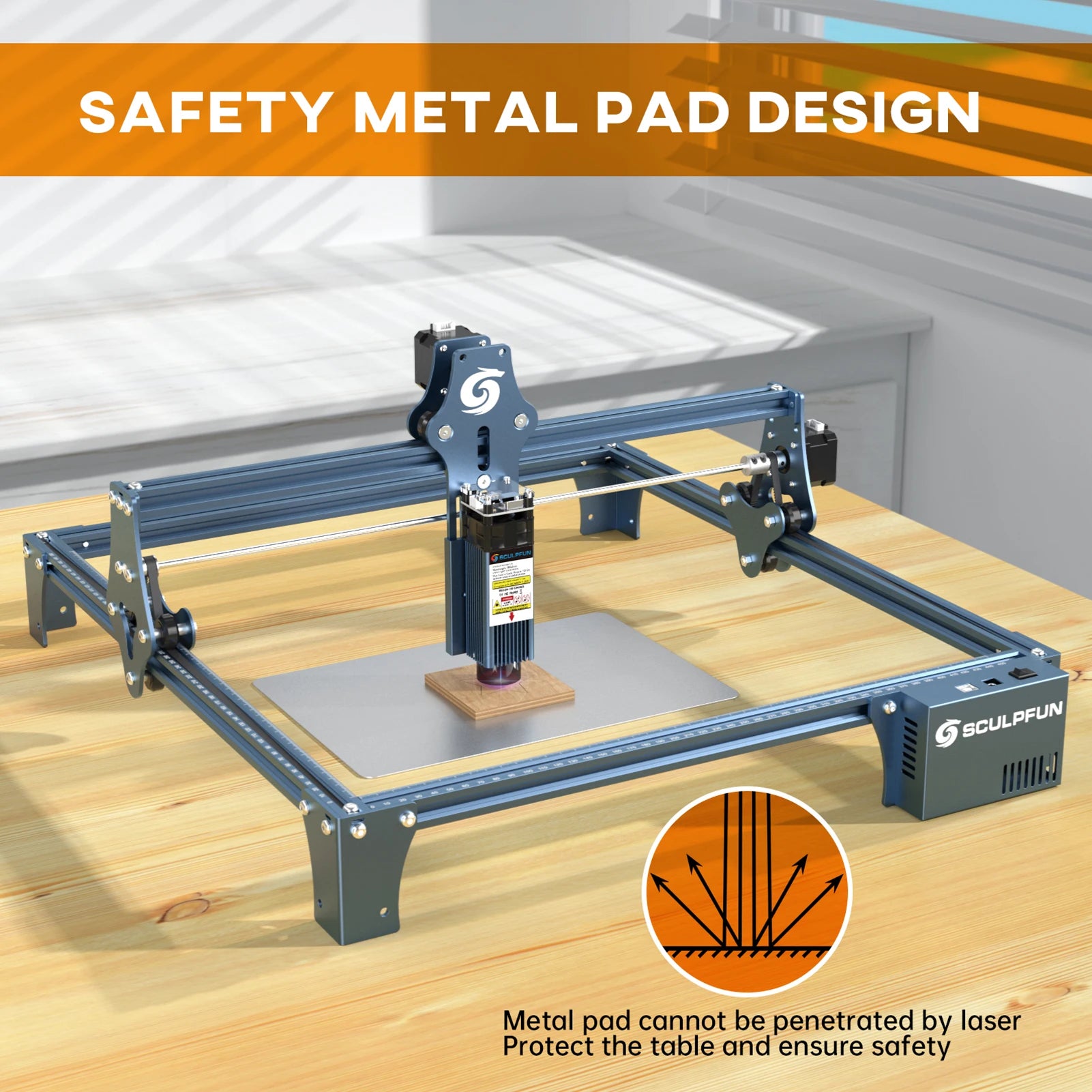

5. Safe Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. And comes with a A4 size steel pad to protect the table from laser damage. Isolate fire hazards.

Specification:

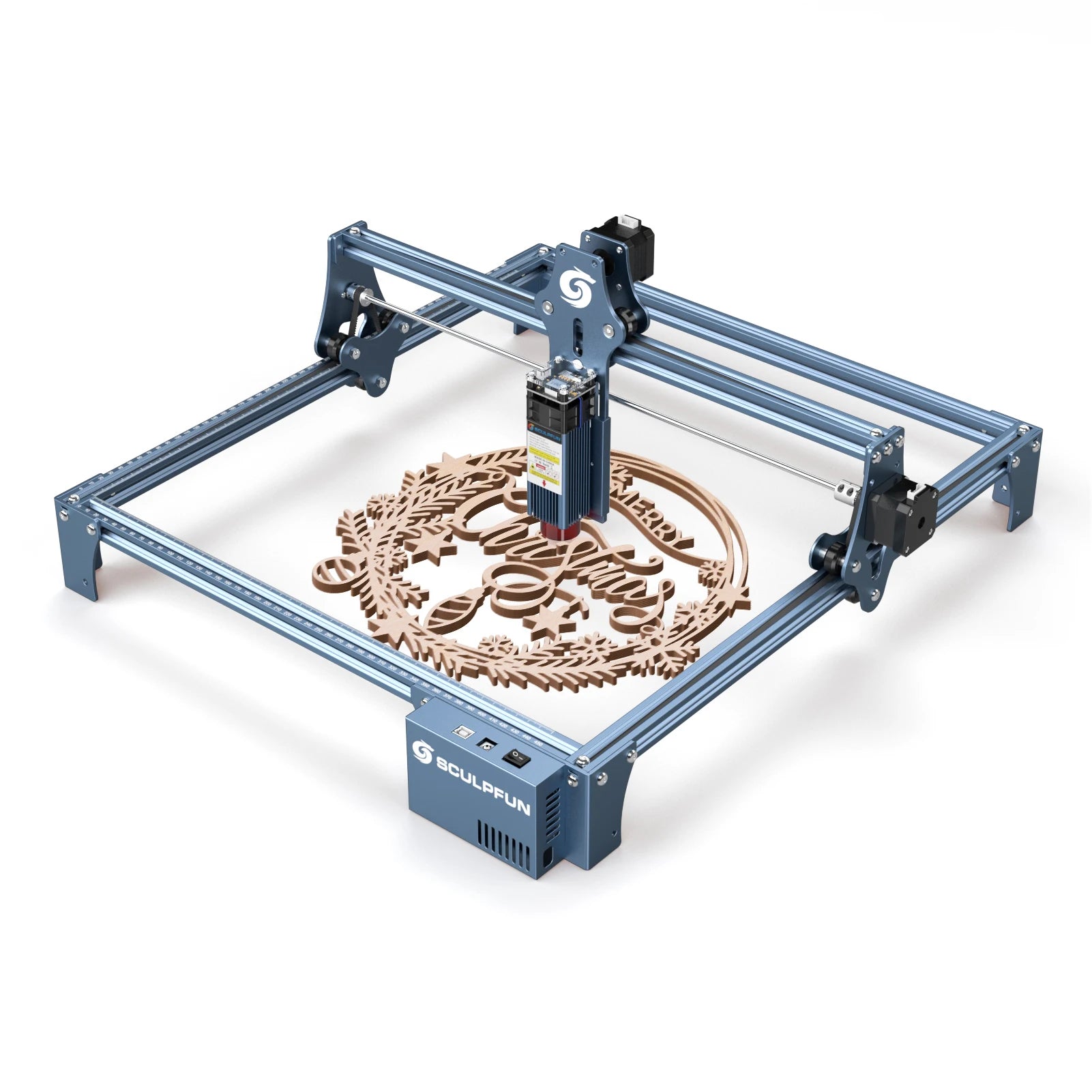

Model: S9
Engraving Size: 410*420mm
Engraving Materials: Wood, paper, cardboard, plastic, white, PCB board, aluminum oxide,  304 Stainless steel, ceramic, dark stone
Cutting Material:  Wood, acrylic, cardboard,  fabric, bamboo, plastic board, KT board
Machine Electricity Power: 30W  (It has nothing to do with cutting or engraving performance, just electricity consumes)
Diode Laser Power: 5.5-6W
Laser Length 455±5nm
Engraving Accuracy: 0.01mm
Focusing Method: Fixed focus laser + sliding device
Laser Protective Cover: The light filter cover on the laser protects the user's eyes and prevents animals grabing the laser spot.
Operating Software: Compatible with LaserGRBL, LightBurn, Benbox, GrblController, LiteFire,
etc.
Operation System: Compatible with switch system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data Transmission Method: USB connection
Power Supply: International universal standard power input: 100-240V AC, 50/60HZ output: 12V 5A
Machine Weight: 3.0kg/ 6.61lbs

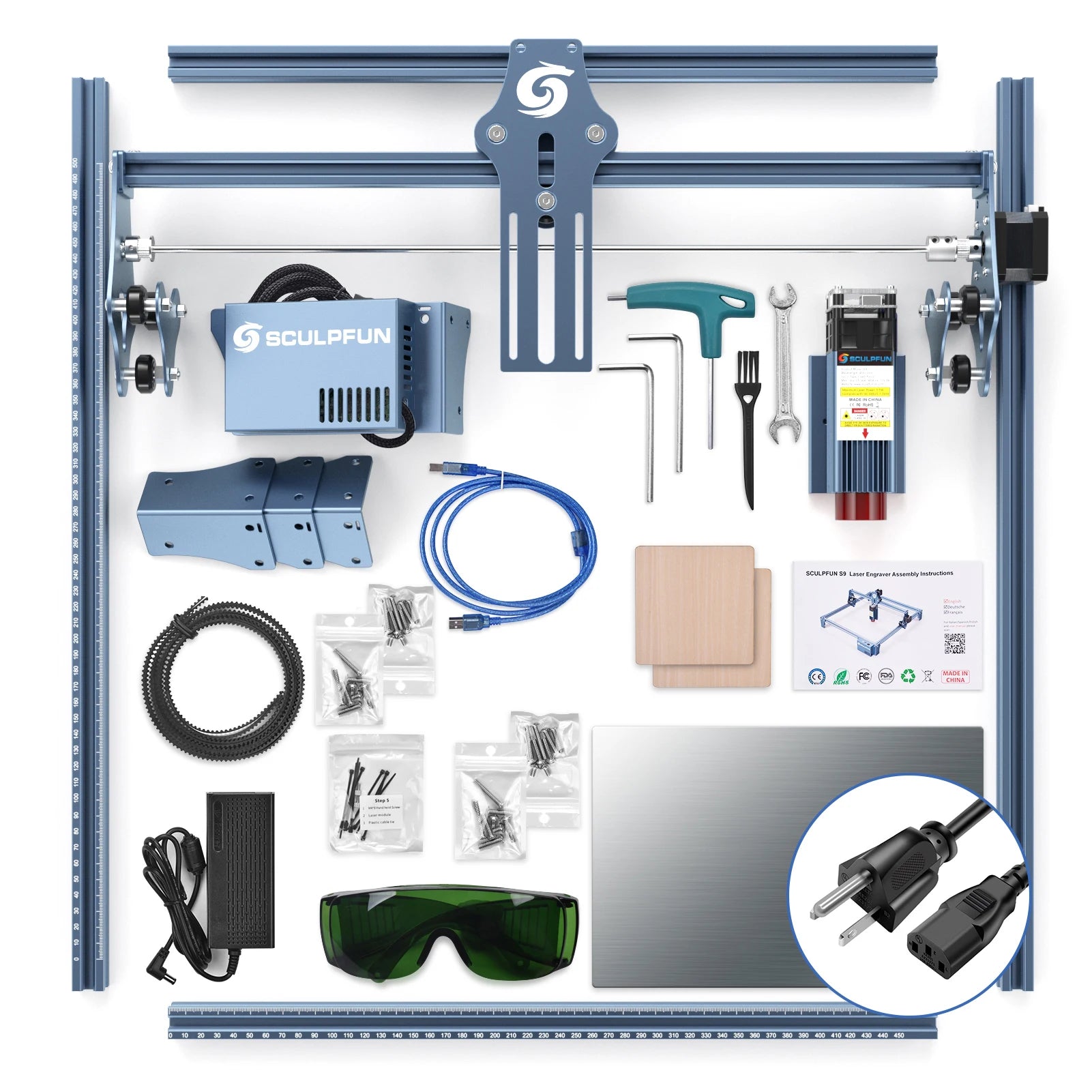

Package List:

1× X axis assembly2× X shaft2× Y shaft2 x Belt1× Control box module set3× Support feet1× Laser module set1× Power Supply1× USB cable1× Tool Kit1× Goggles1×10x10cm wood chip 3mm thickness1× 10x10cm wood chip 10mm thickness1× A4 size steel desktop conservation pad
