SPECIFICATIONS

Brand Name: JIMIMAX

Origin: Mainland China

Voltage: 48V

Battery Life: 30 Hours & Up

Item Size: 73.8(L)*25.9(W)*12.2(H)mm

GPS type: GPS Tracker

Model Name: JM-VL03

Screen Size: No screen

Gps Module: Yes

Out Power: 5v

Certification: CE

Certification: FCC

Wide voltage: 9-90V

With Relay to stop engine: Yes

Model Name: JM-VL03 4G Vehicle tracker

GPS Data storage: 3000 pieces

Driving Behavior Analysis: Yes

IP65 Dust & Water Resistance: Yes

Suit for scooter: yes

Over-speed alert: Yes

Geo-fence alert: Yes with 20 Geo-fence

History playback: Yes with 180 days playback

Platorm for EU.Middle East countries: eu.tracksolidpro.com

Web Platform for American countries: us.tracksolidpro.com

Web Platform for Asia countries: hk.tracksolidpro.com

Warranty: 2 years

Vibration alarm: Yes

Moving alarm: Yes

Real time position: Yes

ACC detection: Yes

Internal 3-axis accelerometer: Yes

Hidden Led: Yes

OTA upload software remotely: Yes

GPS tracker 4G: Yes

Suit for motorcycle and Car: Yes

Anti-thieft gps: Yes

Internal 3-axis accelerometer: Yes

GSM/GPS antenna: Built-in quad band GSM antenna, GPS ceramic antenna

Operating temperature: -20℃~+70℃

Standby current: ≤5mA

Position accuracy: no more than 2.5m CEP

Data storage: 32 + 32 Mb

Communication system: GSM/LTE

Tracking sensitivity: -165dBm

Acquisition sensitivity: -148dBm

TTFF (open sky): Avg. hot start ≤1sec

Cheap car tracker: Yes

Motorbike GPS tracker: Yes

Can cut off fuel: Yes optional

Updated of GV20: Yes

Unique design: YES

Quad brand GPS tracker: Yes

Car GPS locator: Yes

Motorcycle gps tracker: Yes

motorbike gps locato: Yes

Tracker for scooter: Yes

gps tracker with SIM: Yes ( only for the areas our SIM card supported)

Waterproof gps locator: Yes

Free APP: Yes find "TracksolidPro" in app store or google play

GPS Tracker for car: YES

E-bike GPS locator: YES

Concox GPS tracker: YES

GPS tracker mini: YES

GPS tracker with battery: YES

SIM card type: 2G, Micro-SIM card

Cut off fuel remotely: Simple version not support

See real time position on Google map: Yes by APP and PC

GPS tracker kind: YES

Can fall back to 2G: YES

Mini gps locator: YES

Wateproof tracker: YES IP65 Dust & Water Resistance

Remote Cut-off (Fuel/Power): Yes

Tamper Alert: Yes

Positioning system: GPS+BDS+LBS

low battery, speeding, drifting, etc: YES

Frequency: L1

Positioning accuracy: no more than 2.5m CEP

Communication network: GSM/ LTE CAT1

3.7V industrial-grade Li-Polymer battery: YES

LED indication: GPS (Blue), GSM (Green)

Sensors: Accelerometer

Driving behavior analysis: Harsh turn, harsh acceleration, Harsh braking,

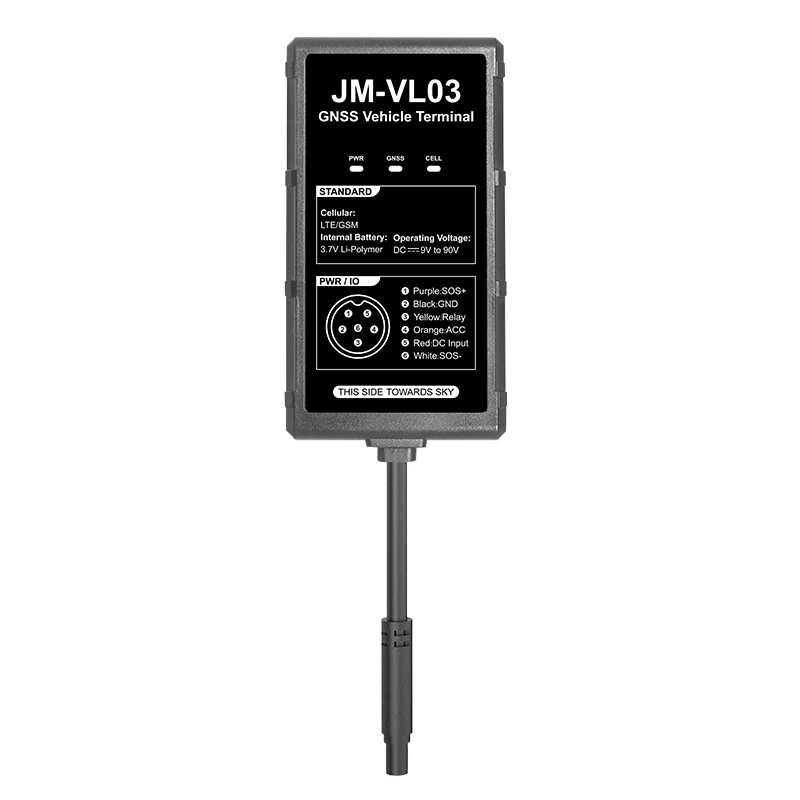

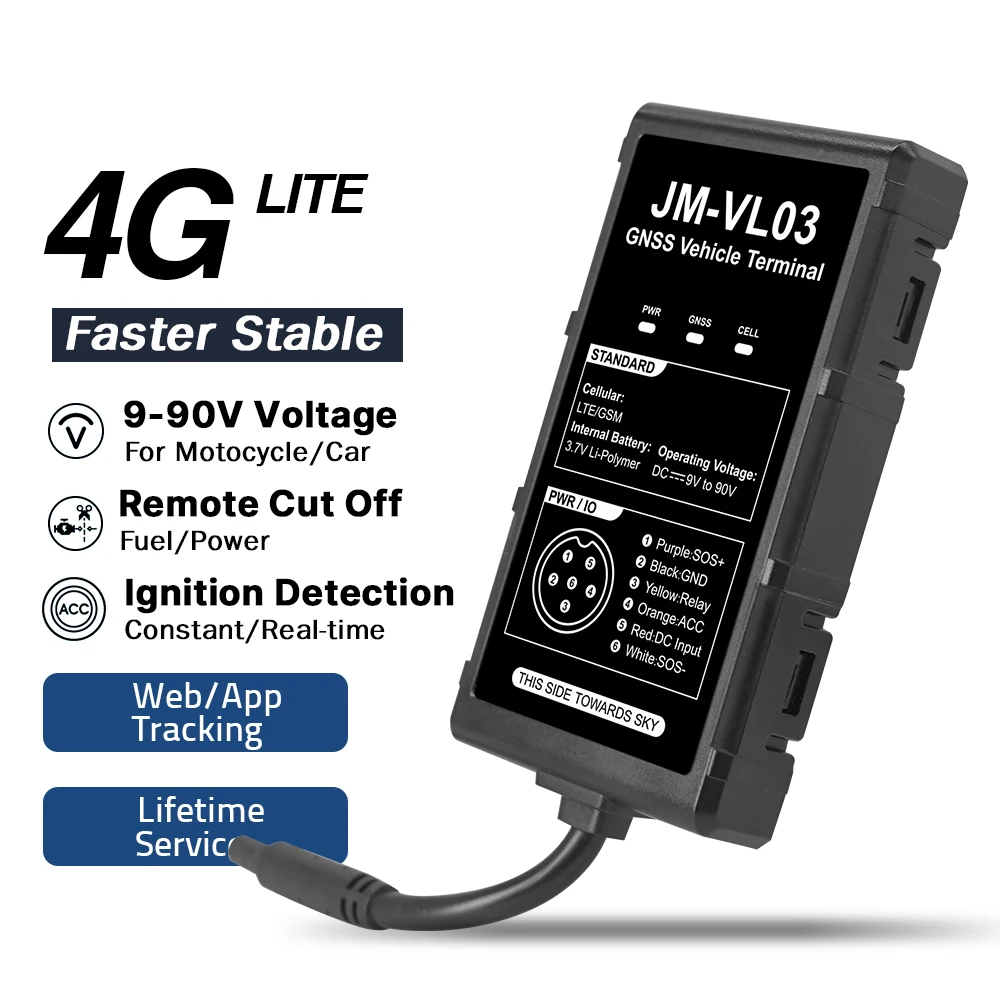

Interface: 4 pin (V+, V-, ) ACC, Relay optional

Mini Vehicle GNSS Tracker: YES

Builti in Battery: Yes 60mAh

Stop car remotely: YES for updated version

Ignition Detection: YES for updated version

Multi alerts: low battery, speeding, removal, drifting

Free APP lifetime: YES

Wialon platform can be connect: YES

Communication protocol: TCP

Suit for: Electric Bike, Light Vehicle or Motor

gps tracker car: YES

Car gps tracker with relay: Yes optional

2G gps tracker: YES

gps tracking device: Yes

Concox gps Oiginal: Yes

Vehicle tracker: Yes

gps location tracker: Yes

GPS tracker for motorcycle: Yes

GPS tracking for car: Yes

VL03E version brand: LTE-FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B34/B38/B39/B40/B41 GSM: GSM900/DCS1800

JM-VL03ME Frequency: LTE-FDD: B1/B3/B7/B8/B20/B28 GSM: 850/900/1800/1900 MHz

VL03MX version brand: LTE-FDD: B2/B4/B5/B7/B12/B13/B17 GSM: 850/900/1800/1900MHz

LTE Cat 1 Vehicle Tracker: YES

GPS tracking device: Yes

Can fall back to 2G: Yes

Suit for motorcycle tracking: YES

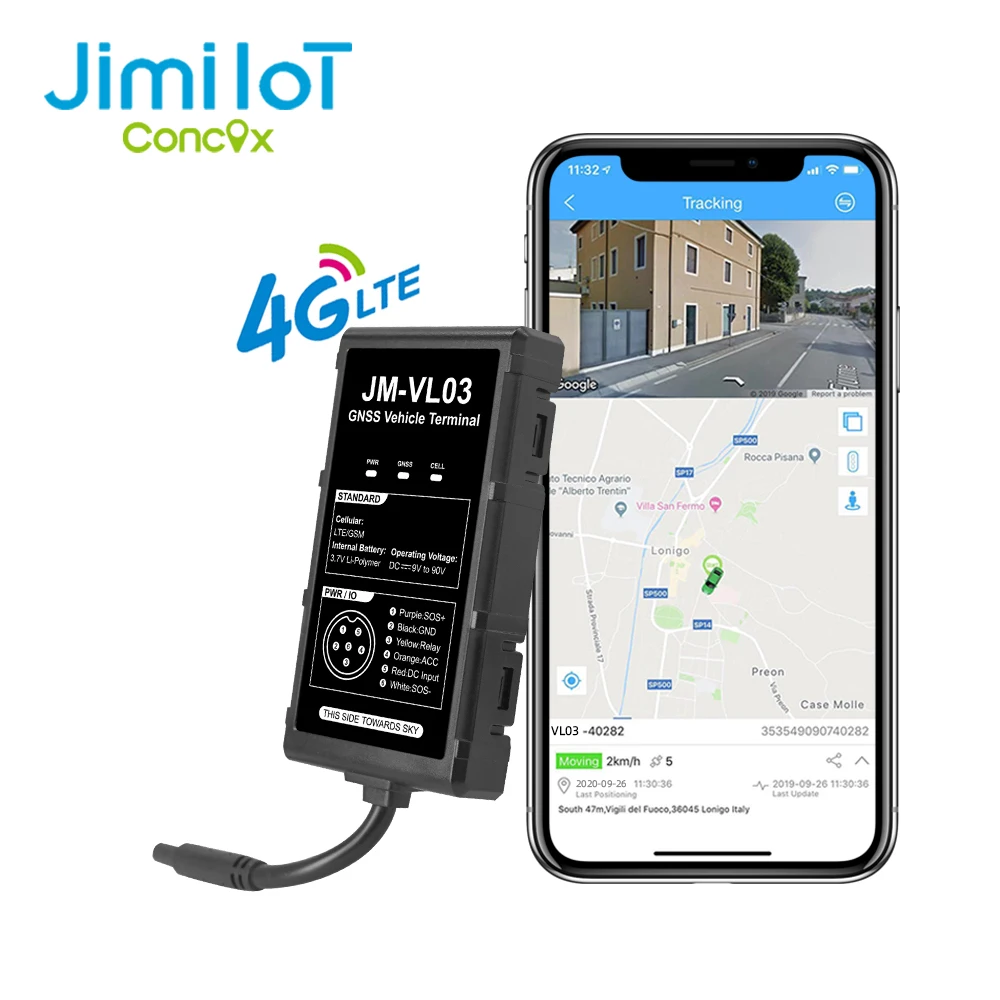

1. Why JM-VL03 4G Vehicle GPS Tracker

The JM-VL03 is a discreetly-installed 4G LTE GPS tracker designed for the management of vehicles of all types. The wide, 9-90V input voltage range is compatible with almost all vehicles, and the features of this device will prove valuable in managing mobile assets of all sorts. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases, and the advanced GPS antenna provides strong signal acquisition and more accurate positioning capability. In addition to these features, Driver Behavior Analysis (DBA) and the suite of event-triggered alerts will make the VL-03 a valuable part of your fleet management strategy.

1). Stop Engine Remotely

With relay can stop car remotely by send command Relay,1# or just click the button in TracksolidPRO APP.

2). 4 kinds of Driver behavior monitor

Driving behavior analysis for Harsh acceleration, Harsh braking, Harsh cornering, Collision.

3). Vibration Alert

When car acc off, and you opened the vibratio alert on. SW=ON/OFF, default: OFF;

M=0/1/2/3, way of alarming, 0: GPRS only, 1: SMS+GPRS, 2: GPRS+SMS+phone call, 3: GPRS+CALL, default: 1

N=1-20,The number of alarms triggered by vibration (default : 5 sec)

T1=1-300(second),detection time : (default : 10 sec)

T2=1-300(second),Vibration alarm delay in automatic defense mode (default : 30 sec)

T3=1-3000(min),Vibration alarm silent time (default : 1 min) You can set Sensor Sensitivity command: level,A# A = sensibilité sensor / 1 - 5 / default = 2 5 is most sensitive

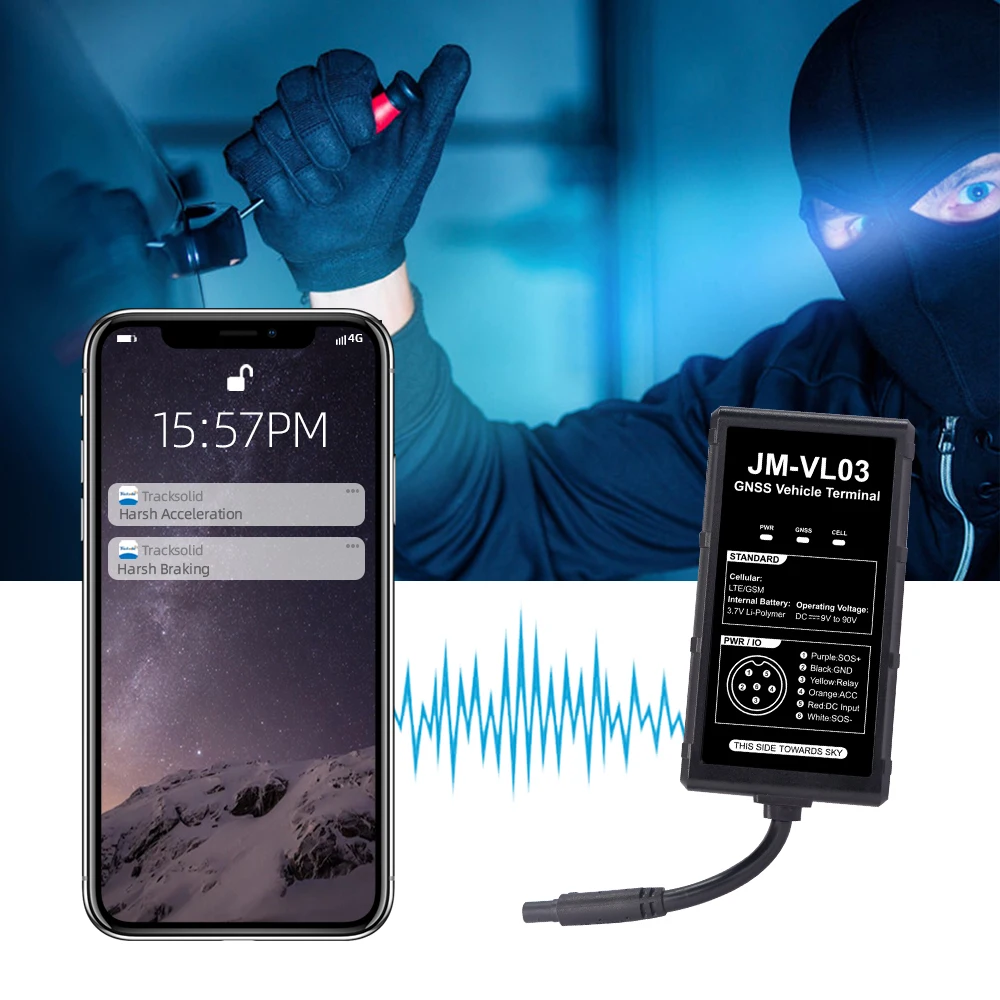

4). Multi-Alerts in Tracking platform and APP

You can get vibration alerts, moving alerts, Geo-fence, low-power, power cut-off alerts, sharp turnning, harsh speeding alarm etc.

5). Global Usage LTE CAT1 and GSM

JM-VL03 have 3 versions, VL03E, VL03ME, VL03MX, we will send out the correct version according to your receiving address.

6). 3000PCS RAM data Storage

With big RAM even if drive in moutains or other no GSM signal area, our gps tracker can store the data and reload to our tracking server later.

7). 9-90V Wide Voltage

Suit for all kind of vehicles with 9-90V and weatherproof.

8). Multiple Position way GPS+LBS+BDS

More accurate position less 2.5m CEP with GPS and LBS and BDS track your vehicles more easy.

2. Main Spec of JM-VL03 LTE GPS Tracker

1). LTE & GSM Network;                                                                                                                                                                                        The device can receive and transmit data in the coverage of 4G and 2G network. JM-VL03M:

LTE: B2/B4/B5/B7/B12/B13

GSM: 850/900/1800/1900 MHz

2).Driving Behavior Analysis (Basic);

You will receive immediate alert when driver's dangerous driving behavior is detected

3). Vehicle Battery Protection;

Optimized battery protection prevents vehicle battery from draining out or damage.



JIMIMX JM-VL03, 4G Vehicle Tracker, 9-90V GPS For Motorcycle, Stop Engine Remote, Scooter GPS Tracking Car, Against Theft LTE Locator
