SPECIFICATIONS

Brand Name: jabriel

Frames Per Second: 30

Origin: Mainland China

Chipset Manufacturer: Novatek

Assembly Mode: Hidden Type

APP Compatibility: Ti2cam or Roadcam

View angle: 170

Number Of Lenses: 2

Screen Ratio: NONE

Interface: WI-FI

Interface: Micro SD/TF

Interface: New Plug and Play

NightShot Function: YES

Power Source: Corded Electric

Video Code: H.264

Battery Life: Connect to Rain Sensor or Fuse Box

Original Package: YES

Loop-Cycle Recording Feature: YES

Audio Recorded: YES

Camera Resolution: 3840x2160

Warranty: 1 year

Special Features: G-Sensor

Special Features: Display Rotate

Special Features: sd/mmc card

Special Features: Anti Surge Voltage Impact

Special Features: waterproof

Special Features: Anti Vibration

Special Features: Real Time Surveillance

Special Features: Automatic White Balance

Special Features: Wide Dynamic Range

Special Features: wifi function

Special Features: Parking Monitor

Built-in Screen: No

Video Format: MOV

Video Format: TS

Video Format: MP4

Touch Screen: No

Data Storage Capacity: support TF card up to 256GB

Item Type: Car DVR

Battery: None

Maximum Video Frame Rate: 30

Certification: NONE

Memory Card Required Reding Speed: Class 10

Imaging Sensor: Sony IMX335

OSD Language: Chinese (Simplified)

OSD Language: Chinese (Traditional)

OSD Language: English

OSD Language: French

OSD Language: German

OSD Language: japanese

OSD Language: Russian

OSD Language: Spanish

Pixels: 1600Mega

Rear Camera: YES

Max External Memory: 256G

CPU: Novatek 96670

Image Sensor: Sony IMX335

Camera Resolution: 4K / 2160P

Interface1: Micro SD / TF / Wi-Fi

Cycle Recording: YES

Auto Power: YES

Work Voltage: 12V

special features 1:: Dual Lens(Option)

special features 2:: New Plug And Play (Option)

special features 3:: 24-hour parking monitoring

Suitable for models 1: Audi a1 a3 a4 a5 a6 a7 a8

Suitable for models 2: Audi q2 q3 q5 q7 q8

Suitable for models 3: Audi s1 s3 s4 s5 s6 s7 s8

Suitable for models 4: Audi rs3 rs4 rs5 rs6 rs7

Suitable for models 5: Audi tt

Suitable for models 6: Audi a4 b4 b5 b6 b7 b8 b9

Suitable for models 7: Audi a6 c5 c6 c7

Suitable for models 8: Audi a3 8v 8p

Suitable for models 9: Audi b4 b5 b6 b7 b8 b9

Suitable for models 10: Audi c5 c6 c7

Suitable for models 11: audi tt mk1 mk2 mk3

Suitable for models 12: audi tt 8n 8s

Suitable for models 13: audi s3 8v

Suitable for models 14: audi s4 b8

Suitable for models 15: audi s5 b9

Suitable for models 17: audi a4 b8 b9

Suitable for models 18: audi a6 c7

Suitable for models 19: audi a3 8v

Suitable for models 20: audi a3 8p

Suitable for models 21: audi a4 b4 b5 b6 b7 b8 b9

Suitable for models 22: audi a6 c5 c6 c7

Suitable for models 23: audi a3 8v 8p

Suitable for models 24: audi q5 8r

Suitable for models 25: for audi with humidity sensor



Jabriel New Plug And Play Auto Wifi 4K UHD 2160P Car DVR Dash Cam Front and Rear Camera Driving Recorder Dashcam Dual Lens Car Cameras Video Recorder for audi a1, for audi a3, for audi a4, for audi a5, for audi a6, for audi a7, for audi a8, for audi q2, for audi q3, for audi q5, for audi q7, for audi q8, for audi rs3, for audi rs4, for audi rs5, for audi rs6, for audi rs7, for audi tt, for audi s3, for audi s4, for audi s5, for audi s6, for audi s7, for audi s8, for audi a4 b4 b5 b6 b7 b8 b9, for audi a6 c5 c6 c7, for audi a3 8v 8p, for  for audi with humidity sensor.

Package Include:

1 x Manual

1 x Car DVR

1 x Power Cord


Please Contact customer service to send photos when you buy it!

 Because this product is dedicated, to avoid installation problems, please tell us which year and which model of your car, and send us photos for the rear view mirror bracket of your car.
We will send you suitable products according to the pictures you provide. The appearance of the product may be slightly different from the main image. But what we think is appropriate is the best. If you mind, Please consider carefully before purchasing. Please send us message like this, thanks!



4K UHD 2160P New Plug And Play Hidden WIFI Dash Cam Car DVR For Audi

New Plug and Play Car Dvr Dash Cam   Easy to install

Connect to the rain sensor or reading light of the Original car



The New Plug and Paly Car Dvr Dash Cam can be pluged to the rain sensor or reading light of the original car to take electricity.It is easy to install. Inserted without damage, no wiring is required, and it maintains the original car style after installation.



256G·Smart Storage

Big, Regarding the overall improvement of storage,

Support 8-256 GB Keep driving records longer.

Safety explosion protection

High and low temperature resistance,no built-in battery design, more

safer Automotive fuse power, built-in low voltage monitoring,

automatic shutdown, non-destructive battery.







Novatek Monitoring Chip, Ultimate Experience

Novatek chip is equipped with realtek WIFI solution, H.265 video

coding technology makes the recorder image clear and smooth,

image details and color rich and supports

256 G large memory card operation.

Revolutionary clarity coding breakthrough

HEVC/H.265 video coding

50% better than H.264 video encoding performance

Make the image details richer, and the color

details are more realistic.

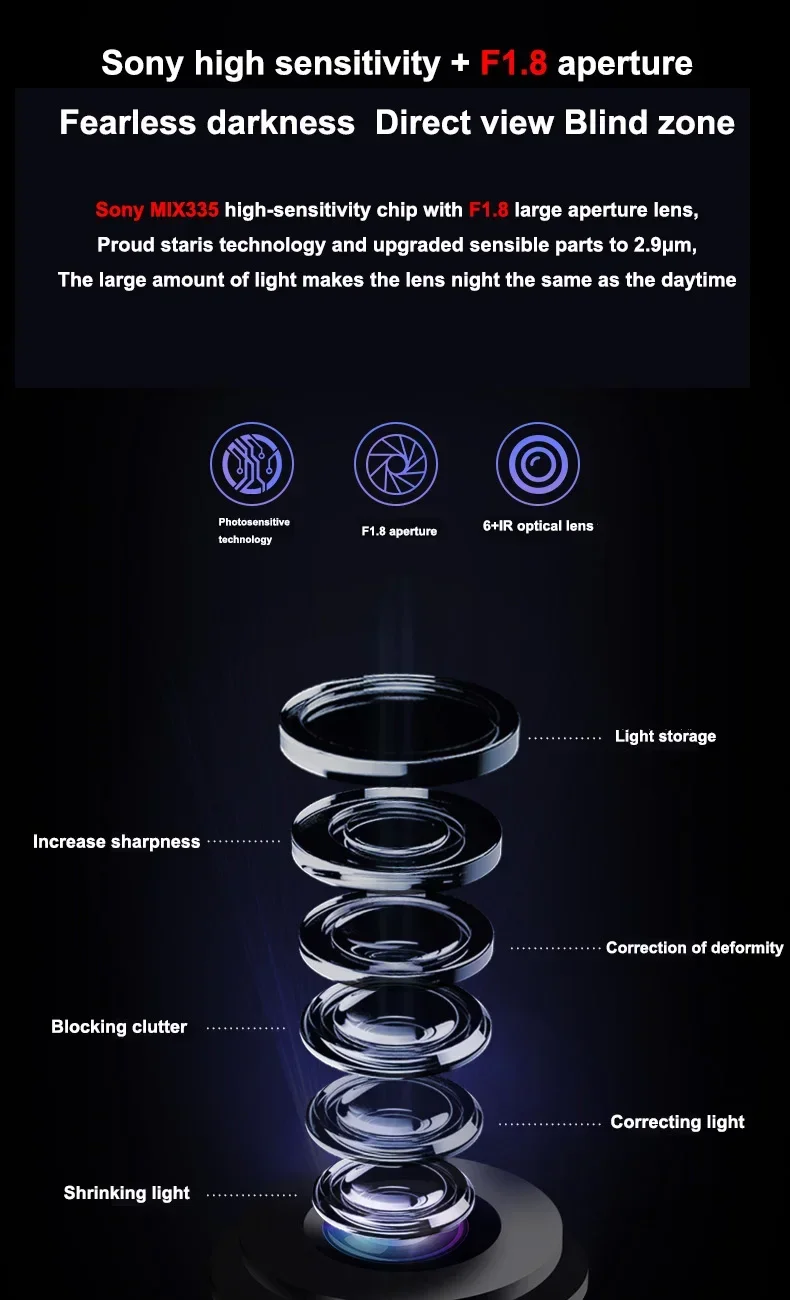

Sony high sensitivity + F1.8 aperture

Fearless darkness  Direct view Blind zone

Sony MIX335 high-sensitivity chip with F1.8 large aperture lens,

Proud staris technology and upgraded sensible parts to 2.9μm,

The large amount of light makes the lens night the same as the daytime



Built-in WDR wide dynamic technology

WDR technology uses DSP circuit to expose the bright and dark parts with

the appropriate shutter speed, and the two images are processed by DSP,

so that the over-bright and over-dark parts can be seen clearly.

Gravity Sensing



When a violent collision occurs, the emergency backup recording function is

automatically recognized and activated, and the important evidence locking protection

is stored in the memory card to prevent loss of coverage.



Link WIFI Control

Please download TimaCam or RoadCam APP from Apple Store or Google Play Store.

The WIFI Name is: CARDV**** or Y06-****

The password is : "12345678" or "88888888"

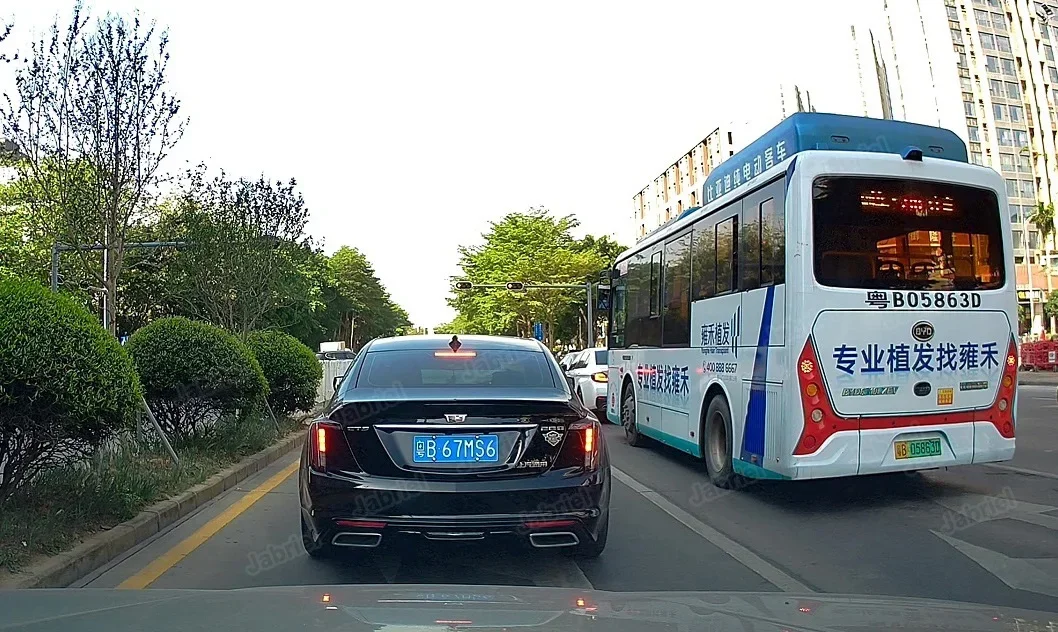

Real Video Display

The image is compressed and actually very clear

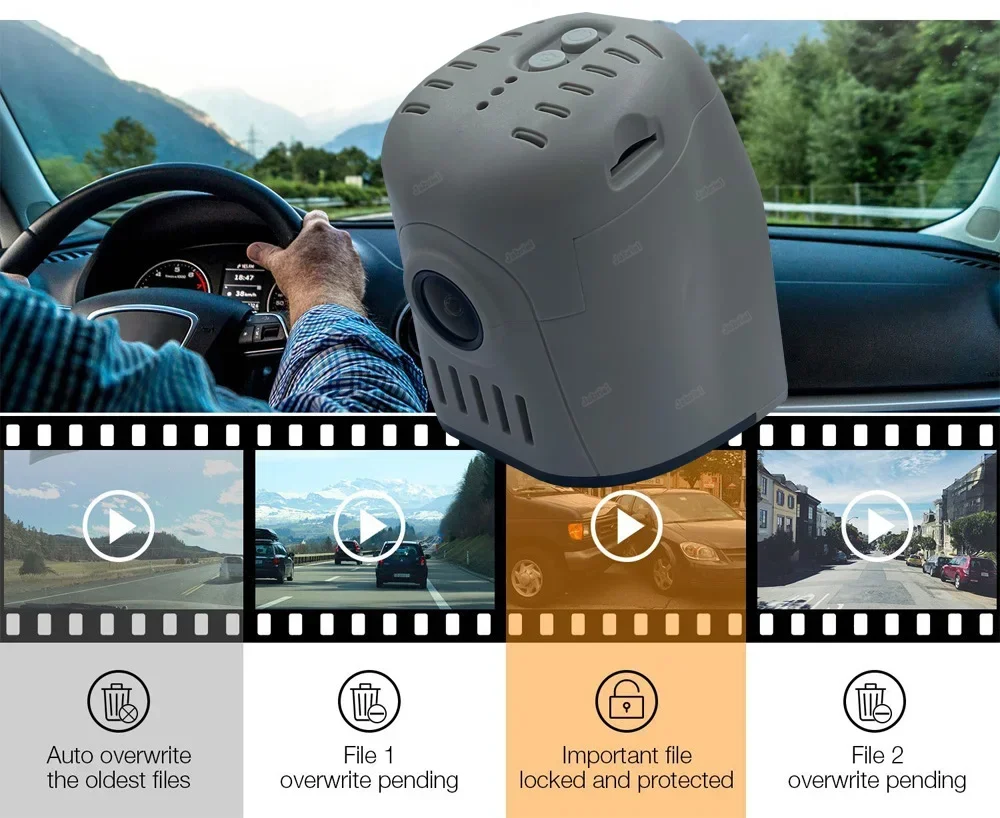

Cycle Recording without leaking seconds Video segmentation

recording, when the video is full, the recorder will automatically

delete the previously recorded video clips and record them in

a loop, so that you don't have to worry about frequent card changes.



   24-hour parking monitoring

Intelligent Anti-Shake

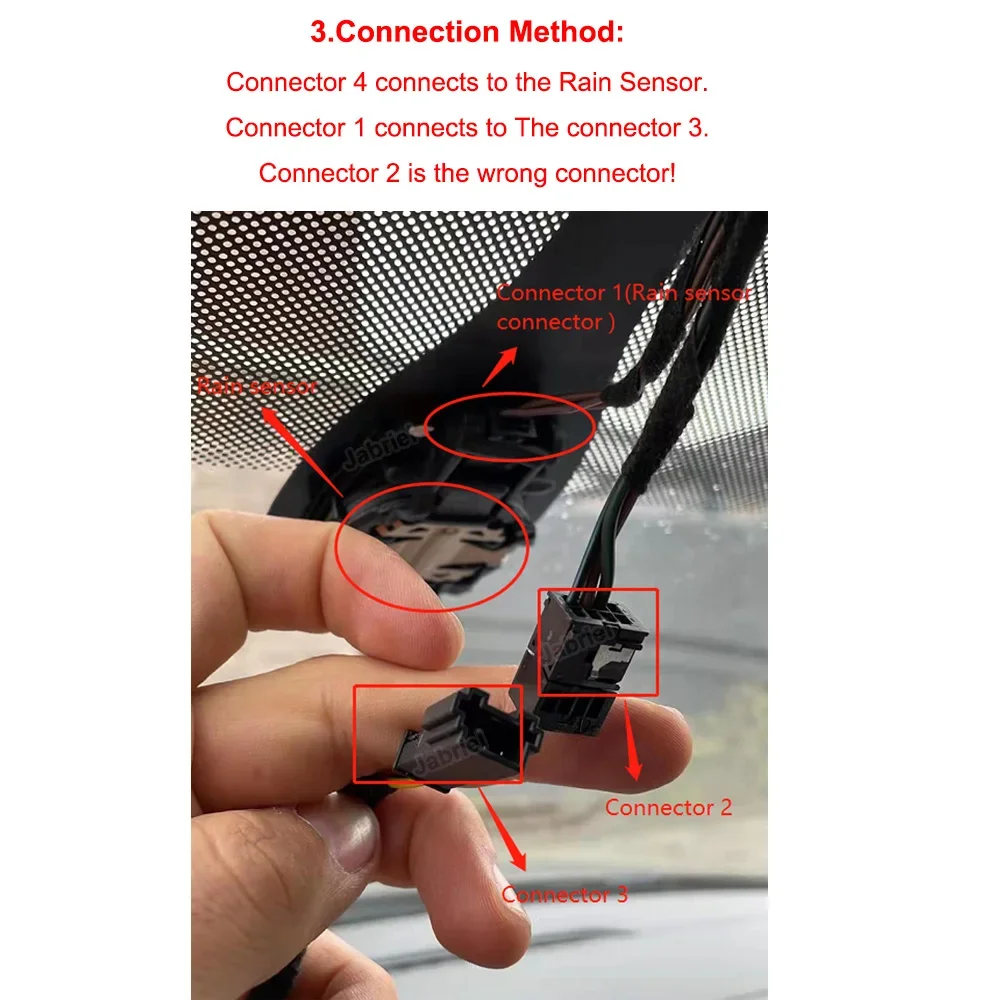

Cable Connection



New Plug and Play Power Cable: Connect to the rain sensor of the original car.
Connector 4 connects to the Rain Sensor.
Connector 1 connects to The connector 3.
Connector 2 is the wrong connector!




Standard ACC Power Cable:

Reference Installation Guide

1. Before installation

First test: the red and yellow wire harnesses of the recorder are connected to the positive electrode of the battery, the black wire is connected to the negative electrode of the battery, the indicator light of the recorder lights up, and the test is completed!



2. Installation



The red wire is connected to ACC, the yellow wire is connected to constant electricity, the black ground is connected, You need an electric pen to measure ACC and constant electricity.



(1)Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is off.  it is ACC.



(2) Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is on. it is constant electricity.



3. After installation



The memory card needs to be formatted before use, and it must be turned off before removing the card each time (the indicator is off when the indicator is off).





Note: Any questions or problems, please contact us , we will try our best to serve you until you are satisfied.Communication can solve any problem!
