SPECIFICATIONS
Brand Name: HGDO
Frames Per Second: 25
Origin: Mainland China
Chipset Manufacturer: Hisilicon
Assembly Mode: REARVIEW MIRROR
Cable Length: 6m, 10m, 15m
APP Compatibility: Roadcam
View angle: 170°
Number Of Lenses: 2
Accessories: Standard
Screen Ratio: 16:9
Interface: AV-In
NightShot Function: YES
Power Source: Battery
Video Code: H.264
Weight: About 1KG with spare parts
Battery Life: connect with car charger or 24H parking monitor cable
Original Package: YES
Loop-Cycle Recording Feature: YES
Audio Recorded: YES
Camera Resolution: 3840x2160
Special Features: G-Sensor
Built-in Screen: YES
Battery Type: lithium battery
Video Format: MP4
Touch Screen: YES
Data Storage Capacity: 8-256G
Aperture: F2.0
Item Type: Car DVR
GPS logger: NONE
Battery: built-in
Maximum Video Frame Rate: 30f/s
Display Size: 12"
Input/Output: mini usb
Battery Capacity: 500MaH
Certification: CE
Memory Card Required Reding Speed: Class 10
Working Temperature: -30℃-70℃
Imaging Sensor: SONY IMX415
OSD Language: Chinese (Simplified)
OSD Language: Chinese (Traditional)
OSD Language: English
OSD Language: French
OSD Language: German
OSD Language: Italian
OSD Language: japanese
OSD Language: KOREAN
OSD Language: POLISH
OSD Language: RUSSIA
OSD Language: Russian
OSD Language: Spanish
Pixels: 1200Mega
Rear Camera: YES
Display: IPS
Max External Memory: 256G
Front Camera: 3840*2160P
Rear Camera: FHD 1920*1080P
Dual Lens: Capacitive Touch screen 1280*480
camera mirror rearview: mirror record
Mirror Typle: White Mirror
24H parking Monitor: Supoort, please buy our hardwire kit
WIFI Connection: Support
Choice: yes
semi_Choice: yes
Pay attention
Due to platform settings, the annual promotion price will take effect on March 20th. We will directly reduce the daily price by $12 on March 17th, March 18th, and March 19th. The current price is the same as the annual price.
How to chose Room Mirror bracket?
If your car has room mirror:
After reading the description, if you can confirm your room mirror bracket number: choose the option with “ Holder”- place the order- Leave message and write the number - pay the order
If you can not confirm your room mirror number：choose the option with “ Holder”- place the order- pay the order- contact seller and leave a message about your car model, year and room mirror photo.
If you can not confirm your room mirror number：choose the option with “ Holder”- place the order- pay the order- contact seller and leave a message about your car model, year and room mirror photo. ( As the photo below)
If your car does not have room mirror:
choose the option with “ Holder”- place the order- pay the order- contact seller and write “ No room mirror”
Attention: If there is no note or message to customer service, and there is no response within 24 hours, we will send the number 1 bracket.
Why choose HGDO 4K dash cam mirror?
❤High-end Huawei HiSilicon chip, the most realistic 4K image quality and the most agile operation, the chip determines the camera's video quality, operating sensitivity and service life.
❤4K UHD and Starlight Night Vision of this rear view camera are provide crucial details to back you up in an unexpected incident.
❤Smart Voice Control System of this car camera is hand-free operation, easier and quicker to operate.
❤GPS with Speed and Location, exactly know when/where the events happened.
❤Safe reversing aid and parking monitor, dash cam keep an eye on your car when reversing and parking.
❤The WIFI function allows you to watch the recorded video in real time on your mobile phone.
❤G-Sensor lock emergency video on dashboard camera as important evidence.
After sale
15 days no reason to return: Russia, United States, Spain, France, Brazil, Netherlands, Israel, Poland, United Kingdom, South Korea, Germany, Italy, Canada, Australia, Saudi Arabia, UAE, Chile, Ukraine, Japan, Mexico, Belgium, Czech Republic, Switzerland, Portugal 24 countries support, if the goods are not satisfied, please contact customer service first.
One-year warranty: within one year of purchasing the product, if there is any non-human damage failure, please contact customer service, we will provide you with the most complete after-sales service.
Specification
Model: D566
Chip: HISILICON 3559V200
Memory card: Class 10 TF card(8-256GB)
Video resolution: 3840×2160(4K) & 1920x1080P
Camera Lens: Sony IMX 415
Installation method （ Optional）： 1. straps to your mirror 2. replaces the original mirror with our bracket and recorder 3. mounts to the dashboard with our dashboard console
Main Functions:
1. Five screen Displays: support five screen display models, Full screen display, split screen display, half screen display.
2. Support GPS Track
3. Support G-sensor, Lock emergecy video
4. Support Loop Recording, new file auto overwrites old file when card is full.
5. Support Parking Guard
6. Support 24H parking Monitor
7. The rear camera screen can be switched from left to right
8. The rear camera screen can be switched from up to down
8. The reversing screen can be zoomed in and out, and the reversing angle can be adjusted.
9. Support speed and time display
10. Support voice control ( Only Support English now)
11. Support Night Vision
12. Support Wifi function, you can watch, share, download the recorded videos on your phone

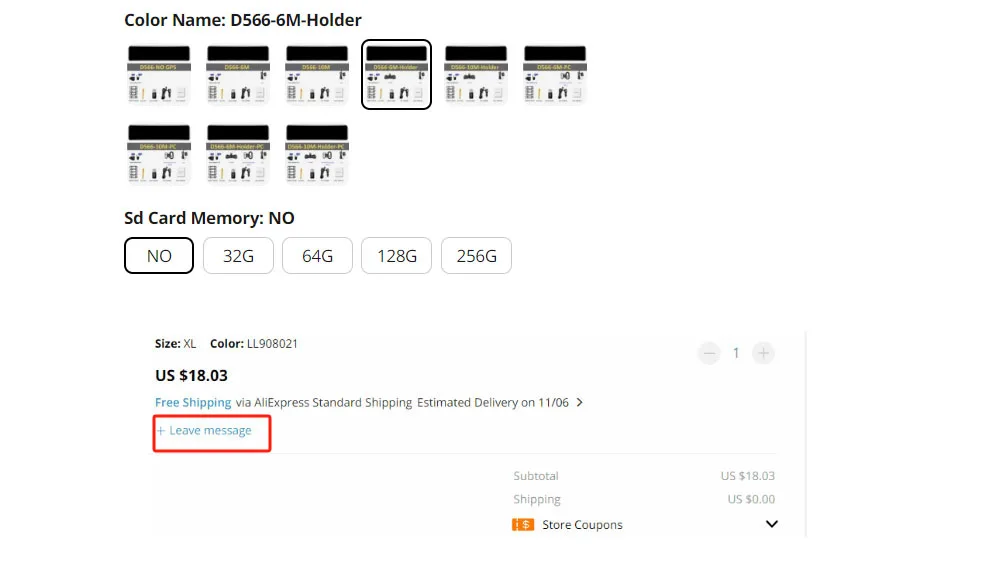

Q: How to order the bracket of the rearview mirror?
A: All our brackets have the same price, so you only need to choose the option with holder to include the bracket. D566-6M-Holder, which includes the bracket,
Color Name: D566-6M-Holder-PC, which includes the bracket and 24H parking monitoring cable.
Color Name: D566-10M-Holder-PC, which includes 10M rear camera, bracket and 24H parking monitoring cable.
If you still cannot choose, you can ask our customer service.
Attention: Rubber straps are also included in the bracket package ordered.
Q: How to choose the bracket of the rearview mirror?
A: Our brackets are produced by imitating the original car brackets. Turn to the bottom of the description page for a specific introduction, which introduces the bracket models of popular models and pictures of more than 200 brackets.
If you confirm your bracket model, you can directly remark the model when ordering.
If you do not confirm your bracket model, you can contact customer service before or after purchase, tell the customer service model and the year of your car, it is best to provide a picture of your original car bracket, so that the customer service will choose the best for you Suitable bracket. If your car does not have a rear-view mirror, you can note no mirror or contact customer service, we can provide you with a bracket and a base, you can stick the base on the glass, and then install our bracket, so that you can create a new one Rearview mirror and bracket.
The best quality materials, the best 4K camera.
The camera's motherboard, lens, and chip all affect the camera's picture and video quality. The materials we use are the best. For the same 4K camera, the quality gap between ours and other brands is also very large.
We bought 4K cameras from other brands for comparison. Although the appearance is the same, the difference in camera image quality is very obvious.

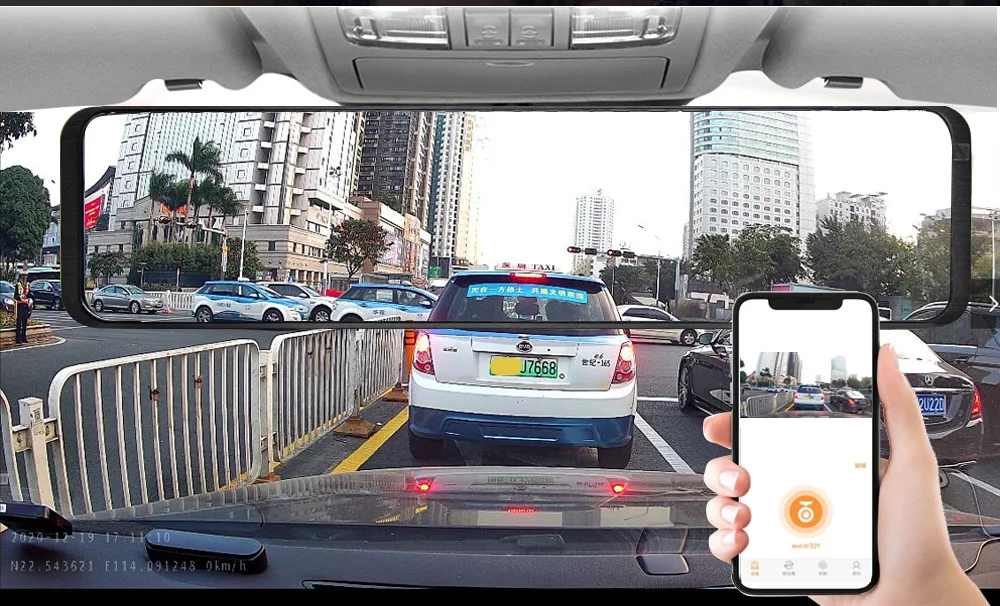

Full View Screen
Full View Touch Screen provides crystal image without any delay. Very clear and smooth images display as like a stream flowing on the excellent WDR and Auto Adjusting Brightness Streaming Mirror.
Huawei Hisilicon Hi3559V200 Chip-Number 1 Chip of Car Video Recorder
The chip supports H.265/H.264 codec
It integrates the fourth-generation ISP of Huawei HiSilicon, supports WDR, multi-level noise reduction, six-axis anti-shake and multiple image enhancement and correction algorithms to provide customers with professional-grade image quality.
Adopt advanced low-power technology and low-power architecture design to provide users with longer battery life.
High-sensitivity touch screen, fast response speed, screen operation prompts:
Swipe the screen to the right to switch between the front and back recording screens;
Swipe the screen to the left to view recorded videos and pictures;
Swipe up and down on the left side of the screen to adjust the angle of the image;
Swipe up and down on the left side of the screen to adjust the screen brightness.
Intelligent anti-shake
When recording 4K video, Hi3559V200 chip supports hardened 6-Dof digital anti-shake, the picture is clearer and more complete.
Newest SONY IMX 415 Lens
IMX415 uses Sony’s latest stacked CMOS technology. Compared with the previous back-illuminated CMOS technology, the stacked area has a higher utilization rate. The 4K CMOS image sensor can provide excellent image recognition and detection performance at the same time, as well as excellent Low-light performance, can shoot clearer images in low-light environments.

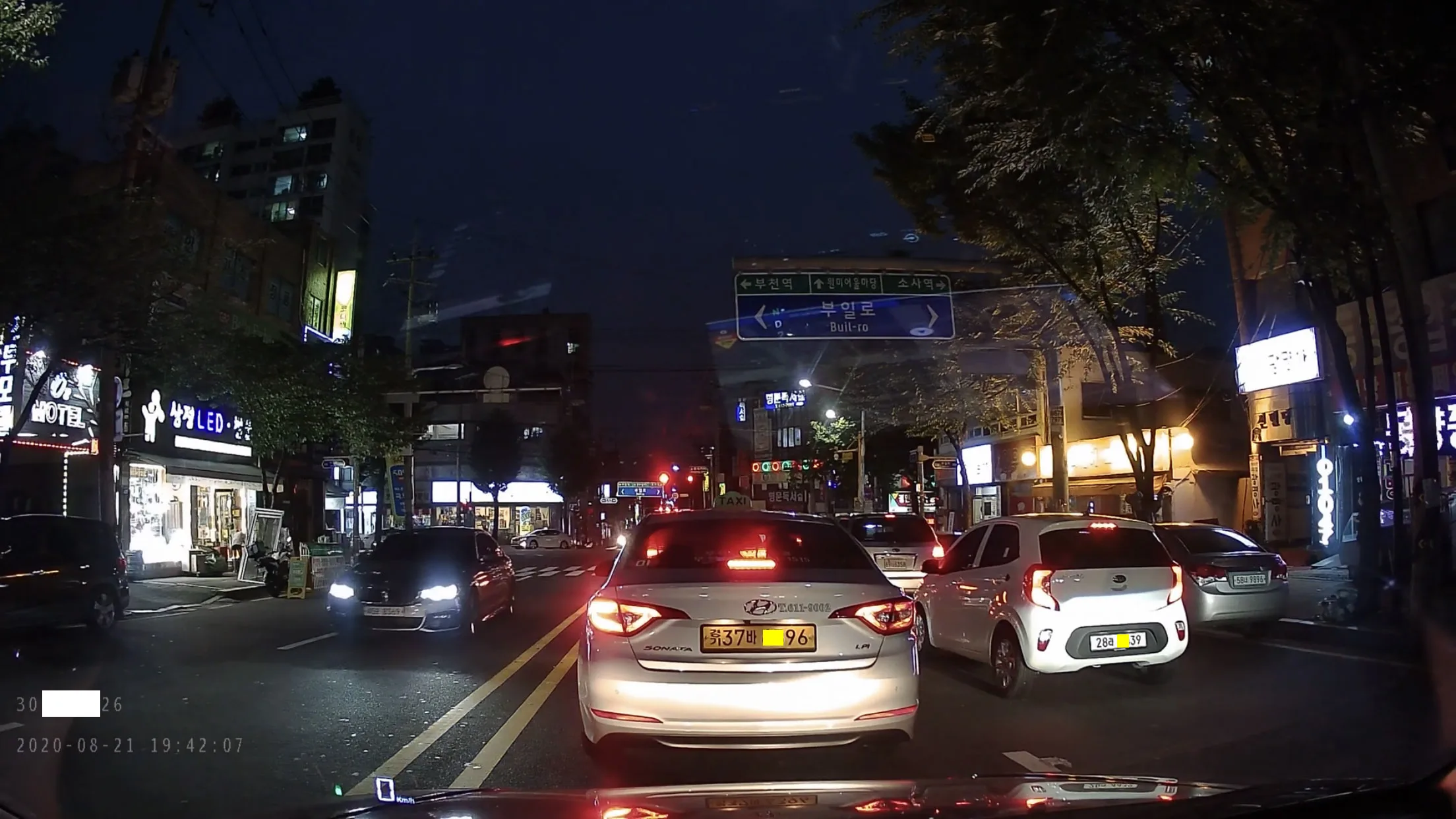

Powerful Night Vision
This is a real video screenshot, very powerful night vision function, no reflection, clear license plate number, even at night, the picture is very real and bright.
4K 3840×2160P Ultra HD
With 4K 3840×2160 Ultra HD resolution, With the high-sensitivity sensor, this car camera can perform the higher quality and vivid images and videos. it can sense the surrounding environment and delicately handle complex light. With fast image capture rate and image processing capability, it can enhance image clarity to perform more naturally vivid and lifelike image quality.
Built-in WIFI
View, save, and share the dash cam real-time footage or playback videos recordings wirelessly for fun, or for insurance purposes with the app by connecting the dash cam's WiFi function.
Smart Voice Commands
Smart voice recognition, voice control recorder: turn on or off the screen, turn on or off voice, start recording, lock video, front camera image, rear camera image, front and rear camera image, turn on or off WIFI.

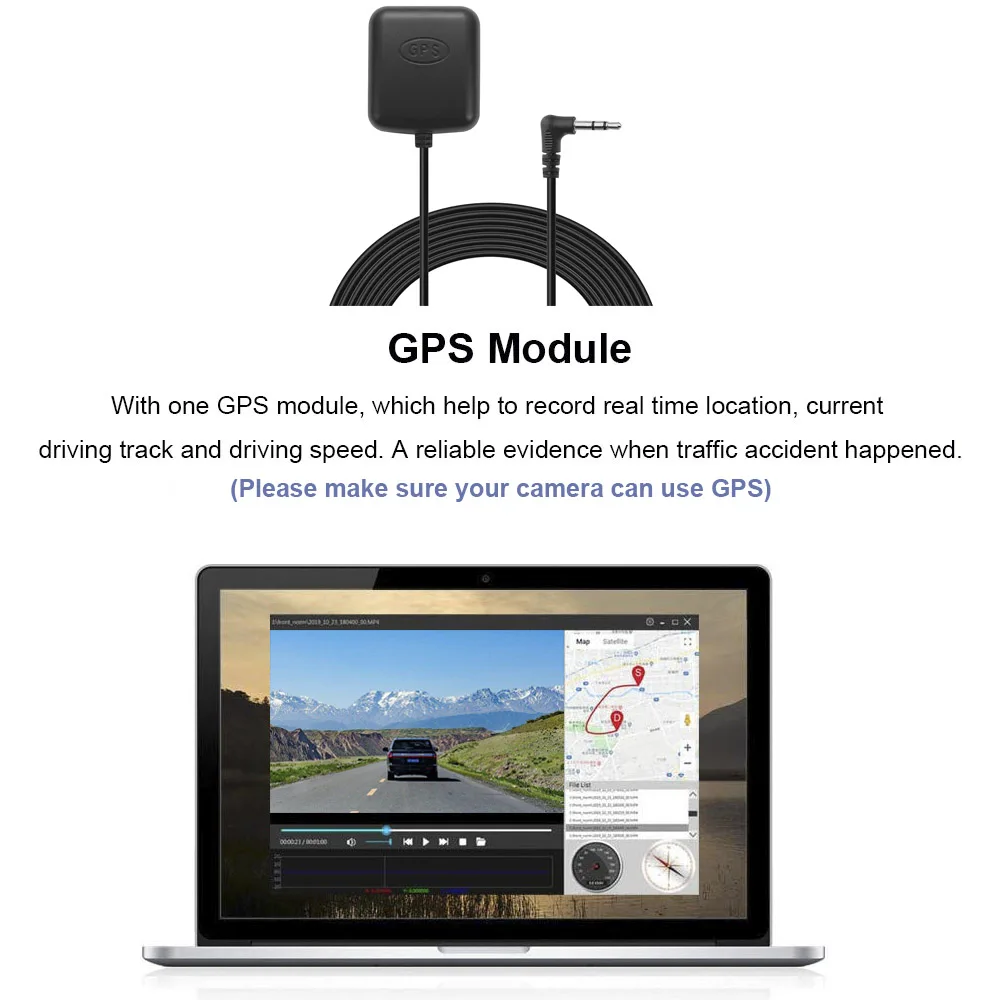

GPS Module Included
Equipped with a GPS antenna and you can see the real-time speed and vehicle trajectory, which help to record real time location, current driving track and driving speed. A reliable evidence when traffic accident happened.
Attention: Download the GXPLAYER GPS APP via our offered URL. After the installation is successful, you can play video on the PC side through this GXPLAYER APP.
After you plug in the GPS antenna, please open the menu and find "Time Zone", and adjust the time zone according to your country.

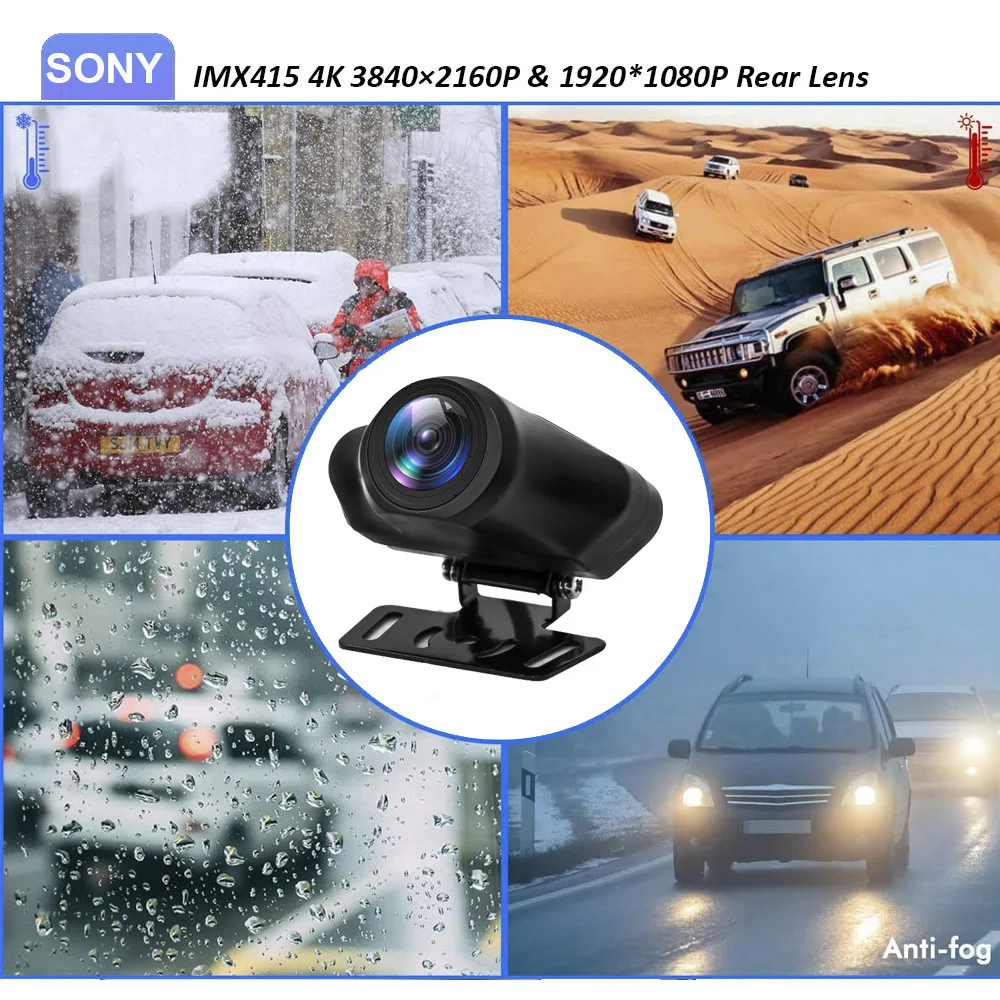

1080P Rear Camera
SONY IMX 415 4K front 3840×2160P & 1920x1080P Rear Camera

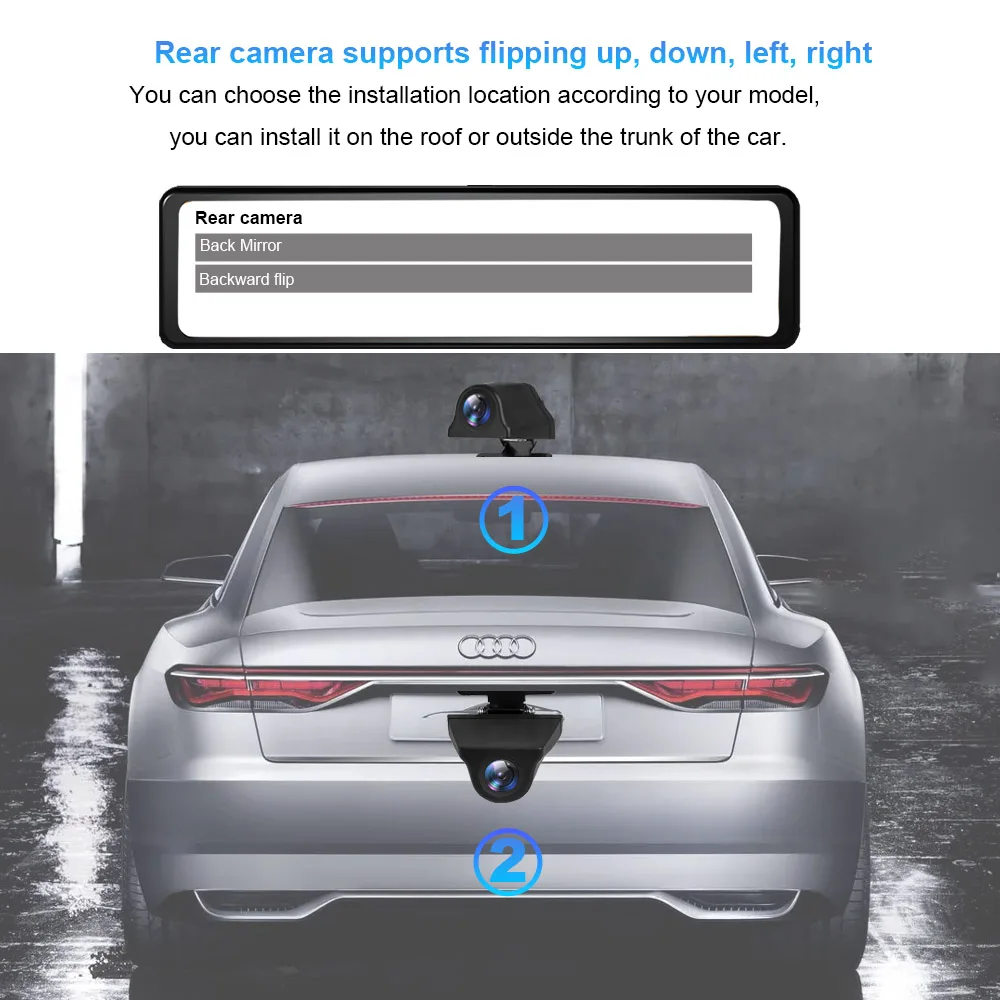

Back Mirror Function and Backward Flip Function
You can flip the rear camera up, down, left, and right in the menu, and you can choose the installation angle according to your needs.
Parking Line
Smart rear view angle switch between driving and parking. You could see all further vehicles and objects clearly behind you while real-time driving and it will lower the rear view angle automatically to give a closer backup image when parking.
There are 6 reverse line modes, you can adjust the reversing angle and zoom in the reversing screen
Parking Guard mode
When you park, the camera is turned off, if someone approaches your car, when the camera detects any impact or collision, the recorder will automatically turn on and start recording, the device will automatically record for 20 seconds and save to the camera, you can slide left Check the locked video in urgent video on the screen.
The difference between medium and high and low is the sensitivity, and “high” means that a slight collision will lock the video. It is recommended to select "Medium" or "Low".
Time-lapse= 24H parking monitor function
This function must be connected to the HGDO 24H parking monitoring line, the connection method:
1. Red wire connect car key power ACC+12V
2.Yellow wire connect with 12V (B+) (not controlled by the ignition key, when your car does not start, it is still energized, it can be tested with an electric pen)
3.Black wire connect with GND
If you want to use the 24H parking monitoring function, after confirming that the 24H parking monitoring line is connected, please turn on the time lapse function in the menu. When you stop and turn off the ACC, the recorder screen will display "parking monitor running", and then the screen will Turn off, short press the power button to turn on the screen, double tap the screen to enter the recording screen. When you start the car, the car camera will automatically exit the 24H parking monitor mode.
What is TIme Lapse and How to choose?
After the parking monitoring setting is successful, the video will be stored at several times the speed, which can achieve 30 minutes of recording compressed into 1 minute of storage. This function can ensure the integrity of the recorded video during parking and will not change the clarity of the video. Just changing the playback speed also greatly saves memory space. Generally, only about 5G of memory space is needed for 24-hour recording, which can monitor and protect cars 24 hours a day to a certain extent.
There are three options for time lapse: 1S, 2S, 3S.
1S: 30 minutes of video will be compressed into 1S
2S: 1 hour of video will be compressed into 1S
3S: 1 and a half hours of video will be compressed into 1S
Loop Recording + G-sensor
G-sensor - Powered automatic video recording and video file locking when a collision or crash is detected. The sensitivity of the G-sensor can be set to different levels.
Loop Recording Function- Ensures continuous recording without missing a second,record automatically during vehicle ignition, switch off automatically with ignition off to get you free from the hands operation.
Special Mount for camera (You can order it directly, all the bracket price is same. We will write the bracket number for you)

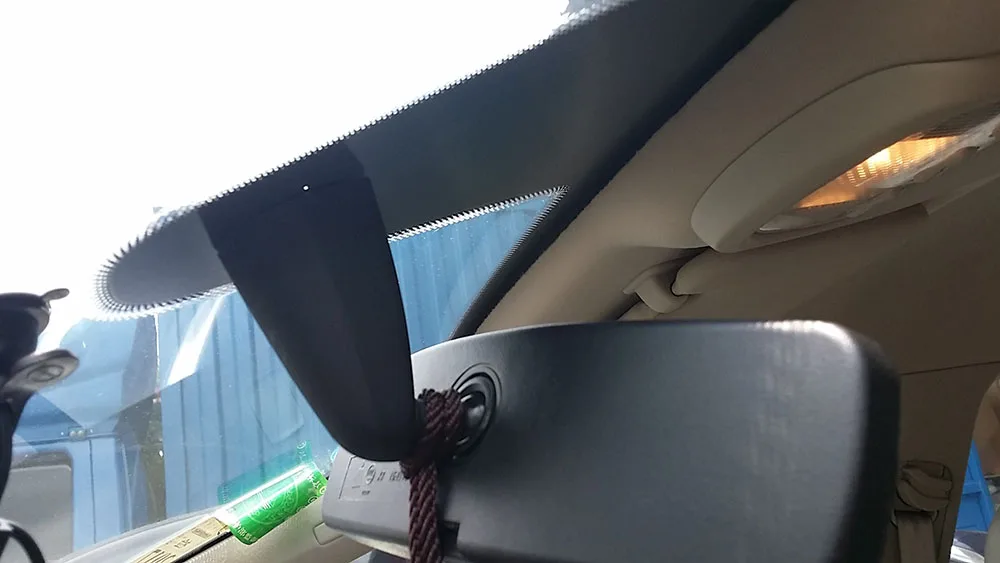

Method1: Rubble Straps installation Fix our car dvr on your original rearview mirror (No need remove the car mirror);
Method2: Special Mount Installation Remove your car original mirror and mirror holder and then install the car dvr instead.
Special Mount for camera (You can order it directly, all the bracket price is same. We will write the bracket number for you)
Method1: Rubber Straps installation Fix our car dvr on your original rearview mirror (No need remove the car mirror);
Method2: Special Mount Installation Remove your car original mirror and mirror holder and then install the car dvr instead.
(Note: Since we are a customized bracket, after you order the product, it is best to provide the customer service with a picture of your original car mirror frame, and provide your model and year information. If you do not provide it, we will send the number 1 and the base to You) ↓↓↓
The DVR Holder for Car DVRs Mounts Rearview Mirror DVR Holder Car GPS Recorder Mount Bracket We have about 200 kinds of brackets. For Ford, Mazda, Volvo, SUZUKI, LADA, BUICK, CHEVRDLET, OPEL, Mercedes-Benz, B.M.W, VOLKSWAGEN, Audi, Skoda, PEUGEOT-CITROEN, PEUGEOT, RENAULT, NISSAN, TOYOTA, LEXUS, HONDA, HYUNDAI, KIA, Mitsubishi, Smart, MORGAN and other most cars.
The following are some mounts of popular models. If you are not sure about the mount number, you can contact our customer service and they will find the most suitable mount for you.
Audi: 3A, 10, 22, 55, 98, 141
Mercedes: 12, 37, 45, 49, 50, 63, 68, 86, 101, 115, 135, 138, 147, 157, 200, 202,
SMART: 131, 99
Tesla: 65, 169, 207, 208, 209, 210,
BYD: 12, 25, 26, 85, 151, 174, 176, 180, 93, 185, 193, 43, 204,
Buick: 1, 4, 14, 118
Pentium: 1, 3A, 118, 203,
BMW: 11, 23, 32, 106, 119, 130,156, 161, 167, 178, 187, 196
Mini: 23, 32, 11
Peugeot: 1, 3B, 12, 58, 75, 139, 142, 155
Porsche: 3A, 11, 30, 40, 117
Bentley: 40, 103, 141, 10
Baojun: 6, 192, 194, 186, 214, 215
Honda: 1, 2, 8, 12, 61, 149, 14, 190, 201,
Volkswagen: 3A, 24, 27, 35, 40, 44, 55, 60, 67, 103, 105, 113, 120, 123, 183,
Dodge: 1, 53
Daihatsu: 64
Toyota: 1, 2, 8, 14, 25, 29, 80, 107, 118, 129, 136, 190, 213,
Fiat: 14, 53, 62, 3B
Ford: 1, 3B, 14, 47, 48, 100, 158, 73
GMC: 1, 118
Haval: 1, 46, 124, 14
Jaguar: 11, 31, 79, 160, 96
JEEP: 1, 53, 70, 87, 102, 125, 177, 179, 145, 184
Cadillac: 1, 15, 118
Renault: 1, 12, 13, 21, 66, 108
Land Rover: 1, 11, 31, 34, 79, 96, 160
Lincoln: 1, 47, 100
Lexus： 1, 107, 118, 136, 171
Suzuki ：1, 2, 9, 59, 110, 170, 167, 20
Rolls-Royce: 156, 23, 119, 11
Lamborghini: 3A, 22, 141, 10
Maserati: 53, 126, 140
Mazda: 1, 28, 90, 175, 48
Opel: 1, 7
Acura: 1, 149, 162, 121, 8, 12
Chery: 1, 2, 6, 28, 78, 88, 104, 41
Kia: 1, 7, 14, 118
Nissan: 1, 8, 14, 38, 122, 2
Mitsubishi: 1, 2, 4, 72, 57, 190, 191, 107, 118
Subaru: 1, 2, 20, 97
Volvo: 33, 36, 52, 65, 76, 112, 132, 48
Chevrolet: 1, 4, 6, 118, 164, 14, 12
Hyundai : 1, 7, 14, 118, 167
Citroen: 3B, 12, 33, 58, 75, 150, 139
