SPECIFICATIONS

Brand Name: jabriel

Frames Per Second: 30

Origin: Mainland China

Chipset Manufacturer: Novatek

Assembly Mode: Hidden Type

View angle: 165°

Number Of Lenses: 2

Screen Ratio: NONE

Interface: WI-FI

Interface: Micro SD/TF

Interface: New plug and play

Video Code: H.264

Battery Life: Connect Rain Sensor or Fuse Box

Original Package: YES

Camera Resolution: 1920x1080

Special Features: G-Sensor

Special Features: waterproof

Special Features: Anti Fog

Special Features: Anti Vibration

Special Features: Real Time Surveillance

Special Features: Automatic White Balance

Special Features: Wide Dynamic Range

Special Features: wifi function

Video Format: MOV

Video Format: MP4

Touch Screen: No

Item Type: Car DVR

GPS logger: NONE

Battery: None

Certification: NONE

Memory Card Required Reding Speed: Class 10

Imaging Sensor: GC2053

OSD Language: Chinese (Simplified)

OSD Language: Chinese (Traditional)

OSD Language: English

OSD Language: French

OSD Language: German

OSD Language: Italian

OSD Language: japanese

OSD Language: KOREAN

OSD Language: Russian

OSD Language: Spanish

Pixels: 500Mega

Rear Camera: YES

Max External Memory: 128G

CPU: Novatek 96672

Special Features1: Wifi

Front Cam HD 1080P+Rear Cam 720P: Front Cam HD 1080P+Rear Cam 480P

Special Features3: New Plug and Play (Option)

Special Features4: 24-Hour Parking Monitoring (Option)

No Wiring: Optional

Easy to install: Optional

Work Voltage: 12V

Auto Power: Yes

G-sensor: Yes

Cyclic Recording: Yes

Real Time Surveillance: Yes

Suitable for models1: Mercedes Benz A Class

Suitable for models2: Mercedes Benz w177

Suitable for models3: Mercedes Benz A Class w177

Suitable for models4: Mercedes Benz B Class

Suitable for models5: Mercedes Benz w247

Suitable for models10: Mercedes Benz B Class w247

Suitable for models11: Mercedes Benz CLA

Suitable for models12: Mercedes Benz w118

Suitable for models13: Mercedes Benz CLA w118

Suitable for models14: Mercedes Benz AMG A35

Suitable for models15: Mercedes Benz AMG CLA35

Suitable for models16: Mercedes Benz A200

Jabriel New Plug and Play Auto Wifi HD 1080P Car DVR Dash Cam Dual Lens Cameras 24-Hour Parking Monitoring Dashcam Driving Recorder EDR Front and Rear View Camera Car Digital Video Recorder for Mercedes Benz A Class, for Mercedes Benz w177, for Mercedes Benz A Class w177, for Mercedes Benz B Class, for Mercedes Benz w247, for Mercedes Benz B Class w247, for Mercedes Benz CLA, for Mercedes Benz w118, for Mercedes Benz CLA w118, for Mercedes Benz AMG A35, for Mercedes Benz AMG CLA35, for Mercedes Benz A200.

Package Include:

1 x Manual

1 x Car DVR

1 x Power Cord


Please Contact customer service to send photos when you buy it!

1: Because this product is dedicated, to avoid installation or other problems, please tell us which year and which model of your car, and take photos for the rear view mirror bracket of your car .

2:The Rain Sensor Cable can only be used for 70% of specific car models , if you need the Rain Sensor Cable , please send us photos for the rain sensor interface of your car , then we can check it.

For Example:

New Plug and Play HD 1080P Hidden WIFI 24H Car DVR Dash Cam Video Recorder for Mercedes Benz

New Plug and Play Car Dvr Dash Cam   Easy to install

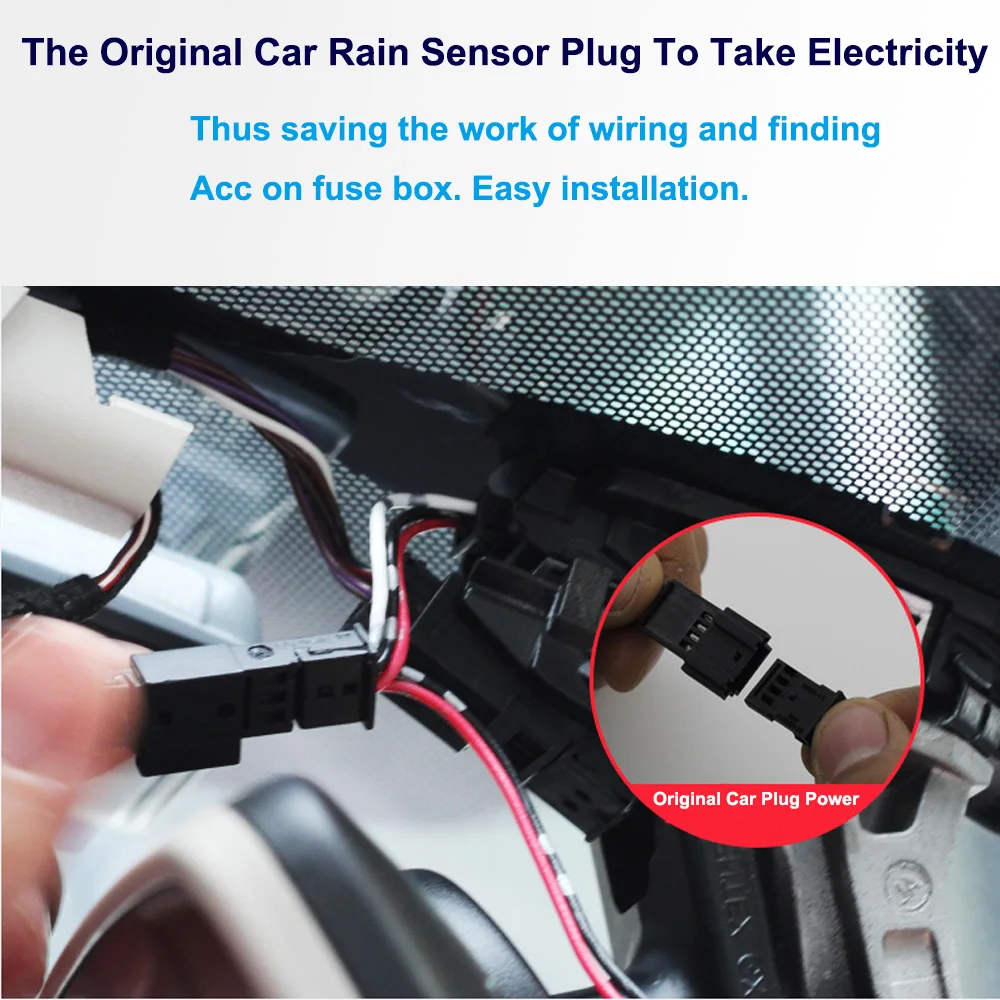

Connect to the rain sensor or reading light of the Original car



The New Plug and Paly Car Dvr Dash Cam can be pluged to the rain sensor or reading light of the original car to take electricity.It is easy to install. Inserted without damage, no wiring is required, and it maintains the original car style after installation.

128G·Smart Storage

Big, Regarding the overall improvement of storage,

Support 8-128 GB Keep driving records longer.

Safety explosion protection

High and low temperature resistance,no built-in battery design, more

safer Automotive fuse power, built-in low voltage monitoring,

automatic shutdown, non-destructive battery.



Six Glass HD 1080P Lens --- Sony IMX323

6-layer full glass lens, F2.0 large aperture

Adopt 6-layer full-glass 1080P high-definition camera,

F2.0 large apertureis larger than F2.4, and better quality

in low light environment

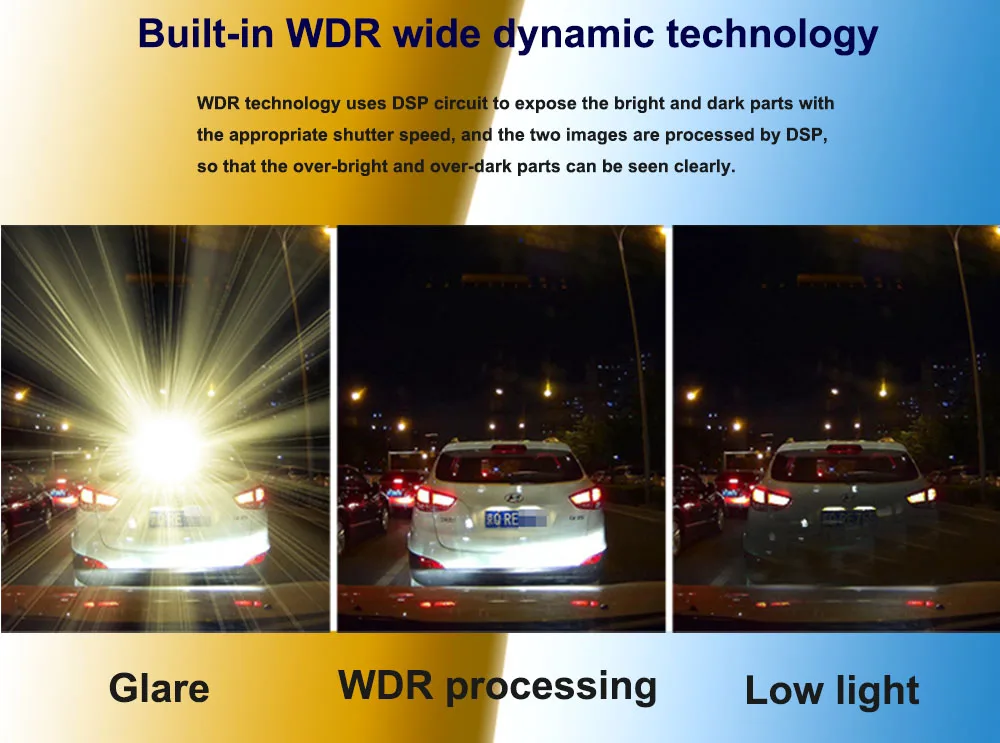

Built-in WDR wide dynamic technology

WDR technology uses DSP circuit to expose the bright and dark parts with

the appropriate shutter speed, and the two images are processed by DSP,

so that the over-bright and over-dark parts can be seen clearly.

Gravity Sensing

When a violent collision occurs, the emergency backup recording function is

automatically recognized and activated, and the important evidence locking protection

is stored in the memory card to prevent loss of coverage.

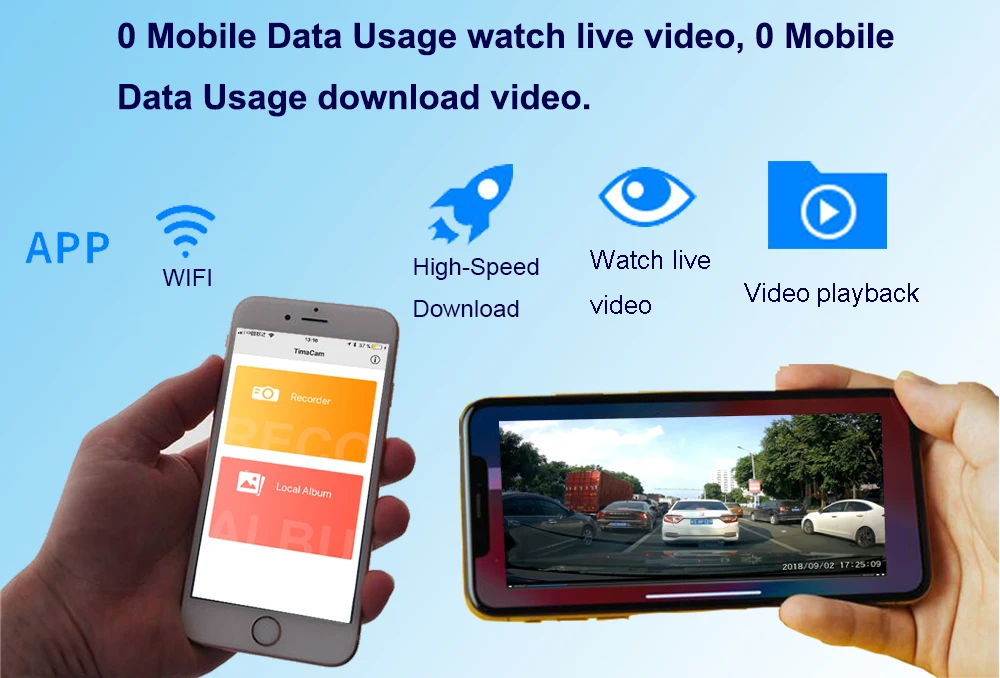

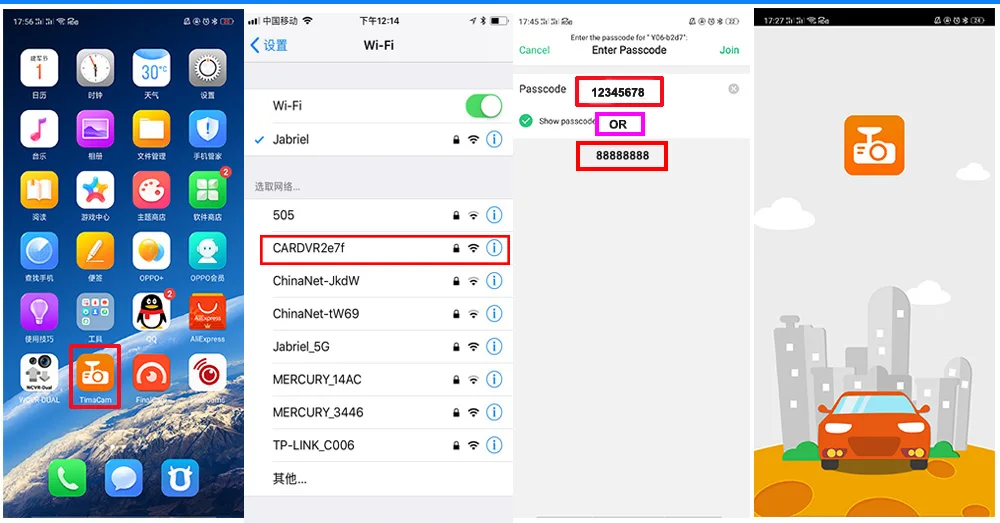

Link WIFI Control

Please download Timacam app from Apple Store or Google Play Store.

The Wifi name is CARDV**** Or Y06-****

The password is 88888888 or 12345678

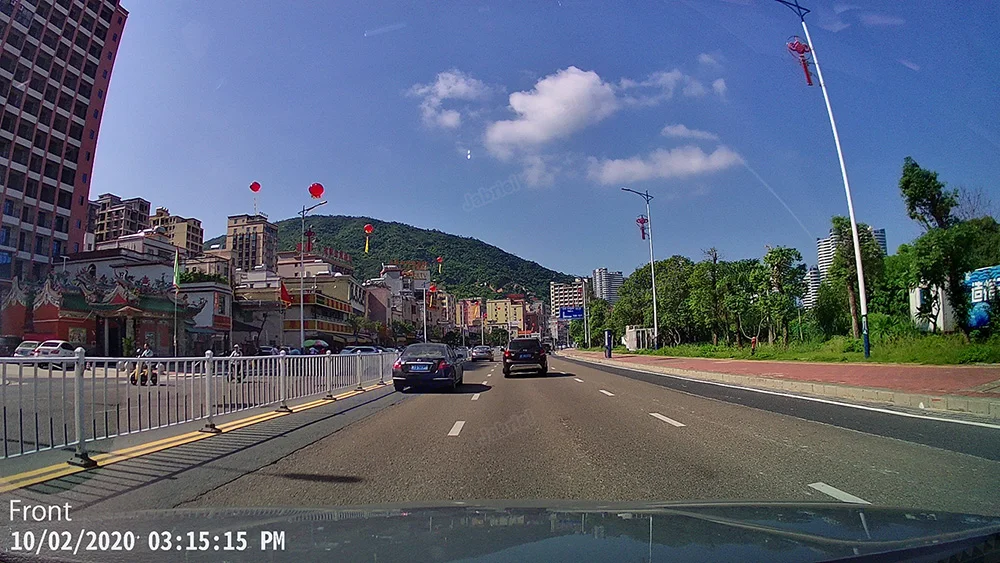

Real Video Display

The image is compressed and actually very clear

Cycle Recording without leaking seconds Video segmentation

recording, when the video is full, the recorder will automatically

delete the previously recorded video clips and record them in

a loop, so that you don't have to worry about frequent card changes.



24-hour Parking Monitoring

Cable Connection

New Plug and Play Power Cable:

Connect to the rain sensor or reading light of the original car.



Standard ACC Power Cable:

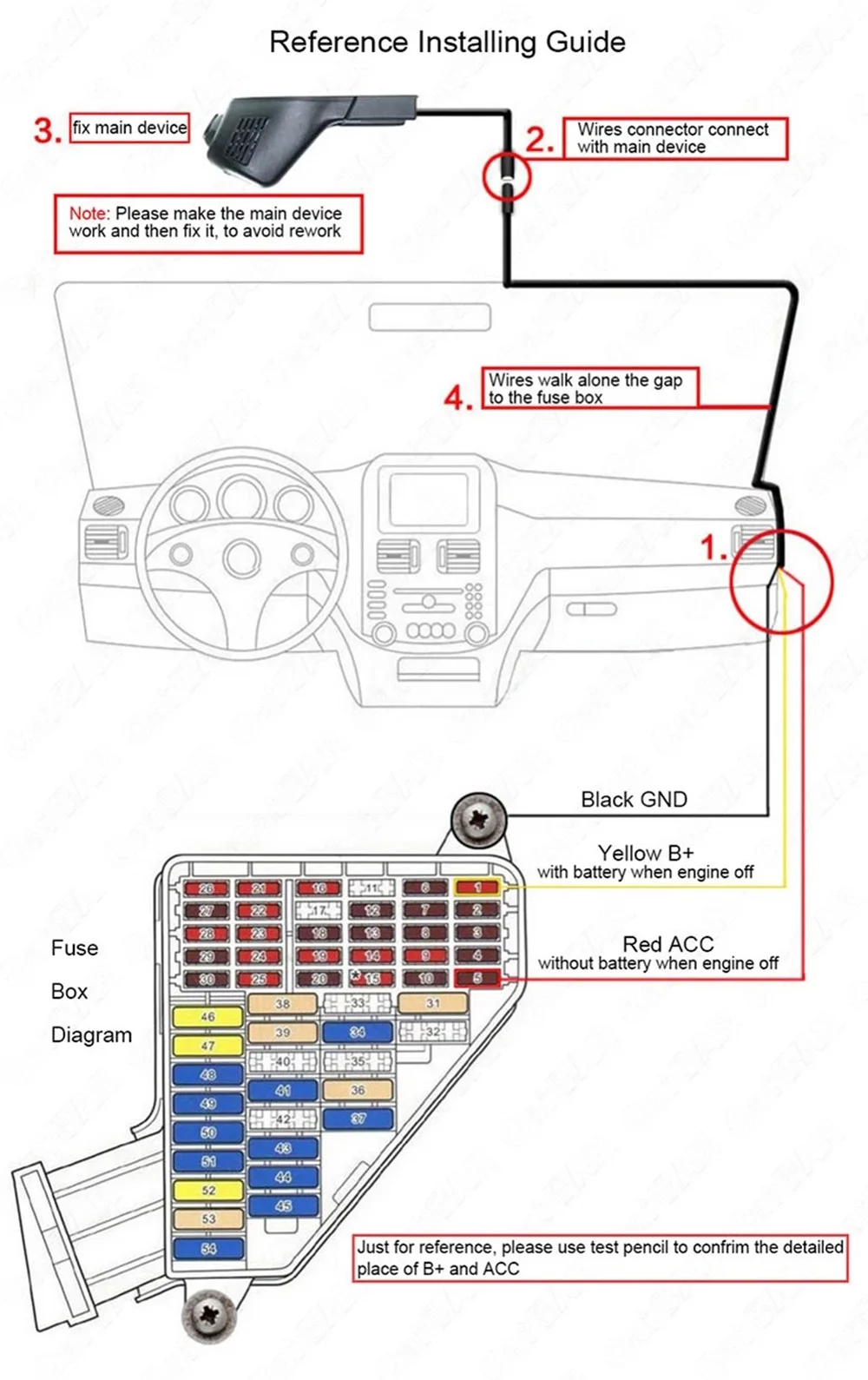

Reference Installation Guide

1. Before installation

First test: the red and yellow wire harnesses of the recorder are connected to the positive electrode of the battery, the black wire is connected to the negative electrode of the battery, the indicator light of the recorder lights up, and the test is completed!



2. Installation



The red wire is connected to ACC, the yellow wire is connected to constant electricity, the black ground is connected, You need an electric pen to measure ACC and constant electricity.



(1)Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is off.  it is ACC.



(2) Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is on. it is constant electricity.



3. After installation



The memory card needs to be formatted before use, and it must be turned off before removing the card each time (the indicator is off when the indicator is off).
