SPECIFICATIONS
Brand Name: GVDA
DIY Supplies: ELECTRICAL
Origin: Mainland China

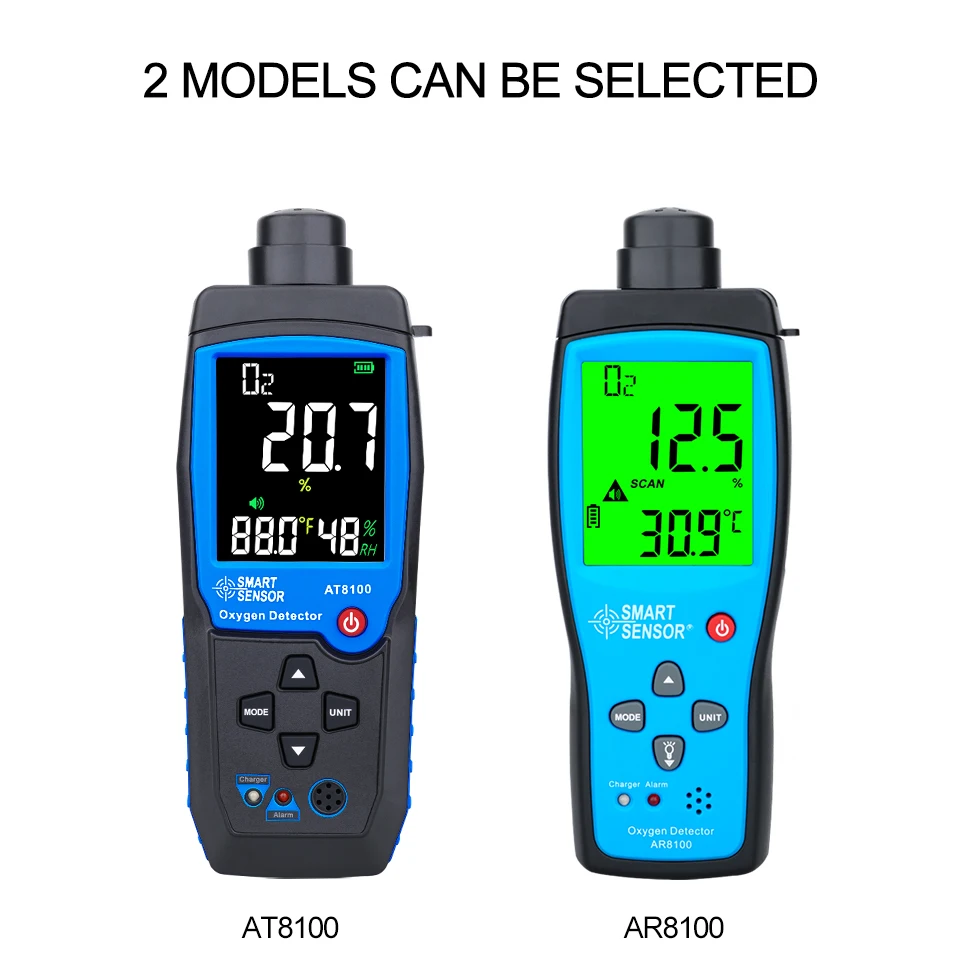

Model Number: AR8100 AT8100
With LCD Screen Or Not: Yes
Certification: CE
Certification: FCC
Measurement Range: 0-30%
Gas Type: Oxygen

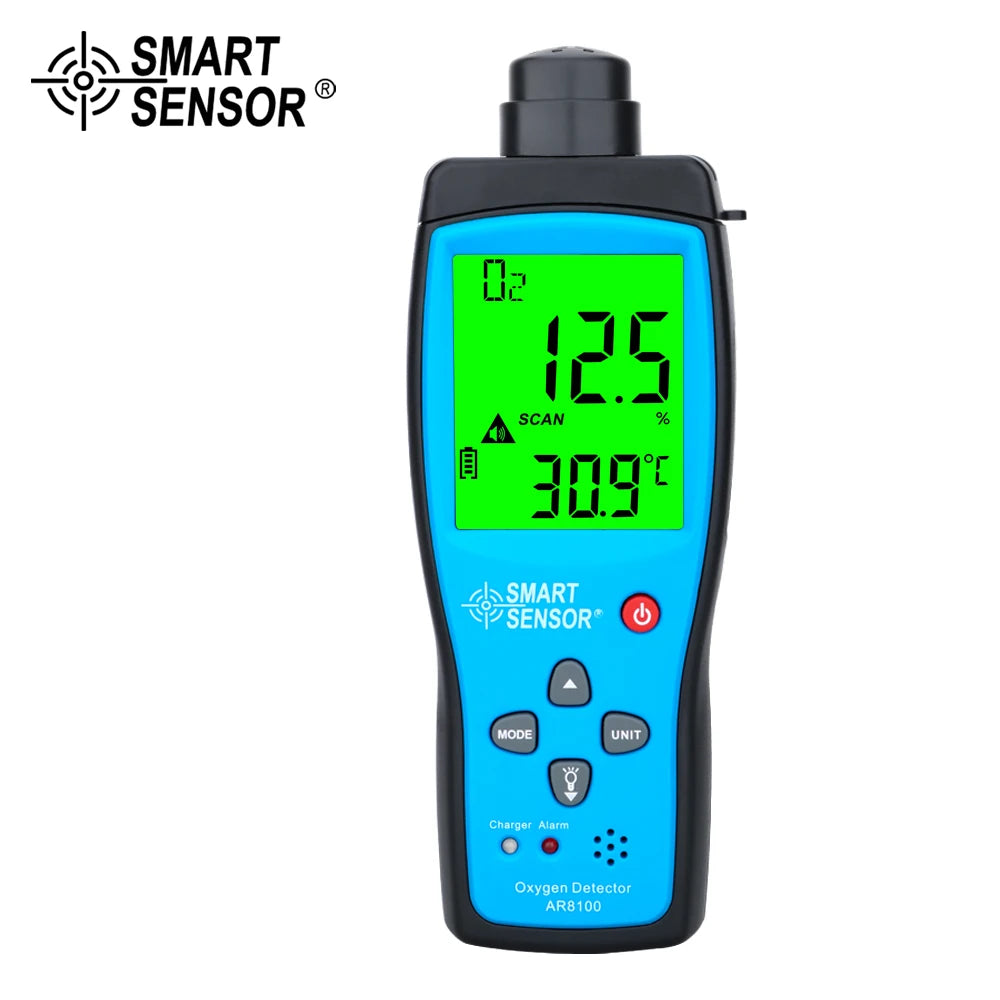

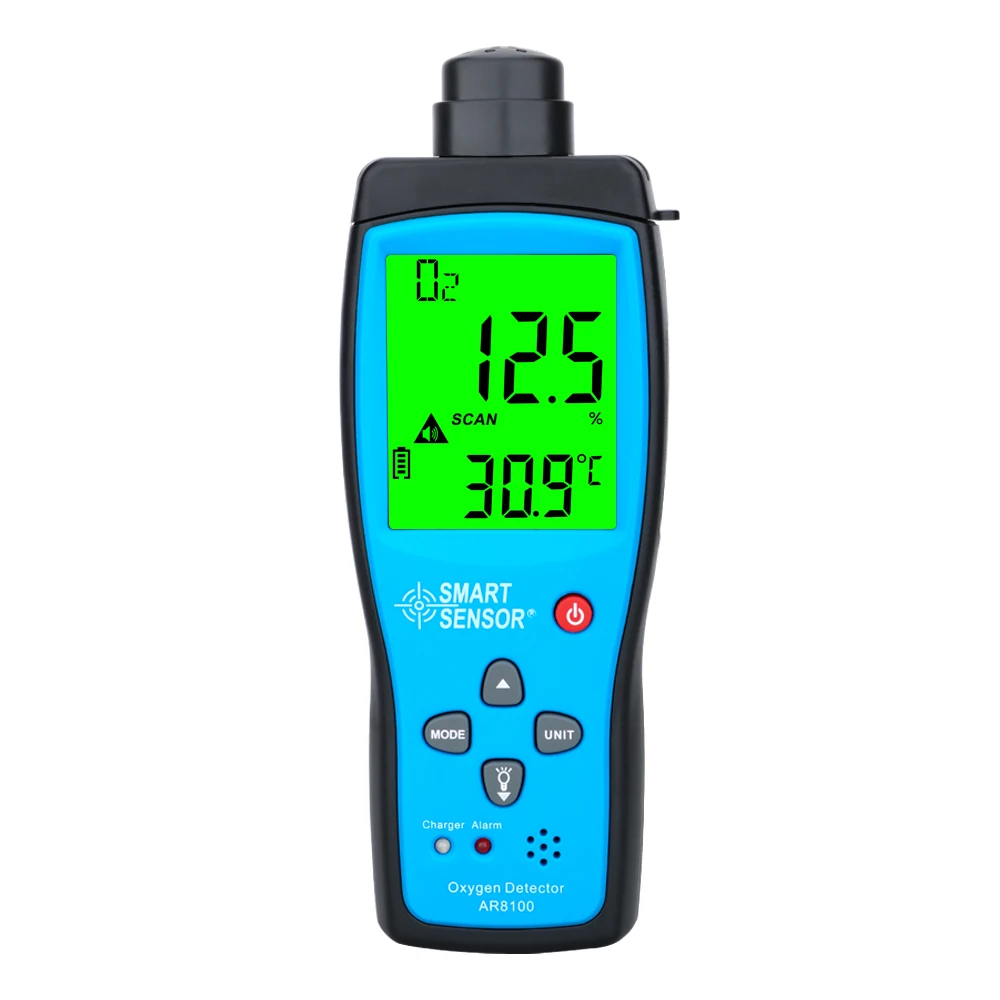

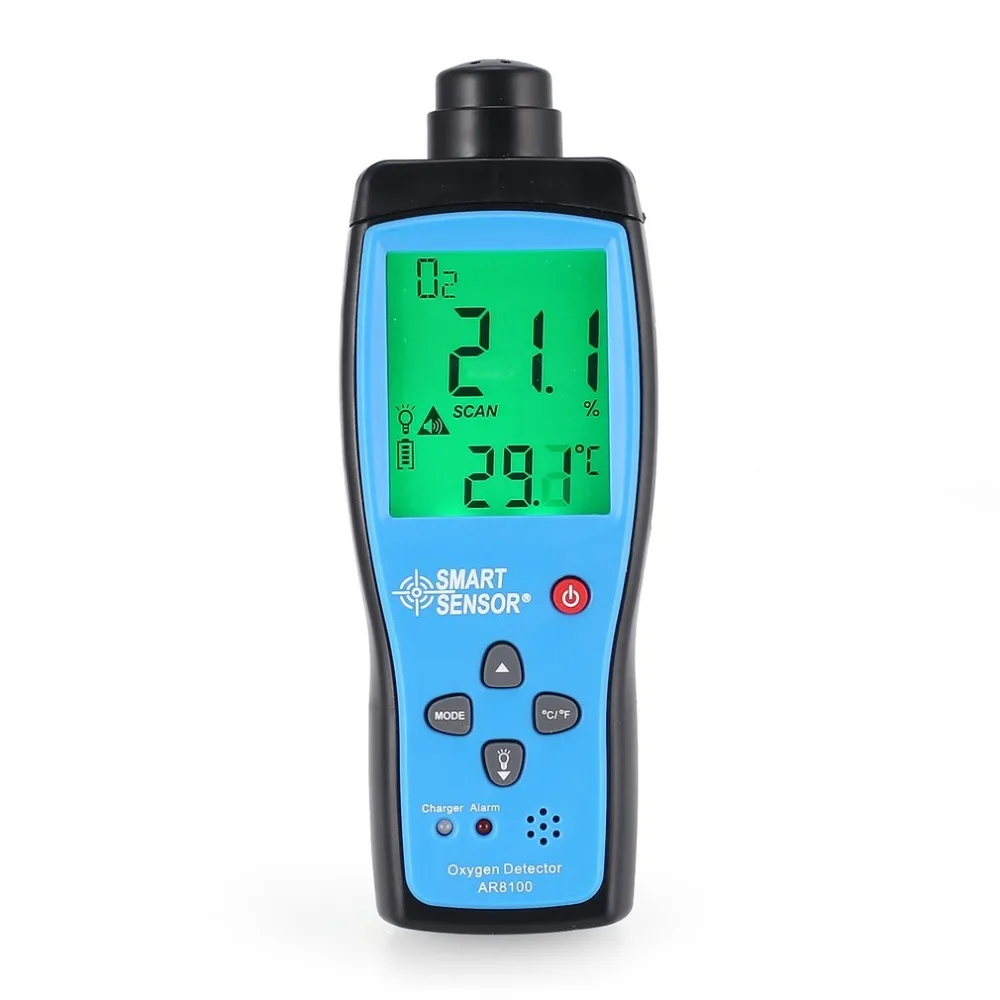

SMART SENSOR OXYGEN O2 GAS DETECTOR AR8100
Product Features
1.Portable monitor for detect O2, temperature .

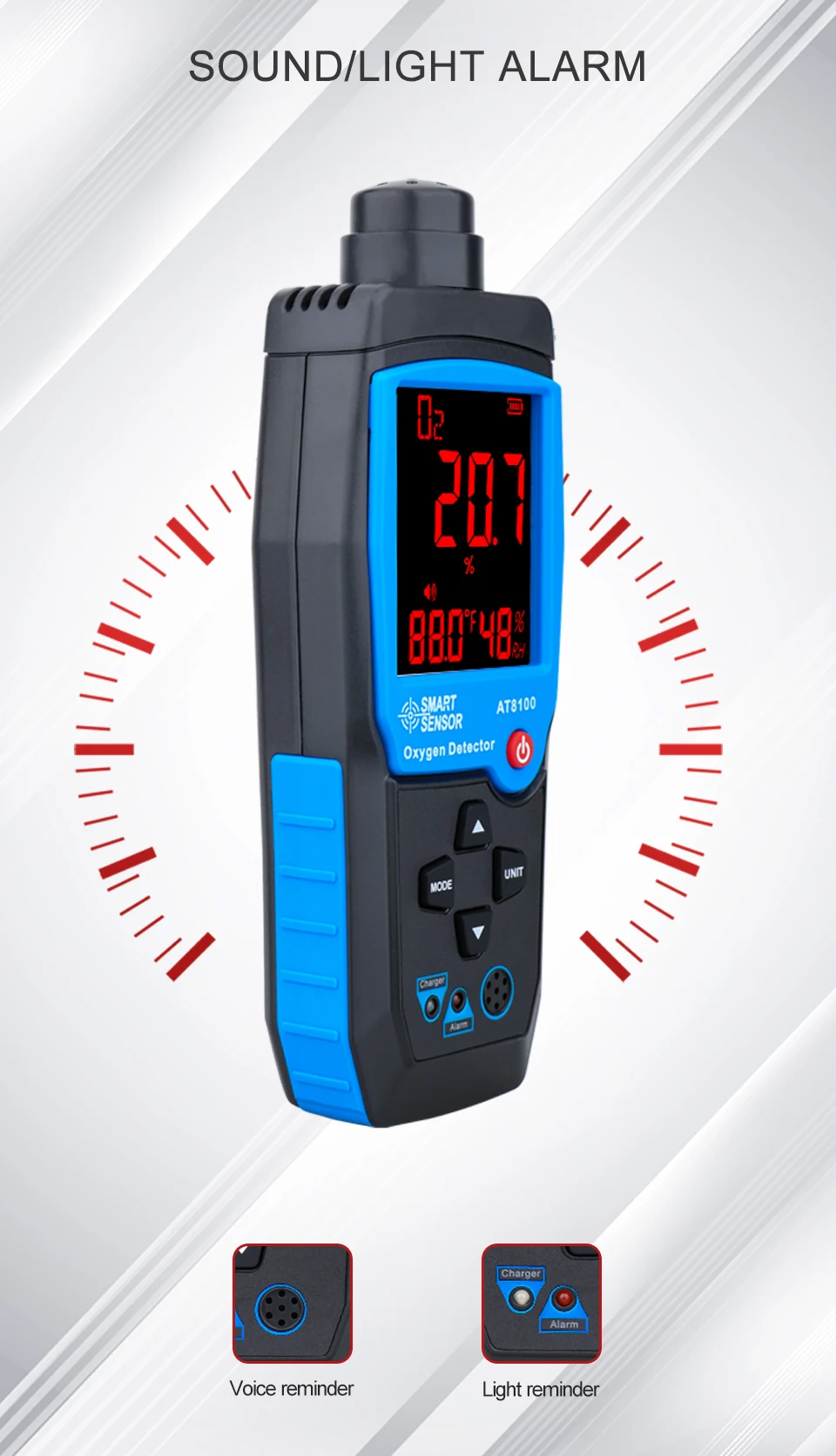

2.Respond quickly, detect precisely, sound,light two types alarms indication.

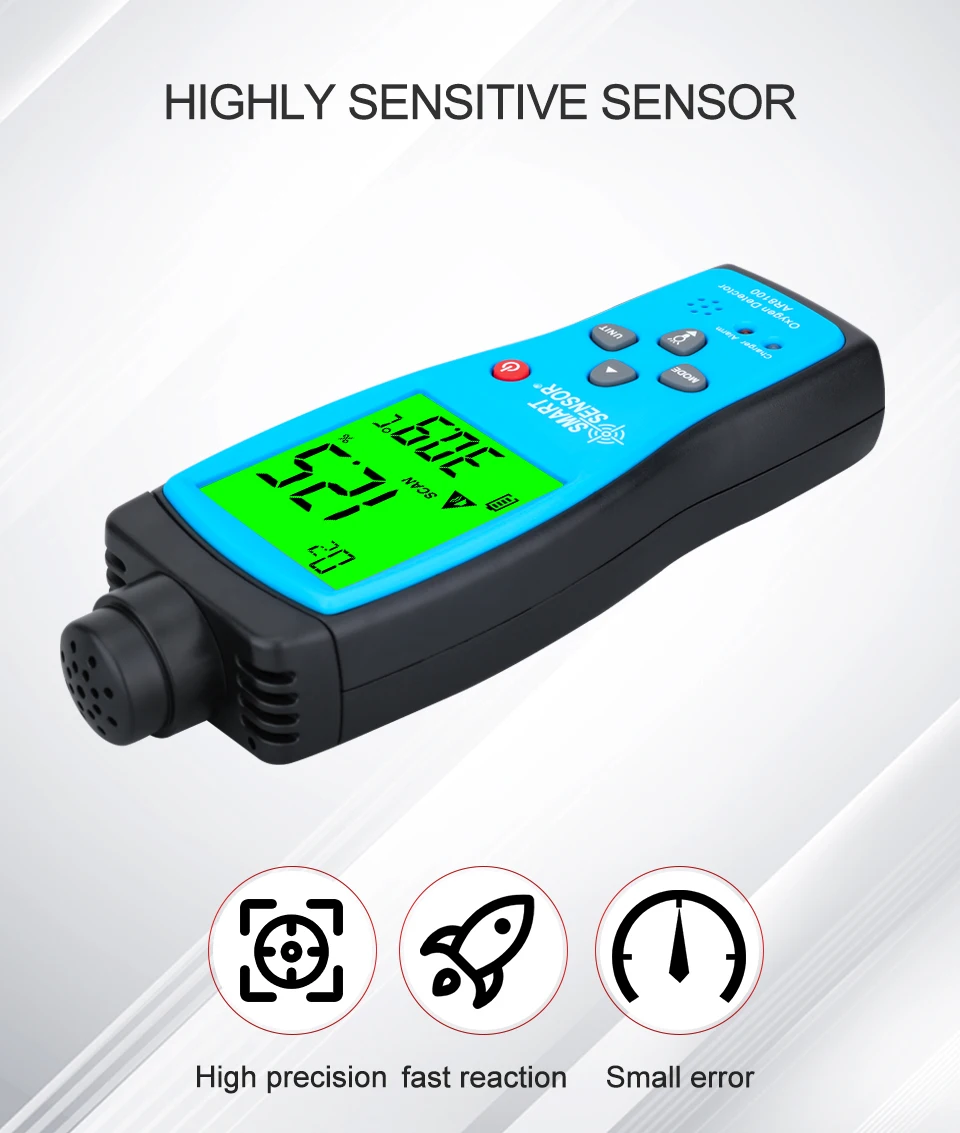

3.Electrochemical principle measuring,high accuracy.

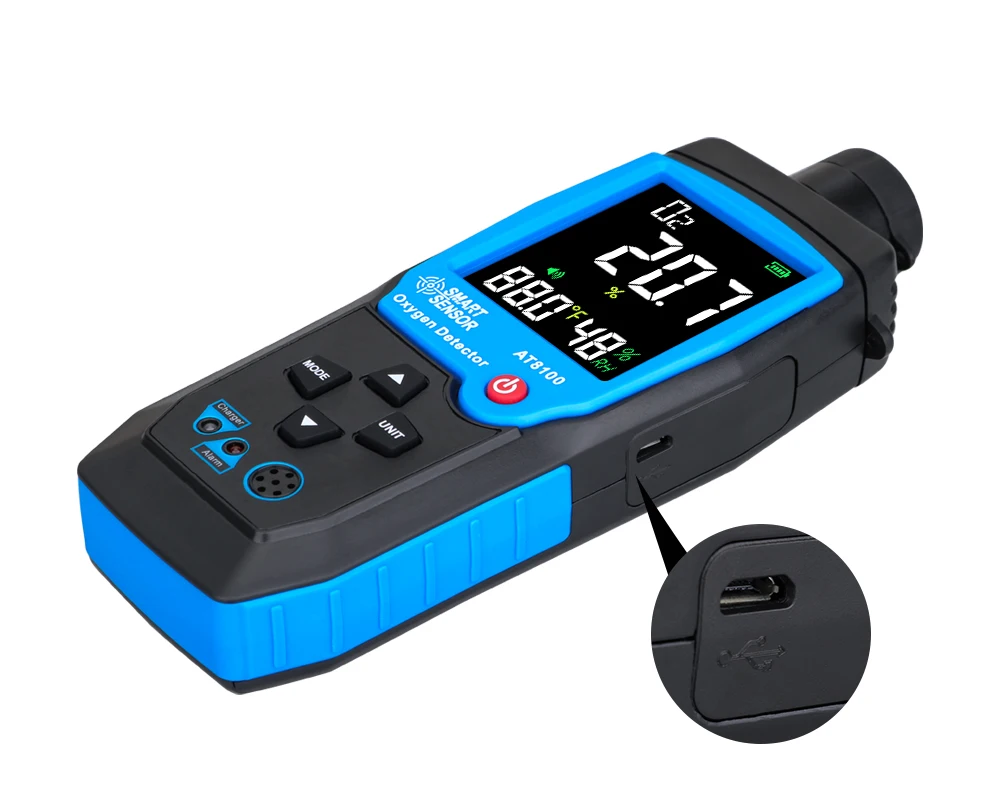

4.Rechargeable battery,USB powered.
5.Large LCD screen backlight display, can read in dark.
6.Battery indication,alarm value set,volume adjustable.
7.C°/ F° unit switchable.
8.Widely used in factory, home, office, and public place.
Technical Details
Product Specification | ||||
Brand Name |
SMART SENSOR |
Model Name |
AR8100 |
|
Material: |
ABS |
Voltage: |
AC100-240V, 50/60Hz |
|
Measuring Range: |
0~25% |
Output: |
DC5V±5%, 1000±50mA |
|
Resolution: |
0.1% |
Temperature: |
-10~50℃ |
|
Working Humidity: |
0~95%RH |
Resolution: |
0.1℃ |
|
Accuracy: |
<1.5%FS |
Respond time: |
<15s |
|
Sensor Mode: |
Electrochemical principle,life for 2 years |
Recovery time: |
<15s |
|
Power Supply: |

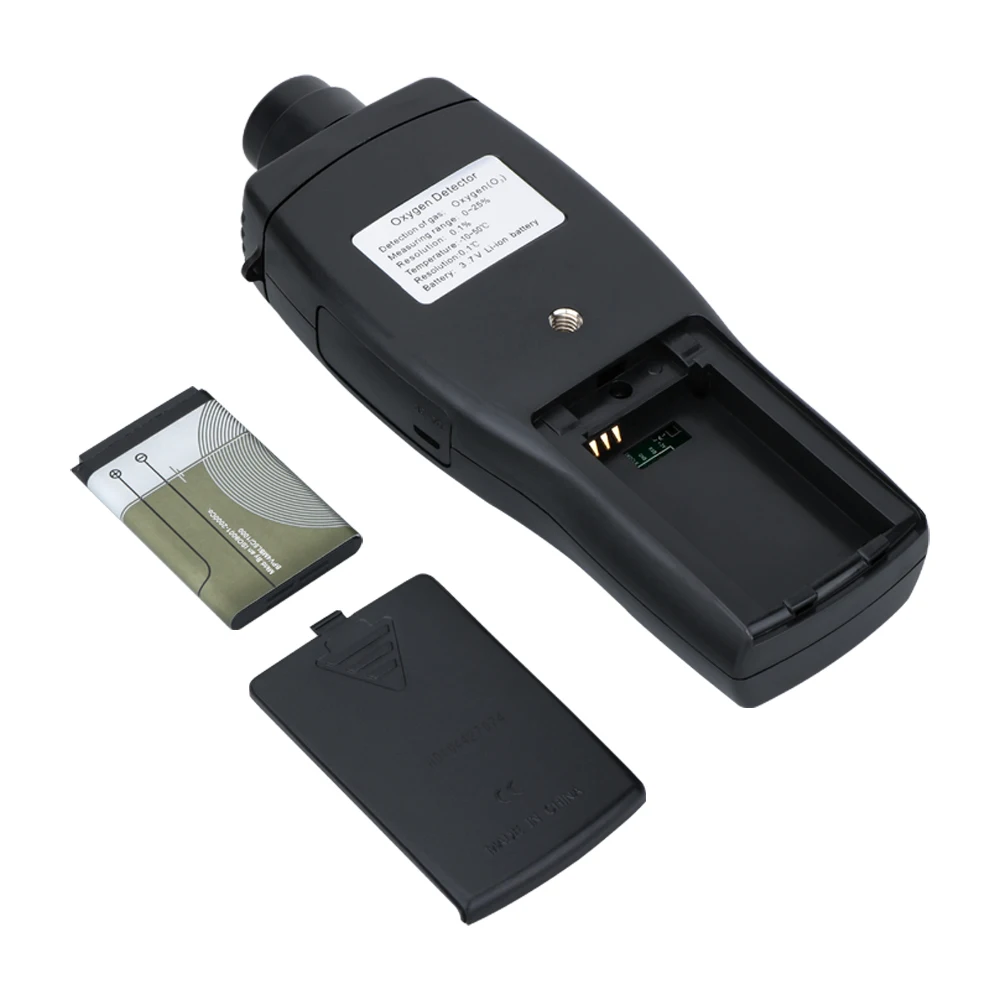

1x 3.7V, 1000mAh li-ion battery |
Screen Size: |
4.4 * 5.3cm / 1.73 * 2.08in |
|

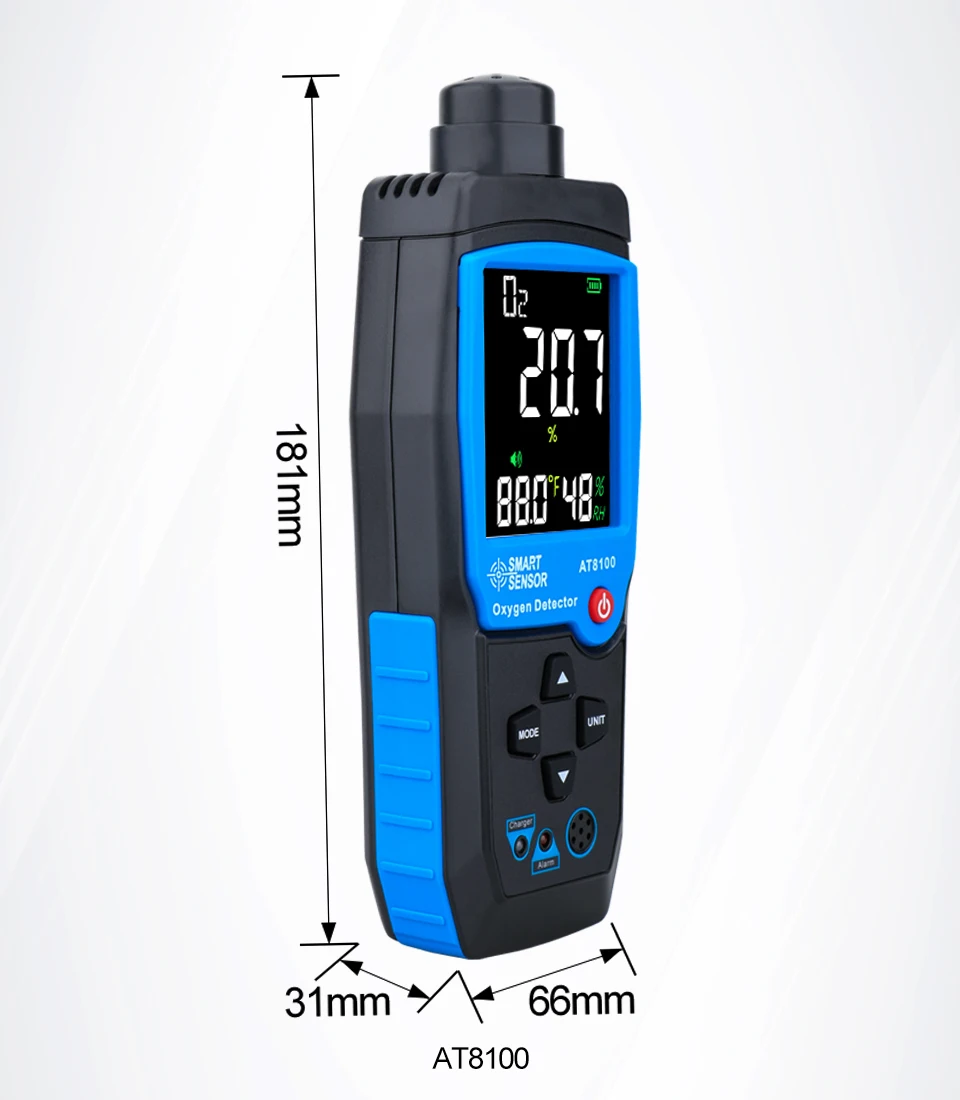

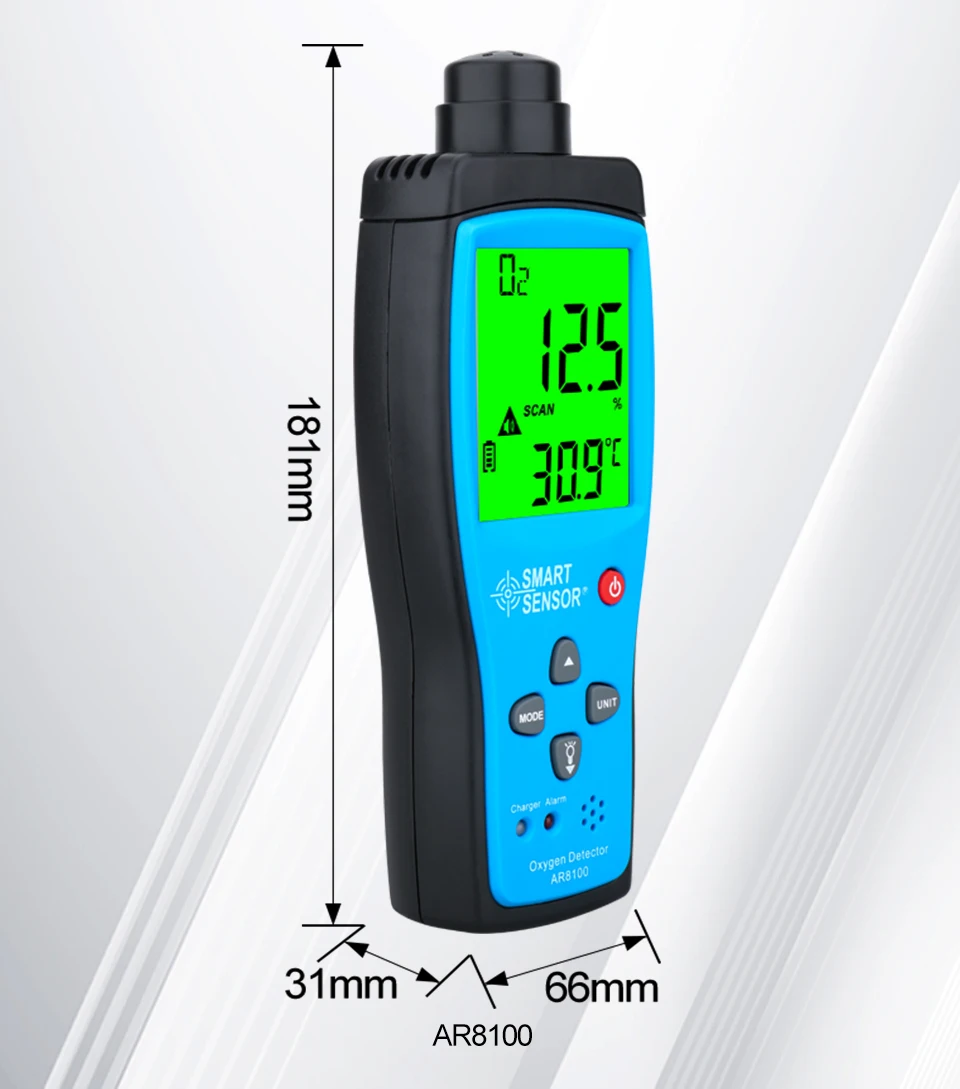

Product Weight/Size |
157g/ 180 x 65 x 30mm |
Package Weight/Size |
753g/253 x 210 x 57mm |
|

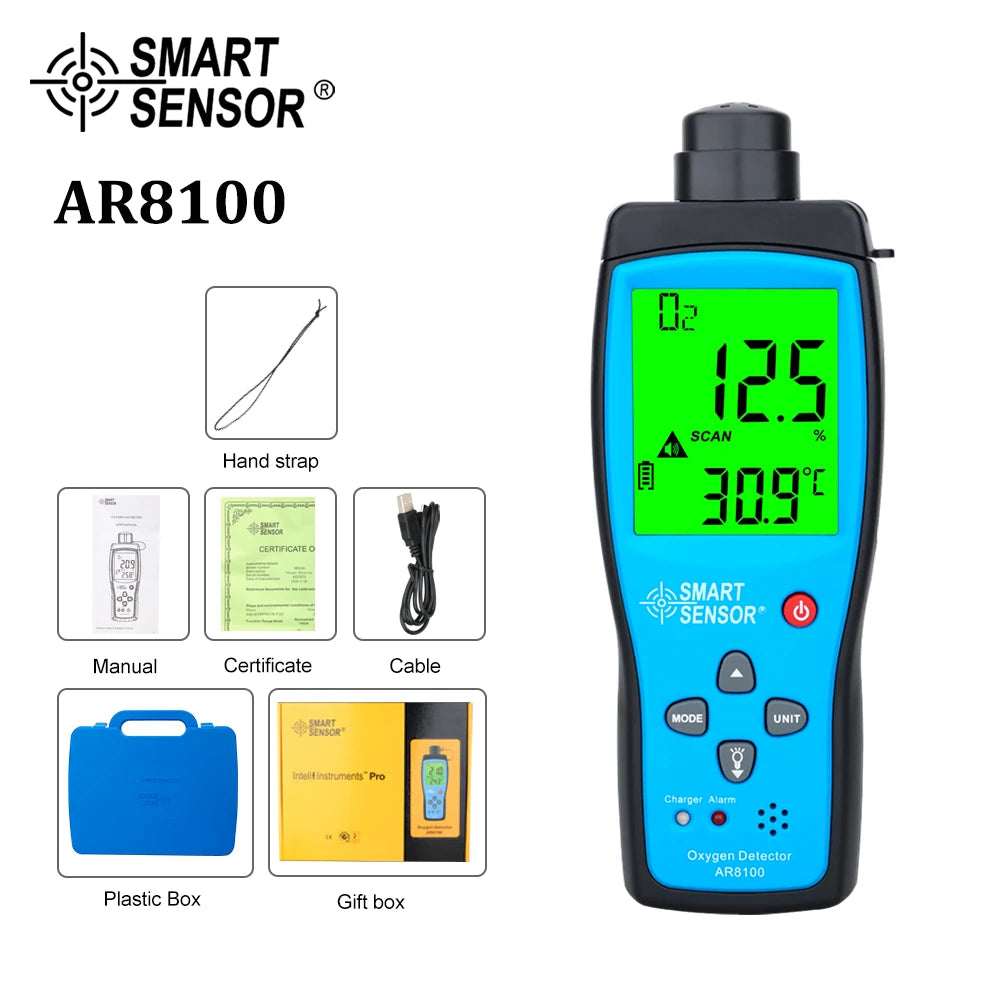

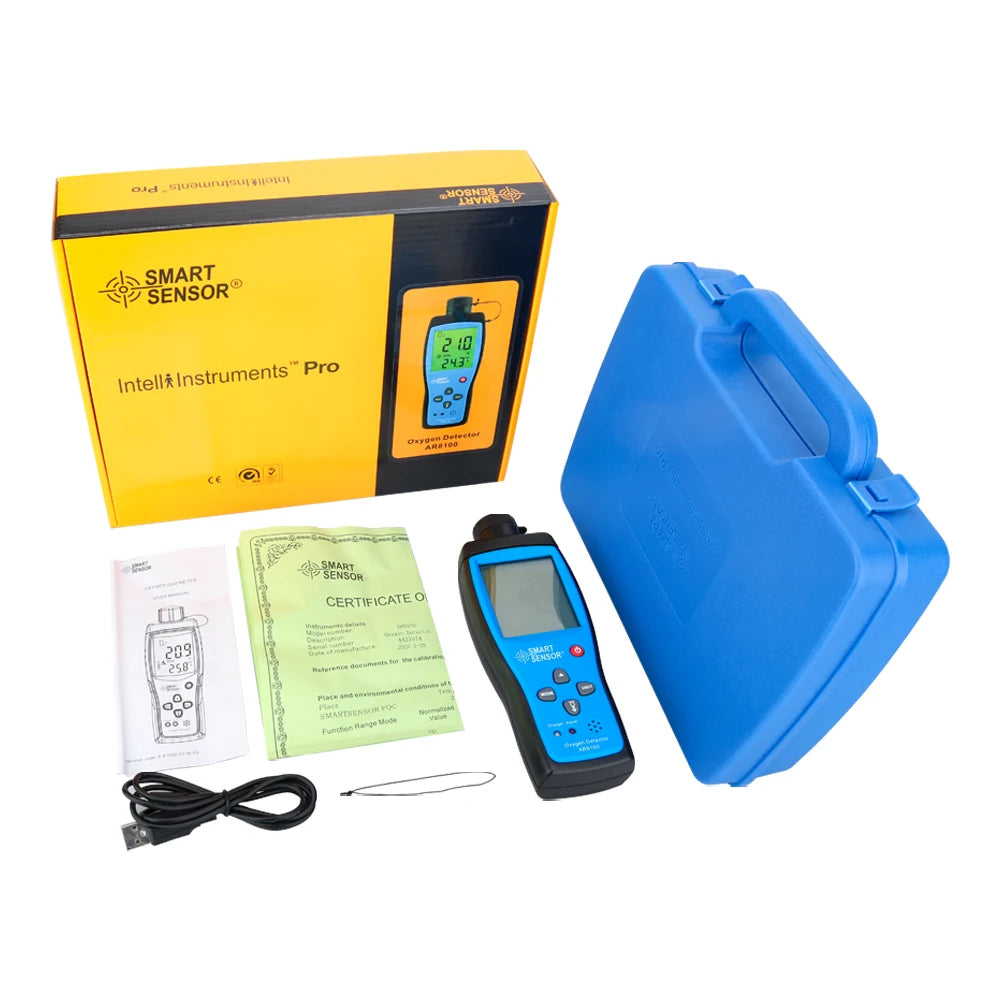

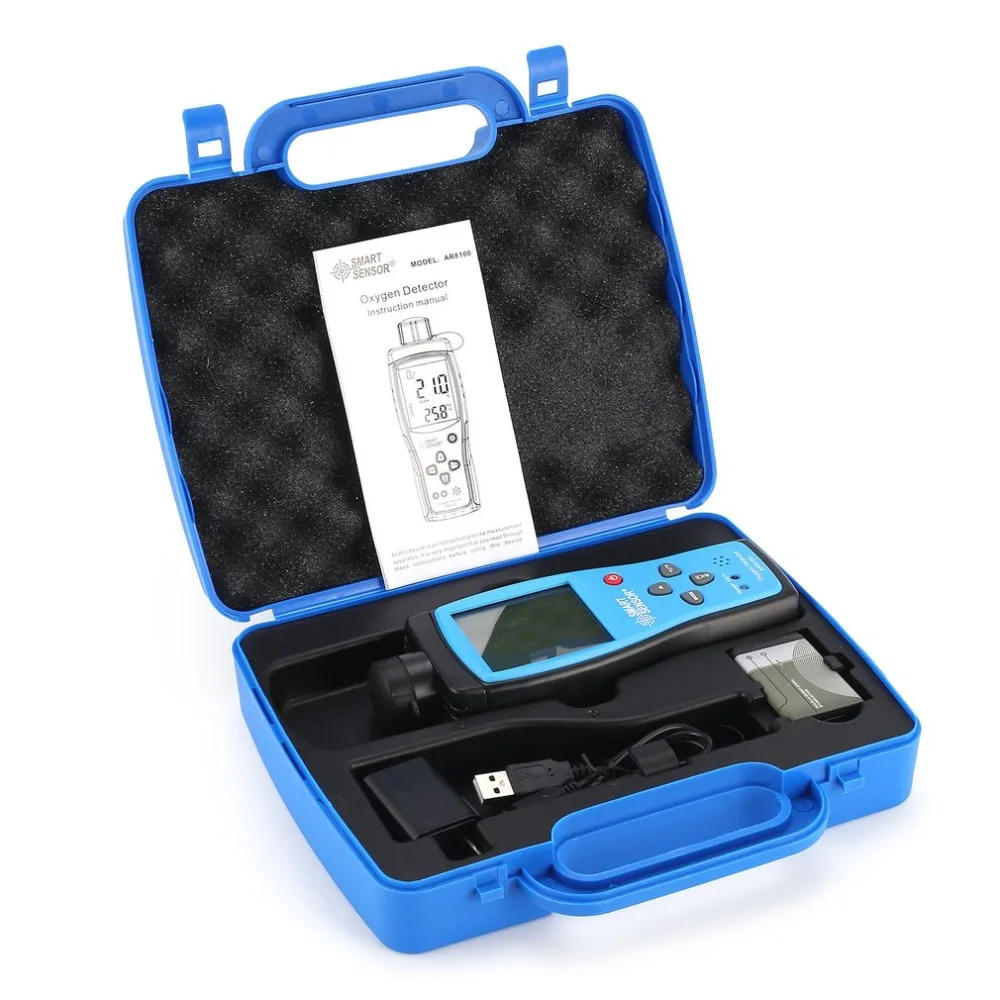

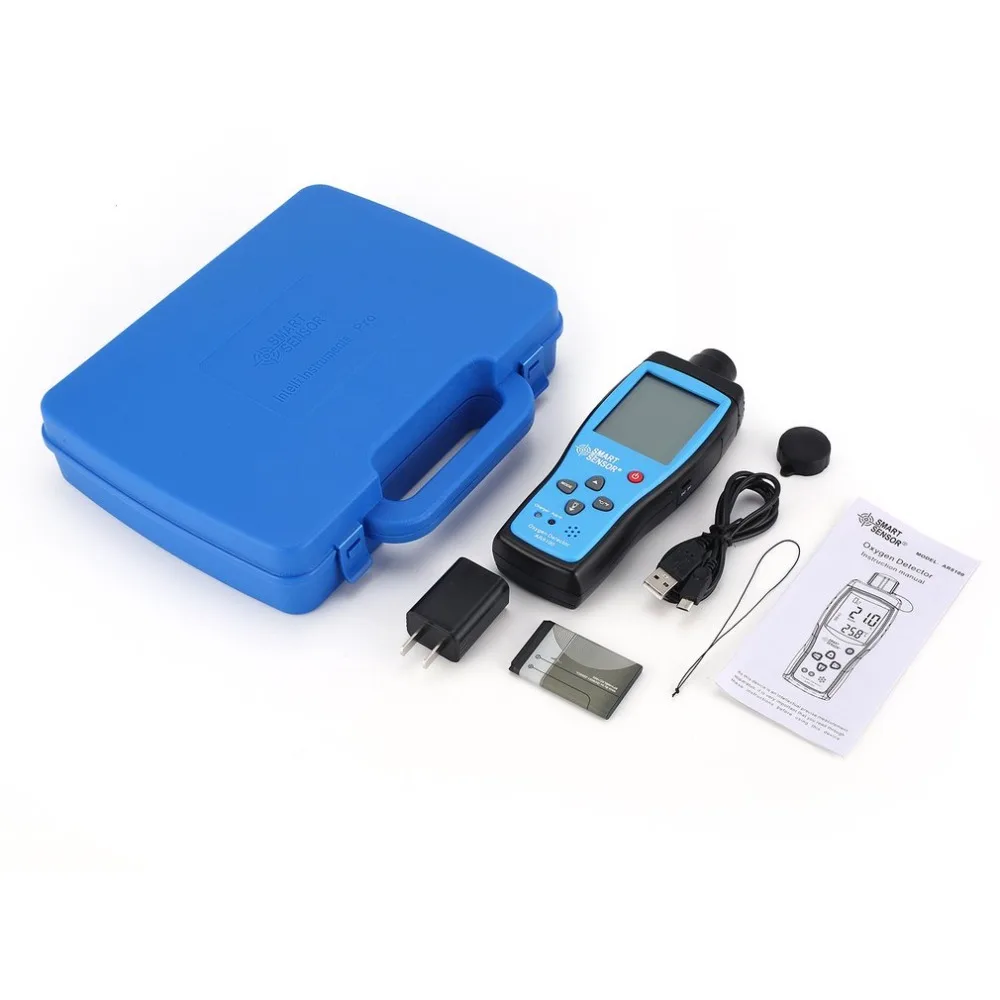

Packing Contents |
1x Detector / 1x Charging Plug / 1xUSB Cable / 1x Storage Box / 1x Manual (English) |
|||

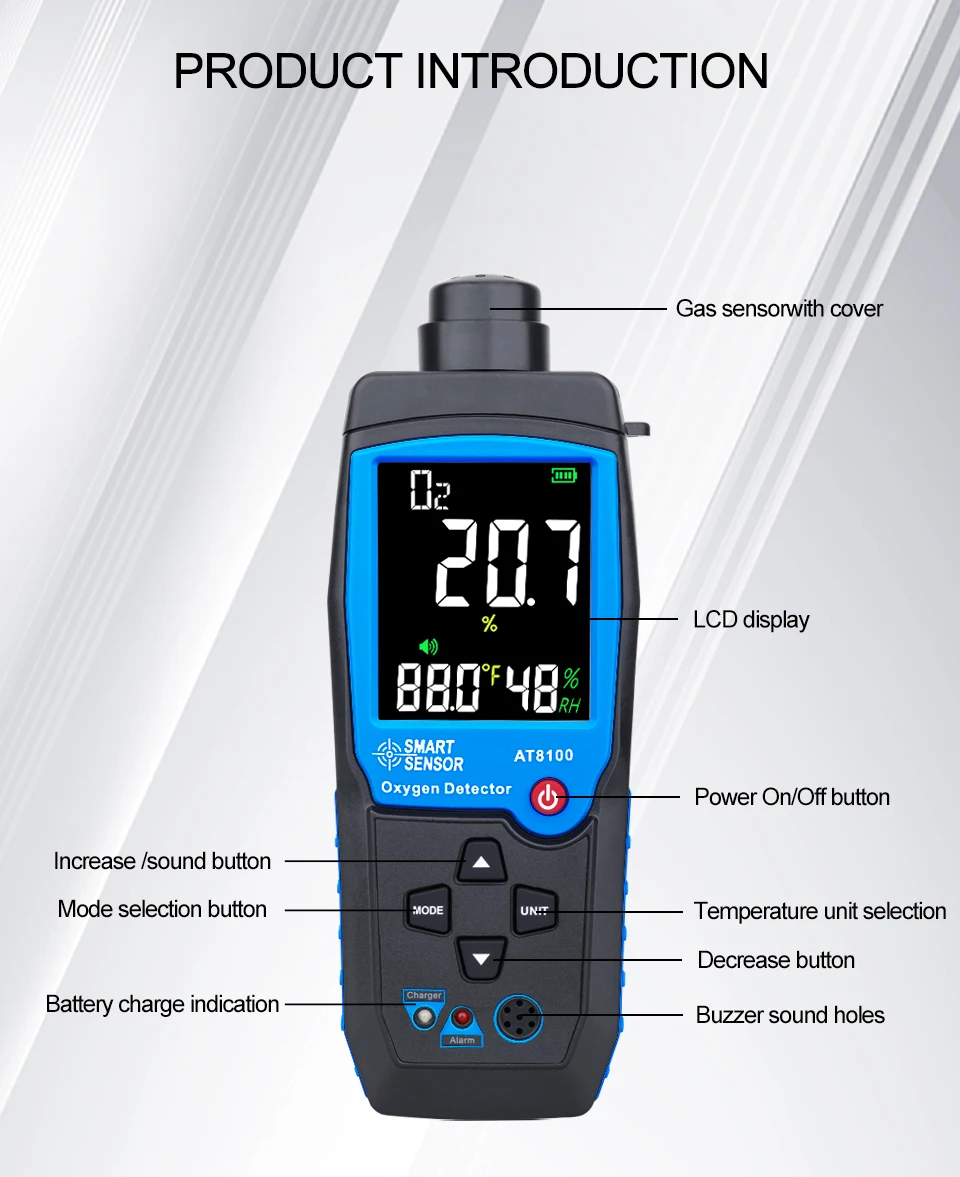

Diagram Description | ||||
|
① ON/OFF |
|||
|
① Gas type |
|||
The effect of oxygen-deficient and oxygen-enriched atmospheres | |
The concentration of oxygen(%) |
Symptoms (atmospheric pressure) |
100% |
Deadly, 6 minutes(Absolutely airtight environment, such as hyperbaric oxygen chamber |
50% |
Deadly, can be cured after 45 minutes treatment. (Absolutely airtight environment, such as hyperbaric oxygen chamber) |
>23.5% |
Rich oxygen |
20.96% |
Normal |
19.5% |
Minimum |
15~19% |
Reduce efficiency, and lead to problems of head, lung and circulation system |
10~12% |
Shortness of breath, loss of judgment, purple lips |
8~10% |
governance loss, syncope, unconscious, pale, nausea and vomiting |
6~8% |
8 minutes, blood pressure, weak heartbeat,mouth breathing, quickly stopped breathing |
4~6% |
40 seconds, convulsions, respiratory arrest, death |

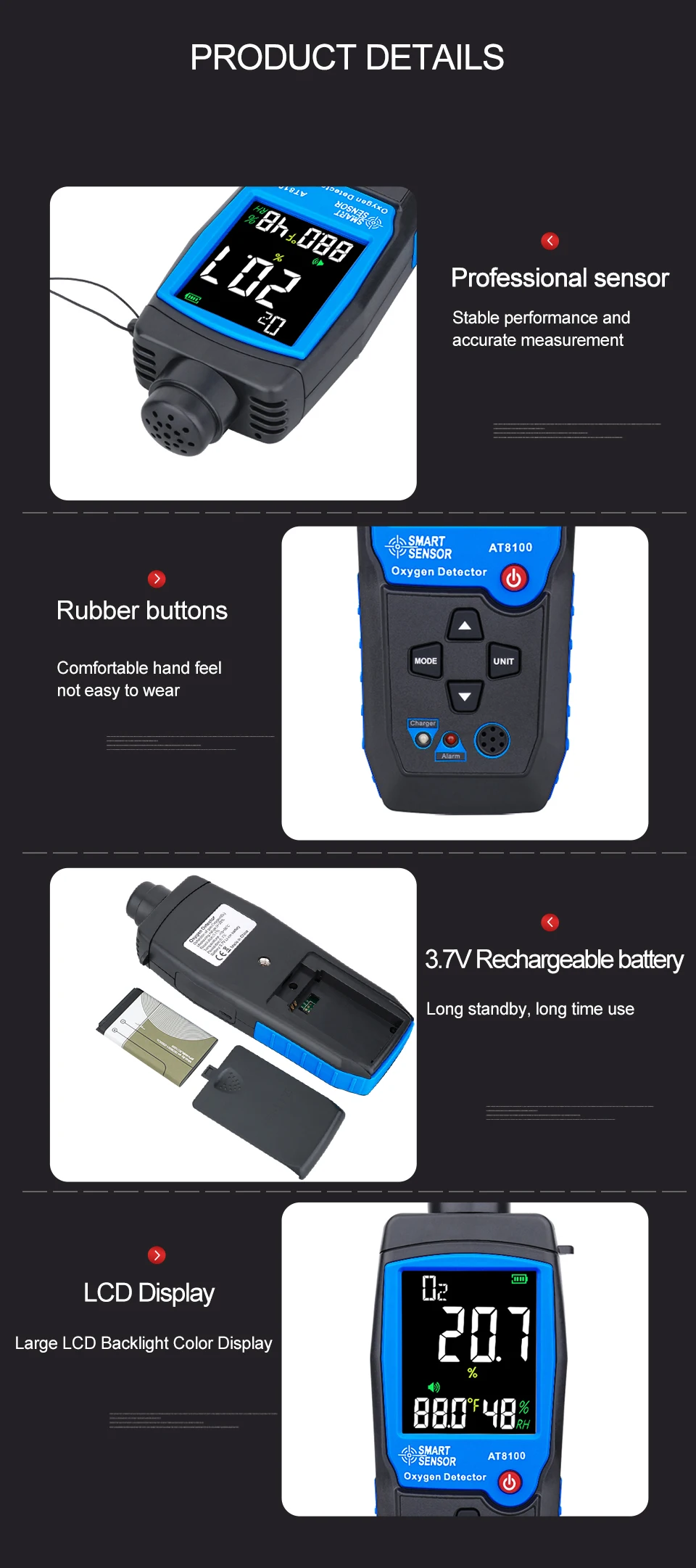

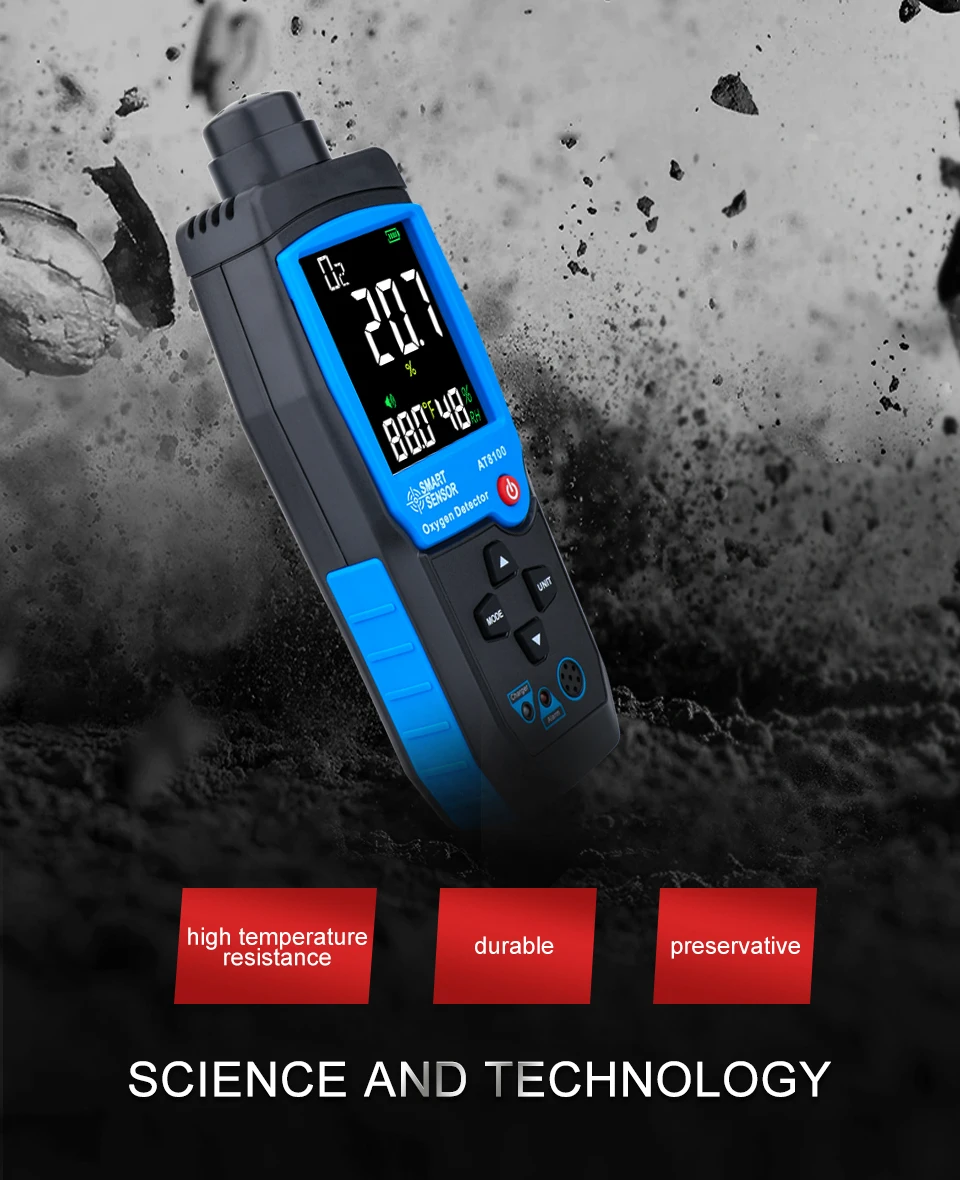

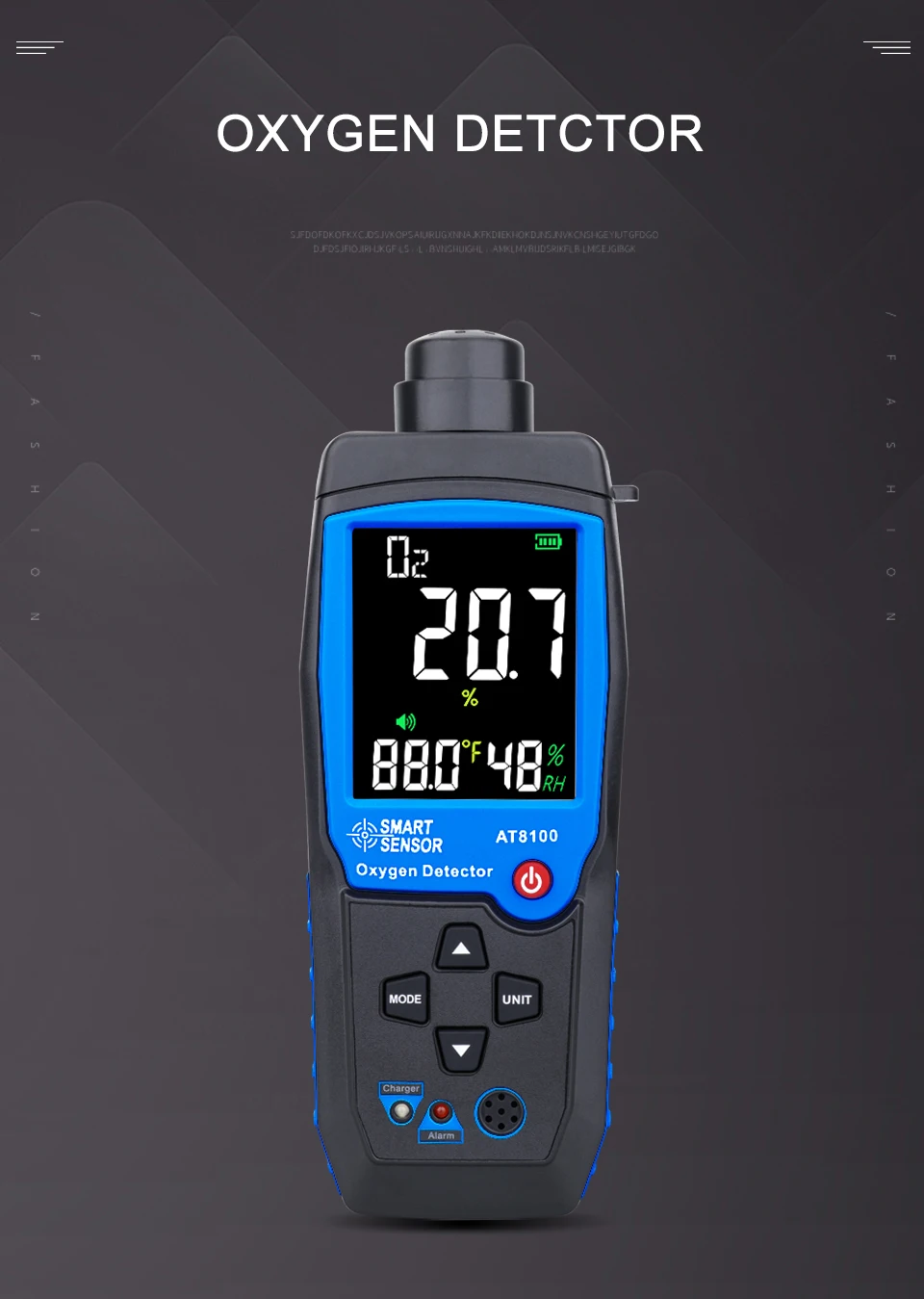

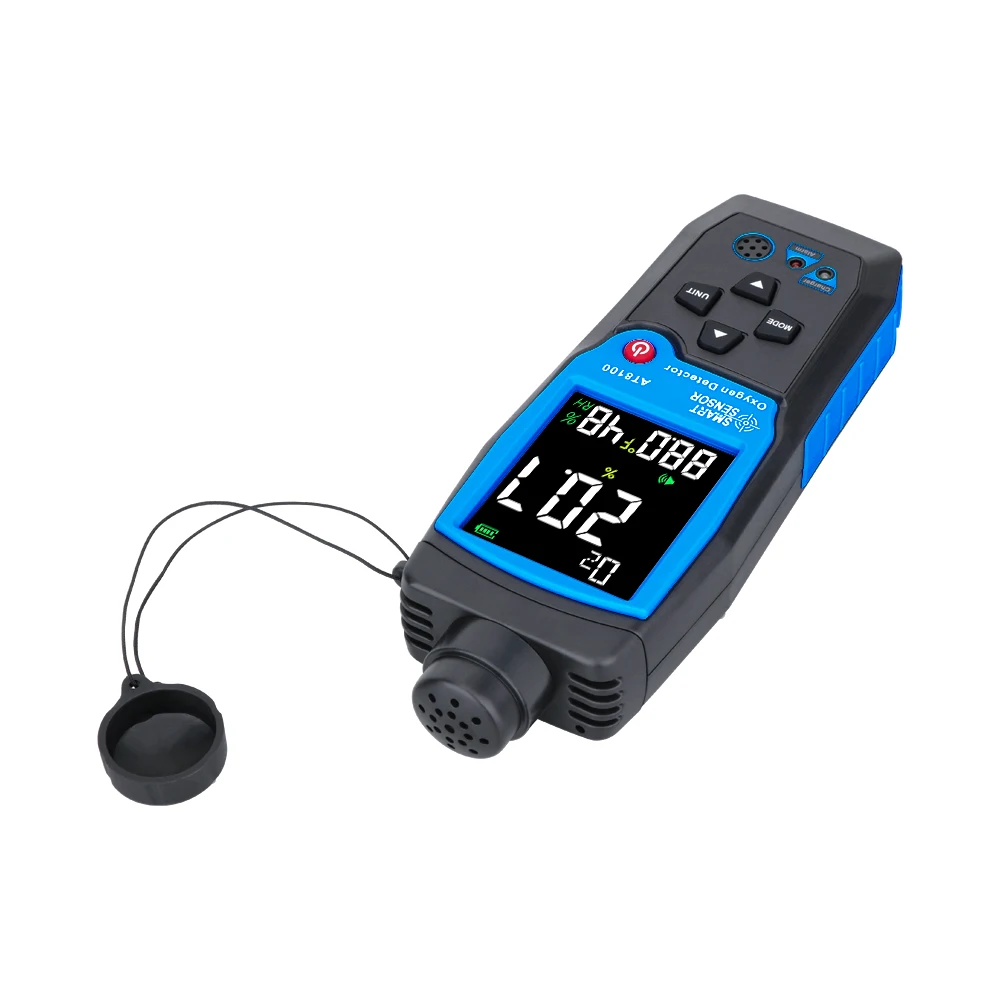

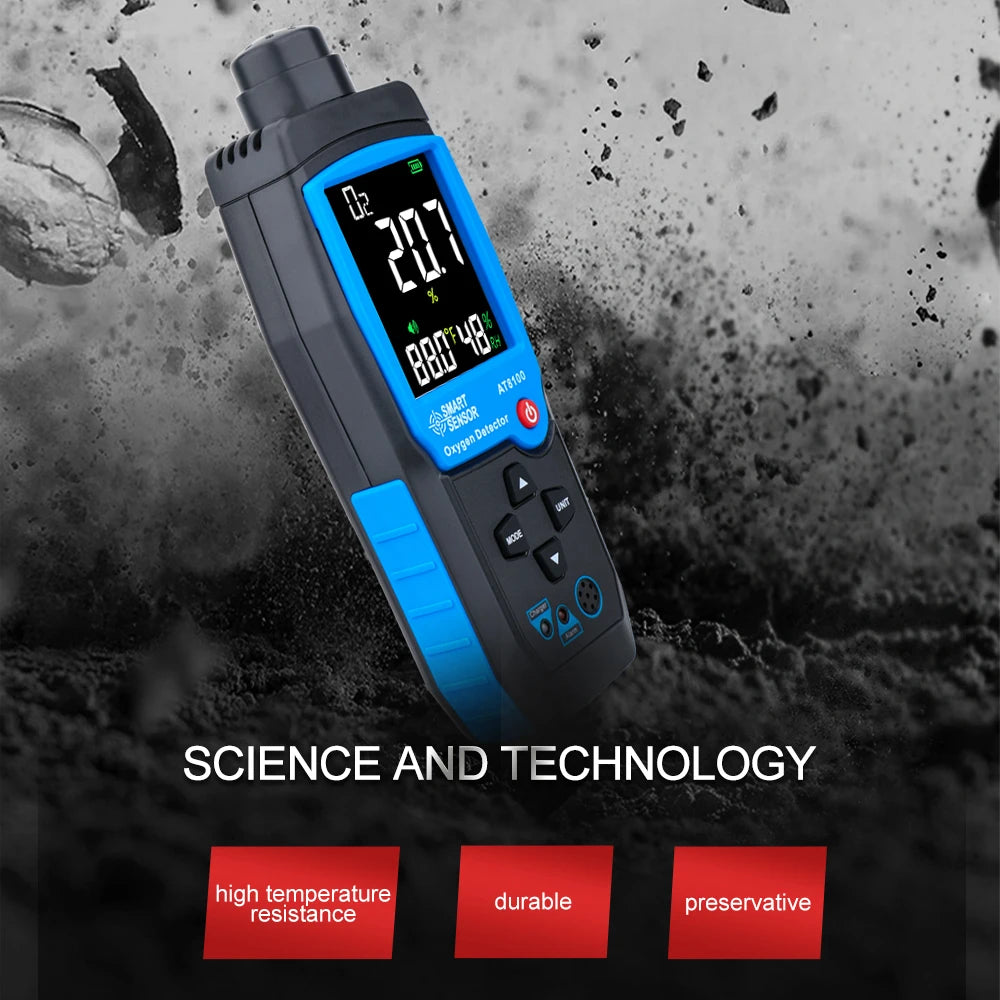

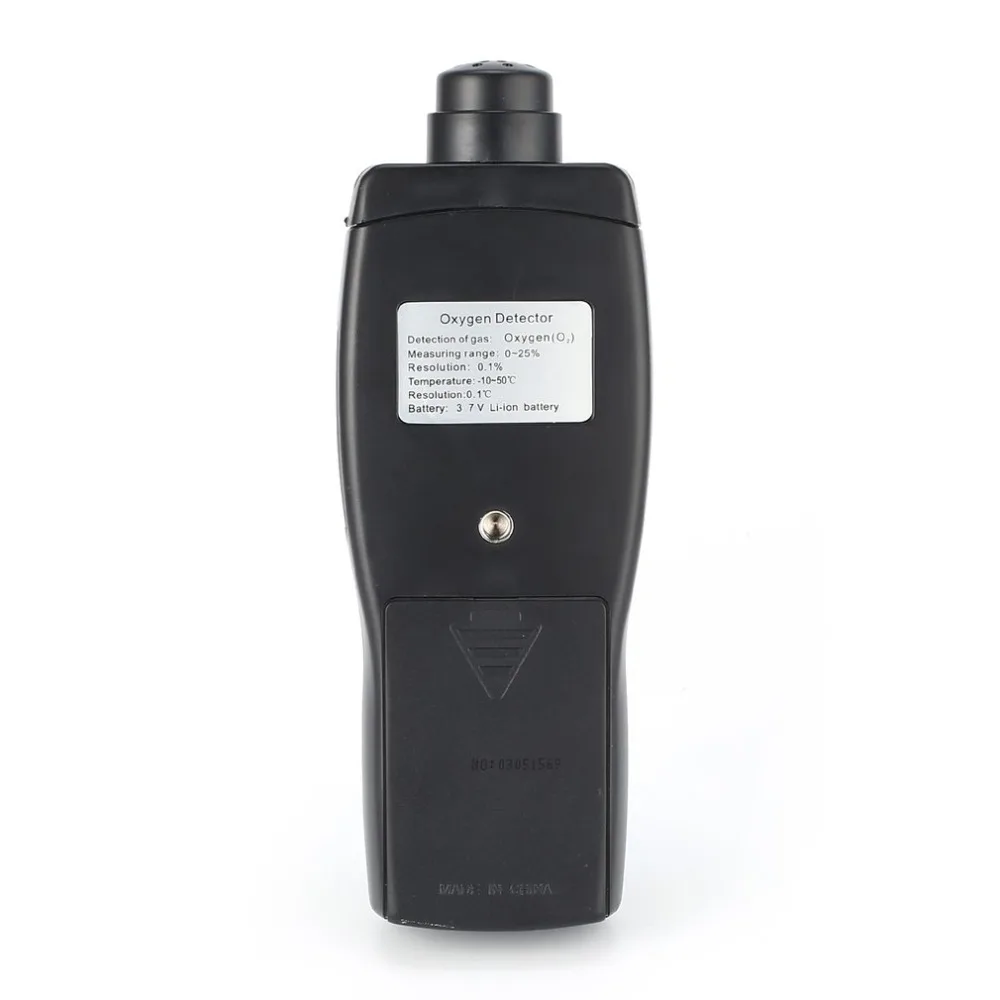

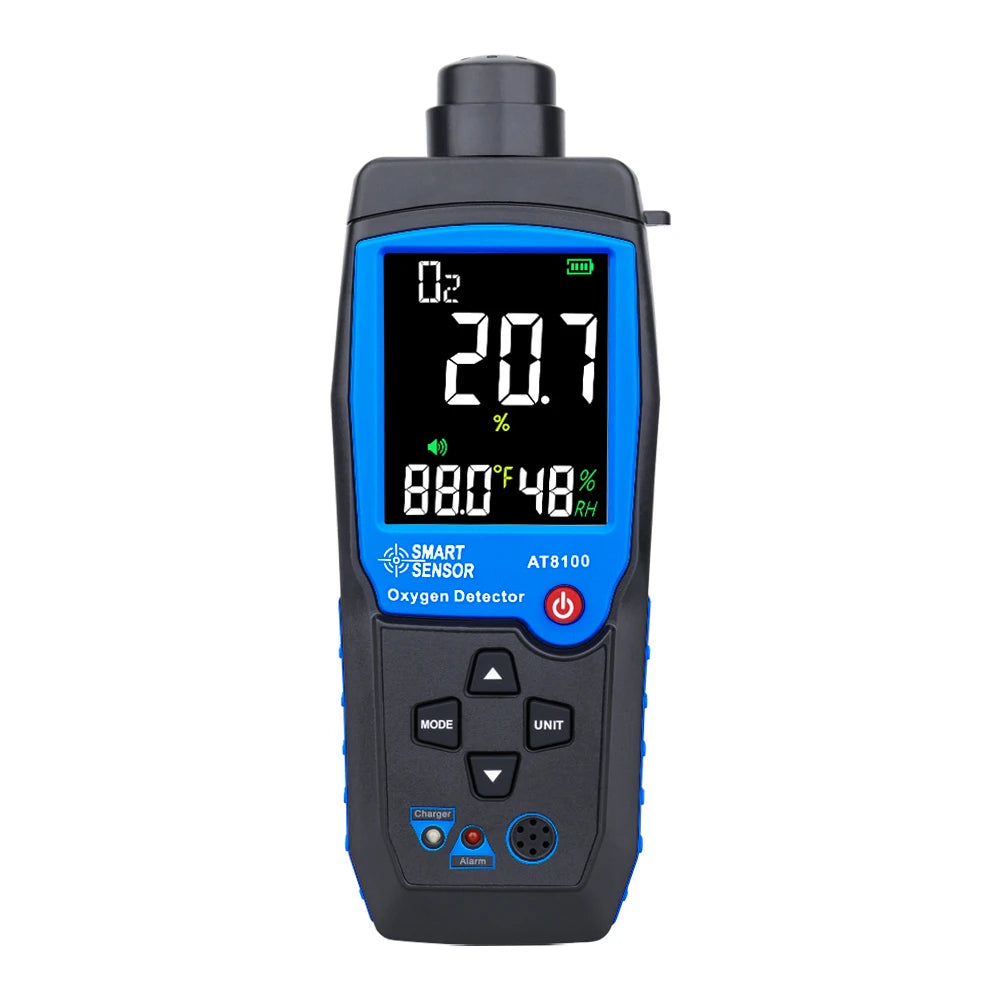

Product Photos
