SPECIFICATIONS
Brand Name: BRANDOO TEAM
Frames Per Second: 25
Origin: Mainland China
Chipset Manufacturer: other
Assembly Mode: After The Loading Machine Integrated
Number Of Lenses: 4
Screen Ratio: NONE
Interface: AV-Out
Video Code: H.264
Original Package: YES
Camera Resolution: 1920x1080
Special Features: sd/mmc card
Special Features: motion detection
Video Format: AVI
Touch Screen: No
Item Type: Car DVR
GPS logger: NONE
Battery: built-in
Display Size: NO LCD
Certification: CE
Certification: FCC
Memory Card Required Reding Speed: Class 10
Imaging Sensor: 1/3"Sony Ccd
OSD Language: English
OSD Language: Chinese (Simplified)
Pixels: 200Mega
Max External Memory: 256G
Frame: PAL:25f/s, NTSC:30f/s
Max. SD memory: Support 1pcs 256GB SD
Compression: H.264/H.265 optional
Record mode: Auto Record, Schedule Record, Alarm Record
Certificate: CE/FCC/EMARK
Model: BD-301HD

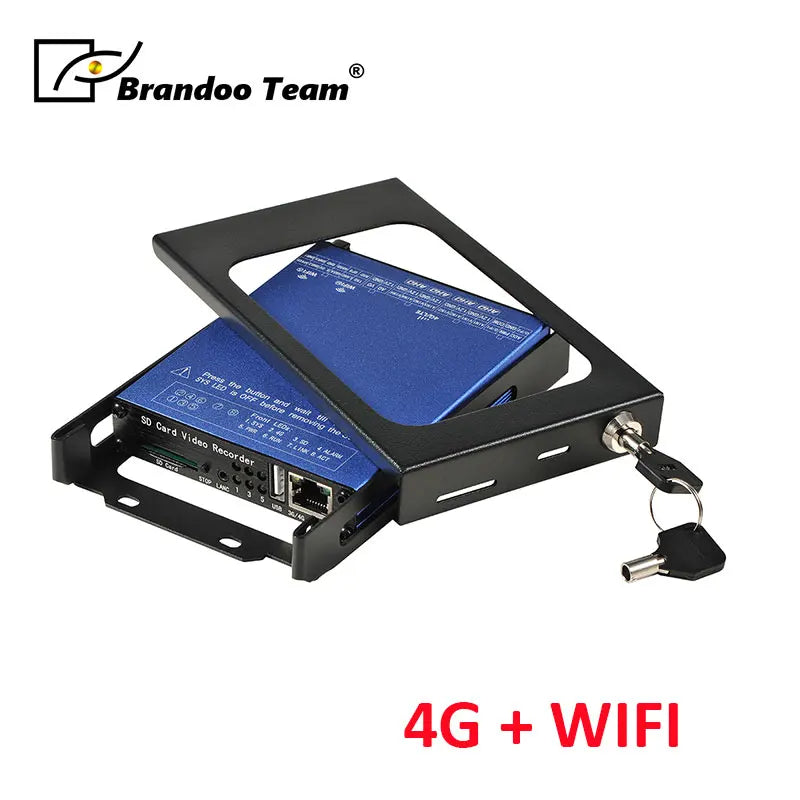

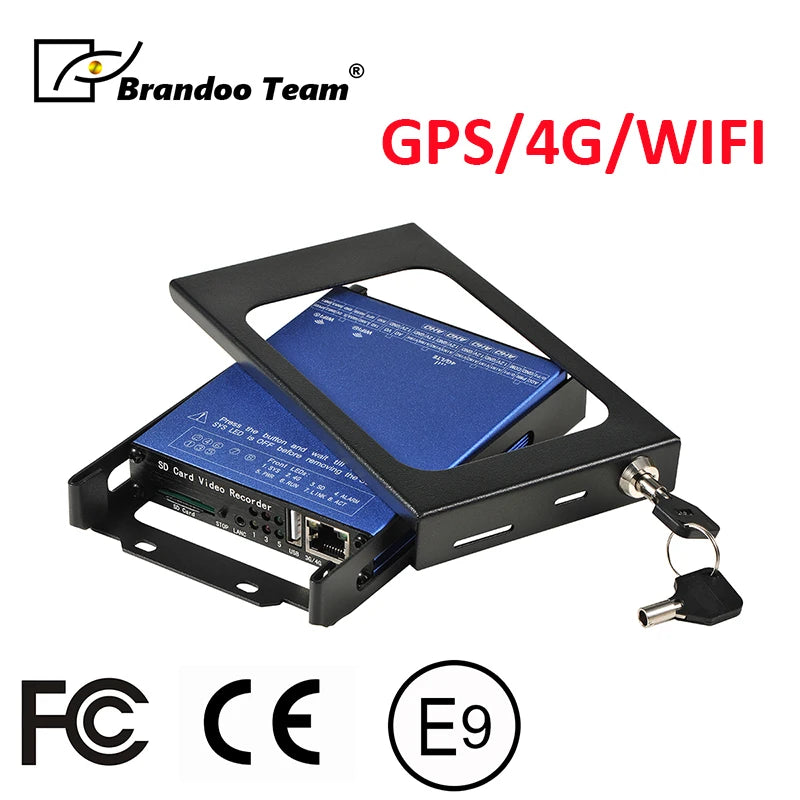

Product name: GPS 4G WIFI 4 Channel Car DVR
The Mobile SD video recorder is a compact, full-featured recording system that uses a SD card as a
storage device. The recorder unit and associated accessories are specifically designed for operation
in a mobile environment.
Product Main Features:
Embedded operating system, assuring reliability and system integrity.
Records up to four channels of full-motion color video with corresponding audio tracks.
H.264 and H.265 High Profile video compression.
Total Record resource up to 30 frame/second for each channel.
Lockable security enclosure.
Front panel USB2.0 port for recording to a flash card as an optional storage device.
Ignition sense that provides DVR power-on in recording mode when the bus is started.
Power-off delay record when the bus is shut-down with operator-selected delay times.

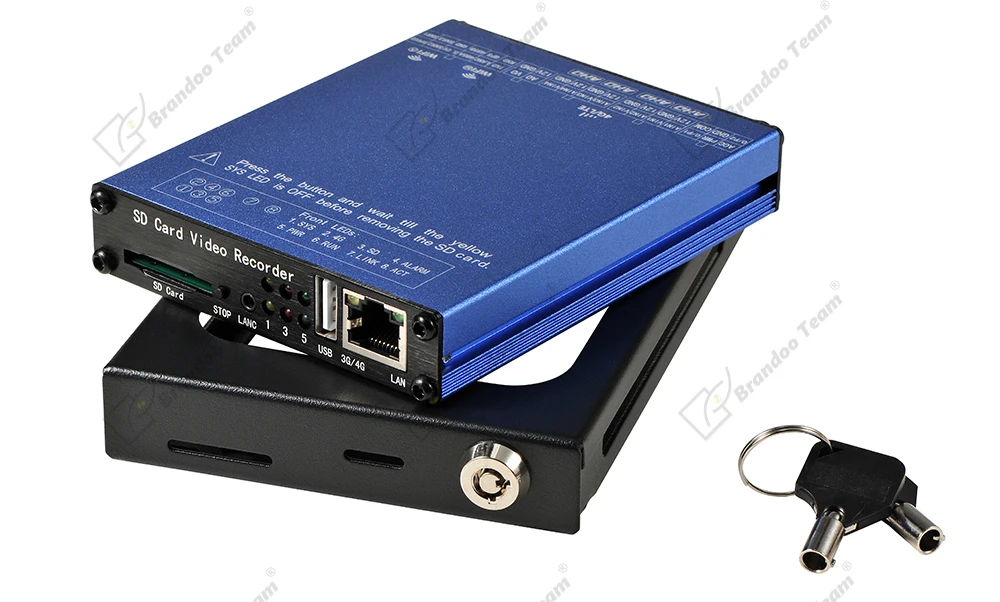

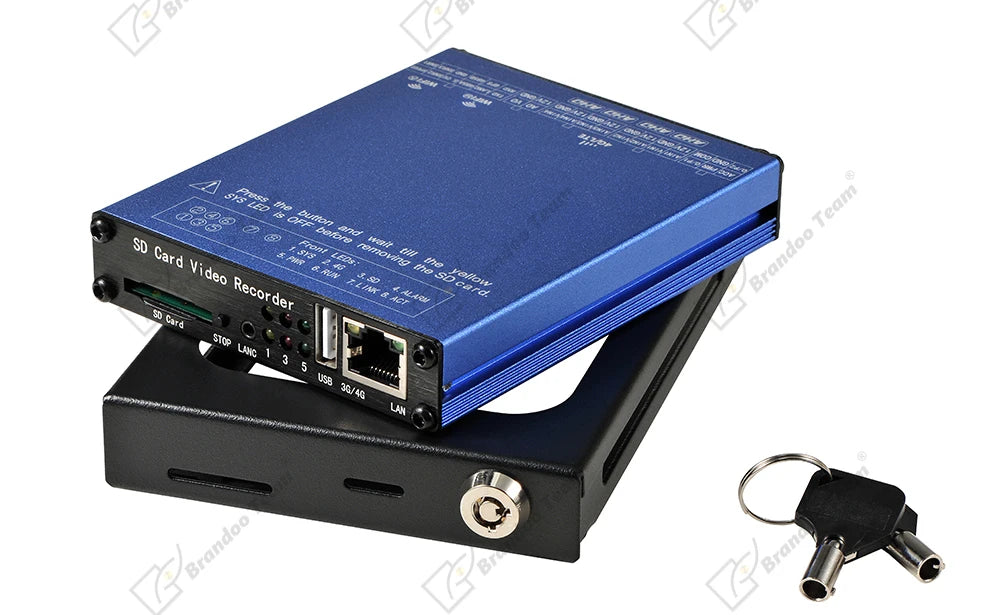

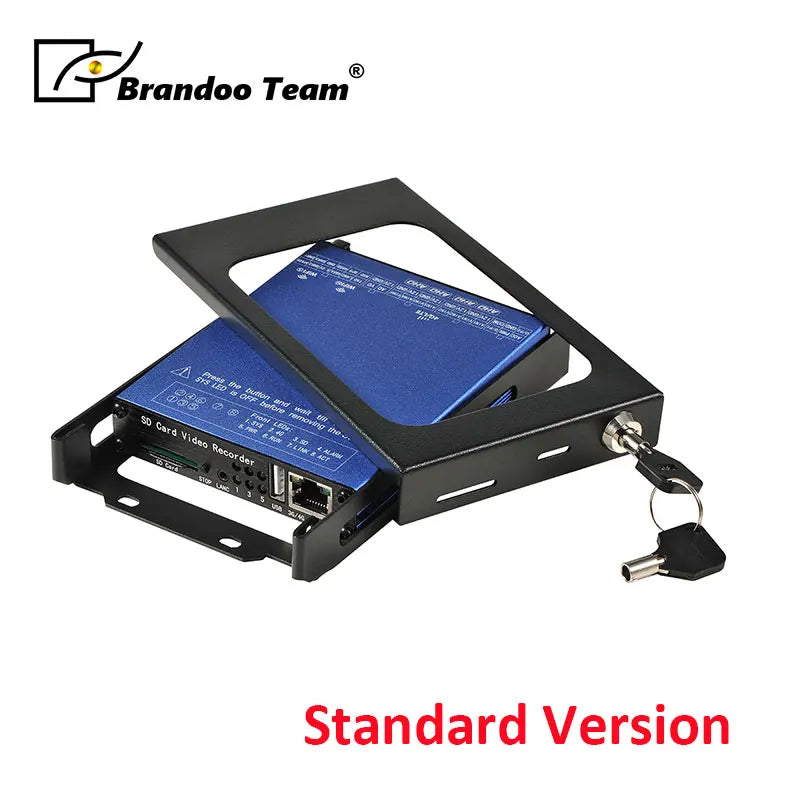

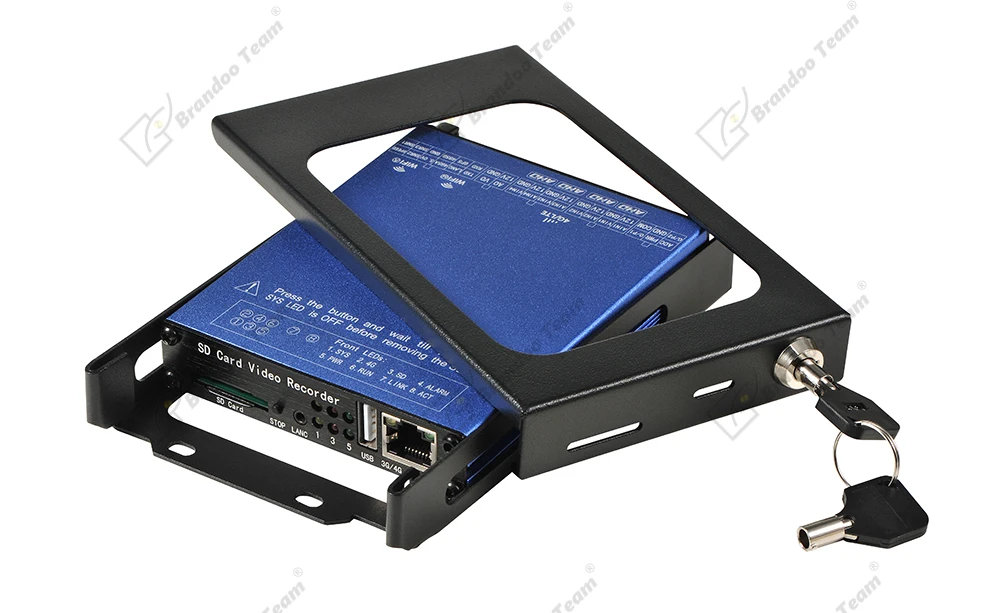

DVR and lockable bracket

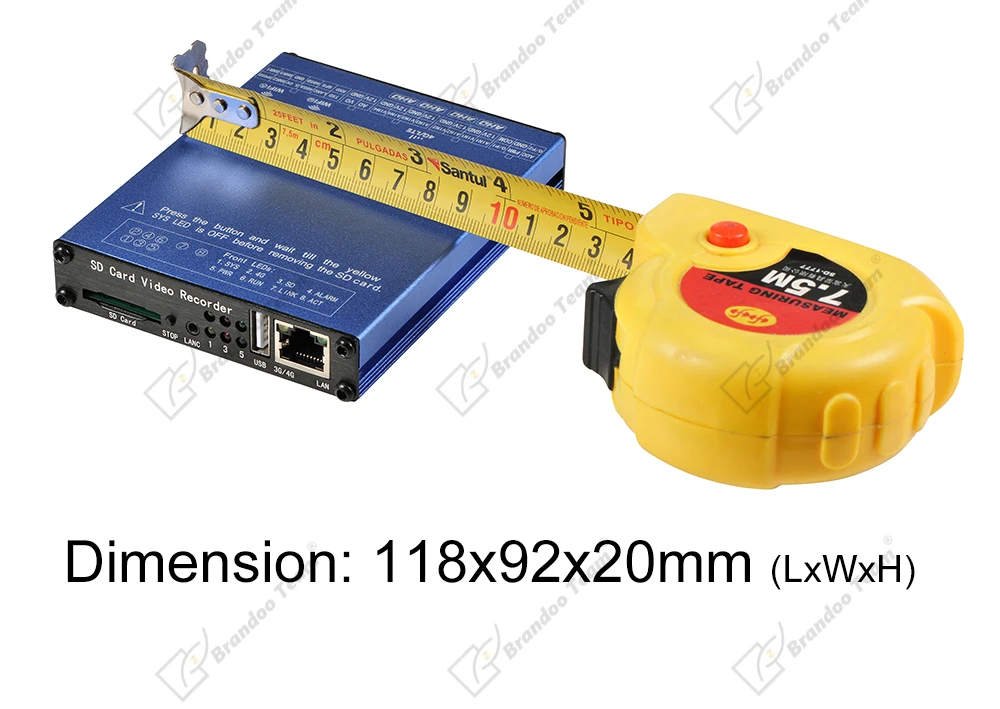

DVR dimension

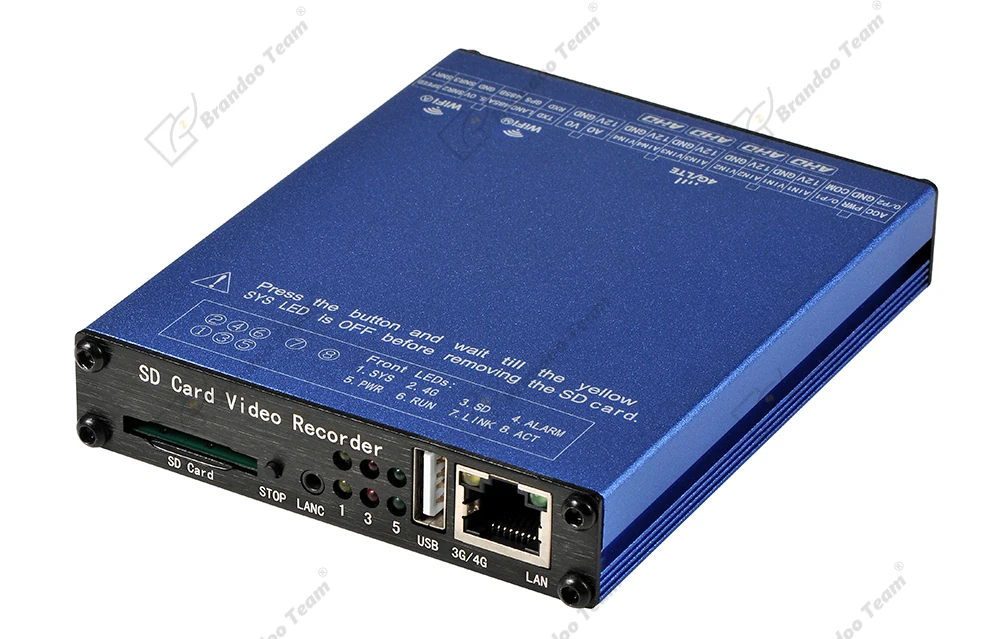

DVR front panel

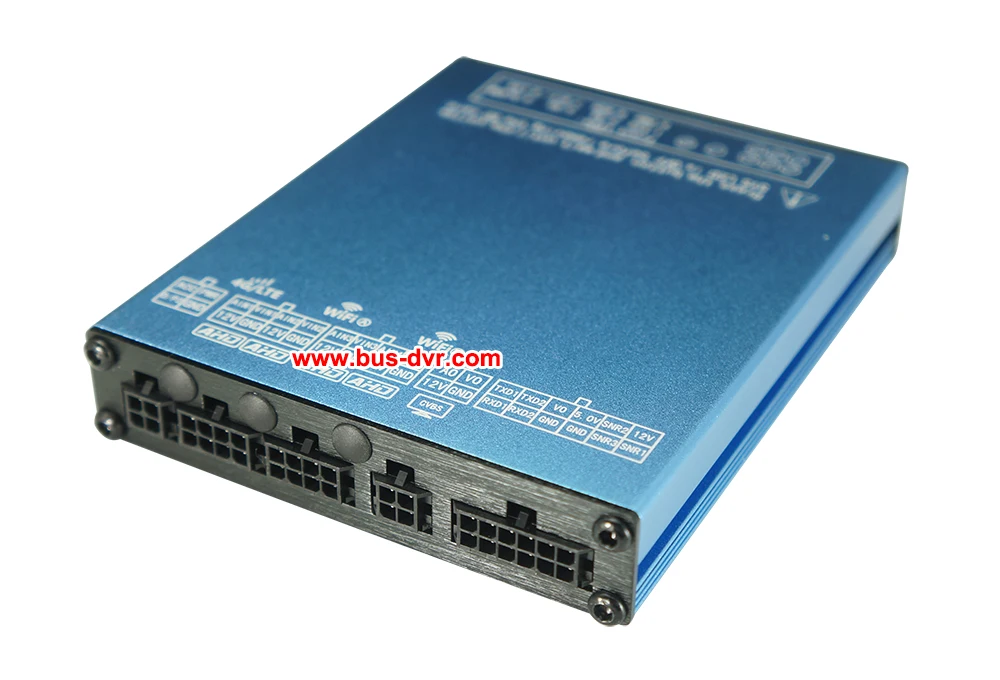

DVR rear panel

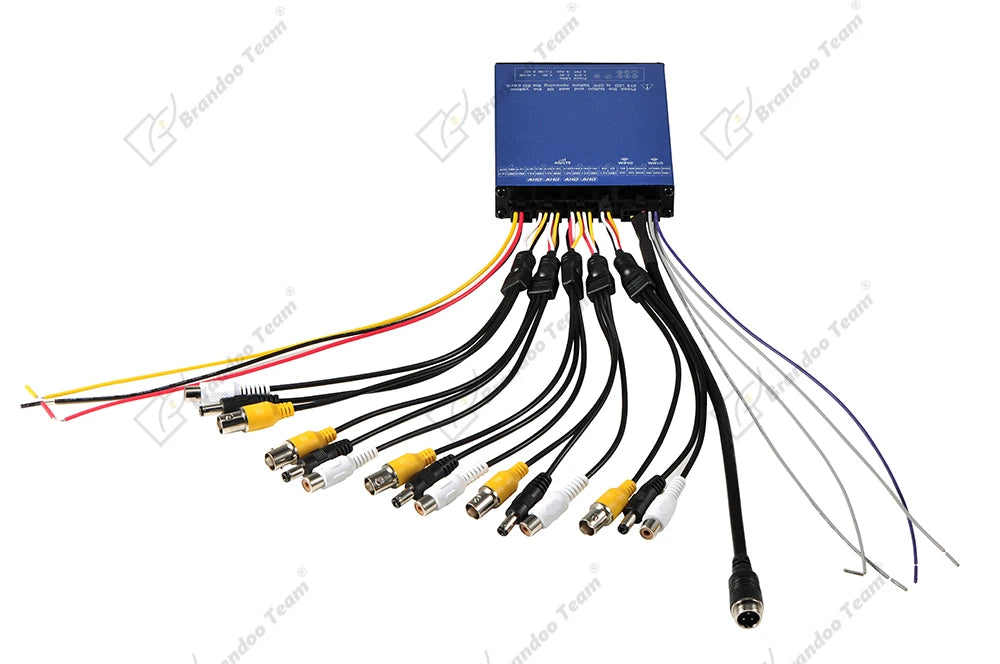

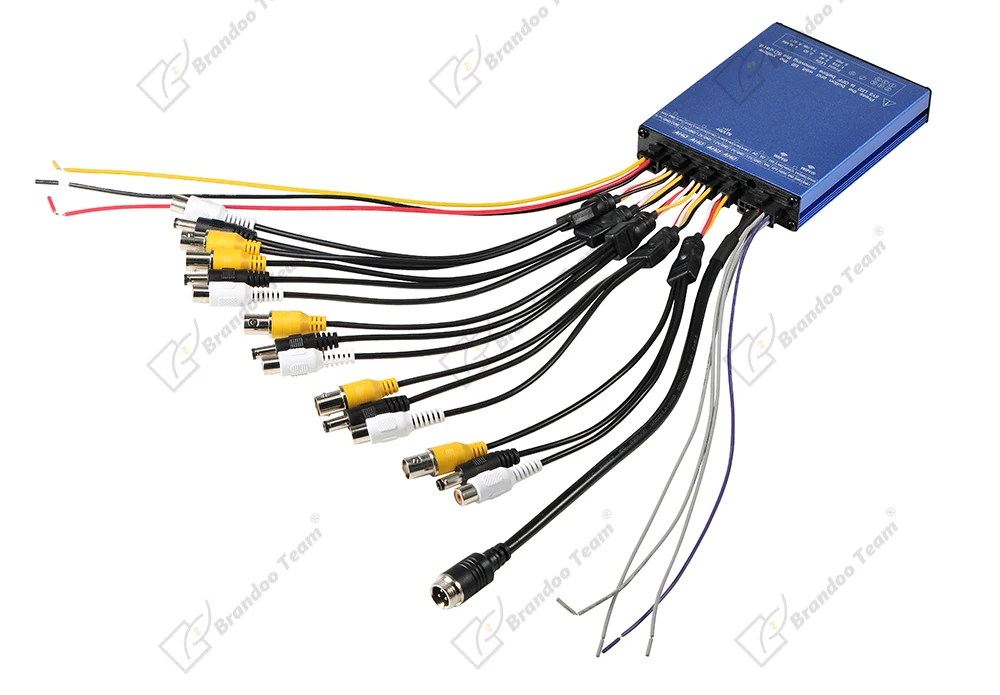

DVR and cables
Package

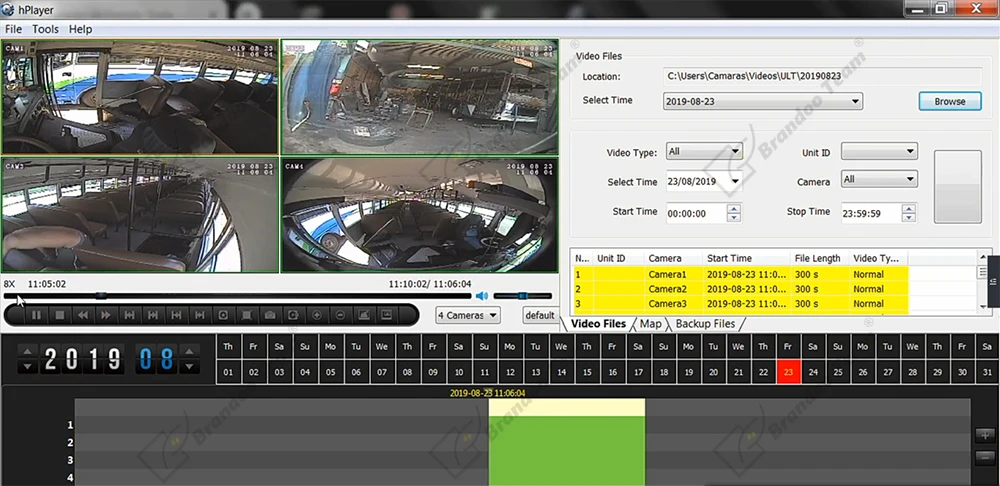

Professional Palyer

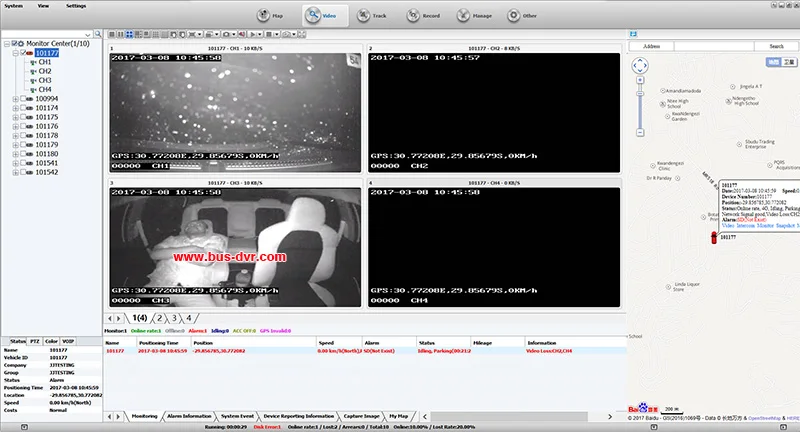

CMS V6 software on PC
CMS V6 on Mobile Phone
Datasheet:
Item |
Data |
|
SYSTEM |
OS |
Linux 3.18.20 |
Booting Time |
<20 s (From Powered on to start recording) |
|
Language |
Chinese/English |
|
UI |
GUI |
|
Encoder |
H.264/H.265 |
|
Power |
Power In: 8V ~ 32V DC, |
|
Power out for analog camera: 12V/1.5A (4 cameras) | ||
Video |
Video Input |
Maximum for 4x 1080p/720p Analog/AHD cameras |
Video Output |
1 Video Output (1 CVBS output) |
|
Preview |
Support FullScreen/Dual View/Quad View |
|
Record Mode |
Auto Record, Schedule Record, Alarm Record |
|
Record File |
Record video and audio at same time |
|
Compression |
H.264/H.265 |
|
Frame Rate |
120fps@1080p |
|
Audio |
Audio Input |
4 audio input (audio is built in the camera) |
Audio Compression |
AAC (16bit, 48KHz) and PCM |
|
Video Process |
Record Resolution |
Support 1920x1080/1280x720/960x540 |
Bitrate |
100～8000 kbps for each camera |
|
Storage |
SD card up to 256GB |
|
Alarm |
Alarm Input |
3 alarm sensors input, 1 speed input, 1 ignition input, 1 panic button alarm, 1 G-Sensor alarm |
Alarm Output |
1 beeper, Alarm OSD |
|
Event |
Video Loss Event, Over Speed Event, G-Sensor Event, Storage Event, Motion Detection Event, Panic button Event |
|
Communication |
RS485 |
One RS485 port |
RS232 |
One RS232 port |
|
RJ45 |
One RJ45 port, 100M network |
|
USB |
One USB, can be used for mouse, USB stick |
|
Network |
Protocol |
TCP / IP |
3G/4G |
Optional, build in 3G/4G(HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA/FDD-LTE/TDD-LTE) |
|
GPS |
Support GPS/GLONASS/BEIDOU，recording location, speed, live tracking |
|
Firmware |
Frame Rate |
Recording frame rate: 1～30fps selectable for each camera |
License ID |
Support |
|
Camera Name |
Support |
|
OSD |
Display and record time, license ID, camera name, location, speed |
|
Firmware Upgrade |
Can use hard disk/USB disk/SD card/remote upgrade via 4G |
|
G-Sensor |
Support |
|
Play back |
Support play back, file listed by time, alarm |
|
Play Speed |
Support from 1/32 to 32 |
|
Software |
hPlayer |
Player software, play multiple cameras together, can also play the encrypted file |
CMSV6 |
Used for 4G/3G model only, support live view/live tracking/historical track/remote upgrade |
|
Power Input |
Power Input |
8VDC～32VDC |
Power Output |
Power Output |
Power output for cameras: 11.5V/3A |
ACC |
<4.5V |
Ignition Off |
>6.2V |
Ignition ON (high leve) |
|
Power Control |
Ignition |
Turn on the DVR when ignition is on, can set DVR to turn off after a specified time when ignition is off |
Power Consumption |
Less 5.0W (No camera power consumption included) |
|
Other |
Size |
118x92x20 mm |
Weight |
About 0.2kgs |
|
Time |
Internal clock, can synchronize with GPS |
|
Dual bit stream |
Two different bit stream for recording and live streaming via 4G/3G |
|
Power Protection |
Protect power from short cut, over load and error connection |
|
Default |
Can set to default setting |
|
Light Indicator |
Light Indicator for power, run, alarm network, 4G/3G |
|
Over Write |
Support |
|
Time Synchronize |
Synchronize with GPS |
|
Working Condition |
Working Temperature |
-25 ～ 55°C |
Working Humidity |
5%～93% |
|
(If you need,you can click this link to download the User Manual : http://u.163.com/f2WP4cCX Password : yYQoeFgk)
