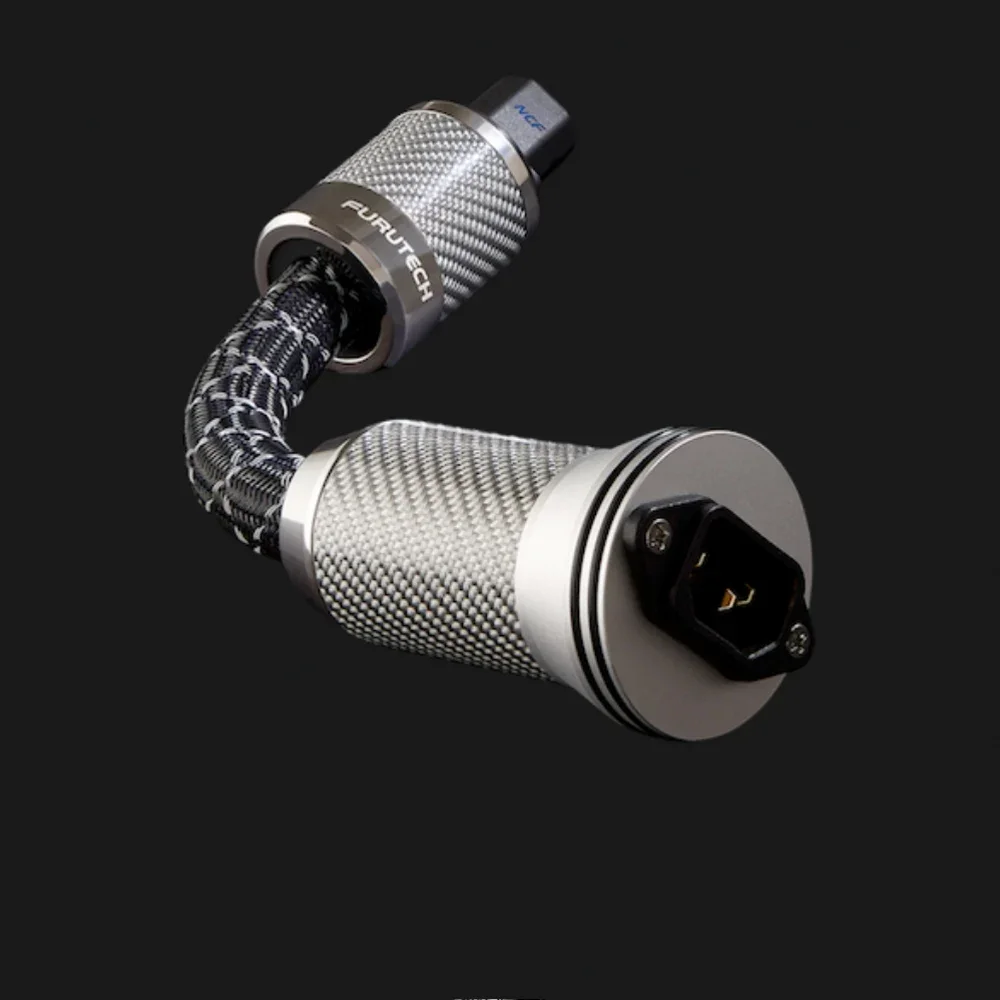

FURUTECH Flux-50 NCF Power Filter 30CM Nano Crystal Rhodium Plating Nonmagnetic FI-50R NCF Connector

Features:

For connection between power cables and power distributors or power cables and components. Eliminate and prevent radiated AC noise

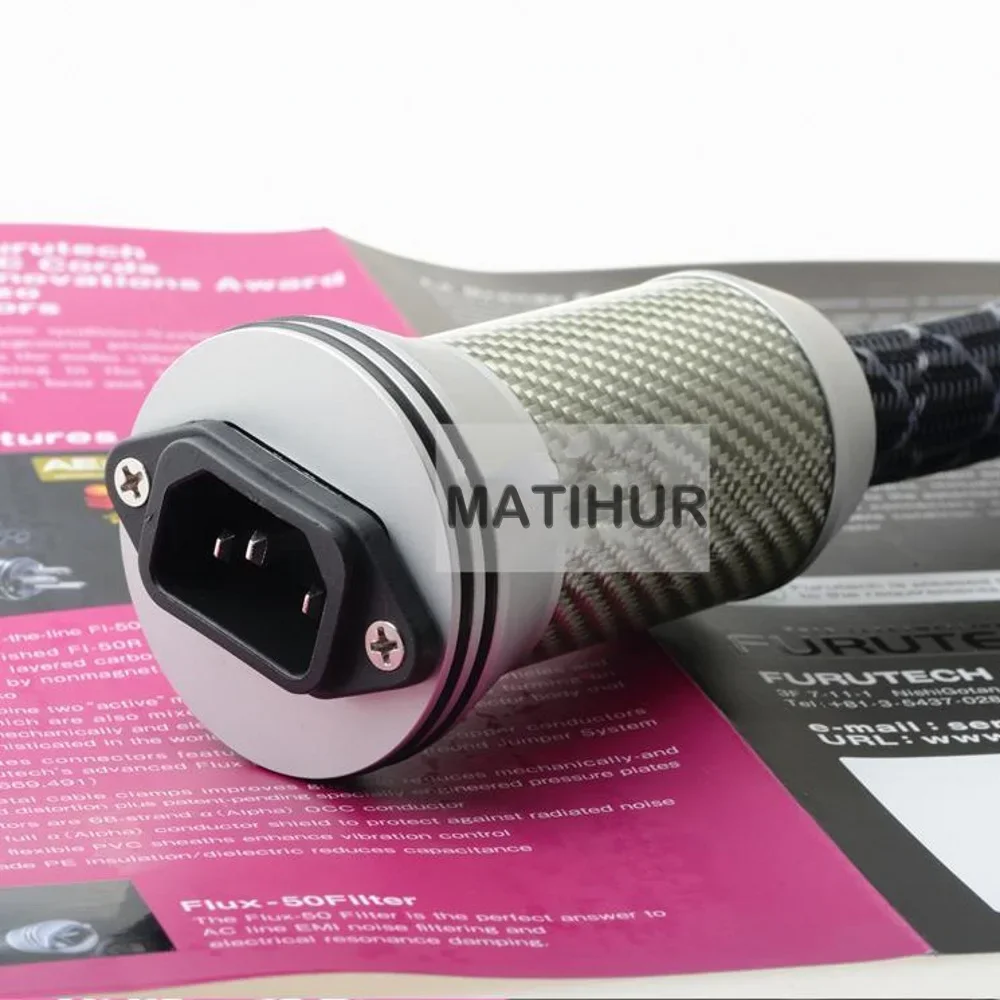

Fitted with Furutech's top-of-the-line Nano-sized Crystalline Piezo Ceramic Rhodium α (Alpha) nonmagnetic FI-50R NCF connector

AC-1501R EMI-filtering IEC, gold-plated α (Alpha) nonmagnetic copper alloy conductors

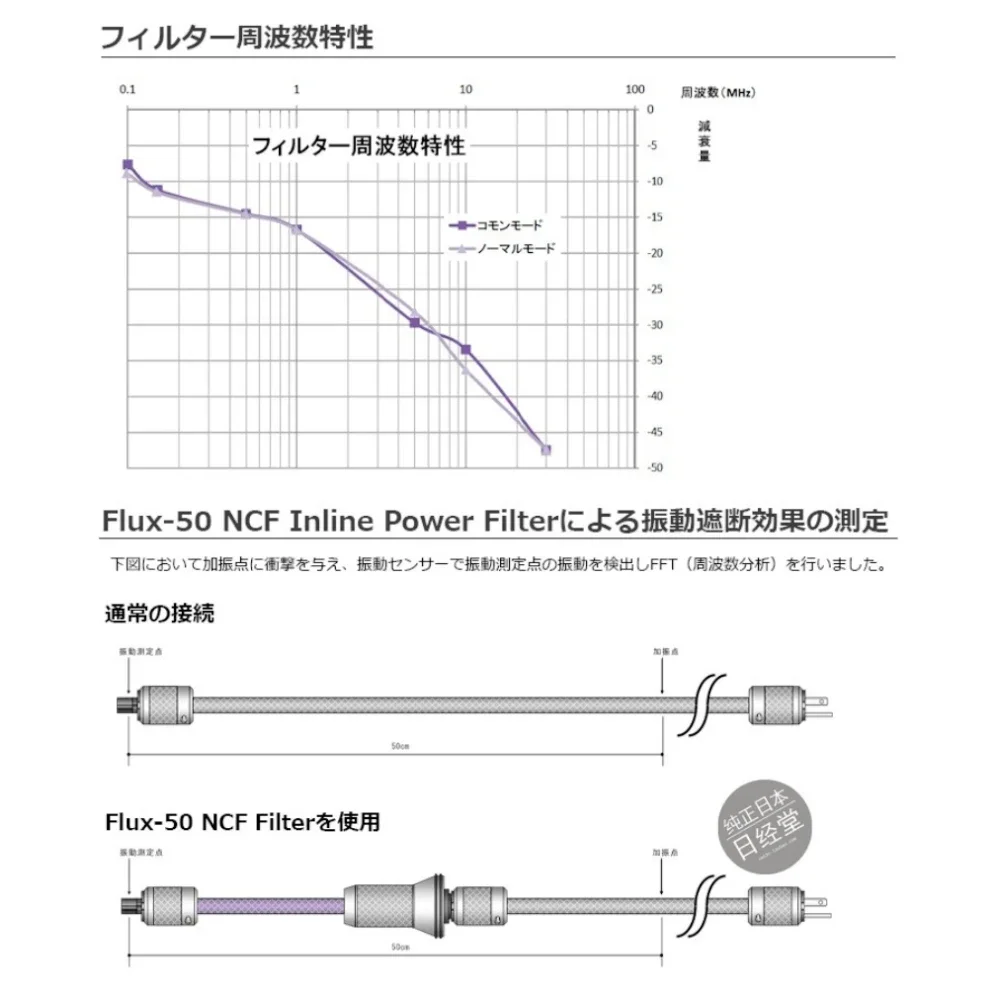

AC-1501R EMI filter features a parallel circuit with in-line coil and condenser, reducing noise at 1MHz by 10dB and at 10MHz by more than 30dB

Floating Field Damper (Earth/Ground Jumper System) US Patent No.: 6,669,491

Patent-pending metal cable clamp improves grip and reduces mechanically and electrically induced distortion

α (Alpha) conductor shield for protection against radiated noise

RoHS-compliant audio grade flexible PVC sheath improves vibration isolation

Special audio grade PE Insulation contributes to reduced capacitance

Incorporating Furutech's special passive GC-303 EMI filtering material

Filter held in housing with resonance damping Piezo epoxy

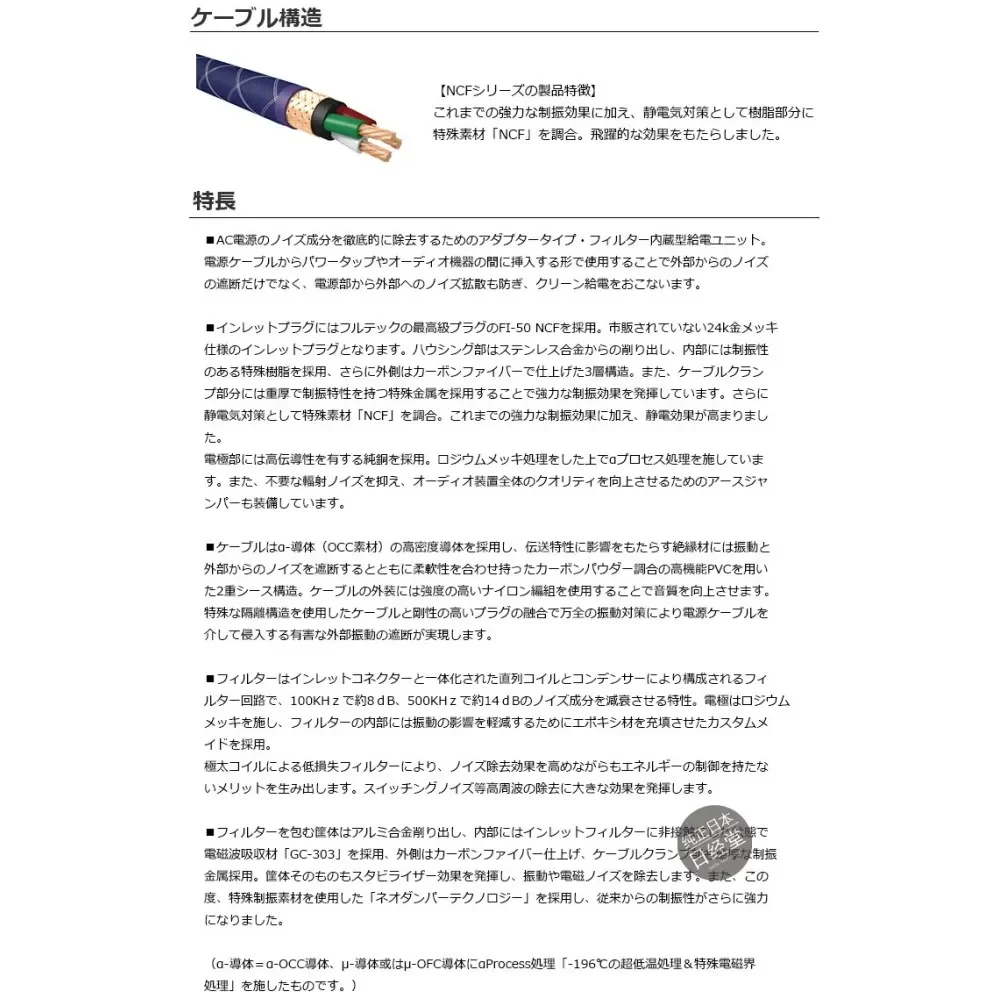

Cable Specifications:

62-strand α (Alpha) OCC conductor?0.127mm x 7 x 3 cores, 3.8mm diameter

Inner Sheath: RoHS-compliant audio grade flexible PVC incorporating carbon powder

Insulation: Special audio grade PE (Red/White/Green) 5.2mm diameter

Shield: 0.12mm diameter α (Alpha) Conductor wire braid

Sheath: RoHS-compliant audio grade flexible PVC (Purple red) 18.0mm diameter

Jacket: Nylon yarn braid approx. diameter 18.8mm

Package : 1* New FURUTECH Flux-50 NFC filter
