SPECIFICATIONS

Automation: Automatic

Backgauge adjust range: 20-500

Brand Name: NoEnName_Null

Certification: ce

Cutting Angle: 1°30

Cutting Length: 3200MM

Cutting Thickness: 4MM

Extra Services: Cut To Length

Hign-concerned Chemical: None

Is Smart Device: No

Material / Metal Processed: Aluminum

Material strength: 450KN/CM

Model Number: QC12Yx4x3200

Motor power: 5.5KW

Origin: Mainland China

Overall dimension: 3840X1550x1550MM

Power (W): Cnc

Raw Material: Sheet / Plate Rolling

Stroke times: 13/MIN

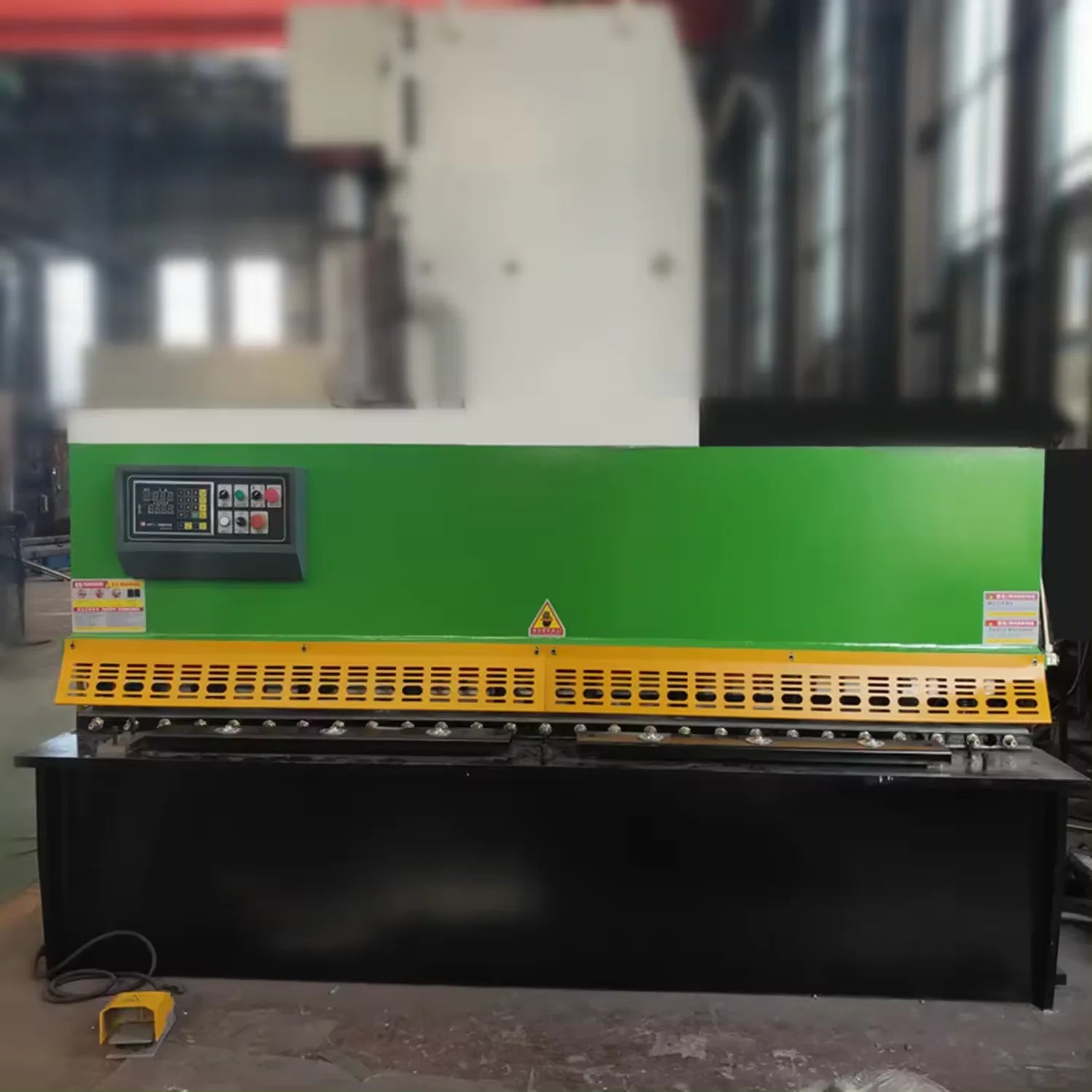

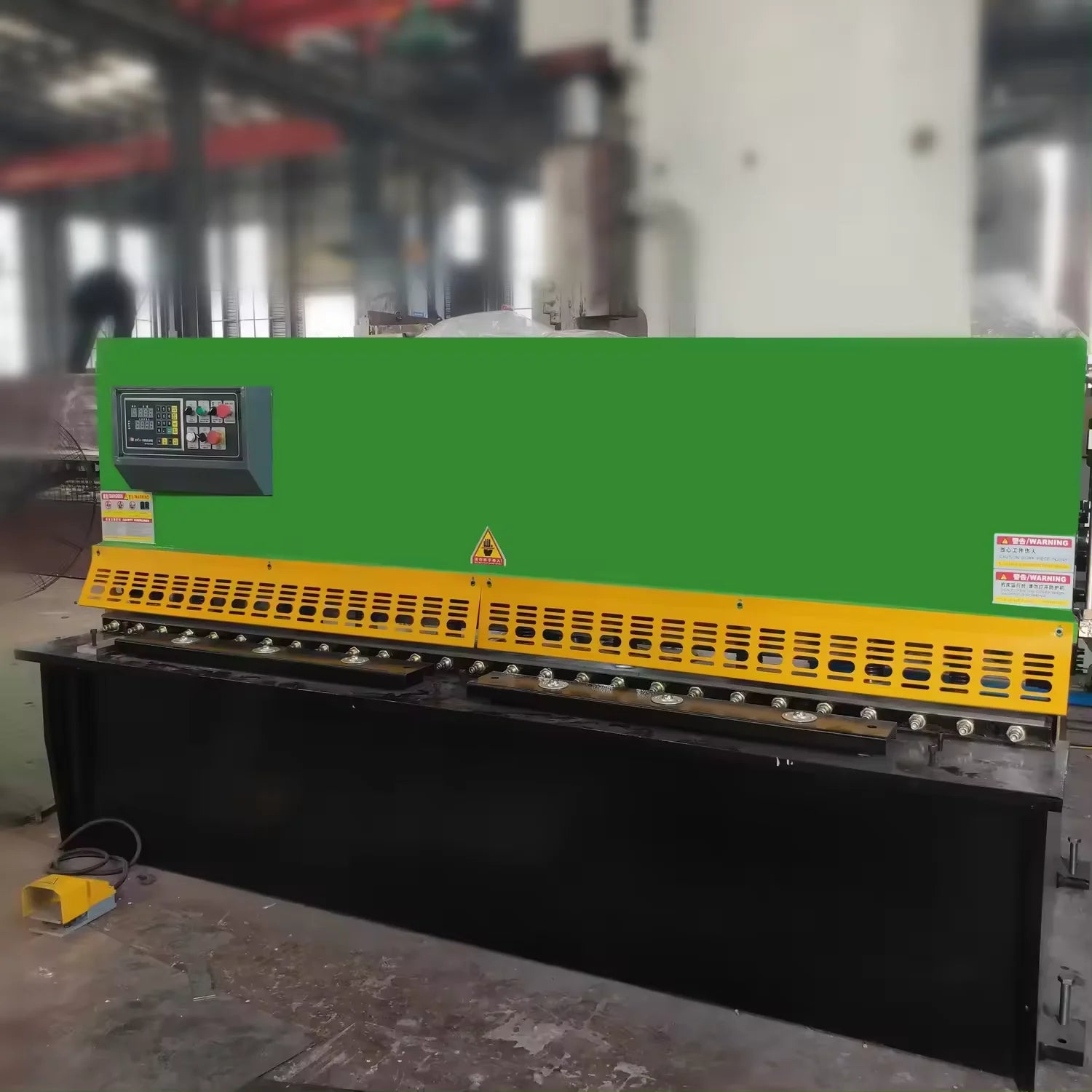

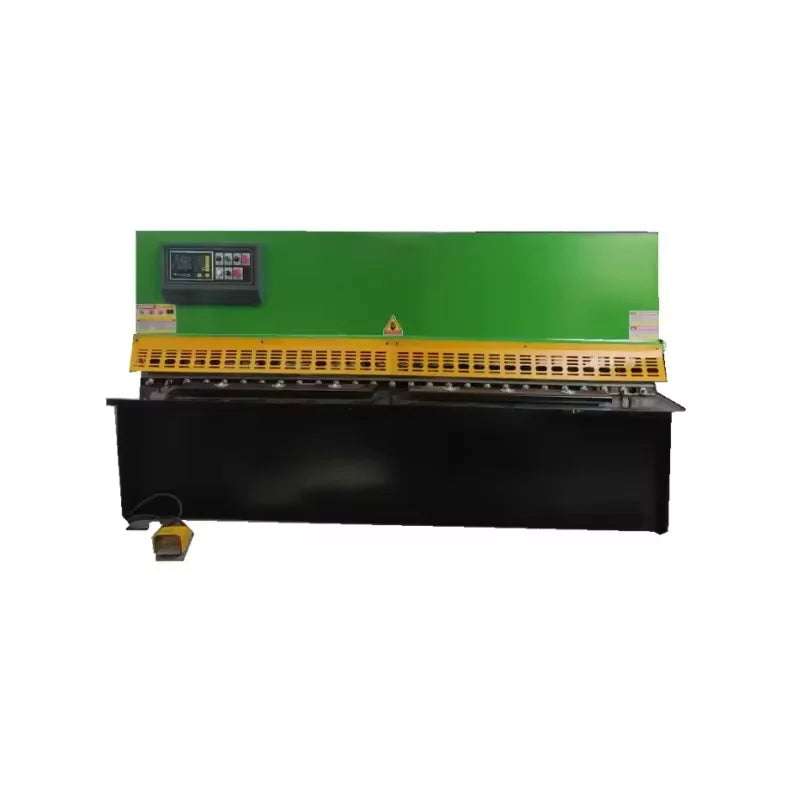

Factory supply QC12Y type hydraulic sheet metal swing shearing machine E21S System shear cutter

1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.Accurl engineers utilize parametric 3D Solid Works using FEM & DOE analysis as well as static and mechanism analysis.
3.Accurl Hydraulic Shearing Machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
4. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,
5. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
7. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard,
8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

Main Features

1.Steel plate welded structure, hydraulic transmission,nitrogen cylinder return, convenient operation,reliable performance, beautiful appearance.

2.Edge adjustment signs, adjusts lightly and quickly,continuously variable transmission.

3.Lighting device on the line, and continuously variable adjustment of upper carrier itinerary.

4.Fence type safety protection device.

5.Back gauge adopts CNC system with low noive and high pecsion.

The standard configuration:

※ Built- in Spring Pressure Cylinder

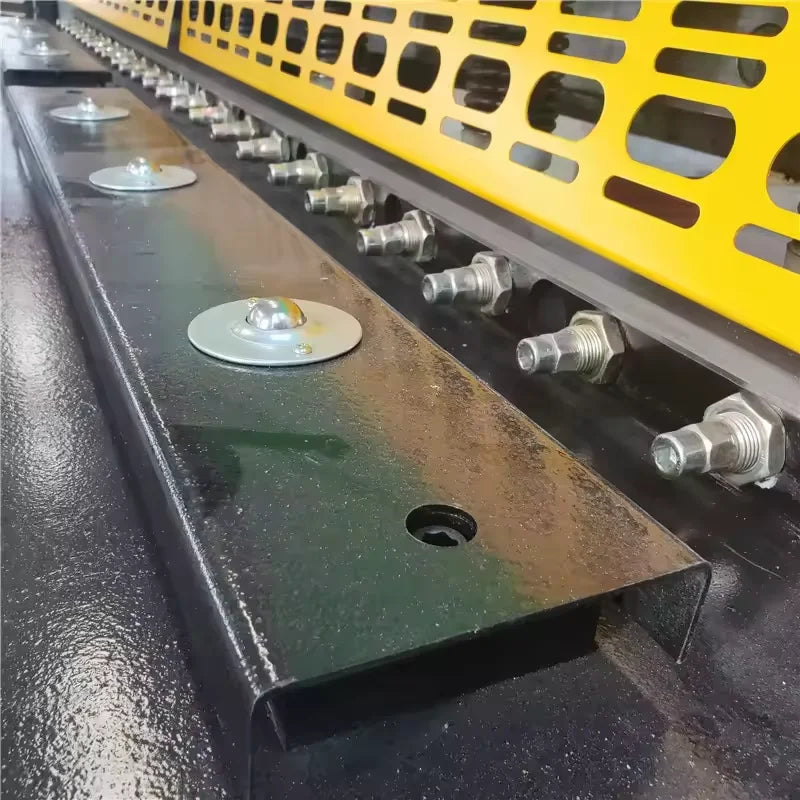

※ Workbench olling Steel Ball

※ Squaring Arm and Front Support Arms

※ Germany Bosch- Rexroth Hydraulic valve group

※ Germany EMB Tubing connector

※ Germany Siemens Main Motor

※ France Schneider Electrics

※ Manual Blad clearance adjustment

※ One set of diamond blade (upper and lower) materials is 6CrW2Si

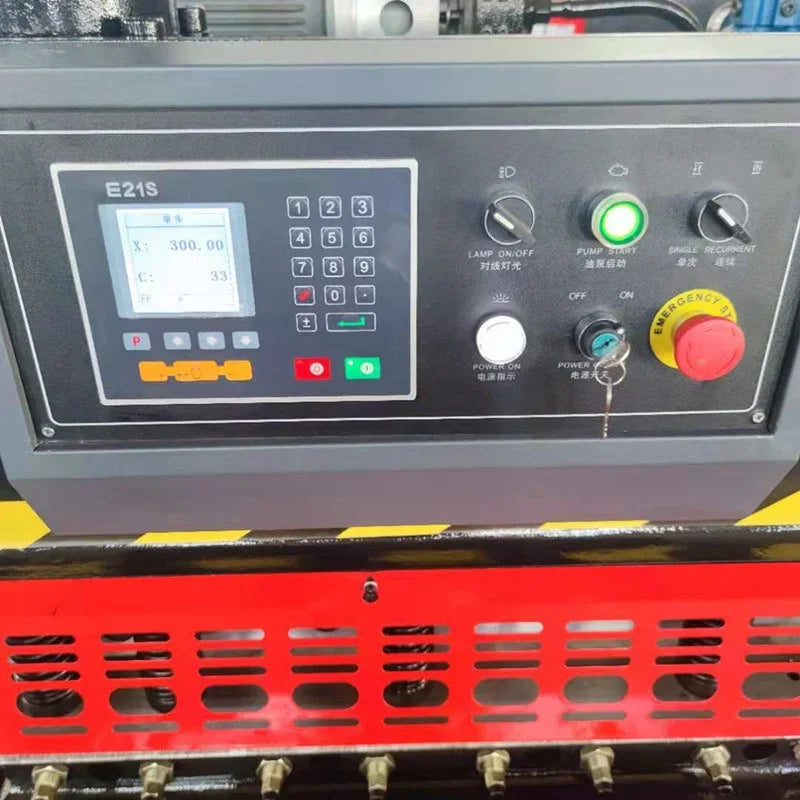

Control system:E21S

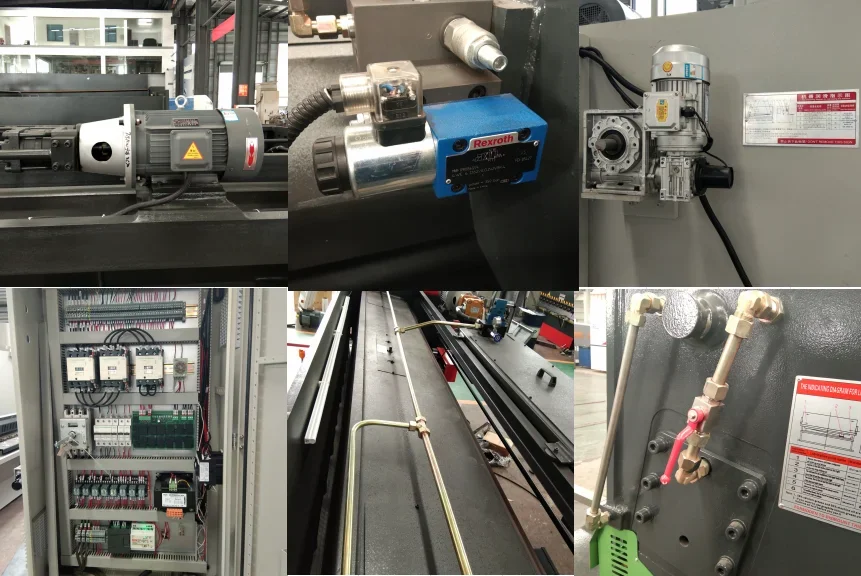

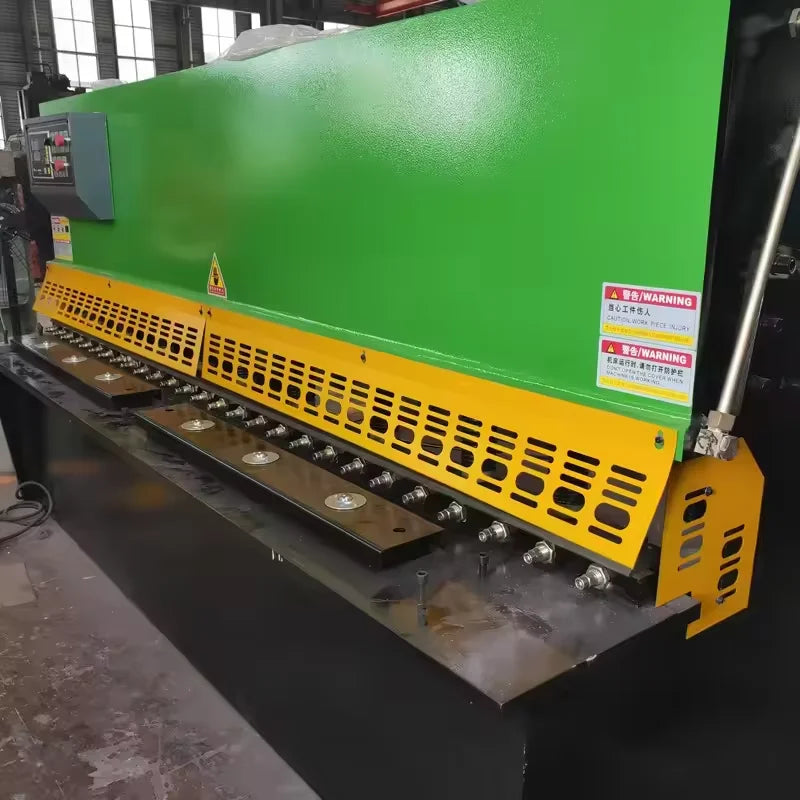

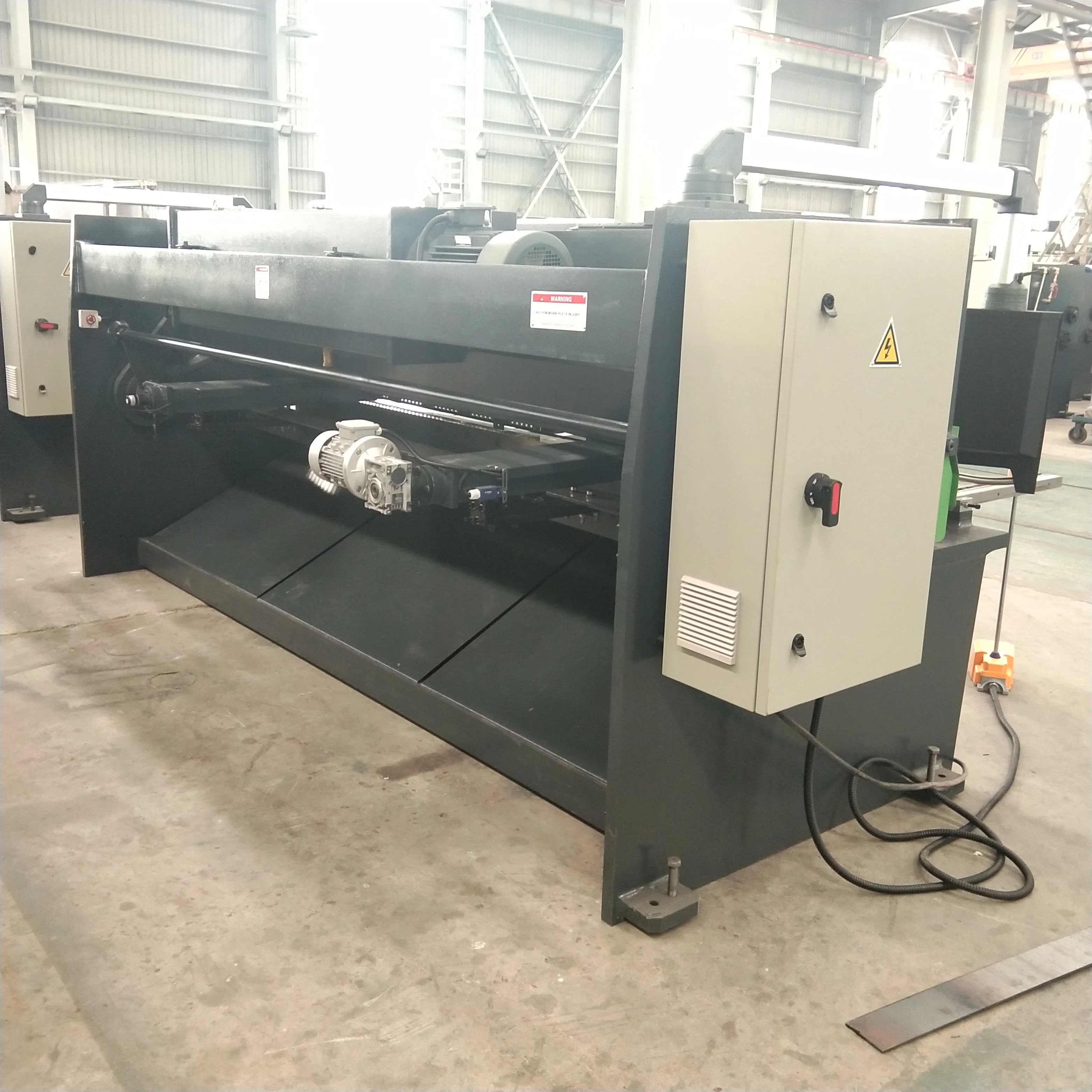

Feature detail

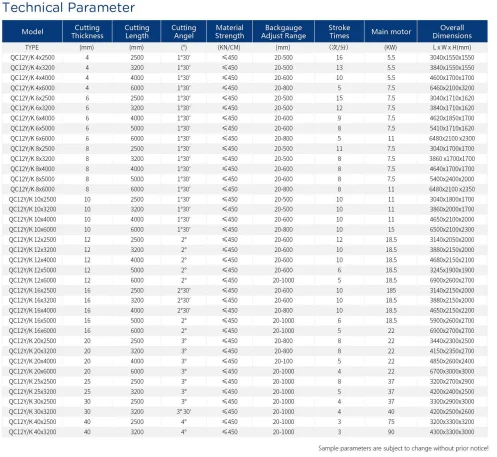

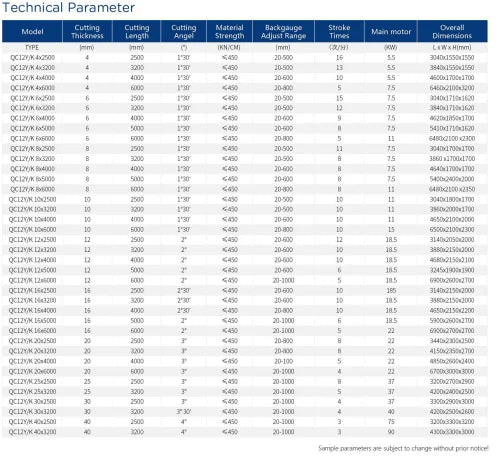

Technical Parameters

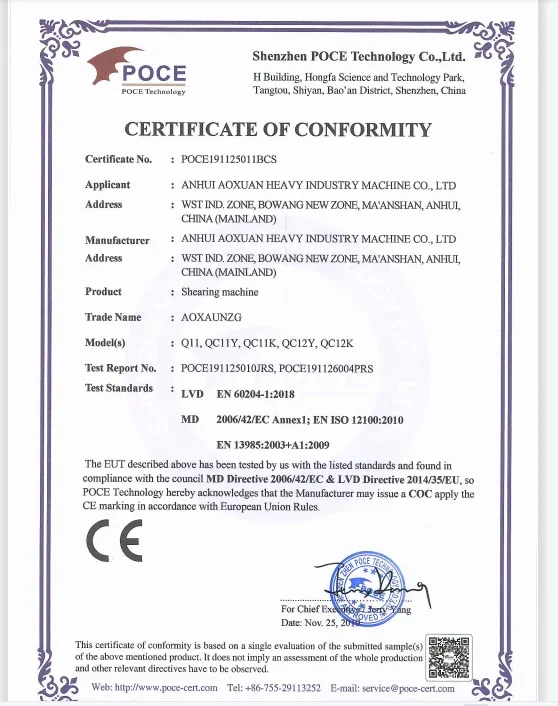

certification

Packing detail

☂ Each Electric Cutting Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :

☀ Shipped in 30 days after payment.

Our Company

FAQ

1. Are you the manufacture?Can we visit your factory?

We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.

And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.

2.What's your main product and what is your main foreign market?

Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.

Our main foreign market are Asia, North America, Europe, Africa.

3. what are the advantages of your machines?And how can i believe the quality of your product?

The main configuration is to import quality products, and Professional product quality inspection team ensure machine in

top-quality, precision and life.

For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.

Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?

After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?

Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical

problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?

T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.

7.Are you provide product metal parts and provide us technical guidance?

Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go

abroad to provide you with technical guidance.

8. How long is your warranty?

13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?

we accept kinds of customized ,including logo and machine .
