SPECIFICATIONS
Brand Name: Duoyi
DIY Supplies: ELECTRICAL
Origin: Mainland China
Type: Vehicle Battery Tester
Certification: CE
Model Number: DY2015A
Choice: yes
DUOYI DY2015A/DY2015 12V&24V Car Battery System Tester Capacity Maximum Electronic load Battery Cranking Charge Test Digital Diagnostic Tools
Introduction:
DY2015 series storage battery testers are used for activated style leadacid storage battery.
Precise circuit and strong digital processing unit make it complete collection of a series of complicated data and figure out every test data, which availably by 4-wire Kelvin test connection. Besides it strengthens input protection inside , in order to prevent such situations as polar reversal connection, over-high voltage input, poor contact of the test clamps and so on. That makes sure safer and more convenient when testing.
This tester is the best tool for battery sales, vehicle repair and condition check of all kinds of lead-acid batteries that used in equipment system associated with lead-acid battery.
Features:
Conforms to CAT III 600V

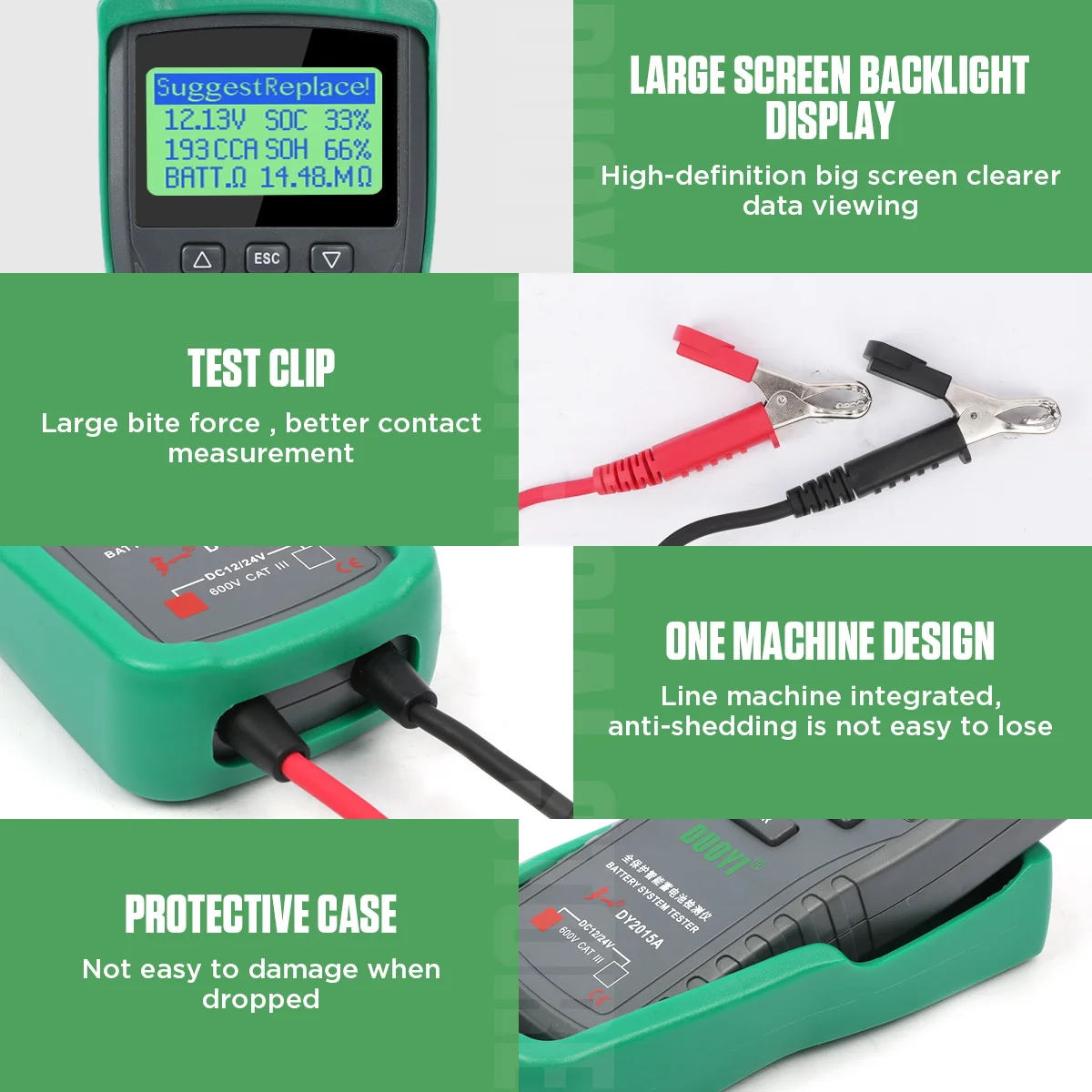

With large LCD display, easy to read the value

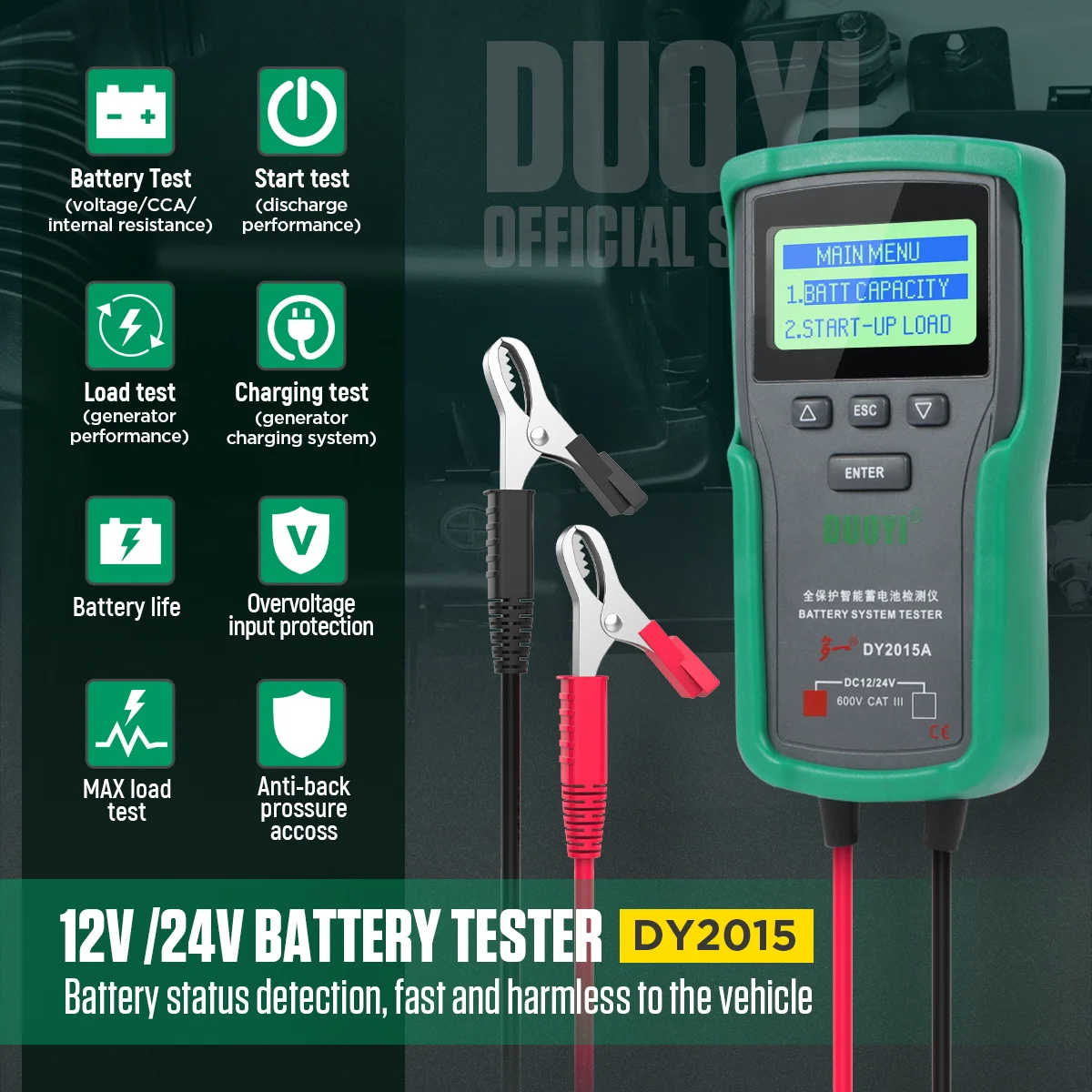

Fully diagnose the battery status and car charging system
Battery test: cold cranking amps, battery resistance, voltage, life analysis
Engine system test: the change of battery system with the process of startup
Charging system test: the charging system working state of the output
Maximum load system test: the maximum load state of battery
Rich Parameters measured and displayed for battery condition diagnose
Overload protection and wrong connection protection keeps operator always safe
Easily read out conclusion of battery condition good/OK/pay attention/replace
Loose lead detection, unit conversion CCA/IEC/EN/DIN

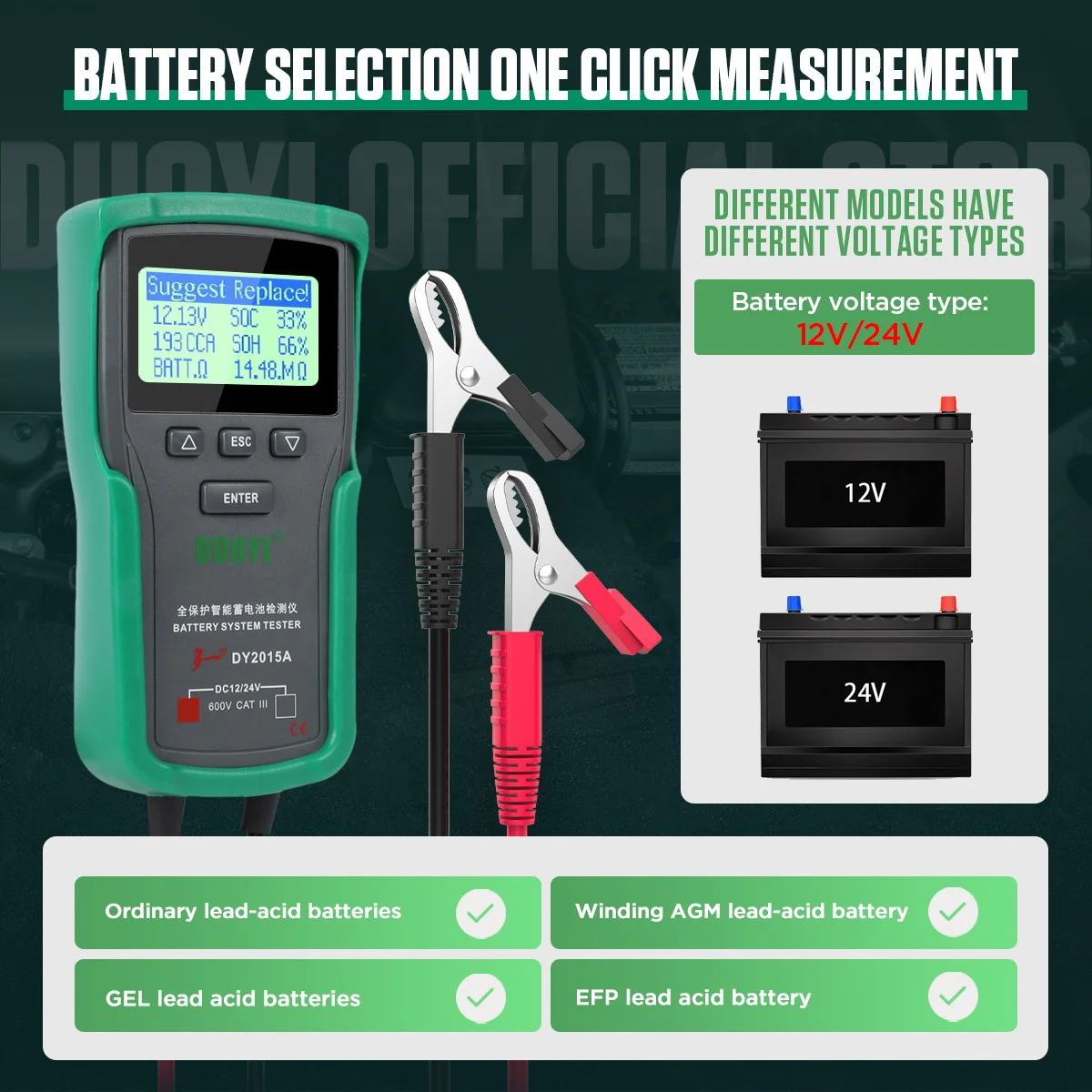

Ordinary lead-acid batteries
Winding AGM lead-acid battery
GEL lead-acid battery
EFB lead-acid battery

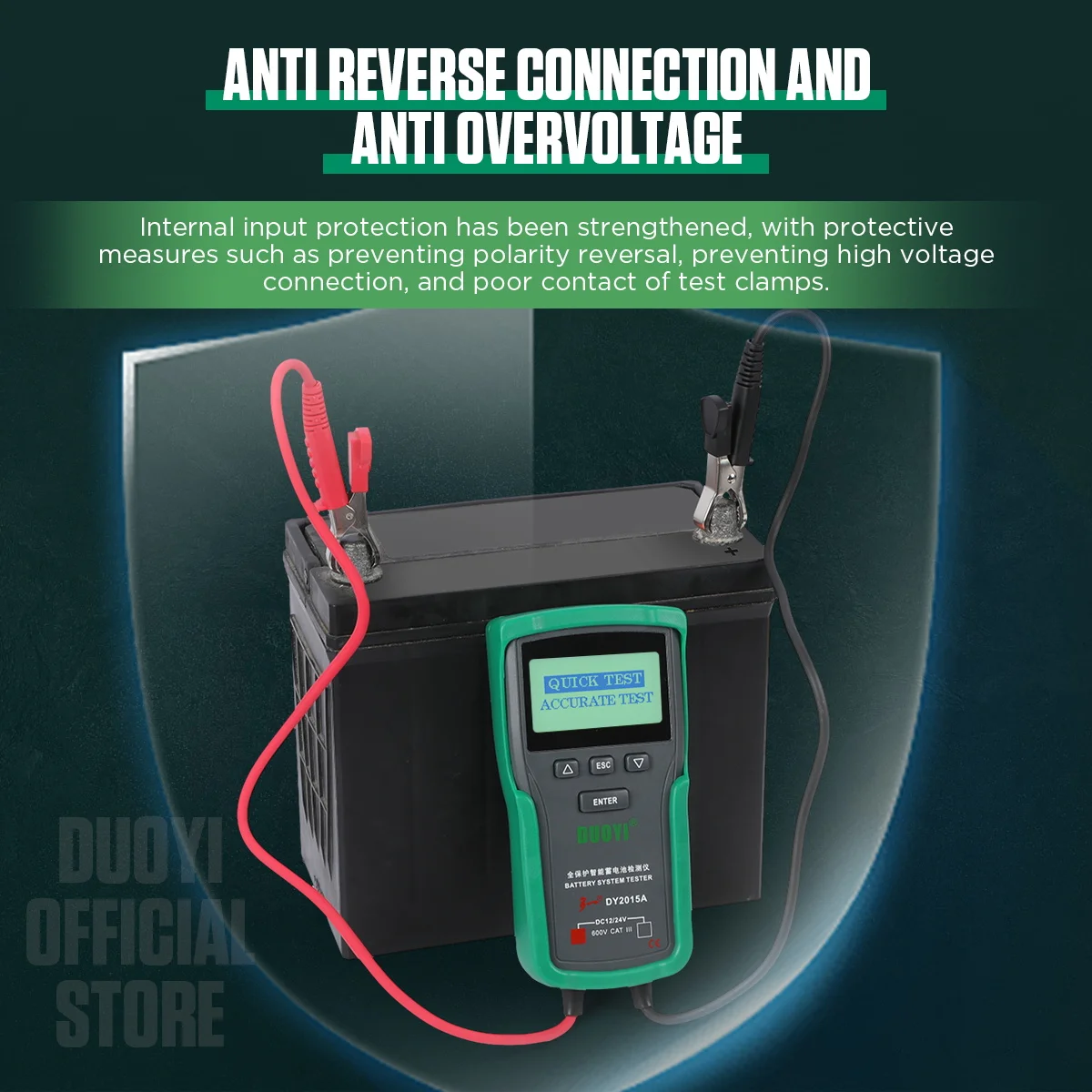

Anti reverse connection and anti overvoltage
,Input protection is more secure
Internal input protection has been strengthened, with protective measures such as preventing polarity reversal, preventing high voltage connection, and poor contact of test clamps.

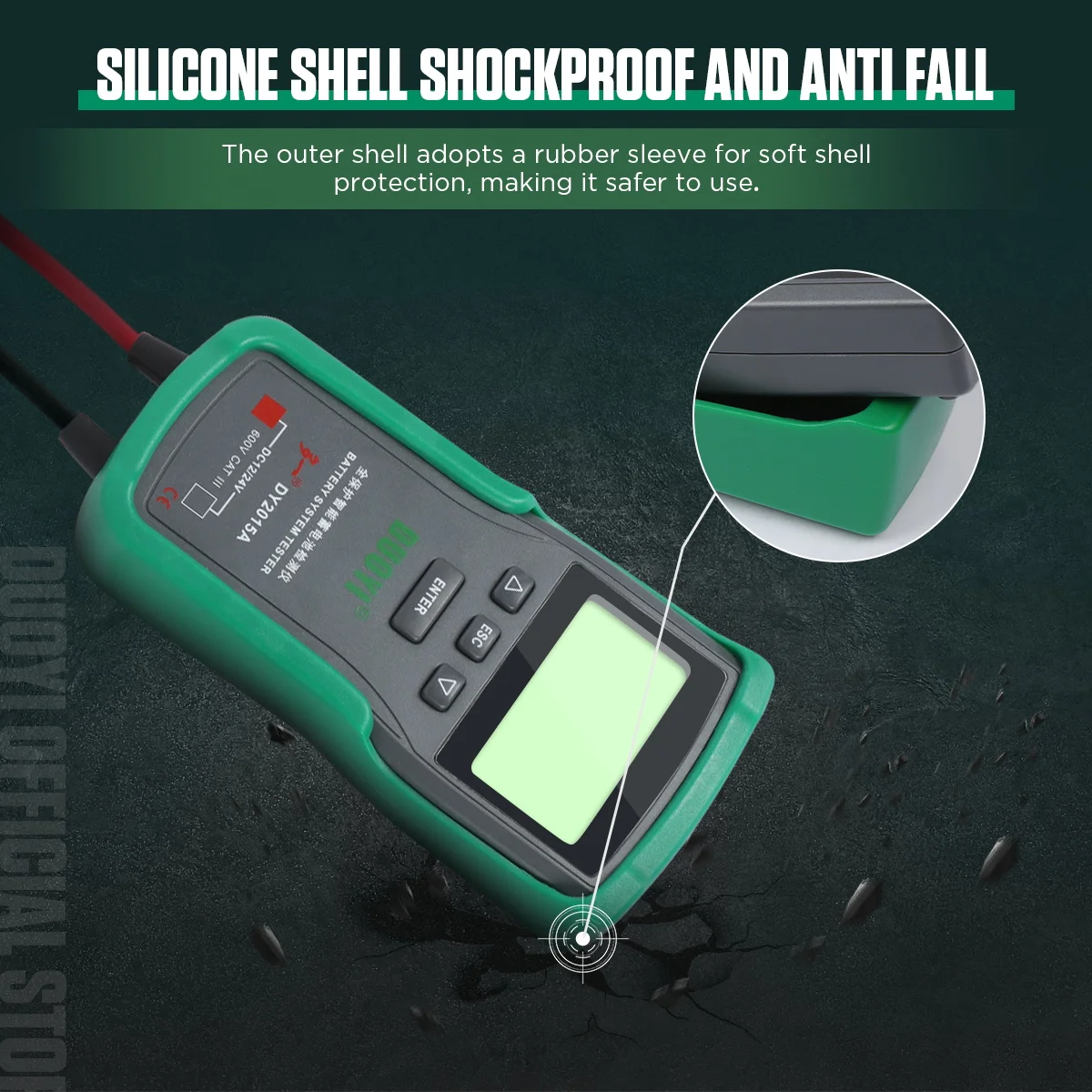

Silicone shell Shockproof and anti fall
The outer shell adopts a rubber sleeve for soft shell protection, making it safer to use.
Specification:
MODEI |
DY2015 |
DY2015A |
Battery type |
Lead- acid battery |
|
Battery voltage |
12V |
12/24V |
Battery range |
100-1700CCA |
|
Voltage range |
DC 9-18V |
DC 9-35V |
Battery Internal Resistance |
0-99mΩ |
|
Battery Status of Health(SOH) |
0-100% |
|
Battery Status of Charge(SOC) |
0-100% |
|
Operating temperature |
-18℃~50℃ |
|
Operating Language |
English |
|
Testing method |
4-wire Kelvin test connection |
|
Display Battery Internal Resistance |
Display ohms |
|
Display Battery Voltage |
Display volts |
|
Display Battery condition |
Good/ok/attention/replace |
|
Ah Input Quick Test |
yes |
|
Maximum Load Test |
yes(On car) |
|
Engine Cranking Load Test |
yes |
|
Star-up Load Test |
yes |
|
Maximum Load Test |
yes |
|
Charging system Test |
yes |
|
Display Battery Status of Health(SOH) |
yes |
|
Reverse Polarity Protection |
yes |
|
Loose Lead Detection |
yes |
|
Overload Protection |
yes |
|
Cable Length |
700mm |
|
Dimension |
180*90*32mm |
|
Product Features:
1. Storage battery tester is used for activated style lead-acid storage battery, along with checking battery life time and the following conditions of the battery, starting up, charging, and electrical loading.

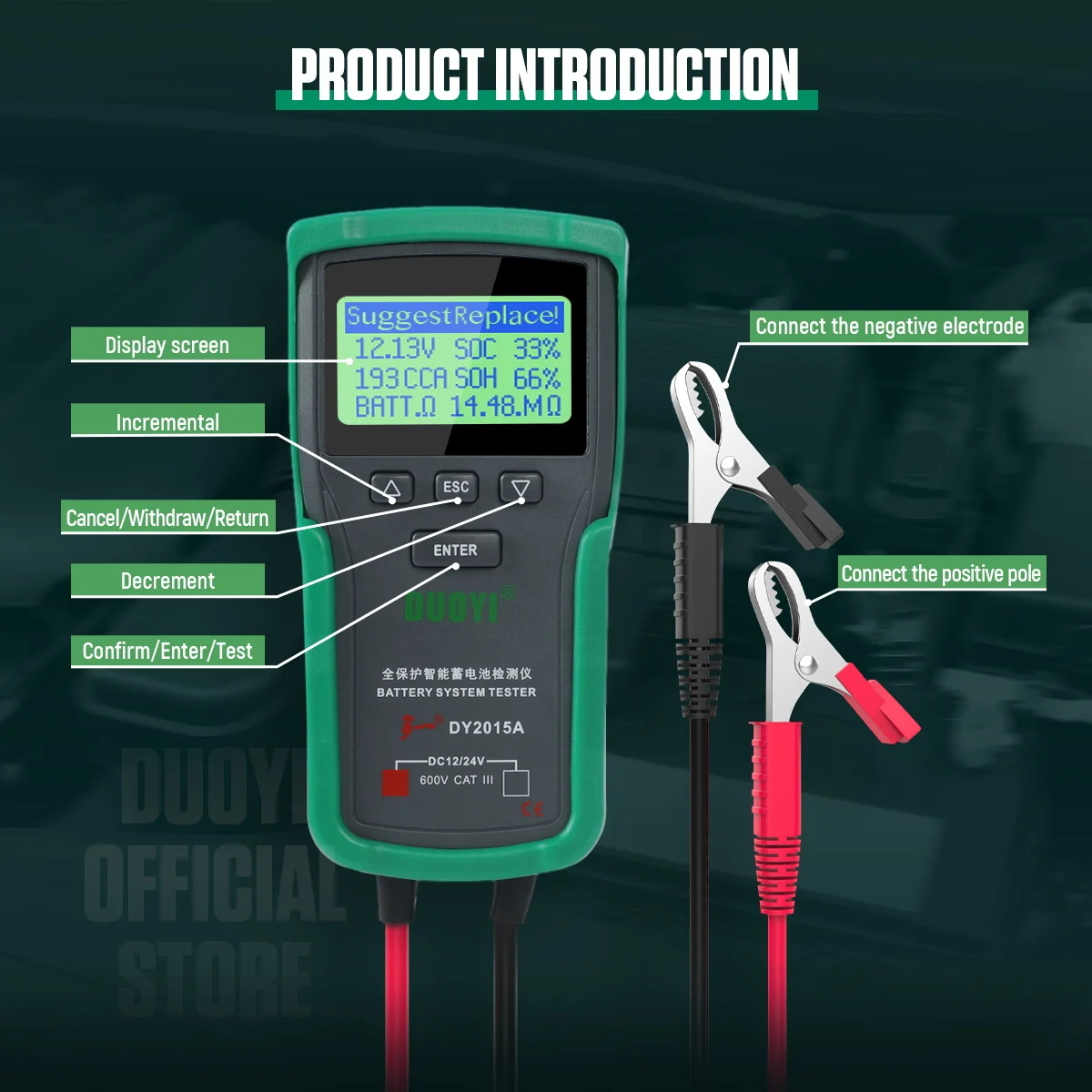

2. With great design, easy operation, precise reading, complete functions, this tester supply the readings by a large LCD and hints by sound and light when testing.
3. Precise circuit and strong digital processing unit make it complete collection of a series of complicated data and figure out every test data.
4. Storage battery tester strengthens input protection inside , in order to prevent such situations as polar reversal connection , over-high voltage input, poor contact of the test clamps and so on. That makes sure safer and more convenient when testing.
5. Anti-slip rubber sleeve provide a safe operate condition
6. Storage battery tester fit for all kinds of lead-acid batteries that used in equipment system associated with lead-acid battery. It is available to vehicle of 12V storage battery. The working voltage of tester is DC 9V to 35V. Do please do not check the series connection battery with the tester.

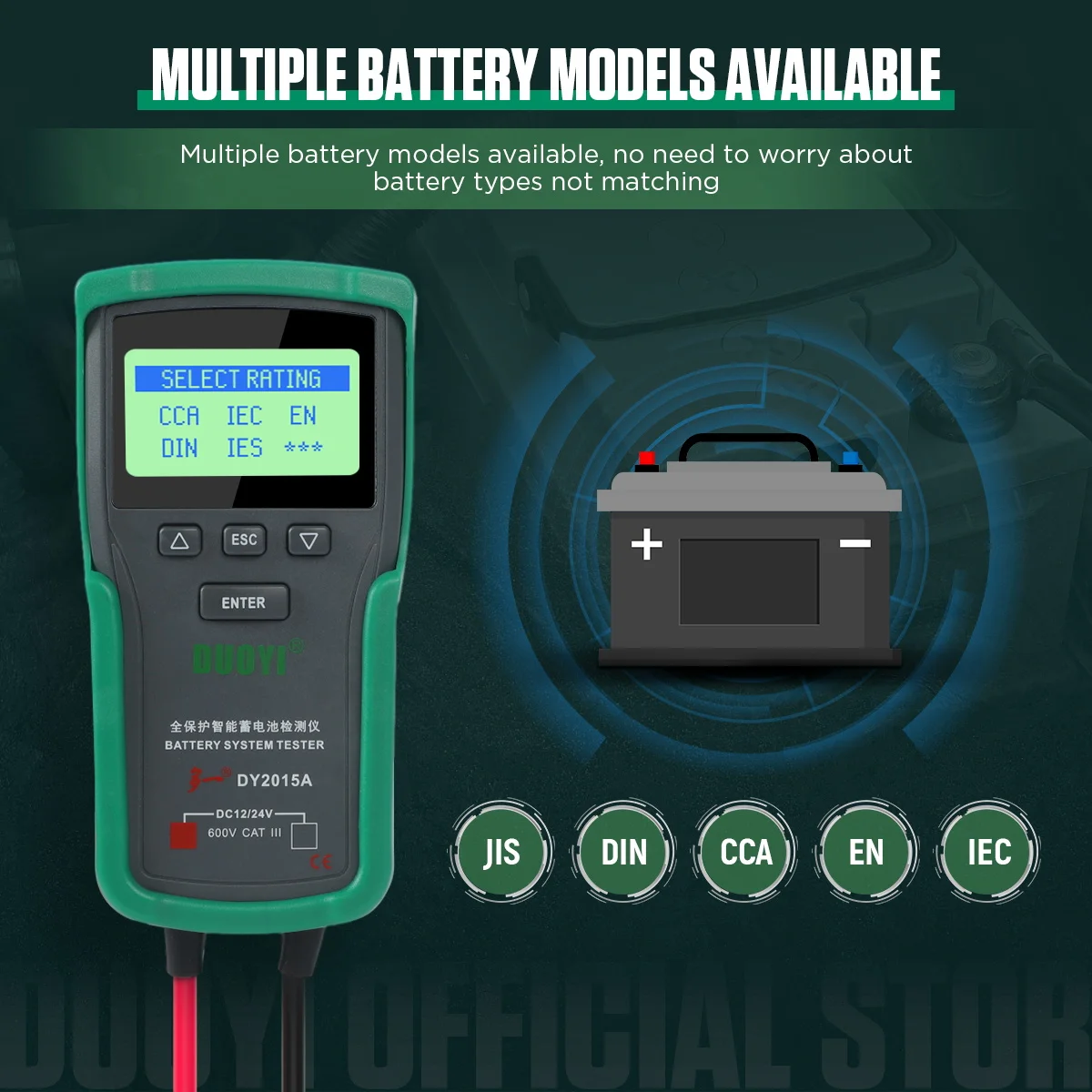

7. Standard of optional storage battery: CCA: 100-1700; IEC: 100-1000; EN:100-1700 DIN:100-1000; JIS: need to compare CCA with a table(the table is included in user manual). Generally,battery standard was marked on battery body. In case there is no mark.
The Product Detail Presentation
Package include:
1x Storage battery tester
1x User manual (in English)
FOUR MAIN FUNCTIONS

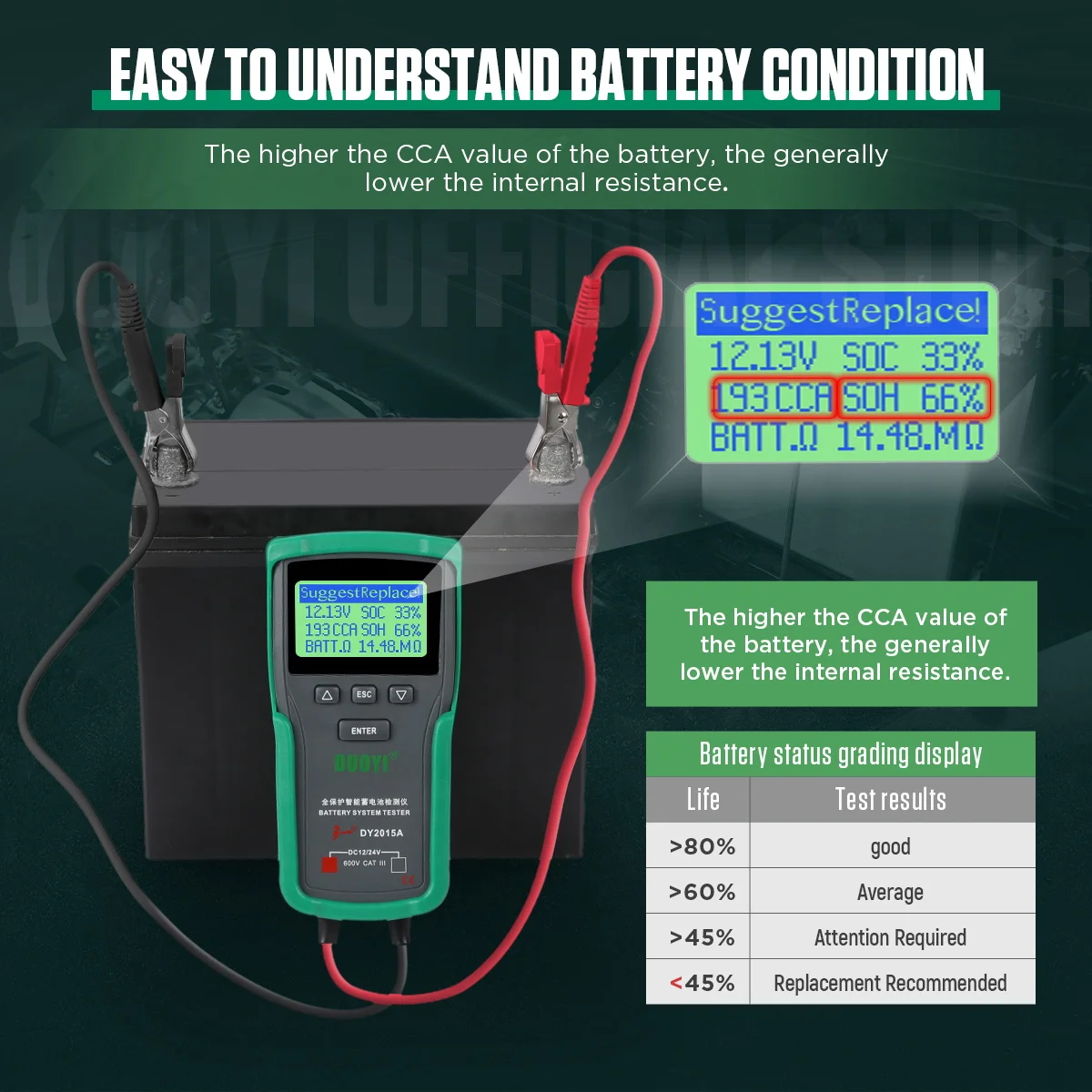

The larger the CCA value of the battery , the internal resistance is generally smaller.
Note: Preparation before testing - When the car is started, first turn off the fire and turn the key to the OFF position.
The standard voltage is 9.6V. The test result is more than 9.6V，the boot system is normal. (Otherwise，the boot system is abnormal.)
Note: Preparation before testing - When the car is started, first turn off the fire and turn the key to the OFF position.
If the voltage reading is less than 12.8V (For 24V system <DY2015A>, the reading is less than 25.60V)
Please check whether the generator belt is worn and the wire is short-circuited or not .
Note: Preparation before testing - When the car is off, please start the car engine first.
If the voltage reading > 15.0V (for 24V system <DY2015A>, reading > 30.00V), please check the regulator
If the voltage reading is <13.3V (for 24V system <DY2015A>, reading > 26.60V), please check the connection point, wires and engine.
Note: Preparation before testing - When the car is off, please start the car engine first.
