SPECIFICATIONS

Brand Name: SeeSii

Origin: Mainland China

Certification: CE

Measurement Bandwidth: 301 points

Frequency Range: 10k to 1.5GHz

Output Power: Battery 5000mAh 3.7V

Choice: yes

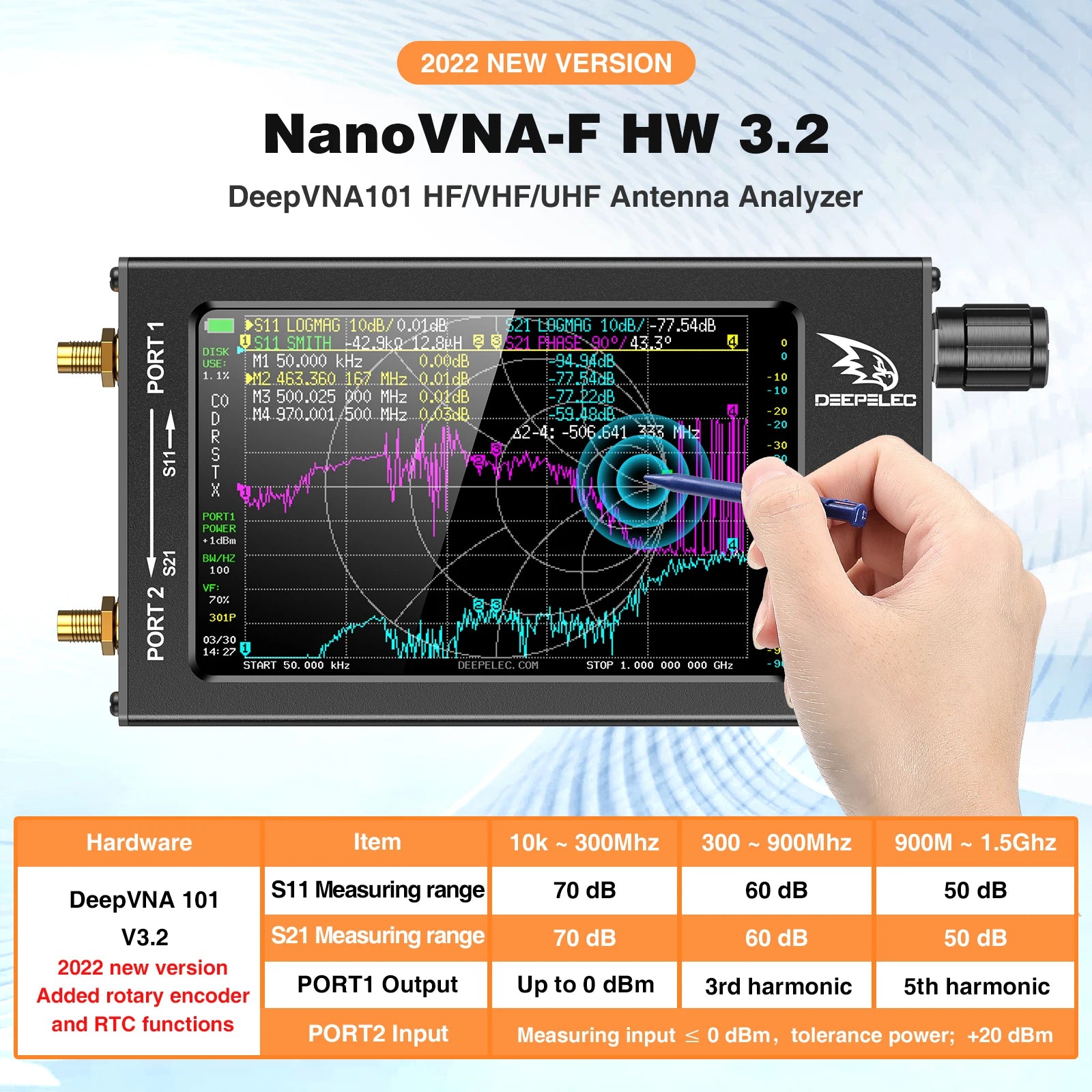

DeepVNA-101 4.3 inch Antenna Analyzer 10k-1.5GHz SWR Meter VHF UHF Network Analyzer HW3.2 IPS LCD + Metal Case NanoVNA-F

Introduction：
This is a vector network analyzer, which can measure the S-parameters of the circuit, transmission test, reflection test, insertion loss, return loss, fault location (TDR function), antenna standing wave, impedance, filter response and so on.

With the following improvements:

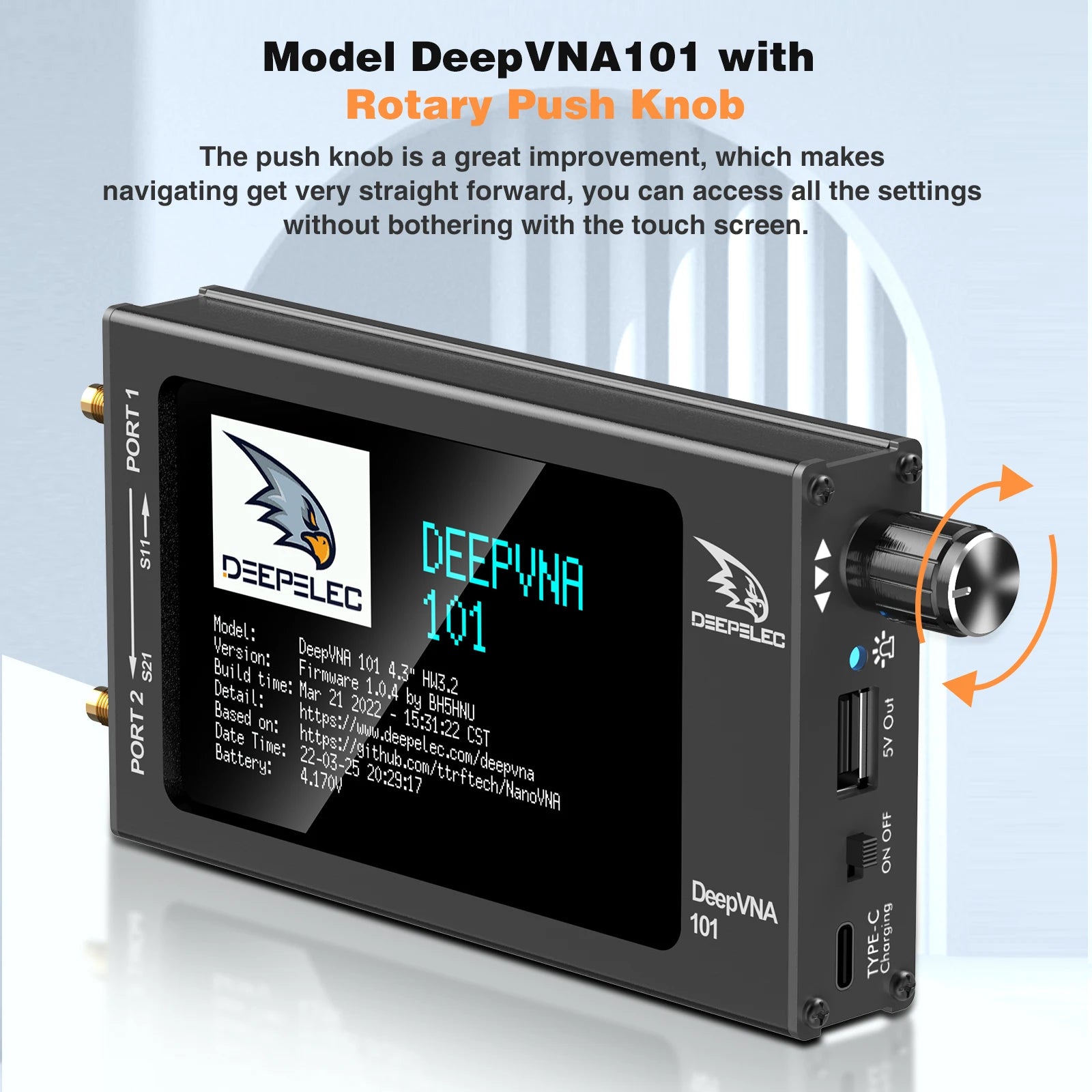

1. The user buttons are changed to a rotary encoder, which makes the control more convenient and smooth.
2. New added RTC circuit, with real-time clock and perpetual calendar functions.
3. Optimize the S21 insertion loss/filter measurement performance, with a larger dynamic range.

Running firmware version: 1.0.4, new features:
1. Add RTC real-time clock, perpetual calendar function
2. The measurement data file name is in the form of YYMMDD_HHMMSS.
3. The frequency setting can choose the start and end or the center span mode.
4. The boot sound can be turned on or off.

Description：

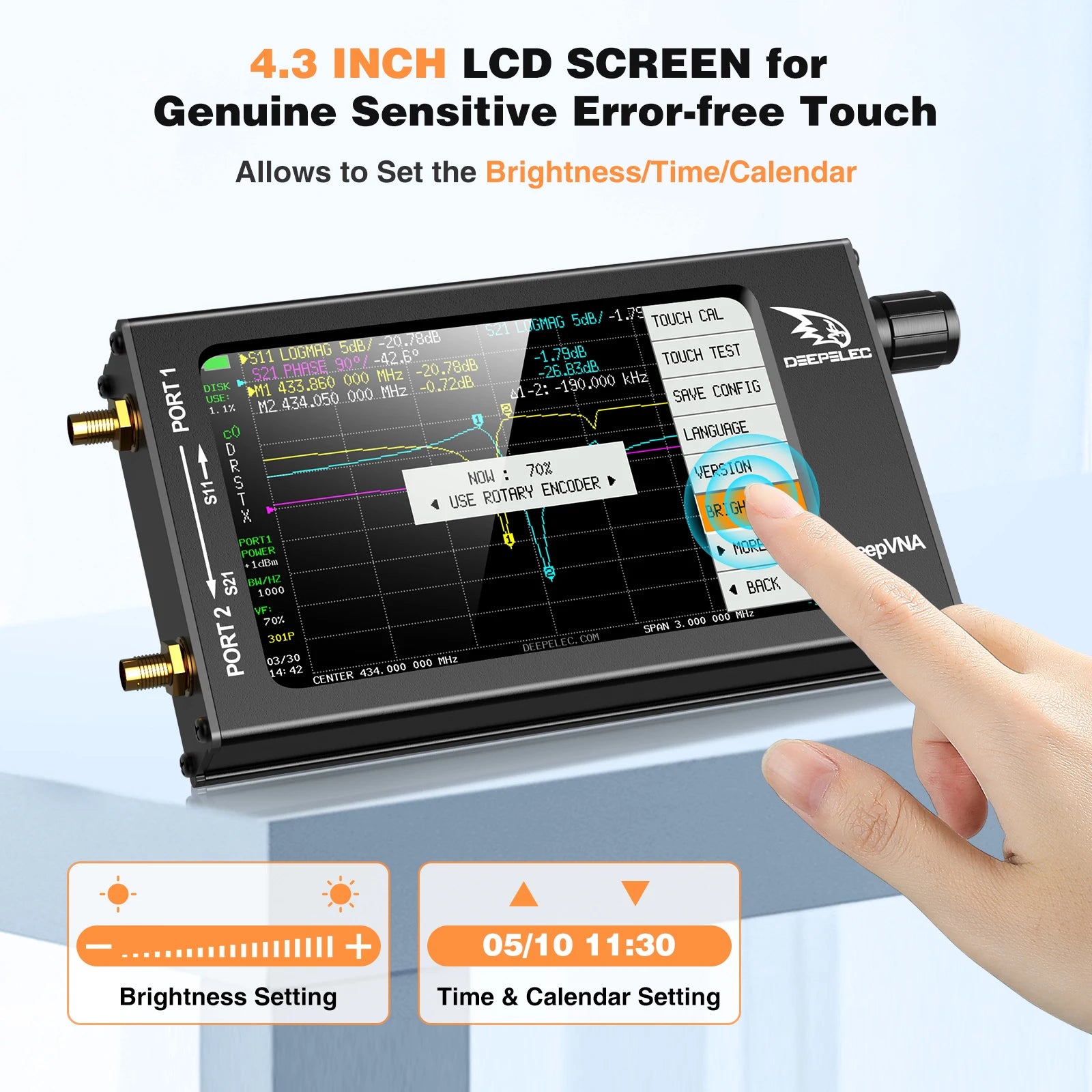

Screen Size: 4.3 inches
Nominal Frequency: 10k - 1.5GHz
Scan Points: Up to 301 points

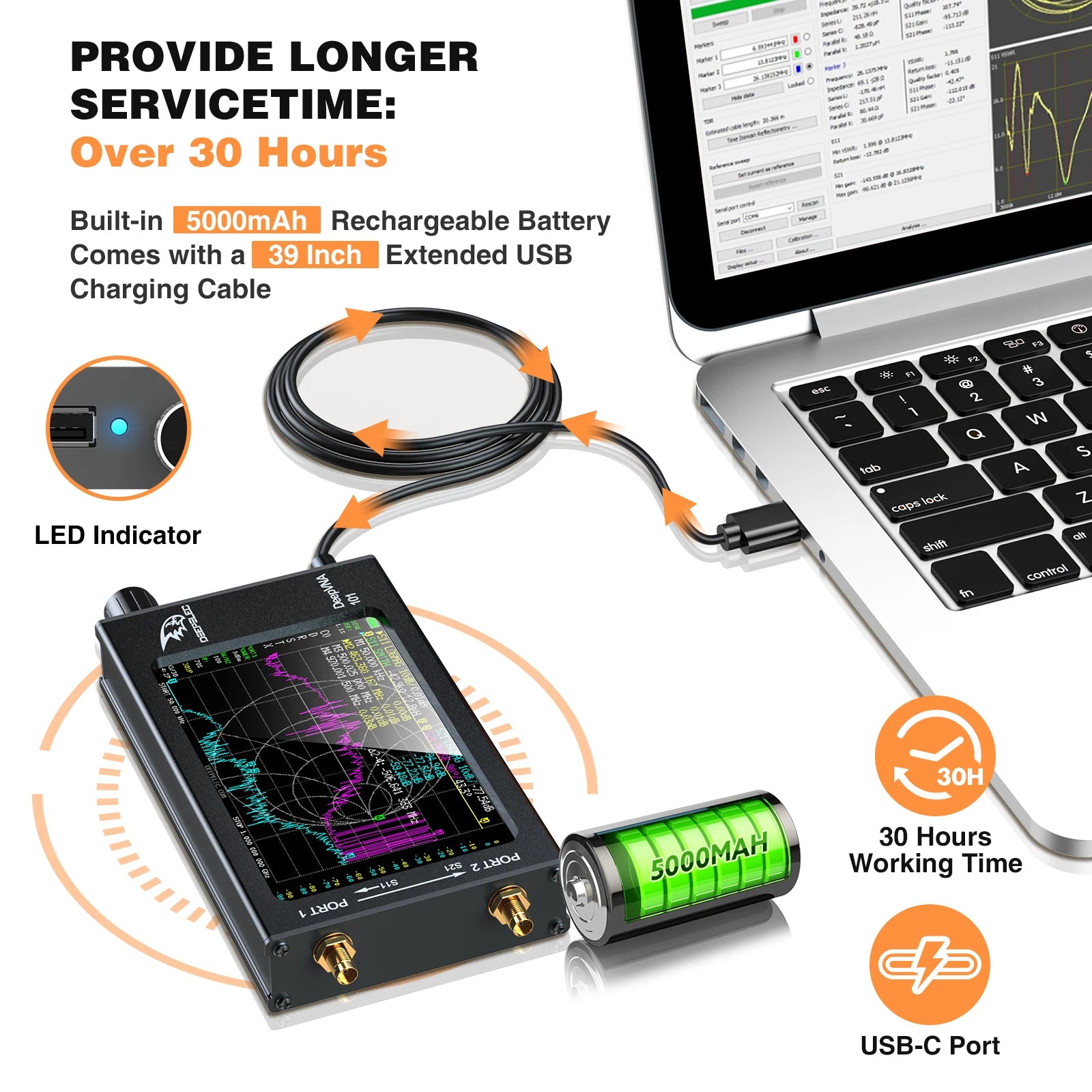

Battery capacity:  5000mAh/3.7V
Memory capacity size: 16MB
Up to about 1000 sets of snp file data can be saved.

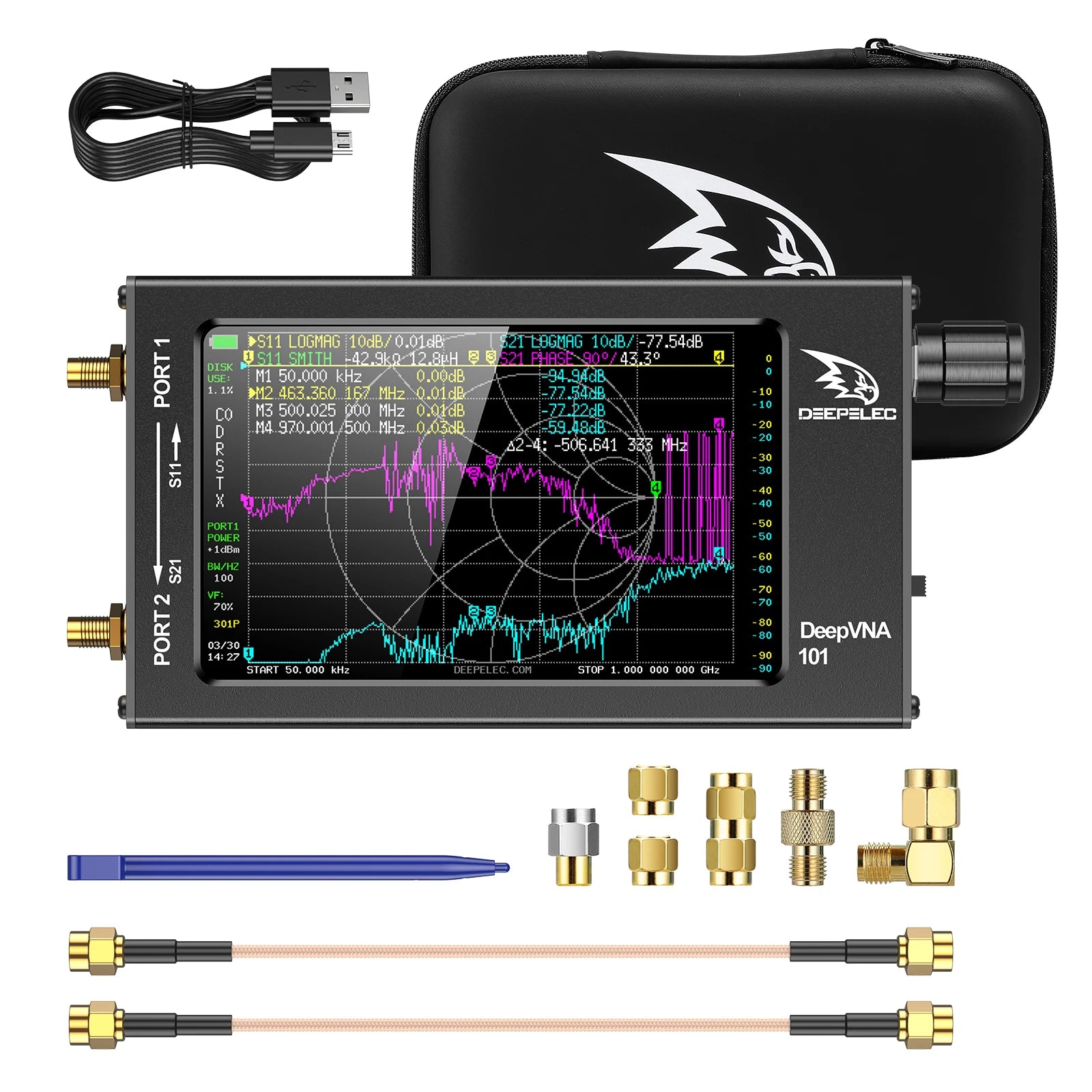

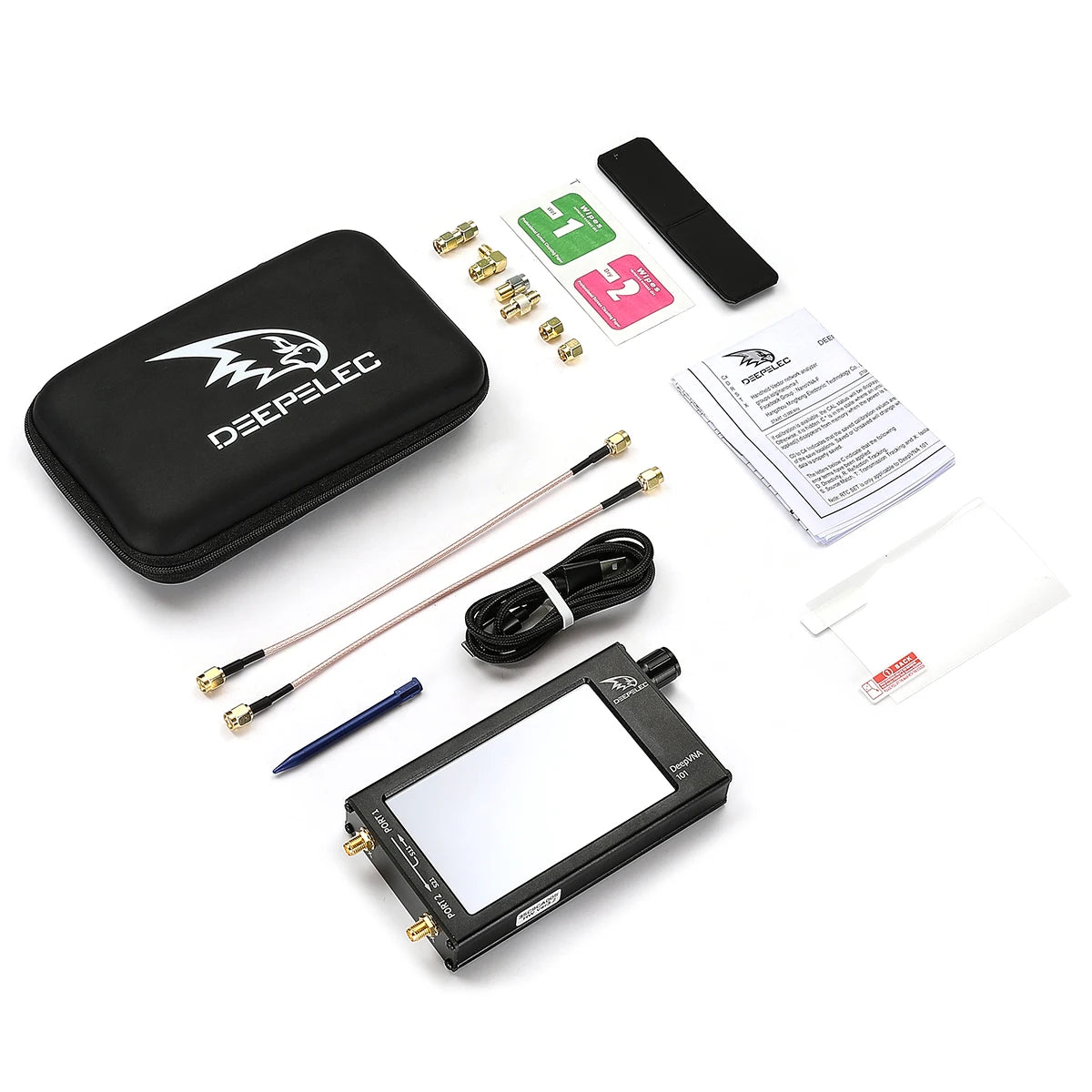

Package Includes:
1 x DeepVNA 101 4.3-inch screen unit (free screen protector)
1 x USB-A to USB Type-C cable
2 x 20CM SMA male to male RG316 RF cable
1 x SMA male calibration piece-OPEN
1 x SMA male calibration piece-SHORT
1 x SMA male calibration piece-LOAD (Within 4GHz,Swr 1.025)
1 x SMA-JJ male to male connector
1 x SMA-KK female to female connector
1 x SMA-JKW male to female right angle connector
1 x Foldable machine stand
1 x Resistive screen touch pen
1 x Quick Start Guide

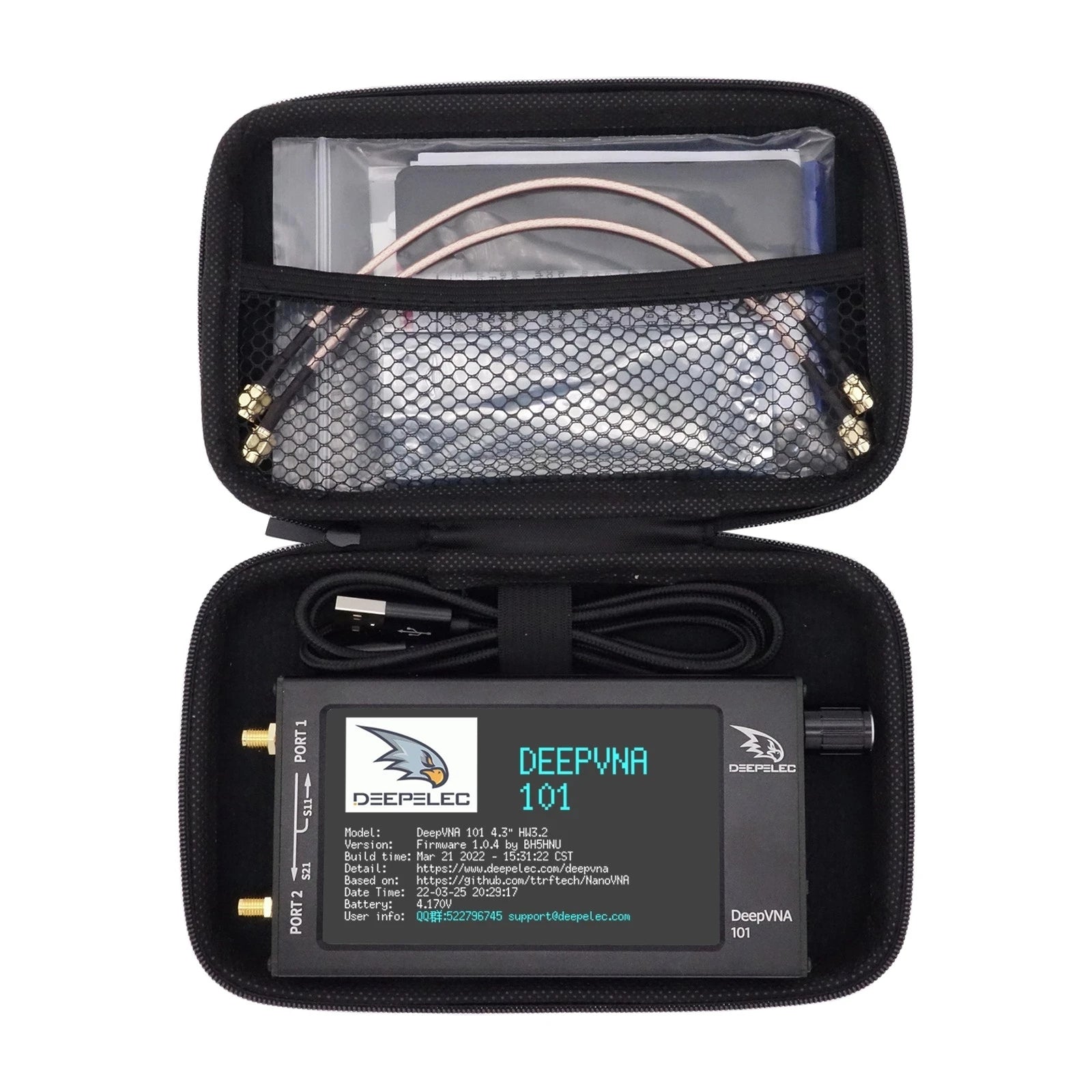

1 x Free EVA protective bag
