SPECIFICATIONS

Brand Name: BMAD

Frames Per Second: 30

Origin: Mainland China

Chipset Manufacturer: Novatek

Assembly Mode: REARVIEW MIRROR

Cable Length: 4M

APP Compatibility: RoadCam

View angle: 170°

Number Of Lenses: 3

Screen Ratio: 16:9

Interface: AV-In

Interface: USB2.0

Interface: WI-FI

Interface: Micro SD/TF

NightShot Function: YES

Power Source: Corded Electric

Video Code: H.265

Original Package: YES

Loop-Cycle Recording Feature: YES

Audio Recorded: YES

Camera Resolution: 3840x2160

Special Features: G-Sensor

Special Features: digital zoom

Special Features: motion detection

Special Features: sd/mmc card

Special Features: With Rearview Mirror

Special Features: Radar Detector

Special Features: Anti Surge Voltage Impact

Special Features: waterproof

Special Features: Anti Fog

Special Features: Anti Vibration

Special Features: Real Time Surveillance

Special Features: Automatic White Balance

Special Features: Wide Dynamic Range

Special Features: wifi function

Special Features: Parking Monitor

Special Features: External GPS

Built-in Screen: YES

Video Format: AVI

Video Format: MOV

Video Format: TS

Video Format: MP4

Touch Screen: YES

Aperture: F1.8

Item Type: Car DVR

GPS logger: External

Battery: built-in

Maximum Video Frame Rate: 30

Display Size: 10.26

Input/Output: AUX Micro/SD

Certification: CE

Certification: FCC

Certification: RoHS

Memory Card Required Reding Speed: Class 10

Working Temperature: -20°-70°

Imaging Sensor: Sony IMX335

OSD Language: Arabic

OSD Language: Chinese (Simplified)

OSD Language: Chinese (Traditional)

OSD Language: English

OSD Language: French

OSD Language: German

OSD Language: HEBREW

OSD Language: Italian

OSD Language: japanese

OSD Language: KOREAN

OSD Language: Portuguese

OSD Language: RUSSIA

OSD Language: Russian

OSD Language: Spain's Basque

OSD Language: Spanish

OSD Language: THAI

Pixels: 800Mega

Rear Camera: YES

Display: IPS

Max External Memory: 256G

Memory Card Requirement: MUST be UHS-I U3 TF/SD card, can NOT support regular TF/SD card

Item No: M700A/M700B/M700C/M700

1：M700B: 4K

NT97760 + front sony335+ GPS+WIFI Dash Cam

2：M700B:4K+1080P：
NT96670+ front sony335 + rear 2053+ GPS+WIFI Dash Cam

3：M700B:4K+2K：
NT96670+ front sony 335 + 2K Rear sony335+ GPS+WIFI Dash Cam

4:M700A: 4K+1080P+2K

4K UHD Front sony 335+ 1080P Inside + 2K Rear sony 335+ GPS+WIFI Dash Cam

Chipsets : Novatek96670 CPU
Sensor: Front Sony IMX335 + Inside GC2053 + Rear Sony IMX335
LCD: 2.0 inch 240*320 IPS Screen
Resolution:
Front Camera:4K 3840×2160P@24fps
Inside Camera:FHD 1920×1080P@24fps
Rear Camera:2K 2560×1440P@30fps
Video format:H.265 MP4
Photo format:JPG

File format:TS  MP4

Wide-angle:140°-170
Support: Loop Recording+Video Lock+ParkingMonitor+Time-lapse Record+Auto-Recording+Audio recording+WDR
Screen Display:Support: 3CH Display/Display in painting/Single screen display
Mobile Phone interconnection:Support the Roadcam application
GPS PC Player:Support the Gxplayer
ACC line:opention
TF Card: Max support 256GB
WIFI: RoadCam APP compatible with Android & IOS
Power port: 5V 2A
Battery:300mAh
Language: Support Language:English/简体中文/繁体中文/Français/Español/Deutsch/Italiano/日本/한국어/Русский/عربي

Stunning 4K Ultra HD Recording

Outstanding 4K image quality with the highest resolution of 3840*2160, capturing license plates,

road signs, and other critical details on the road in the clearest view.

Dual-Channel with Outstanding Image Quality

The M700B uses 7 layers of high quality glass lenses with F1.8 aperture 140 ° and Sony IMX335 Sensor that process frames to deliver images with the best clarity and vividness.

The R335 uses high quality glass lenses with F1.8 aperture 130 ° and Sony IMX335 sensor that

process frame to deliver images with better clarity and vividness.

(Note: Front Cam M700B cable length:3.5M, Rear Cam R335 cable length: 6.5M)3-Channel with Outstanding Image Quality

The M700A Front Cam uses 6 layers of high quality glass lenses with F1.6 aperture 142° and Sony IMX335 sensor, the Interior Cam uses good quality glass lens with F2.2 aperture 125  and GC2053_MIPI sensor, the R335 uses high quality glass lenses with F1.8 aperture 130° and Sony IMX335 sensor, all of them to get the dash cam process frames to deliver images with the best clarity and vividness.

(Note: Front Cam M700A cable length:3.5M, Rear Cam R335 cable length: 6.5M)

Super High Resolution of 4K UHD

The M700B/M700A pushes the limits of image quality with industry's highest resolution standard--up to 4K Ultra High Definition of 3840*2160P--delivering incredibly clear frames when you are on a road trip.

Built-in GPS

Monitors and displays real-time trip data including time, speed(km/h,mph), and coordinates. Tracks the exact location of an accident if one should occur, crucial for roadside assistance and insurance claims.

Super Night Vision

3D DNR and WDR significantly improve image clarity by reducing noise and adjusting exposure balance when recording in low-light or high-contrast environments. F1.8 large aperture pulls in more light to brighten up dark scenes.

24-Hour Parking Surveillance

Keep monitoring when you are away. The built-in G-sensor can detect sudden shakes or collisions while your car is stationary, and will automatically start recording to capture any potential incidents. If an emergency video is recorded, the dash cam will notify you through voice alert once it's turned back on.

In-app Control & Footage Sharing

The Dash Cam App(RoadCam) supports both iOS & Android systems,allowing you to view and download HD videos in real time through the dash cam's Wi-Fi. It also locks emergency videos to the "Event File" to prevent an overwrite.

Loop Recording

The M700B/M700A uses loop recording to continuously overwrite older footage so your memory card does not run out of space. You can check and download recorded videos in the Dash Cam App(RoadCam).

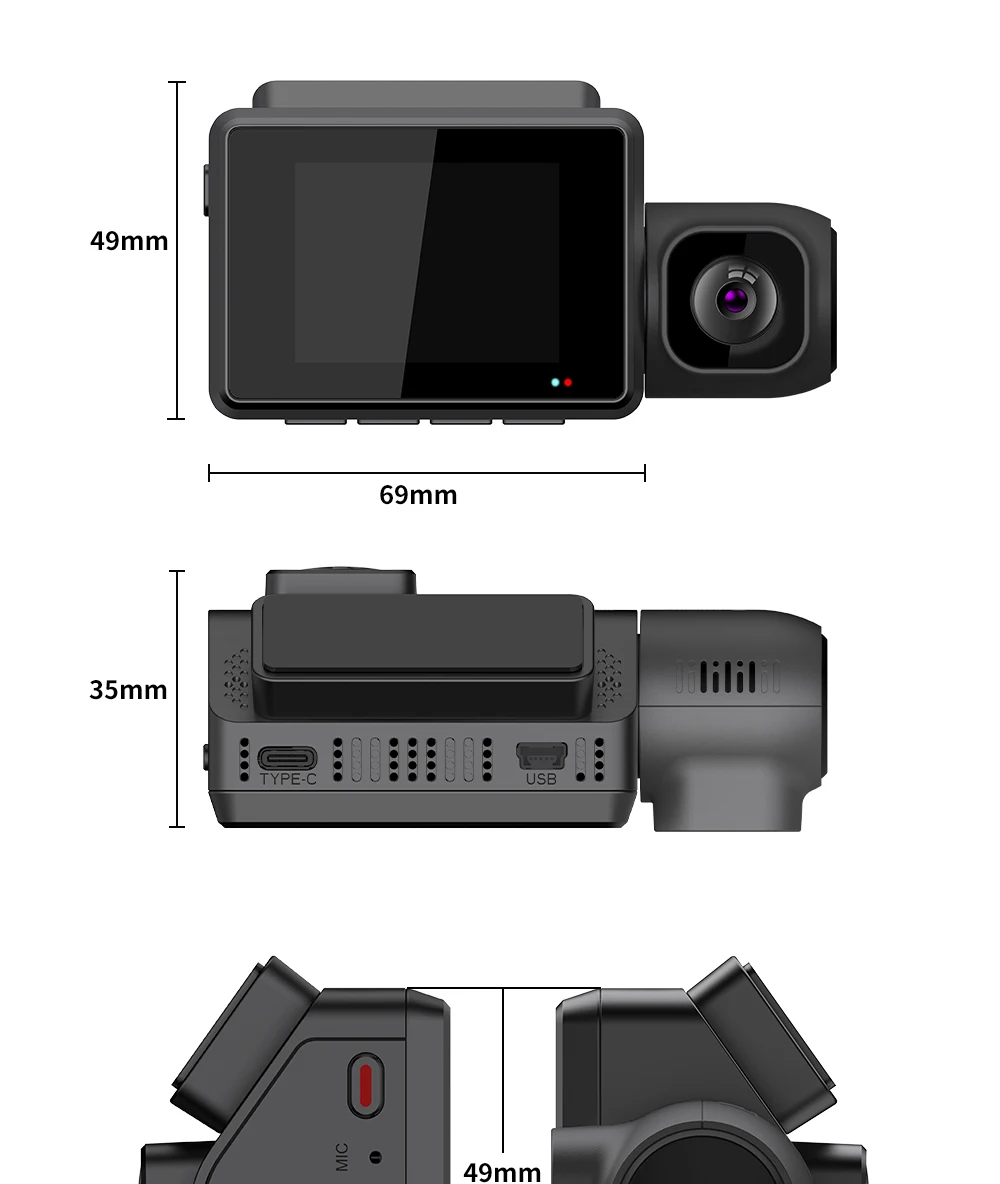

M700B Dash Cam Details Show

M700A Dash Cam Details Show
