Why choose High frequency welding station?

Advantage 1 :
Heating speed is faster than low frequency soldering station. Because the heat generated by the high-frequency vortex heating core is directly transferred to the iron head, the heat conduction time is reduced, and the loss in the heat conduction process is reduced.

Advantage 2:
Temperature stability is better than low frequency soldering station.Because the sensing core reaches the top of the iron head, the temperature of the iron head is more sensitive, greatly improving the temperature rise and return speed.

Advantage 3:
High frequency soldering station with heating fast and sensitive temperature feature, it reach the peak value of high temperature only 20 seconds , easily melt 5mm solder spot .

Product Feature

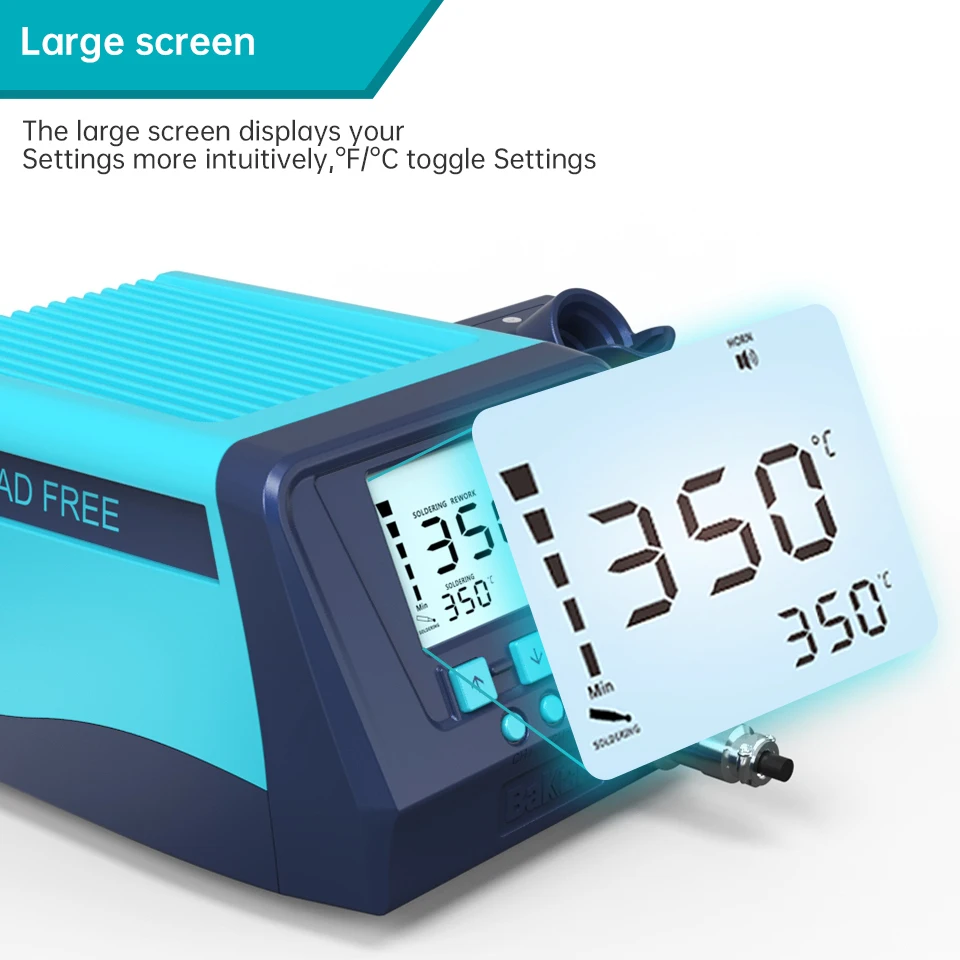

1.With compact body body and high-definiton large-screen display.
2.New drive circuit design ,wide voltage power supply 100-240V

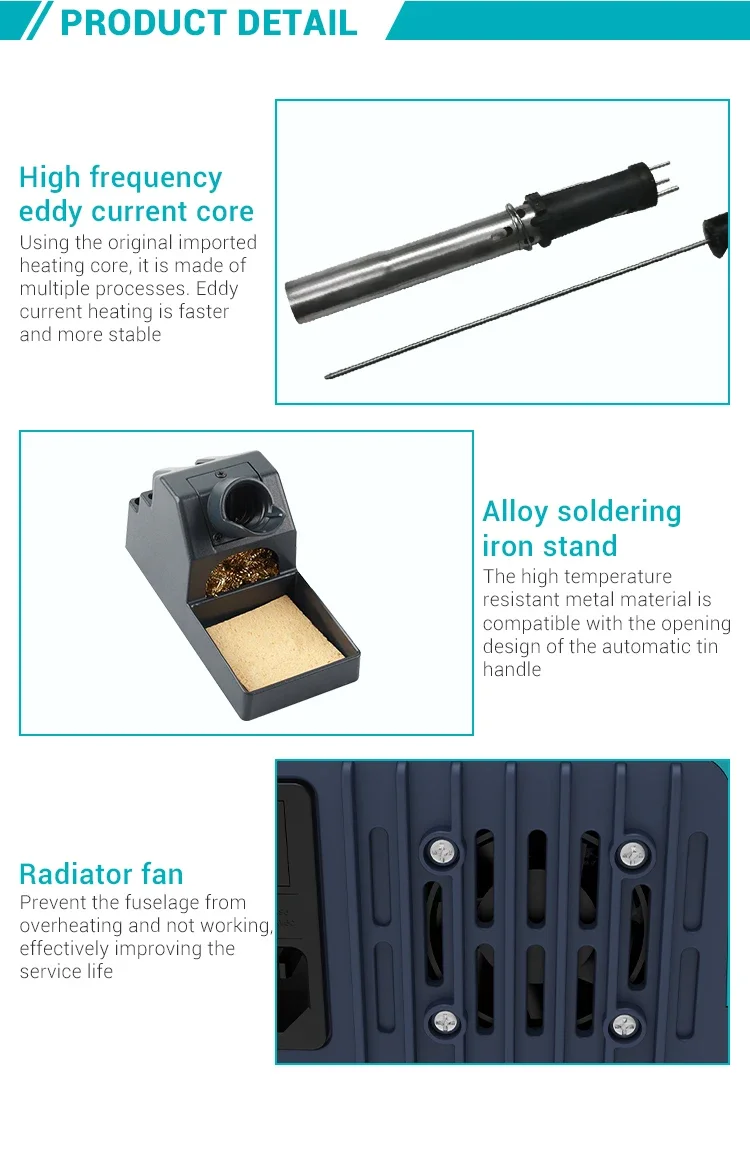

3.Using hight frequency eddy current core , it is made of multiple processes , Eddy current heating is faster and more stable .
4.PID temperature contorl algorithm , fast temperature return , high temperature stability.
5. Three-level quick temperature adjustment , one key rises to the preset temperature ;
6.with sleep function , prevent oxidation of the soldering iron tip;
7. The handle adopts ergonomic design and feels comfortable ;

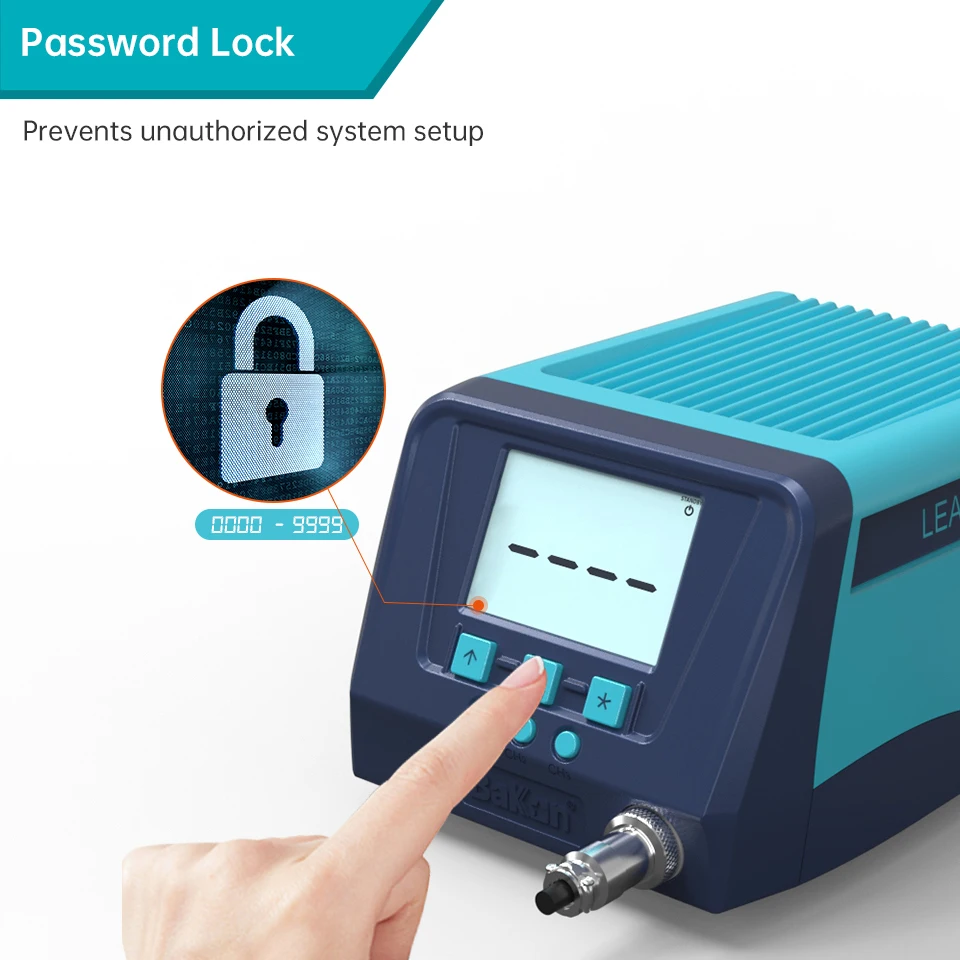

8. Password protection to avoid the production process from being changed at will.
9.Built-in radiator fan in the mainframe， prevent the fuselage from overheating and not working , effectively improving the service life .
10.Short-circuit protection of heating element , abnormal sensor alarm;

Product Parameter

HOST
Output power :200W (max)
Input voltage:AC100-240V
Plug specification:EU, US
Use condition: temperature 10-45℃ Humidity:45-80%RH

SOLDERING HANDLE
Power:180W
Inpute voltage: AC380KHZ
Temperature Range: 100℃-480℃ / 212℉-896℉
Temperature stability: ±2
Voltage from iron tip of ground: ≤2mV
Resistance from iron tip of ground: ≤2Ω

ACCESSORIES
Handle:LF301
Heating core : H300
Soldering Iron tip :BK500M
