Features:

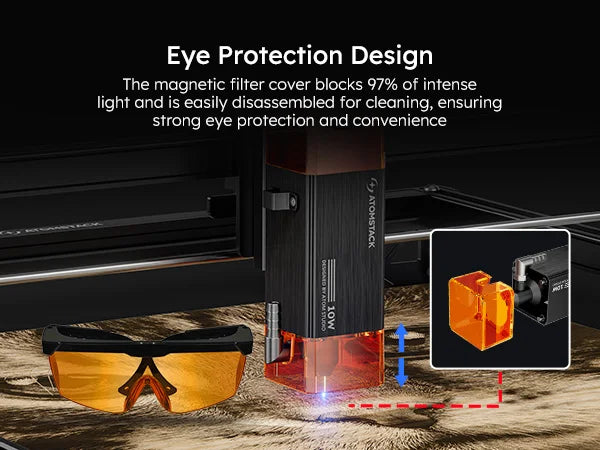

1. New magnetic suction filter cover eye protection design: The panoramic magnetic suction filter cover provides excellent protection for your eyes, filtering 97% of strong light. You and those around you do not need to wear goggles, and can also watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing them. Magnetic suction design is more convenient for cleaning.

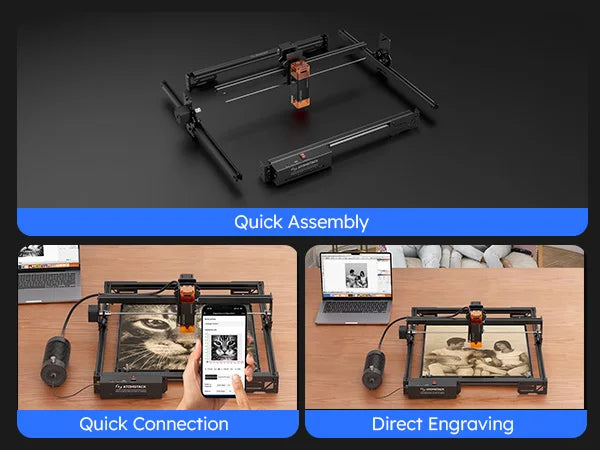

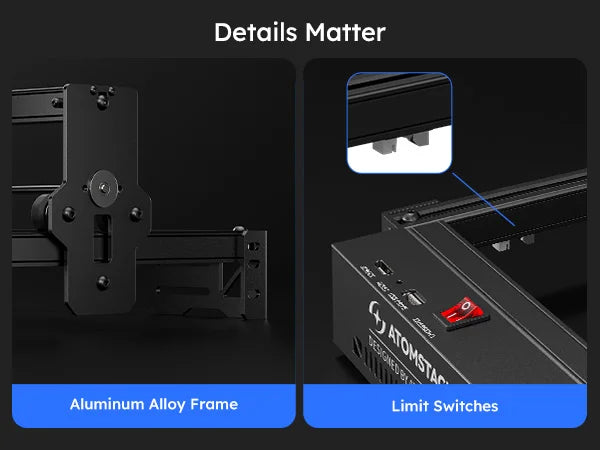

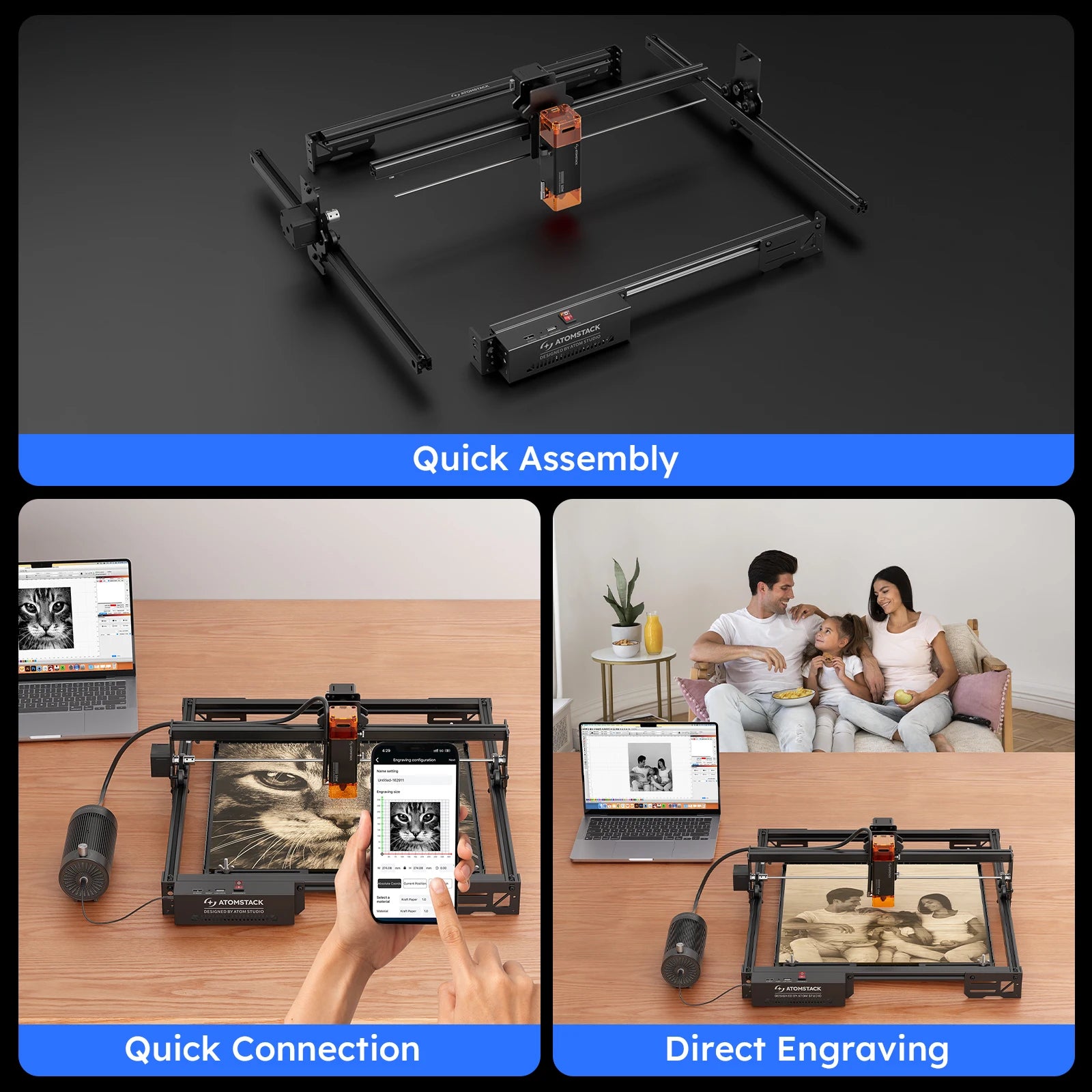

2. Durable and easy to install structural design: The all aluminum alloy anodized structure design makes the machine more sturdy and durable, while also improving the accuracy of engraving. The entire structure has undergone rapid installation design and can generally be installed in 10-20 minutes.

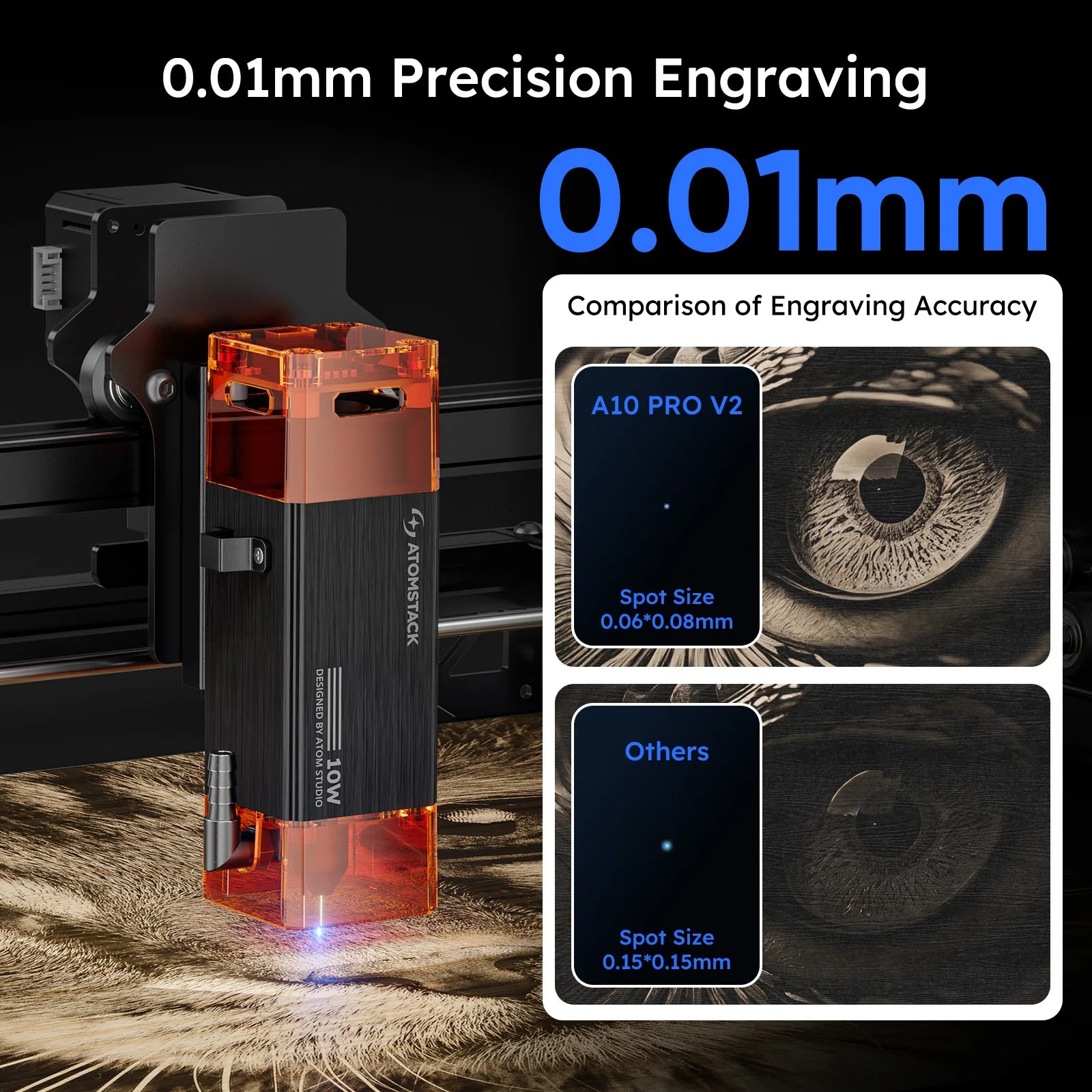

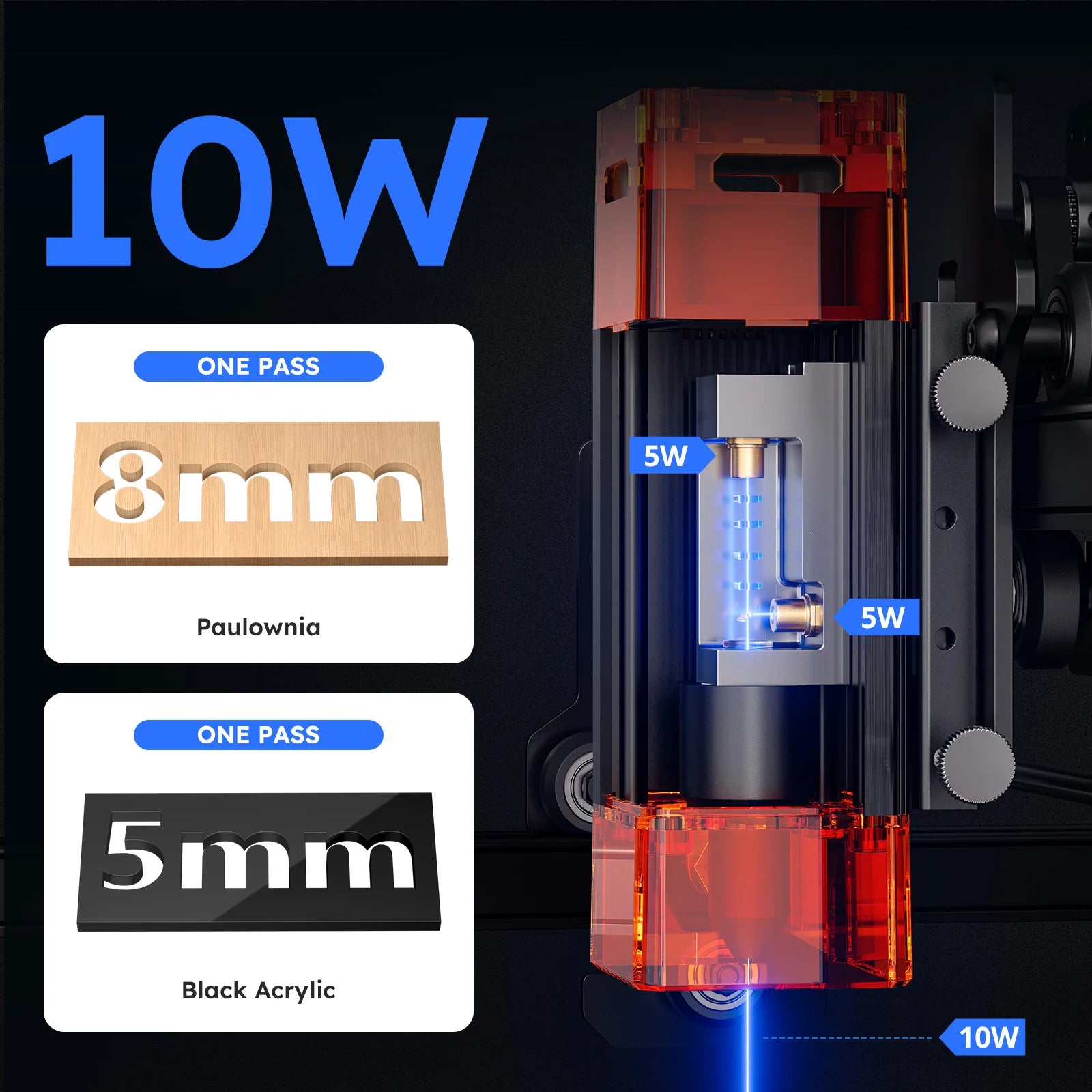

3. Upgraded high-performance fixed focus laser: The new laser has a focal spot area of only 0.06 * 0.08mm, which is one-third of the spot area of other ordinary lasers. It can simultaneously achieve precision engraving and high-energy cutting. At the same time, the laser power of a fixed focus laser is more stable than that of a variable focus laser.

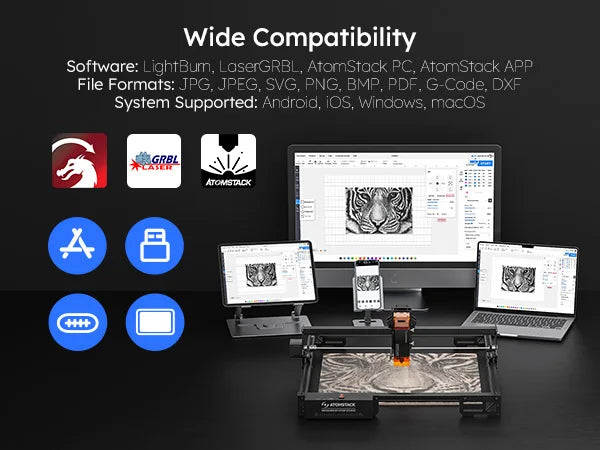

4. Wide compatibility: The machine can be compatible with various mature carving software, such as LaserGRBL LightBurn ， Supports Windows XP/Win 7/Win 8/XP/Win 10, as well as MAc system (LightBurn). The engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

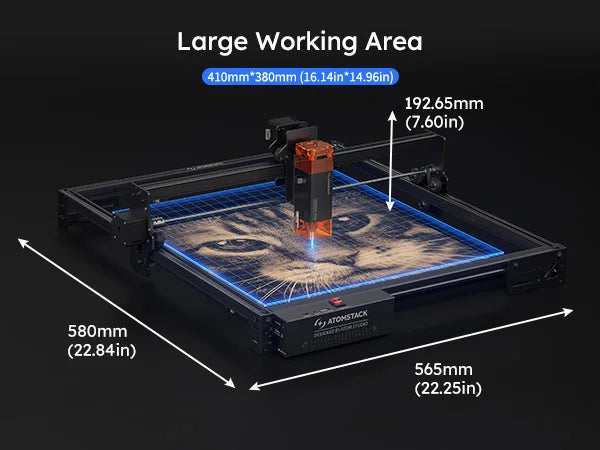

5. Large scale processing: The 410x380mm large area carving interval can meet your various carving needs.

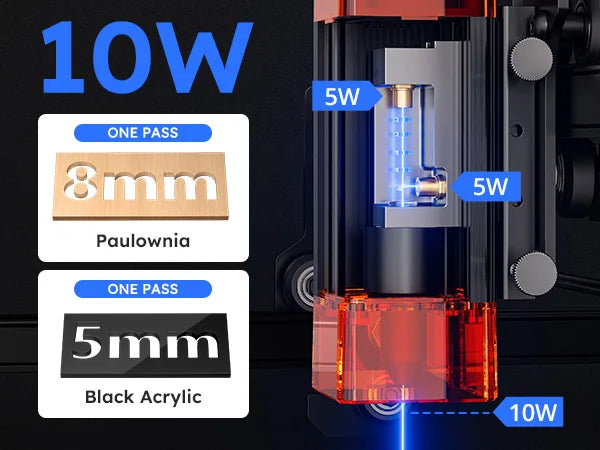

6. Upgraded dual compression spot coupling technology: The ultra fine laser focal area has been reduced to 0.06 * 0.08mm, and high-density lasers can easily cut 20mm thick wooden boards and 15mm thick black acrylic; A CO2 laser engraving machine that can directly carve mirror stainless steel metal, ceramics, and glass, with a carving and cutting speed 40% higher than ordinary models, and a cutting capacity of over 50W for wooden boards.
7. Integral screw: The machine adopts an integral screw instead of a combined coupling. The stepper motor and screw are integrated, which makes the movement of the laser more precise and the coupling more durable.

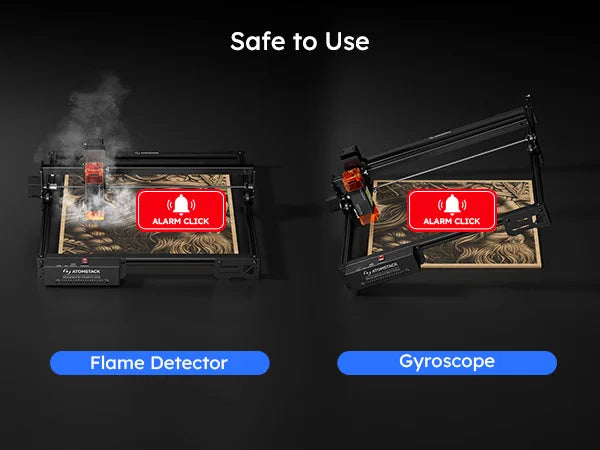

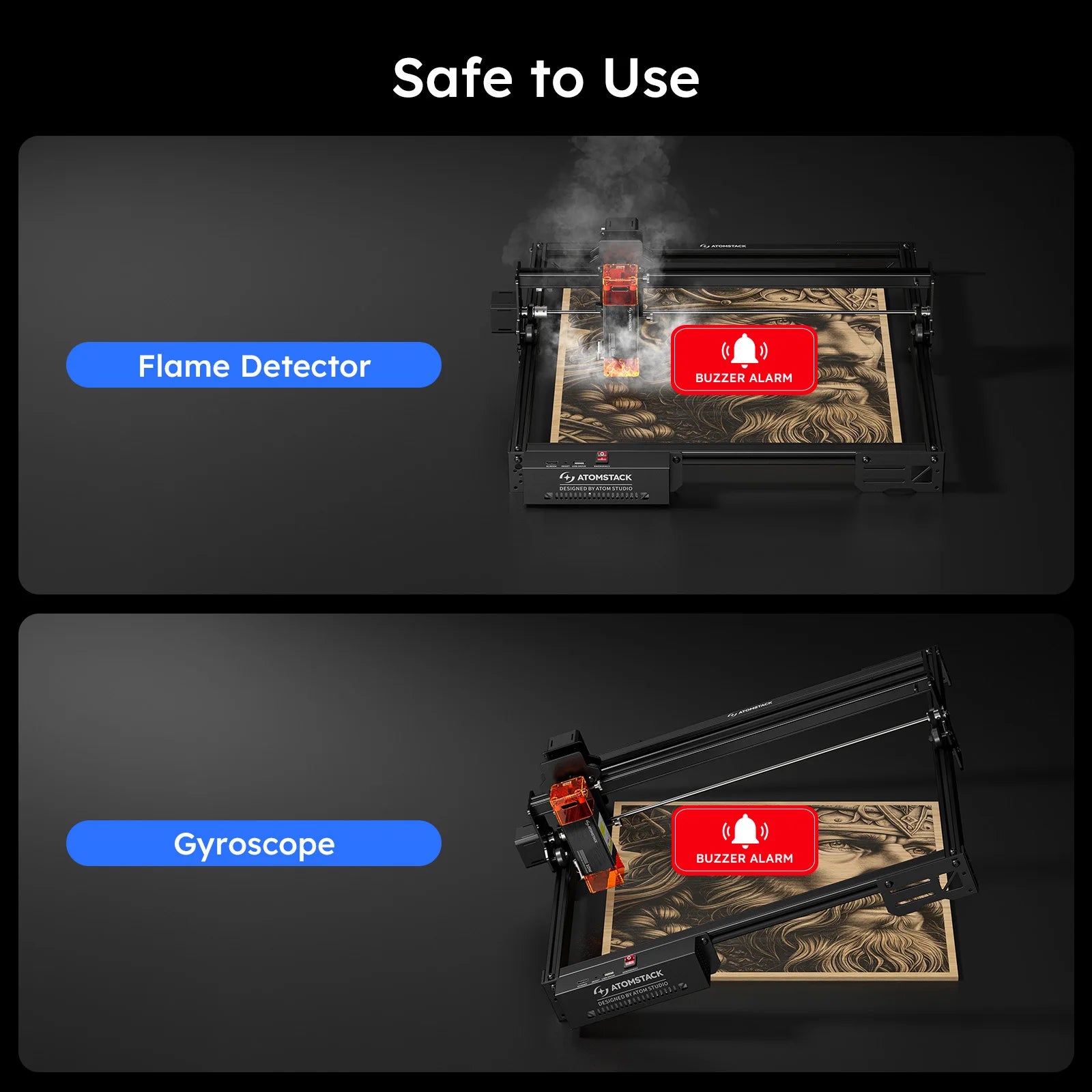

8. Tilt alarm: When the tilt angle of the machine is greater than 15 °, the machine will automatically stop working and emit a buzzing prompt.
9. New generation APP control: ATOMSTACK A10 PRO V2 is compatible with the second generation Atomstack APP, providing a better operating experience and supporting more control functions to achieve offline carving. You can perform carving operations anytime and anywhere without being limited by your computer;

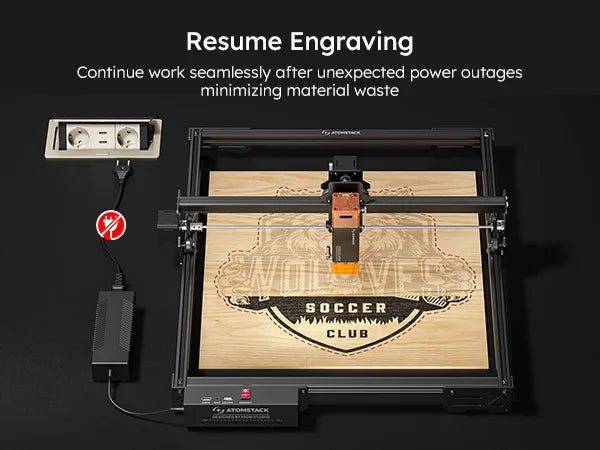

10. Power off carving continuation: With the second-generation APP, the power off carving continuation function can be achieved. If there is an unexpected power outage and the work stops, the carving can continue in the original position (the relative position between the carving machine and the working object needs to be kept unchanged)
11. Laser sintering temperature can reach up to 1200 ℃

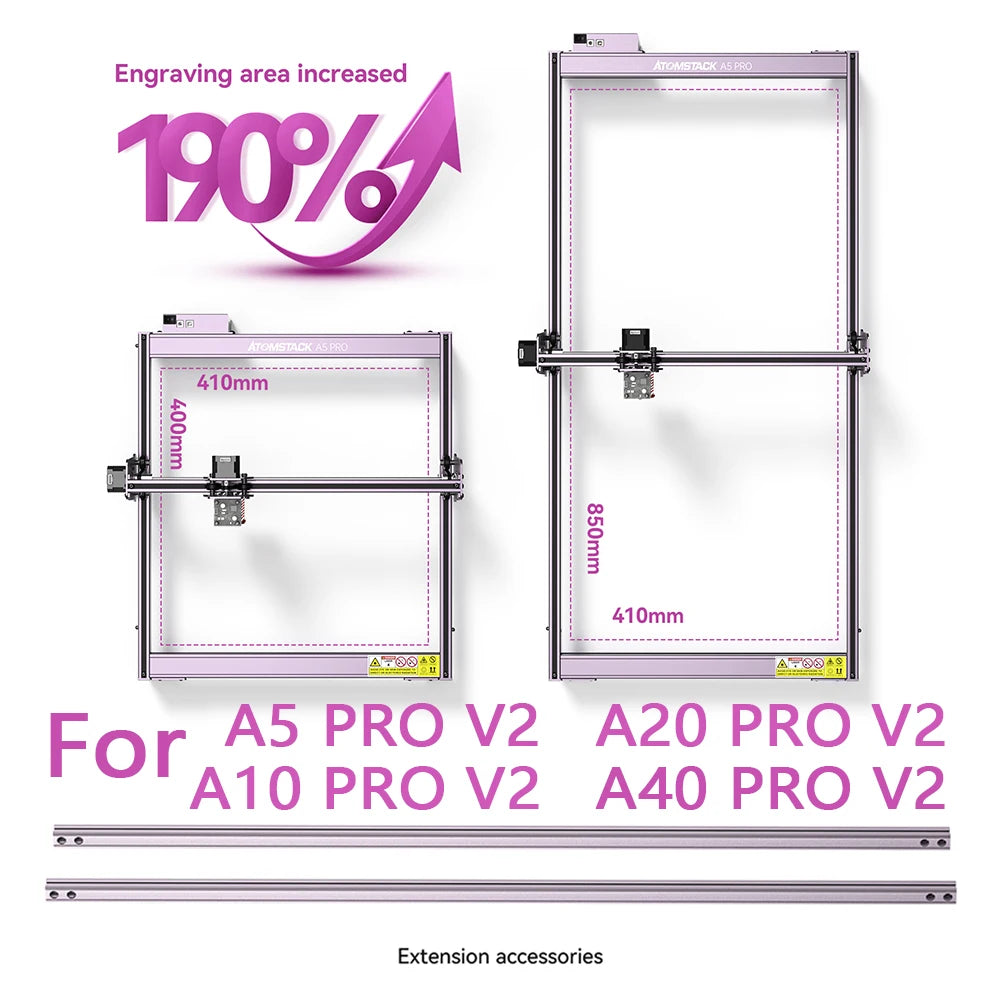

12. Scalable carving size: The modular design of the body mechanism allows for a large carving size of 410 * 850mm by simply replacing the frame components.

Specification:

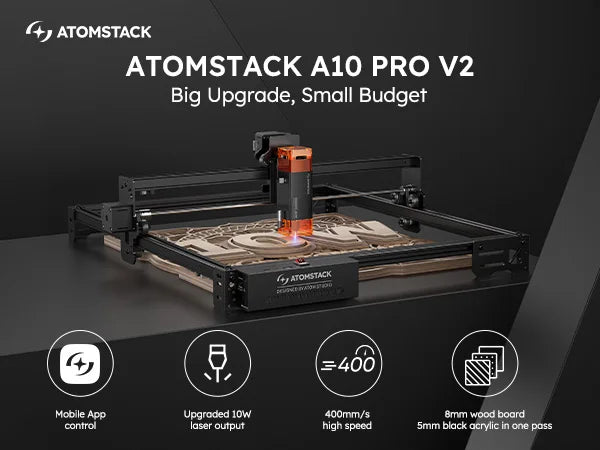

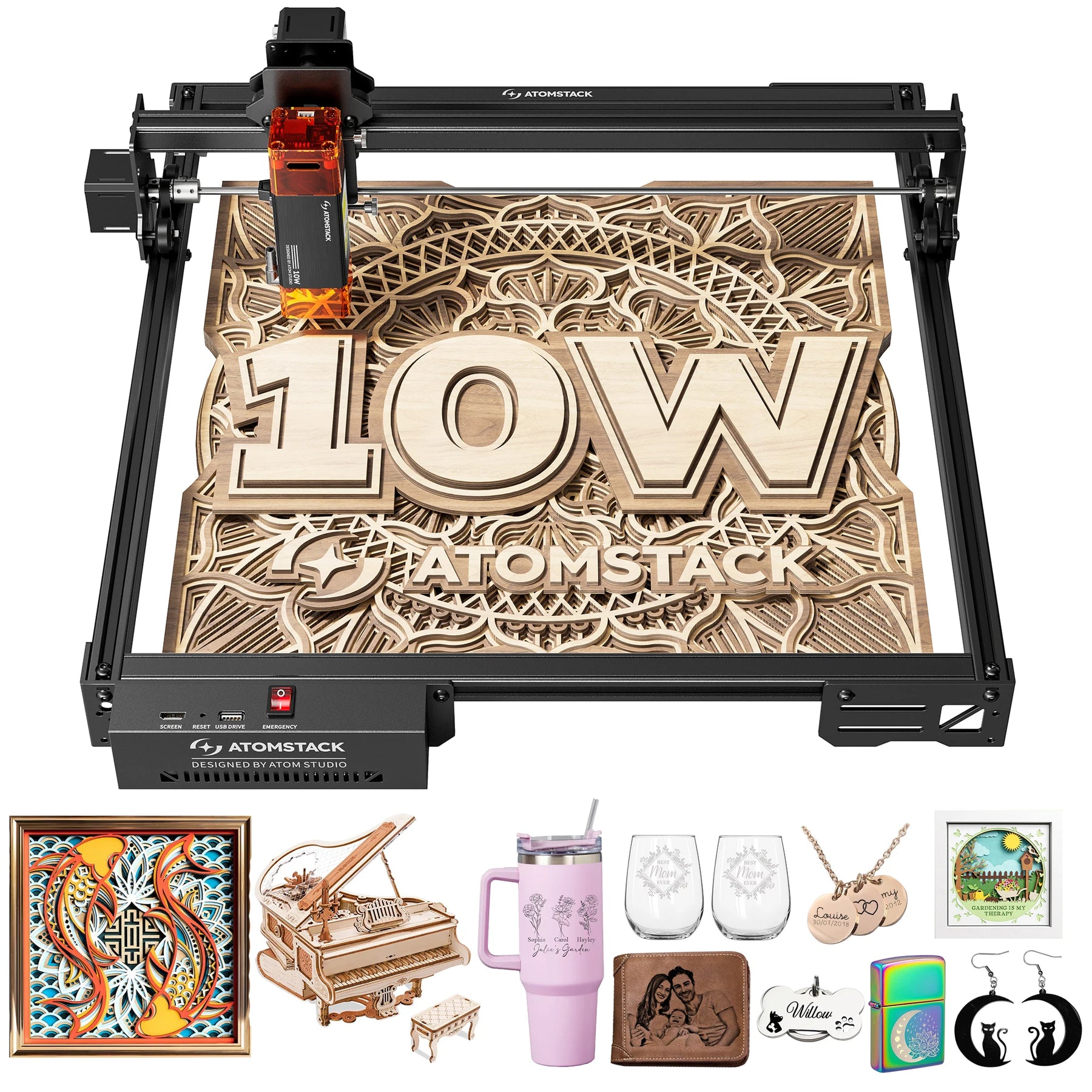

Product model: ATOMSTACK A10 PRO V2
Carving size: 410*380mm
Material that can be carved/cut
Carving materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non reflective
Metal plating and paint coating, 304 mirror stainless steel, glass, ceramic, cotton cloth, slate;
Cutting materials: cardboard, non-woven fabric, wooden board, acrylic, some thin plastic boards, sponge;
Laser electrical power: 50W
Laser output optical power: 10-12W
Laser wavelength: 455±5nm

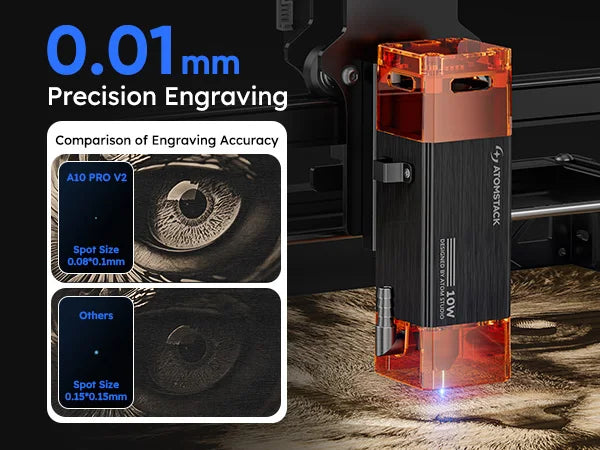

Carving accuracy: 0.01mm
Focusing method: fixed focus laser, no focusing required
Limit switches: 2 (1 for X-axis and 1 for Y-axis)
Laser protective cover: There is a protective cover on the laser to protect the user's eyes, and there is no need to wear additional protective glasses. At the same time, prevent pets from scratching the laser spot
Operating software: LaserGRBL，LightBurn， Support Win XP/Win 7/Win 8/XP/Win 10 systems
Supported file formats NC, BMP, JPG, PNG, DXF,
Data transmission method: usb connection
Power Supply: International Standard Power Input:
