SPECIFICATIONS

Name: 77GHz Millimeter Wave Radar Sensors Car BSD Blind Spot Monitoring System IP67 Waterproof Millimeter Wave Radar 77GHz BSD LCA 50M
Brand: Par Masters
Price: 216.59 USD
Availability: InStock

Brand Name: NoEnName_Null

Type: Visible

Origin: Mainland China

Certification: CE

Features:

The system uses millimeter wave radar sensors to monitor the environment on both sides of the vehicle, monitor the driver's ''visual'' blind spot, and provide auxiliary warning functions when the driver is driving normally or changing lanes.

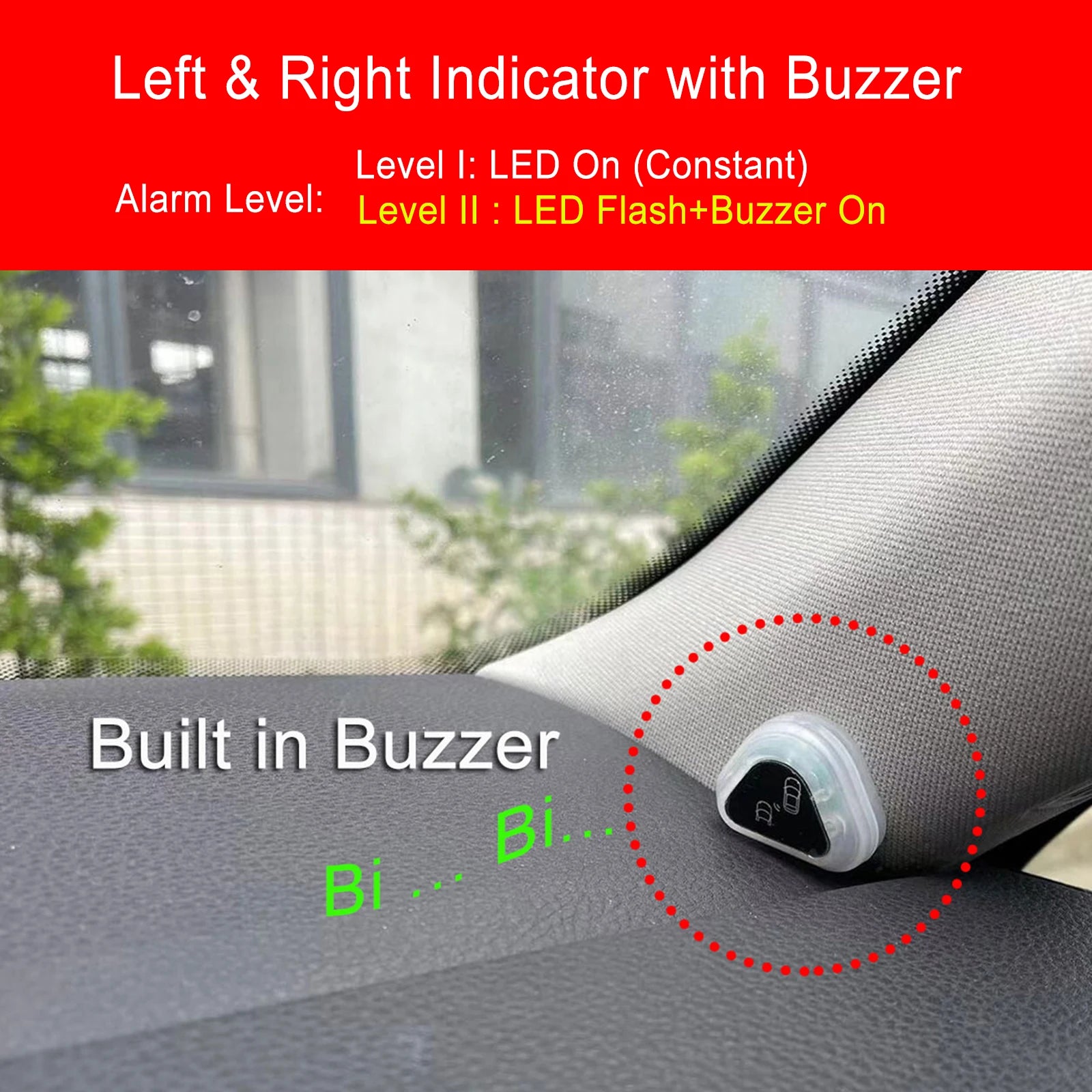

The monitoring area is divided into 4.4m on the left and right (1.5m in the middle without alarm), and 6m in the rear for the blind spot, to warn the vehicle driving into the blind spot. At this time, the LED on the same side is always on, and when the turn signal is on, the warning level rises to a buzzer and the LED on the same side flashes.

When a vehicle changes lanes, the LCA warning function detects the area within 50 meters. When the collision time between the target vehicle and the vehicle is less than or equal to 3.0s, the LED on the same side stays on. If the lane change buzzer is on at this time, the ipsilateral LED flashes.

Specifications:

Type: Car BSD, Car blind spot detection system

Warning light: 5V drive, A pillar

Buzzer: 75dB

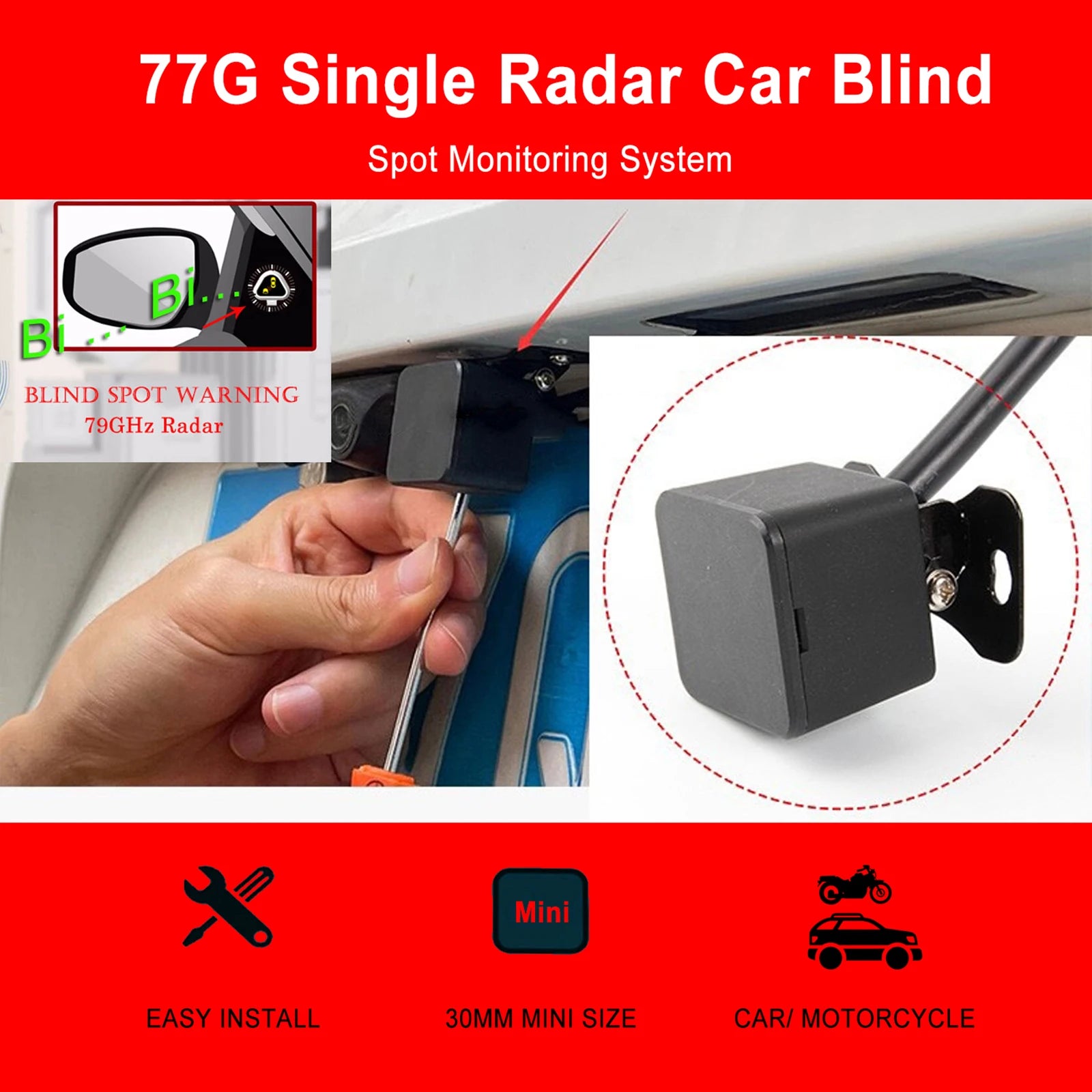

Radar installation: > 50cm( 20 inches) above the ground

1.System properties:

Working voltage: DC9-16V

Working temperature: -40℃ to 80℃(-40°F-176°F)

Power consumption: 2.5W

Waterproof grade: IP67

Frequency band: 77Hz-79Hz

Refresh rate: 20Hz

Communication interface: TTL serial port

Shell size: 28.2*28.2*22mm

2.Antenna performance:

Number of transceiver channels: 1T*4Rx

Pitch beam width: ±25°

Horizontal beam width: ±55°

3.Detection performance:

Range resolution: 0. 2m

Speed resolution: 0.2m/s

Speed measuring range: ±200 km/h

Ranging accuracy: better than 0.2m

Velocity measurement accuracy: better than 0. 2m/s

Angle measurement accuracy: better than 1°

Detection distance: 50m

4.Blind zone monitoring function -BSD:

System starting speed: V≥10Km/h.

Horizontal range of early warning: 1.5m≤X≤4.4m,-4.4m≤X≤-1.5m.

Vertical range of early warning: 0 m≤Y≤6m

Early warning strategy: moving targets in the alarm area will be alarmed.

Including active and passive overtaking and car following at the same speed.

5.Parallel auxiliary function -LCA:

Horizontal range of early warning: 1.5m≤X≤4.4m,-4.4m ≤ X≤-1.5m.

Vertical range of early warning: 0m

Early warning strategy: TTC≤3.0s

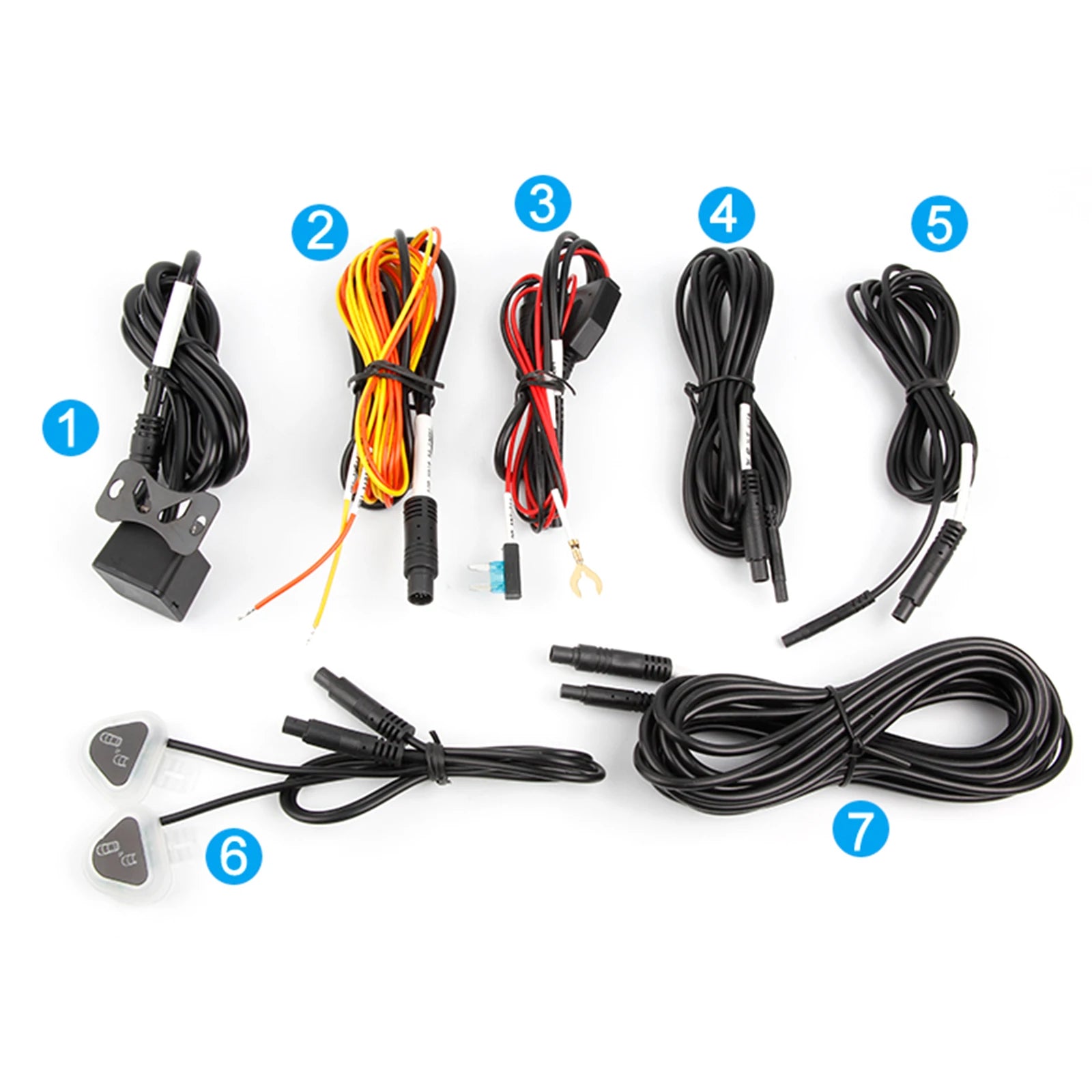

Packing List:

1.77GHz rader sensor

2.Left & Right turn trigger wires

3.Power supply harness

4.Warning light extension cables 3M

5.Warning light extension cables 1.8M

6.Left & Right indicator with buzzer

7.Power extension cable 5 Meters

8.Installation accessories

9.User manual

Note:

It is recommended that the installation be carried out by professionals.

The installation angle of radar will affect the detection distance and effect. Please install it strictly according to the instructions.

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 10-30mm.
