SPECIFICATIONS
Brand Name: LISM
DIY Supplies: ELECTRICAL
Origin: Mainland China
Display Size: 5.0 - 6.9 Inches
Model Number: XT-360
Parameters
Function

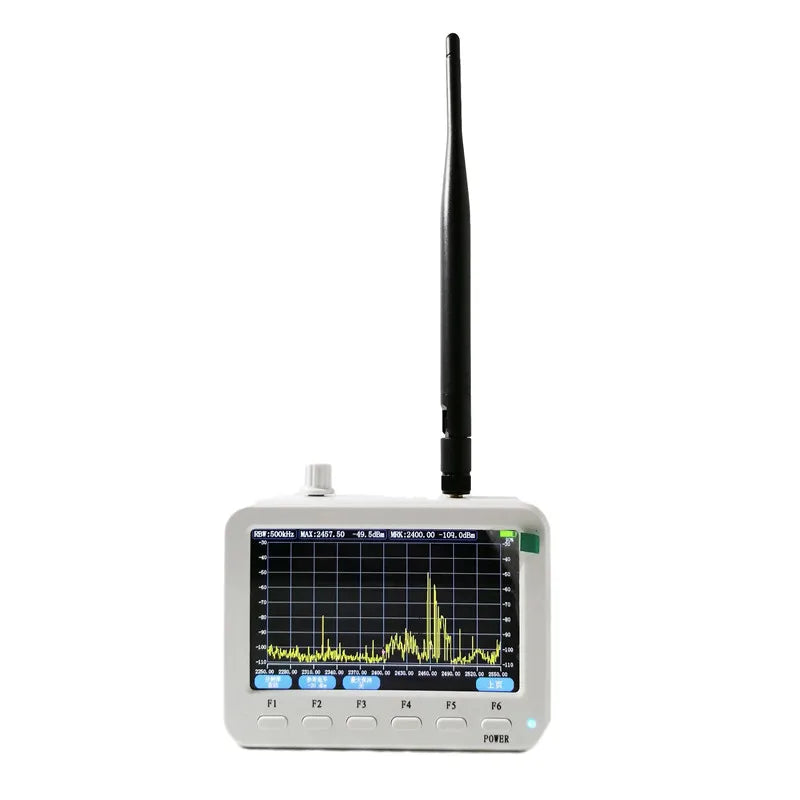

1.Real-time spectrum mode
Real-time spectrum curve scanning, you can set SPAN (span)/RBW (resolution bandwidth)/CENT (center frequency)/MARKER (marker) function, or set the start and end frequency, MAXHLOD (maximum value) Hold) function, maximum power (MAX/PEAK) automatic detection and identification functions.

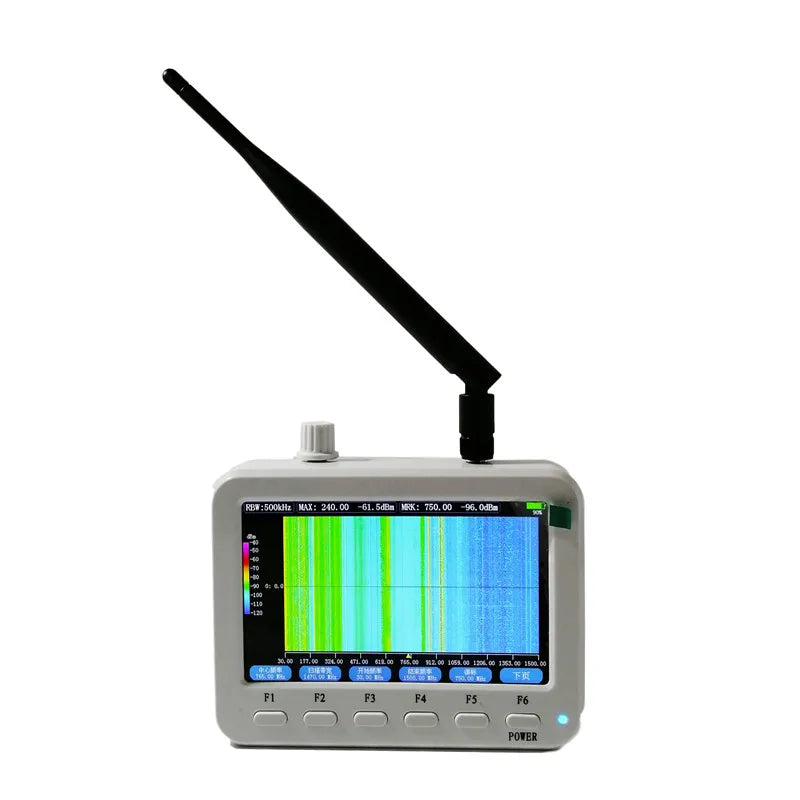

2.Spectrogram mode
Displays the spectral distribution over time (the length of time is related to the span and RBW, the shortest is a few seconds, the longest can reach tens of minutes), and the relative strength of the signal is identified by the color red and blue, similar It records the distribution of frequency spectrum over time like a waterfall, which is convenient for checking frequency interference or emission leakage.
3.Spectral heat map mode
Displays the recurring density of the frequency spectrum within a period of time. A single occurrence is blue. The more repetitions the display tends to red, which is convenient for analyzing the statistical characteristics of the spectrum over a period of time.
Typical application:
1. In the application of operators, it can cover all sub-6G frequency bands, covering all frequencies of each operator, including each frequency band of 5G communication (for specific frequency band allocation, please refer to the regulations of the Radio Commission or the frequency band of each operator).
2. In the military industry, it can be used for exercises and battlefield electromagnetic evaluation, technical reconnaissance, communications, radar, and measurement and maintenance of various radio frequency units.
3. In the school application field, it can be used in batches as equipment for electronic related majors, competitions, topics and experiments.
4. In power grid applications, it can be used as a test and production tool for power Internet of Things, and a test tool for power grid dedicated frequency bands (such as 230MHz dedicated frequency band).
5. In civil aviation applications, it can be used as a test tool for civil aviation dedicated frequency communications and airborne wireless equipment.
6. In the field of radio and television applications, it can be used as a monitoring tool for cable closed-circuit television signals, as well as a monitoring tool for FM radio stations and emergency frequency bands.
7. In the field of rail transit, it can be used as a road test tool for railway wireless private network (GSM-R standard, future LTE-R standard) and an online monitoring instrument for subway wireless train control system.
8. In the field of drones, such as industry drone communication and interference testing, consumer drone signal testing.
9. In the field of wireless audio, such as competition stages, concerts and evening parties, set up microphone frequency planning, radio frequency cable signal attenuation, channel interference, and signal coverage strength and so on.
10. In the field of research, development, production and testing of the Internet of Things, such as: gateway and wireless module measurement, remote control, walkie-talkie, wireless toys, etc.
11. In the field of vehicle equipment, such as: wireless vehicle key evaluation, vehicle wireless equipment, tracker detection, vehicle electromagnetic interference and shielding testing, vehicle networking V2X test tools.
Package include

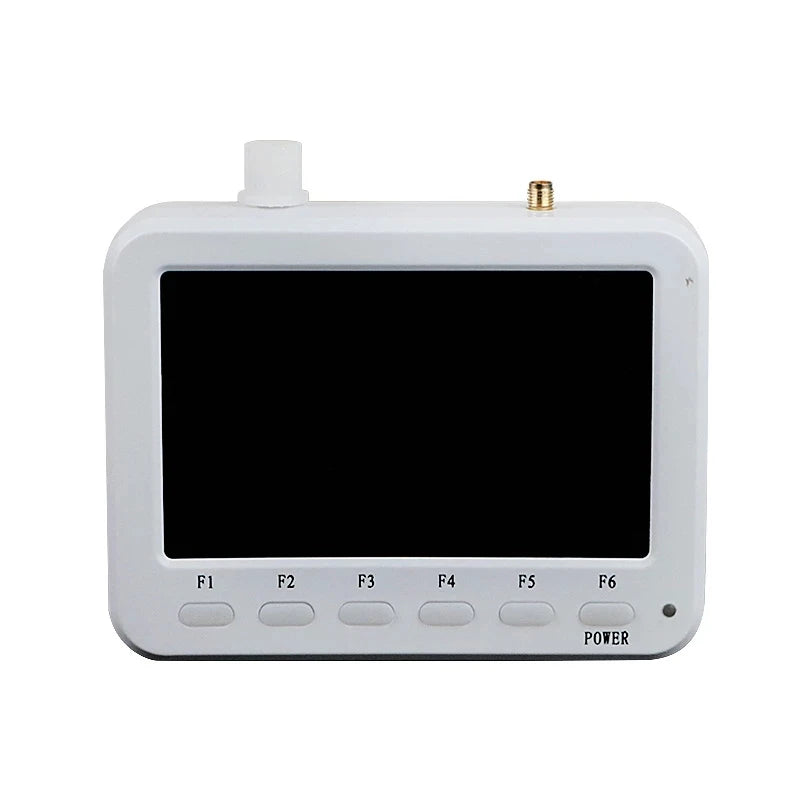

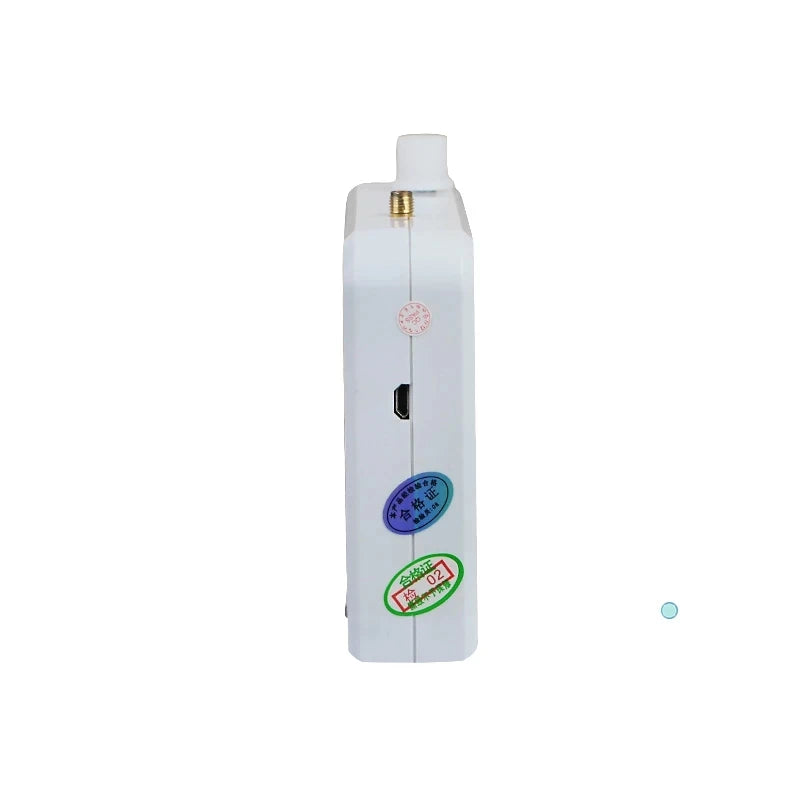

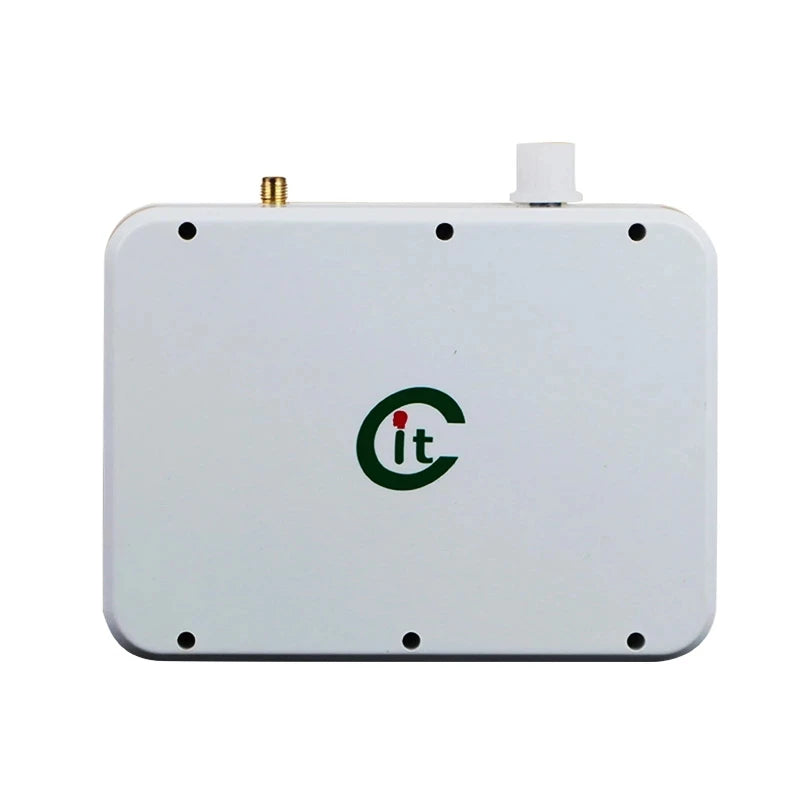

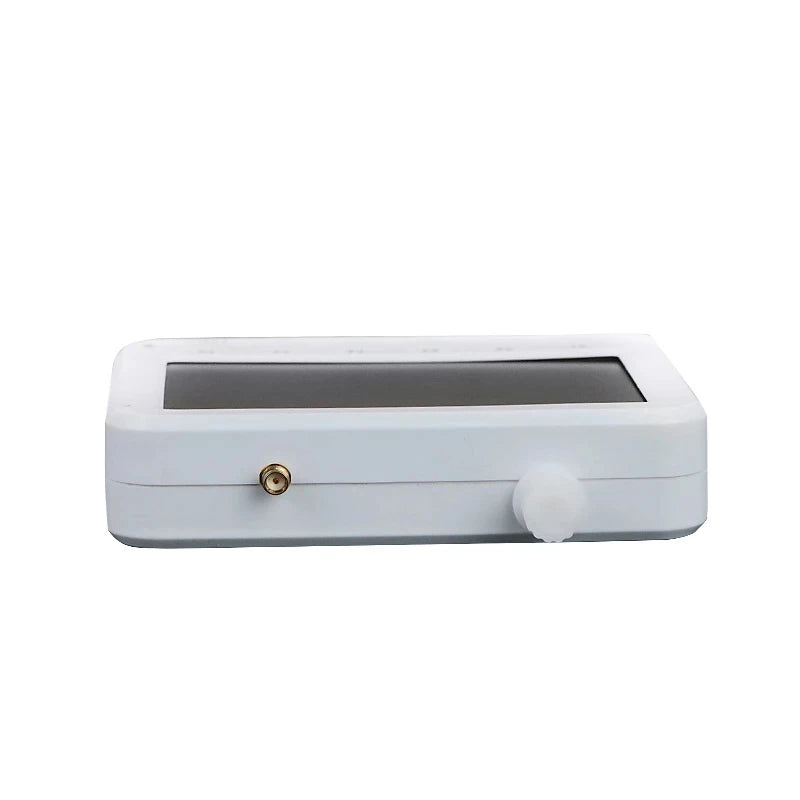

1 x XT-360 analyzer
1 x Antenna
1 x Power adapter
1 x USB cable
1 x English manul
1 x Carring case
