Features

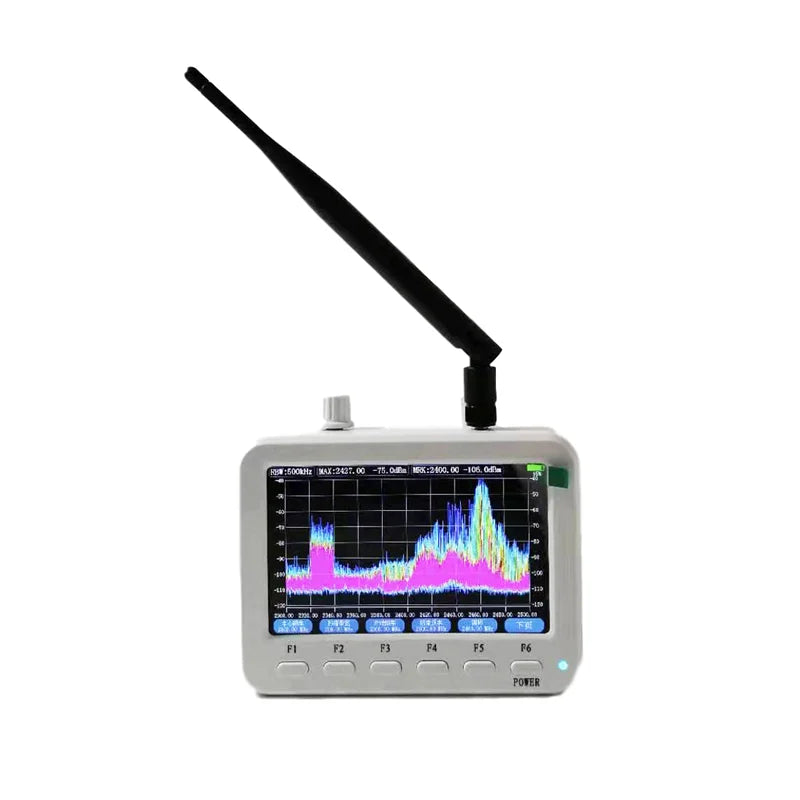

1. This spectrum analyzer can be used in radio frequency testing, wireless optimization, on-site network layout, interference query and so on. It can be used to test the spectrum distribution of signals.

2. Small in size, light in weight, compact structure, easy to carry, suitable for field measurement.

3. Built-in lithium batteries can be charged by standard 5V charger of mobile phone. It can be used for about 9 hours at full power.

4. The detection frequency ranges from 10MHz to 2700MHz. It can detect real-time spectrum, frequency spectrum and thermodynamic spectrum in the frequency band. It is easy to use.

5. Real-time spectrum analysis function, real-time spectrum scanning, support for SPAN/RBW/CENT/MARKER function, MAXHLOD function, maximum power automatic detection.

6. The function of frequency chromatogram shows the whole time and spectrum characteristics in a period of time. It can record all the spectrum distribution in 5 minutes, which is convenient for viewing the frequency interference or emission leakage.

7. The function of spectrum thermograph shows the overlapping density of spectrum outline in a period of time, and the display of more repetition times tends to be red, which is convenient for analyzing the spectrum statistical characteristics in a period of time.

Parameters

Model XT-127-AT

S11 (Typical) -20dB

Frequency Range (MHz) 10-2700MHz

In-Band Unevenness 1dB (After Calibration)

RBW (KHz) 3, 5, 10, 20, 30, 50, 100, 200, 300, 500KHz

DANL (Average Noise Floor) -110dBm (Typical)

Amplitude Accuracy +-0.5dBm

Scan Time 200ms

MAXHOLD Function Support

Adjustable Reference Level Support

Display Refresh Rate 5Hz (5 Screens Per Second)

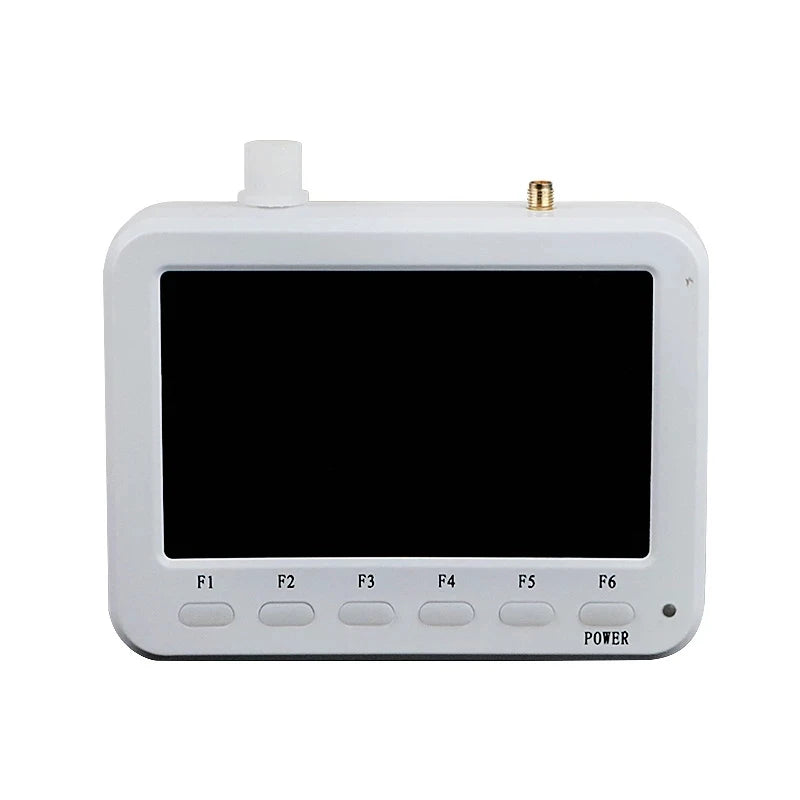

LCD Resolution TFT 800x480

LCD Size 5in

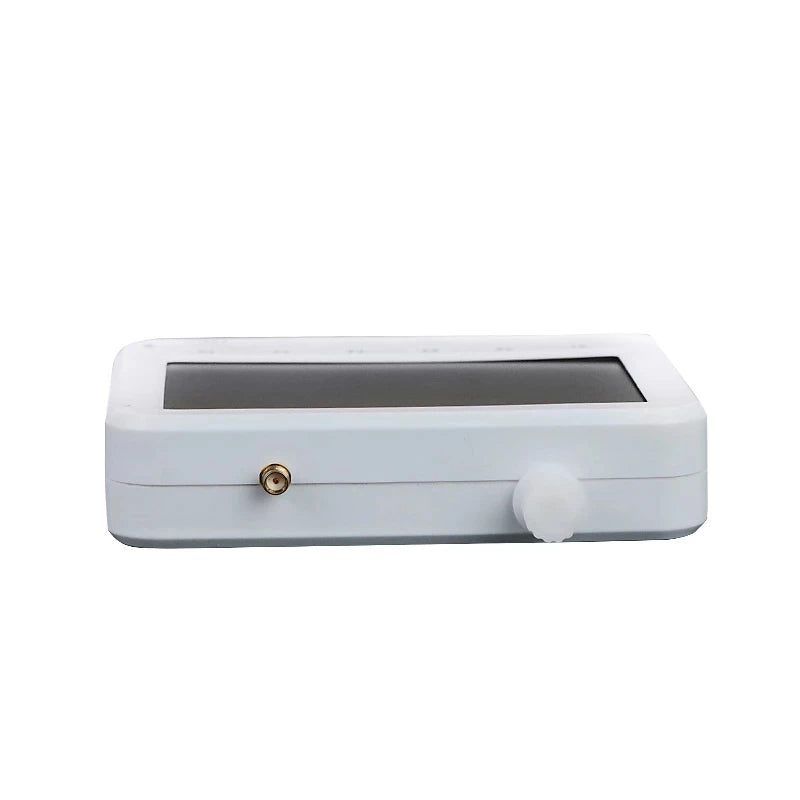

RF Interface SMA-K

Chromatogram Support

Thermal Map Support

AT Function Support

Built-In RTC Clock Support

Battery Capacity 3300mAh (Typical)

Type of Battery 18650 Lithium Battery

Charging Time 4 - 5 Hours

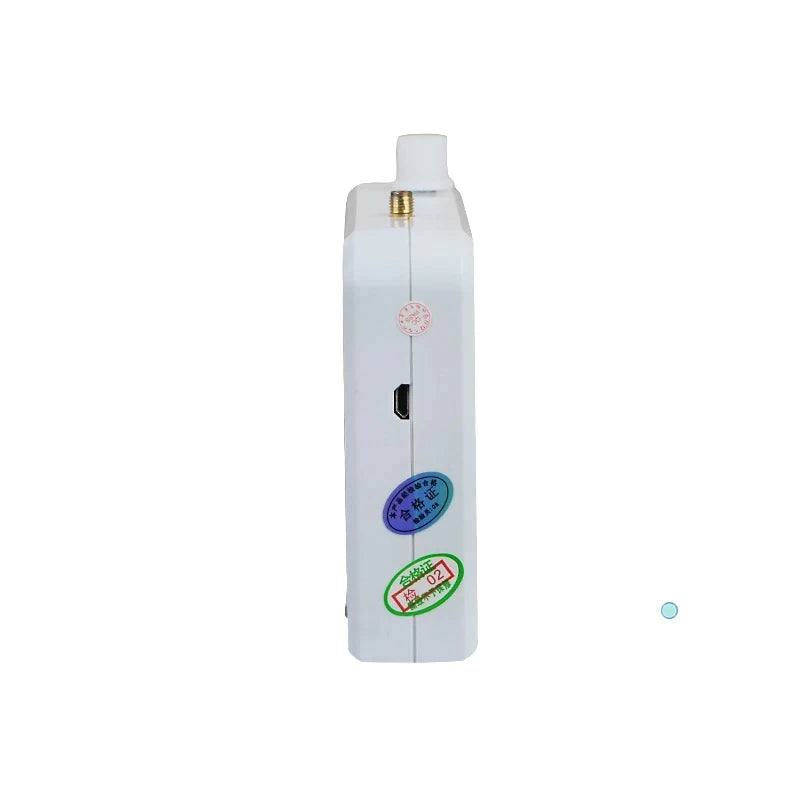

Charging Interface Micro USB Interface

Battery Life 9 Hours

Size 135x101x30mm / 5.3x4.0x1.2in (Excluding
Knob and Antenna Height)

Operating Temperature -20 - 45℃

Storage Temperature -20 - 70 ℃

Signal Measurement Range -100 - -10dBm
(Large Signal Plus Attenuator Enters)
