SPECIFICATIONS
Brand Name: HLFEC
Origin: Mainland China
Choice: yes
Description
Frequency range: 10kHz - 3GHz
System dynamic range (calibrated): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 noise floor (calibrated): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Sweep rate: 100 points/s
Display: 2.8'', 320 x 240
USB interface: Micro USB
Power: USB, Maximum charge current 1A
Battery: 2000mAh lithium-ion
Battery connector: JST-XH 2.54mm
Maximum sweep points (on device): 201
Maximum sweep points (USB): 1024
Port 2 return loss (1.5GHz): 20dB typ
Port 2 return loss (3GHz): 13dB min

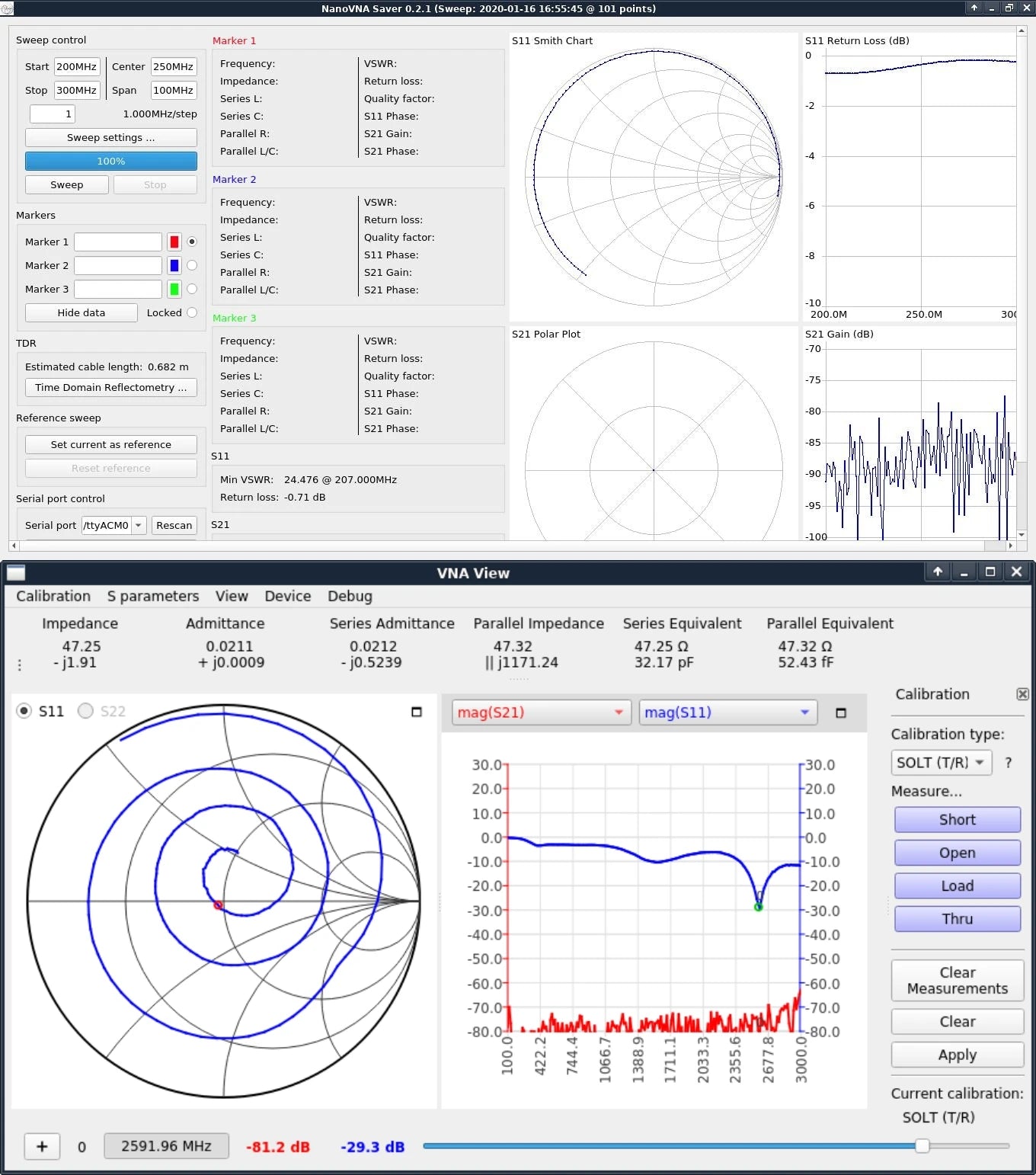

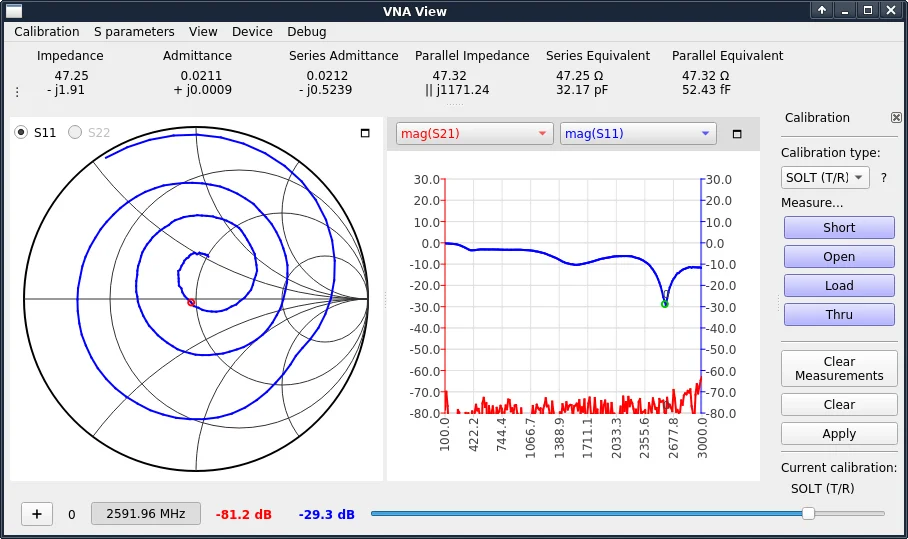

VNA-QT software supported platforms: Linux, Windows (7+), Mac OS Planned
Metal case

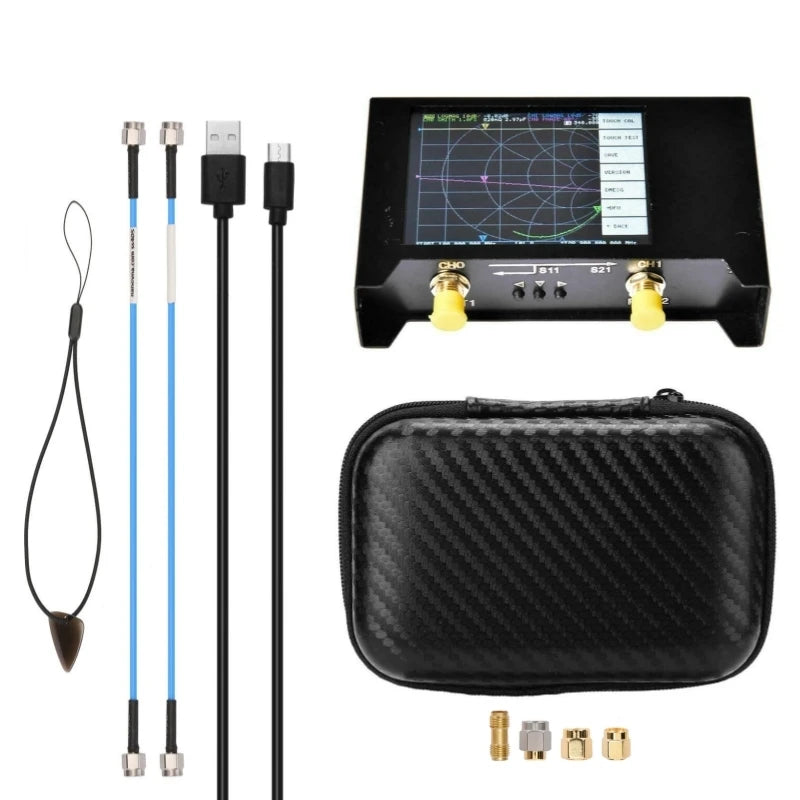

Package include:
1 x NanoVNA V2
1 x Micro USB Data Cable
2 x 30cm SMA Male to Male SS405 RF Cable
1 x SMA Male Calibration Kit - OPEN
1 x SMA Male Calibration Kit - SHORT
1 x SMA Male Calibration Kit - LOAD
1 x SMA Female to Female Connector
1 x Portable Bag
