3G Combo 15-2700 MHz Handheld Digital Spectrum Analyzer
3G Combo 15-2700 MHz Handheld Digital Spectrum Analyzer
3G Combo 15-2700 MHz Handheld Digital Spectrum Analyzer
3G Combo 15-2700 MHz Handheld Digital Spectrum Analyzer
3G Combo 15-2700 MHz Handheld Digital Spectrum Analyzer
45356477612290

3G Combo 15-2700 MHz Handheld Digital Spectrum Analyzer

Regular price$379.69
/
Shipping calculated at checkout.

  • Free worldwide shipping
  • Tested & Inspected
  • 30 Day Money Back Guarantee
  • In stock, ready to ship
  • Inventory on the way

SPECIFICATIONS

Brand Name: NoEnName_Null

DIY Supplies: ELECTRICAL

Origin: Mainland China

Interface: USB

Display Size: 3.0 - 4.9 Inches

Average Noise Level: -130dBm - -150dBm

Model Number: RF Explorer 3G Combo

Certification: CE

Certification: FCC

Package: Yes

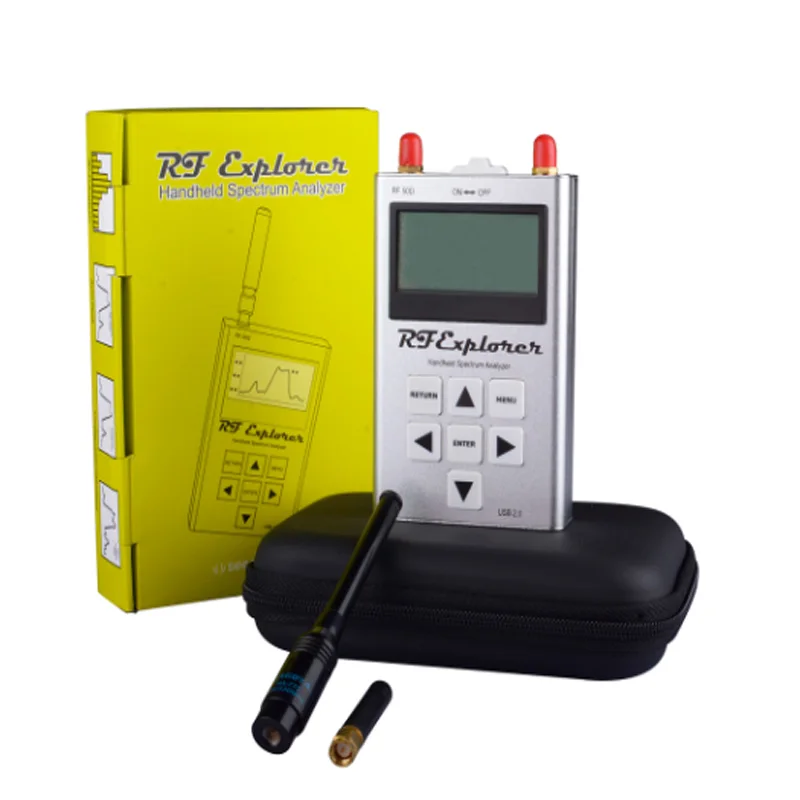

RF Explorer - 3G Combo 15-2700 MHz Handheld Digital Spectrum Analyzer Includes a


Transport EVA Carry Case Pocket Size TES09102P



Features:

·Pocket size and light weight

·Solid aluminum metal case

·Includes a transport EVA carry case for RF Explorer

·Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes

·Lifetime free firmware upgrades available, open to community requested features

·High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

·Windows PC client Open Source

·Can be extended with internal Expansion Modules for additional band and functionality

·Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.

·Firmware: RF Explorer 3G Combo is delivered with upgraded firmware v1.09. Note some of the features and operation accuracy will be improved in upcoming lifetime free firmware revisions.

Important


Specifications

·Frequency band: 15-2700 MHz

·Frequency span: 112KHz - 600MHz

·Graphics LCD 128x64 pixels, great visibility outdoors

·PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits

·Backlight for great indoor visibility

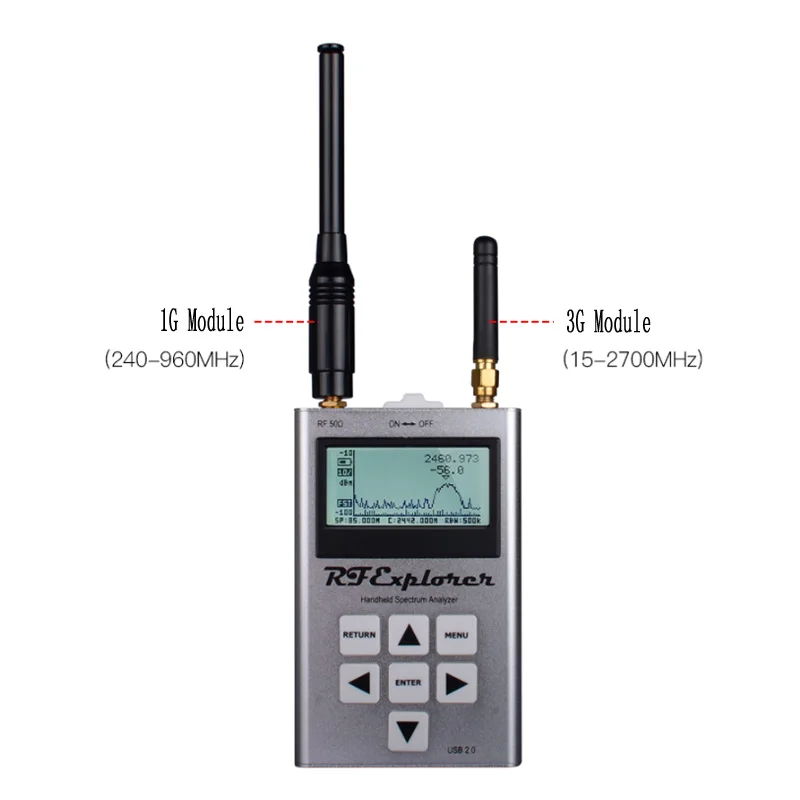

·2 standard SMA 50 ohms connector, one for Sub-GHz wideband Nagoya NA-773 telescopic antenna included and another 2.4Ghzone for 15-2700 MHz band with helical antenna included.

·Amplitude resolution: 0.5dBm

·Dynamic range:

·Left SMA port (WSUB1G): -115dBm to 0dBm

·Right SMA port (WSUB3G): -110dBm to -10dBm

·Absolute Max input power:

·Left SMA port (WSUB1G): +5dBm

·Right SMA port (WSUB3G): +30dBm

·Average noise level (typical): -110dBm

·Frequency stability and accuracy (typical): +-10ppm

·Amplitude stability and accuracy (typical): +-6dBm

·Frequency resolution: 1Khz

·Resolution bandwidth (RBW): automatic 3Khz to 600Khz

·Weight: 185g

·Size: 113x70x25 mm

Note this unit does not include RF Generator functionality, only Spectrum Analyzer functionality is available.
