IP67 Waterproof Radar, Universal 24Ghz BSD Alarm System with Dual Color LED light, Car Blind Spot Monitoring System

Features:

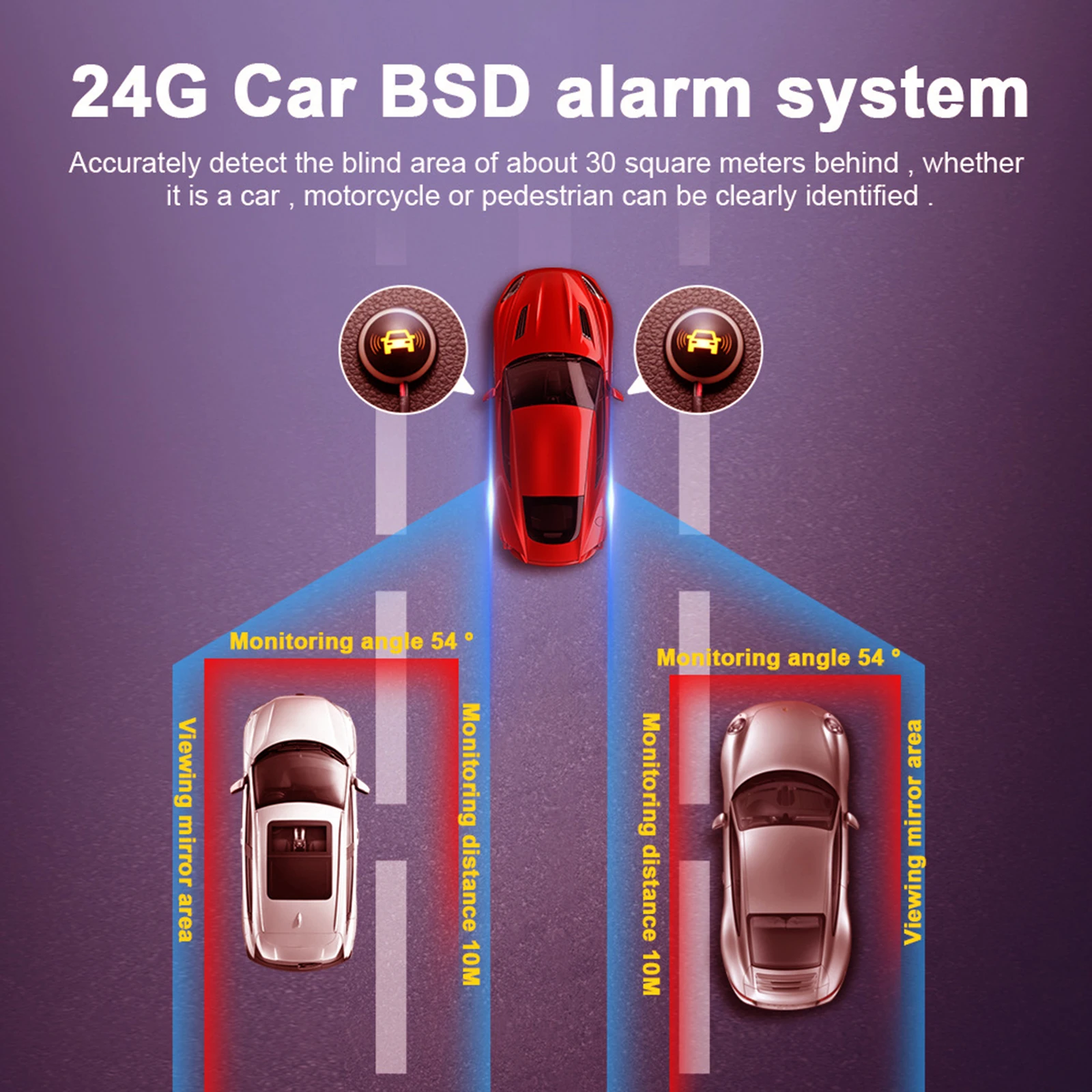

This system product can warn the dangerous targets in the adjacent lanes. The unique ability of 24Ghz millimeter radar to penetrate smoke, fog and dust can realize all-weather and all-time application, detect the objects in the signal area in real time, and calculate the speed, angle and relative displacement of objects at the same time, and finally output the alarm signal, which includes the first-level alarm and the second-level alarm.

The system is a vehicle auxiliary device that can help the driver to safely change lanes while driving.

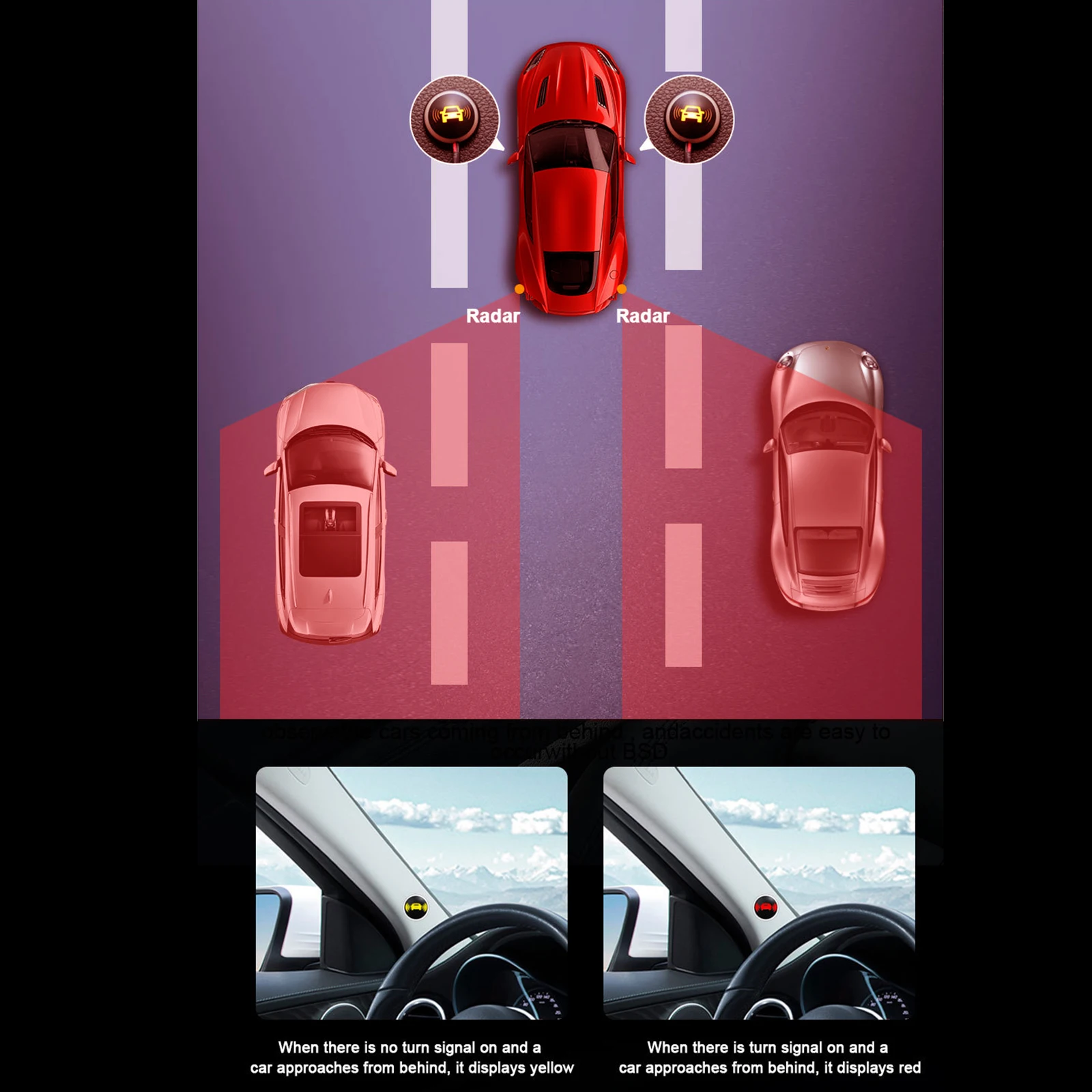

During driving, when the side and rear vehicles are in danger of colliding with my car, the warning light will light up to remind the driver. If the left/right turn signal is turned on, it will be accompanied by an audible warning.

The blind spot detection starts when the car starts. When you open the door, if there are pedestrians, cars and motorcycles on the side, it will be detected and accurately alarmed.

The blind spot detection system can distinguish between stationary objects and moving objects. Stationary objects do not alarm. Pedestrians and vehicles in a driving state will sound an alarm when they are detected.

When waiting for traffic lights: After parking, the car behind is still, and the blind spot detection system does not alarm.

Normal driving: When the car behind is slower than us, there is no danger of collision and there is no warning. Similarly, when we overtake, the speed is faster than the car behind and there is no warning.

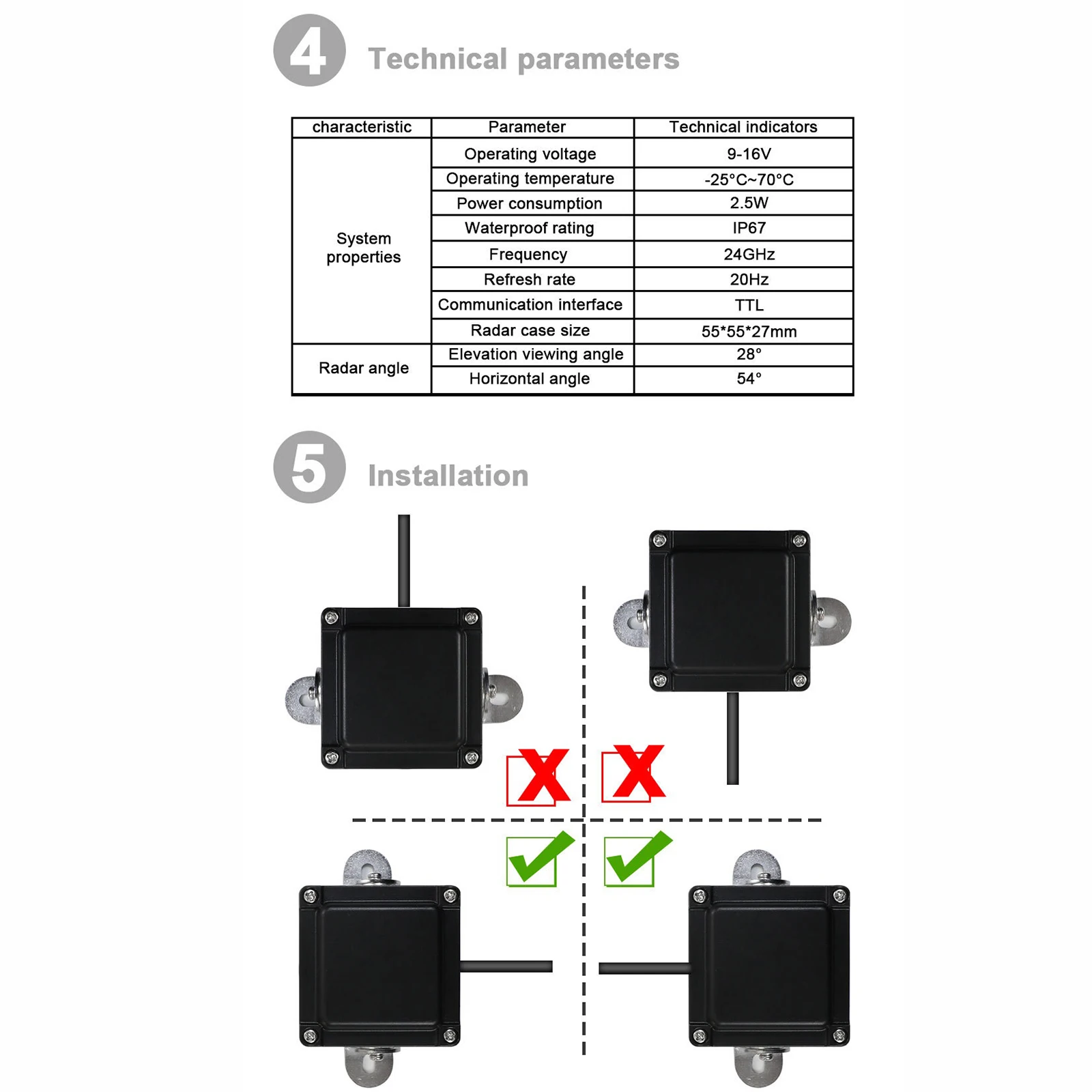

Specifications:

Applicable conditions: Universal (There must be no metal objects in front of the 2 radar signals to block the radar).

Type: Car BSD, Car blind spot detection system

Certification: CE,FCC,RoHS.

Waterproof rating: IP67

Sensor frequency: 24GHZ

Refresh rate: 20Hz

Detection accuracy: 0.25CM

Maximum detection range of pedestrians: 0.3M-10M

Motorcycle: 0.3M-10M

Truck: 0.3M-20MA

Alarm measuring range: 0.3-20 meters

System efficient car: > 98%

Pedestrian: > 95%

Alarm mode 1: LED is always on . 2: LED flashes + buzzer.

Waterproof rating: IP67

Operating current: 200MA

Power consumption: 2.5W

Warning light: 5V drive, A pillar

Operating voltage: 9V-16V

Operating temperature: -25 ℃ +70 ℃

Storage temperature: -40 ℃ +85 ℃

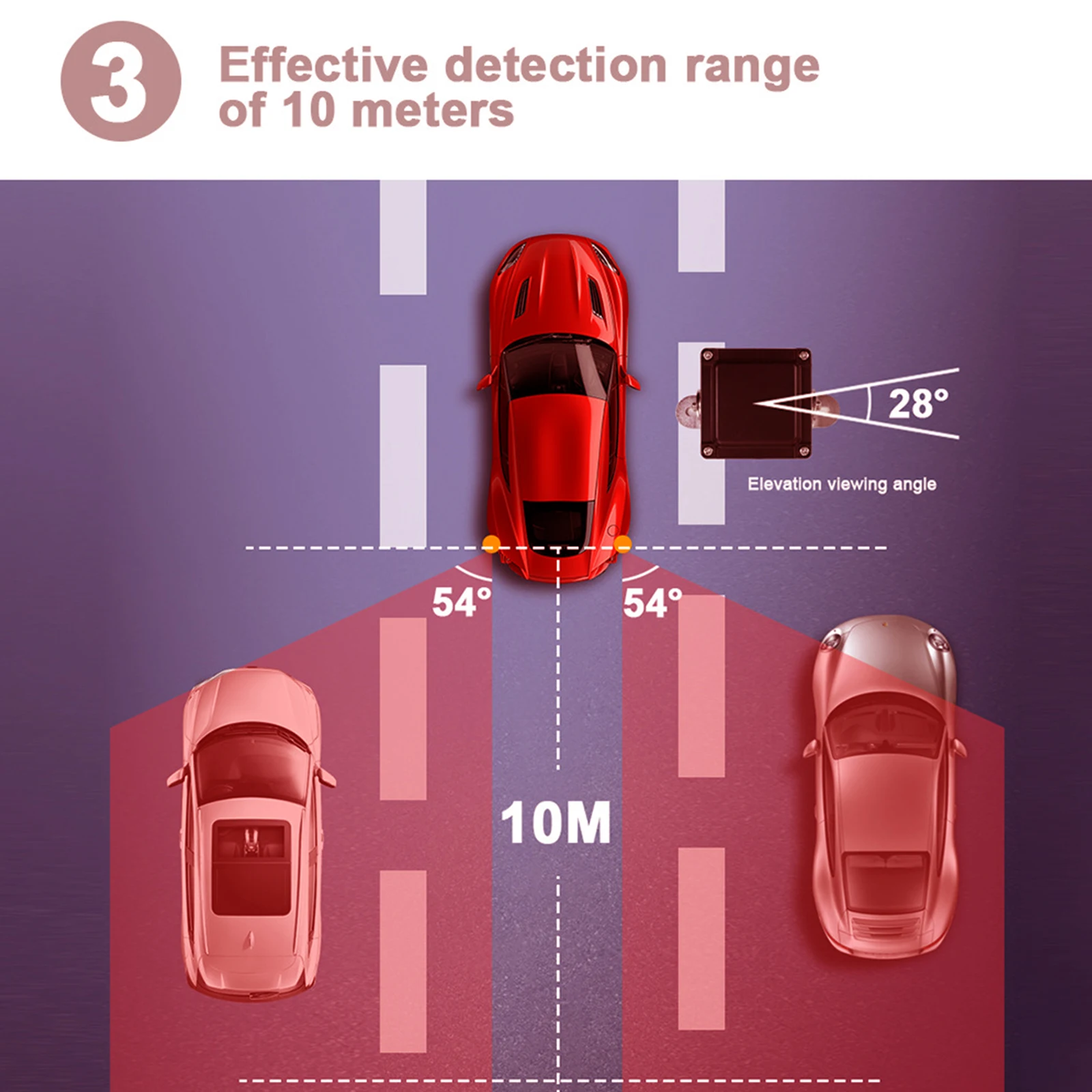

Detection angle: Horizontal 54 ° X Vertical 28 °

Communication interface: TTL

Radar case size: 55*55*27mm

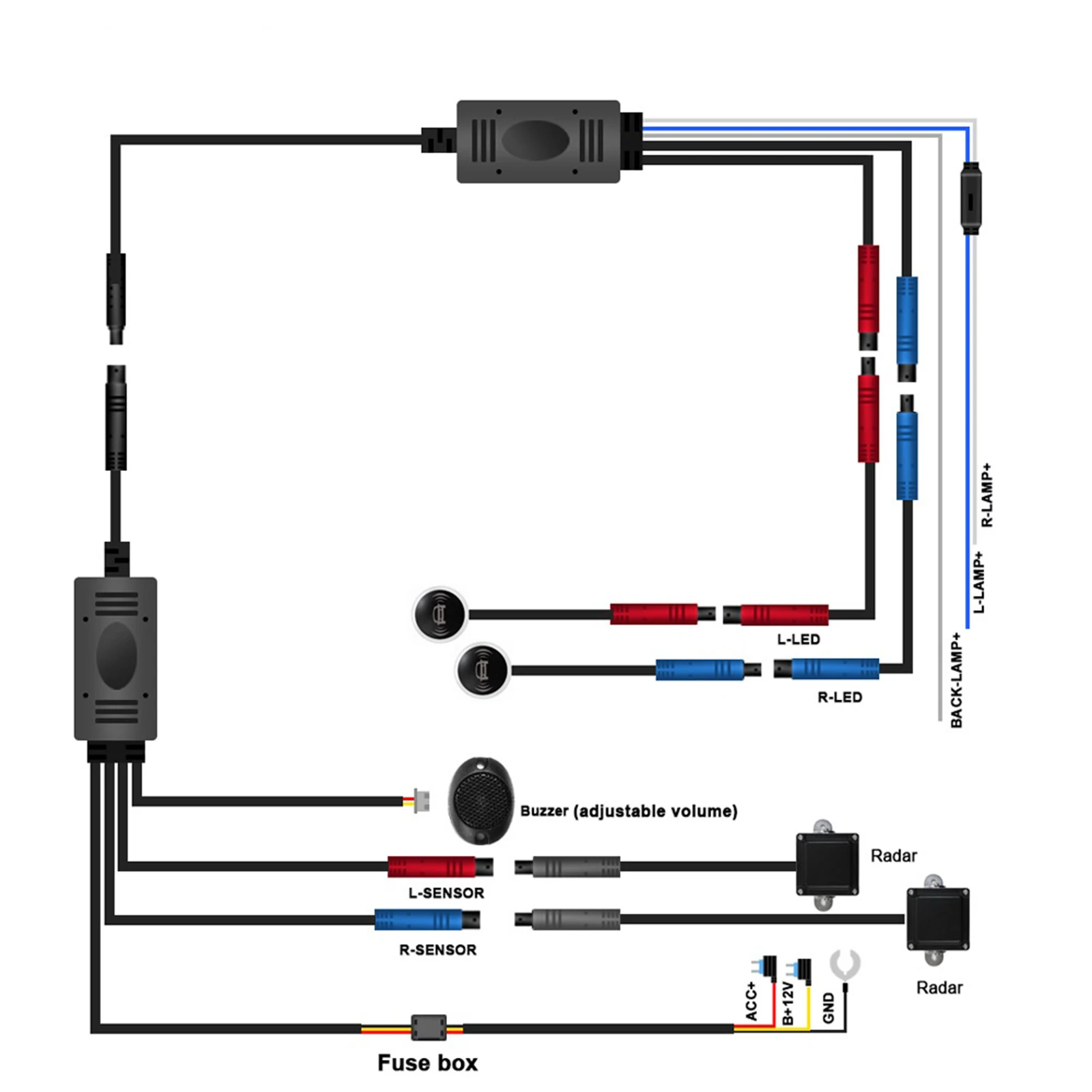

Packing List: 2Pcs*24GHz rader sensor. 2Pcs*Warning light. 1*Buzzer. 1Pack*Installation accessories. 1*Power extension cable. 1*Power supply harness. 2Pcs*Warning light extension cables. 1*User manual.

Note:

It is recommended that the installation be carried out by professionals.

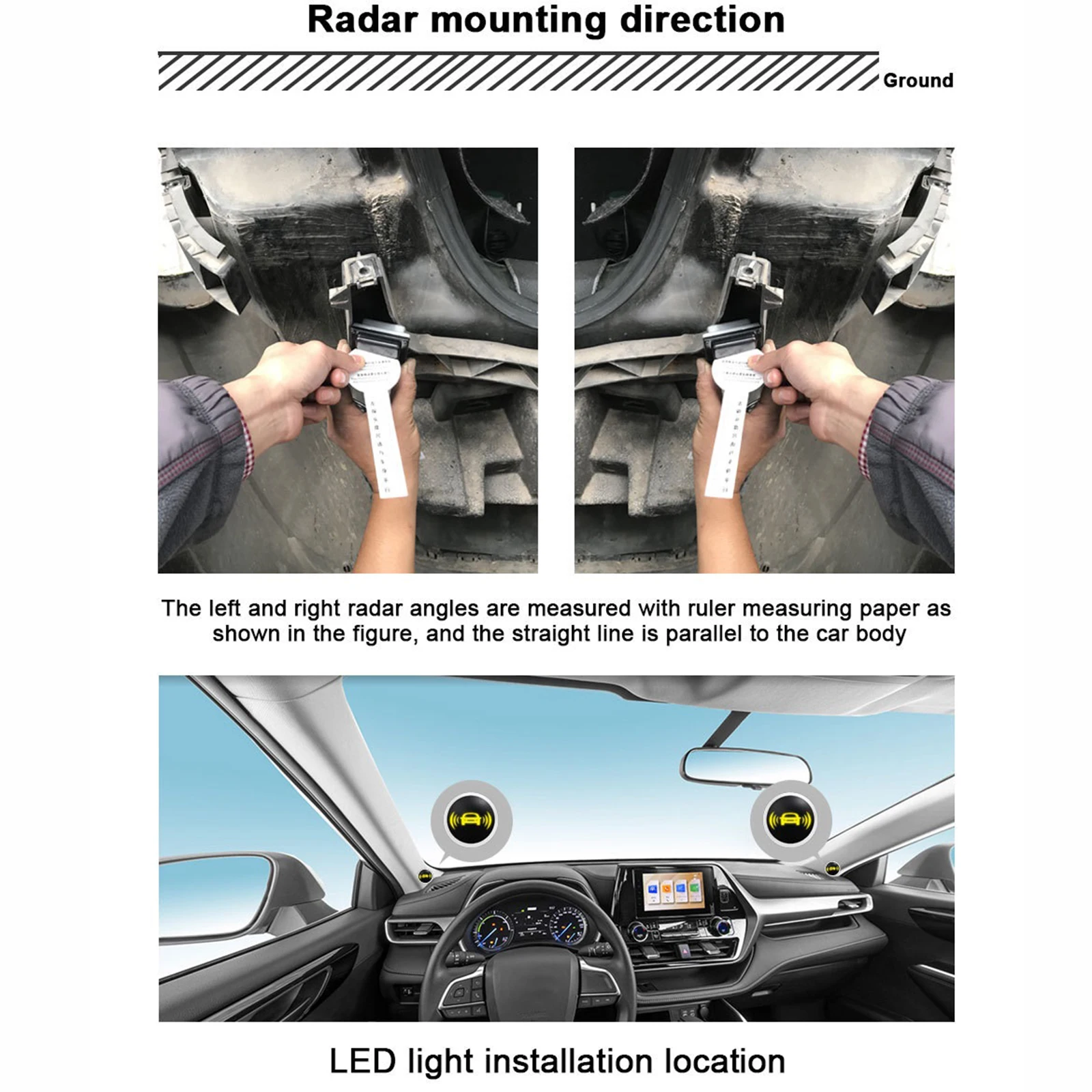

The installation angle of radar will affect the detection distance and effect. Please install it strictly according to the instructions.

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 10-30mm.
