SPECIFICATIONS
Resolution: 4K hdmi splitter 2 in 4 in 2 out
Video standard: HDMI 2.0b and HDCP 2.2 4x2 hdmi splitter
HDMI port: hdmi 3x2 matrix switch
IR control: hdmi 4x2 matrix
Toslink: hdmi switch 4x2
Audio Extractor: hdmi switch 4x2 spdif
Model number: 4x2 hdmi switch 4k
Product name: hdmi matrix switch
HDR: 4K HDR HDMI matrix switcher
Warranty: one year free warranty HDMI switcher splitter
Connector B: RCA
Connector B: jack
Connector B: OPTICAL INTERFACE
Connector B: COAXIAL
Connector B: Aux
Connector B: HDMI-compatible
Outer Diameter: 1mm
Brand Name: Navceker
Connector A: RCA
Connector A: jack
Connector A: TYPE-C
Connector A: OPTICAL INTERFACE
Connector A: HDMI-compatible
Model Number: ZY-HM42
Type: HDMI-Compatible Cables
Package: Yes
Application: Projector
Application: DVD Player
Application: Camera
Application: For iPod
Application: Computer
Application: Multimedia
Application: TV box
Application: Monitor
Application: Television
Application: MP3 / MP4 Player
Application: LCD,XBox,apple TV
Shielding: Non-Shielded
Gender: Male-Male
Bundle: Bundle 1
Origin: Mainland China
Packing: Carton Box
Certification: CE
Certification: FCC
Certification: RoHS
Choice: yes
semi_Choice: yes
|
|
If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.
ugreen vention baseus
2023 4K@60Hz HDMI Matrix 4x2 Switch Splitter Support HDCP 2.2 2 in 2 out HDMI Switch 2x2 Spdif 4K HDMI Matrix Switch
Description:

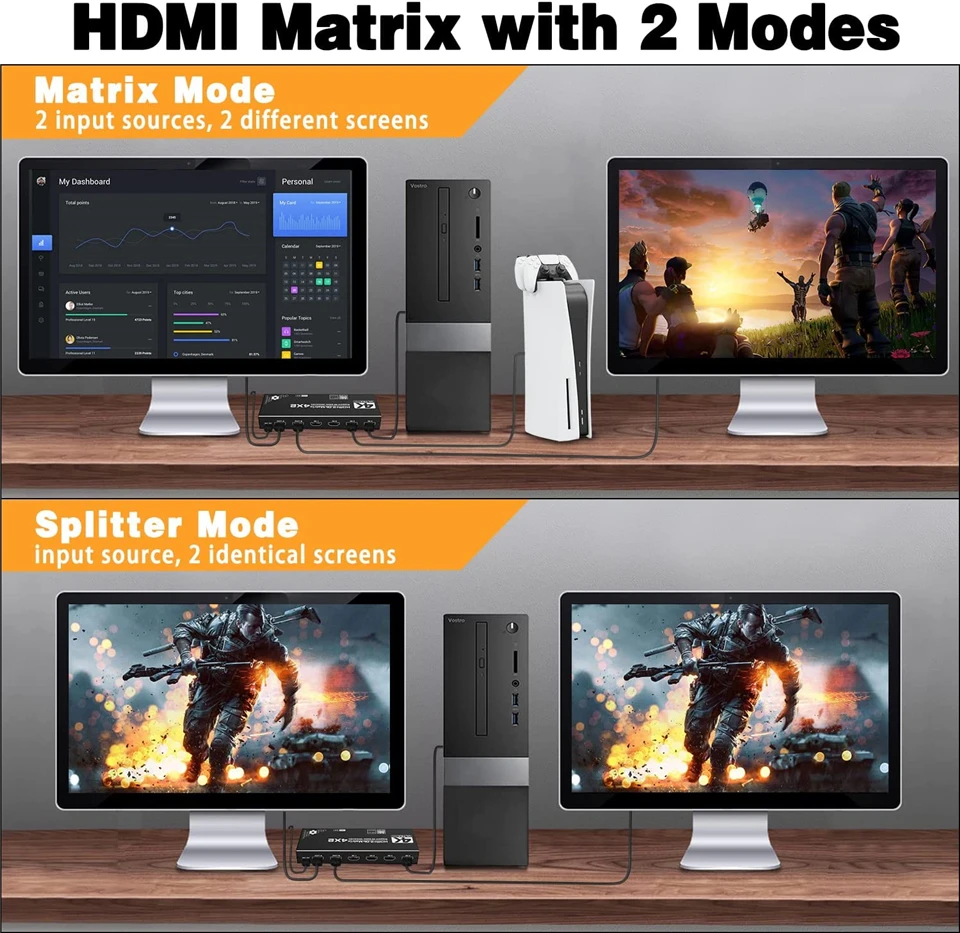

ZY-HM42,Navceker 4x2 HDMI Matrix Switch is with 4 HDMI inputs and 2 HDMI outputs. It is a true matrix and can distribute any one of 4 sources to either of 2 displays, and can work as a splitter to show the same source on 2 displays simultaneously. It supports input and output resolutions up to 4Kx2K/60HZ
There are 4 models optional, different model has different interface and appearance, please choose suitable model before purchase:
(1) The Black color is ZY-HM22A,HDMI 2.0b and HDCP 2.2,4K@60Hz HDMI Matrix switch 2x2 with HDR10,2xSPDIF Audio, 2x3.5mm L/R Audio,Downscaler 4K to 1080P and RGB 4：4:4/8:8:8(Dolby ATMOS).
(2) The White color is ZY-HM42,HDMI 2.0b and HDCP 2.2,4K@60Hz HDMI Matrix switch 4x2 with HDR10,2xSPDIF Audio, 2x3.5mm L/R Audio,Downscaler 4K to 1080P, RGB 4：4:4/8:8:8(Dolby ATMOS) and 16 kinds of EDID mode.
(3) The Blue color is ZY-HM42A,HDMI 2.0b and HDCP 2.2,4K@60Hz HDMI Matrix switch 4x2 with ARC,HIFI,HDR10,1x3.5mm Jack,1xSPDIF Audio,1xCoaxial Audio ,RGB 4：4:4/8:8:8(Dolby ATMOS) and 8 kinds of EDID mode.
Features:
Excellent Quality

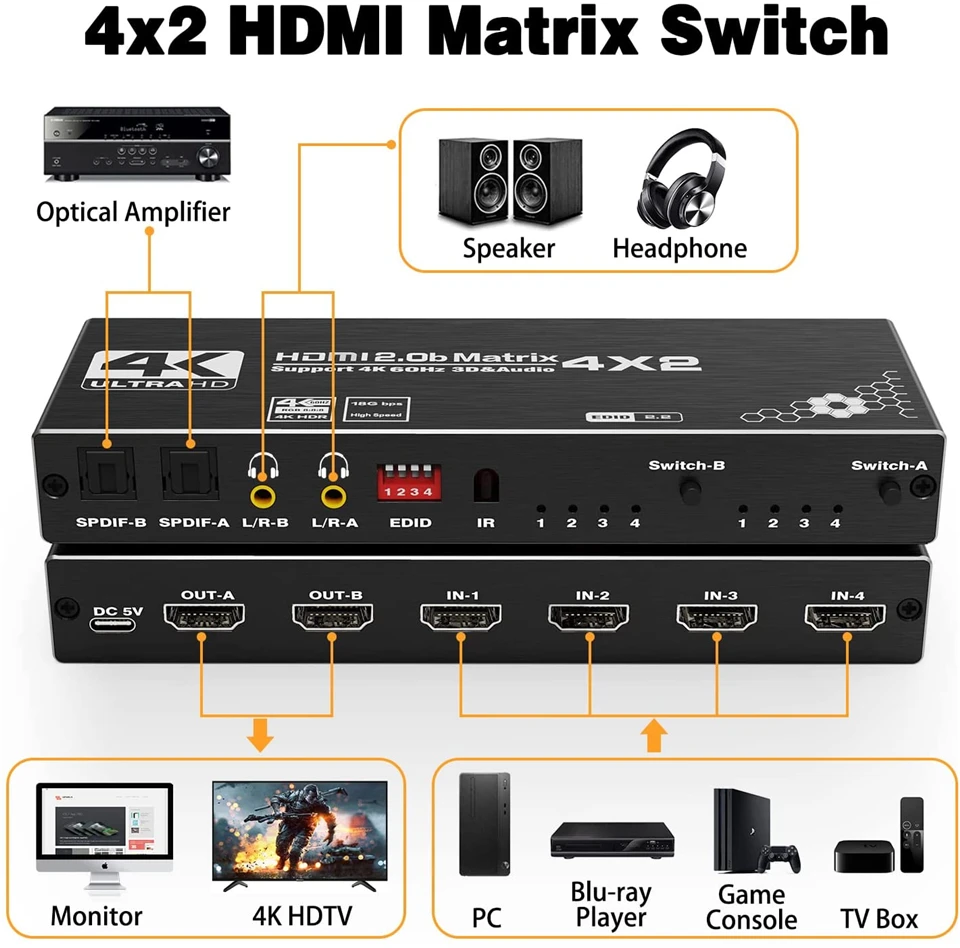

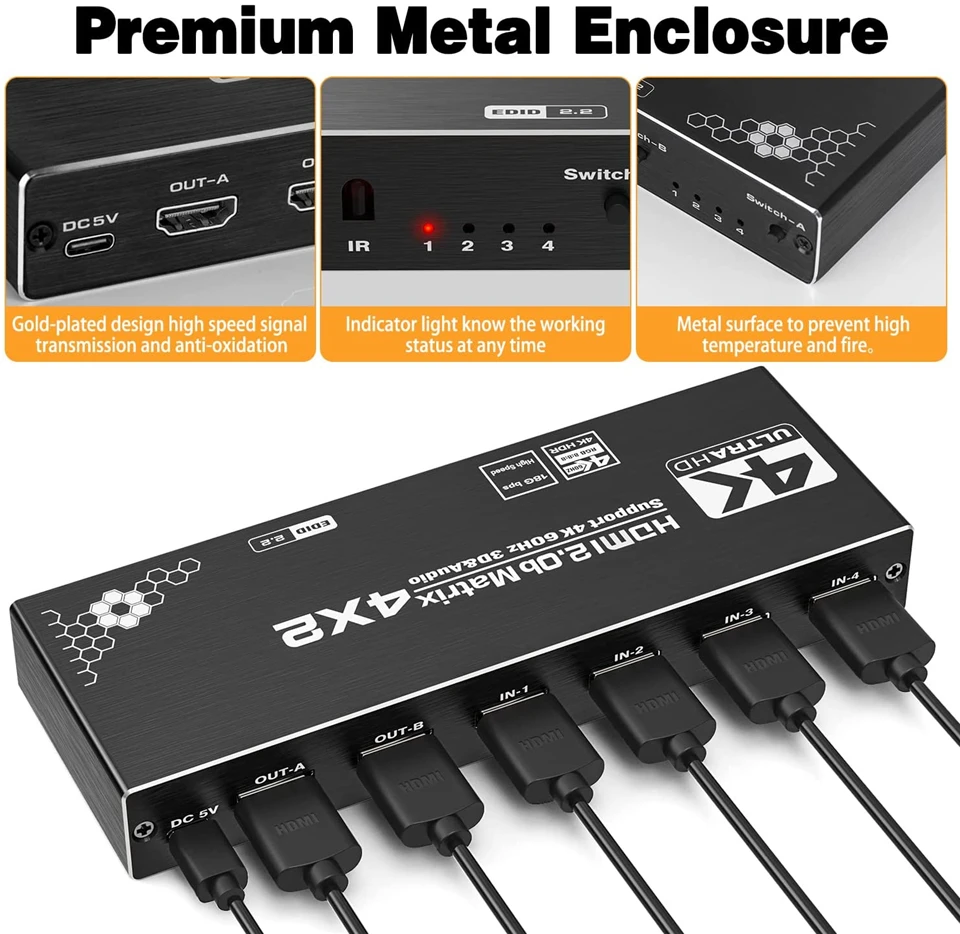

[4 In 2 Out HDMI Matrix] HDMI matrix allows you to connect four 4K HDR signal sources to two HD displays or projectors at the same time. It is the combination of HDMI splitter and switch. Any output port can realize independent audio output by SPDIF/optical fiber or L/R stereo headphone. Aluminum alloy shell provides durability and helps heat dissipation. Convenient for work and home using, information distribution, conference room presentation, school, and corporate training environments.
[4K 60Hz High Resolution] 4 inputs and 2 outputs HDMI matrix supports highest resolution up to 3840*2160 60Hz, also Ultra HD, 4K 30Hz, 1080p, 3D, RGB 4:4:4 and RGB 8:8:8. Data rate reaches 18.5Gbps and tmds clock up to 600Mhz. 4 in 2 out HDMI matrix supports 8/10/12/24/32/48bit deep color and HDCP 2.2, HDMI2.0b. Remember to set EDID correctly and embrace your stunning visual experience!
[Audio Extraction & EDID] 4K HDMI matrix supports LPCM/Dolby/DTS 5.1 channel/2CH audio and smart EDID management. 4x2 HDMI matrix supports HDMI audio output, 3.5mm L/R earphone or headphone stereo analog audio, and SPDIF/optical digital audio output(soundbar, etc) at the same time or separately.
[Wide Compatibility] HDMI matrix switcher splitter supports computer, game console, PS3, PS4, PS4 Pro, Xbox, Xbox One, HD player, Fire TV, IPTV-STB, Apple TV, etc to be the signal sources, supports projector, HDTV, display, etc to be the outputs and supports amplifier, speaker, earphone and headphone to extract sound.
[100% Satisfaction Customer Service] We offer HDMI matrix x 1, IR Remote Control x 1, DC5V Power Adaptor x 1, and User Manual x 1. We strive to be a premium manufacturer of electronic accessories so we trust our products and each product comes with tech support and a 24-month warranty.
Specifications
- Product Type:HDMI Splitter 1x4.
- Interface Type: 4 HDMI in, 2 HDMI out
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.175kg
Features
- Support HDMI 2.0b HDCP 2.2
- Support 3D video format
- Support highest resolution up to 3840x2160/60Hz
- Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 4 HDMI inputs switch and split to 2 HDMI displays
- Support LPCM/Dolby/DTS 5 1 audio
Package contents
1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual
Note:

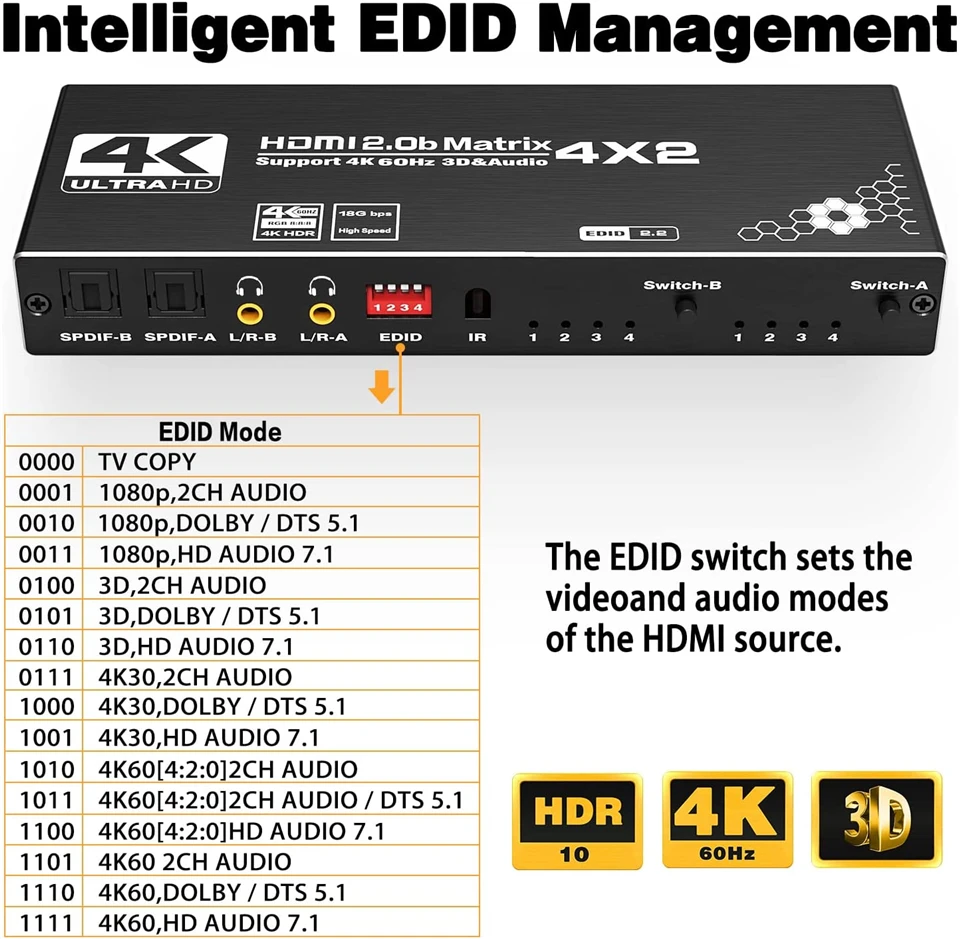

EDID the dial switch to dial downward is 1, dial upward is 0.

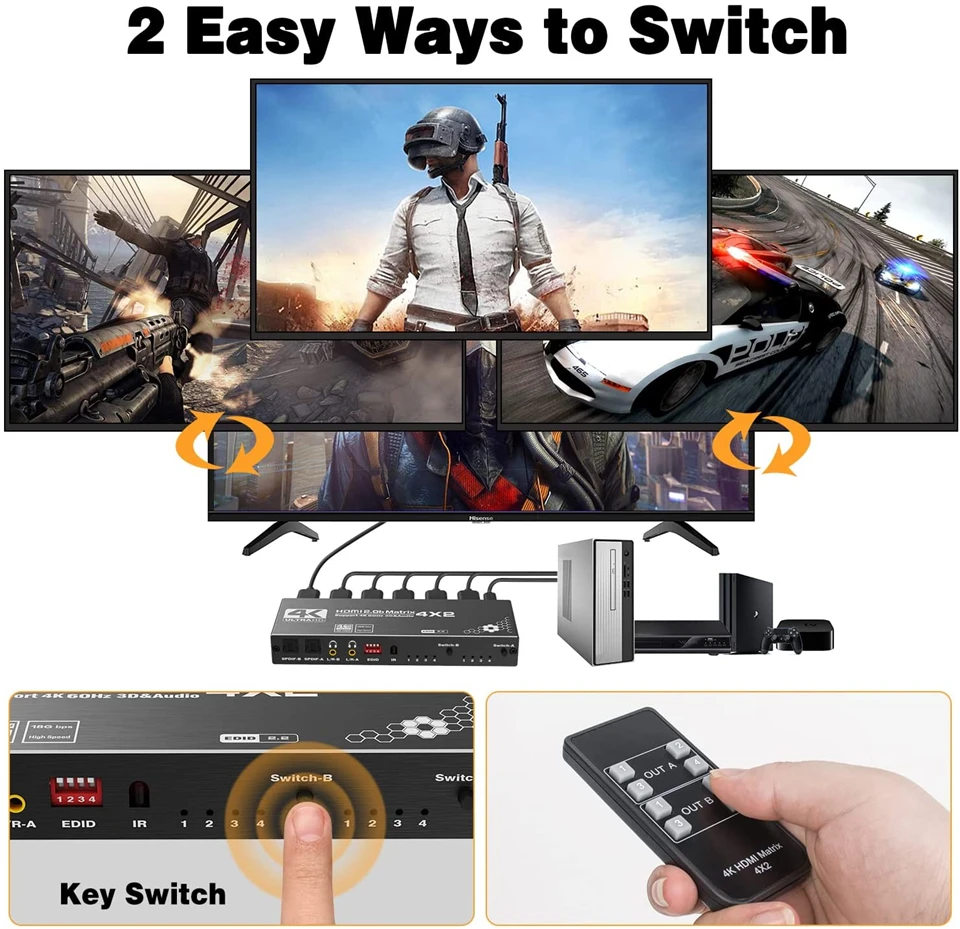

1. The Remote Control instruction:
(1) The four buttons on OUT A is the corresponding input source IN1-IN4from OUT AJN1-IN4 can be switched freely.
(2) The four buttons on OUT B is the corresponding input source IN1-IN4 from OUT B, IN1-IN4 can be switched freely.
2. Instruction of Buttons and LED:
(1) Instruction of LED: W1-IN4 indicator is the corresponding input sources out from OUT A or OUT B,
(2) Operation of Buttons: SWITCH A or SWITCH B is used to switch the corresponding inpul source out from OUT A or OUT B.
