Regular price$7,308.31
/
Shipping calculated at checkout.

  • Free worldwide shipping
  • Tested & Inspected
  • 30 Day Money Back Guarantee
  • In stock, ready to ship
  • Inventory on the way

SPECIFICATIONS

After Warranty Service: Video technical support, Online support

Application: concrete wall saw

Brand Name: NoEnName_Null,Yugong

Certification: CE

Condition: New,New

Core Components: PLC

Cutting Depth: 1600mm

Dimension(L*W*H): 100*100*120cm

Disc diameter: 800/1000/1200/1400/1600/1800 mm or customized

Driving system: Hydraulic Motor

Feature: Cutting Quickly

Feed way: Automatic

Hign-concerned Chemical: None

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Origin: Mainland China

Place of Origin: Henan, China

Power: 25kw

Power Source: Hydraulic Motor

Product name: High efficiency concrete wall saw cutting machine

Spindle power: Air/Water Cooling

Type: Portable Concrete Cutter Machine

UNIQUE SELLING POINT: Low Maintenance Cost

Video outgoing-inspection: Provided

Voltage: 220V/380V

Warranty: 1 Year

Warranty of core components: 1 Year

Weight: 120 KG

PLEASE NOTE:
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and
quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!

5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com

CONTACT US:



Product Description

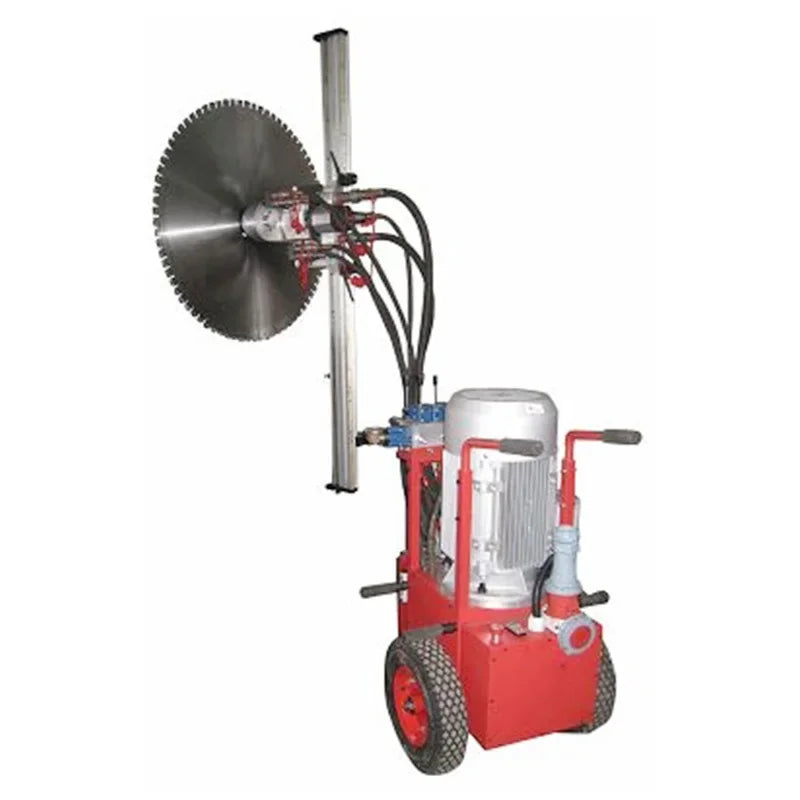

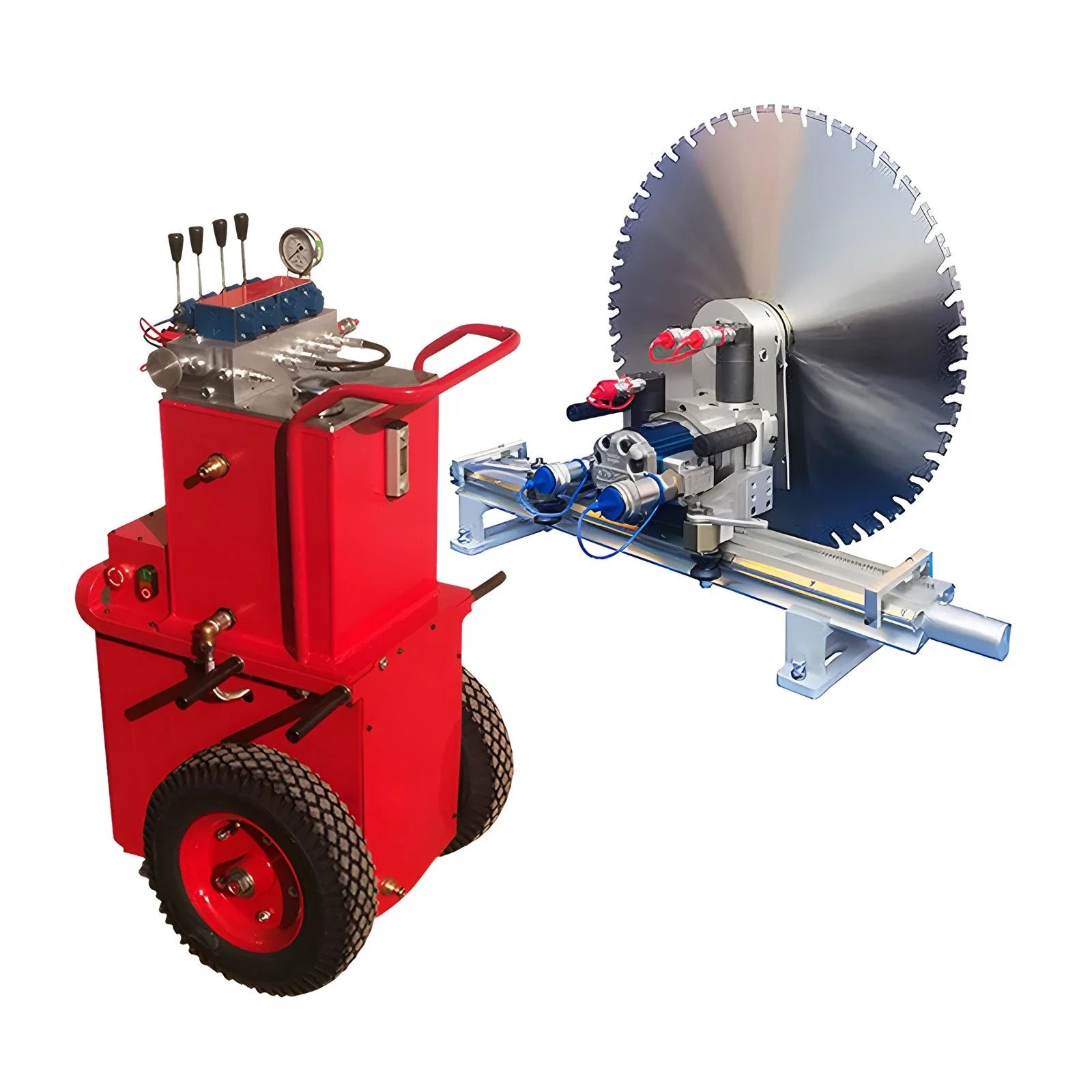

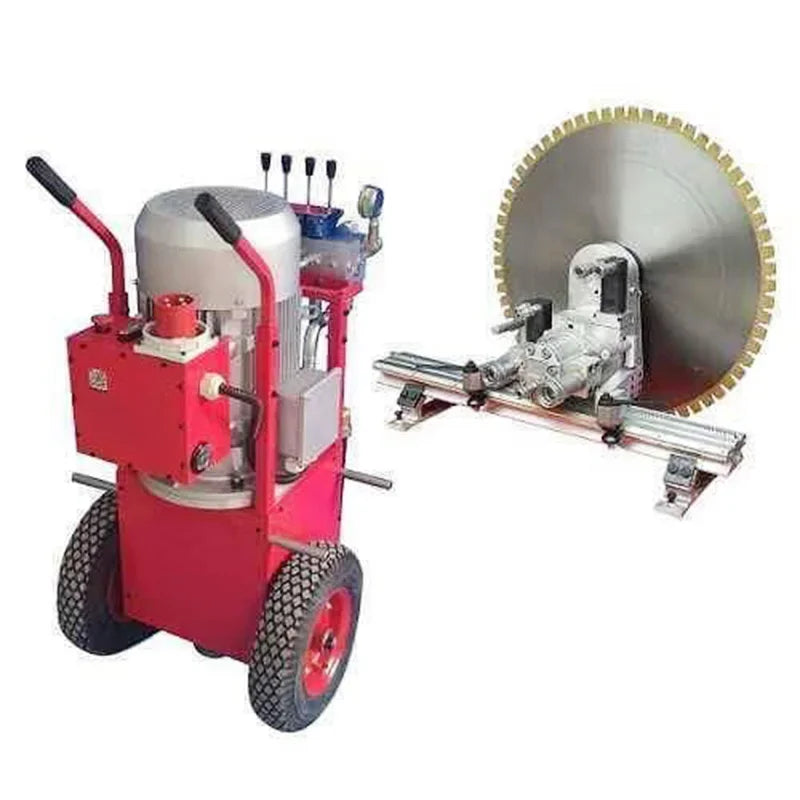

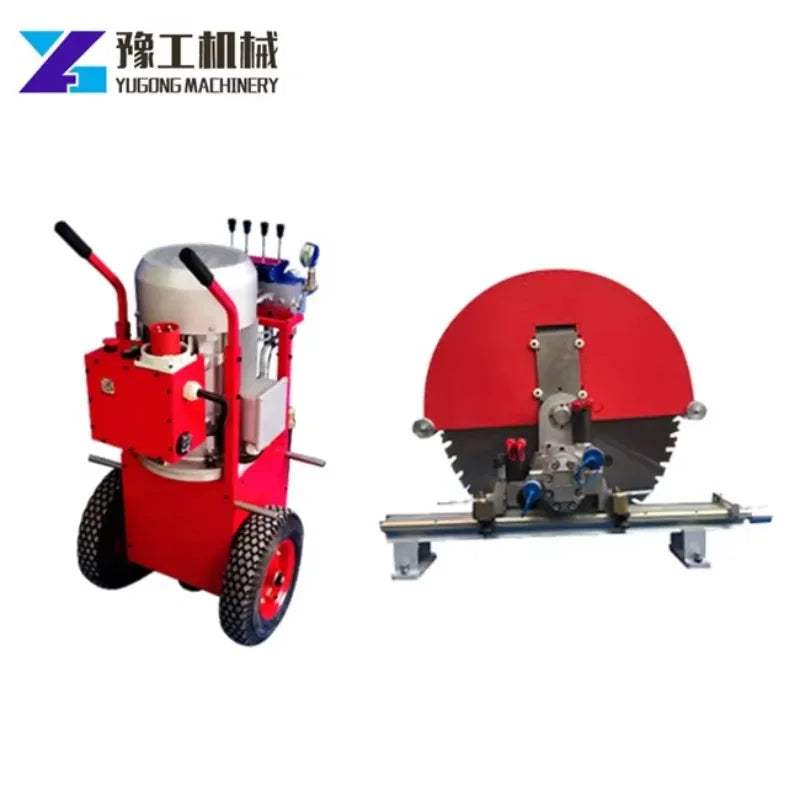

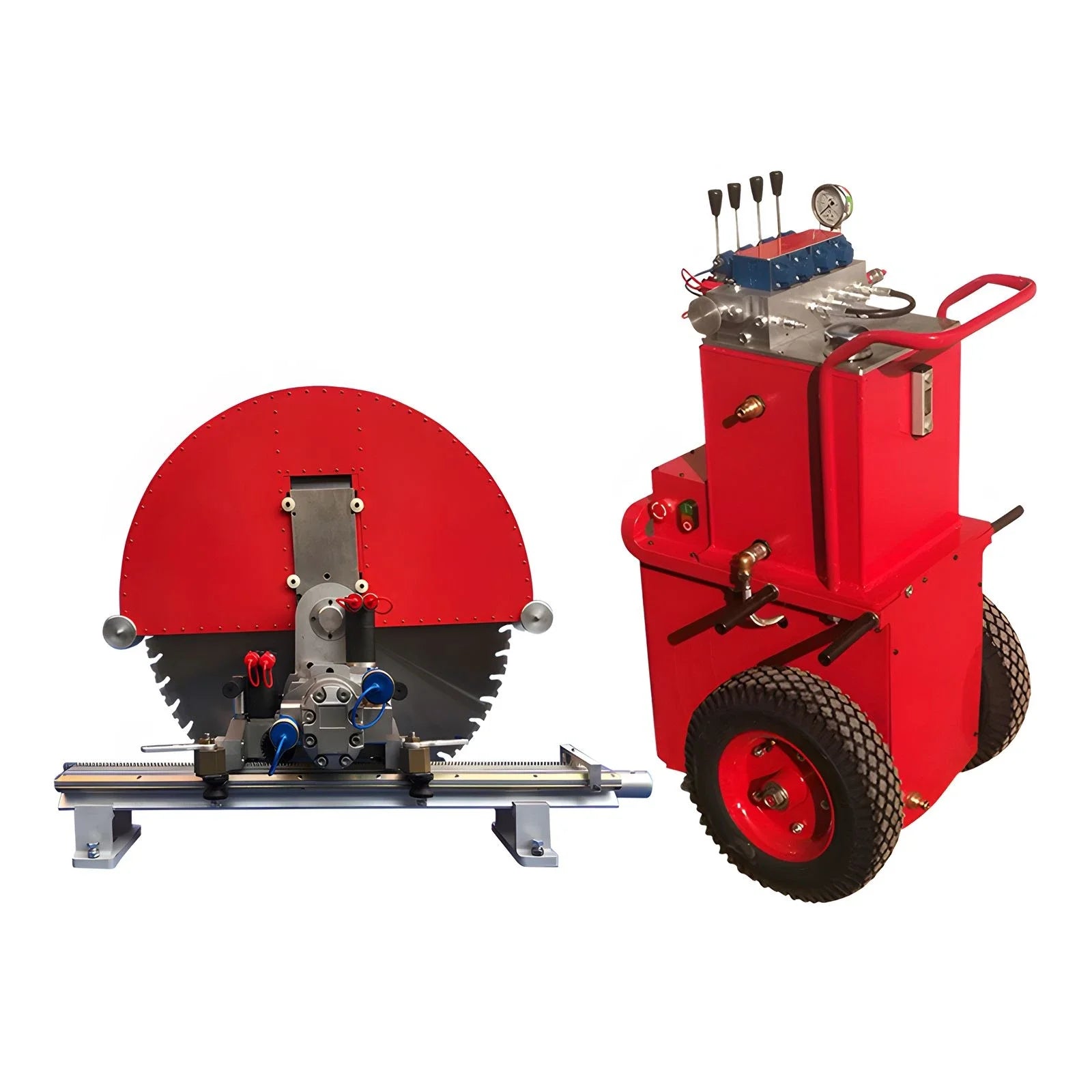

Hydraulic power station and hydraulic saw head, general said that the hydraulic power station is placed on the ground saw head is running on the wall of the hydraulic power station to provide power to the saw head between them with hydraulic tubing connection.

Product Parameters

 Hydraulic oil pump:

Model 600TM 700TM
Max.power 25KW 30KW
Motor cooling method Air cooling water cooling
Rated voltatge 380V 50HZ 380V-420V 50HZ-60HZ
Pressure stages 3 3
Max.operating pressure 200bar/20Mpa 210bar/21Mpa
Oil flow rate 30-80L/min 40-100L/min
Dimensions 600mm*650mm*1050mm 500mm*520mm*1100mm
Weight 220kg 140kg

Wall saw:

Model 600TM 700TM
Saw blade diamteter range 800-1400mm 800-1600mm
Cutting depth 620mm 730mm
Max.working pressure 180bar/18Mpa 200bar/20Mpa
Max.oil flow rate 100l/min 100l/min
Gearing Gear Gear
Rotation speed 450/950/1300Rpm 450/850/1200Rpm
Dimension 400mm*420mm*400mm 400mm*420mm*400mm
Weight 38kg 39kg



 Machine configuration

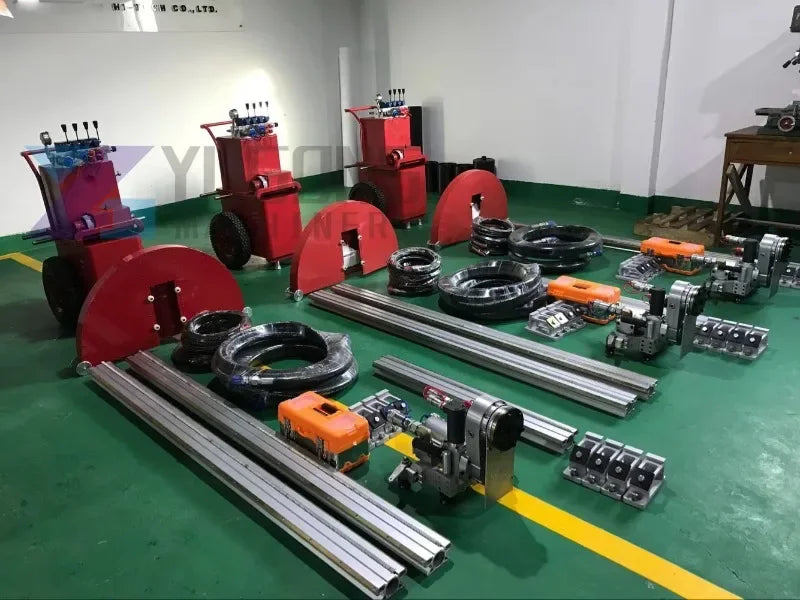

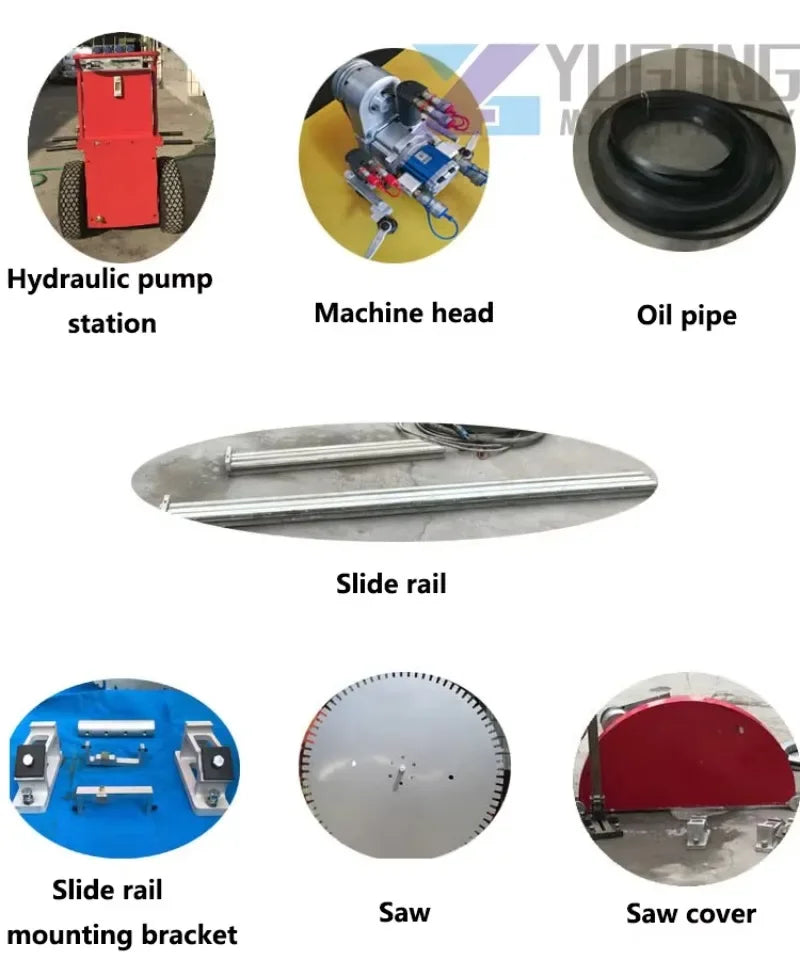

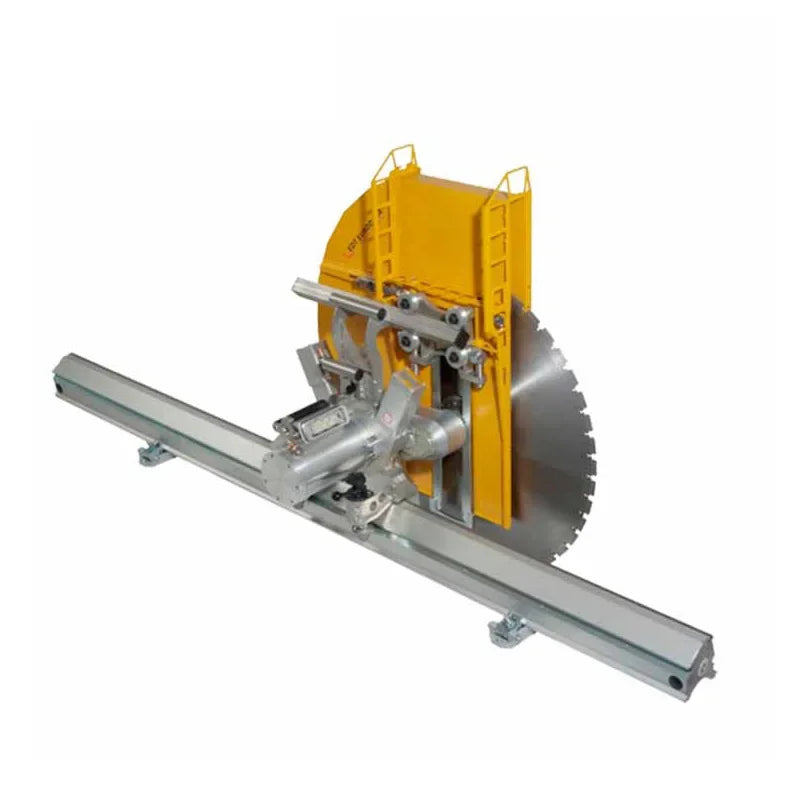

The whole sets of machine consists of hydraulic pump,machine head ,oil pipe,slide rail ,slide rail mounting bracket, saw, saw cover



Product Features

1.Reduce the labor intensity, safe and reliable operation
2.with overload protection, powerful, improved cutting capacity and labor productivity.
3.double the working speed to shorten the construction period, to further reduce labor costs, improve the competitive advantage, to expand the scale of construction projects can accept;
4.hydraulic system's own security, Reliability and stability, greatly reducing the cost of the loss of construction equipment;
5.advanced cutting equipment, instead of a strong blow or drill rig hole drilling to the construction in a traditional way.

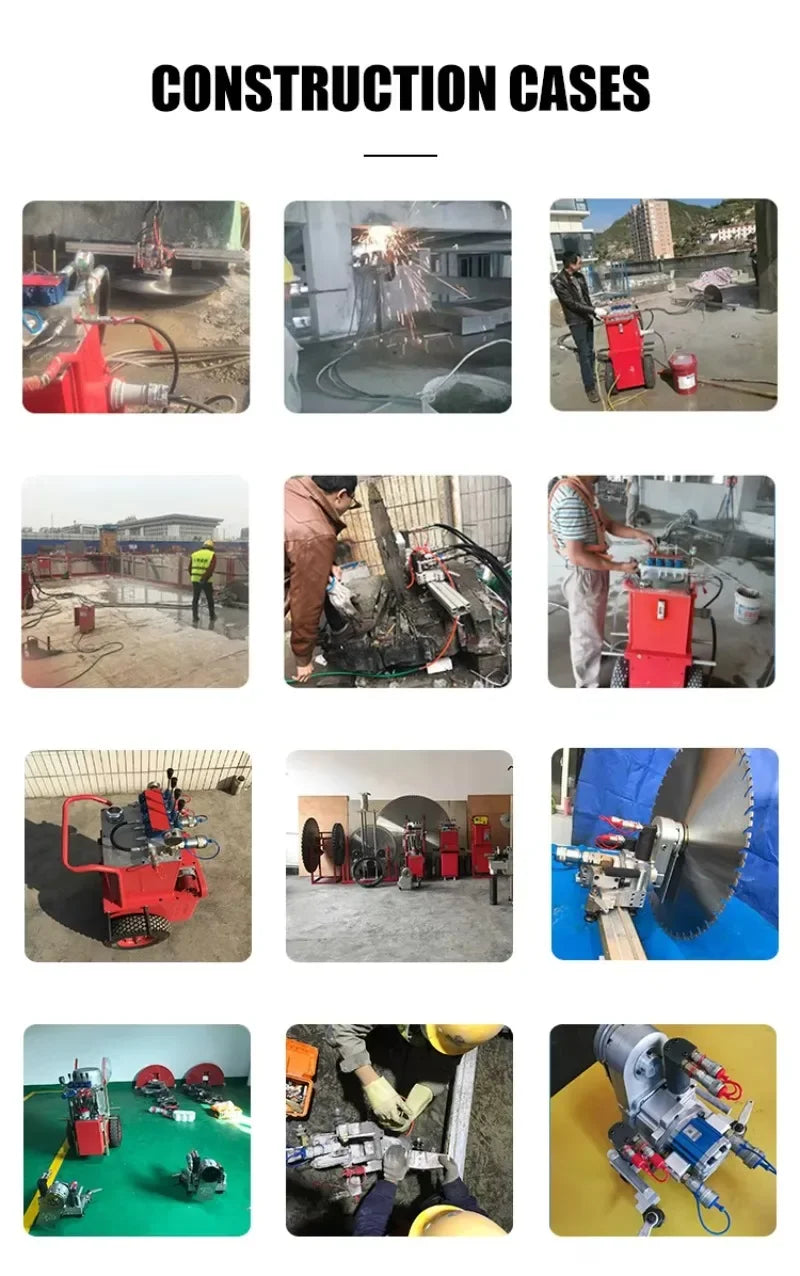

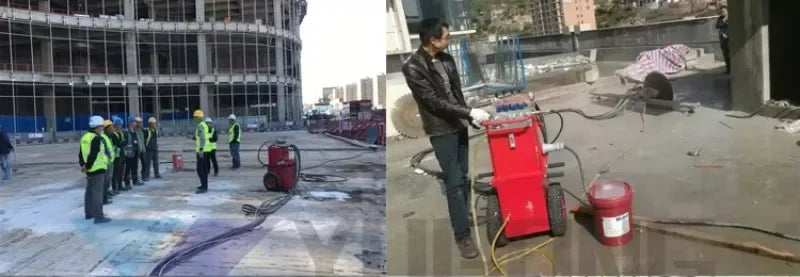

Working show





Packaging & Shipping



Packaging: General export packing or customized packaging according to your requirement.
Shipping: Professional goods shipping forwarders.
Delivery Time: working days after deposit.

Company Information



Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.

We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.

All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
