SPECIFICATIONS
Brand Name: None
Origin: Mainland China
Certification: CE
Pulse Width: 0.1-80MS
Focal Spot Diameter: 0.2-2mm
Model Number: HF100
Max. Output Power: 100W
Wavelength: 1070nm
Rated Voltage: 220V
Usage: Welding; cutting, cleaning
Is Smart Device: YES
warranty: 3 years
Certification: CE
Origin: Mainland China
Key Words: Fiber Laser Paint Steel Rust Removal Clean Cleaning Equipment Source Suitcase Pulse Machine
<< Price can Discuss! >>>
Jinan HonorFuture CNC Machiney Co.,Ltd:
Email: lee@honorfuturecnc.com
Whatsapp: +8618063427136
www.honorfuturecnc.com
Fiber Laser Paint Steel Rust Removal Clean Cleaning EquipmentSource Suitcase PulseMachine
Features
1.Non-contact cleaning without damaging the matrix of the parts.
2.Accurate cleaning, can achieve precise position, accurate size selective cleaning.
3.Do not need any chemical cleaning liquid, no consumables, safety and environmental protection.
4.Simple operation, hand-held or with the manipulator to achieve automatic cleaning.
5.Ergonomics design, operating labor intensity greatly reduced.
6.Trolley design, with its own moving wheel, easy to move; High cleaning efficiency, save time.
7.Laser cleaning system is stable with little maintenance.
Key attributes
Main configuration | |
Model: |
HF100/HF200/HF300 |
Laser Power |
100W/200W/300W |
Laser Generator |
Raycus / Max |
Voltage |
220V |
Mobile mode |
Handheld laser cleaning gun |
Operating environment | |
Supply voltage: |
Single phase220V±10%,50/60Hz AC |
Power consumption: |
≤800W |
Working environment temperature: |
5ºC~40ºC |
Working environment humidity |
≤80% |
Optical parameters | |
Power instability: |
<5% |
Laser Working Mode: |
Pulse |
Pulse width: |
20-500ns |
Maximum monopulse energy |
5mj |
Power regulation range(%) |
0-100( Gradient Adjustable) |
Repeat frequency(kHz) |
1-2000(Gradient Adjustable) |
Fiber length |
5m |
Cooling mode |
Air cooling |
Cleaning Head Parameters | |
Scan range (length * width) |
0mm-100mm, continuously adjustable; supporting 5scanning modes |
Scanning frequency |
The maximum is not less than 300Hz |
Field mirror focal length |
160mm( Optional 210mm/254mm/330mm/420mm) |
Depth of focus |
About 5 mm |
Mechanical parameters | |
Machine size |
770mm*375mm*800mm |
Packing size: |
870mm*480mm*960mm |
Machine Weight |
65kgs |
Packing weight: |
85kgs |
Advantages

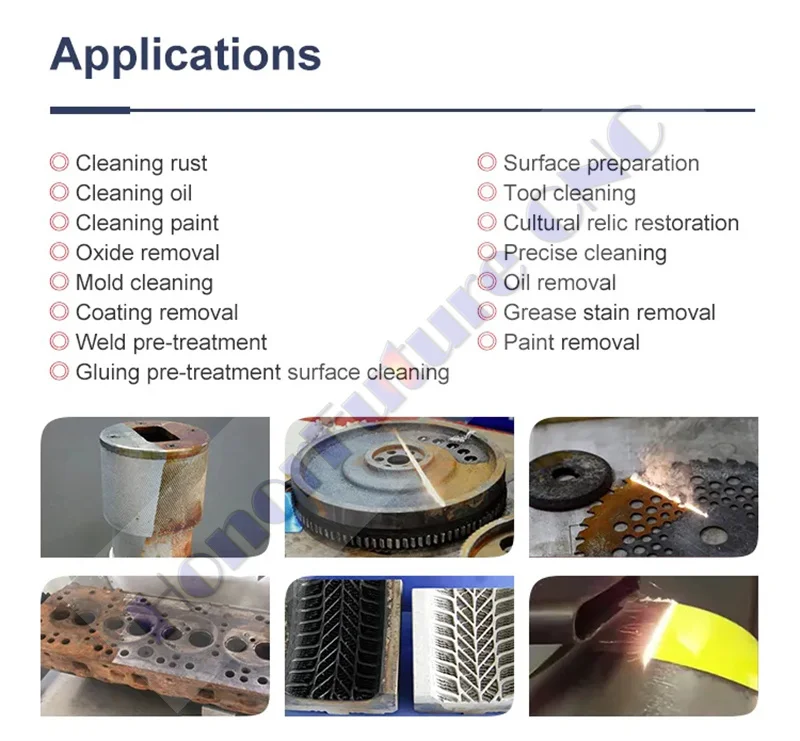

Application

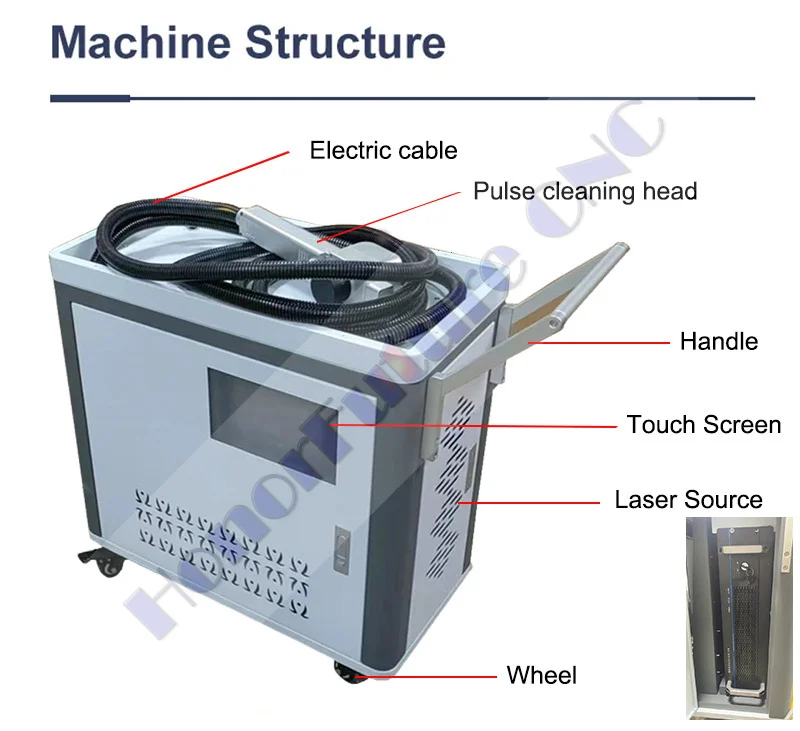

Structure

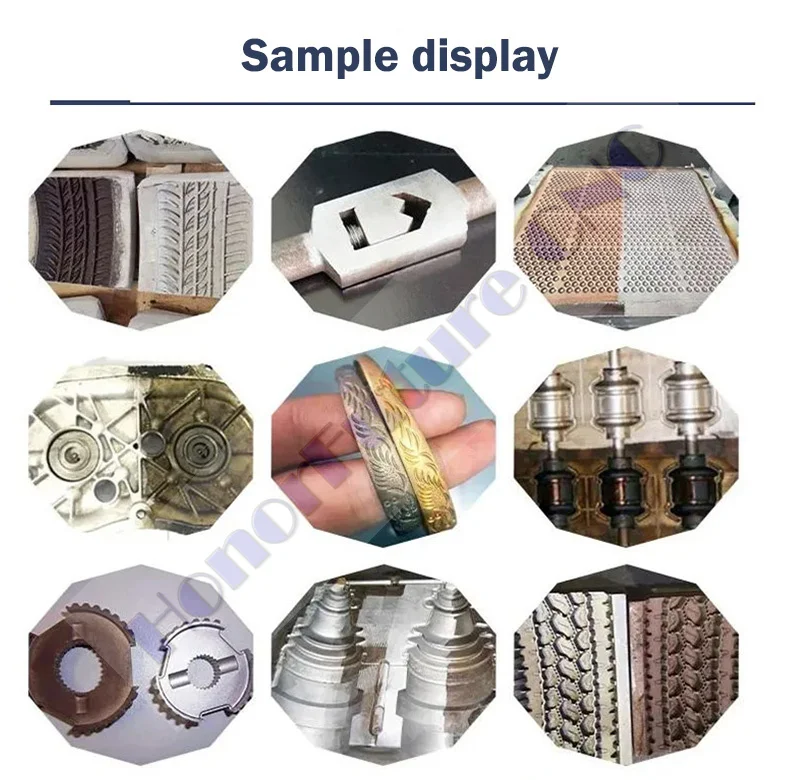

Shows
Package & Phipping
After service
3 years quality guaranty,the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period. Laser is 2 years.
Free training course at our plant.
Lifetime maintenance free of charge.
We will provide the consumable parts at an agency price when you need replacement.
24 hours on line service each day, free technical support.
Our staff can be sent to your company to install or adjust if necessary.
Pre-sale services
Provide the free consultation of the equipment .
Provide the standard device and the flow chart.
According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
Service during the sales
Inspect the machine before leaving the factory.
Oversea install and debug the equipment
Train the first-line operator.
Just looking forward to service every customer, like you.
