SPECIFICATIONS
Brand Name: HYFMDVR
Frames Per Second: 10
Origin: Mainland China
Chipset Manufacturer: Hisilicon
Assembly Mode: Portable Recorder
Video Code: H.264
Original Package: YES
Touch Screen: No
Item Type: Car DVR
Certification: CE
Certification: FCC
Certification: RoHS
Display: LCD
Function: GPS
Certificate: CE FCC RoHS ISO9001
Video resolution: 1080P/720P/ D1/ HD1/ CIF
Alarm Input: 4CH alarm inputs
Type: 1080P AHD DVR
Channel: 1ch\2ch\3ch\4ch
Playback: Single/4 Pictures
Storage: Single SD Card
Video Compression: H.264 Main Profile
Dimension: 130*95*35MM
Choice: yes
semi_Choice: yes
Welcome to our store,we are a manufacturer and we supply different types of mobile dvr (with gps/4g/wifi,G-sensor,OBDII)&Vehicle cameras.
All of our products will be offered for factory prices based on excellent quality. And all of our customers that have bought items from us can enjoy 1-3 years warranty and technique support.Thanks.

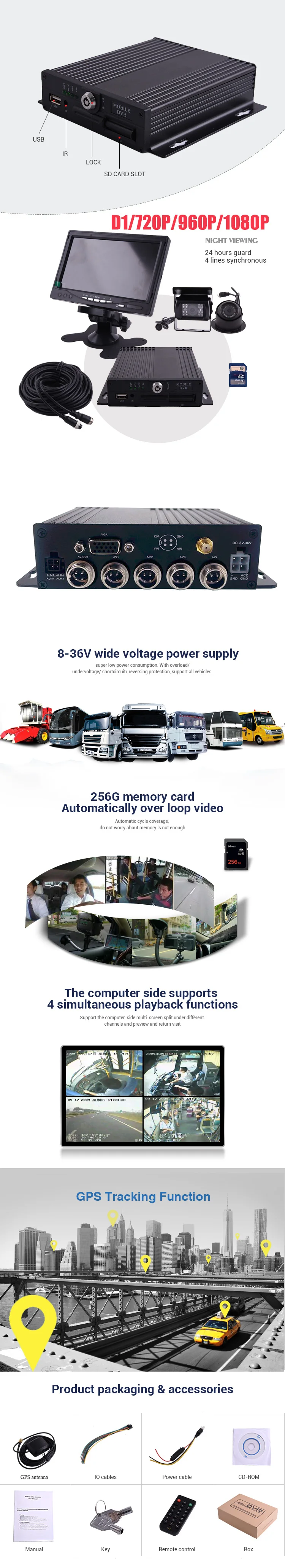

Features
lH.264 video compression, multi code stream.
lSupport 4CH1080P HD real-time video inputs. Also, support 4CH analog cameras inputs or compound inputs for 2CH HD cameras and 2CH analog cameras.
lWith exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.
l8-36V wide voltage power supply, super low power consumption. With overload / under voltage / short-circuit / reversing protection, support all vehicles.
lSupport SD cards, at maximum 256G for single SD card,with GPS function.(B9504SG-21 with GPS)
lWith watchdog abnormal restart protection function, it can better protect the machine and video.
lDelayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
lVarious video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.
lSupport 4CH alarming inputs
lSupport voice broadcast, intercom and text schedule dispatch.
lSupport shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.
lWith full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.
lSupport all vehicles, including bus, taxi, truck, school bus, etc.
Specifications |
||
Operating System |
Linux |
|
Language |
English, Chinese or Customized language. |
|
Video Compression |
H.264 |
|
OSD |
Support for time, date, vehicle ID, image, etc. |
|
GUI |
OSD Interface |
Can external connect to LCD and set the system specifications by remote |
|
Video and Recording |
Video Input |
4CH 1080P/720P AHD/Analog/Compound video input, aviation connector, 1.0Vp-p, 75Ω |
Video Output |
1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω. Support 1CH full screen and 4CH division. |
|
Preview |
Single/4CH Pictures Preview, support full screen of event trigger or back view of car reversing |
|
|
Recording Resolution |
Support 1080P/720P/D1/HD1/CIF, support at maximum 4 Channels 1080P |
|
|
Recording Quality |
Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest. |
|
Video Rate |
PAL:100 fps,CCIR625line,50 scenes NTSC:120 fps,CCIR525line,60 scenes CIF:256Kbps - 1.5Mbps,8 grades image quality for optional HD1:600Kbps - 2.5Mbps,8 grades image quality for optional D1:800Kbps - 3Mbps,8 grades image quality for optional 720P:800Kbps - 4Mbps,8 grades image quality for optional 1080P：2Mbps - 6Mbps,8 grades image quality for optional |
|
Recording Mode |
Default automatic video recording, support ignition video recording, schedule video recording, alarm video recording, etc |
|
Audio |
Audio Input |
4CH Aviation connector inputs |
Audio Output |
1CH Aviation connector output, |
|
Compression format |
G.726, Speed for 8KB/s |
|
Alarm Input |
4CH level alarm inputs |
|
Alarm Output |
- |
|
Communication Interface |
- |
|
Wireless Transmission |
- |
|
Location /G-sensor |
B9504SG-21:YES B9504S-21:No |
|
Video Storage |
Storage |
Support at maximum 1*256GB high capacity SD card |
|
Upgrade Method |
Support SD card local upgrade, remote upgrade automatically |
|
File Format |
H.264 general video format |
|
File System |
FAT32 exclusive file system |
|
Video Playback |
Video Search |
Search recorded video files by recording time and recording method |
Playback |
Support at max 4 channel synchronous playback, suspend, forward, backward |
|
Support 2/4/8/16 times speed forward or backward | ||
Security Management |
User Password or administrator password management, support screen locked |
|
Expansion functions |
TTS Voice broadcast |
- |
Series port expansion |
Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc |
|
|
Power and Consumption |
Power Management |
Self-adaptive wide voltage input, with protect functions for overload, undervoltage, short circuit, reversing connection, etc |
Power and Consumption |
Input Voltage |
DC:+8V - +36V |
Output Voltage |
+12V/1.5A,+5V/1.5A |
|
Power-off Protection |
- |
|
Consumption |
Normal working < 14W, standby < 0.5W |
|
Working environment |
Temperature |
-30℃ - +70℃ |
Humidity |
20% - 80% |
|
SD Card Type Series |
Dimension |
130*95*35MM |
Weight |
0.75KG |
|
