SPECIFICATIONS

Brand Name: jabriel

Frames Per Second: 30

Origin: Mainland China

Chipset Manufacturer: Novatek

Assembly Mode: Hidden Type

View angle: 170°

Number Of Lenses: 2

Screen Ratio: NONE

Interface: WI-FI

Interface: Micro SD/TF

Interface: New Plug and Play

Video Code: H.264

Battery Life: Connect to Rain Sensor or Fuse Box

Original Package: YES

Camera Resolution: 2560x1600

Special Features: G-Sensor

Special Features: Display Rotate

Special Features: sd/mmc card

Special Features: Anti Surge Voltage Impact

Special Features: waterproof

Special Features: Anti Vibration

Special Features: Real Time Surveillance

Special Features: Automatic White Balance

Special Features: Wide Dynamic Range

Special Features: wifi function

Video Format: MOV

Video Format: MP4

Touch Screen: No

Item Type: Car DVR

Battery: None

Certification: NONE

Memory Card Required Reding Speed: Class 10

Imaging Sensor: Sony IMX307

OSD Language: English

Pixels: 1200Mega

Rear Camera: YES

Max External Memory: 128G

CPU: Novatek 96675

Image Sensor: Sony IMX307

One Camera Resolution: 1600P

Two Camera Resolution: 1440P +1080P

Video coding1: H264/H265

Special Features1: Dual Lens

Special Features2: With Rear camera

Interface1: Micro SD/TF

Interface2: Wi-Fi

Display: No Screen

G-Sensor: YES

Front Camera: 170 Degree

Time synchronization: YES

Cycle Recording: YES

Auto Power: YES

24-Hour Parking monitoring: YES

Current frequency: 50Hz/60Hz

Work Voltage: 12V

Support sd card: 16GB/32GB/64GB/128GB

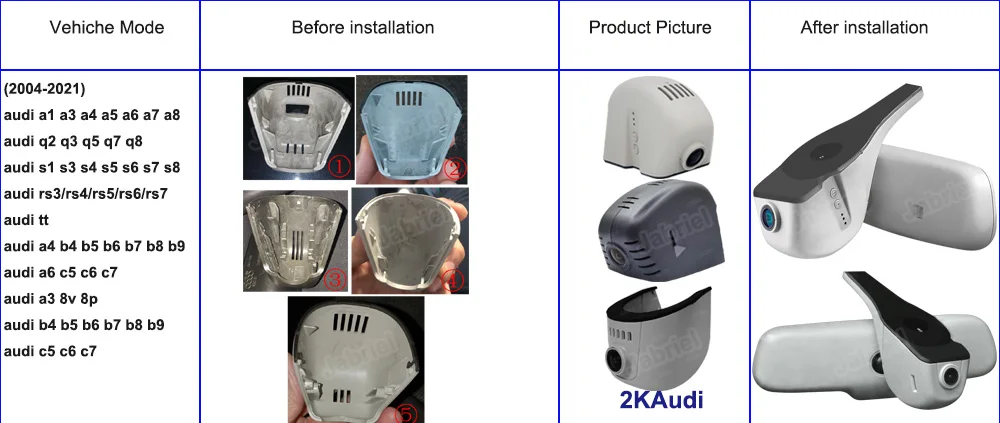

Suitable for models 1: Audi a1 a3 a4 a5 a6 a7 a8

Suitable for models 2: Audi q2 q3 q5 q7 q8

Suitable for models 3: Audi s1 s3 s4 s5 s6 s7 s8

Suitable for models 4: Audi rs3 rs4 rs5 rs6 rs7

Suitable for models 5: Audi tt

Suitable for models 6: Audi a4 b4 b5 b6 b7 b8 b9

Suitable for models 7: Audi a6 c5 c6 c7

Suitable for models 8: Audi a3 8v 8p

Suitable for models 9: Audi b4 b5 b6 b7 b8 b9

Suitable for models 10: Audi c5 c6 c7

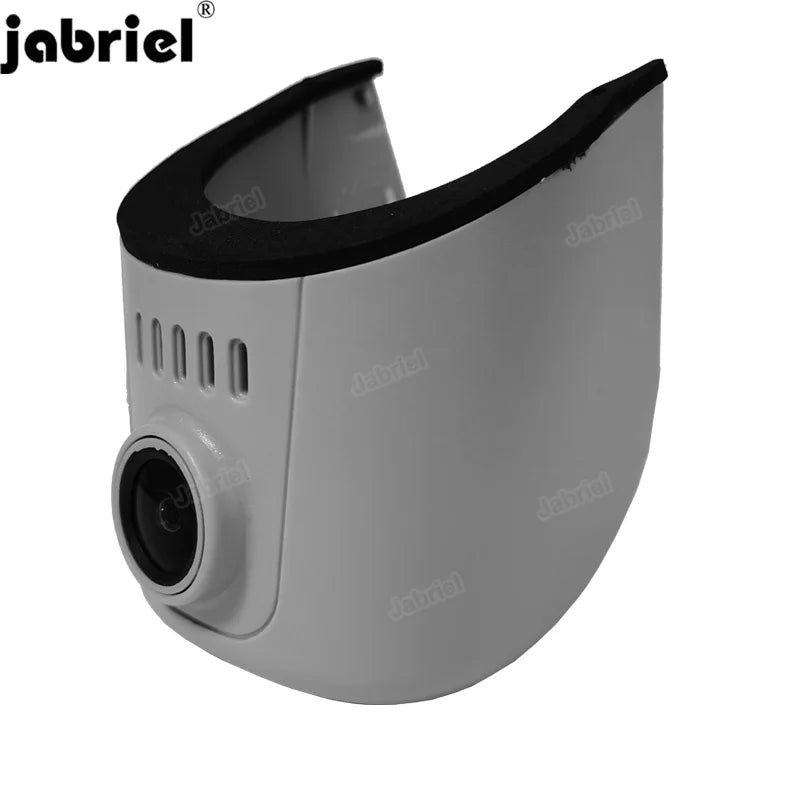

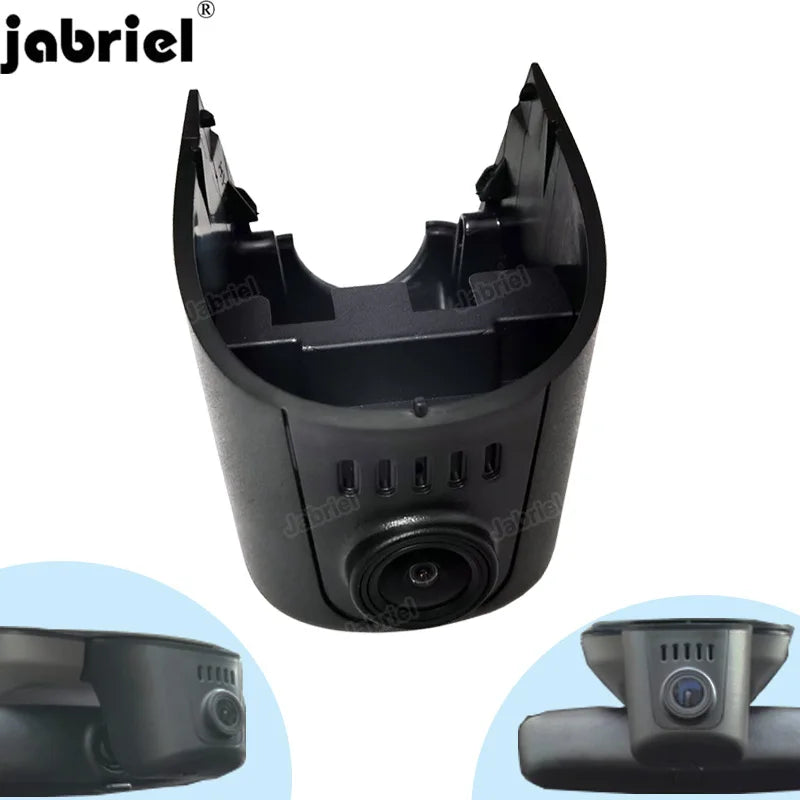

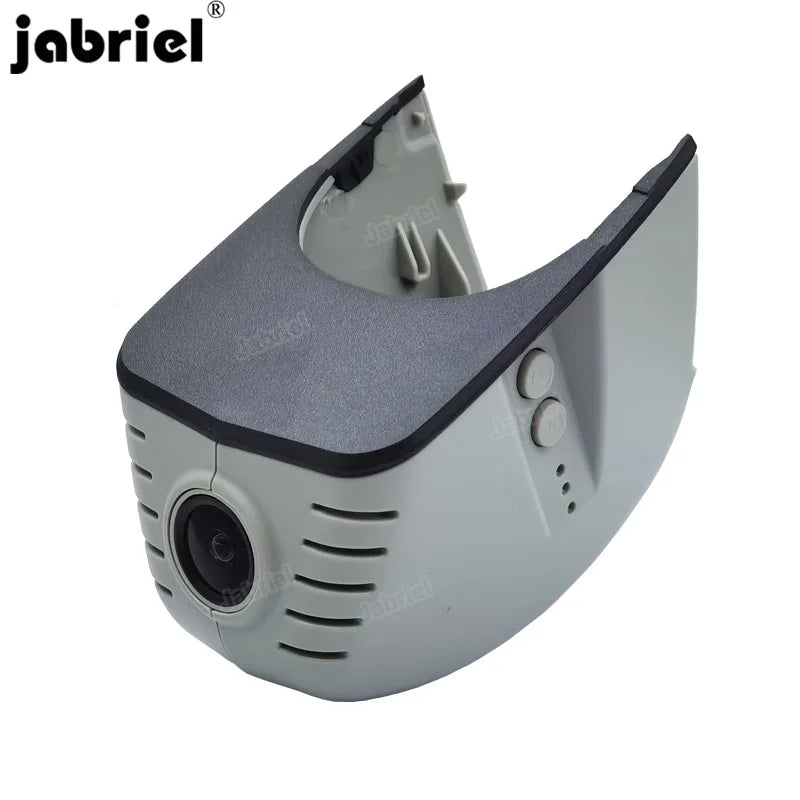

Jabriel New Plug and Play Auto Hidden Wifi Car DVR Camera Video Recorder 2K 1600P / 1440P Night Vision Registrator Driving Recorder Dash Cam Rear View Camera Dual Lens Dashcam EDR for audi a1, audi a3, audi a4, audi a5, audi a6, audi a7, audi a8, audi q2, audi q3, audi q5, audi q7, audi q8, audi rs3, audi rs4, audi rs5, audi rs6, audi rs7, audi tt, audi s3, audi s4, audi s5, audi s6, audi s7, audi s8, audi a4 b4 b5 b6 b7 b8 b9, audi a6 c5 c6 c7, audi a3 8v 8p.



Package Include:

1 x Car DVR

1 x Manual

1 x Power Cord : Stand ACC Cable or New Plug and Play Reading Light Cable

1 x Rear Wire(option)

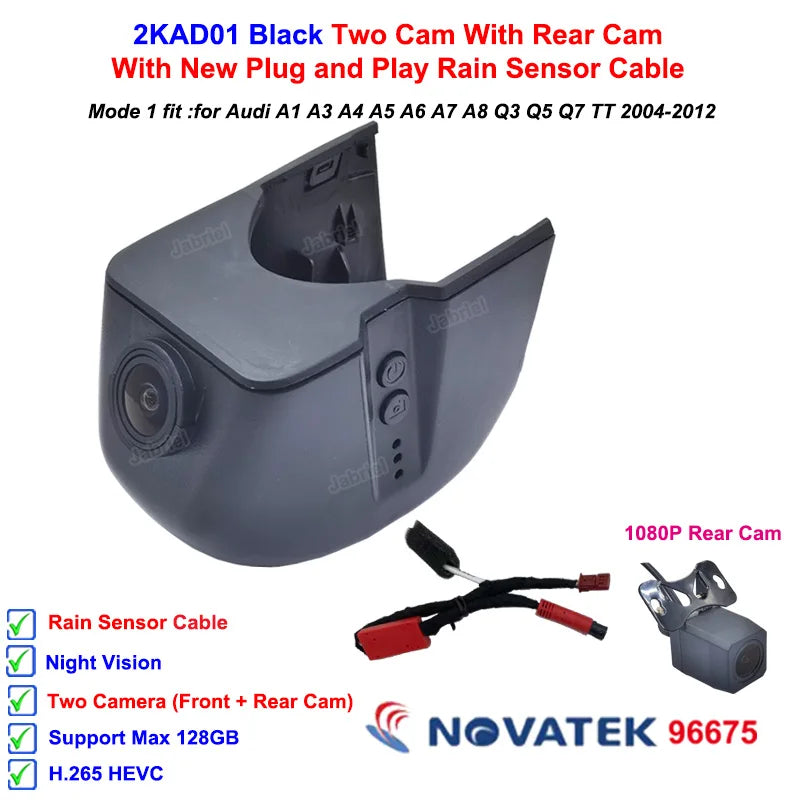

1 x Rear Camera(option)



Please Contact customer service to send photos when you buy it



Please note: Because this product is dedicated,  in order to avoid installation or other problems, please tell us which year and which model of your car, and be sure to take photos for the rear view mirror base and send it to me.

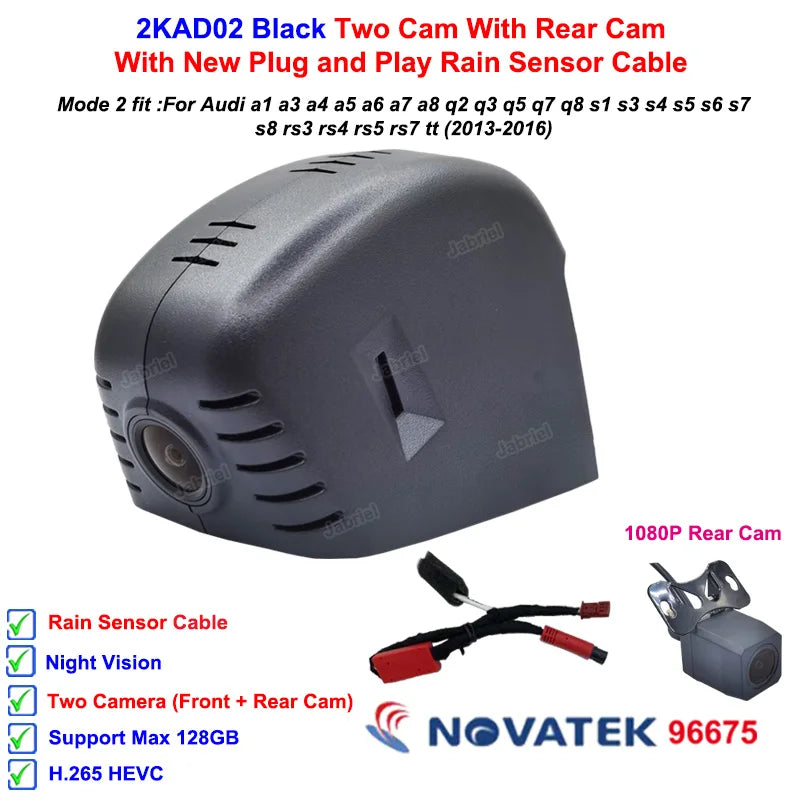

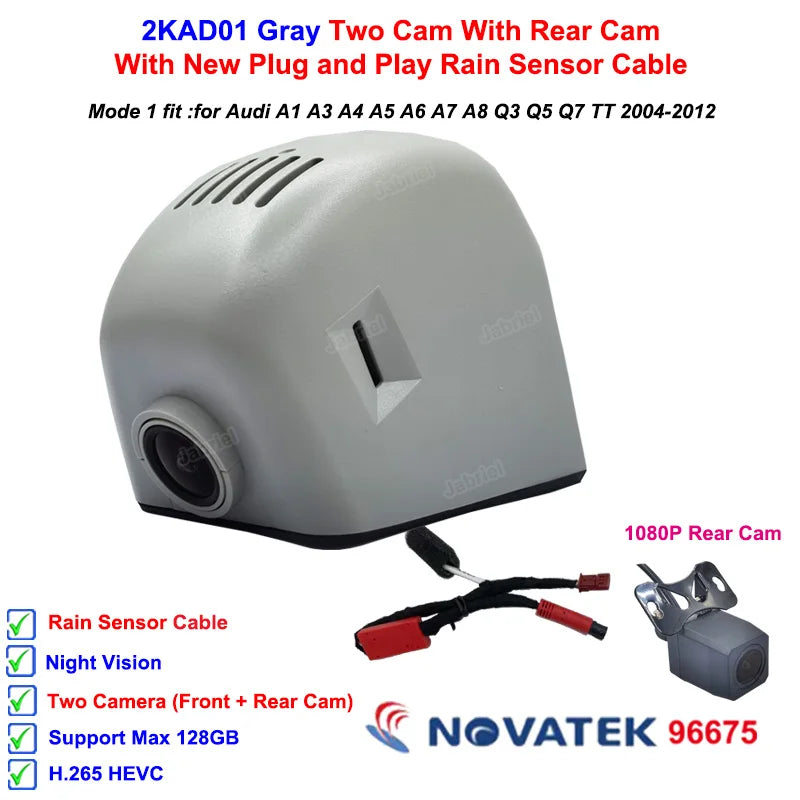

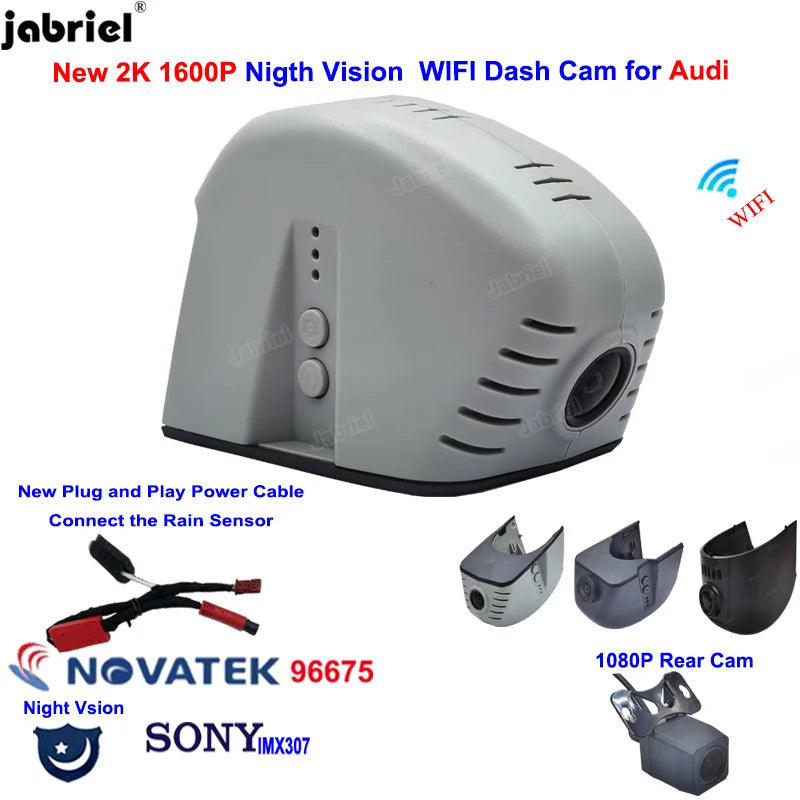

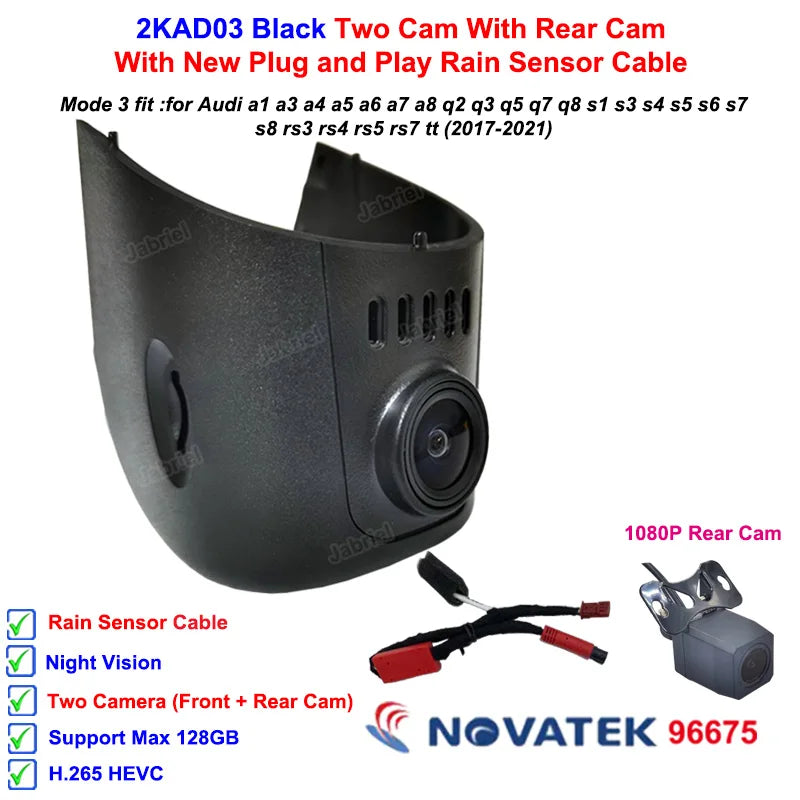

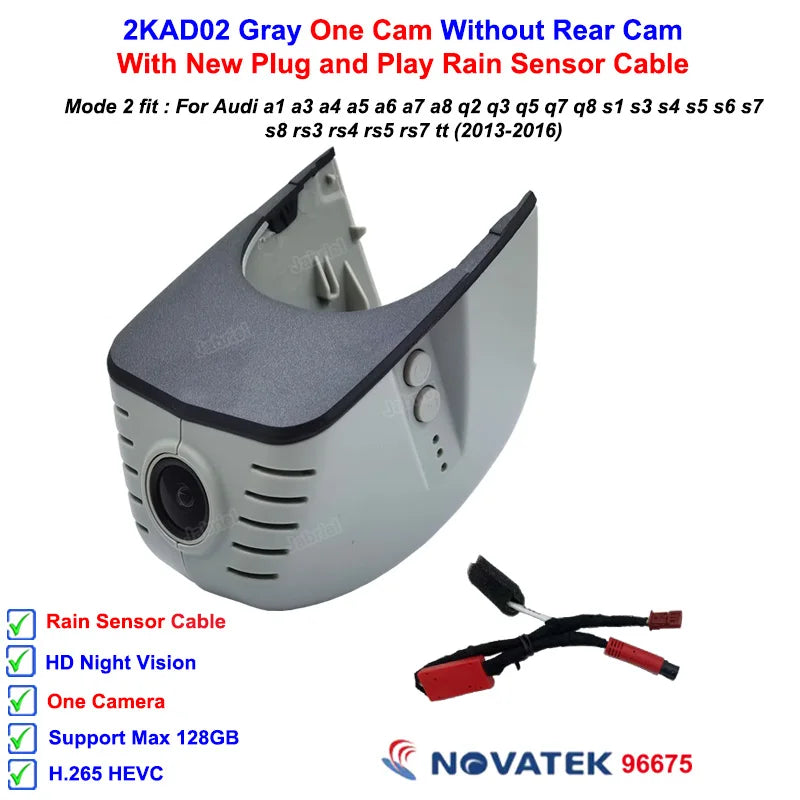

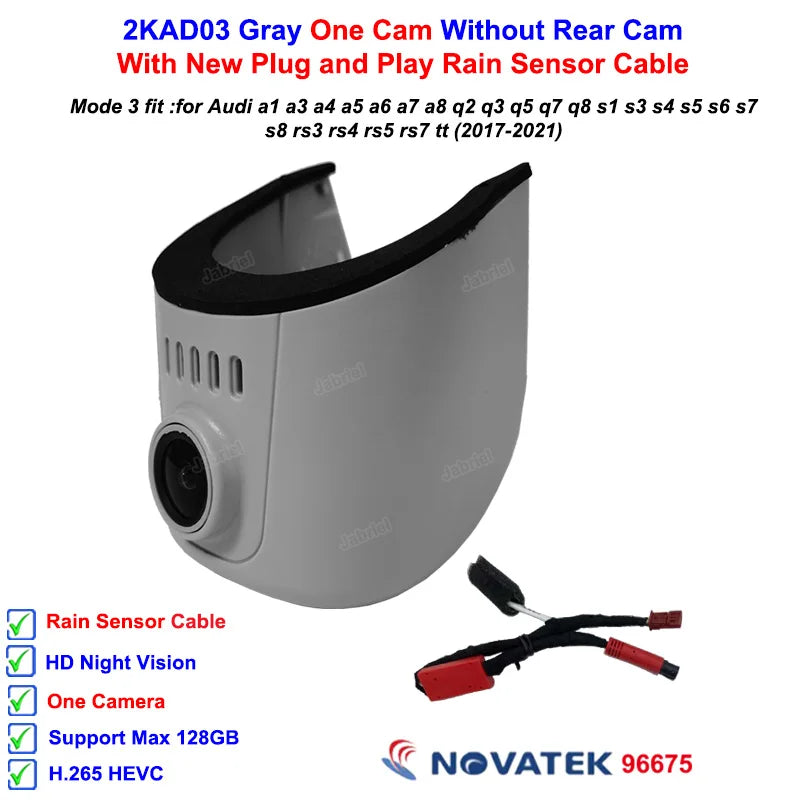

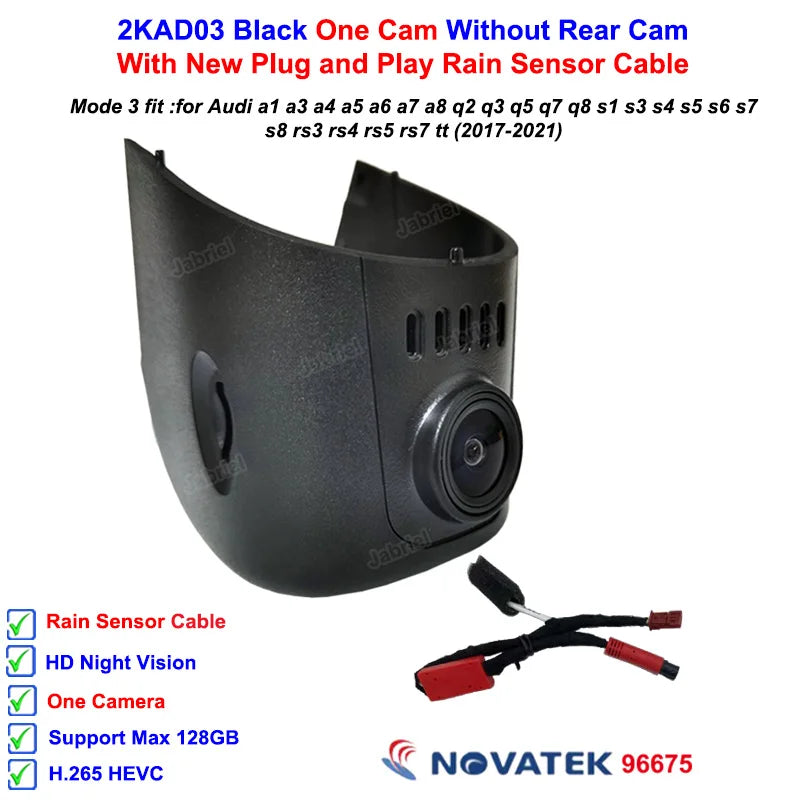

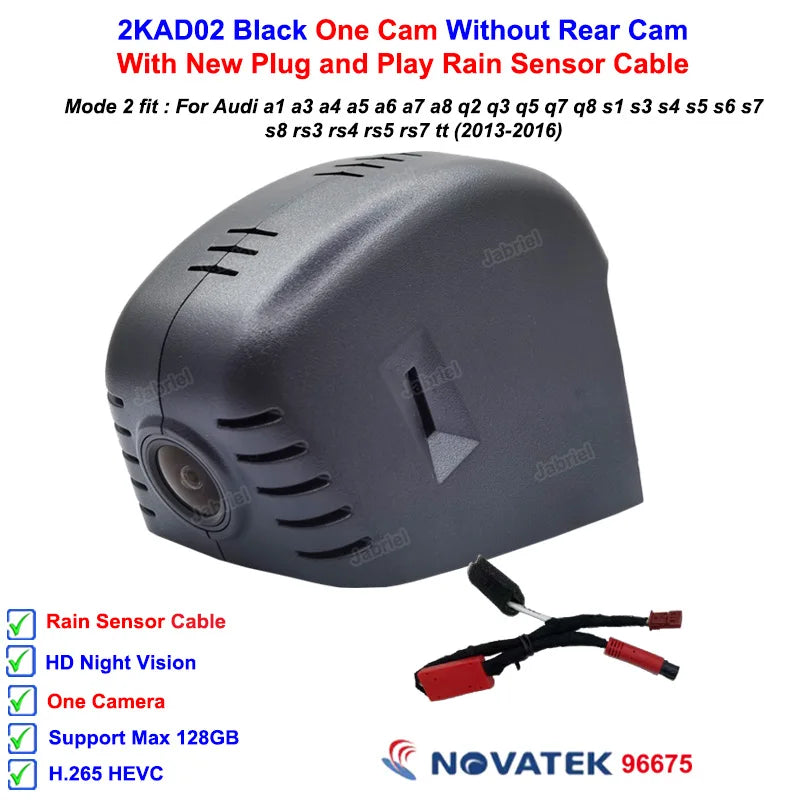

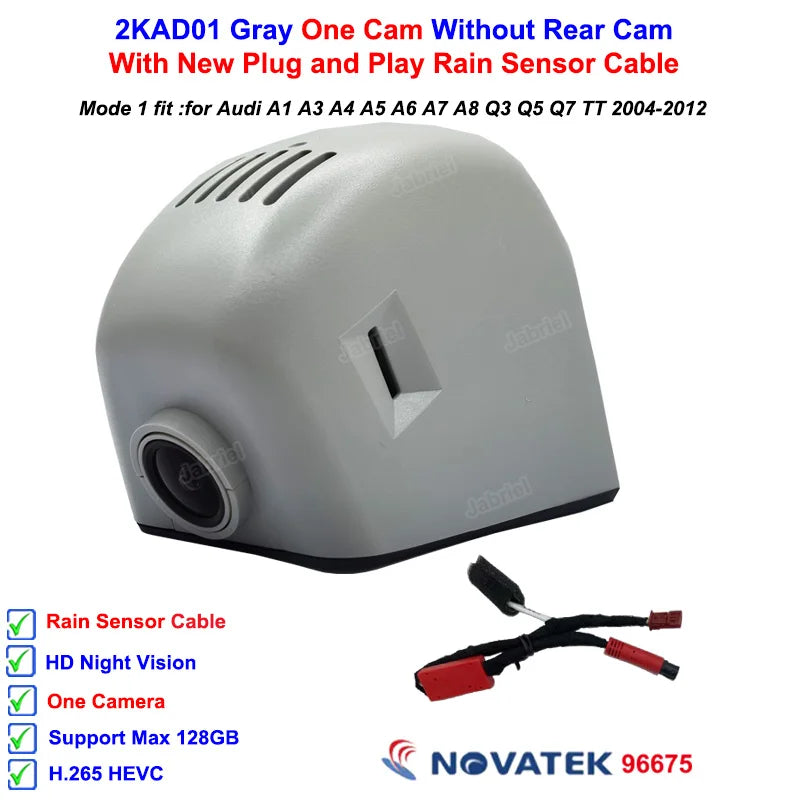

2KAudi New Plug And Play Hidden WIFI 2K 1600P / 1440P Night Vision Dash Cam Car DVR For Audi

New Plug and Play Car Dvr Dash Cam   Easy to install

Connect to the rain sensor or reading light of the Original car



The New Plug and Paly Car Dvr Dash Cam can be pluged to the rain sensor or reading light of the original car to take electricity.It is easy to install. Inserted without damage, no wiring is required, and it maintains the original car style after installation.

Safety explosion protection

High and low temperature resistance,no built-in battery design, more

safer Automotive fuse power, built-in low voltage monitoring,

automatic shutdown, non-destructive battery.



Novatek Monitoring Chip, Ultimate Experience

Novatek chip is equipped with realtek WIFI solution, H.265 video

coding technology makes the recorder image clear and smooth,

image details and color rich and supports

128G large memory card operation.

Revolutionary clarity coding breakthrough

HEVC/H.265 video coding

50% better than H.264 video encoding performance

Make the image details richer, and the color

details are more realistic.

128G·Smart Storage

Big, Regarding the overall improvement of storage,

Support 8-128GBKeep driving records longer.

Sony high sensitivity + F1.5 aperture

Fearless darkness  Direct view Blind zone

Sony MIX307 high-sensitivity chip with F1.5 large aperture lens,

Proud staris technology and upgraded sensible parts to 2.9μm,

The large amount of light makes the lens night the same as the daytime



Built-in WDR wide dynamic technology

WDR technology uses DSP circuit to expose the bright and dark parts with

the appropriate shutter speed, and the two images are processed by DSP,

so that the over-bright and over-dark parts can be seen clearly.

Gravity Sensing

When a violent collision occurs, the emergency backup recording function is

automatically recognized and activated, and the important evidence locking protection

is stored in the memory card to prevent loss of coverage.



Link WIFI Control

Please download " TimaCam" app from Apple Store or Google Play Store.

The WIFI Name is CARDV**** or Y06-****



The password is "12345678" or "88888888"

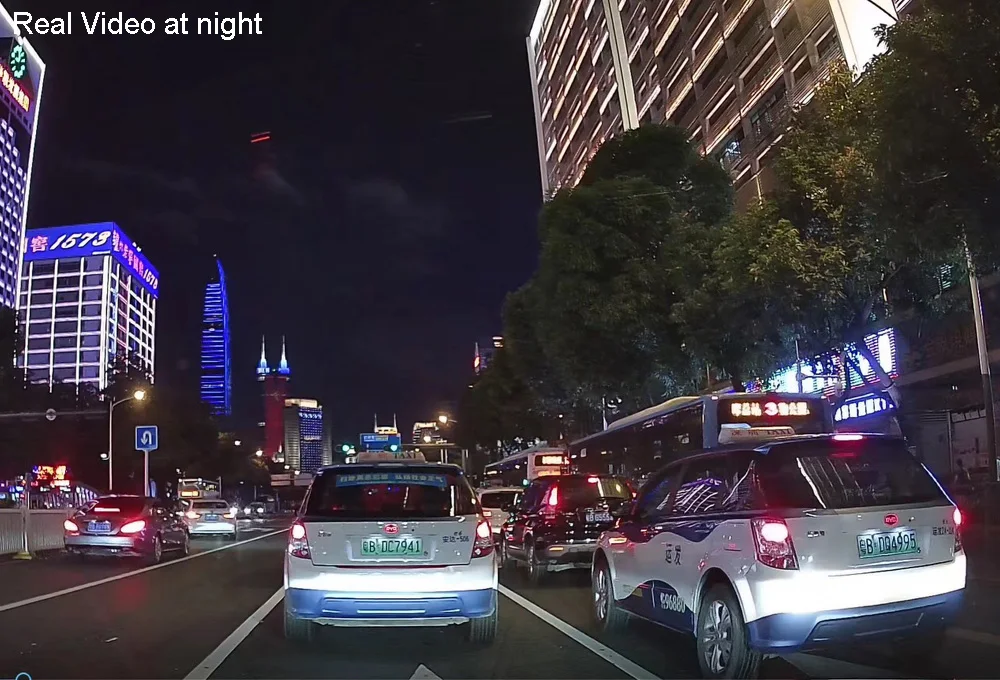

Real Video Display

The image is compressed and actually very clear

Cycle Recording without leaking seconds Video segmentation

recording, when the video is full, the recorder will automatically

delete the previously recorded video clips and record them in

a loop, so that you don't have to worry about frequent card changes.

Intelligent Anti-Shake

Cable Connection



New Plug and Play Power Cable:

Connect to the rain sensor or reading light of the original car.



Standard ACC Power Cable:

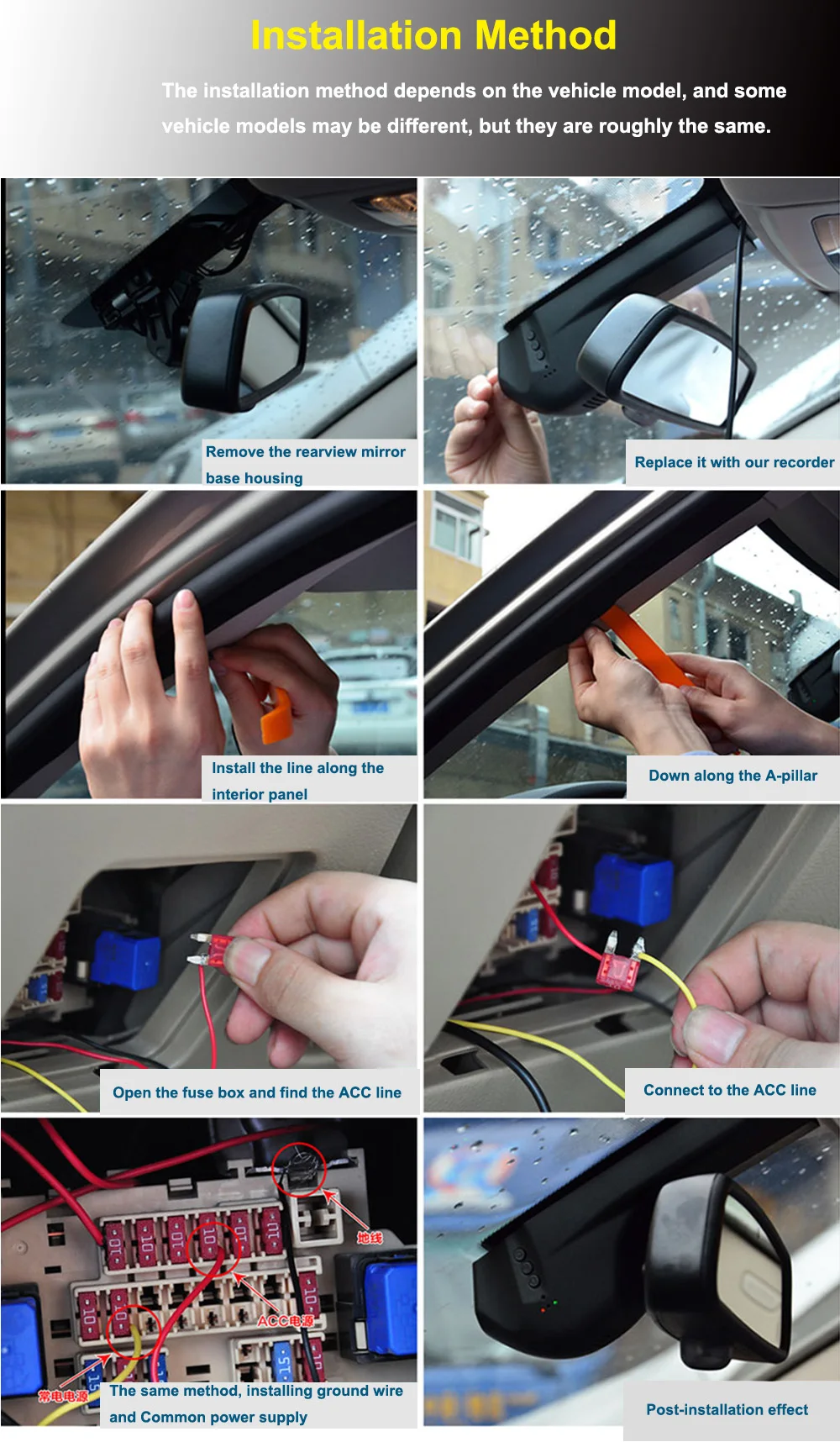

Reference Installation Guide

Notes on the installation of the dash camera:



1. Before installation

First test: the red and yellow wire harnesses of the recorder are connected to the positive electrode of the battery, the black wire harness is connected to the negative electrode of the battery, the indicator light of the recorder lights up, and the test is completed!



2. Installation

The red wire harness is connected to ACC,

the yellow wire harness is connected to constant electricity,

the black ground is connected,

the lotus head is the av output port, it connect to the android navi

You need an electric pen to measure ACC and constant electricity.

1. Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is off.  it is ACC.

2. Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is on. it is constant electricity.



3. After installation

The memory card needs to be formatted before use, and it must be turned off before removing the card each time (the indicator is off when the indicator is off)
