SPECIFICATIONS
Brand Name: VEVOR
Driver type: Micro Stepping Motor
Focus Distance: 2CM
Laser power: 60W
Laser tube type: CO2 Glass sealed laser tube
Material: Metal
Max speed: 500mm/s
Origin: Mainland China
PC Interface: USB2.0 and USB Disk
Resolution: 2000 DPI
Software: AutoLaser
Type: Cutting Tool
Voltage: 220v
Working size: 500x 700mm
Provide a one-year warranty period. For EU customers, please contact us and we will offer you a discounted price
New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble and glass etc. It is most suitable and the preferred choice of equipment in industries such as advertisement, gifts, shoes, toys etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on. This machine must connect with a computer with USB cable when you change the settings of the machine for the design files, you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from the computer. Even on the same Job, you can do setting with different color in the software and also can make holes. And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials. All laser engraving machines can not carve and cut metal.
Note:
This machine does not have Z-axis lifting and auto-focusing functions.
Features & Details
【DURABLE QUALITY】- Adopts 60W CO2 glass sealed laser tube, premium laser head, international standard laser power supply, and integrated framework design; With large engraving area of 28"x20" (70x50cm). With an integrated entrance and exit at the front and rear, it is convenient for longer items to pass through while being engraved, ideal for materials of all sizes.
【SAFETY & RELIABILITY】- With air assist, removing heat and combustible gases from the cutting surface to prevent burning during engraving working, and with a built-in cooling fan for efficient ventilation; Owns FDA, CECertification, ISO9001 Quality Certification.
【POWERFUL PERFORMANCE】- The machine supports the USB 2.0 port, U disk reading and writing, and an upgraded U disk system to work independently of the PC. It uses a virtual array list and additional off-cut graph to realize the off-cut function with separation of cutting up to 256 Colors. Also, with feeding devices, the engraver forms the cyclical model of working-feeding-working for high efficiency.
【HIGH COMPATIBILITY】- Supports multiple graphic formats, including HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI, etc. Adopts advanced RD Works digital control system, able to output from CorelDRAW and Auto CAD directly.
【WIDELY USED】- This laser engraving machine can be used to engrave wood, bamboo, plexiglass, crystal, leather, rubber, marble, glass, etc. Suitable for advertisement, gifts, shoes, toys, etc.
Key Features

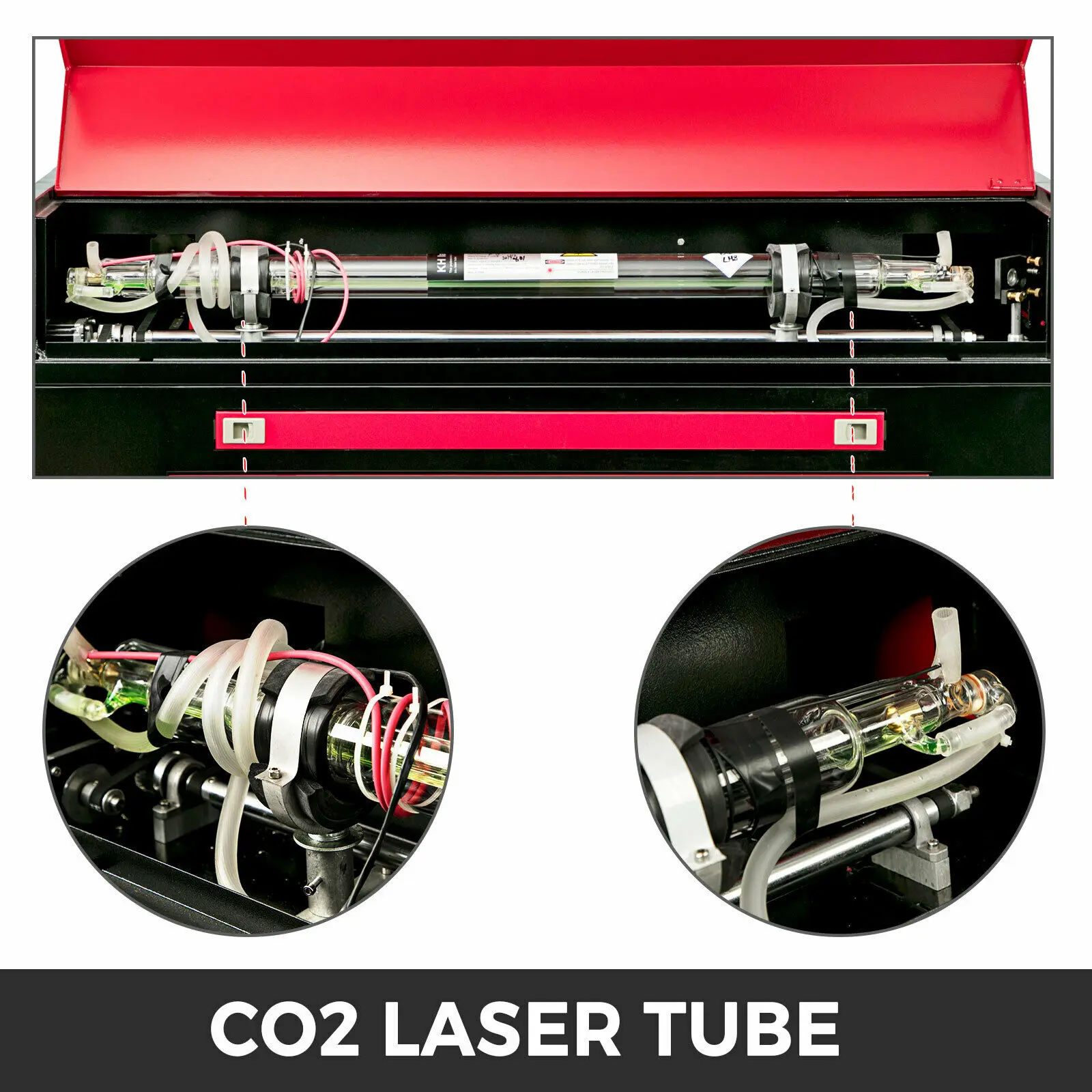

CO2 Laser Tube
The laser engraving machine comes with a premium CO2 glass sealed laser tube (rated for 60W) for a faster cutting speed and longer service life. Its stable laser beams improve your engraving efficiency for various materials.

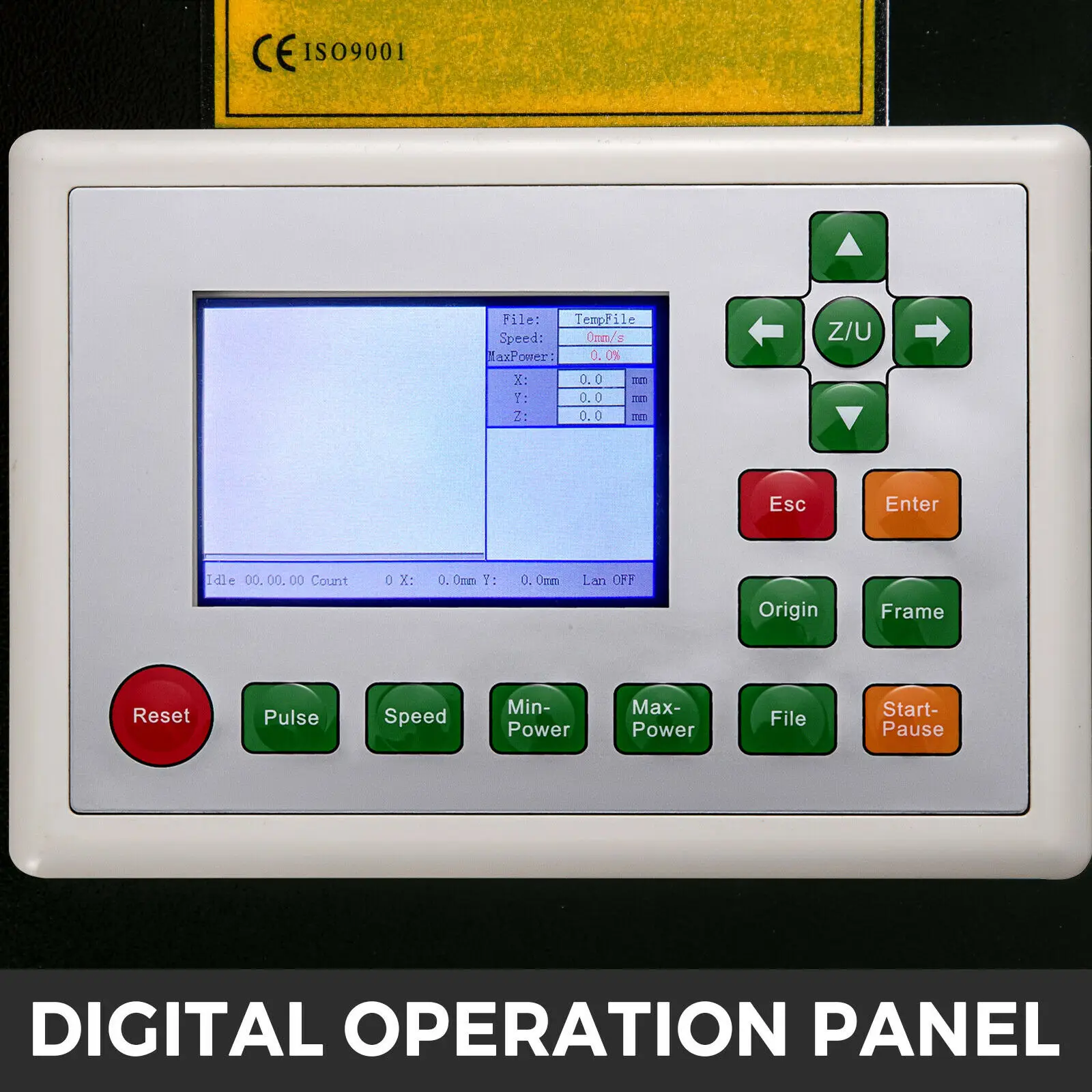

Digital Operation Panel
The clear LCD, supporting multiple languages, monitors the electric current and automatically adjusts, reducing damage to the laser tube and power supply in the rare case of improper ammeter connections. The machine adopts RD Works original control system with RDC 6442G precise control panel with RD Works V8 software, featuring 128 MB memory and 2000 DPI high accuracy.

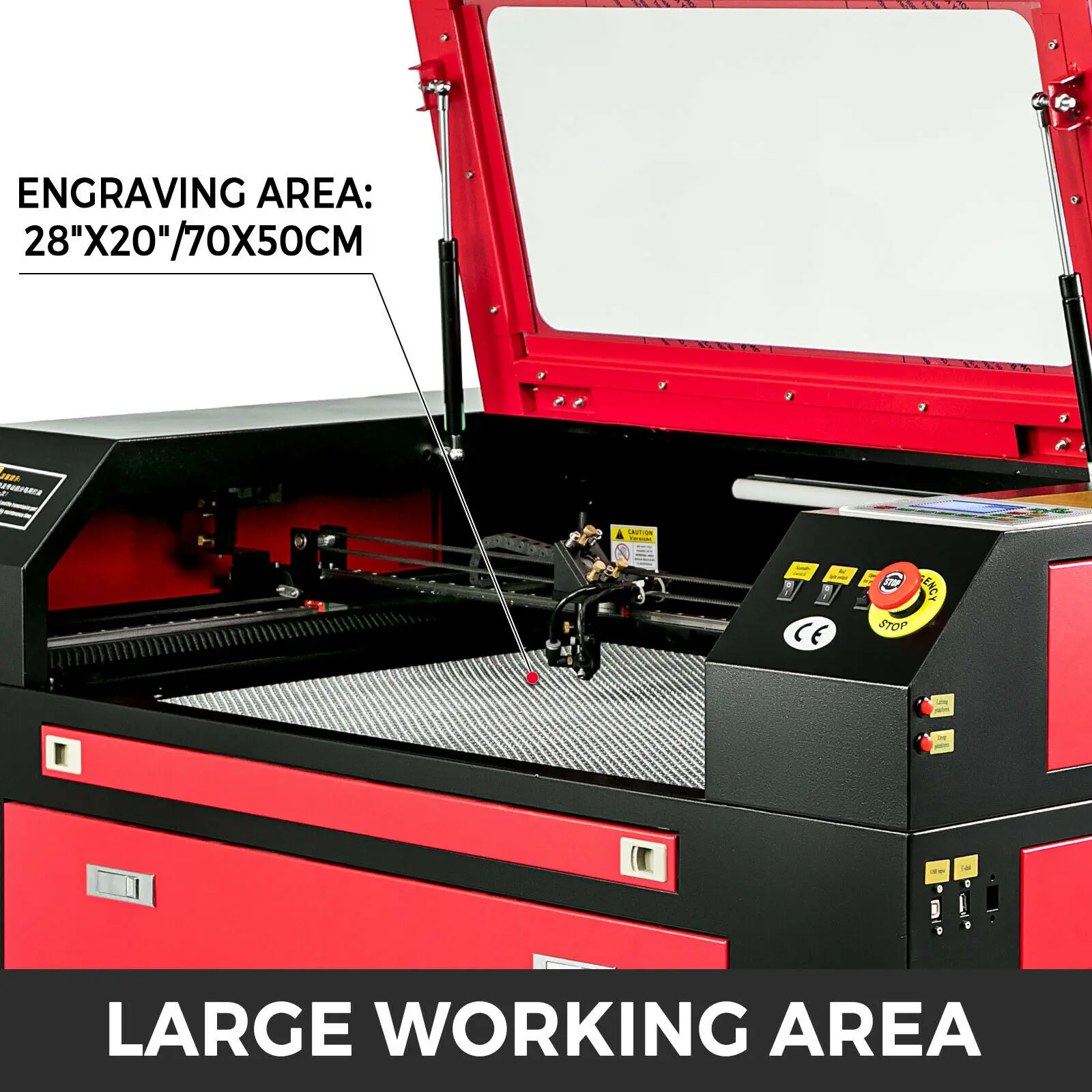

Large Working Area
The engraving surface utilizes a dual-platform design with a large working area of 28"x20" (70x50cm). Its honeycomb cutting platform has the advantages of excellent stability, noise reduction, and heat resistance for smaller items. And the aluminum knife cutting platform provides adjustable height and intense rigidity for larger things like acrylic blocks. And the access doors on both sides allow you to perform maintenance tasks effortlessly.

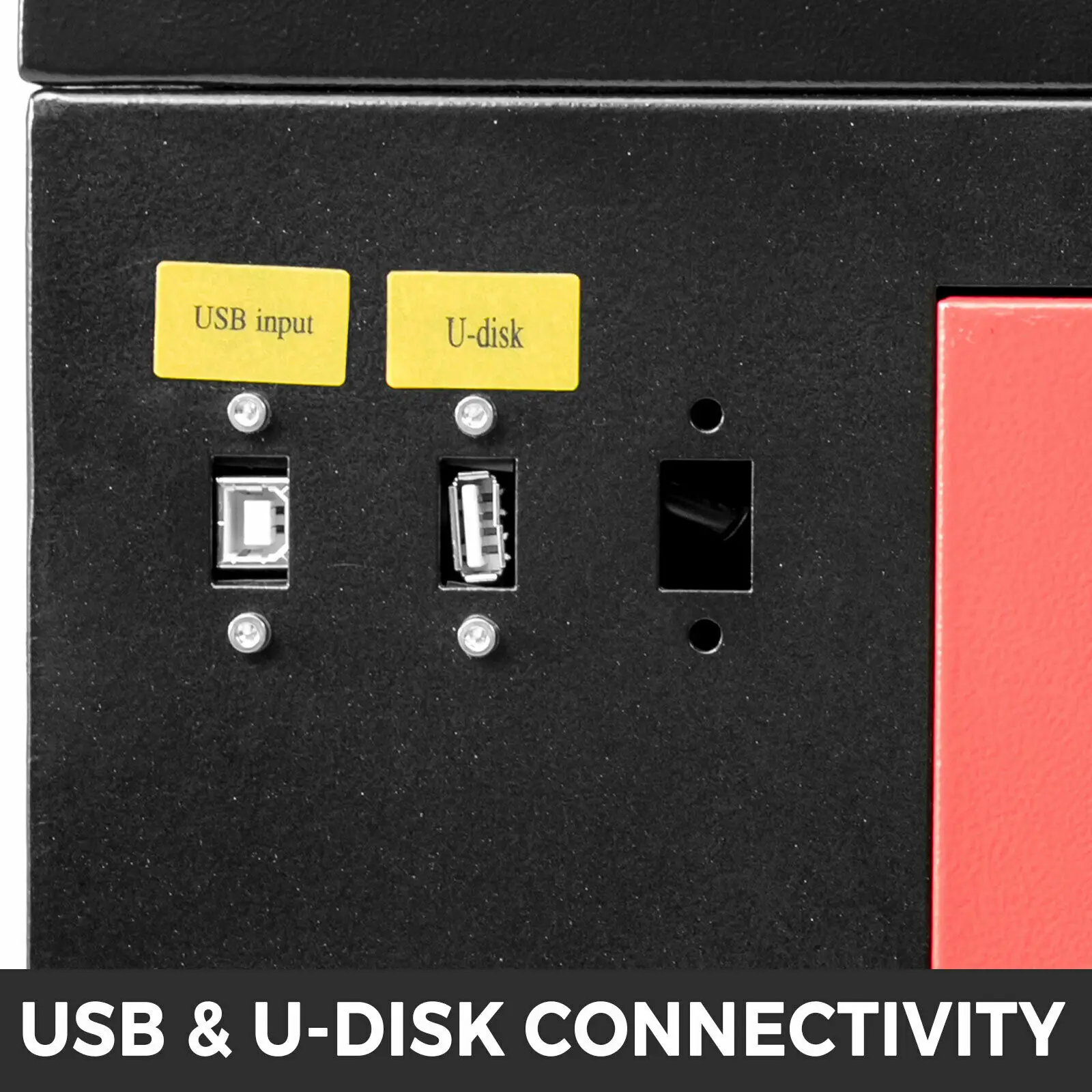

USB & U-Disk Connectivity
This laser cutting machine is equipped with a USB port to connect to the desktop or laptop. U-disk is also available for direct inserting of the U disk to read and write.

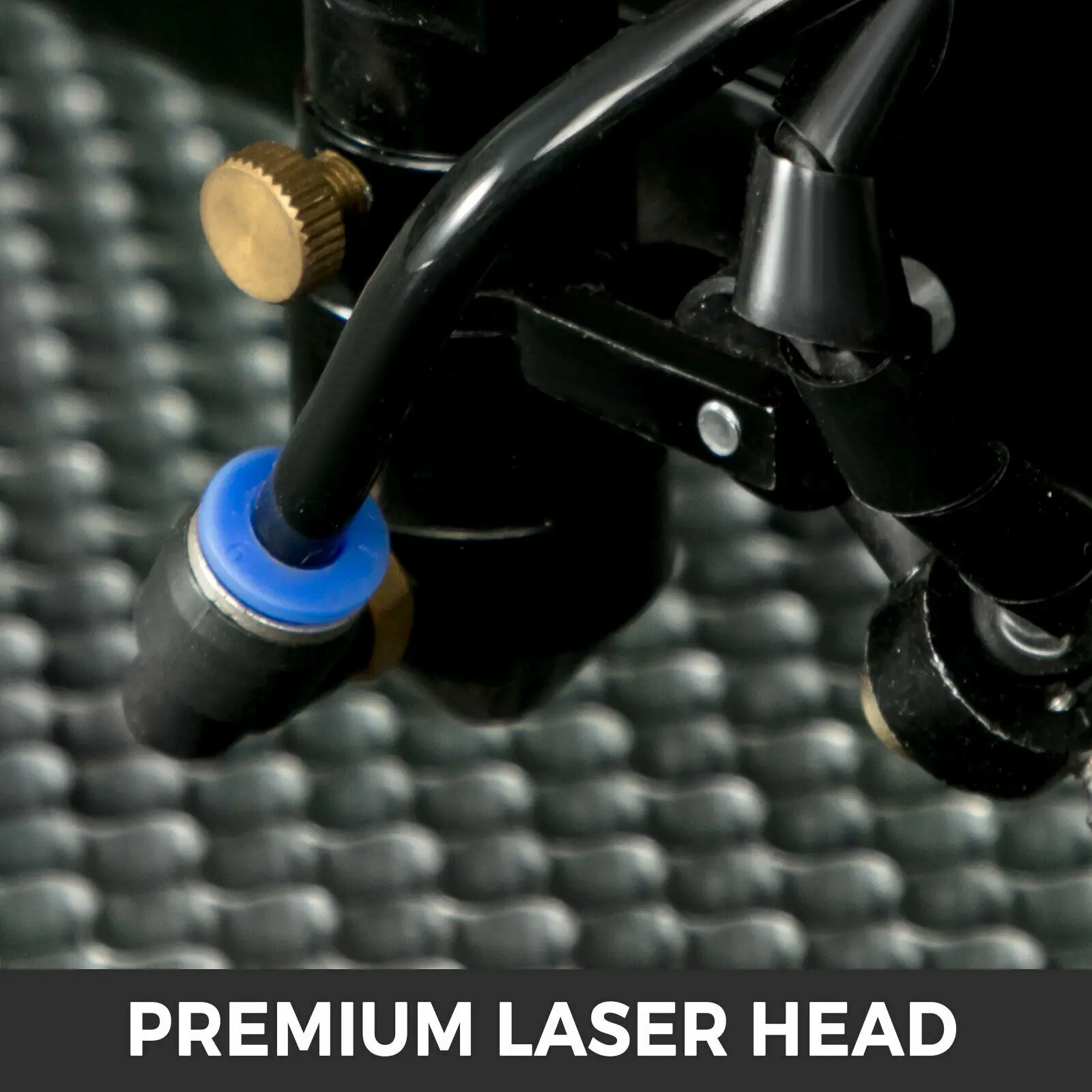

Premium Laser Head
An industrial-grade laser head with excellent durability improves engraving precision and performance. Besides, the built-in air pump blows away all smoke, dust, and sparks, keeping the laser lens from damage and extending its service life.

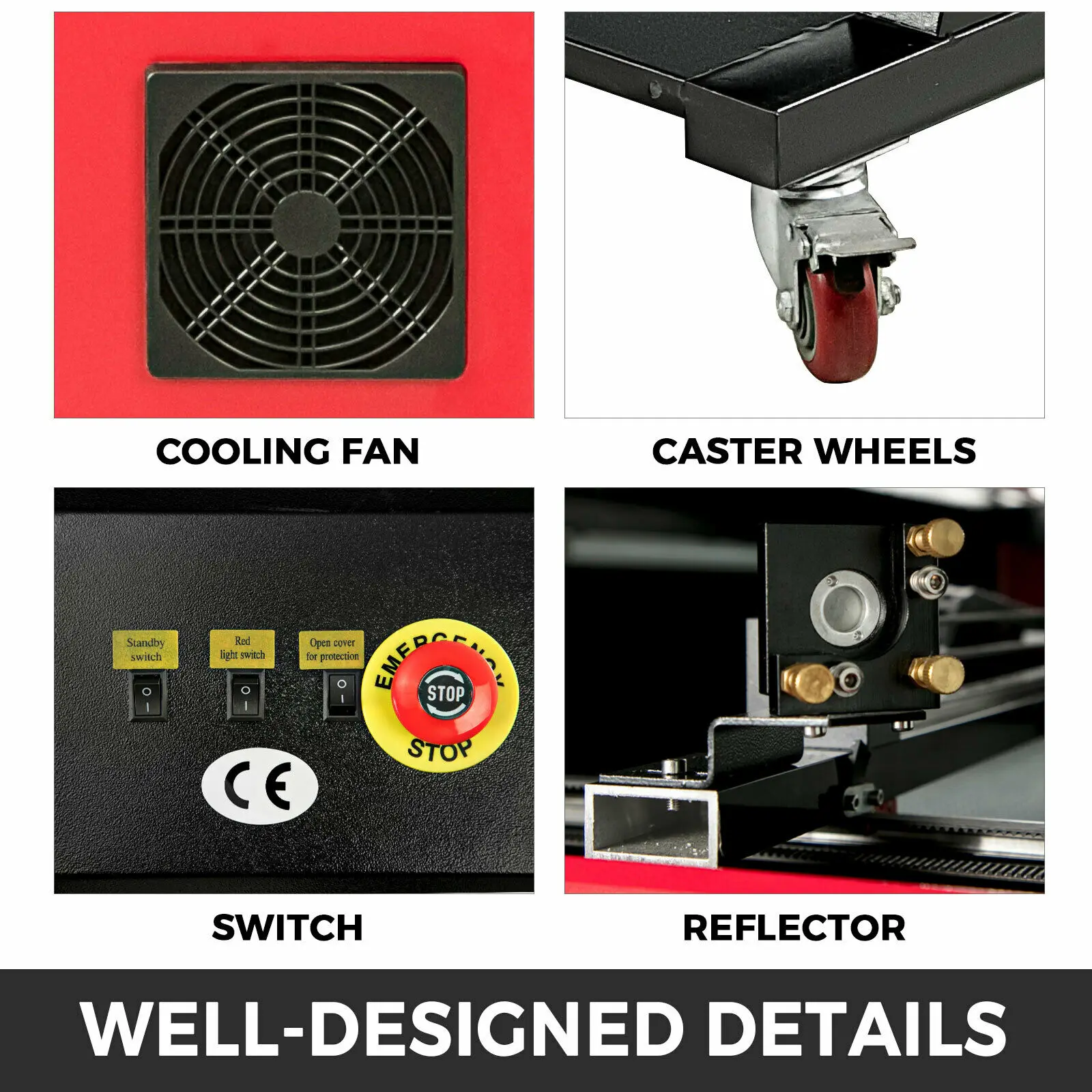

Well-Designed Details
It is convenient to observe the engraving process with a glass window cover. The laser automatically stops engraving, cutting, or marking when the cover is opened. While it resumes its work when closing the lid. And the premium reflector, switches, emergency buttons, and casters are designed to achieve high performance and better control. The built-in cooling fan reduces the temperature of all components.

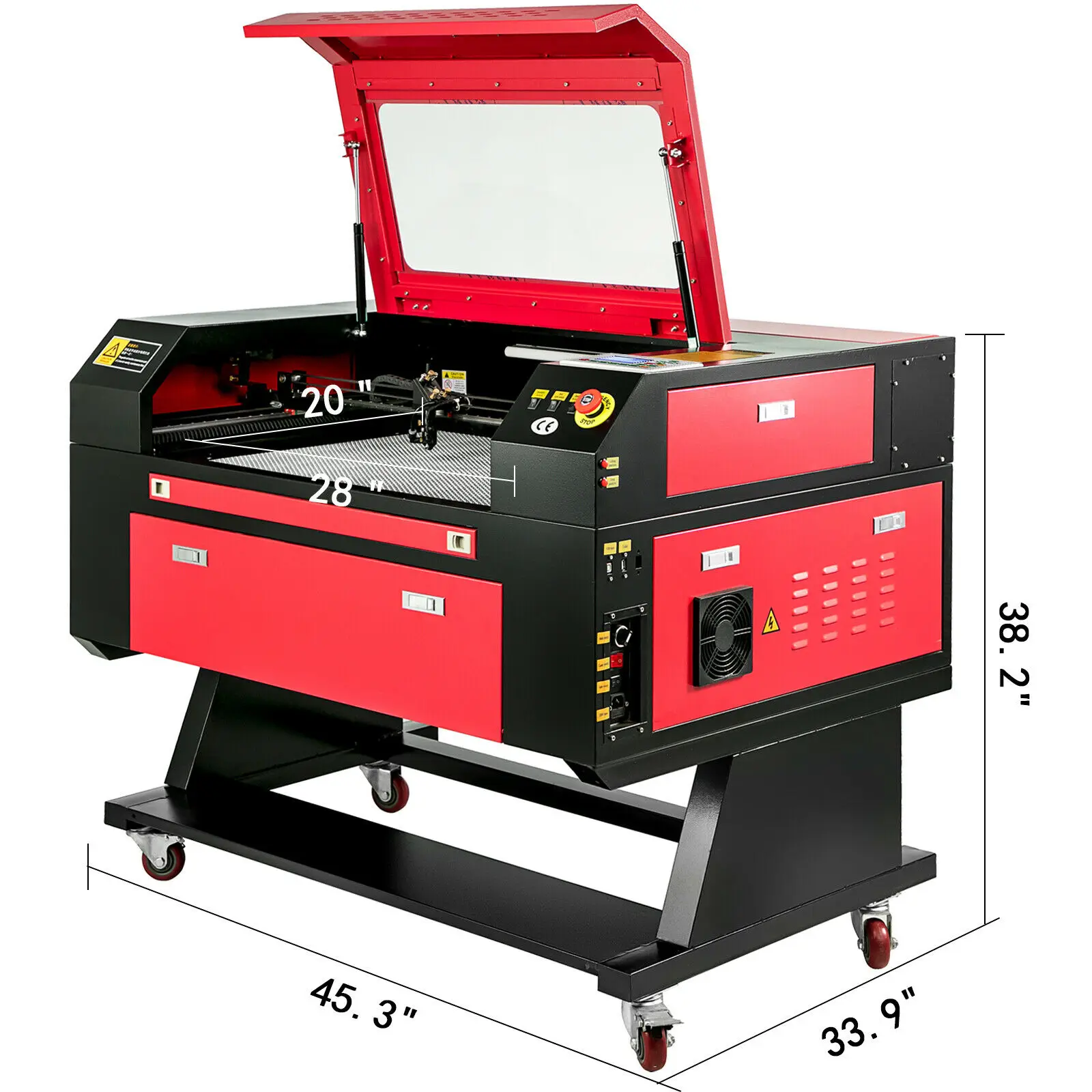

Specifications
Working size: 20"x28"(500mm x 700mm)
Up and down work plate: 7.8" (200mm)
Laser power: 60W
Max speed: 500mm/s
Resolution: 2000 DPI
Location precision: 0.01mm
Machine Dimension(L/W/H): 1150*860*970(mm)
N.W.: 125 KG(275.58 lbs)
1 X Main Body
1 X Air exhaust fan
1 X Air Pump
1 X Water Pump
1 X Communication cable
3 X Reflect optics (installed in the machine)
1 X Focus optics (installed in the machine)
1 X Laser tube
Other tools
1 X User Manual (CD)
