SPECIFICATIONS

Brand Name: ONEBIRD

Type: Visible

Origin: Mainland China

Certification: NONE

Model Name: Car Electronics Accessories

Feature1: Universal 77Ghz Millimeter Wave Radar

Feature2: BSD Blind Spot Detection System

Feature3: Horizontal 13.12ft Vertical

Feature4: 164.04ft Change Lane Safer

Feature5: Car Parking Reversing Radar

Feature6: Blind Spot Detection Safe Driving

Universal 77Ghz Millimeter Wave Radar BSD Blind Spot Detection System Horizontal 13.12ft Vertical 164.04ft Change Lane Safer

Product introduction:
This system product will produce the pre-warning to the hazardous targets on both left and right adjacent lanes. This system includes the four functions of BSD, LCA, RCT and AOA. Its unique capacities of penetrating the smoke, fog and dust can realize the all-weather and all-time application, as well as detect the speed, angles and relative movement for 32 objects. It is able to detect the target as far as 50 meters(164.04ft) at maximum, and finally output the warning signals. The warning signals include the Level 1 Warning and Level 2 Warning.
Description:

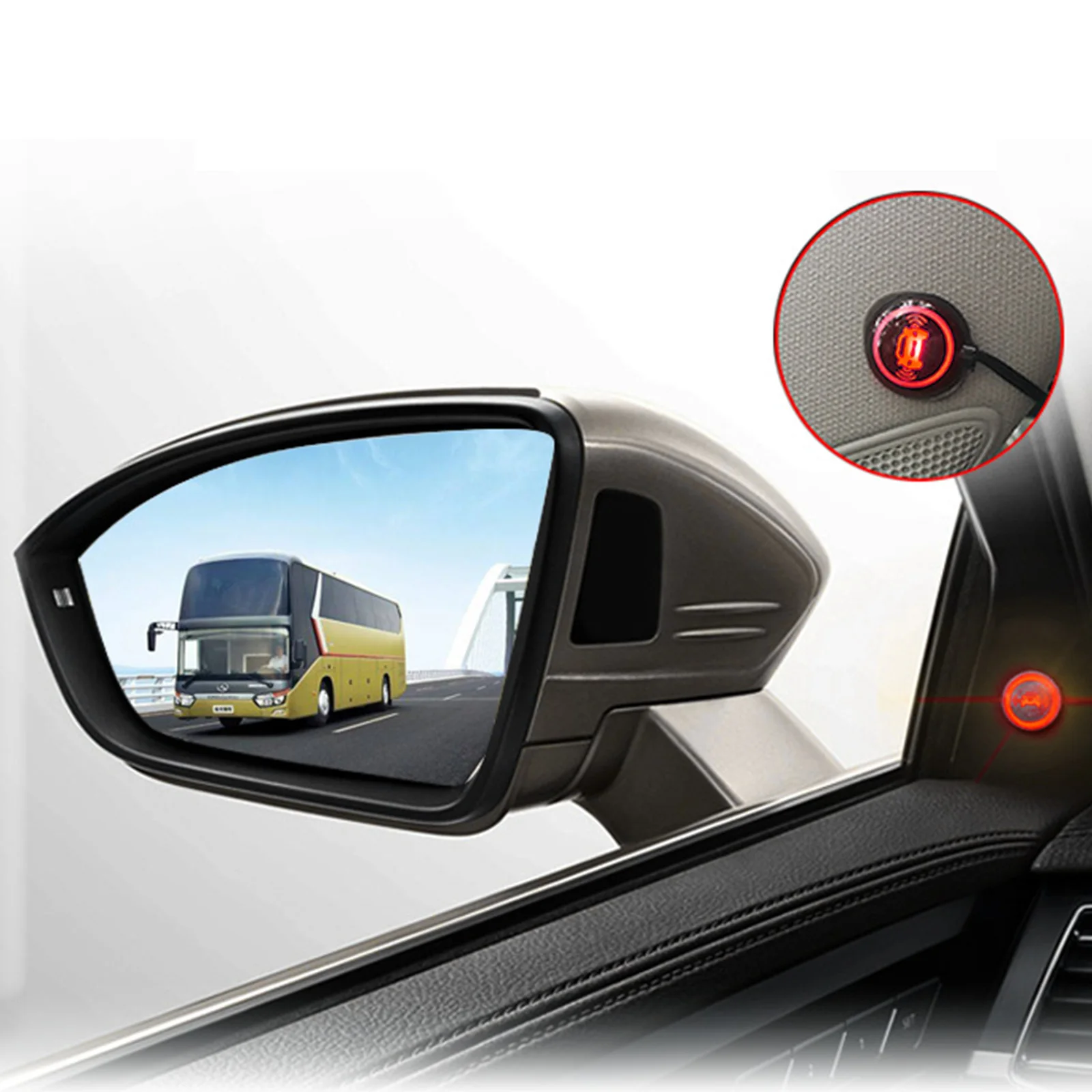

Level 1 Warning: Indicator lamp is always on.
Level 2 Warning: Indicator lamp flashes + Buzzer emits prompt tone.

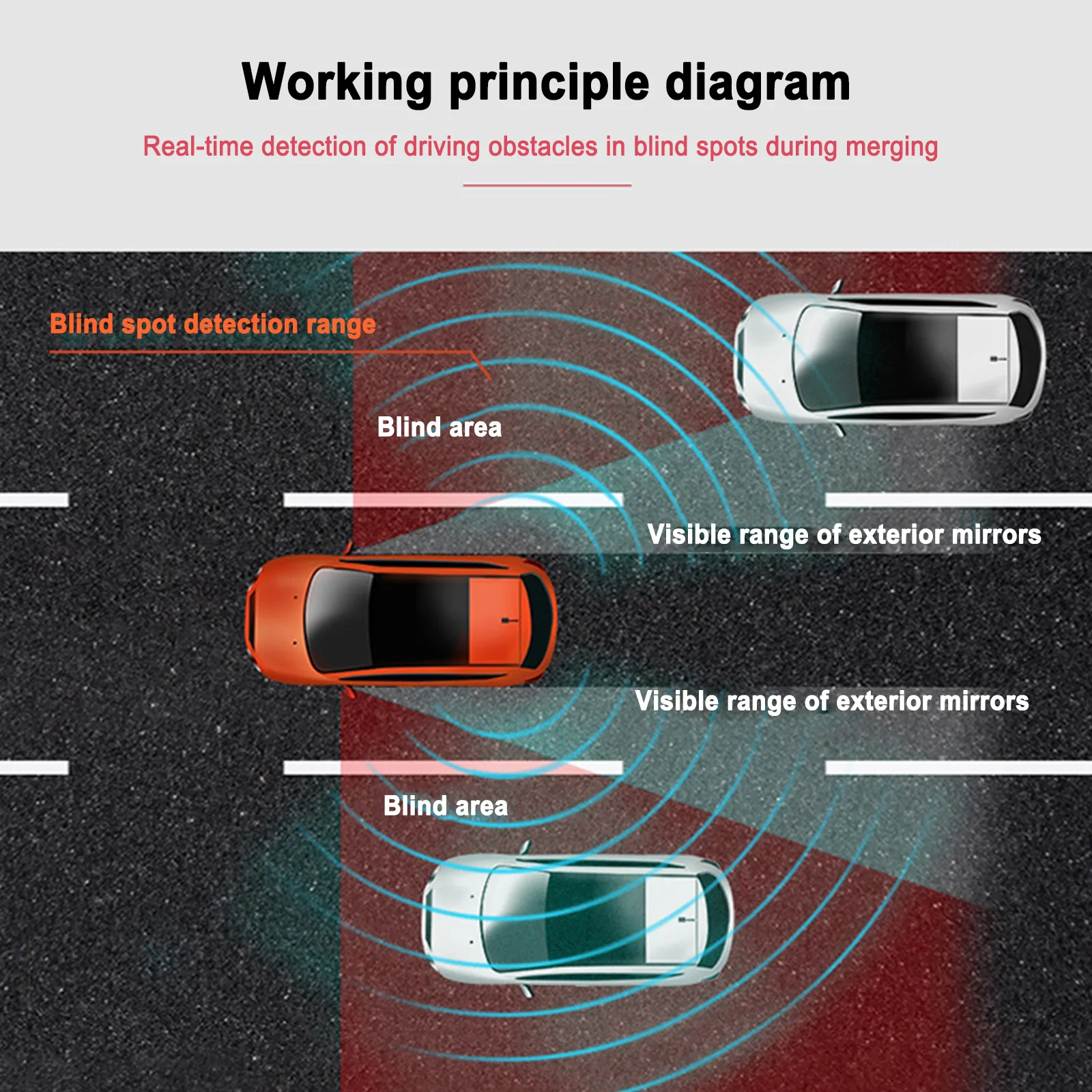

1.BSD Pre-warning (Detection range: Horizontally 4 meters/13.12ft, longitudinally 15 meters/49.21ft). Working Logic: Vehicle's own speed is higher than 10Km/Hour, BSD pre-warning mode is started:
A.If the target object enters the radar signal area with the faster speed (the turn signal lamp of this vehicle is not turned on), it will produce the Level 1 Warning until the target object leaves the monitoring area, and the warning is canceled.
B.If the target object enters the radar signal area with the faster speed (the turn signal lamp of this vehicle is turned on), it will produce the Level 2 Warning until the target object leaves the monitoring area, and the warning is canceled.
2.LCA Vehicle Approaching Pre-warning (Detection range: Horizontally 4 meters/13.12ft, longitudinally 50 meters/164.04ft). Working logic: Start after powering on, the target object enters the alarming range and the relative collision time＜3.5 seconds, LCA vehicle approaches the pre-warning mode is started:
A.When the target object enters the alarming scope (the turn signal lamp of this vehicle is not turned on), it will produce the Level 1 Warning until the target object leaves the alarming area, and the warning is canceled.
B.When the target object enters the alarming scope (the turn signal lamp of this vehicle is turned on), it will produce the Level 2 Warning until the target object leaves the alarming area, and the warning is canceled.
3.AOA Overtaking Pre-warming (Detection range: Horizontally 4 meters/13.12ft, longitudinally 15 meters/49.21ft). Working logic: Vehicle's own speed is higher than 10km/Hour, AOA overtaking pre-warning mode is started:
A.This vehicle positively overtakes the other vehicles with speed and the target object is within the alarming scope, it will produce the Level 1 Warning until the target object leaves the warning area, and the warning is canceled.
B.This vehicle positively overtakes the other vehicles with speed, the target object is within the alarming scope and the turn signal lamp on the corresponding side is turned on, it will produce the Level 2 Warning until the target object leaves the alarming area, and the warning is canceled.
4.RCT Reversing Pre-warning (Detection range: Horizontally 5 meters/16.40ft, longitudinally 5 meters/16.40ft). Working logic: Put into R (reversing gear), RCT revering pre-warning mode is started: When the target object enters the alarming scope, it will produce the Level 2 Warning until the target object leaves the alarming area, and the warning is canceled.

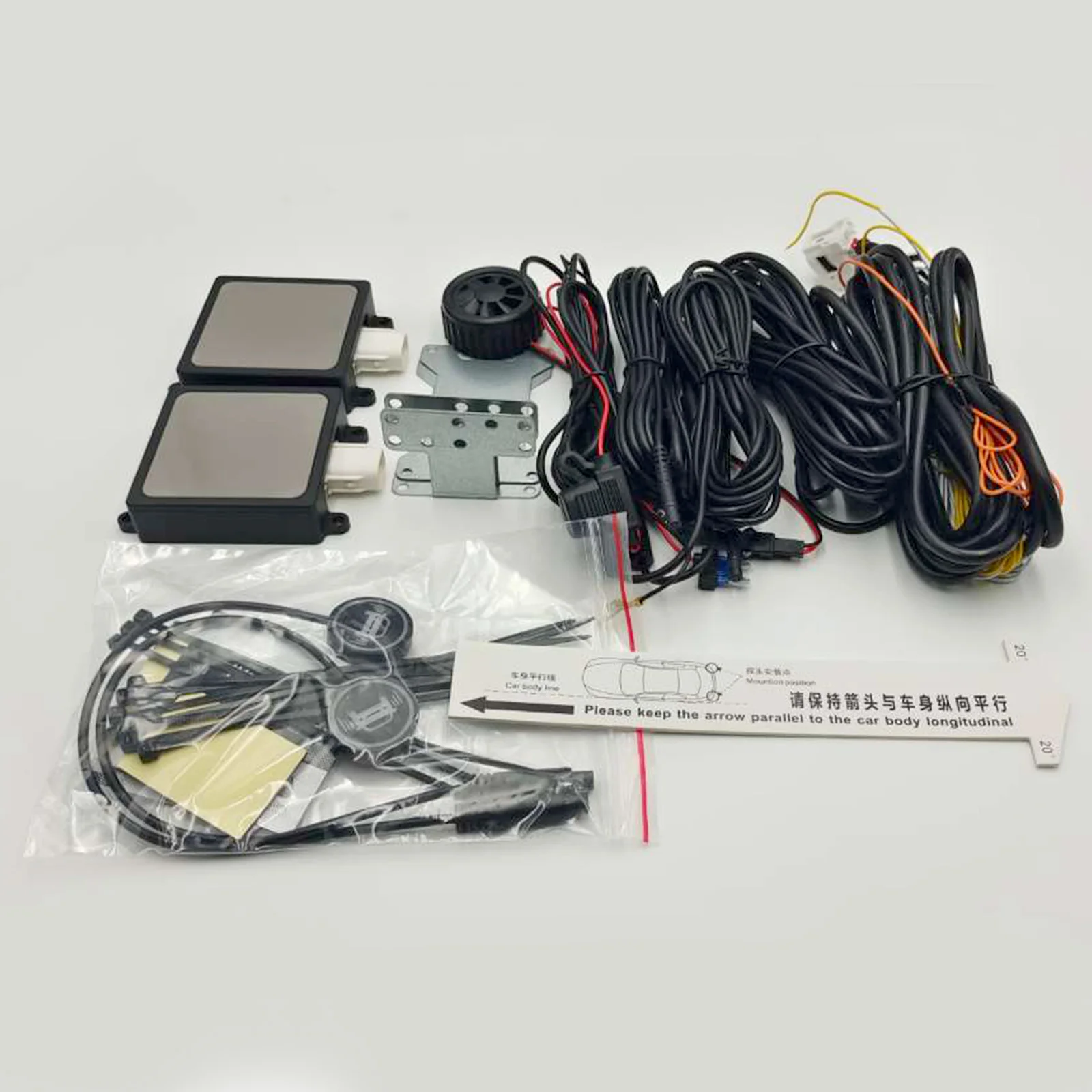

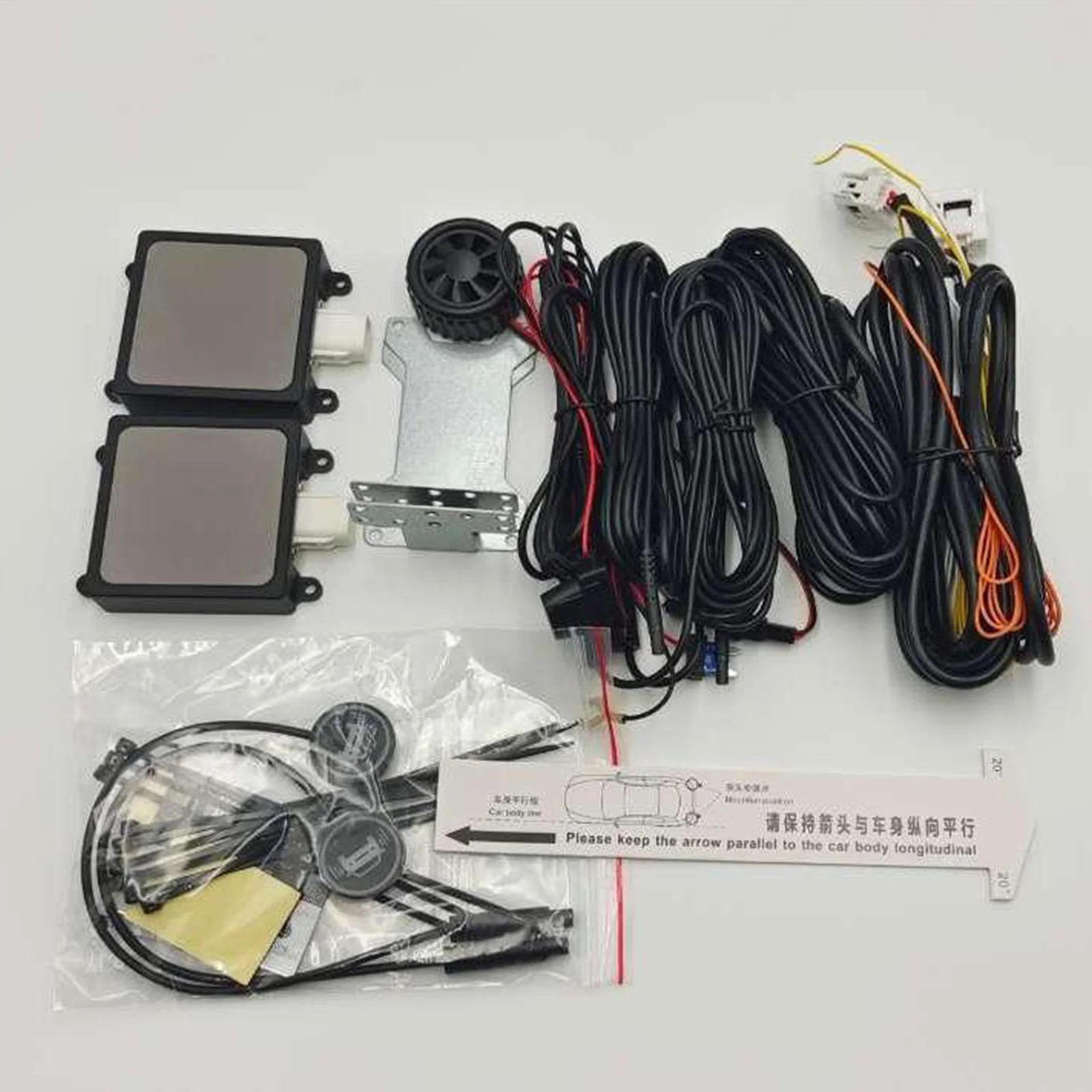

What You Get: 77-81Ghz millimeter wave radar*2, In-vehicle warning light*2, Power cord with buzzer*1, Power extension cord*1 (5 meters), Indicator light extension cord*2, Radar line*1 (short line left , long line right), Mounting bracket*2, Cable ties*some, Spare double-sided tape*2, Self-tapping screws*some, Adhesion promoter*2, Angle ruler*1, Manual*1.

Specifications:
Applicable conditions: Universal (There must be no metal objects in front of the 2 radar signals to block the radar).
Working voltage: 8-36V
Operating frequency band: 77-81Ghz
Working temperature: -40℃ to 85℃/-40℉ to 185℉
Power consumption: <2W Waterproof level: IP67 Distance resolution: 0.5m Range accuracy: Superior to 0.18m Transceiver antenna: dual-transmit and four-receive Radar chip: TI MCU chip: ST

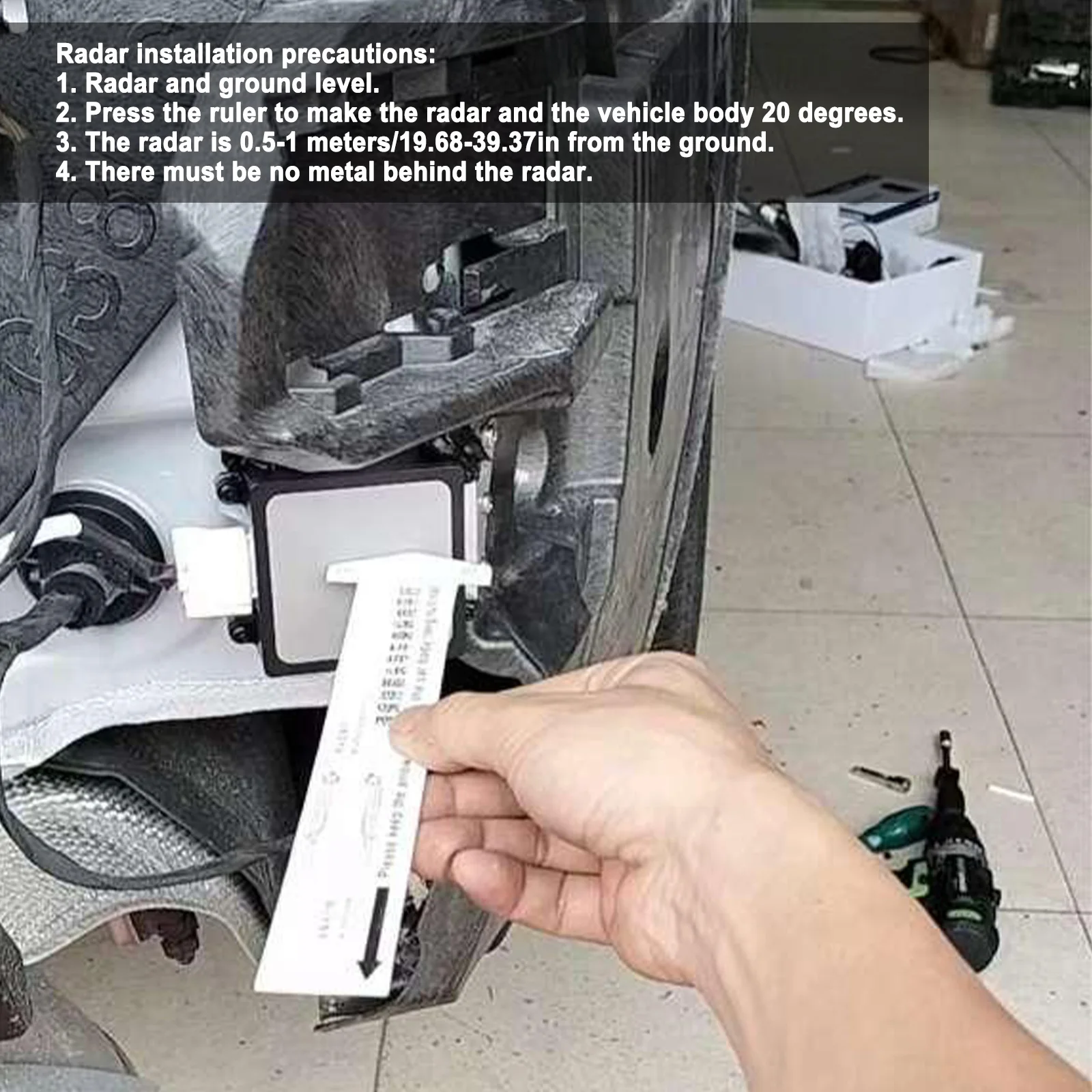

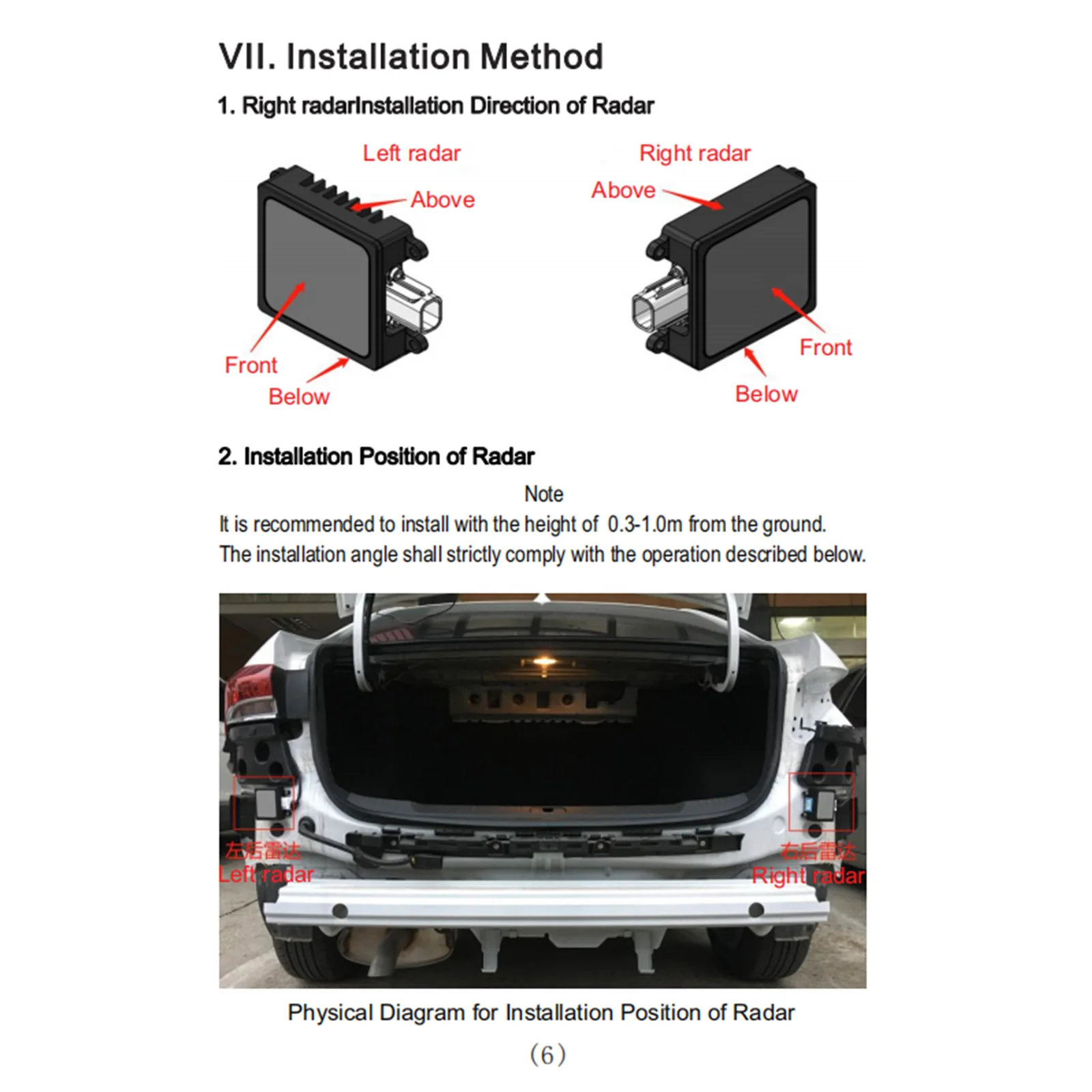

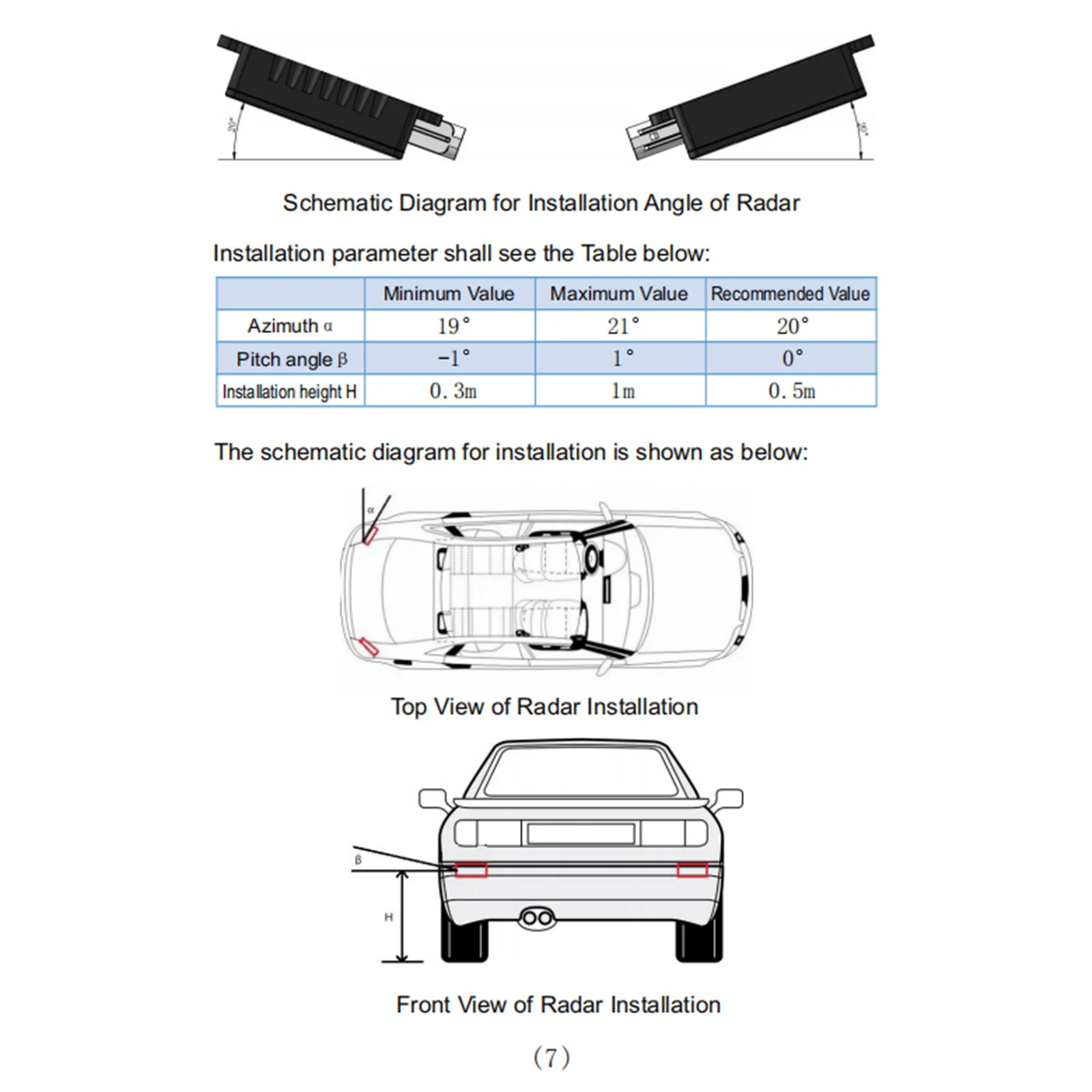

Note: It is recommended that the installation be carried out by professionals. The installation angle of radar will affect the detection distance and effect. Please install it strictly according to the instructions. Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 10-30mm.
