SPECIFICATIONS

Name: SA6 6GHz Spectrum Analyzer
Brand: Par Masters
Price: 268.48 USD
Availability: InStock

Brand Name: meterk

Model Number: SA6 Spectrum Analyzer

Interface: USB

Average Noise Level: -89dBm & Under

Origin: Mainland China

Display Size: 3.0 - 4.9 Inches

Certification: CE

DIY Supplies: ELECTRICAL

Choice: yes

semi_Choice: yes

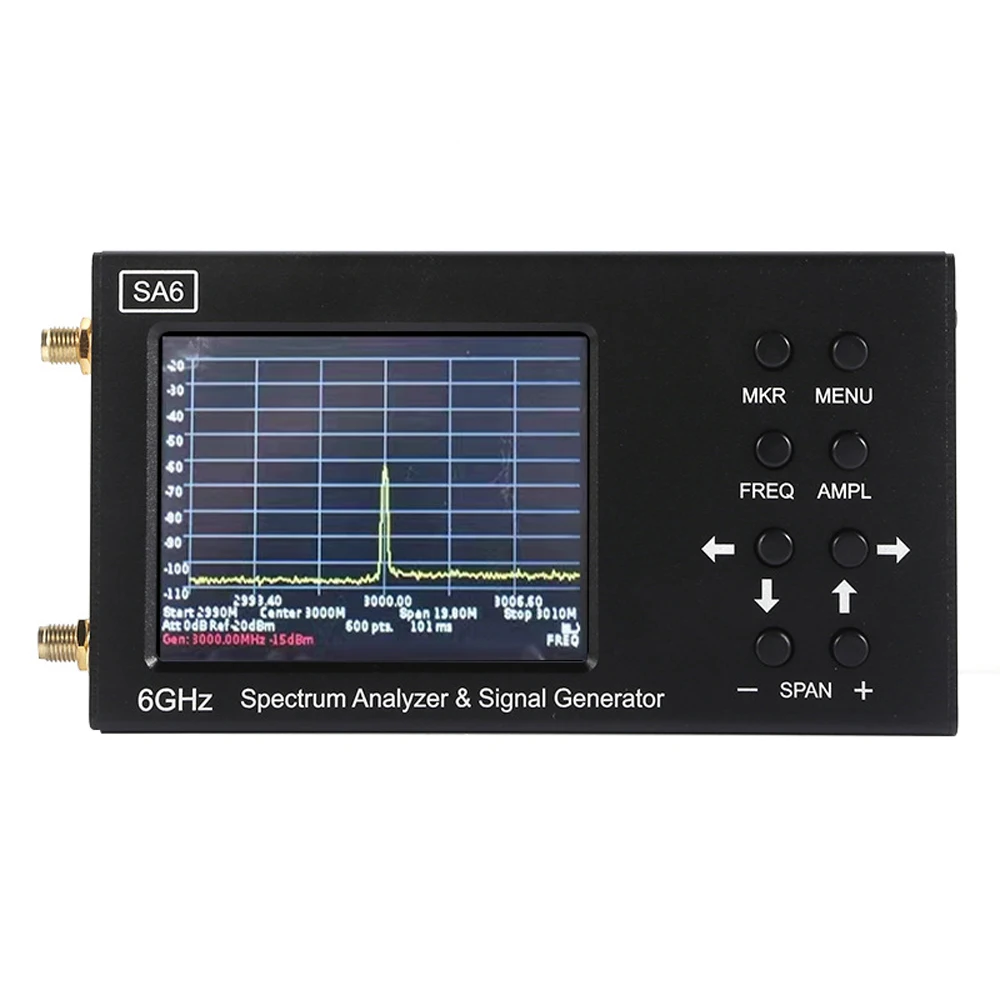

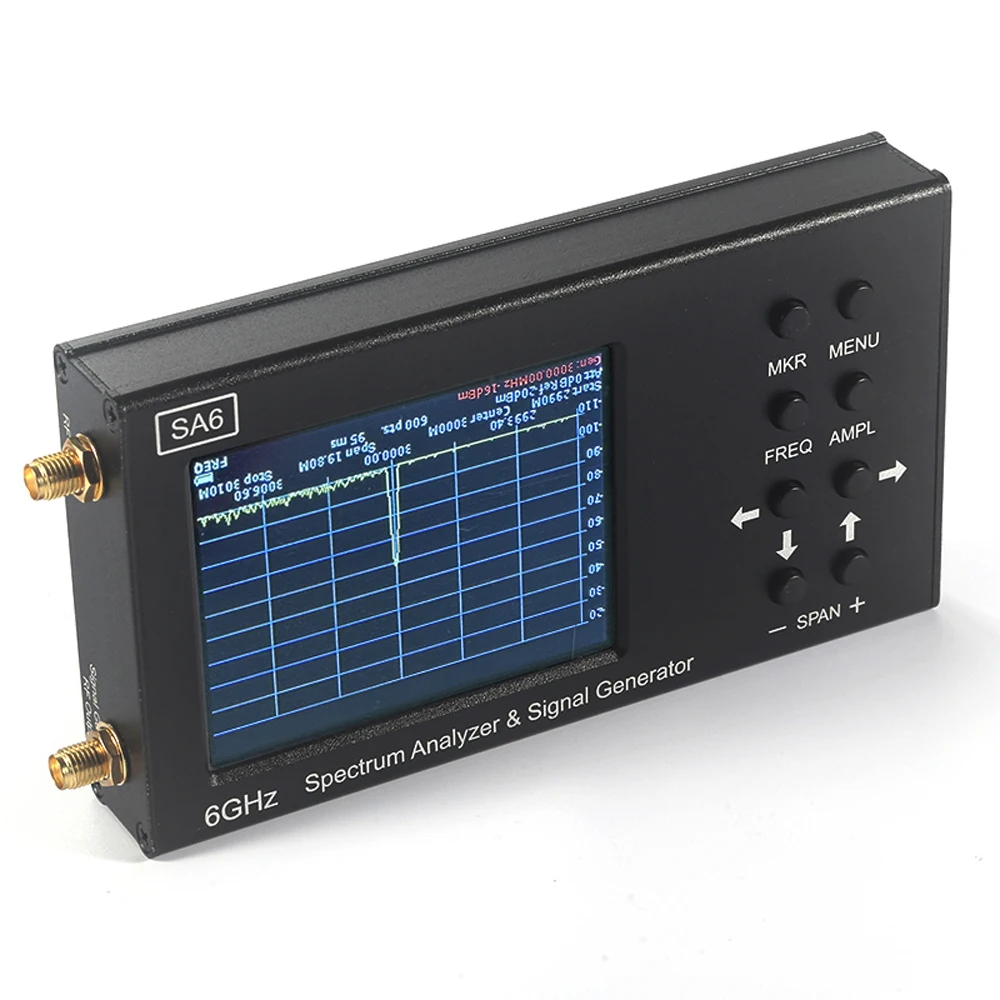

SA6 is a simple portable spectrum analyzer and signal source designed to display the signal spectrum in the frequency range of 35 to 6200 MHz.

Features:
1. This SA6 Spectrum Analyzer built-in signal generator, when not doing spectrum analyzer, it can be used as signal generator.

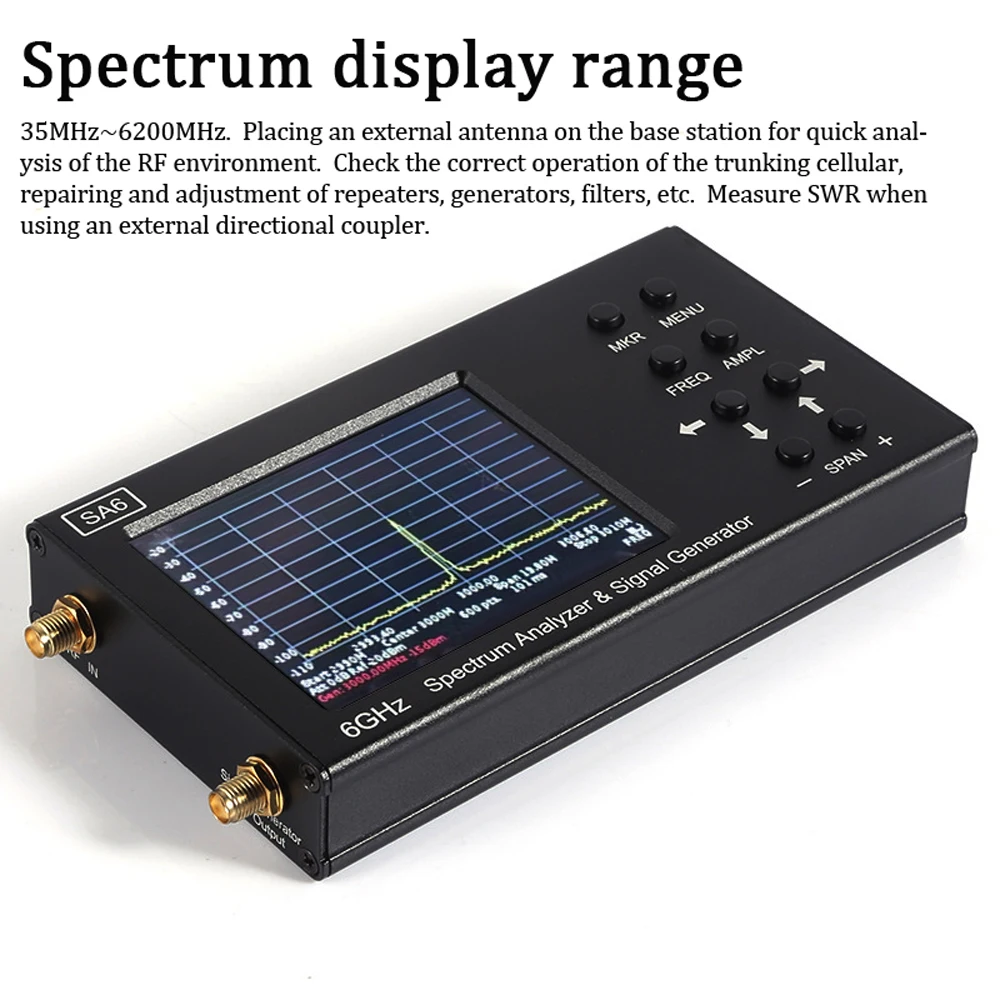

2. Spectrum display range: 35MHz~6200MHz. Placing an external antenna on the base station for quick analysis of the Radio Freqency environment. Check the correct operation of the trunking cellular, repairing and adjustment of repeaters, generators, filters, etc. Measure SWR when using an external directional coupler.

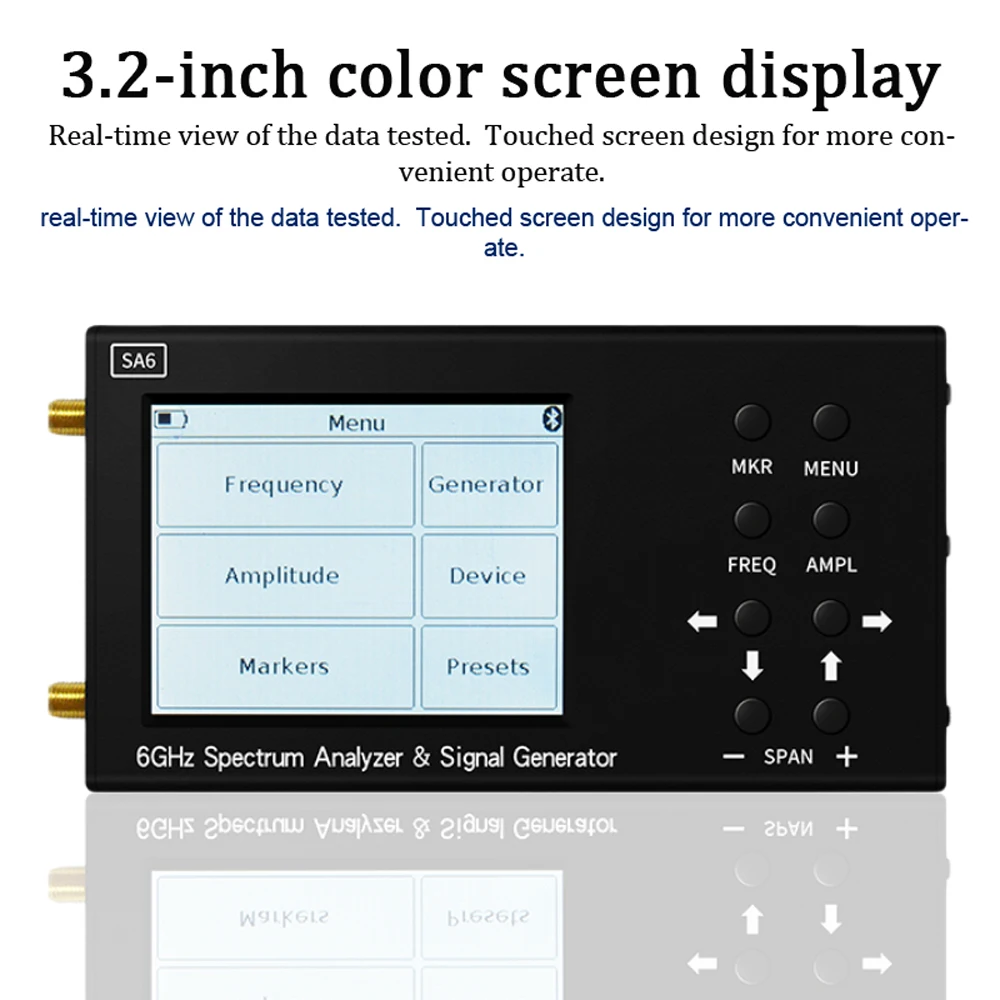

3. 3.2-inch color screen display, real-time view of the data tested. Touched screen design for more convenient operate.
4. Built-in large capacity 3000mAh battery, rechargeable, you don't need to worry its battery.

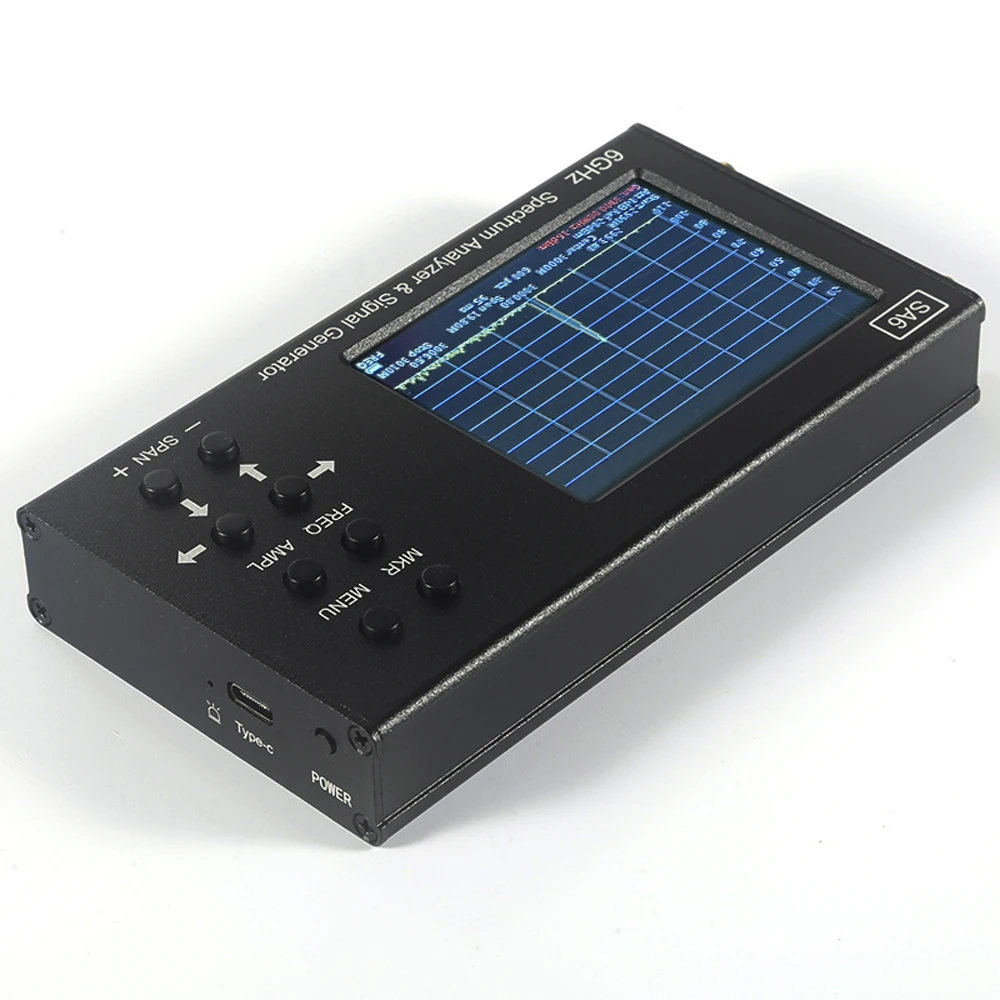

5. SA6 Spectrum Analyzer can be connected to computers via USB to transfer data to computers.

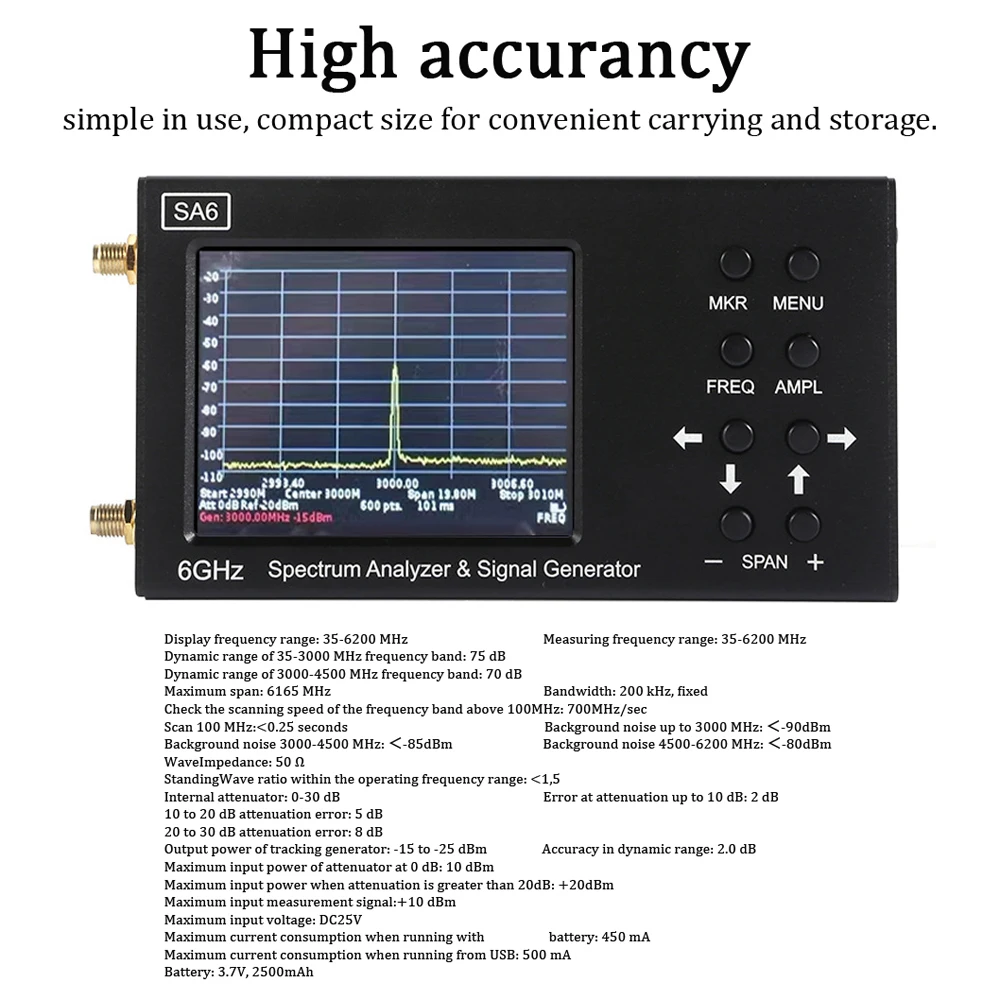

6. High accurancy and simple in use, compact size for convenient carrying and storage.

Specifications:
Type: Set A, Set B (optional)
Main color: black
Display frequency range: 35-6200 MHz
Measuring frequency range: 35-6200 MHz
Dynamic range of 35-3000 MHz frequency band: 75 dB
Dynamic range of 3000-4500 MHz frequency band: 70 dB
Maximum span: 6165 MHz
Bandwidth: 200 kHz, fixed
Check the scanning speed of the frequency band above 100MHz: 700MHz/sec
Scan 100 MHz:<0.25 seconds
Background noise up to 3000 MHz: <-90dBm
Background noise 3000-4500 MHz: <-85dBm
Background noise 4500-6200 MHz: <-80dBm
WaveImpedance: 50 Ω
StandingWave ratio within the operating frequency range: <1,5
Internal attenuator: 0-30 dB
Error at attenuation up to 10 dB: 2 dB
10 to 20 dB attenuation error: 5 dB
20 to 30 dB attenuation error: 8 dB
Output power of tracking generator: -15 to -25 dBm
Accuracy in dynamic range: 2.0 dB
Maximum input power of attenuator at 0 dB: 10 dBm
Maximum input power when attenuation is greater than 20dB: +20dBm

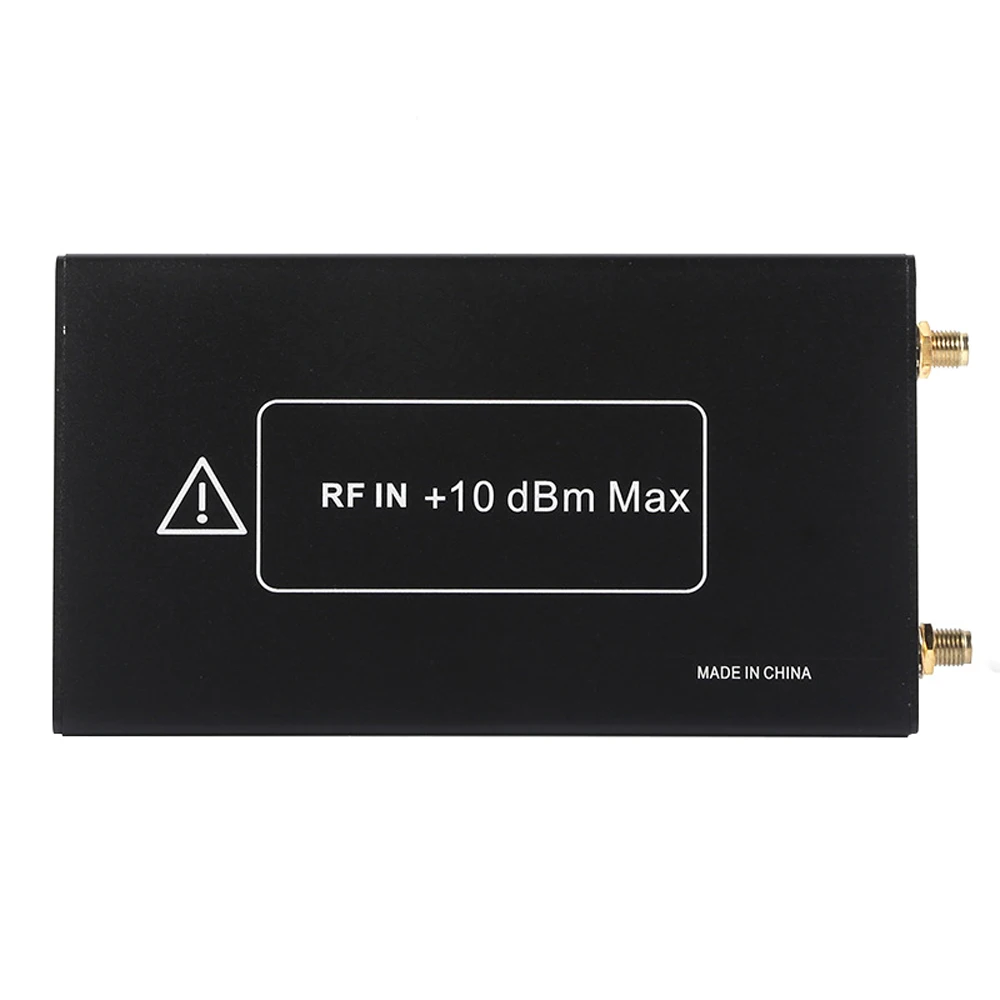

Maximum input measurement signal:+10 dBm
Maximum input voltage: DC25V
Maximum current consumption when running with battery: 450 mA
Maximum current consumption when running from USB: 500 mA
Battery: 3.7V, 2500mAh
Item size: 150 * 75 * 23mm / 5.9 * 3.0 * 0.9in
Package size: 210 * 115 * 35mm / 8.3 * 4.5 * 1.4in
Package weight:
Set A: 460g / 1.0lb
Set B: 495g / 1.1lb

Packing List:
Set A:
1 * Spectrum Analyzer
2 * Long Cable
1 * USB Cable
1 * Connector
1 * Touching Screen Pen
1 * User Manual

Set B:
1 * Spectrum Analyzer
2 * Long Cable
1 * One Tow Two Cable
1 * USB Cable
5 * Connector
1 * Touching Screen Pen
1 * Probe
1 * User Manual
